THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys................. 12
▫Ignition Key Removal.................. 12
▫Key-In-Ignition Reminder................ 13
Sentry Key........................... 14
▫Replacement Keys..................... 15
▫Customer Key Programming............. 16
▫General Information.................... 17
Vehicle Security Alarm — If Equipped........ 17
▫To Arm The System.................... 18▫To Disarm The System.................. 18
Illuminated Entry....................... 19
Remote Keyless Entry.................... 19
▫To Unlock The Doors And Liftgate......... 20
▫To Lock The Doors And Liftgate........... 21
▫Express Down Window Feature —
If Equipped.......................... 22
▫Using The Panic Alarm................. 23
▫Programming Additional Transmitters....... 23
2
Page 19 of 459
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm system monitors the vehicle
doors, liftgate, and ignition for unauthorized operation.
When the Vehicle Security Alarm is activated, the system
provides both audible and visual signals. The horn will
sound repeatedly for three minutes, while the headlights
and taillights will flash for an additional 15 minutes.
NOTE:The Panic and Security alarms are quite differ-
ent. Please take a moment to activate the Panic and
Security modes to hear the differences in the horn. In case
one should go off in the future, you will need to know
which mode has been activated in order to deactivate it.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2
Page 20 of 459
To Arm the System:
Remove the keys from the ignition switch and exit the
vehicle. Lock the doors and liftgate by pressing the
power door LOCK switch or the LOCK button on the
Remote Keyless Entry (RKE) transmitter. Close all the
doors.
The Vehicle Security Light (located in the instrument
cluster) will flash rapidly for about 16 seconds to signal
that the system is arming. During this 16 second pre-arm
period, opening any door or the liftgate will cancel the
arming process. If the system arms successfully, the
Vehicle Security Light will flash at a slower rate to
indicate the alarm is set. Manually locking the doors with
the door lock plunger (located on the inside of the doors)
or the driver’s door key lock cylinder will not arm the
system.
To Disarm the System:
Either press the UNLOCK button on the RKE transmitter
or insert a valid Sentry Keyinto the ignition lock
cylinder and turn the key to the ON position.
The Vehicle Security Alarm system is designed to protect
your vehicle; however, you can create conditions where
the system will give you a false alarm. If the previously
described arming sequence has occurred, the system will
arm regardless of whether you are inside or outside the
vehicle. If you remain inside the vehicle and open a door,
the alarm will sound. If this occurs, disarm the system.
Manually unlocking the doors with the door lock plunger
(located on the inside of the doors) or the driver’s door
key lock cylinder will not disarm the system.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times when you
unlock the doors. Check the vehicle for tampering.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 21 of 459

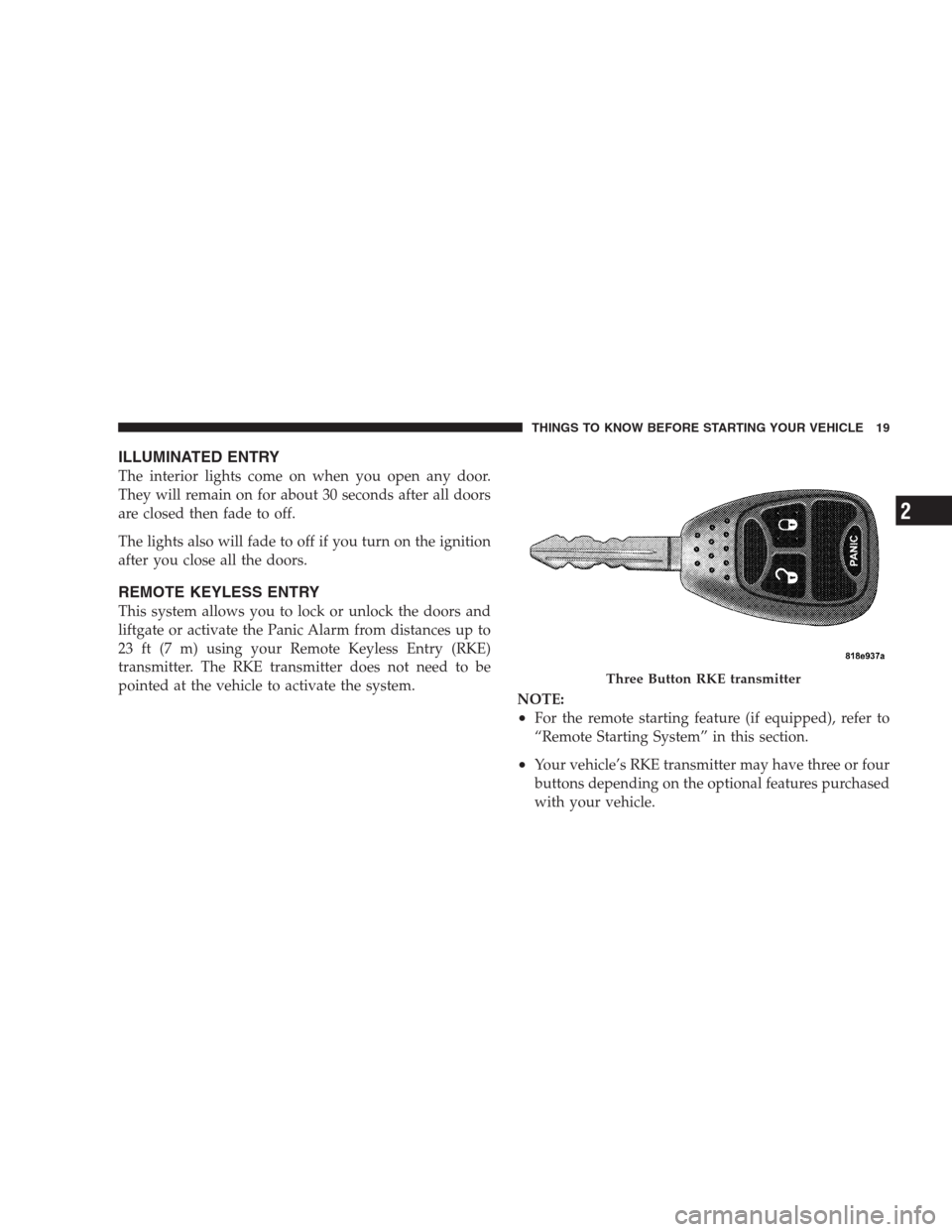

ILLUMINATED ENTRY
The interior lights come on when you open any door.
They will remain on for about 30 seconds after all doors
are closed then fade to off.
The lights also will fade to off if you turn on the ignition
after you close all the doors.
REMOTE KEYLESS ENTRY
This system allows you to lock or unlock the doors and
liftgate or activate the Panic Alarm from distances up to
23 ft (7 m) using your Remote Keyless Entry (RKE)
transmitter. The RKE transmitter does not need to be
pointed at the vehicle to activate the system.
NOTE:
•For the remote starting feature (if equipped), refer to
“Remote Starting System” in this section.
•Your vehicle’s RKE transmitter may have three or four
buttons depending on the optional features purchased
with your vehicle.
Three Button RKE transmitter
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2
Page 22 of 459

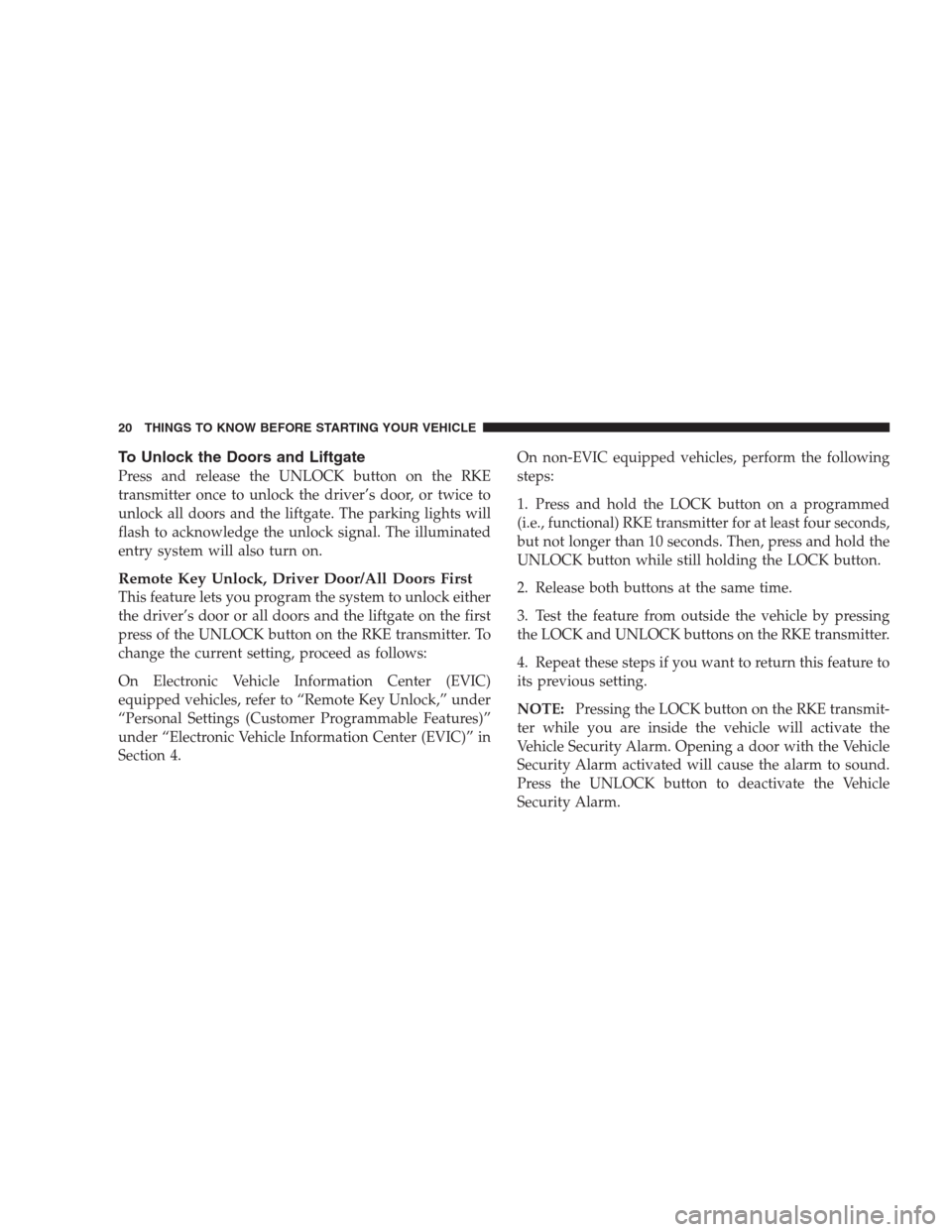

To Unlock the Doors and Liftgate
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door, or twice to
unlock all doors and the liftgate. The parking lights will
flash to acknowledge the unlock signal. The illuminated
entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors and the liftgate on the first
press of the UNLOCK button on the RKE transmitter. To
change the current setting, proceed as follows:
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, refer to “Remote Key Unlock,” under
“Personal Settings (Customer Programmable Features)”
under “Electronic Vehicle Information Center (EVIC)” in
Section 4.On non-EVIC equipped vehicles, perform the following
steps:
1. Press and hold the LOCK button on a programmed
(i.e., functional) RKE transmitter for at least four seconds,
but not longer than 10 seconds. Then, press and hold the
UNLOCK button while still holding the LOCK button.
2. Release both buttons at the same time.
3. Test the feature from outside the vehicle by pressing
the LOCK and UNLOCK buttons on the RKE transmitter.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 23 of 459

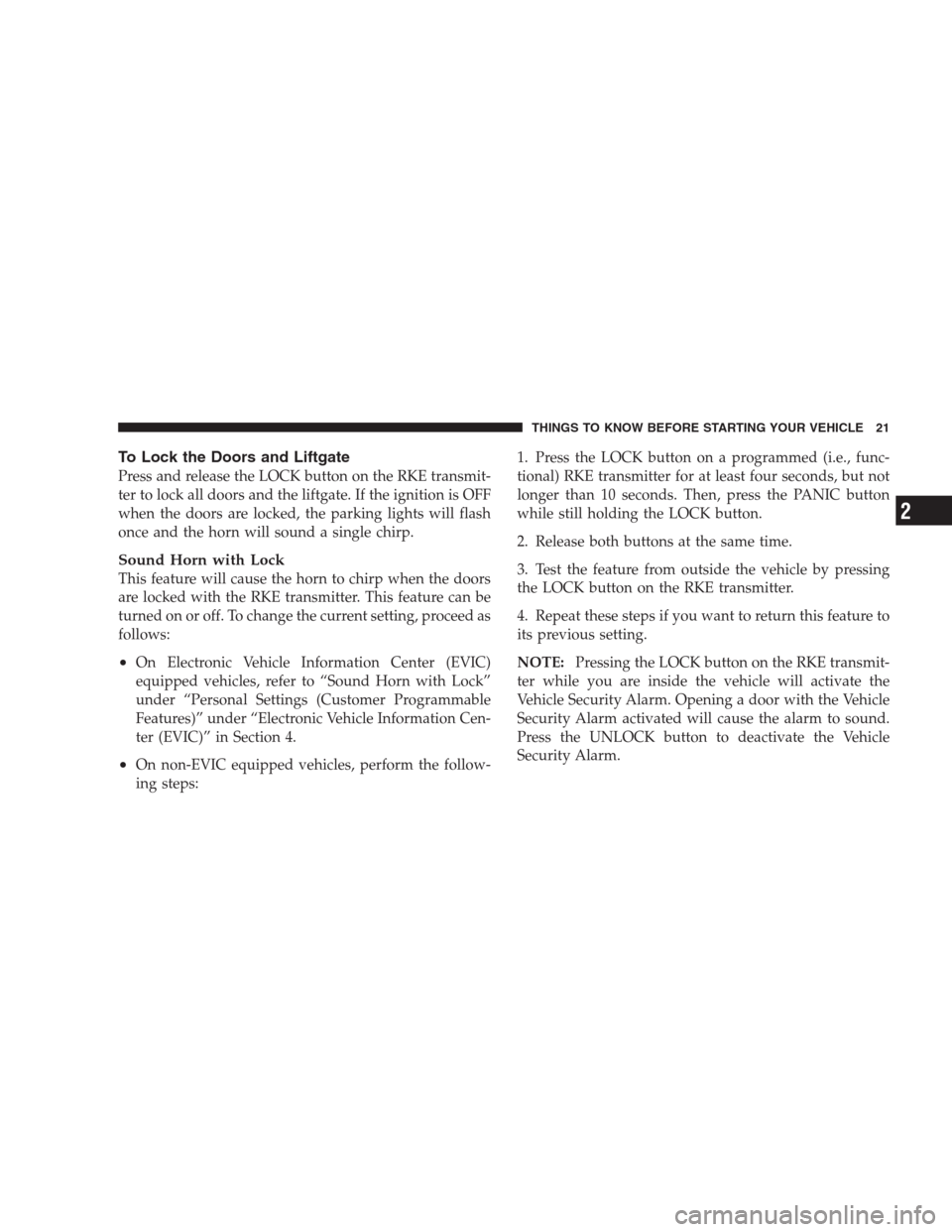

To Lock the Doors and Liftgate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors and the liftgate. If the ignition is OFF
when the doors are locked, the parking lights will flash
once and the horn will sound a single chirp.
Sound Horn with Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or off. To change the current setting, proceed as
follows:
•On Electronic Vehicle Information Center (EVIC)
equipped vehicles, refer to “Sound Horn with Lock”
under “Personal Settings (Customer Programmable
Features)” under “Electronic Vehicle Information Cen-
ter (EVIC)” in Section 4.
•On non-EVIC equipped vehicles, perform the follow-
ing steps:1. Press the LOCK button on a programmed (i.e., func-
tional) RKE transmitter for at least four seconds, but not
longer than 10 seconds. Then, press the PANIC button
while still holding the LOCK button.
2. Release both buttons at the same time.
3. Test the feature from outside the vehicle by pressing
the LOCK button on the RKE transmitter.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2
Page 24 of 459

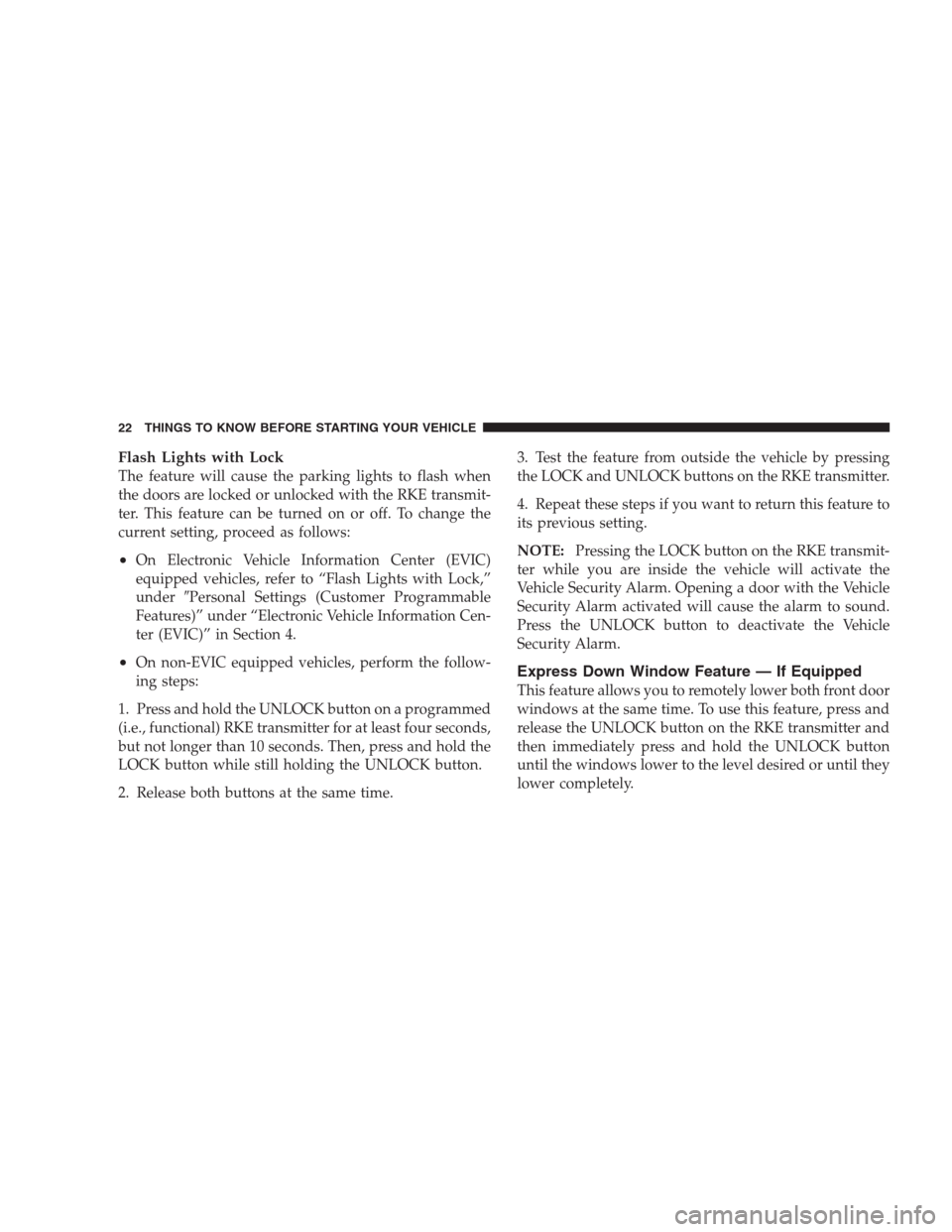

Flash Lights with Lock
The feature will cause the parking lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or off. To change the
current setting, proceed as follows:
•On Electronic Vehicle Information Center (EVIC)
equipped vehicles, refer to “Flash Lights with Lock,”
underPersonal Settings (Customer Programmable
Features)” under “Electronic Vehicle Information Cen-
ter (EVIC)” in Section 4.
•On non-EVIC equipped vehicles, perform the follow-
ing steps:
1. Press and hold the UNLOCK button on a programmed
(i.e., functional) RKE transmitter for at least four seconds,
but not longer than 10 seconds. Then, press and hold the
LOCK button while still holding the UNLOCK button.
2. Release both buttons at the same time.3. Test the feature from outside the vehicle by pressing
the LOCK and UNLOCK buttons on the RKE transmitter.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.Express Down Window Feature — If Equipped
This feature allows you to remotely lower both front door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 25 of 459

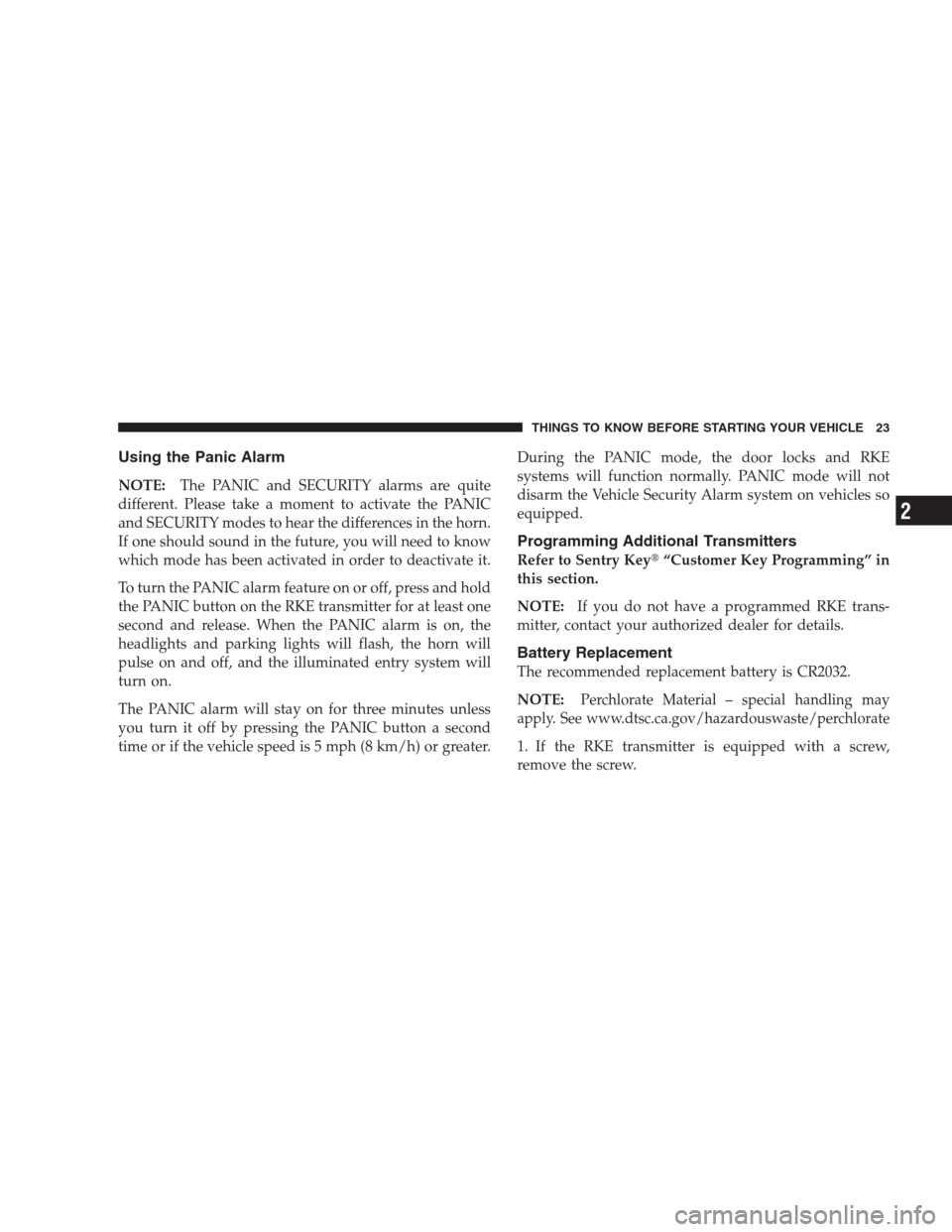

Using the Panic Alarm
NOTE:The PANIC and SECURITY alarms are quite
different. Please take a moment to activate the PANIC
and SECURITY modes to hear the differences in the horn.
If one should sound in the future, you will need to know
which mode has been activated in order to deactivate it.
To turn the PANIC alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the PANIC alarm is on, the
headlights and parking lights will flash, the horn will
pulse on and off, and the illuminated entry system will
turn on.
The PANIC alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater.During the PANIC mode, the door locks and RKE
systems will function normally. PANIC mode will not
disarm the Vehicle Security Alarm system on vehicles so
equipped.
Programming Additional Transmitters
Refer to Sentry Key“Customer Key Programming” in
this section.
NOTE:If you do not have a programmed RKE trans-
mitter, contact your authorized dealer for details.
Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
Perchlorate Material – special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
1. If the RKE transmitter is equipped with a screw,
remove the screw.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2
Page 28 of 459

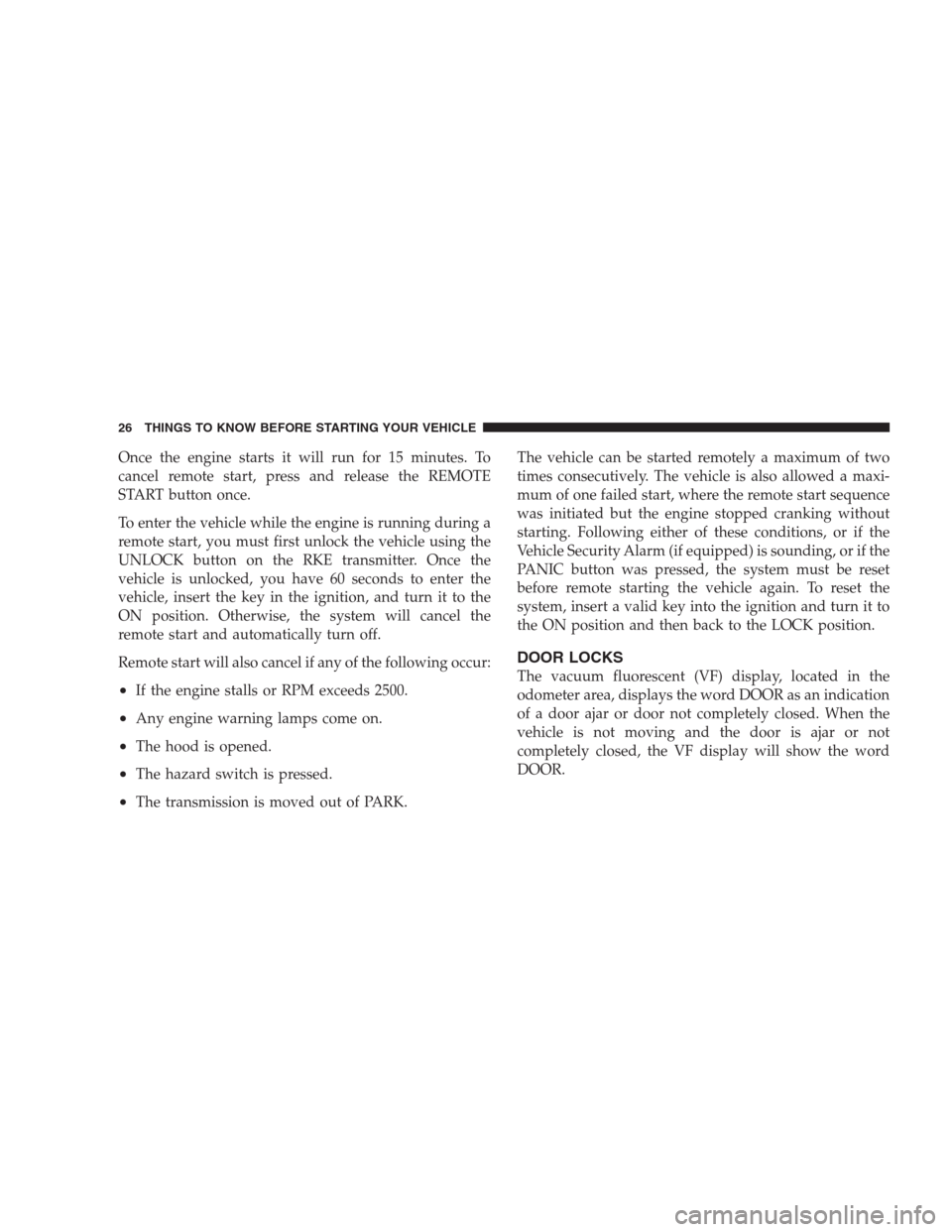

Once the engine starts it will run for 15 minutes. To
cancel remote start, press and release the REMOTE
START button once.
To enter the vehicle while the engine is running during a
remote start, you must first unlock the vehicle using the
UNLOCK button on the RKE transmitter. Once the
vehicle is unlocked, you have 60 seconds to enter the
vehicle, insert the key in the ignition, and turn it to the
ON position. Otherwise, the system will cancel the
remote start and automatically turn off.
Remote start will also cancel if any of the following occur:
•If the engine stalls or RPM exceeds 2500.
•Any engine warning lamps come on.
•The hood is opened.
•The hazard switch is pressed.
•The transmission is moved out of PARK.The vehicle can be started remotely a maximum of two
times consecutively. The vehicle is also allowed a maxi-
mum of one failed start, where the remote start sequence
was initiated but the engine stopped cranking without
starting. Following either of these conditions, or if the
Vehicle Security Alarm (if equipped) is sounding, or if the
PANIC button was pressed, the system must be reset
before remote starting the vehicle again. To reset the
system, insert a valid key into the ignition and turn it to
the ON position and then back to the LOCK position.
DOOR LOCKS
The vacuum fluorescent (VF) display, located in the
odometer area, displays the word DOOR as an indication
of a door ajar or door not completely closed. When the
vehicle is not moving and the door is ajar or not
completely closed, the VF display will show the word
DOOR.
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 146 of 459

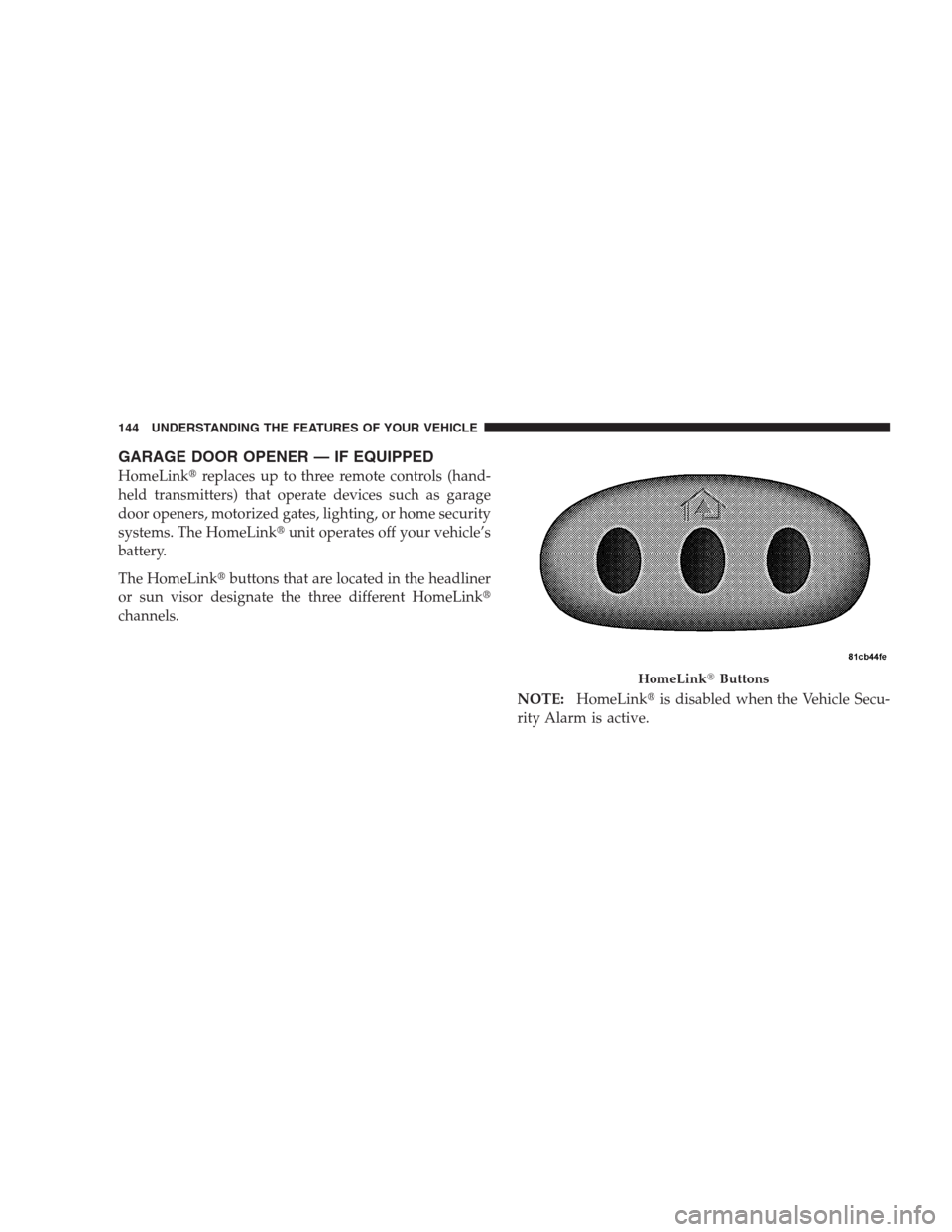

GARAGE DOOR OPENER — IF EQUIPPED
HomeLinkreplaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting, or home security
systems. The HomeLinkunit operates off your vehicle’s
battery.
The HomeLinkbuttons that are located in the headliner
or sun visor designate the three different HomeLink
channels.
NOTE:HomeLinkis disabled when the Vehicle Secu-
rity Alarm is active.
HomeLinkButtons
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
