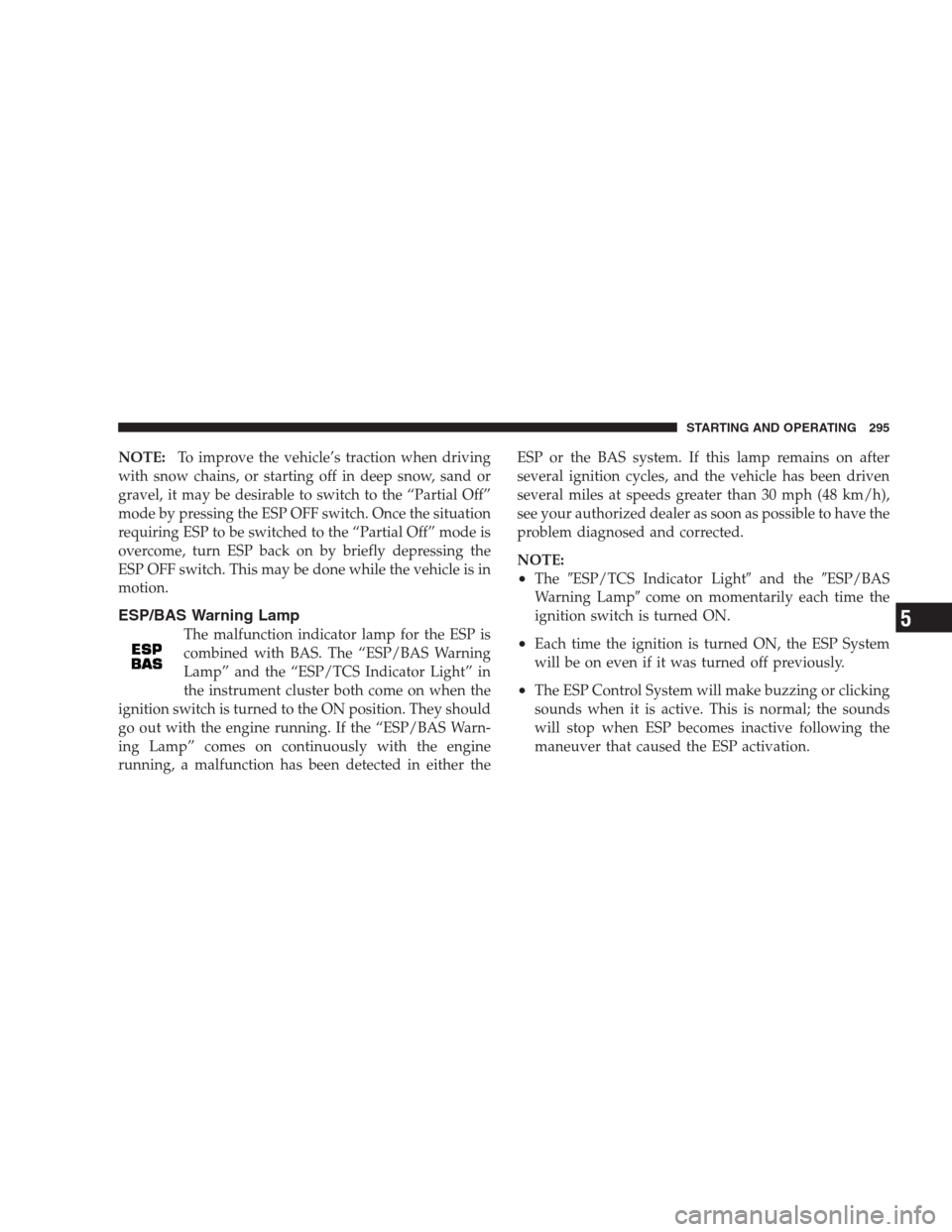

NOTE:To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand or
gravel, it may be desirable to switch to the “Partial Off”
mode by pressing the ESP OFF switch. Once the situation
requiring ESP to be switched to the “Partial Off” mode is
overcome, turn ESP back on by briefly depressing the
ESP OFF switch. This may be done while the vehicle is in
motion.
ESP/BAS Warning Lamp
The malfunction indicator lamp for the ESP is
combined with BAS. The “ESP/BAS Warning
Lamp” and the “ESP/TCS Indicator Light” in
the instrument cluster both come on when the
ignition switch is turned to the ON position. They should
go out with the engine running. If the “ESP/BAS Warn-
ing Lamp” comes on continuously with the engine
running, a malfunction has been detected in either theESP or the BAS system. If this lamp remains on after
several ignition cycles, and the vehicle has been driven
several miles at speeds greater than 30 mph (48 km/h),
see your authorized dealer as soon as possible to have the
problem diagnosed and corrected.
NOTE:
•TheESP/TCS Indicator Lightand theESP/BAS
Warning Lampcome on momentarily each time the
ignition switch is turned ON.
•Each time the ignition is turned ON, the ESP System
will be on even if it was turned off previously.
•The ESP Control System will make buzzing or clicking
sounds when it is active. This is normal; the sounds
will stop when ESP becomes inactive following the
maneuver that caused the ESP activation.
STARTING AND OPERATING 295
5
Page 322 of 459
light will turn off. The vehicle may need to be driven for up
to 20 minutes above 15 mph (25 km/h) in order for the
TPMS to receive this information.
Check TPMS Warning
When a system fault is detected, the Tire Pressure Moni-
toring Telltale light will flash on and off for 75 seconds
and then remain on solid. The system fault will also
sound a chime. If the ignition key is cycled, this sequence
will repeat, providing the system fault still exists. The
Tire Pressure Monitoring Telltale light will turn off when
the fault condition no longer exists. A system fault can
occur due to any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same Radio Frequencies as the
TPMS sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.
NOTE:
Vehicles with Full-Size Spare
1. The matching full-size spare wheel and tire assembly
has a tire pressure monitoring sensor that can be moni-
tored by the TPMS.
2. If you install the full-size spare in place of a road tire
that has a pressure below the low-pressure warning limit,
a chime will sound and the TPMS Telltale light will turn
on upon the next ignition key cycle.
3. Driving the vehicle for up to 20 minutes above 15 mph
(25 km/h) will turn off the TPMS Telltale light, as long as
no tire pressure is below the low-pressure warning limit
in any of the four active road tires.
320 STARTING AND OPERATING
Page 326 of 459
If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the Tire Pressure Monitoring Telltale
light will no longer flash, and theCHECK TPM SYS-
TEMmessage will no longer display, and a pressure
value will display in place of the dashes. A system fault
can occur due to any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the TPMS
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.NOTE:
Vehicles with Full-Size Spare
1. The matching full size spare wheel and tire assembly
has a tire pressure monitoring sensor that can be moni-
tored by the TPMS.
2. If you install the full size spare in place of a road tire
that has a pressure below the low-pressure warning limit,
a chime will sound and the TPMS Telltale light will turn
on upon the next ignition key cycle. In addition, the EVIC
will display a Low Pressure message and a graphic
showing the low tire pressure value flashing.
3. After driving the vehicle for up to 20 minutes above
15 mph (25 km/h) the TPMS Telltale light will turn OFF,
as long as no tire pressure is below the low-pressure
warning limit in any of the four active road tires.
4.
The EVIC will display a graphic showing the tire pressure
value in place of the flashing low tire pressure value. The
EVIC will also display a “SPARE LOW PRESSURE” message
to remind you to service the flat tire.
324 STARTING AND OPERATING
Page 453 of 459
Service Contract......................... 431
Service Engine Soon Light
(Malfunction Indicator).................... 186
Service Manuals........................ 433
Setting the Clock................202,216,220,229
Settings, Personal........................ 198
Shift Lock Manual Override................ 264
Shifting
Automatic Transmission..............265,270
Shoulder Belts........................... 38
Signals, Turn................131,176,404,405,406
Sliding Cargo Floor
LoadNGo .......................... 163
Snow Chains (Tire Chains)................. 314
Spare Tire.......................308,309,356
Specifications
Fuel (Gasoline)........................ 326
Oil ................................ 374
Speed Control (Cruise Control).............. 135Speedometer........................... 176
Starting............................... 259
Cold Weather......................... 259
Emergency (Jump Starting)............... 362
Engine Block Heater.................... 262
Engine Fails to Start.................... 260
Remote.............................. 25
Steering
Power...........................282,283
Tilt Column.......................... 134
Wheel, Tilt........................... 134
Steering Wheel Mounted Sound System
Controls.............................. 246
Storage............................... 159
Storage Bin............................ 159
Storage, Vehicle......................... 253
Sun Roof.............................. 150
Sun Visor Extension....................... 86
Sunroof Maintenance..................... 153
INDEX 451
