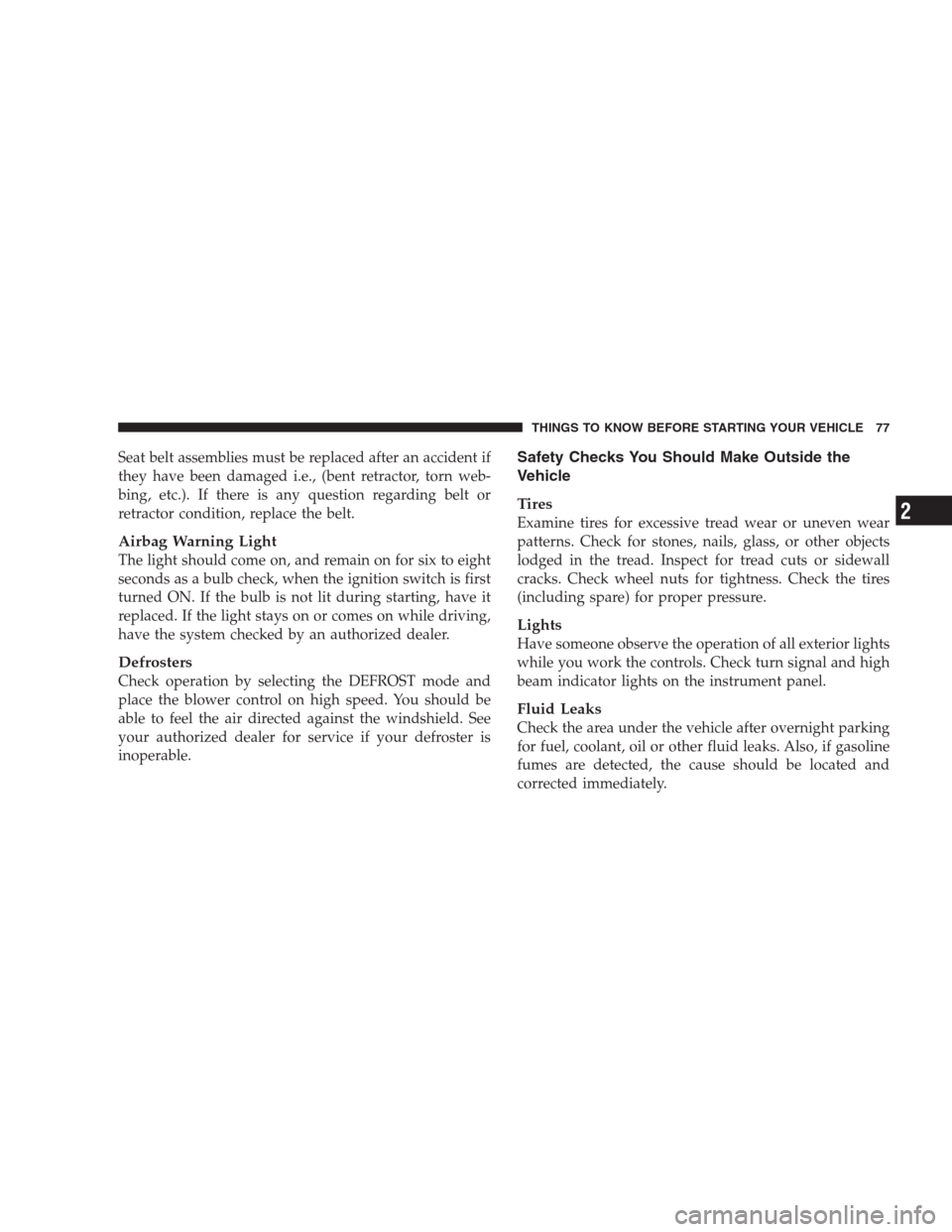

Seat belt assemblies must be replaced after an accident if
they have been damaged i.e., (bent retractor, torn web-
bing, etc.). If there is any question regarding belt or
retractor condition, replace the belt.
Airbag Warning Light
The light should come on, and remain on for six to eight
seconds as a bulb check, when the ignition switch is first
turned ON. If the bulb is not lit during starting, have it
replaced. If the light stays on or comes on while driving,
have the system checked by an authorized dealer.
Defrosters
Check operation by selecting the DEFROST mode and
place the blower control on high speed. You should be
able to feel the air directed against the windshield. See
your authorized dealer for service if your defroster is
inoperable.
Safety Checks You Should Make Outside the
Vehicle
Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect for tread cuts or sidewall
cracks. Check wheel nuts for tightness. Check the tires
(including spare) for proper pressure.
Lights
Have someone observe the operation of all exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid Leaks
Check the area under the vehicle after overnight parking
for fuel, coolant, oil or other fluid leaks. Also, if gasoline
fumes are detected, the cause should be located and
corrected immediately.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77
2

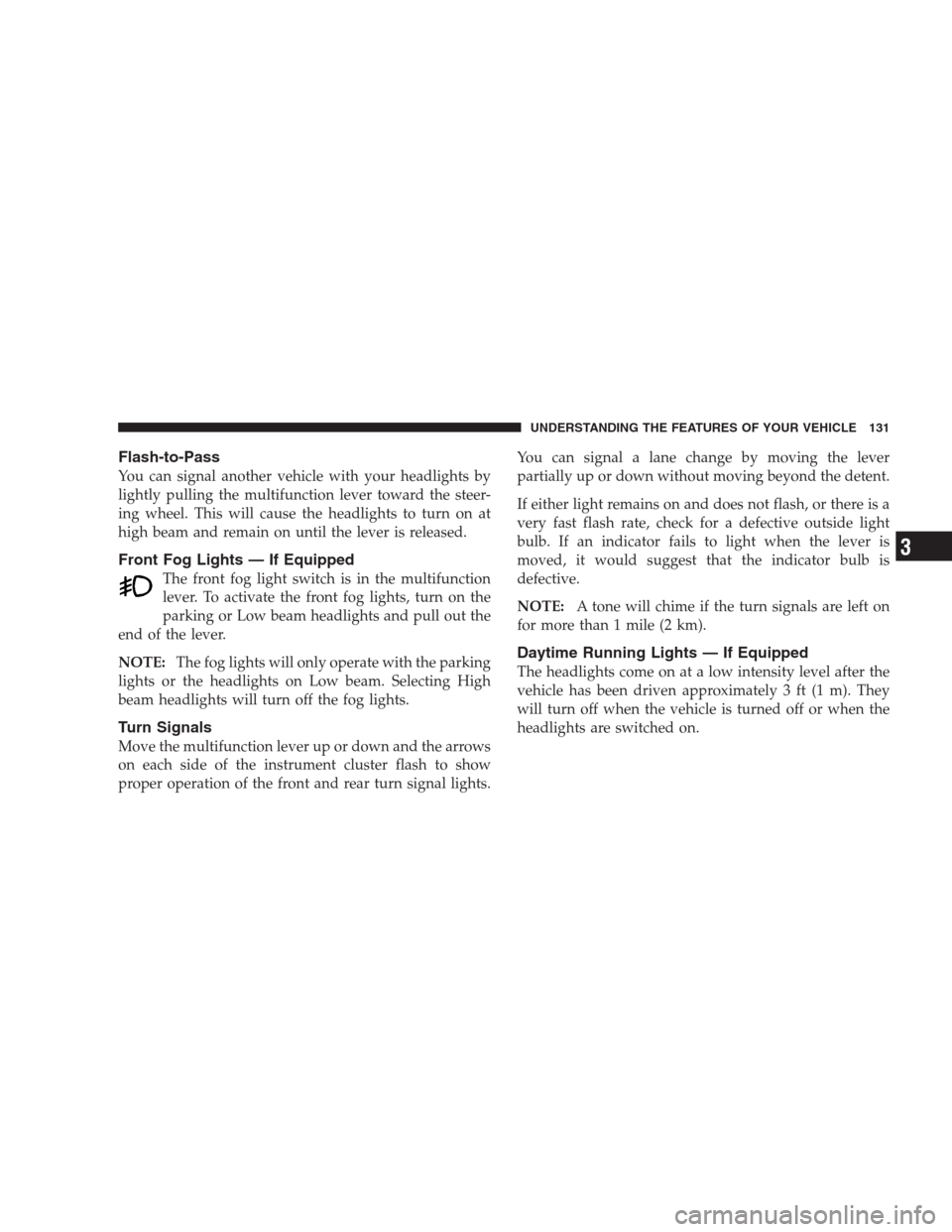

Flash-to-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward the steer-
ing wheel. This will cause the headlights to turn on at
high beam and remain on until the lever is released.
Front Fog Lights — If Equipped
The front fog light switch is in the multifunction
lever. To activate the front fog lights, turn on the
parking or Low beam headlights and pull out the
end of the lever.
NOTE:The fog lights will only operate with the parking
lights or the headlights on Low beam. Selecting High
beam headlights will turn off the fog lights.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.You can signal a lane change by moving the lever
partially up or down without moving beyond the detent.
If either light remains on and does not flash, or there is a
very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
NOTE:A tone will chime if the turn signals are left on
for more than 1 mile (2 km).
Daytime Running Lights — If Equipped
The headlights come on at a low intensity level after the
vehicle has been driven approximately 3 ft (1 m). They
will turn off when the vehicle is turned off or when the
headlights are switched on.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

If the vehicle electronics sense that the vehicle has
traveled about one mile with the turn signals on, a
continuous chime will sound to alert you to turn the
signals off. If either indicator flashes at a rapid rate, check
for a defective outside light bulb.

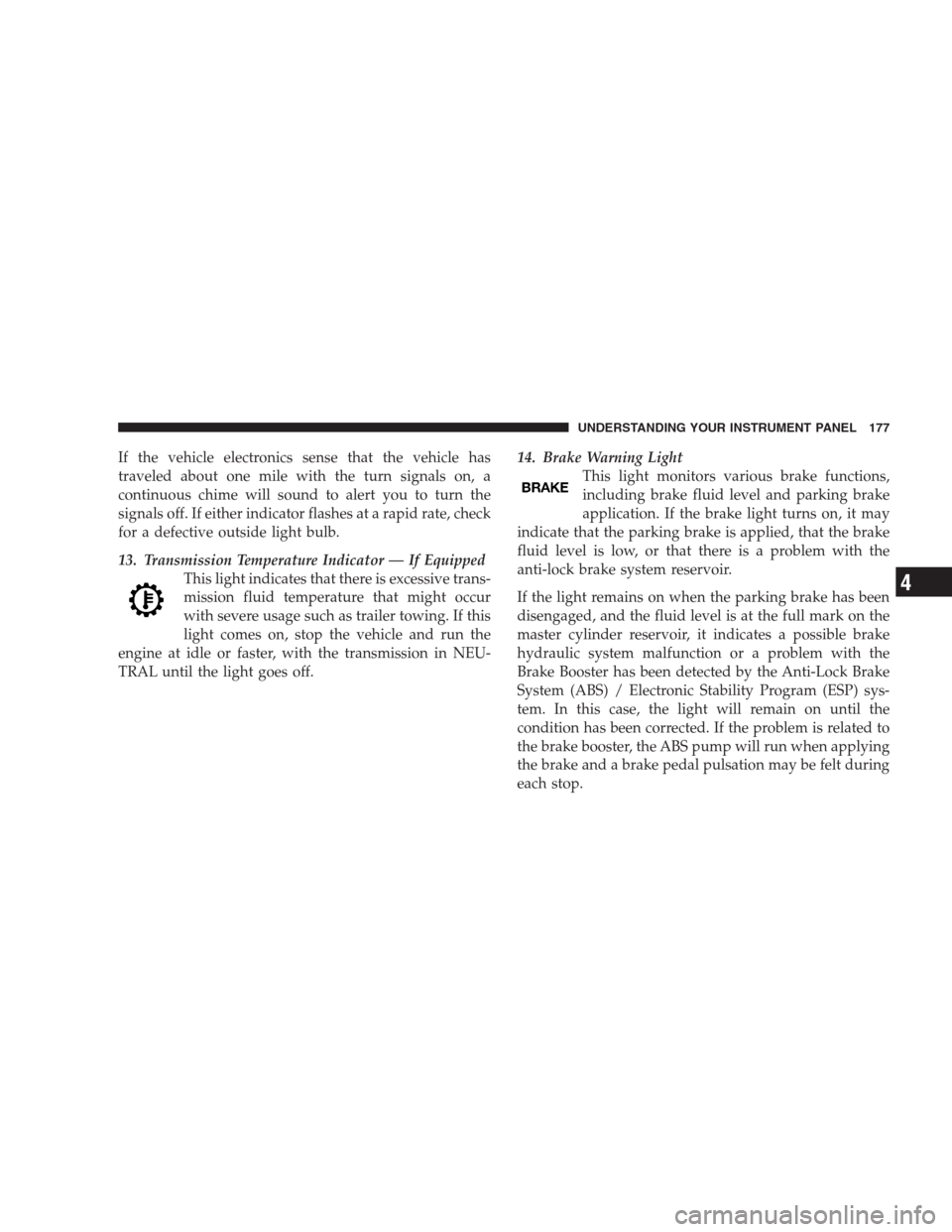

13. Transmission Temperature Indicator — If Equipped
This light indicates that there is excessive trans-
mission fluid temperature that might occur
with severe usage such as trailer towing. If this
light comes on, stop the vehicle and run the
engine at idle or faster, with the transmission in NEU-
TRAL until the light goes off.14. Brake Warning Light
This light monitors various brake functions,
including brake fluid level and parking brake
application. If the brake light turns on, it may
indicate that the parking brake is applied, that the brake
fluid level is low, or that there is a problem with the
anti-lock brake system reservoir.
If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or a problem with the
Brake Booster has been detected by the Anti-Lock Brake
System (ABS) / Electronic Stability Program (ESP) sys-
tem. In this case, the light will remain on until the
condition has been corrected. If the problem is related to
the brake booster, the ABS pump will run when applying
the brake and a brake pedal pulsation may be felt during
each stop.
UNDERSTANDING YOUR INSTRUMENT PANEL 177
4

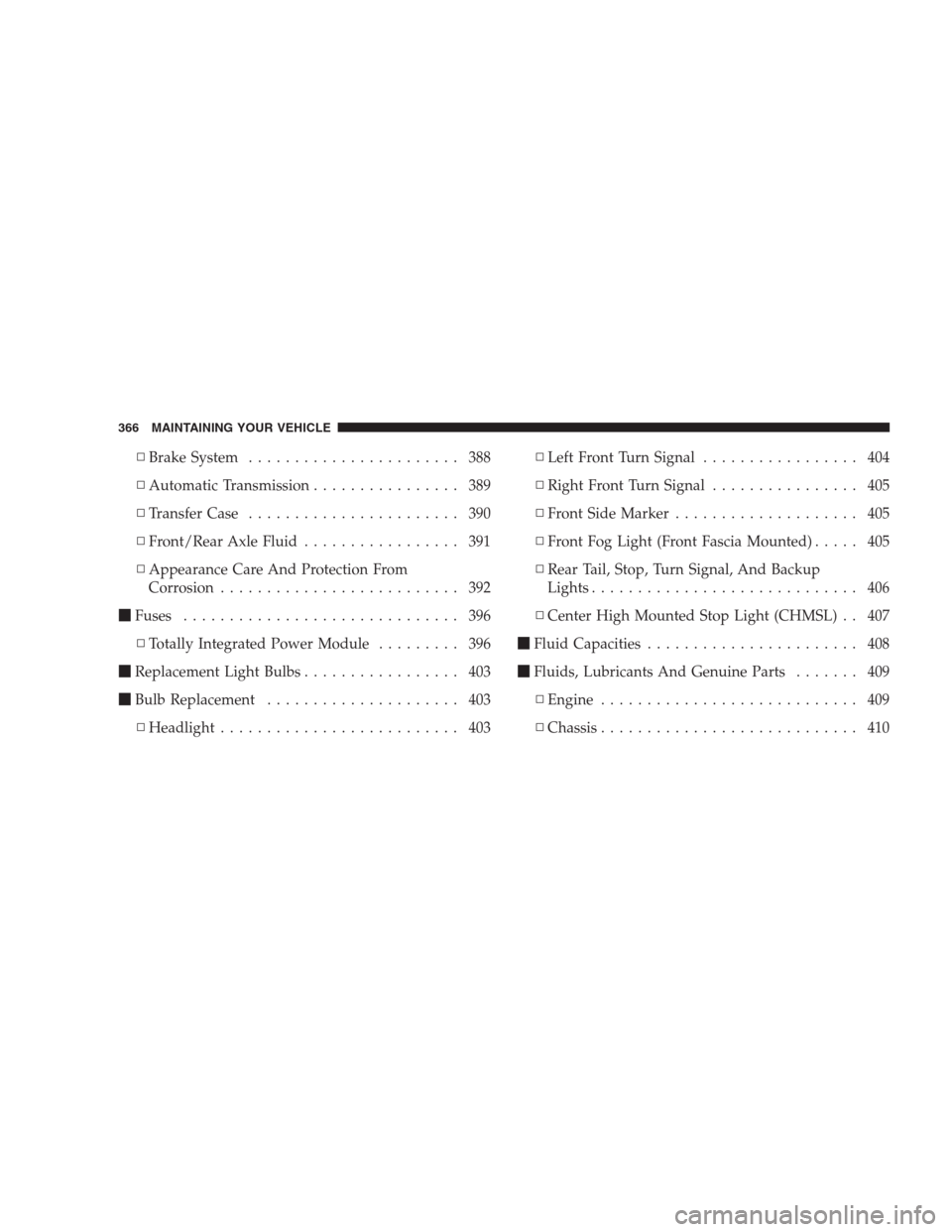

▫Brake System....................... 388
▫Automatic Transmission................ 389
▫Transfer Case....................... 390
▫Front/Rear Axle Fluid................. 391
▫Appearance Care And Protection From
Corrosion.......................... 392
Fuses.............................. 396
▫Totally Integrated Power Module......... 396
Replacement Light Bulbs................. 403
Bulb Replacement..................... 403
▫Headlight.......................... 403▫Left Front Turn Signal................. 404
▫Right Front Turn Signal................ 405
▫Front Side Marker.................... 405
▫Front Fog Light (Front Fascia Mounted)..... 405
▫Rear Tail, Stop, Turn Signal, And Backup
Lights............................. 406
▫Center High Mounted Stop Light (CHMSL) . . 407
Fluid Capacities....................... 408
Fluids, Lubricants And Genuine Parts....... 409
▫Engine............................ 409
▫Chassis............................ 410
366 MAINTAINING YOUR VEHICLE

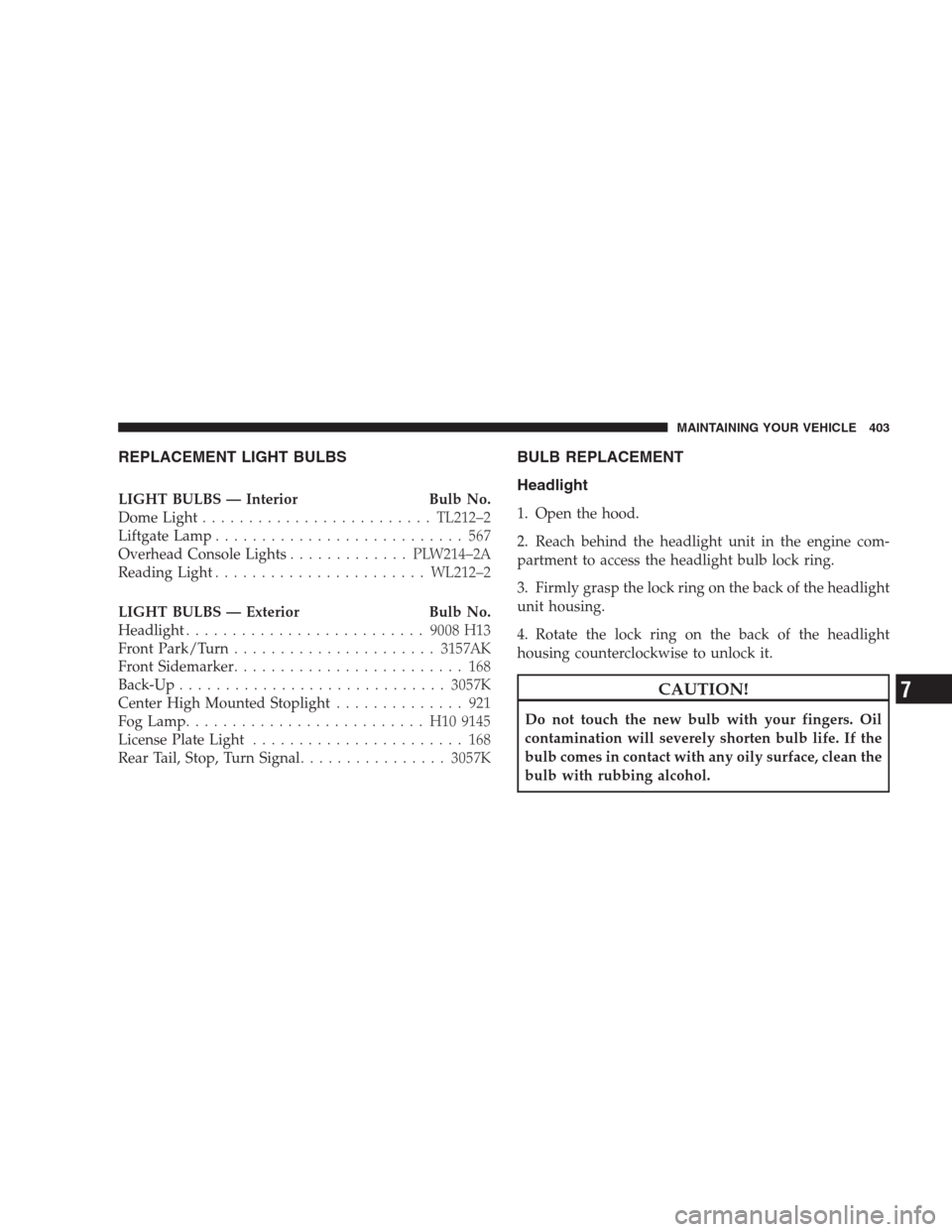

REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb No.
Dome Light.........................TL212–2
Liftgate Lamp........................... 567
Overhead Console Lights............. PLW214–2A
Reading Light.......................WL212–2
LIGHT BULBS — Exterior Bulb No.
Headlight..........................9008 H13
Front Park/Turn......................3157AK
Front Sidemarker......................... 168
Back-Up.............................3057K
Center High Mounted Stoplight.............. 921
Fog Lamp.......................... H109145
License Plate Light....................... 168
Rear Tail, Stop, Turn Signal................3057K
BULB REPLACEMENT
Headlight
1. Open the hood.
2. Reach behind the headlight unit in the engine com-
partment to access the headlight bulb lock ring.
3. Firmly grasp the lock ring on the back of the headlight
unit housing.
4. Rotate the lock ring on the back of the headlight
housing counterclockwise to unlock it.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
MAINTAINING YOUR VEHICLE 403
7

5. Disconnect the electrical connector and replace the
bulb.

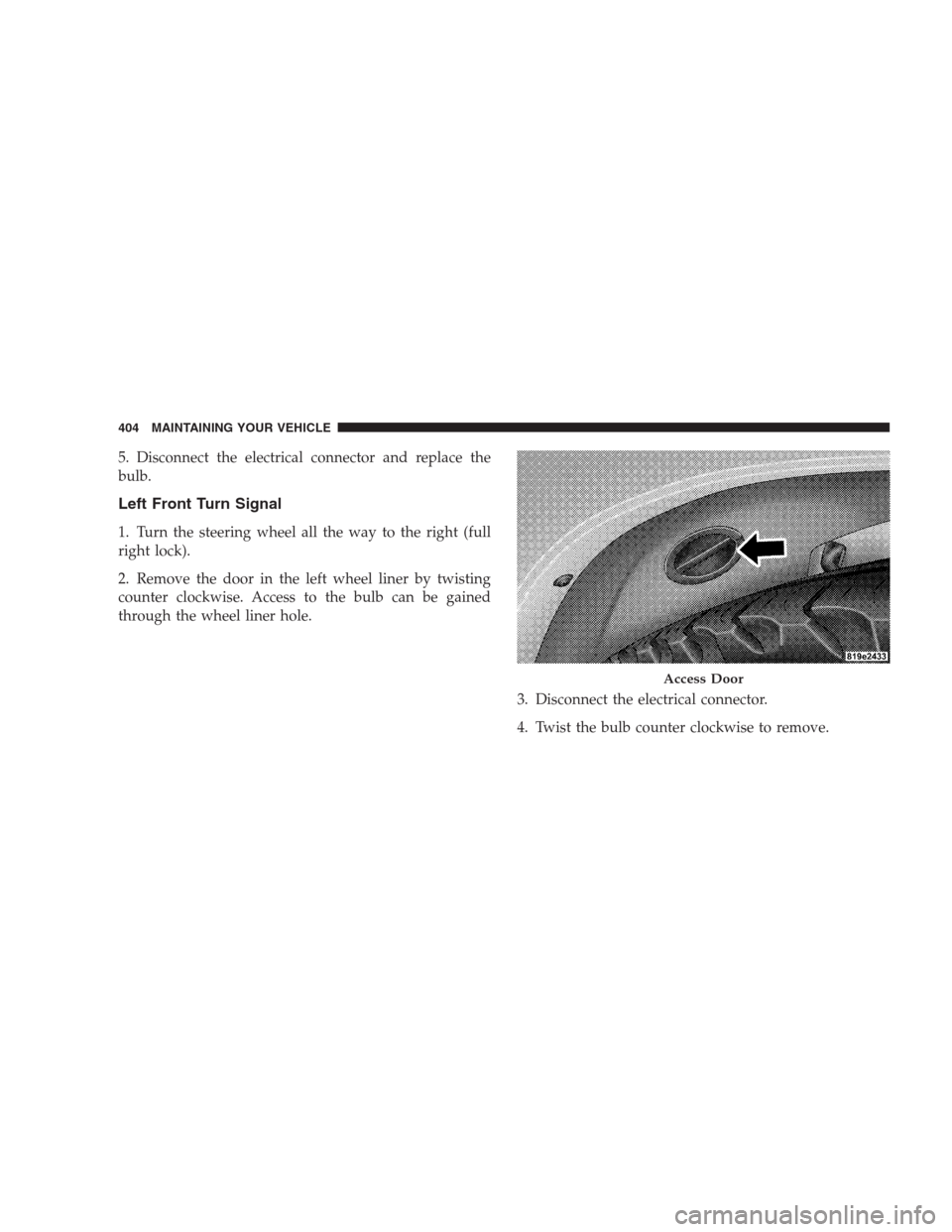

Left Front Turn Signal
1. Turn the steering wheel all the way to the right (full
right lock).
2. Remove the door in the left wheel liner by twisting
counter clockwise. Access to the bulb can be gained
through the wheel liner hole.
3. Disconnect the electrical connector.
4. Twist the bulb counter clockwise to remove.
Access Door
404 MAINTAINING YOUR VEHICLE

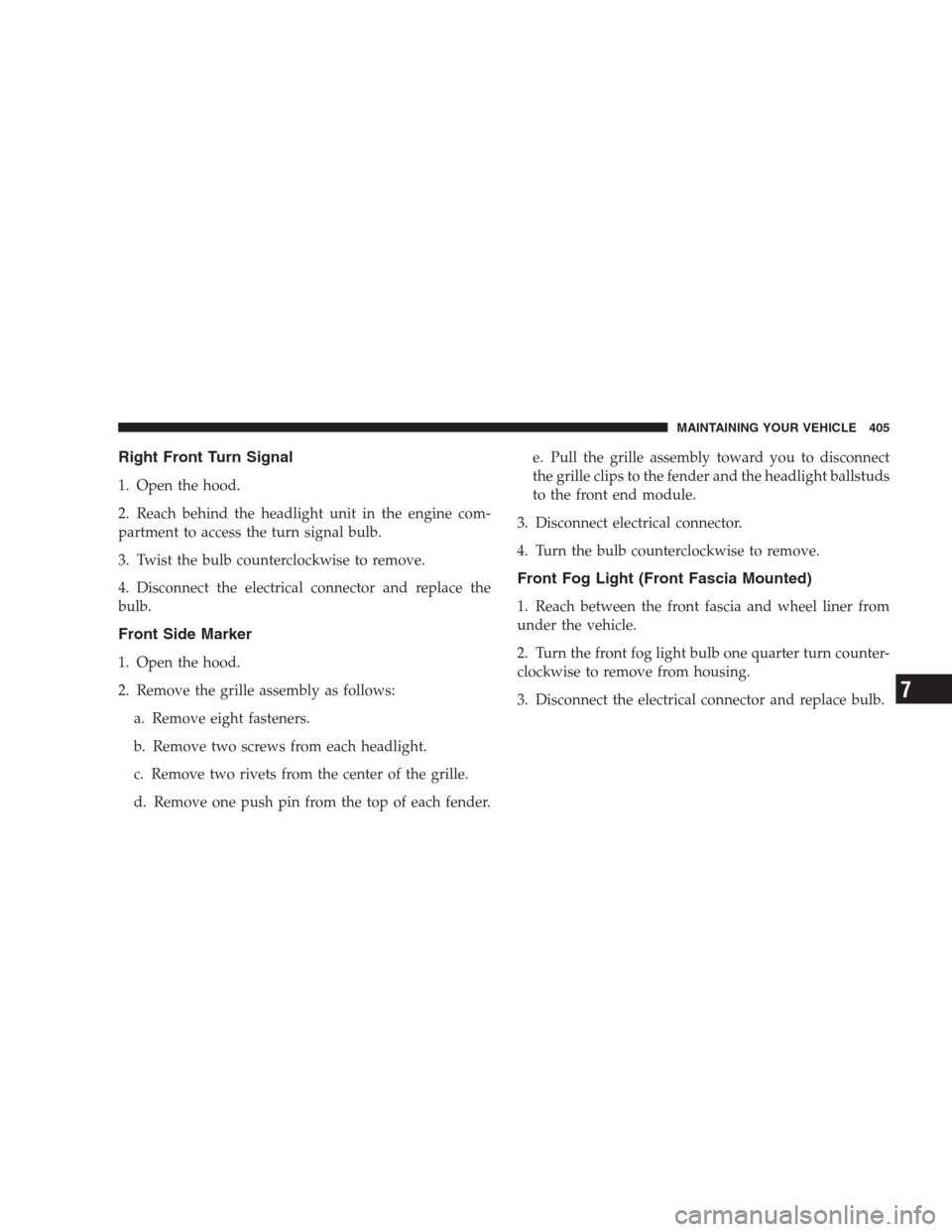

Right Front Turn Signal
1. Open the hood.
2. Reach behind the headlight unit in the engine com-
partment to access the turn signal bulb.
3. Twist the bulb counterclockwise to remove.
4. Disconnect the electrical connector and replace the
bulb.
Front Side Marker
1. Open the hood.
2. Remove the grille assembly as follows:
a. Remove eight fasteners.
b. Remove two screws from each headlight.
c. Remove two rivets from the center of the grille.
d. Remove one push pin from the top of each fender.e. Pull the grille assembly toward you to disconnect
the grille clips to the fender and the headlight ballstuds
to the front end module.
3. Disconnect electrical connector.
4. Turn the bulb counterclockwise to remove.
Front Fog Light (Front Fascia Mounted)
1. Reach between the front fascia and wheel liner from
under the vehicle.
2. Turn the front fog light bulb one quarter turn counter-
clockwise to remove from housing.
3. Disconnect the electrical connector and replace bulb.
MAINTAINING YOUR VEHICLE 405
7

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.

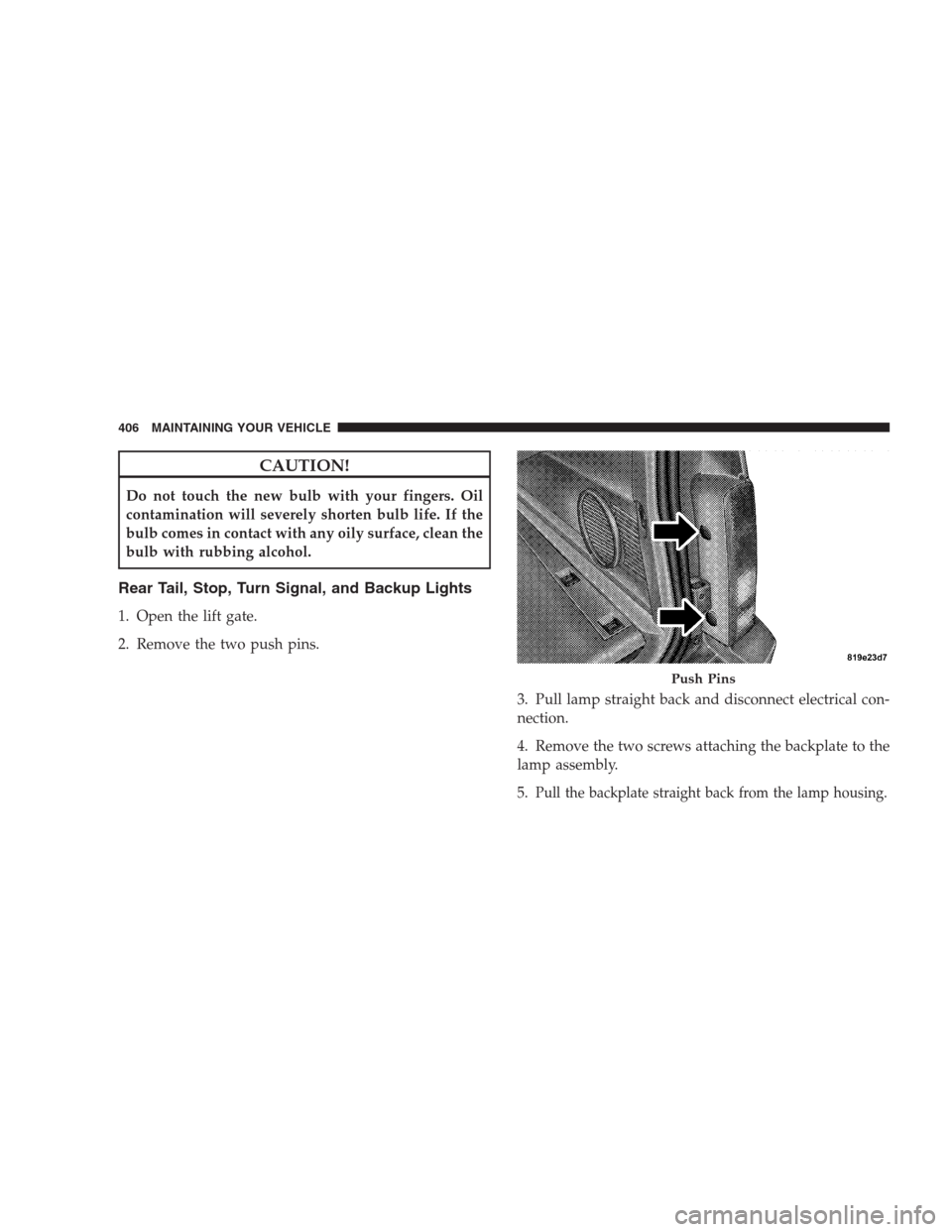

Rear Tail, Stop, Turn Signal, and Backup Lights
1. Open the lift gate.
2. Remove the two push pins.
3. Pull lamp straight back and disconnect electrical con-
nection.
4. Remove the two screws attaching the backplate to the
lamp assembly.
5.
Pull the backplate straight back from the lamp housing.
Push Pins
406 MAINTAINING YOUR VEHICLE

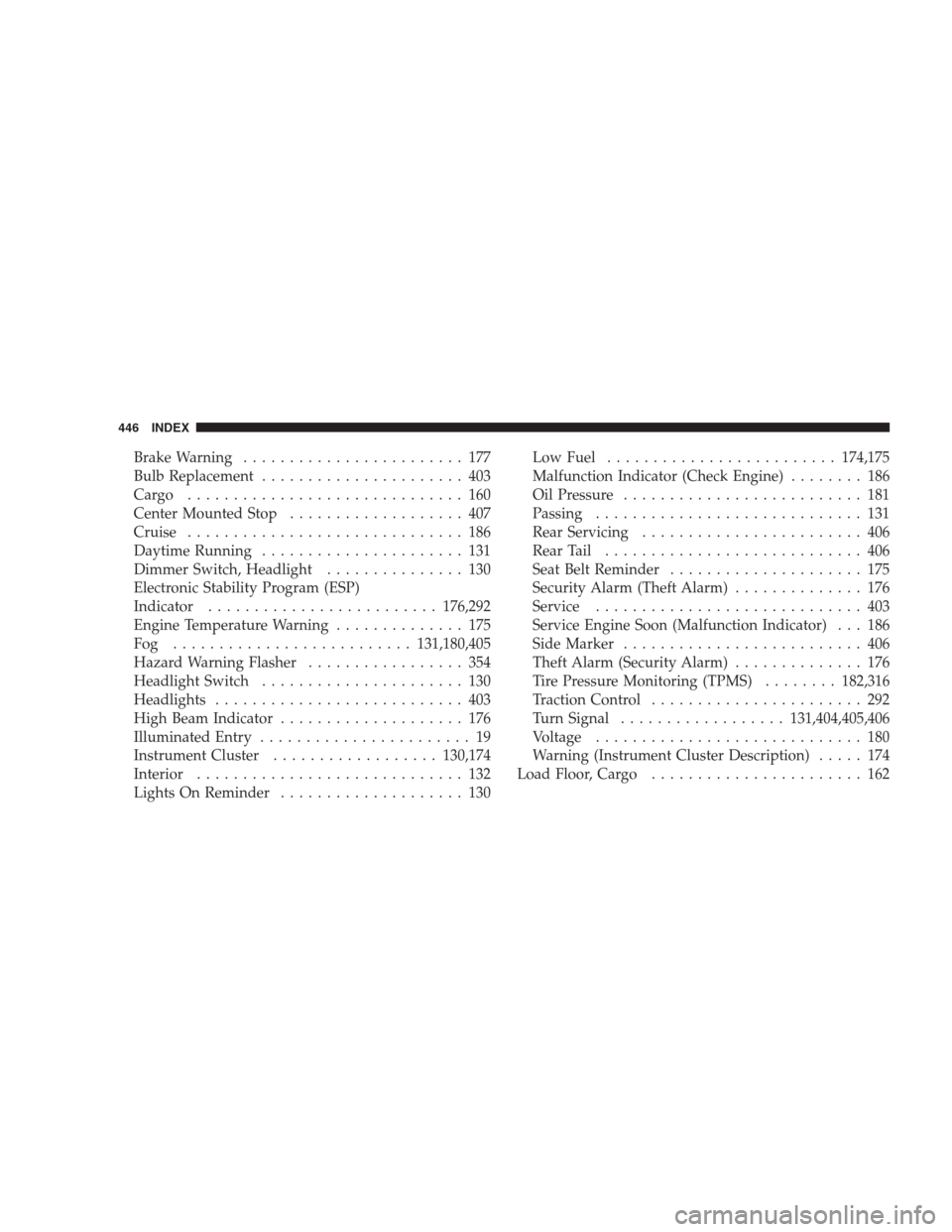

Brake Warning........................ 177
Bulb Replacement...................... 403
Cargo .............................. 160
Center Mounted Stop................... 407
Cruise.............................. 186
Daytime Running...................... 131
Dimmer Switch, Headlight............... 130
Electronic Stability Program (ESP)
Indicator.........................176,292
Engine Temperature Warning.............. 175
Fog ..........................131,180,405
Hazard Warning Flasher................. 354
Headlight Switch...................... 130
Headlights........................... 403
High Beam Indicator.................... 176
Illuminated Entry....................... 19
Instrument Cluster..................130,174
Interior............................. 132
Lights On Reminder.................... 130Low Fuel.........................174,175
Malfunction Indicator (Check Engine)........ 186
Oil Pressure.......................... 181
Passing............................. 131
Rear Servicing........................ 406
Rear Tail............................ 406
Seat Belt Reminder..................... 175
Security Alarm (Theft Alarm).............. 176
Service............................. 403
Service Engine Soon (Malfunction Indicator) . . . 186
Side Marker.......................... 406
Theft Alarm (Security Alarm).............. 176
Tire Pressure Monitoring (TPMS)........182,316
Traction Control....................... 292
Turn Signal..................131,404,405,406
Voltage............................. 180
Warning (Instrument Cluster Description)..... 174
Load Floor, Cargo....................... 162
446 INDEX
