DODGE NITRO 2010 1.G Owners Manual

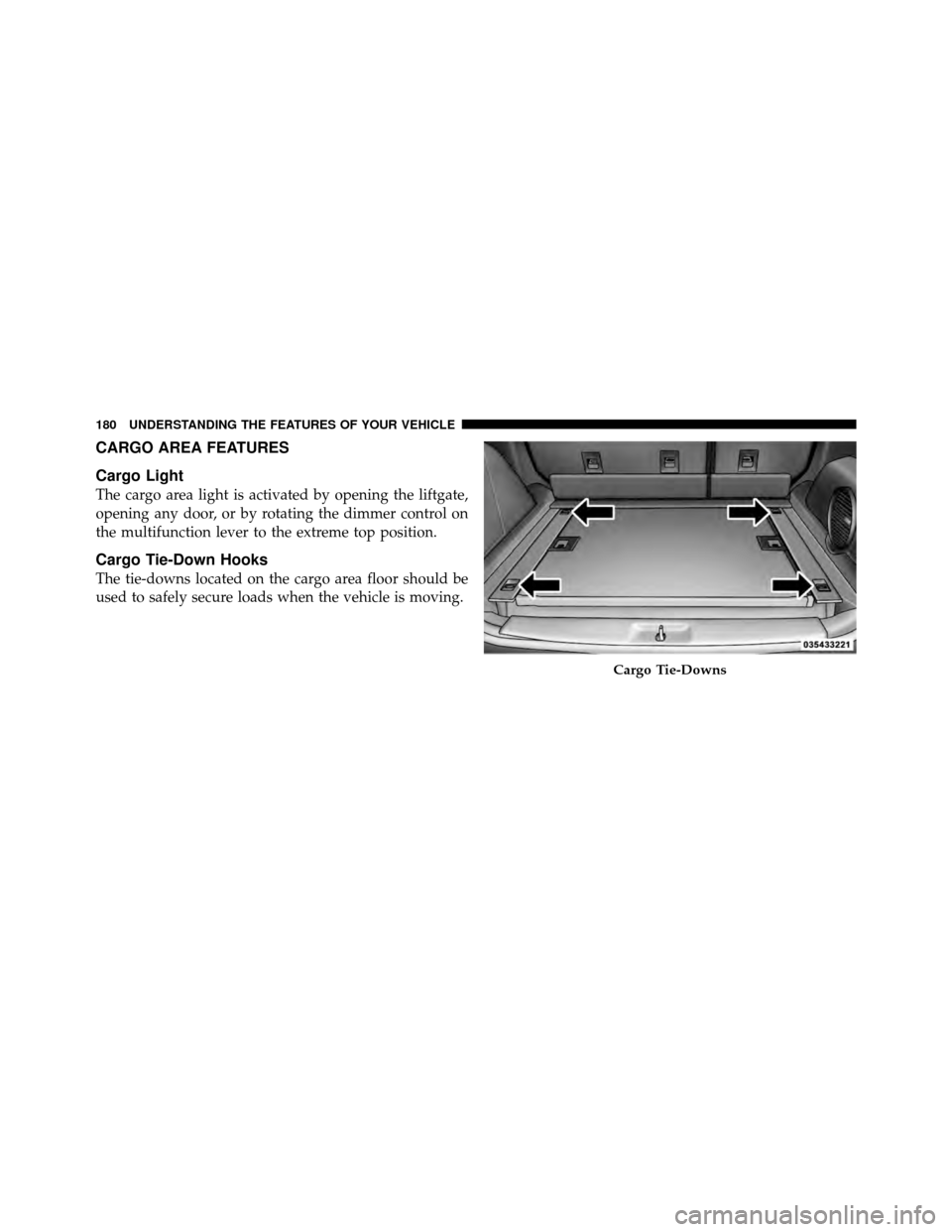

CARGO AREA FEATURES
Cargo Light
The cargo area light is activated by opening the liftgate,
opening any door, or by rotating the dimmer control on
the multifunction lever to the extreme top position.
Cargo Tie-Down Hooks
The tie-downs located on the cargo area floor should be
used to safely secure loads when the vehicle is moving.
Cargo Tie-Downs
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Cargo tie-down hooks are not safe anchors for a child
seat tether strap. In a sudden stop or collision a hook
could pull loose and allow the child seat to come
loose. A child could be badly injured. Use only the
anchors provided for child seat tethers.
WARNING!
The weight and position of cargo and passengers can
change the vehicle center of gravity and vehicle
handling. To avoid loss of control resulting in per-
sonal injury, follow these guidelines for loading your
vehicle:
•Do not carry loads which exceed the load limits
described on the label attached to the left door or
left door center pillar.(Continued)
WARNING! (Continued)
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as
possible.
•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed
weight over or behind the rear axle can cause the
vehicle to sway.
•Do not pile luggage or cargo higher than the top of
the seatback. This could impair visibility or be-
come a dangerous projectile in a sudden stop or
collision.
•To help protect against personal injury, passengers
should not be seated in the rear cargo area. The
rear cargo space is intended for load carrying
purposes only, not for passengers, who should sit
in seats and use seat belts.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181

Cargo Load Floor — If Equipped
The panel in the load floor is reversible for added utility.
One side features a plastic lined tray which can hold a
variety of items. The maximum load capacity of the load
floor is 400 lbs (181 kg).
The cargo load floor is held by spring loaded latches. In
order to use the cargo load floor, use the following
procedure:
1. Push both side mounted release handles (toward the
center of the vehicle) at the same time to release cover.2. Lift the cover.
3. Flip the cover over, and lock panel back into position.
Floor Panel
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

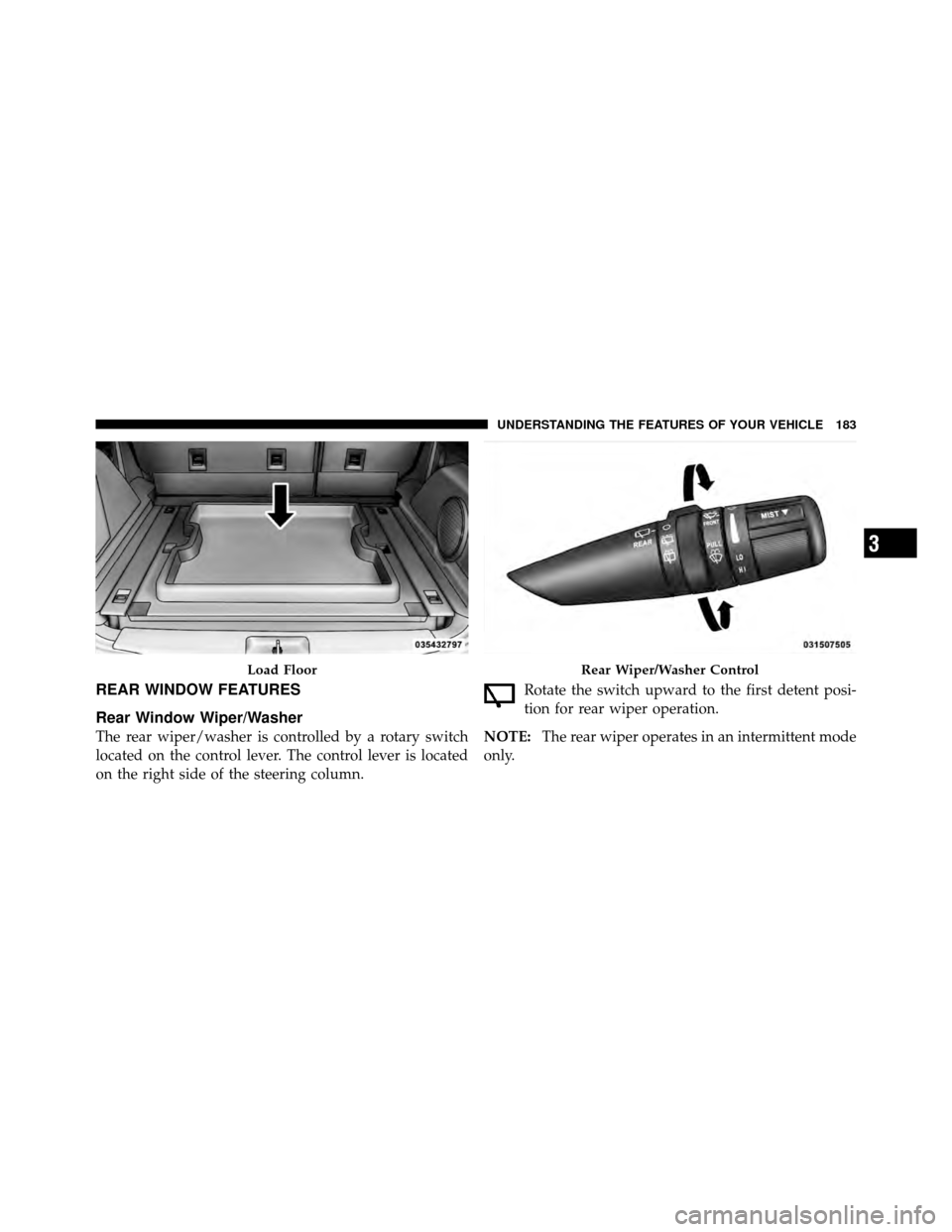

REAR WINDOW FEATURES
Rear Window Wiper/Washer
The rear wiper/washer is controlled by a rotary switch
located on the control lever. The control lever is located
on the right side of the steering column.Rotate the switch upward to the first detent posi-
tion for rear wiper operation.
NOTE: The rear wiper operates in an intermittent mode
only.
Load FloorRear Wiper/Washer Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 183

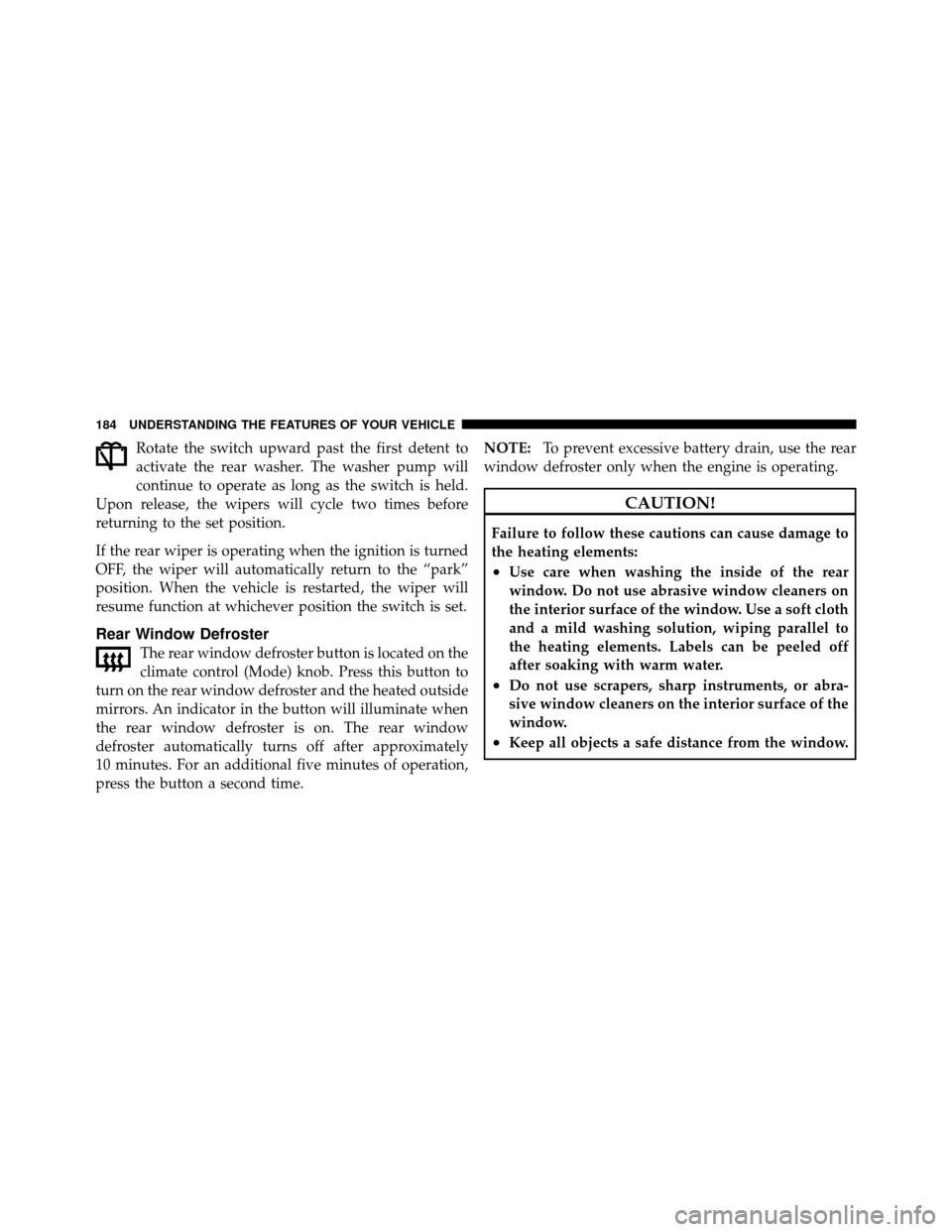

Rotate the switch upward past the first detent to
activate the rear washer. The washer pump will
continue to operate as long as the switch is held.
Upon release, the wipers will cycle two times before
returning to the set position.
If the rear wiper is operating when the ignition is turned
OFF, the wiper will automatically return to the “park”
position. When the vehicle is restarted, the wiper will
resume function at whichever position the switch is set.
Rear Window Defroster
The rear window defroster button is located on the
climate control (Mode) knob. Press this button to
turn on the rear window defroster and the heated outside
mirrors. An indicator in the button will illuminate when
the rear window defroster is on. The rear window
defroster automatically turns off after approximately
10 minutes. For an additional five minutes of operation,
press the button a second time. NOTE:
To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
184 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

ROOF TRIM APPLIQUE — NON FUNCTIONAL
The Roof Trim Applique as provided on the vehicle is
non functional. Metal side rails and crossbars can be
purchased from MOPARaccessories to provide a func-
tional roof rack system.
The load carried on the roof, when equipped with a
luggage rack, must not exceed 150 lbs (68 kg), and it
should be uniformly distributed over the cargo area.
Check the straps frequently to be sure that the load
remains securely attached.
NOTE: Metal rails/crossbars are offered by MOPAR
accessories. See your authorized dealer.
External racks do not increase the total load carrying
capacity of the vehicle. Be sure that the total occupant
and luggage load inside the vehicle, plus the load on the
luggage rack, do not exceed the maximum vehicle load
capacity.CAUTION!
•To avoid damage to the roof rack and vehicle, do
not exceed the maximum roof rack load capacity.
Always distribute heavy loads as evenly as pos-
sible and secure the load appropriately.
•Long loads, which extend over the windshield,
such as wood panels or surfboards, should be
secured to both the front and rear of the vehicle.
•Place a blanket or other protection between the
surface of the roof and the load.
•Travel at reduced speeds and turn corners care-
fully when carrying large or heavy loads on the
roof rack. Wind forces, due to natural causes or
nearby truck traffic, can add sudden upward loads.
This is especially true on large flat loads and may
result in damage to the cargo or your vehicle.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 185

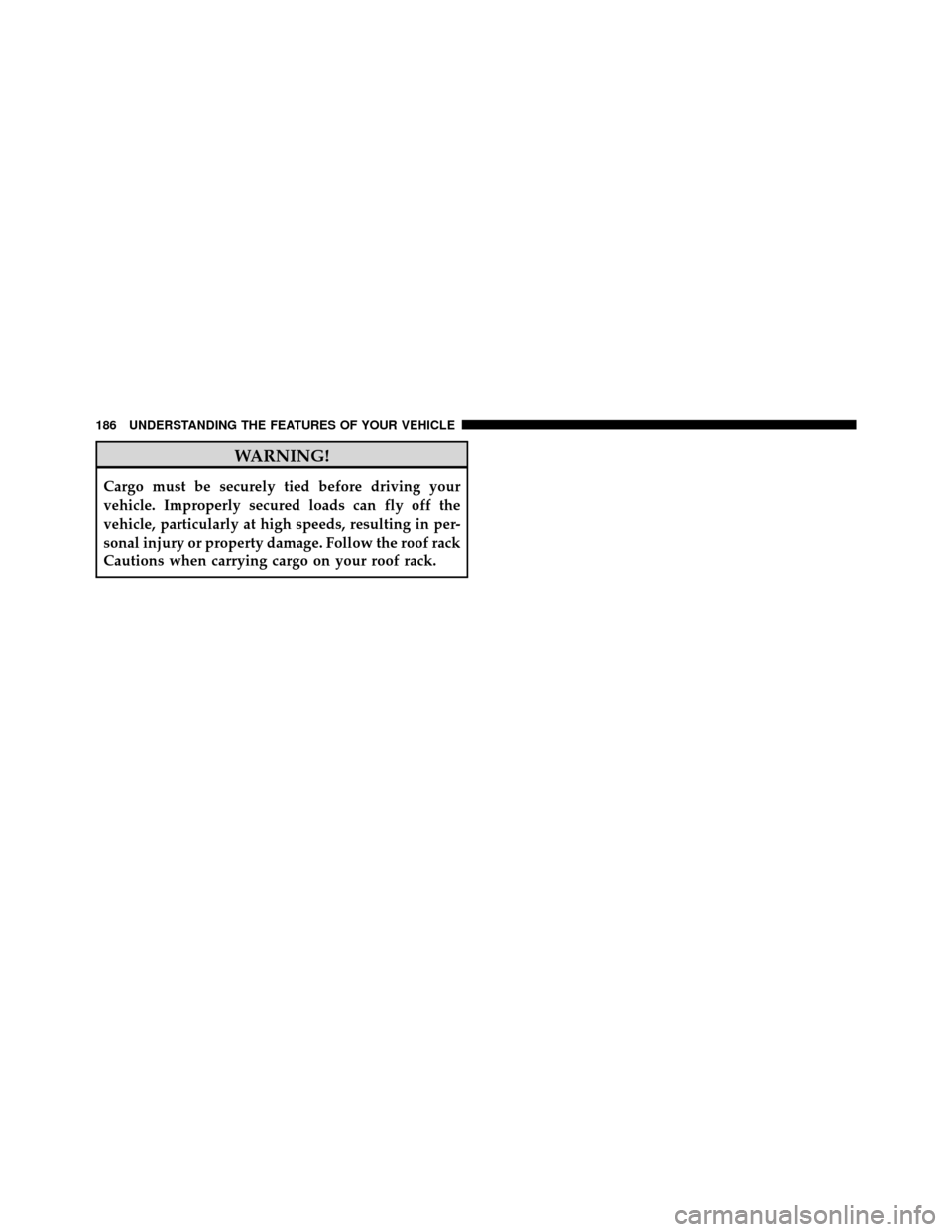

WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the roof rack
Cautions when carrying cargo on your roof rack.
186 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 190
 Instrument Cluster .................... 191
 Instrument Cluster Descriptions ........... 192
 Compass And Trip Computer — If Equipped . . 207
▫ Control Buttons ..................... 207
▫ Trip Conditions ..................... 208
▫ Compass/Temperature Display .......... 209
 Electronic Vehicle Information Center (EVIC) —
If Equipped .......................... 211 ▫
Electronic Vehicle Information Center (EVIC)
Displays ........................... 213
▫ Oil Change Required .................. 214
▫ Trip Functions ...................... 215
▫ Compass Display / ECO (Fuel Saver Mode)
— If Equipped ...................... 216
▫ Personal Settings (Customer-Programmable
Features) .......................... 219
 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 222
4

▫Operating Instructions - Radio Mode ...... 222
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 230
▫ Notes On Playing MP3/WMA Files ....... 232
▫ List Button
(Disc Mode For MP3/WMA Play) ......... 235
▫ Info Button (Disc Mode For MP3/WMA
Play) ............................. 235
 Media Center 730N/430 (RER/REN/RBZ) —
AM/FM Stereo Radio And CD/DVD/HDD/
NAV — If Equipped .................... 237
▫ Operating Instructions — Voice Command
System — If Equipped ................. 238
▫ Operating Instructions — Uconnect™ Phone
— If Equipped ...................... 238
▫ Clock Setting Procedure — RBZ Radio ..... 238▫Clock Setting Procedure — RER/REN Radio. . 240
 Media Center 130 (RES) — AM/FM Stereo
Radio With CD Player (MP3 AUX Jack) ....... 242
▫ Operating Instructions — Radio Mode ..... 242
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 245
▫ Notes On Playing MP3 Files ............ 248
▫ Operation Instructions - Auxiliary Mode .... 251
 Media Center 130 (RES/RSC) — AM/FM
Stereo Radio With CD Player (MP3 AUX Jack)
And Sirius Radio ...................... 252
▫ Operating Instructions — Radio Mode ..... 252
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 258
▫ Notes On Playing MP3 Files ............ 260
188 UNDERSTANDING YOUR INSTRUMENT PANEL

▫List Button (CD Mode For MP3 Play) ...... 263
▫ Info Button (CD Mode For MP3 Play) ...... 263
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 264

Uconnect™ Multimedia (Satellite Radio) — If
Equipped (REN/REQ/RER/RES Radios Only)
. . 268
▫ System Activation .................... 269
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 269
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode ............................. 270
▫ Satellite Antenna ..................... 270
▫ Reception Quality .................... 270
▫ Operating Instructions - Uconnect™
Multimedia (Satellite) Mode ............. 270▫
Operating Instructions - Uconnect™ Phone
(If Equipped) ....................... 272
 Remote Sound System Controls —
If Equipped ........................... 273
▫ Radio Operation ..................... 273
▫ CD Player ......................... 274
 CD/DVD Disc Maintenance .............. 274
 Radio Operation And Cellular Phones ....... 275
 Climate Controls ...................... 275
▫ Manual Heating And Air Conditioning ..... 275
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... 279
▫ Operating Tips ...................... 2854
UNDERSTANDING YOUR INSTRUMENT PANEL 189
