The ABS pump motor runs during the self-test at 12 mph
(20 km/h) and during an ABS stop. The pump motor
makes a low humming noise during operation, which is
normal.
WARNING!
•Pumping of the Anti-Lock Brakes will diminish
their effectiveness and may lead to an accident.
Pumping makes the stopping distance longer. Just
press firmly on your brake pedal when you need
to slow down or stop.
•The ABS cannot prevent the natural laws of phys-
ics from acting on the vehicle, nor can it increase
braking or steering efficiency beyond that af-
forded by the condition of the vehicle brakes and
tires or the traction afforded.(Continued)
WARNING! (Continued)
•The ABS cannot prevent accidents, including
those resulting from excessive speed in turns,
following another vehicle too closely, or hydro-
planing. Only a safe, attentive, and skillful driver
can prevent accidents.
•The capabilities of an ABS equipped vehicle must
never be exploited in a reckless or dangerous
manner, which could jeopardize the user’s safety
or the safety of others.
CAUTION!
The ABS is subject to possible detrimental effects of
electronic interference caused by improperly in-
stalled aftermarket radios or telephones.
320 STARTING AND OPERATING

The matching full-size spare wheel and tire assembly (if
equipped) has a tire pressure monitoring sensor. The
matching full-size spare can be used in place of any of the
four road tires. The TPMS will only monitor the pressure
in the full-size spare when it is used in place of a road
tire. Otherwise, a spare with a pressure below the low-
pressure limit will not cause the “Tire Pressure Monitor-
ing Telltale Light” to illuminate or the chime to sound.
Tire Pressure Monitoring Low Pressure Warnings
The “Tire Pressure Monitoring Telltale Light” will
illuminate in the instrument cluster and a chime
will sound when tire pressure is low in one or
more of the four active road tires. Should this occur, you
should stop as soon as possible, check the inflation
pressure of each tire on your vehicle, and inflate each tire
to the vehicle’s recommended cold placard pressure
value. Once the system receives the updated tire pres-
sures, the system will automatically update and the “Tire
Pressure Monitoring Telltale Light” will turn off. The vehicle may need to be driven for up to 20 minutes above
15 mph (25 km/h) in order for the TPMS to receive this
information.
Check TPMS Warning
When a system fault is detected, the “Tire Pressure
Monitoring Telltale Light” will flash on and off for
75 seconds and then remain on solid. The system fault
will also sound a chime. If the ignition key is cycled, this
sequence will repeat, providing the system fault still
exists. The “Tire Pressure Monitoring Telltale Light” will
turn off when the fault condition no longer exists. A
system fault can occur due to any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the TPMS
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
352 STARTING AND OPERATING

If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, and theCHECK TPM
SYSTEM message will no longer display, and a pressure
value will display in place of the dashes. A system fault
can occur due to any of the following: 1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the TPMS
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.
Vehicles with Full-Size Spare
1. The matching full size spare wheel and tire assembly
has a tire pressure monitoring sensor that can be moni-
tored by the TPMS.
2. If you install the full size spare in place of a road tire
that has a pressure below the low-pressure warning limit,
a chime will sound and the “TPMS Telltale Light” will
356 STARTING AND OPERATING

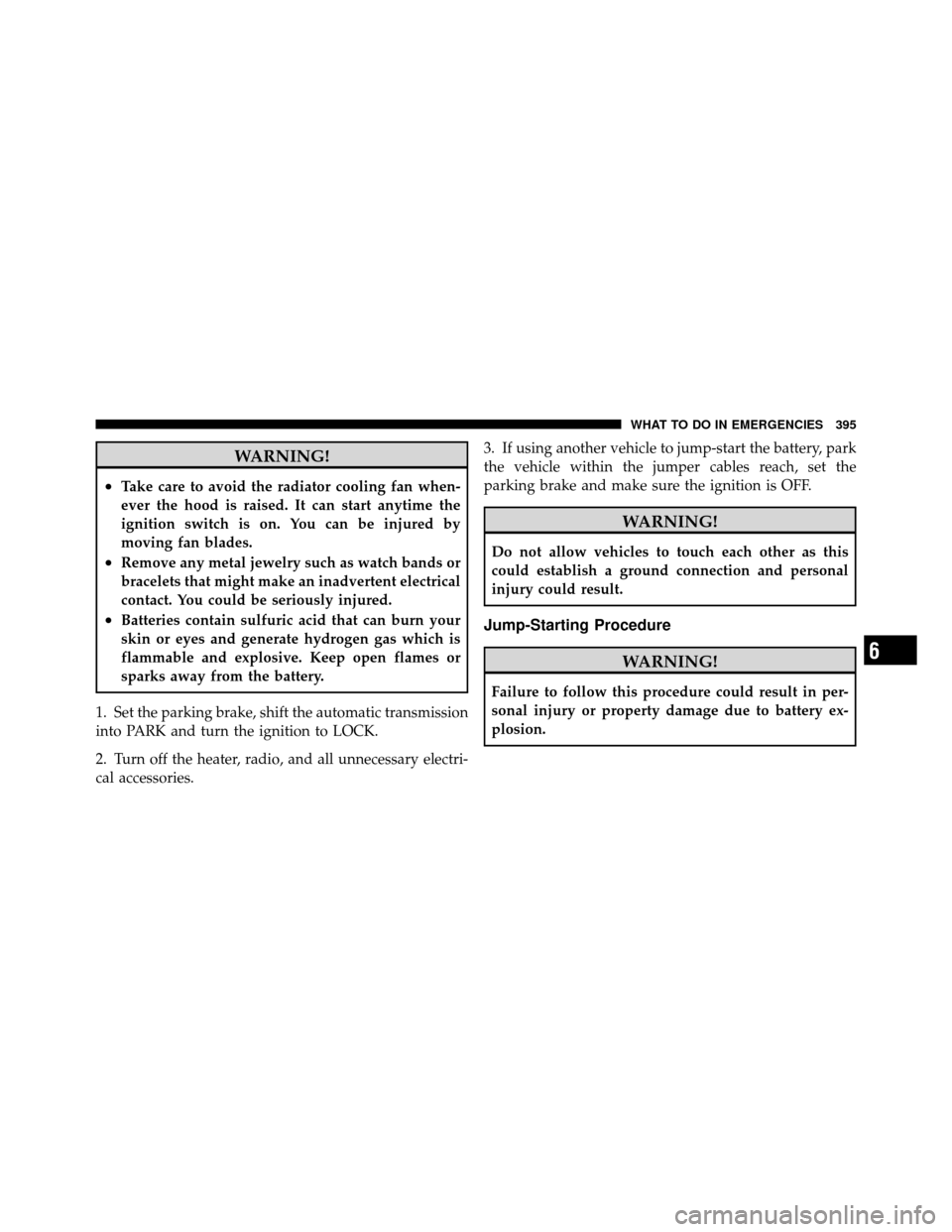

WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is on. You can be injured by
moving fan blades.
•Remove any metal jewelry such as watch bands or
bracelets that might make an inadvertent electrical
contact. You could be seriously injured.
•Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmission
into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri-
cal accessories. 3. If using another vehicle to jump-start the battery, park
the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this procedure could result in per-
sonal injury or property damage due to battery ex-
plosion.
6
WHAT TO DO IN EMERGENCIES 395

About Your Brakes....................... 317
ABS (Anti-Lock Brake System) .............. 319
Adding Engine Coolant (Antifreeze) .......... 419
Adding Fuel ........................... 364
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 410
Air Conditioner Maintenance ............... 412
Air Conditioning ........................ 275
Air Conditioning Controls ................. 275
Air Conditioning Filter .................... 286
Air Conditioning, Operating Tips ............ 287
Air Conditioning Refrigerant ............... 413
Air Conditioning System ................275,279
Air Filter .............................. 410
Air Pressure, Tires ....................... 339
Airbag ................................ 54
Airbag Deployment ....................... 71
Airbag Light ....................... 74,88,200
Airbag Maintenance ....................... 73
Airbag, Window (Side Curtain) ............... 59Alarm Light
........................... 194
Alarm, Panic ............................ 23
Alarm (Security Alarm) .................... 17
Alarm System (Security Alarm) ............... 17
Alterations/Modifications, Vehicle ............. 8
Antenna, Satellite Radio ................265,270
Antifreeze (Engine Coolant) ................ 445
Anti-Lock Brake System (ABS) ............319,322
Anti-Lock Warning Light .................. 199
Anti-Theft System ........................ 17
Appearance Care ........................ 428
Assistance Towing ....................... 115
Auto Down Power Windows ................ 34
Automatic Dimming Mirror ................. 98
Automatic Temperature Control (ATC) ......... 279
Automatic Transaxle ...................... 296
Automatic Transmission .............299,303,425
Fluid and Filter Changes ................. 425
Fluid Level Check ..................... 425
480 INDEX

Pets, Transporting........................ 85
Phone, Cellular ......................... 100
Phone, Hands-Free (Uconnect™) ............. 100
Placard, Tire and Loading Information ......... 334
Polishing and Waxing ..................... 429
Power Door Locks ........................... 29
Mirrors .............................. 99
Steering .......................... 315,316
Sunroof ............................. 171
Windows ............................. 33
Power Steering Fluid ..................... 447
Pregnant Women and Seat Belts .............. 53
Preparation for Jacking .................... 389
Programmable Electronic Features ............ 219
Radial Ply Tires ......................... 341
Radio Operation ........................ 275
Radio, Satellite (Uconnect studios)........... 268 Rear Axle (Differential)
.................... 427
Rear Park Sense System ................... 159
Rear Window Defroster ................... 184
Rear Window Features .................... 183
Rear Wiper/Washer ...................... 183
Rearview Mirrors ........................ 97
Reclining Front Seats ..................... 136
Recreational Towing ...................... 383
Reformulated Gasoline .................... 359
Refrigerant ............................ 413
Release, Hood .......................... 145
Reminder, Lights On ..................... 149
Reminder, Seat Belt ....................... 52
Remote Keyless Entry (RKE) ................. 19
Remote Sound System (Radio) Controls ........ 273
Remote Starting System .................... 25
Replacement Keys ........................ 15
Replacement Parts ....................... 406
Replacement Tires ....................... 345
10
INDEX 491

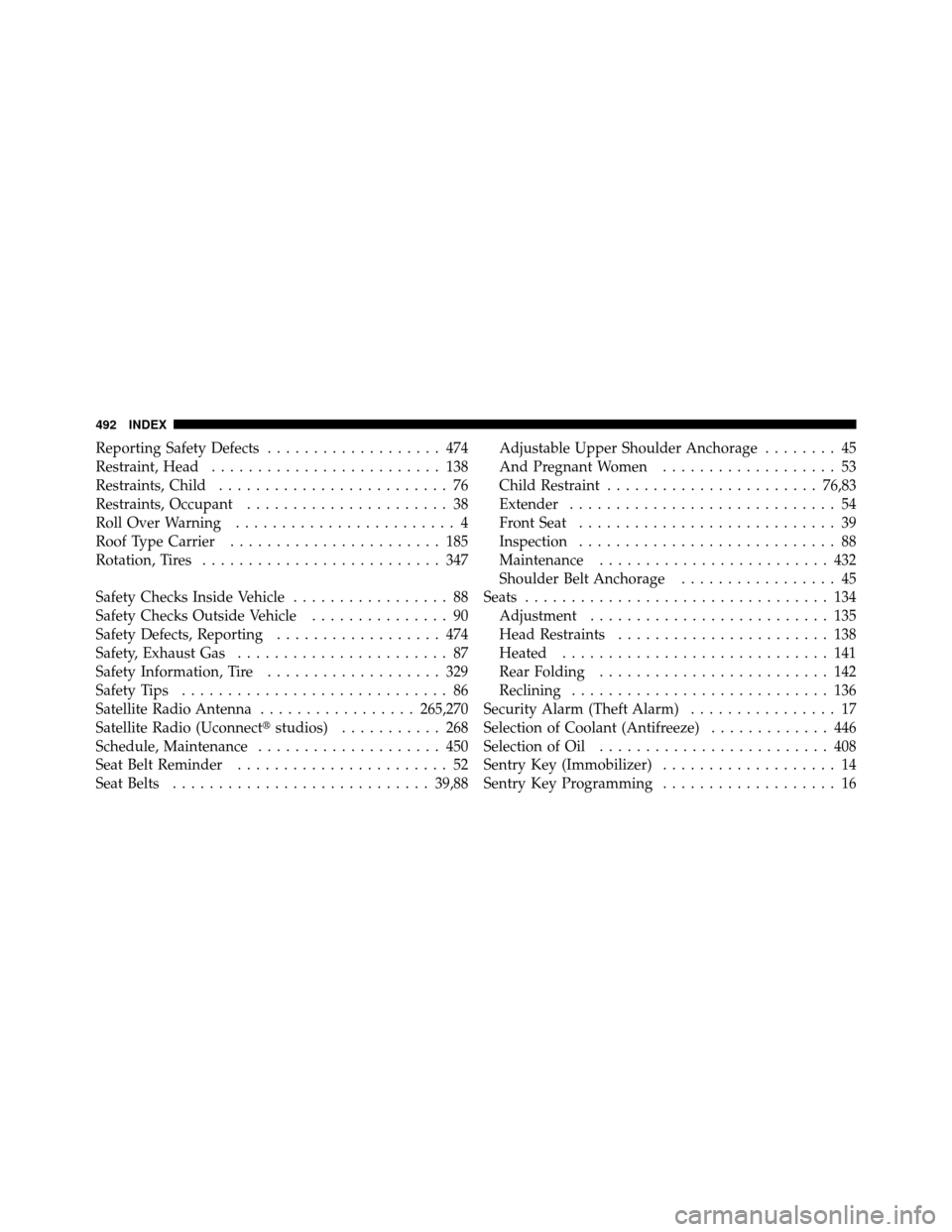

Reporting Safety Defects................... 474
Restraint, Head ......................... 138
Restraints, Child ......................... 76
Restraints, Occupant ...................... 38
Roll Over Warning ........................ 4
Roof Type Carrier ....................... 185
Rotation, Tires .......................... 347
Safety Checks Inside Vehicle ................. 88
Safety Checks Outside Vehicle ............... 90
Safety Defects, Reporting .................. 474
Safety, Exhaust Gas ....................... 87
Safety Information, Tire ................... 329
Safety Tips ............................. 86
Satellite Radio Antenna .................265,270
Satellite Radio (Uconnect studios)........... 268
Schedule, Maintenance .................... 450
Seat Belt Reminder ....................... 52
Seat Belts ............................ 39,88Adjustable Upper Shoulder Anchorage
........ 45
And Pregnant Women ................... 53
Child Restraint ....................... 76,83
Extender ............................. 54
Front Seat ............................ 39
Inspection ............................ 88
Maintenance ......................... 432
Shoulder Belt Anchorage ................. 45
Seats ................................. 134
Adjustment .......................... 135
Head Restraints ....................... 138
Heated ............................. 141
Rear Folding ......................... 142
Reclining ............................ 136
Security Alarm (Theft Alarm) ................ 17
Selection of Coolant (Antifreeze) ............. 446
Selection of Oil ......................... 408
Sentry Key (Immobilizer) ................... 14
Sentry Key Programming ................... 16
