gas type DODGE NITRO 2010 1.G Owners Manual

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter-type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof (if equipped) in certain
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the sunroof open, adjust the sunroof opening to minimize
the buffeting.
LIFTGATE
To open the liftgate, pull up (squeeze) on the handle and
lift. Manually unlocking the vehicle doors with the
plunger or a key in the lock cylinder will not unlock the
liftgate.
WARNING!
Driving with the liftgate open can allow poisonous
exhaust gases into your vehicle. You and your pas-
sengers could be injured by these fumes. Keep the
liftgate closed when you are operating the vehicle.
Liftgate Release
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37

•Supplemental Side Airbag Inflatable Curtains (SABIC)
•Front and Side Impact Sensors
•Front Seat Belt Pretensioners, Seat Belt Buckle Switch,
and Seat Track Position Sensors
•Supplemental Active Head Restraint for Driver and
Front Passenger
•Occupant Classification System (OCS)
•Occupant Classification Module (OCM)
•Passenger Airbag Disable (PAD) Indicator Light
•Weight Sensors
Advanced Front Airbag Features
The Advanced Front Airbag system has multistage driver
and front passenger airbags. This system provides output
appropriate to the severity and type of collision asdetermined by the Occupant Restraint Controller (ORC),
which may receive information from the front impact
sensors.
The first stage inflator is triggered immediately during an
impact that requires airbag deployment. The timing of
the second stage determines whether the output force is
low, medium, or high. If a low output is sufficient to meet
the need, the remaining gas in the inflator is expended.
NOTE:
The passenger Advanced Front Airbag may not
deploy, even when the driver Advanced Front Airbag
has, if the Occupant Classification System (refer to Oc-
cupant Classification System”) has determined the pas-
senger seat is empty or is occupied by someone that is
classified in the childsize category. This could be a
child, teenager, or even an adult.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57

Driver and Passenger Advanced Front Airbag
Inflator Units
TheDriver and Passenger Advanced Front Airbag In-
flator Units are located in the center of the steering wheel
and the right side of the instrument panel. When the
ORC detects a collision requiring the Advanced Front
Airbags, it signals the inflator units. A large quantity of
non-toxic gas is generated to inflate the Advanced Front
Airbags. Different airbag inflation rates are possible
based on collision severity and type. The steering wheel
hub trim cover and the upper right side of the instrument
panel separate and fold out of the way as the airbags
inflate to their full size. The airbags fully inflate in about
50 to 70 milliseconds. This is about half of the time it
takes to blink your eyes. The airbags then quickly deflate
while helping to restrain the driver and front passenger. The Advanced Front Airbag gas is vented through the
vent holes in the sides of the airbag. In this way, the
airbags do not interfere with your control of the vehicle.
Along with seat belts and pretensioners, Advanced Front
Airbags work with the knee bolsters to provide improved
protection for the driver and front passenger. Side airbags
also work with seat belts to improve occupant protection.
Supplemental Side Airbag Inflatable Curtains
(SABIC)
The
Supplemental Side Airbag Inflatable Curtains
(SABIC) may deploy during rollovers and collisions
where the impact is confined to a particular area of the
side of the vehicle, depending on the severity and type of
collision. In these events, the ORC will deploy the SABIC
only on the impact side of the vehicle. Because airbag
sensors estimate deceleration over time, vehicle speed
and damage by themselves are not good indicators of
whether or not an airbag should have deployed.
68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

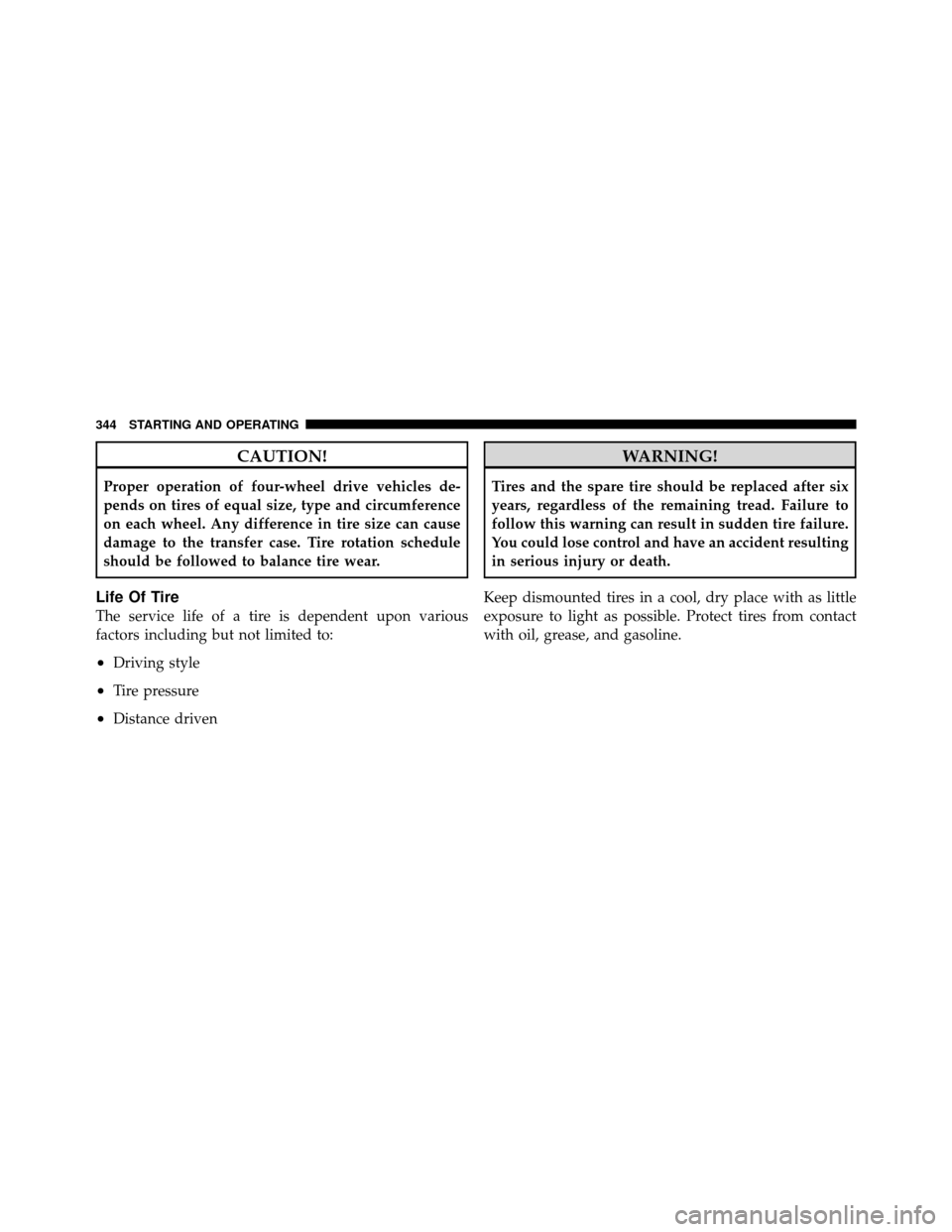

CAUTION!
Proper operation of four-wheel drive vehicles de-
pends on tires of equal size, type and circumference
on each wheel. Any difference in tire size can cause
damage to the transfer case. Tire rotation schedule
should be followed to balance tire wear.
Life Of Tire
The service life of a tire is dependent upon various
factors including but not limited to:
•Driving style
•Tire pressure
•Distance driven
WARNING!
Tires and the spare tire should be replaced after six
years, regardless of the remaining tread. Failure to
follow this warning can result in sudden tire failure.
You could lose control and have an accident resulting
in serious injury or death.
Keep dismounted tires in a cool, dry place with as little
exposure to light as possible. Protect tires from contact
with oil, grease, and gasoline.
344 STARTING AND OPERATING

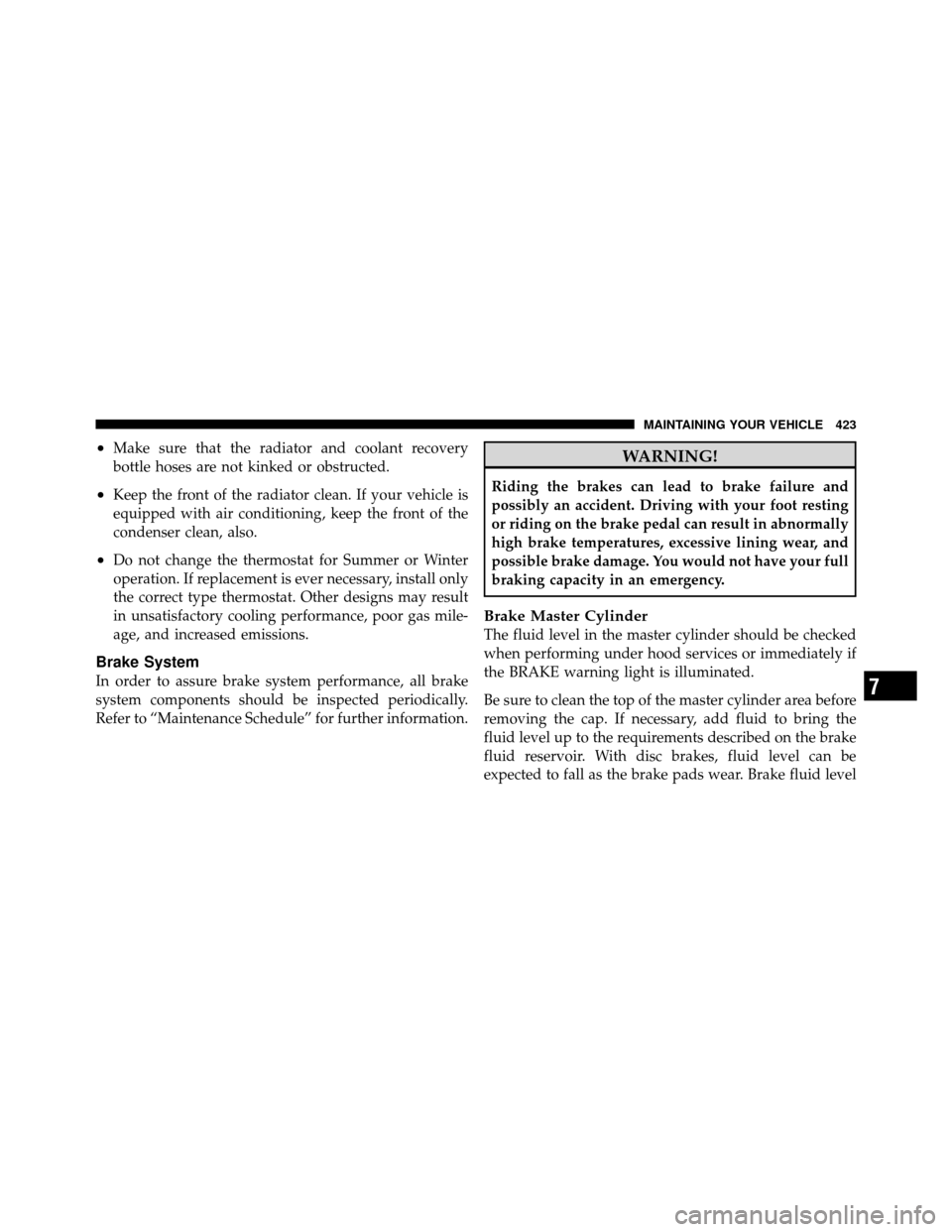

•Make sure that the radiator and coolant recovery
bottle hoses are not kinked or obstructed.
•Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean, also.
•Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install only
the correct type thermostat. Other designs may result
in unsatisfactory cooling performance, poor gas mile-
age, and increased emissions.
Brake System
In order to assure brake system performance, all brake
system components should be inspected periodically.
Refer to “Maintenance Schedule” for further information.
WARNING!
Riding the brakes can lead to brake failure and
possibly an accident. Driving with your foot resting
or riding on the brake pedal can result in abnormally
high brake temperatures, excessive lining wear, and
possible brake damage. You would not have your full
braking capacity in an emergency.
Brake Master Cylinder
The fluid level in the master cylinder should be checked
when performing under hood services or immediately if
the BRAKE warning light is illuminated.
Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the
fluid level up to the requirements described on the brake
fluid reservoir. With disc brakes, fluid level can be
expected to fall as the brake pads wear. Brake fluid level
7
MAINTAINING YOUR VEHICLE 423

Reporting Safety Defects................... 474
Restraint, Head ......................... 138
Restraints, Child ......................... 76
Restraints, Occupant ...................... 38
Roll Over Warning ........................ 4
Roof Type Carrier ....................... 185
Rotation, Tires .......................... 347
Safety Checks Inside Vehicle ................. 88
Safety Checks Outside Vehicle ............... 90
Safety Defects, Reporting .................. 474
Safety, Exhaust Gas ....................... 87
Safety Information, Tire ................... 329
Safety Tips ............................. 86
Satellite Radio Antenna .................265,270
Satellite Radio (Uconnect studios)........... 268
Schedule, Maintenance .................... 450
Seat Belt Reminder ....................... 52
Seat Belts ............................ 39,88Adjustable Upper Shoulder Anchorage
........ 45
And Pregnant Women ................... 53
Child Restraint ....................... 76,83
Extender ............................. 54
Front Seat ............................ 39
Inspection ............................ 88
Maintenance ......................... 432
Shoulder Belt Anchorage ................. 45
Seats ................................. 134
Adjustment .......................... 135
Head Restraints ....................... 138
Heated ............................. 141
Rear Folding ......................... 142
Reclining ............................ 136
Security Alarm (Theft Alarm) ................ 17
Selection of Coolant (Antifreeze) ............. 446
Selection of Oil ......................... 408
Sentry Key (Immobilizer) ................... 14
Sentry Key Programming ................... 16
492 INDEX
