ESP On
This is the normal operating mode for ESP in 2WD, 4WD
Part Time, 4WD Full Time, and on 2WD vehicles. When-
ever the vehicle is started, the ESP system will be in this
mode. This mode should be used for most all driving
situations. ESP should only be turned off for specific
reasons as noted below.
Partial Off
This mode is entered by momentarily pressing the ESP
OFF switch (located in the center stack lower switch
bank). When in “Partial Off” mode, the TCS portion of
ESP, except for the “limited slip” feature described in the
TCS section, has been disabled and the “ESP/TCS Indi-
cator Light” will be illuminated. All other stability fea-
tures of ESP function normally. This mode is intended to
be used if the vehicle is in deep snow, sand or gravel
conditions and more wheel spin than ESP would nor-
mally allow is required to gain traction. To turn ESP onagain, momentarily press the ESP OFF switch. This will
restore the normal “ESP ON” mode of operation.
NOTE:
To improve the vehicle’s traction when driving
with snow chains, or starting off in deep snow, sand or
gravel, it may be desirable to switch to the “Partial Off”
mode by pressing the ESP OFF switch. Once the situation
ESP Off Switch
5
STARTING AND OPERATING 327

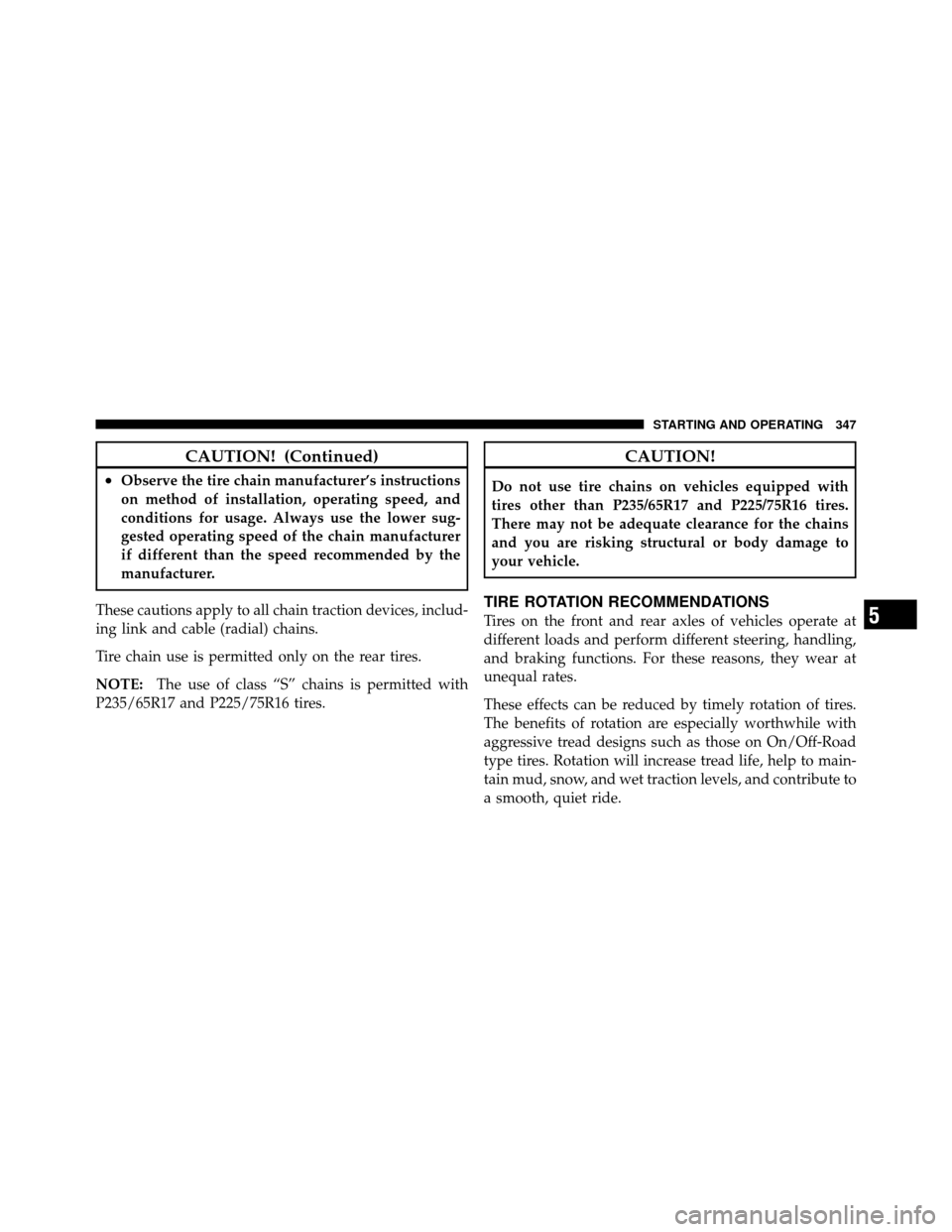

CAUTION! (Continued)
•Observe the tire chain manufacturer’s instructions
on method of installation, operating speed, and
conditions for usage. Always use the lower sug-
gested operating speed of the chain manufacturer
if different than the speed recommended by the
manufacturer.
These cautions apply to all chain traction devices, includ-
ing link and cable (radial) chains.
Tire chain use is permitted only on the rear tires.
NOTE: The use of class “S” chains is permitted with
P235/65R17 and P225/75R16 tires.
CAUTION!
Do not use tire chains on vehicles equipped with
tires other than P235/65R17 and P225/75R16 tires.
There may not be adequate clearance for the chains
and you are risking structural or body damage to
your vehicle.
TIRE ROTATION RECOMMENDATIONS
Tires on the front and rear axles of vehicles operate at
different loads and perform different steering, handling,
and braking functions. For these reasons, they wear at
unequal rates.
These effects can be reduced by timely rotation of tires.
The benefits of rotation are especially worthwhile with
aggressive tread designs such as those on On/Off-Road
type tires. Rotation will increase tread life, help to main-
tain mud, snow, and wet traction levels, and contribute to
a smooth, quiet ride.5
STARTING AND OPERATING 347

3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.
Vehicles with Full-Size Spare
1. The matching full-size spare wheel and tire assembly
has a tire pressure monitoring sensor that can be moni-
tored by the TPMS.
2. If you install the full-size spare in place of a road tire
that has a pressure below the low-pressure warning limit,
a chime will sound and the “TPMS Telltale Light” will
turn on upon the next ignition key cycle.
3. Driving the vehicle for up to 20 minutes above 15 mph
(25 km/h) will turn off the “TPMS Telltale Light,” as long
as no tire pressure is below the low-pressure warning
limit in any of the four active road tires.Vehicles with Compact Spare
1. The compact spare tire does not have a tire pressure
monitoring sensor. Therefore, the TPMS will not monitor
the pressure in the compact spare tire.
2. If you install the compact spare tire in place of a road
tire that has a pressure below the low-pressure warning
limit, a chime will sound and the “TPMS Telltale Light”
will turn on upon the next ignition key cycle.
3. After driving the vehicle for up to 20 minutes above
15 mph (25 km/h), the “TPMS Telltale Light” will flash
on and off for 75 seconds and then remain on solid.
4. For each subsequent ignition key cycle, a chime will
sound and the “TPMS Telltale Light” will flash on and off
for 75 seconds and then remain on solid.
5. Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically and the “TPMS
5
STARTING AND OPERATING 353

If the ignition key is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, and theCHECK TPM
SYSTEM message will no longer display, and a pressure
value will display in place of the dashes. A system fault
can occur due to any of the following: 1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the TPMS
sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.
Vehicles with Full-Size Spare
1. The matching full size spare wheel and tire assembly
has a tire pressure monitoring sensor that can be moni-
tored by the TPMS.
2. If you install the full size spare in place of a road tire
that has a pressure below the low-pressure warning limit,
a chime will sound and the “TPMS Telltale Light” will
356 STARTING AND OPERATING

Sentry Key Replacement................... 15
Service Assistance ....................... 471
Service Contract ......................... 473
Service Engine Soon Light
(Malfunction Indicator) .................... 205
Service Manuals ........................ 475
Setting the Clock .............223,238,240,243,253
Settings, Personal ........................ 219
Shift Lock Manual Override ................ 298
Shifting Automatic Transmission ..............299,303
Shoulder Belts ........................... 39
Side Window Demisters (Defrosters) .......... 286
Signals, Turn .............. 90,150,195,441,442,443
Snow Chains (Tire Chains) ................. 346
Spare Tire .......................... 341,388
Specifications Fuel (Gasoline) ........................ 358
Oil ................................ 408 Speed Control (Cruise Control)
.............. 156
Speedometer ........................... 194
Starting ............................... 293
Cold Weather ......................... 294
Engine Block Heater .................... 296
Engine Fails to Start .................... 294
Remote .............................. 25
Steering Power ........................... 315,316
Tilt Column .......................... 155
Wheel, Tilt ........................... 155
Steering Wheel Mounted Sound
System Controls ......................... 273
Storage ............................... 178
Storage Bin ............................ 178
Storage, Vehicle ......................... 285
Sun Roof .............................. 171
Sun Visor Extension ...................... 100
Sunroof Maintenance ..................... 174
