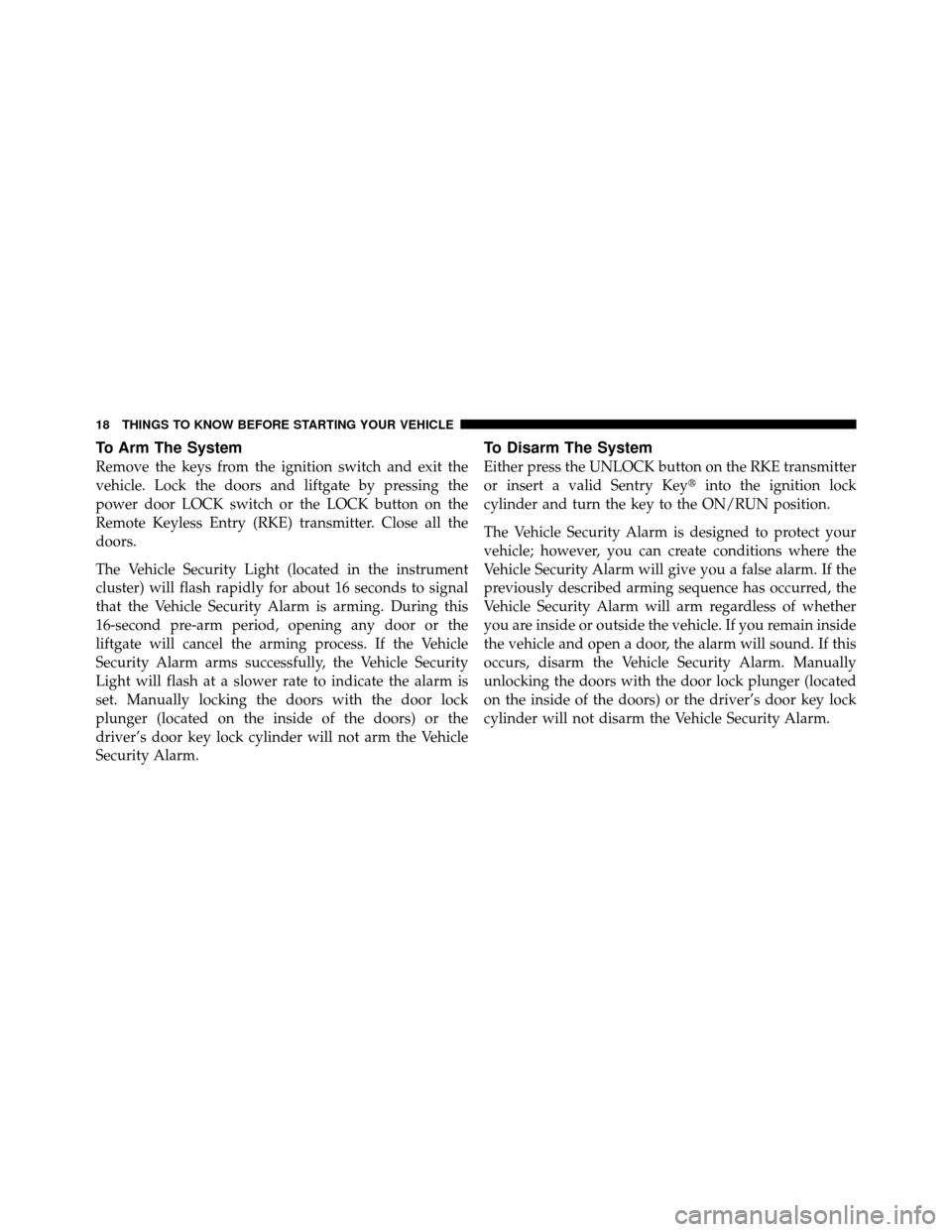

To Arm The System
Remove the keys from the ignition switch and exit the
vehicle. Lock the doors and liftgate by pressing the
power door LOCK switch or the LOCK button on the
Remote Keyless Entry (RKE) transmitter. Close all the
doors.
The Vehicle Security Light (located in the instrument
cluster) will flash rapidly for about 16 seconds to signal
that the Vehicle Security Alarm is arming. During this
16-second pre-arm period, opening any door or the
liftgate will cancel the arming process. If the Vehicle
Security Alarm arms successfully, the Vehicle Security
Light will flash at a slower rate to indicate the alarm is
set. Manually locking the doors with the door lock
plunger (located on the inside of the doors) or the
driver’s door key lock cylinder will not arm the Vehicle
Security Alarm.
To Disarm The System
Either press the UNLOCK button on the RKE transmitter
or insert a valid Sentry Keyinto the ignition lock
cylinder and turn the key to the ON/RUN position.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If the
previously described arming sequence has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are inside or outside the vehicle. If you remain inside
the vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm. Manually
unlocking the doors with the door lock plunger (located
on the inside of the doors) or the driver’s door key lock
cylinder will not disarm the Vehicle Security Alarm.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

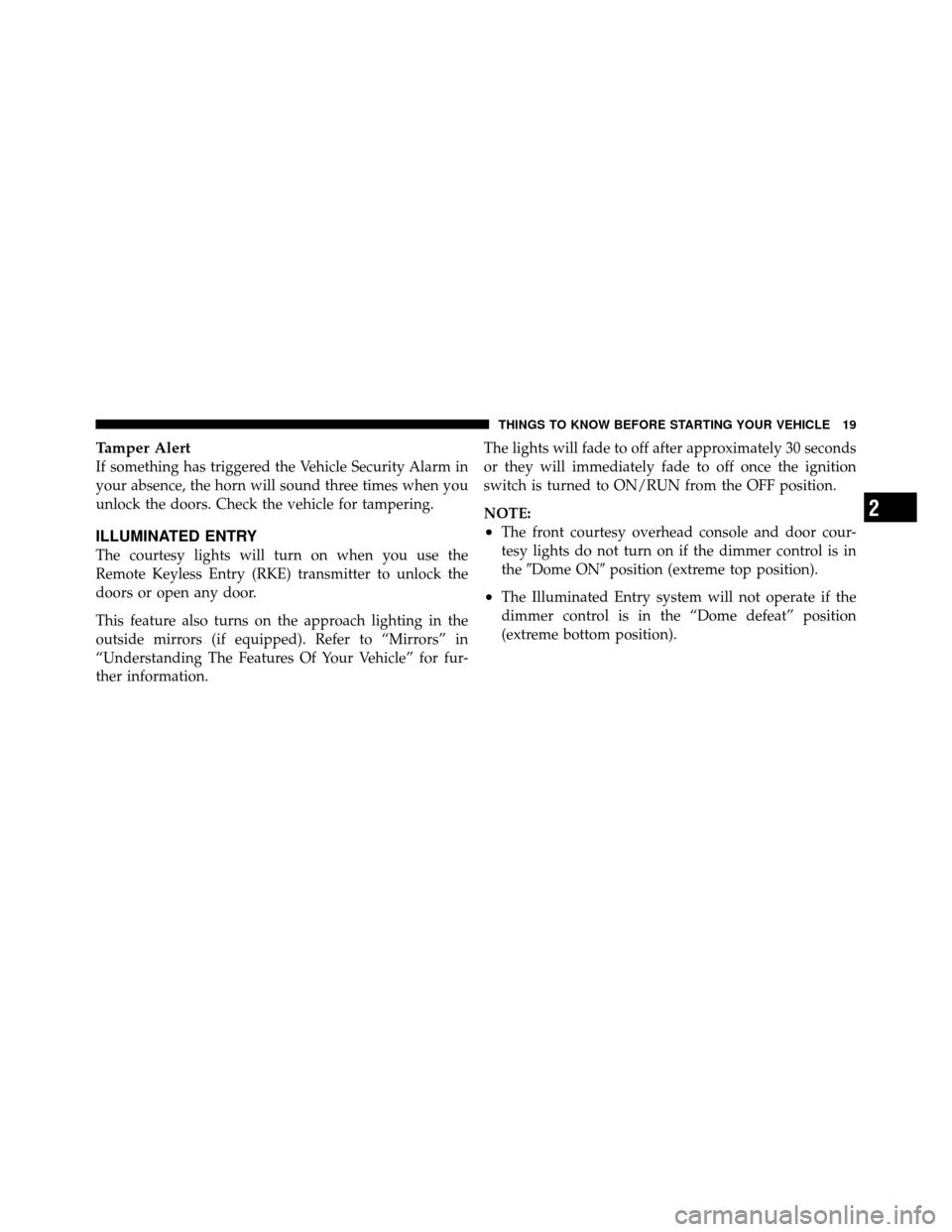

Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times when you
unlock the doors. Check the vehicle for tampering.
ILLUMINATED ENTRY
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter to unlock the
doors or open any door.
This feature also turns on the approach lighting in the
outside mirrors (if equipped). Refer to “Mirrors” in
“Understanding The Features Of Your Vehicle” for fur-
ther information.The lights will fade to off after approximately 30 seconds
or they will immediately fade to off once the ignition
switch is turned to ON/RUN from the OFF position.
NOTE:
•The front courtesy overhead console and door cour-
tesy lights do not turn on if the dimmer control is in
the
Dome ON position (extreme top position).
•The Illuminated Entry system will not operate if the
dimmer control is in the “Dome defeat” position
(extreme bottom position).
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

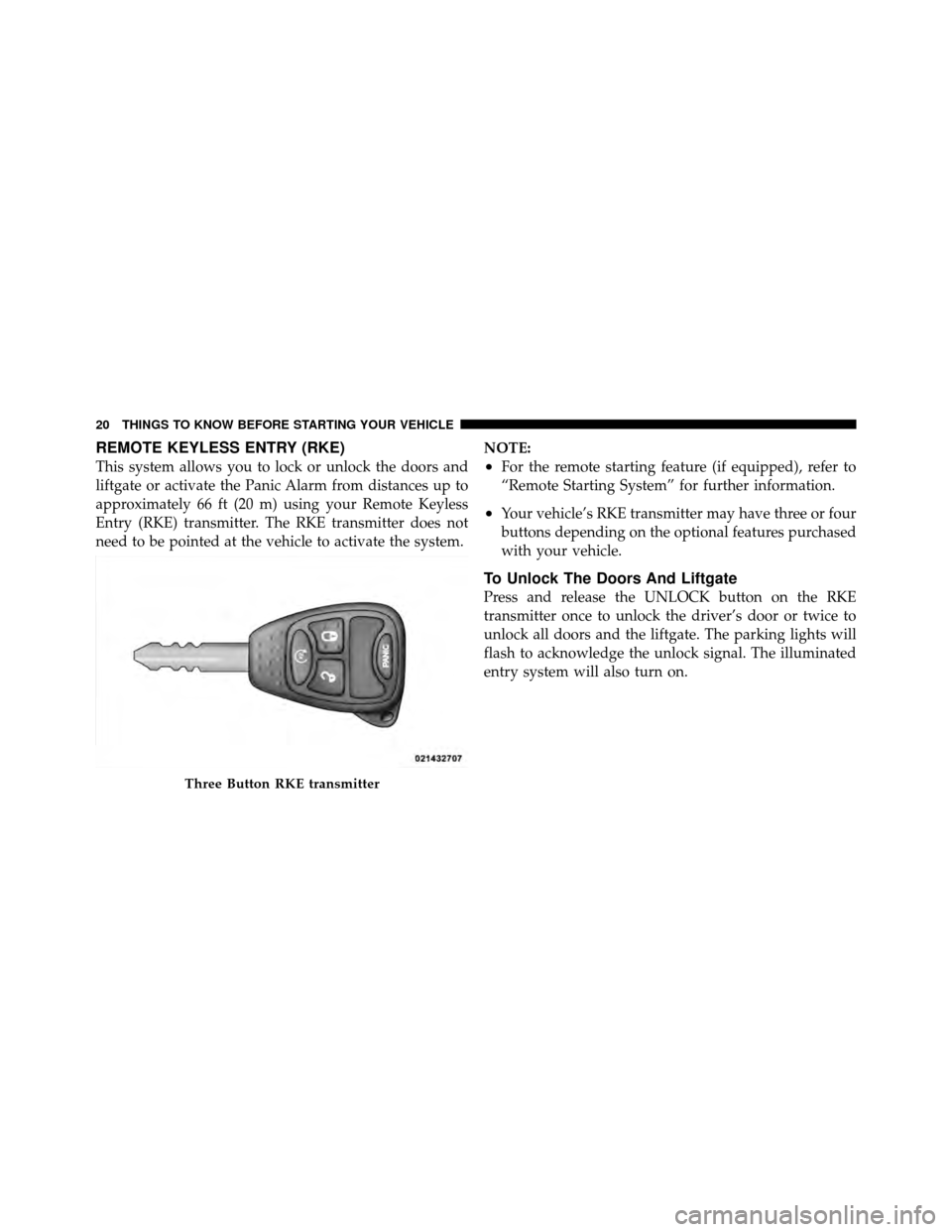

REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors and
liftgate or activate the Panic Alarm from distances up to
approximately 66 ft (20 m) using your Remote Keyless
Entry (RKE) transmitter. The RKE transmitter does not
need to be pointed at the vehicle to activate the system.NOTE:•For the remote starting feature (if equipped), refer to
“Remote Starting System” for further information.
•Your vehicle’s RKE transmitter may have three or four
buttons depending on the optional features purchased
with your vehicle.
To Unlock The Doors And Liftgate
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice to
unlock all doors and the liftgate. The parking lights will
flash to acknowledge the unlock signal. The illuminated
entry system will also turn on.
Three Button RKE transmitter
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

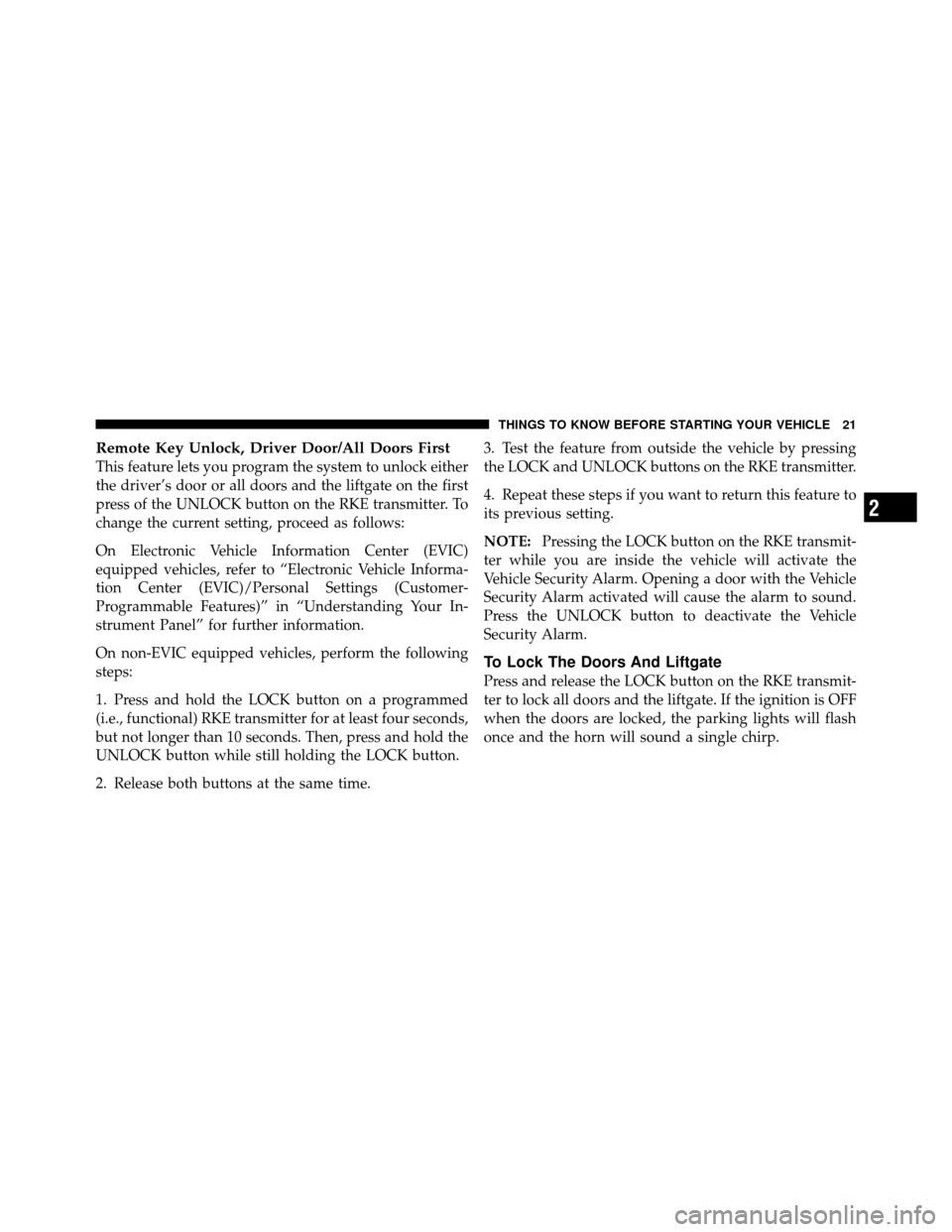

Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors and the liftgate on the first
press of the UNLOCK button on the RKE transmitter. To
change the current setting, proceed as follows:
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, refer to “Electronic Vehicle Informa-
tion Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
On non-EVIC equipped vehicles, perform the following
steps:
1. Press and hold the LOCK button on a programmed
(i.e., functional) RKE transmitter for at least four seconds,
but not longer than 10 seconds. Then, press and hold the
UNLOCK button while still holding the LOCK button.
2. Release both buttons at the same time.3. Test the feature from outside the vehicle by pressing
the LOCK and UNLOCK buttons on the RKE transmitter.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.
To Lock The Doors And Liftgate
Press and release the LOCK button on the RKE transmit-
ter to lock all doors and the liftgate. If the ignition is OFF
when the doors are locked, the parking lights will flash
once and the horn will sound a single chirp.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21

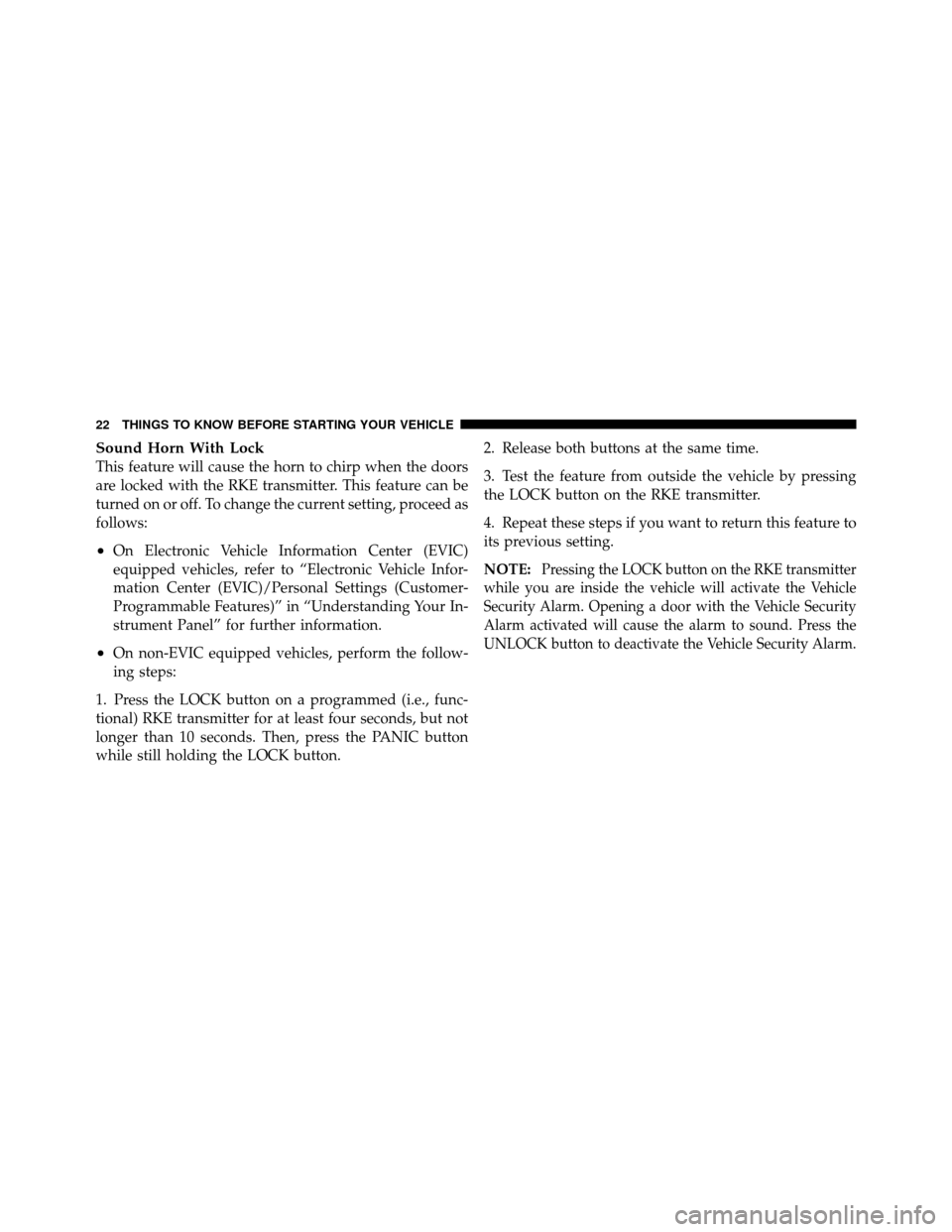

Sound Horn With Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or off. To change the current setting, proceed as
follows:
•On Electronic Vehicle Information Center (EVIC)
equipped vehicles, refer to “Electronic Vehicle Infor-
mation Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
•On non-EVIC equipped vehicles, perform the follow-
ing steps:
1. Press the LOCK button on a programmed (i.e., func-
tional) RKE transmitter for at least four seconds, but not
longer than 10 seconds. Then, press the PANIC button
while still holding the LOCK button. 2. Release both buttons at the same time.
3. Test the feature from outside the vehicle by pressing
the LOCK button on the RKE transmitter.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Pressing the LOCK button on the RKE transmitter
while you are inside the vehicle will activate the Vehicle
Security Alarm. Opening a door with the Vehicle Security
Alarm activated will cause the alarm to sound. Press the
UNLOCK button to deactivate the Vehicle Security Alarm.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

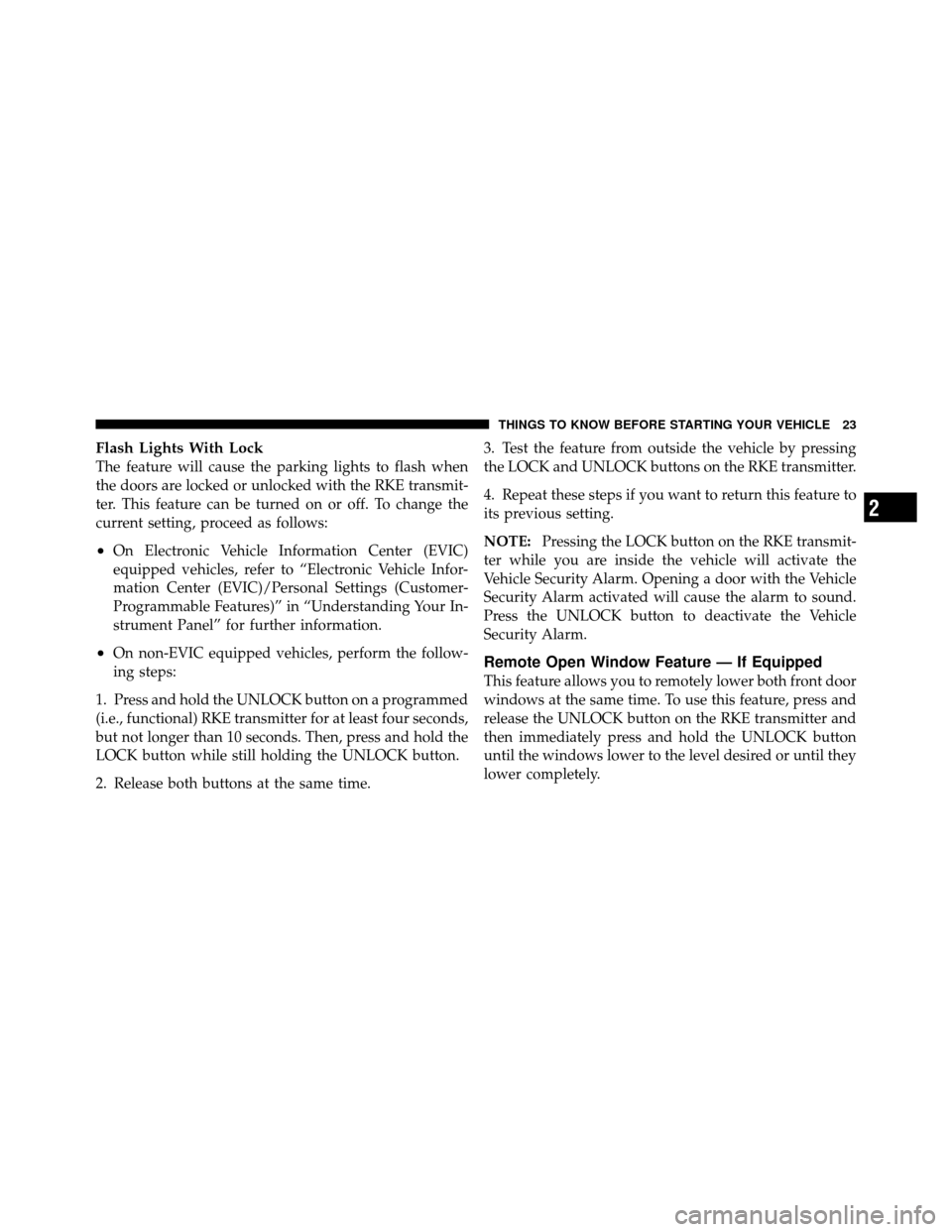

Flash Lights With Lock
The feature will cause the parking lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or off. To change the
current setting, proceed as follows:
•On Electronic Vehicle Information Center (EVIC)
equipped vehicles, refer to “Electronic Vehicle Infor-
mation Center (EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding Your In-
strument Panel” for further information.
•On non-EVIC equipped vehicles, perform the follow-
ing steps:
1. Press and hold the UNLOCK button on a programmed
(i.e., functional) RKE transmitter for at least four seconds,
but not longer than 10 seconds. Then, press and hold the
LOCK button while still holding the UNLOCK button.
2. Release both buttons at the same time. 3. Test the feature from outside the vehicle by pressing
the LOCK and UNLOCK buttons on the RKE transmitter.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Vehicle Security Alarm. Opening a door with the Vehicle
Security Alarm activated will cause the alarm to sound.
Press the UNLOCK button to deactivate the Vehicle
Security Alarm.Remote Open Window Feature — If Equipped
This feature allows you to remotely lower both front door
windows at the same time. To use this feature, press and
release the UNLOCK button on the RKE transmitter and
then immediately press and hold the UNLOCK button
until the windows lower to the level desired or until they
lower completely.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

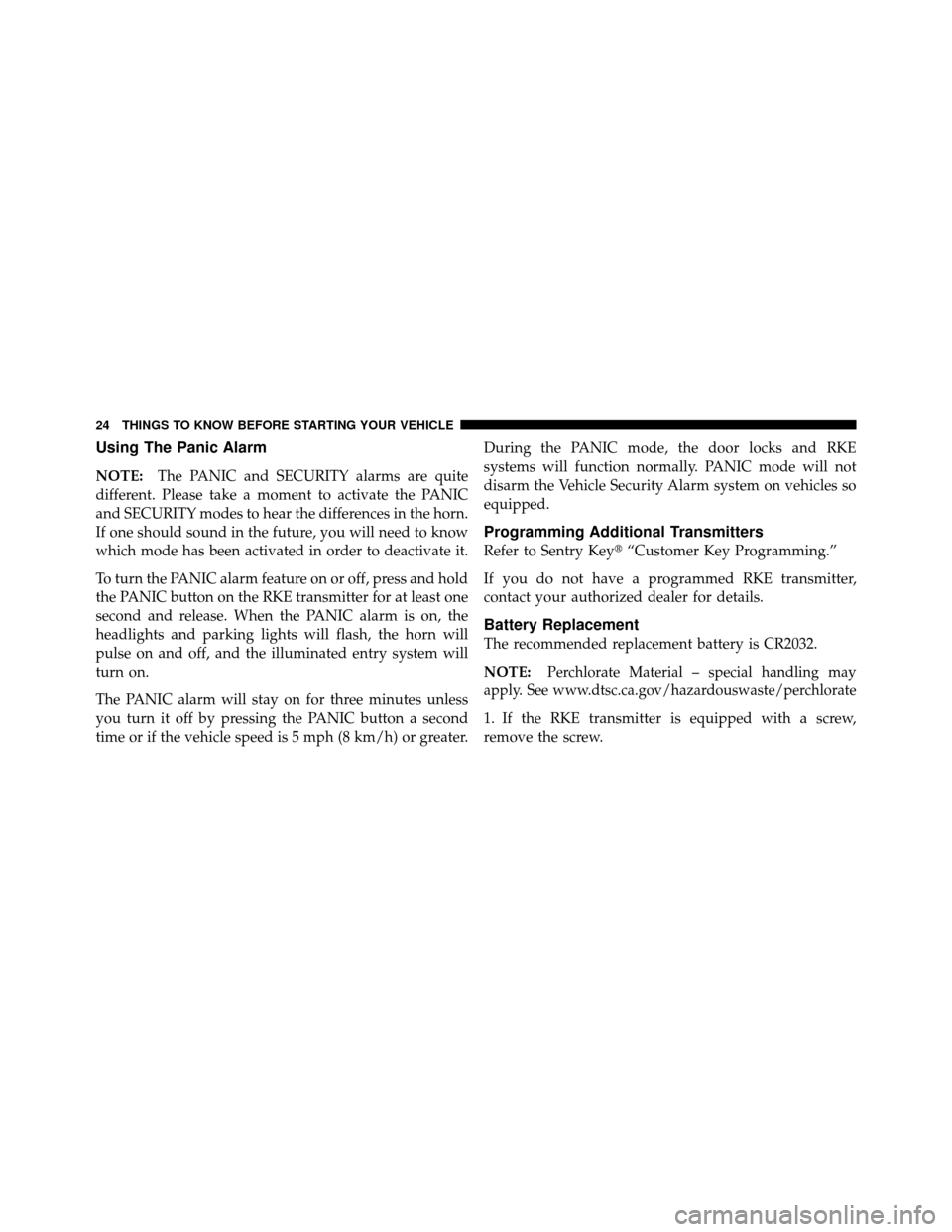

Using The Panic Alarm
NOTE:The PANIC and SECURITY alarms are quite
different. Please take a moment to activate the PANIC
and SECURITY modes to hear the differences in the horn.
If one should sound in the future, you will need to know
which mode has been activated in order to deactivate it.
To turn the PANIC alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the PANIC alarm is on, the
headlights and parking lights will flash, the horn will
pulse on and off, and the illuminated entry system will
turn on.
The PANIC alarm will stay on for three minutes unless
you turn it off by pressing the PANIC button a second
time or if the vehicle speed is 5 mph (8 km/h) or greater. During the PANIC mode, the door locks and RKE
systems will function normally. PANIC mode will not
disarm the Vehicle Security Alarm system on vehicles so
equipped.
Programming Additional Transmitters
Refer to Sentry Key
“Customer Key Programming.”
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
Battery Replacement
The recommended replacement battery is CR2032.
NOTE:
Perchlorate Material – special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate
1. If the RKE transmitter is equipped with a screw,
remove the screw.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

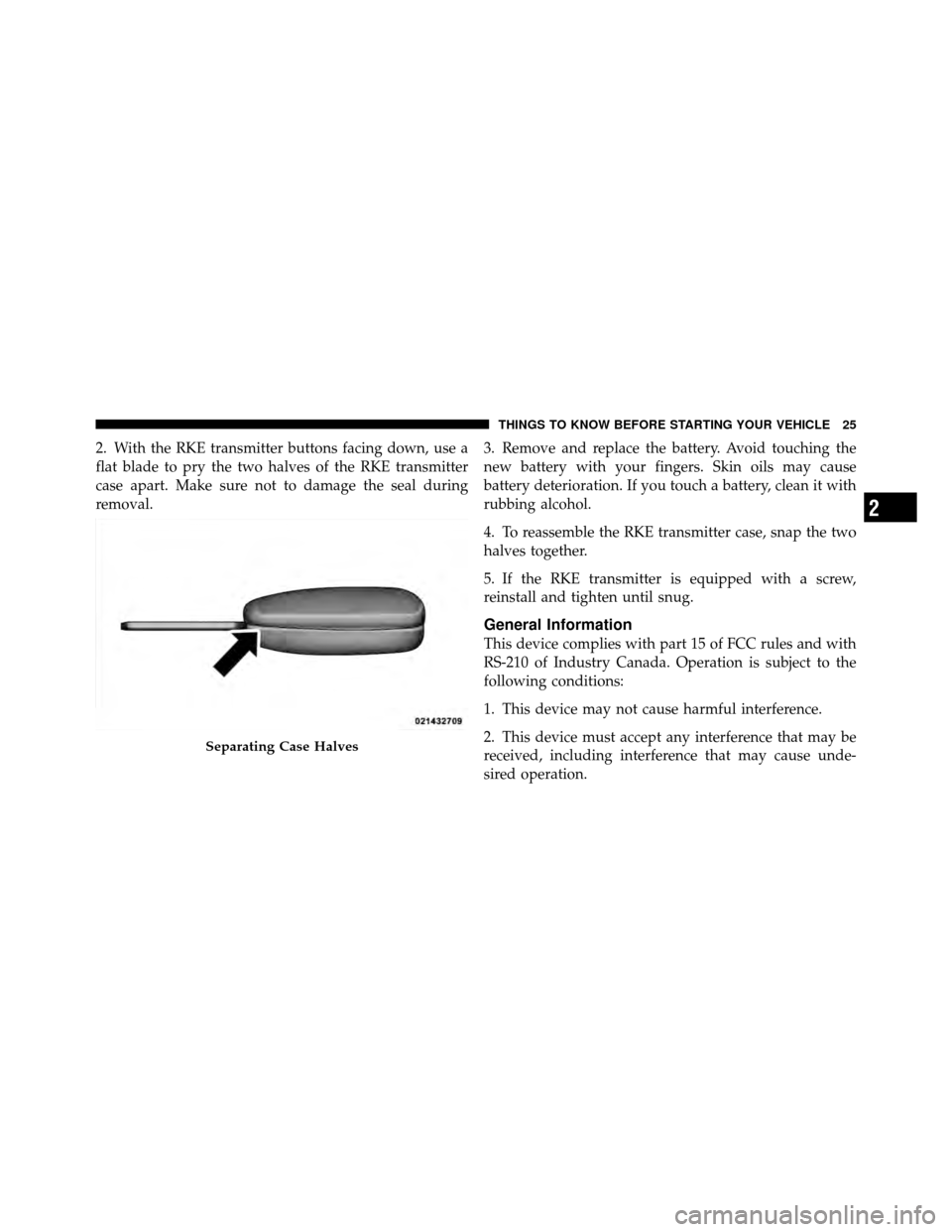

2. With the RKE transmitter buttons facing down, use a
flat blade to pry the two halves of the RKE transmitter
case apart. Make sure not to damage the seal during
removal.3. Remove and replace the battery. Avoid touching the
new battery with your fingers. Skin oils may cause
battery deterioration. If you touch a battery, clean it with
rubbing alcohol.
4. To reassemble the RKE transmitter case, snap the two
halves together.
5. If the RKE transmitter is equipped with a screw,
reinstall and tighten until snug.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received, including interference that may cause unde-
sired operation.
Separating Case Halves
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25

NOTE:Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. Weak battery in RKE transmitter. The expected life of
the battery is from one to two years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
REMOTE STARTING SYSTEM — IF EQUIPPED
This system uses the Remote Keyless Entry
(RKE) transmitter to start the engine conve-
niently from outside the vehicle while still
maintaining security. The system has a range of
approximately 300 ft (91 m).
NOTE: The vehicle must be equipped with an auto-
matic transmission to be equipped with Remote Start.
How To Use Remote Start
All of the following conditions must be met before the
engine will remote start:
•Shift lever in PARK
•Doors closed
•Hood closed
•Hazard switch off
•Brake switch inactive (brake pedal not pressed)
•Ignition key removed from ignition switch
•Battery at an acceptable charge level
•RKE PANIC button not pressed
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

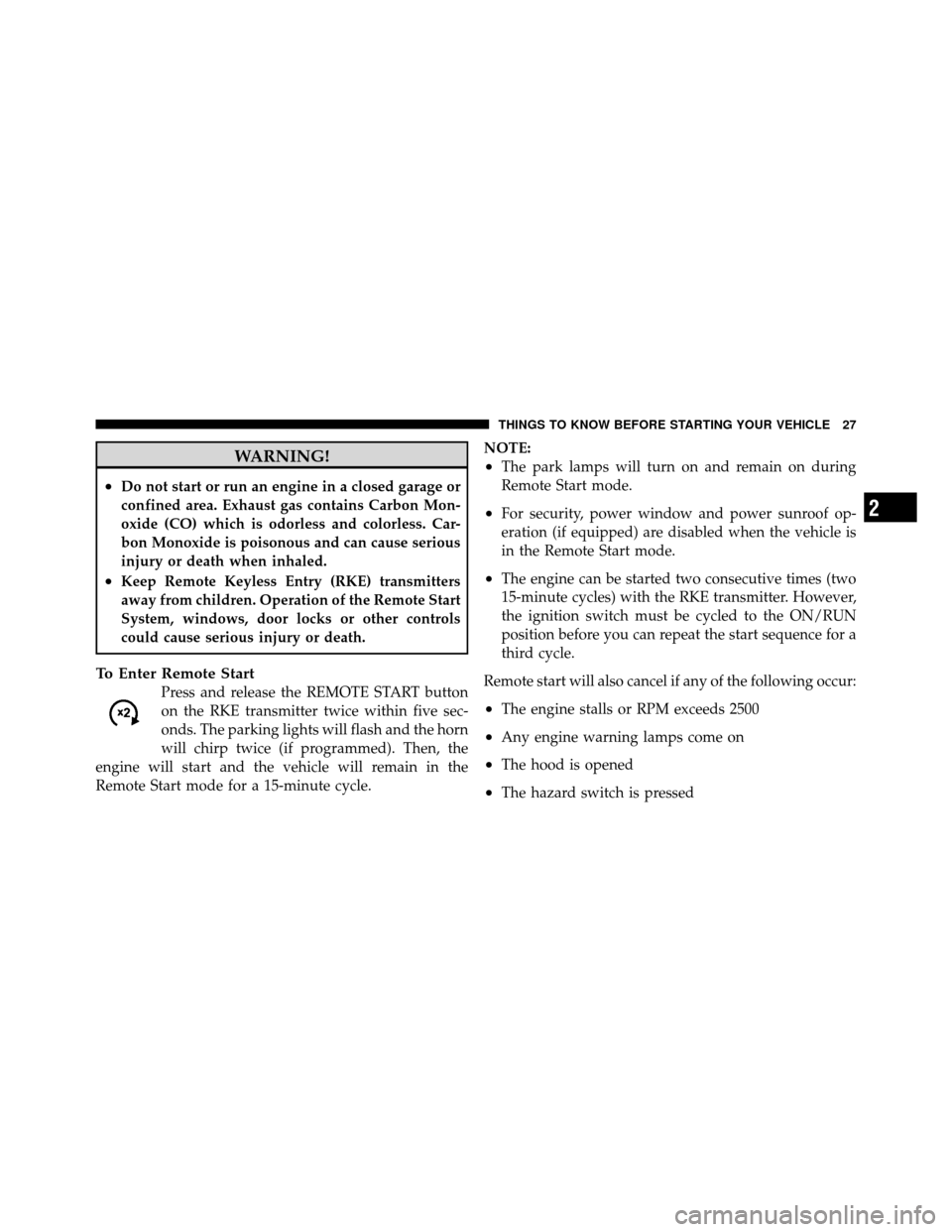

WARNING!
•Do not start or run an engine in a closed garage or
confined area. Exhaust gas contains Carbon Mon-
oxide (CO) which is odorless and colorless. Car-
bon Monoxide is poisonous and can cause serious
injury or death when inhaled.
•Keep Remote Keyless Entry (RKE) transmitters
away from children. Operation of the Remote Start
System, windows, door locks or other controls
could cause serious injury or death.
To Enter Remote Start
Press and release the REMOTE START button
on the RKE transmitter twice within five sec-
onds. The parking lights will flash and the horn
will chirp twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle. NOTE:
•The park lamps will turn on and remain on during
Remote Start mode.
•For security, power window and power sunroof op-
eration (if equipped) are disabled when the vehicle is
in the Remote Start mode.
•The engine can be started two consecutive times (two
15-minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON/RUN
position before you can repeat the start sequence for a
third cycle.
Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
