headlamp DODGE POWER WAGON 2007 2.G Owners Manual

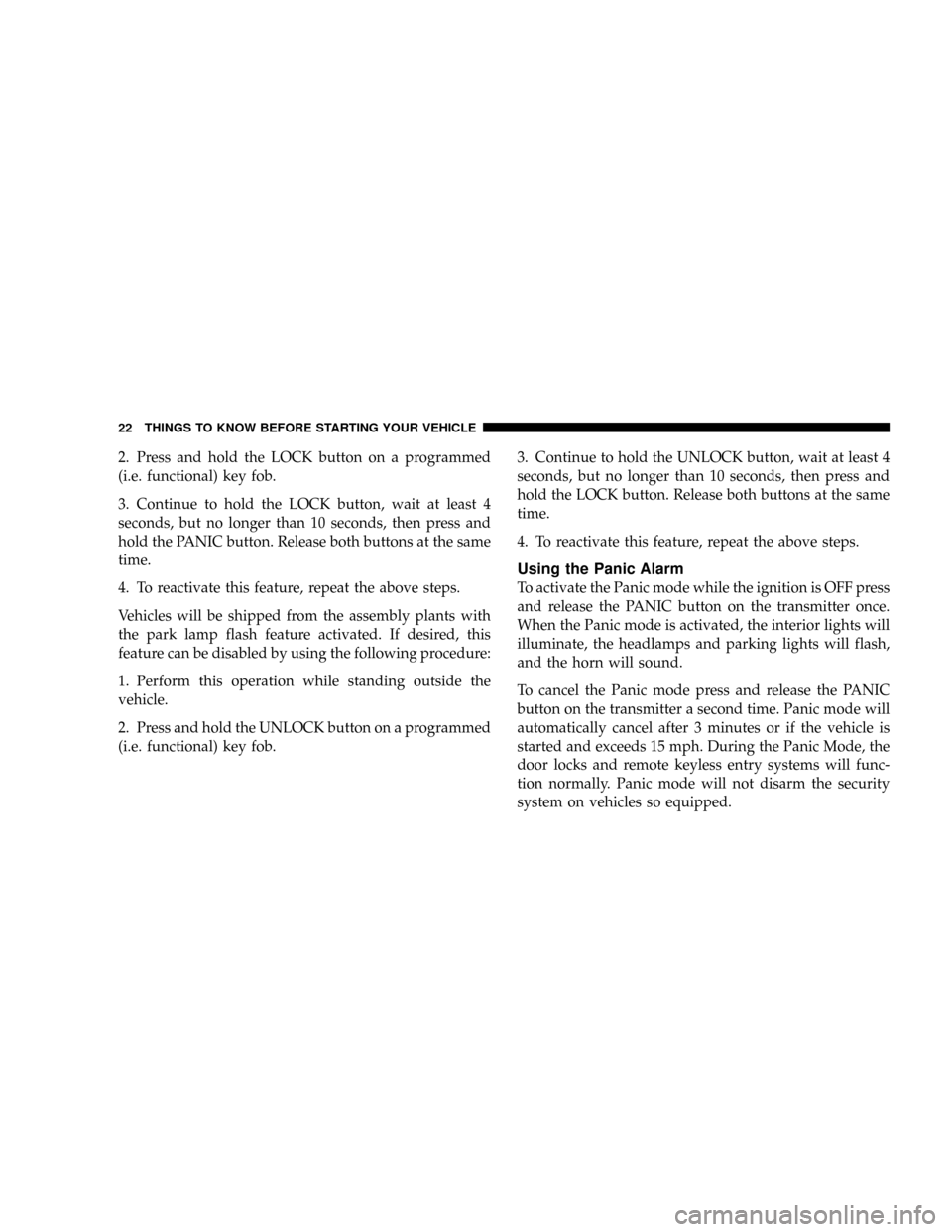

2. Press and hold the LOCK button on a programmed
(i.e. functional) key fob.
3. Continue to hold the LOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the PANIC button. Release both buttons at the same
time.
4. To reactivate this feature, repeat the above steps.
Vehicles will be shipped from the assembly plants with
the park lamp flash feature activated. If desired, this
feature can be disabled by using the following procedure:
1. Perform this operation while standing outside the
vehicle.
2. Press and hold the UNLOCK button on a programmed
(i.e. functional) key fob.3. Continue to hold the UNLOCK button, wait at least 4
seconds, but no longer than 10 seconds, then press and
hold the LOCK button. Release both buttons at the same
time.
4. To reactivate this feature, repeat the above steps.
Using the Panic Alarm
To activate the Panic mode while the ignition is OFF press
and release the PANIC button on the transmitter once.
When the Panic mode is activated, the interior lights will
illuminate, the headlamps and parking lights will flash,
and the horn will sound.
To cancel the Panic mode press and release the PANIC
button on the transmitter a second time. Panic mode will
automatically cancel after 3 minutes or if the vehicle is
started and exceeds 15 mph. During the Panic Mode, the
door locks and remote keyless entry systems will func-
tion normally. Panic mode will not disarm the security
system on vehicles so equipped.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

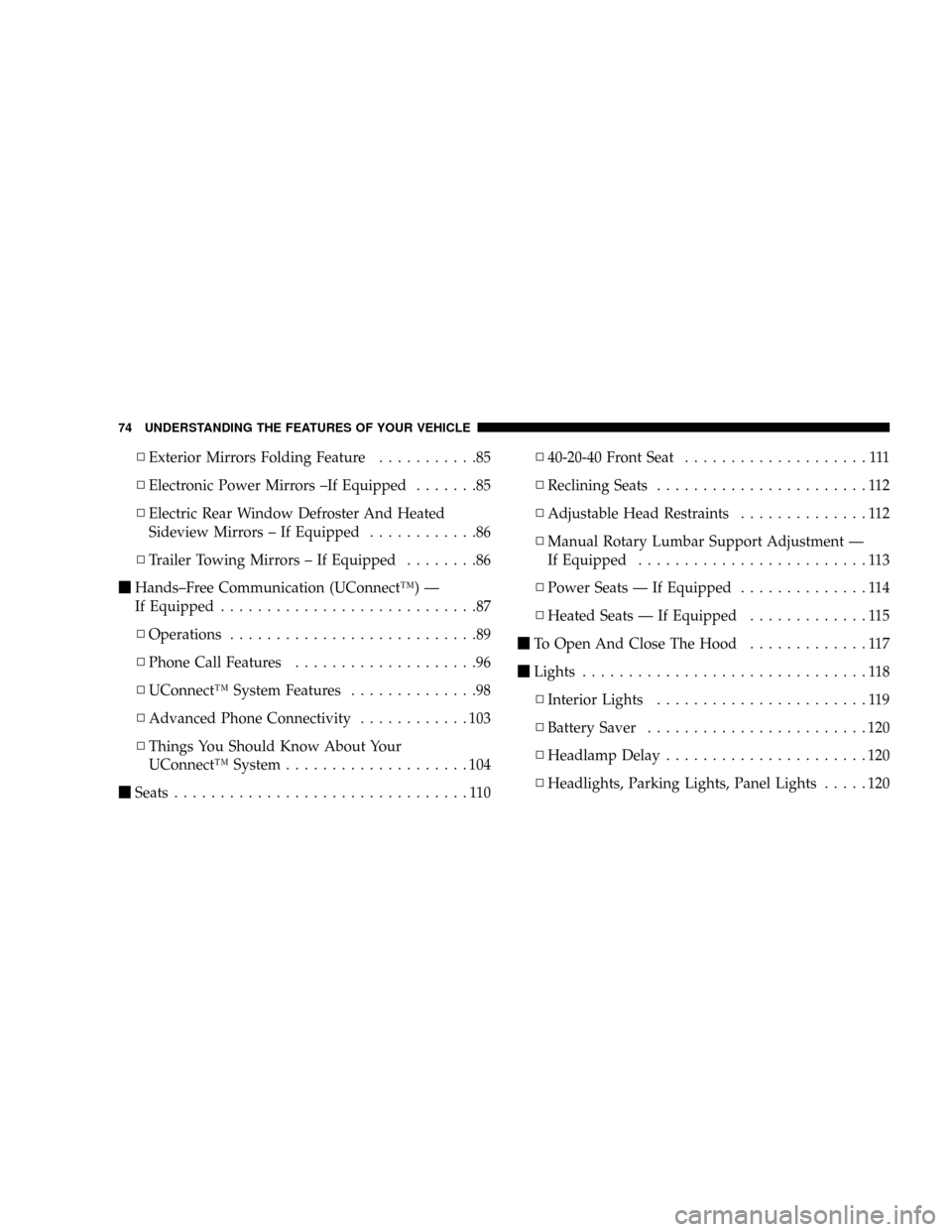

NExterior Mirrors Folding Feature...........85
NElectronic Power Mirrors ±If Equipped.......85
NElectric Rear Window Defroster And Heated
Sideview Mirrors ± If Equipped............86
NTrailer Towing Mirrors ± If Equipped........86
mHands±Free Communication (UConnectŸ) Ð
If Equipped............................87
NOperations...........................89
NPhone Call Features....................96
NUConnectŸ System Features..............98
NAdvanced Phone Connectivity............103
NThings You Should Know About Your
UConnectŸ System....................104
mSeats................................110N40-20-40 Front Seat....................111
NReclining Seats.......................112
NAdjustable Head Restraints..............112
NManual Rotary Lumbar Support Adjustment Ð
If Equipped.........................113
NPower Seats Ð If Equipped..............114
NHeated Seats Ð If Equipped.............115
mTo Open And Close The Hood.............117
mLights...............................118
NInterior Lights.......................119
NBattery Saver........................120
NHeadlamp Delay......................120
NHeadlights, Parking Lights, Panel Lights.....120
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

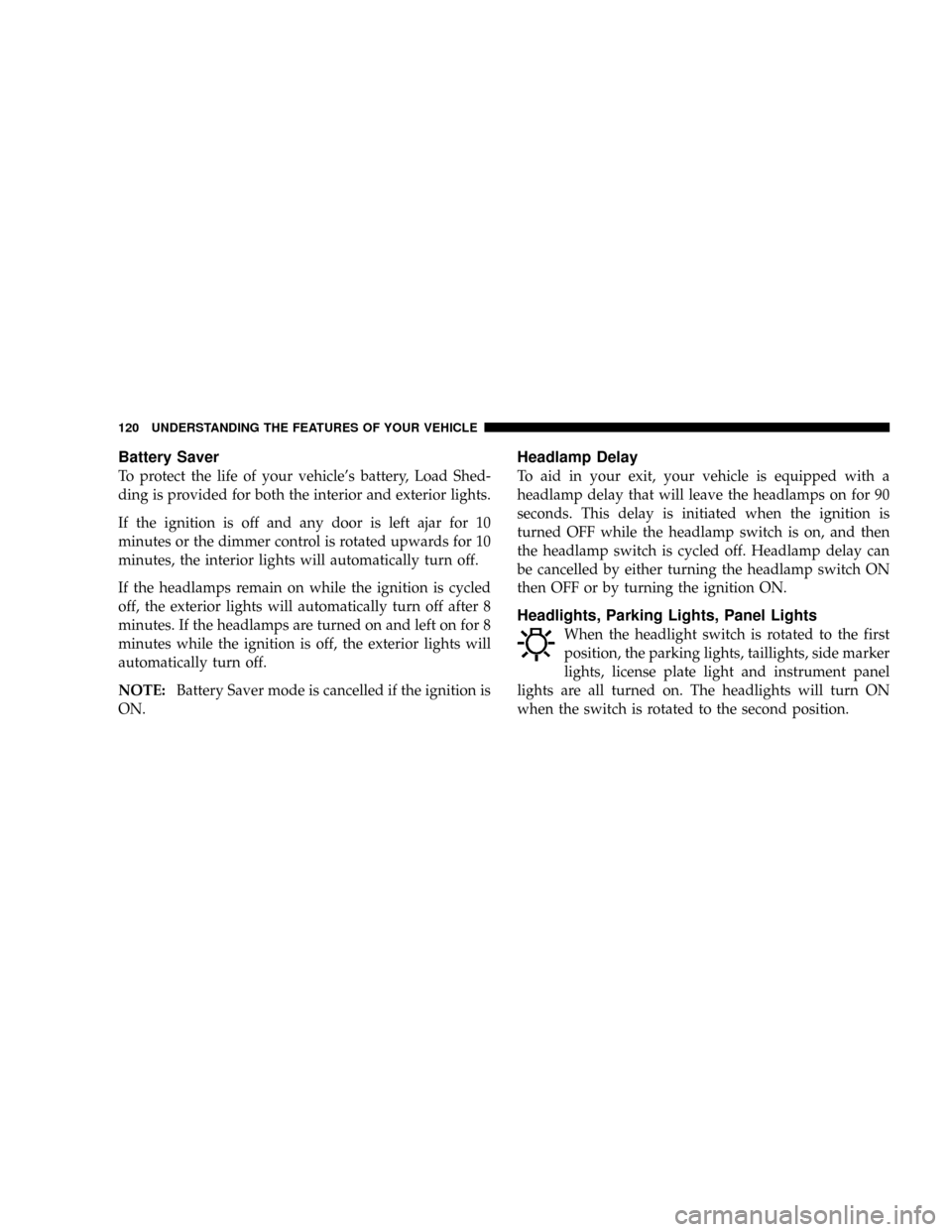

Battery Saver
To protect the life of your vehicle's battery, Load Shed-
ding is provided for both the interior and exterior lights.
If the ignition is off and any door is left ajar for 10
minutes or the dimmer control is rotated upwards for 10
minutes, the interior lights will automatically turn off.
If the headlamps remain on while the ignition is cycled
off, the exterior lights will automatically turn off after 8
minutes. If the headlamps are turned on and left on for 8
minutes while the ignition is off, the exterior lights will
automatically turn off.
NOTE:Battery Saver mode is cancelled if the ignition is
ON.
Headlamp Delay
To aid in your exit, your vehicle is equipped with a
headlamp delay that will leave the headlamps on for 90
seconds. This delay is initiated when the ignition is
turned OFF while the headlamp switch is on, and then
the headlamp switch is cycled off. Headlamp delay can
be cancelled by either turning the headlamp switch ON
then OFF or by turning the ignition ON.
Headlights, Parking Lights, Panel Lights
When the headlight switch is rotated to the first
position, the parking lights, taillights, side marker
lights, license plate light and instrument panel
lights are all turned on. The headlights will turn ON
when the switch is rotated to the second position.
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

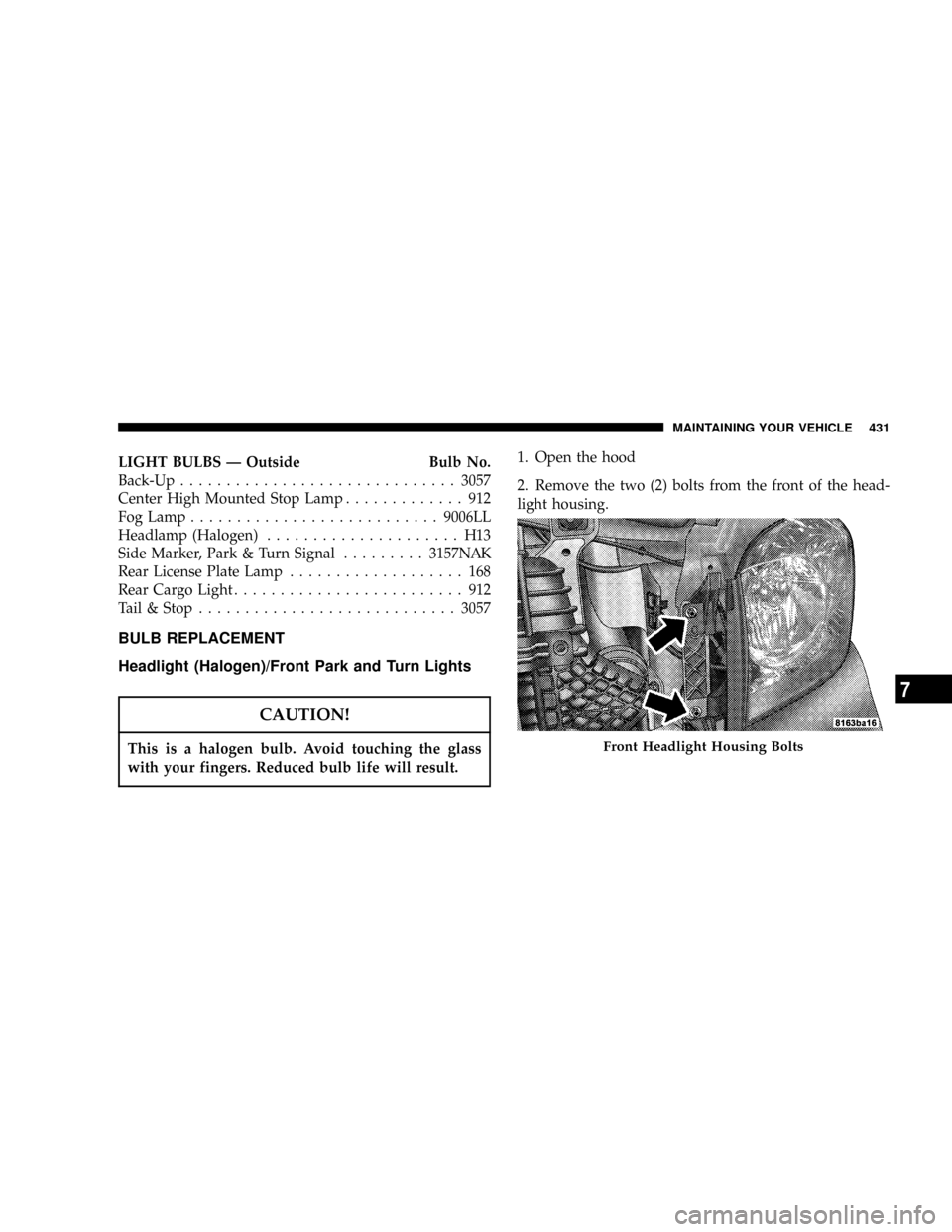

LIGHT BULBS Ð Outside Bulb No.
Back-Up..............................3057
Center High Mounted Stop Lamp............. 912
Fog Lamp...........................9006LL
Headlamp (Halogen)..................... H13
Side Marker, Park & Turn Signal.........3157NAK
Rear License Plate Lamp................... 168
Rear Cargo Light......................... 912
Tail & Stop............................3057
BULB REPLACEMENT
Headlight (Halogen)/Front Park and Turn Lights
CAUTION!
This is a halogen bulb. Avoid touching the glass
with your fingers. Reduced bulb life will result.
1. Open the hood
2. Remove the two (2) bolts from the front of the head-
light housing.
Front Headlight Housing Bolts
MAINTAINING YOUR VEHICLE 431
7
