spark plugs replace DODGE POWER WAGON 2007 2.G Owners Manual

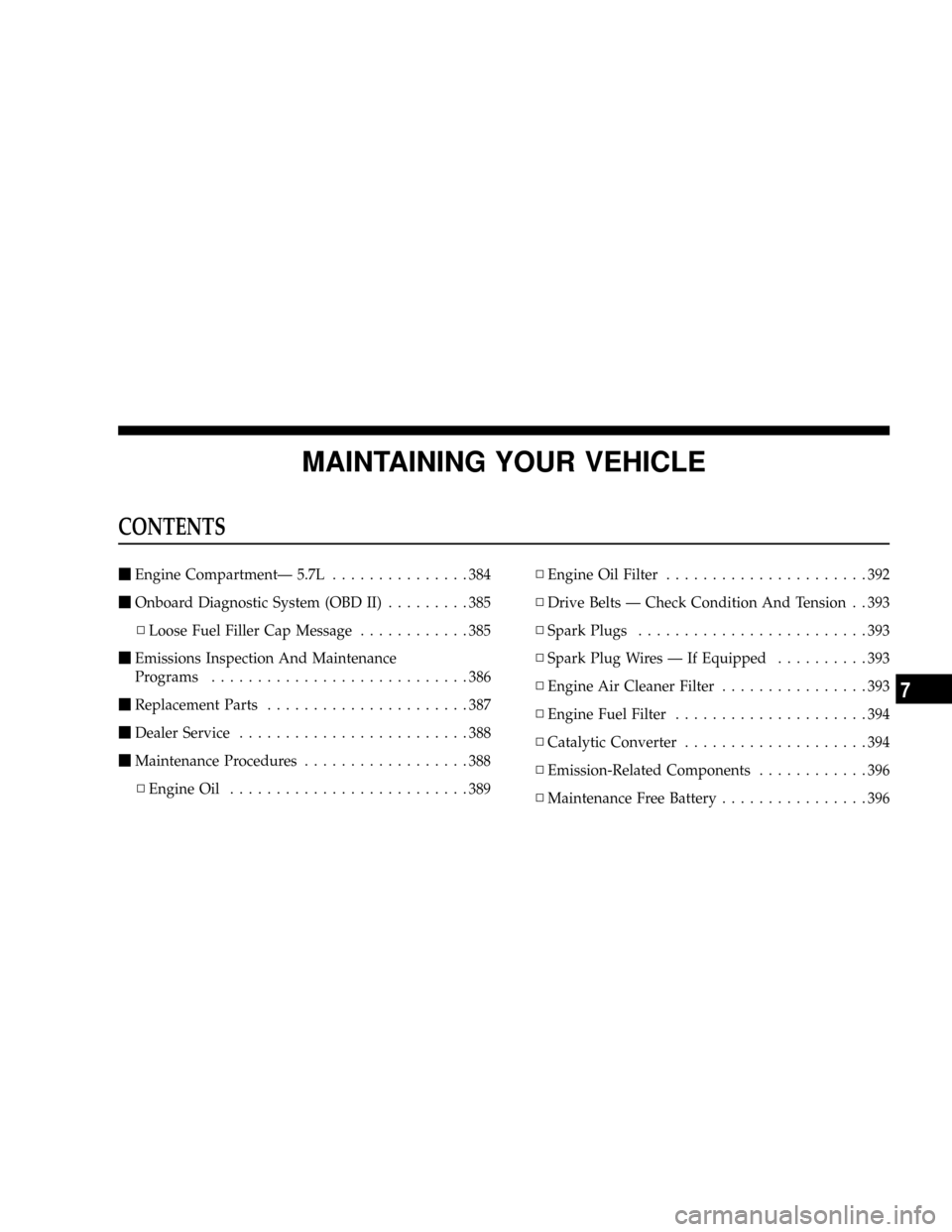

MAINTAINING YOUR VEHICLE
CONTENTS
mEngine CompartmentÐ 5.7L...............384
mOnboard Diagnostic System (OBD II).........385
NLoose Fuel Filler Cap Message............385
mEmissions Inspection And Maintenance
Programs............................386
mReplacement Parts......................387
mDealer Service.........................388
mMaintenance Procedures..................388
NEngine Oil..........................389NEngine Oil Filter......................392
NDrive Belts Ð Check Condition And Tension . . 393
NSpark Plugs.........................393
NSpark Plug Wires Ð If Equipped..........393
NEngine Air Cleaner Filter................393
NEngine Fuel Filter.....................394
NCatalytic Converter....................394
NEmission-Related Components............396
NMaintenance Free Battery................396
7

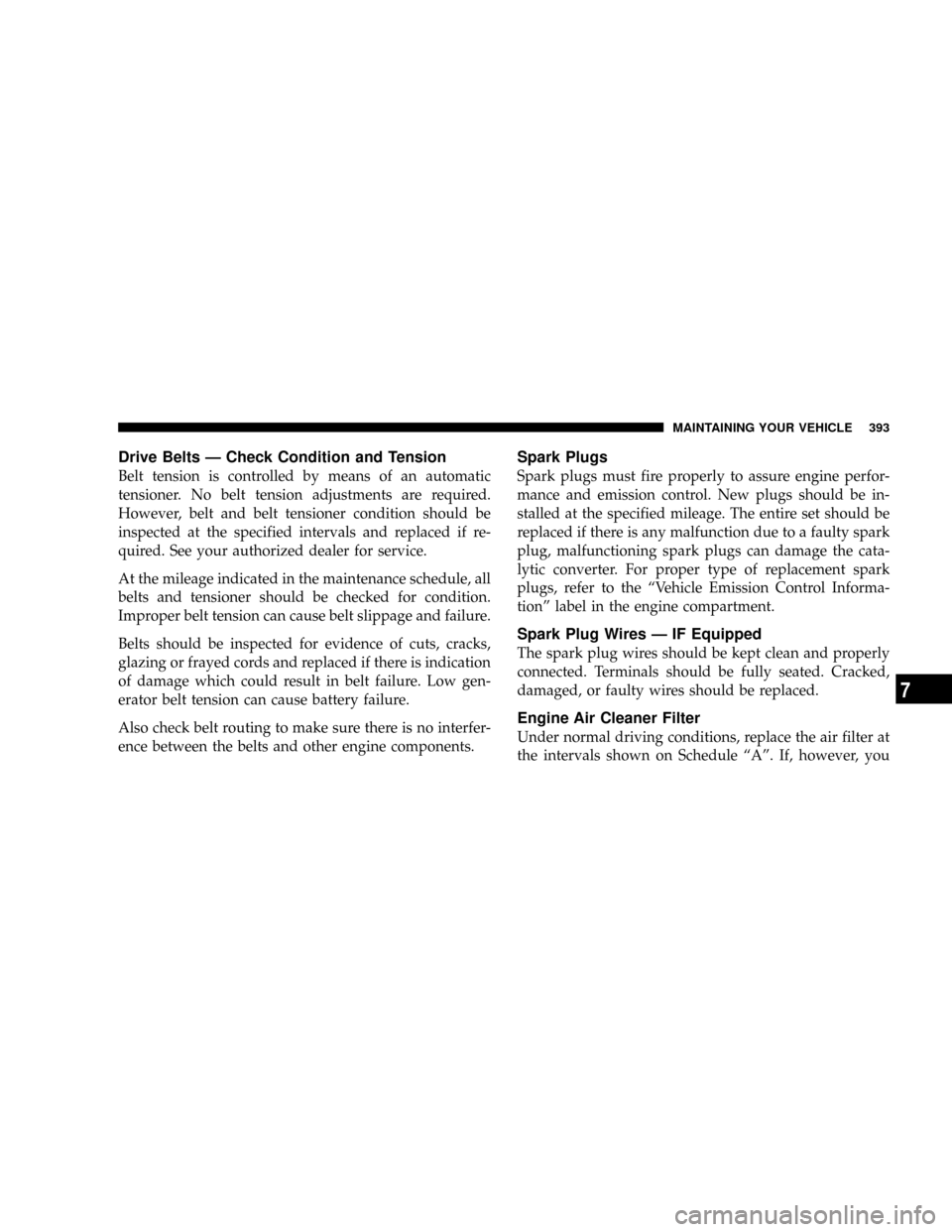

Drive Belts Ð Check Condition and Tension
Belt tension is controlled by means of an automatic
tensioner. No belt tension adjustments are required.
However, belt and belt tensioner condition should be
inspected at the specified intervals and replaced if re-
quired. See your authorized dealer for service.
At the mileage indicated in the maintenance schedule, all
belts and tensioner should be checked for condition.
Improper belt tension can cause belt slippage and failure.
Belts should be inspected for evidence of cuts, cracks,
glazing or frayed cords and replaced if there is indication
of damage which could result in belt failure. Low gen-
erator belt tension can cause battery failure.
Also check belt routing to make sure there is no interfer-
ence between the belts and other engine components.
Spark Plugs
Spark plugs must fire properly to assure engine perfor-
mance and emission control. New plugs should be in-
stalled at the specified mileage. The entire set should be
replaced if there is any malfunction due to a faulty spark
plug, malfunctioning spark plugs can damage the cata-
lytic converter. For proper type of replacement spark
plugs, refer to the ªVehicle Emission Control Informa-
tionº label in the engine compartment.
Spark Plug Wires Ð IF Equipped
The spark plug wires should be kept clean and properly
connected. Terminals should be fully seated. Cracked,
damaged, or faulty wires should be replaced.
Engine Air Cleaner Filter
Under normal driving conditions, replace the air filter at
the intervals shown on Schedule ªAº. If, however, you
MAINTAINING YOUR VEHICLE 393
7

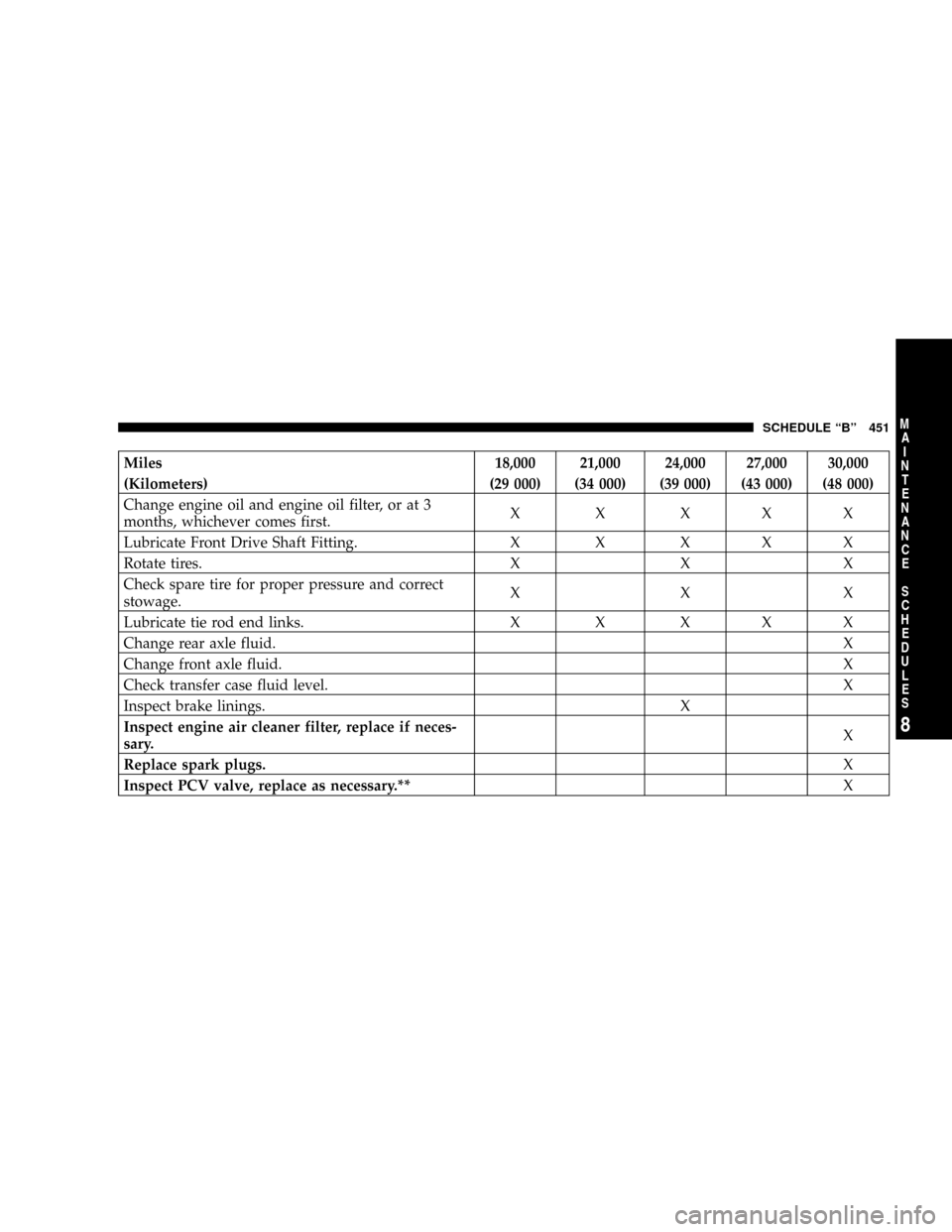

Miles 18,000 21,000 24,000 27,000 30,000
(Kilometers) (29 000) (34 000) (39 000) (43 000) (48 000)
Change engine oil and engine oil filter, or at 3
months, whichever comes first.X X XXX
Lubricate Front Drive Shaft Fitting. X X X X X
Rotate tires. X X X
Check spare tire for proper pressure and correct
stowage.XXX
Lubricate tie rod end links. X X X X X
Change rear axle fluid.X
Change front axle fluid.X
Check transfer case fluid level.X
Inspect brake linings. X
Inspect engine air cleaner filter, replace if neces-
sary.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
SCHEDULE ªBº 451
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

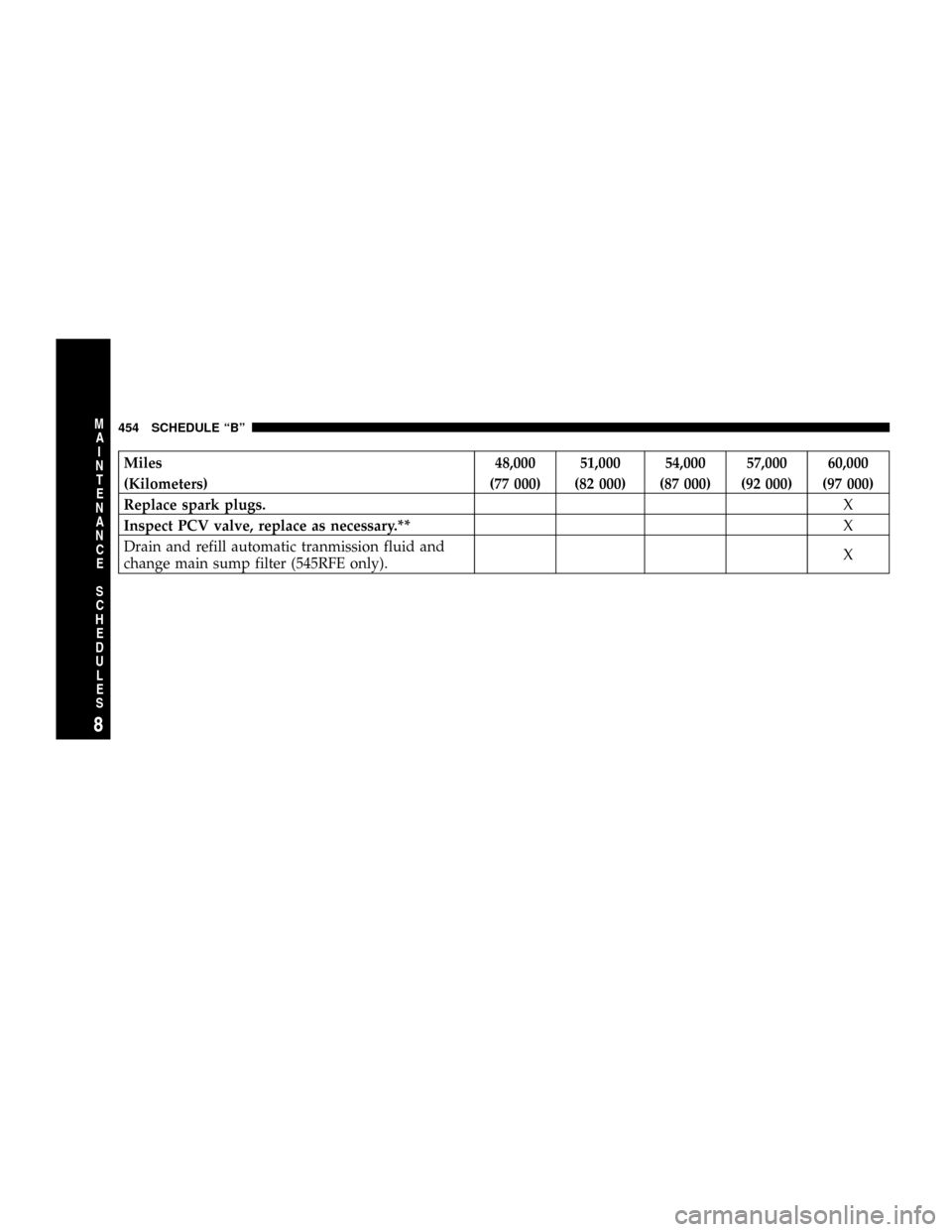

Miles 48,000 51,000 54,000 57,000 60,000
(Kilometers) (77 000) (82 000) (87 000) (92 000) (97 000)
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
Drain and refill automatic tranmission fluid and
change main sump filter (545RFE only).X
454 SCHEDULE ªBº
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 78,000 81,000 84,000 87,000 90,000
(Kilometers) (126 000) (130 000) (135 000) (140 000) (145 000)
Change engine oil and engine oil filter, or at 3
months, whichever comes first.X X XXX
Lubricate Front Drive Shaft Fitting. X X X X X
Rotate tires. X X X
Check spare tire for proper pressure and correct stow-
age.XXX
Lubricate tie rod end links. X X X X X
Change rear axle fluid.X
Change front axle fluid.X
Check transfer case fluid level.X
Inspect brake linings. X
Inspect engine air cleaner filter, replace if necessary.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
Inspect auto tension drive belt and replace if required. X
456 SCHEDULE ªBº
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

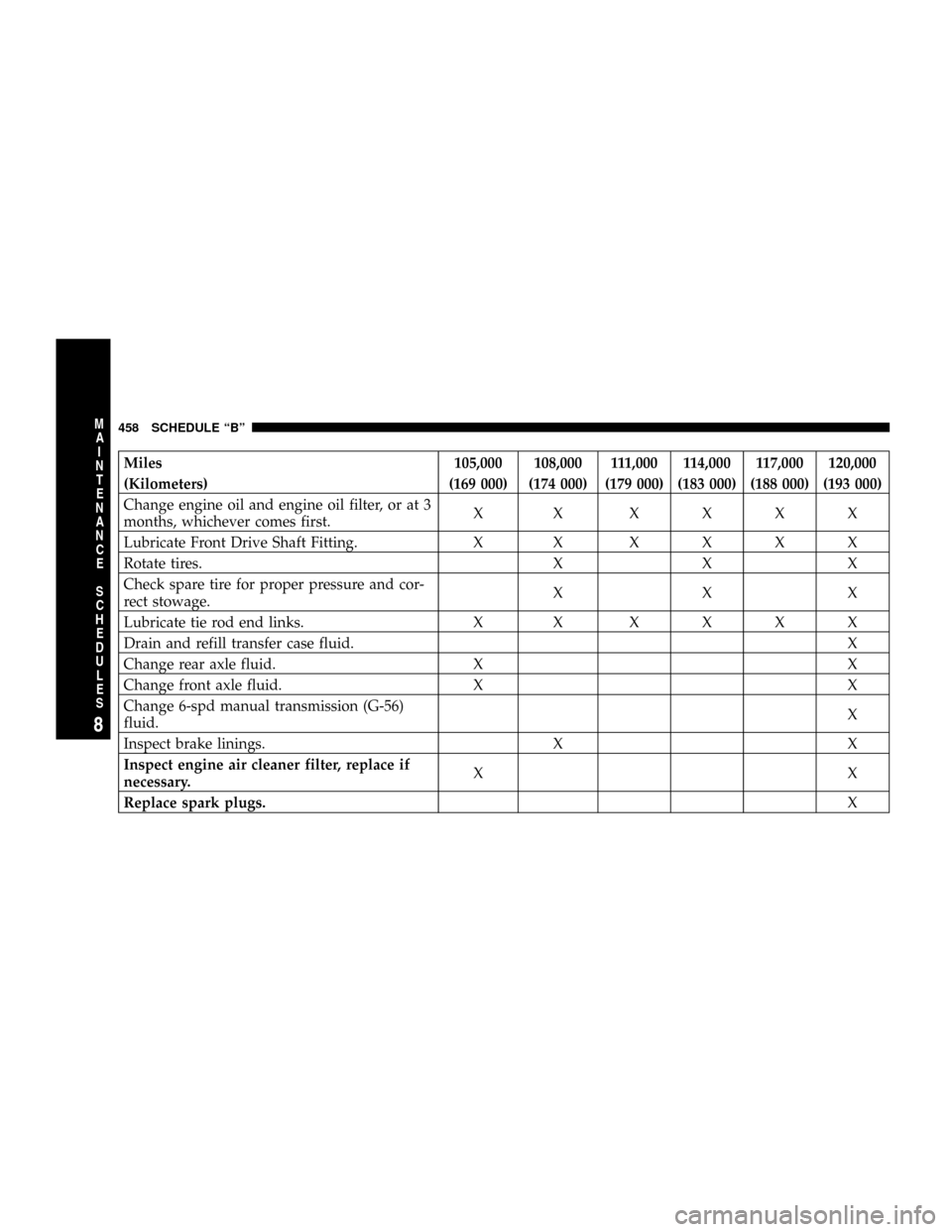

Miles 105,000 108,000 111,000 114,000 117,000 120,000
(Kilometers) (169 000) (174 000) (179 000) (183 000) (188 000) (193 000)
Change engine oil and engine oil filter, or at 3
months, whichever comes first.X X XXXX
Lubricate Front Drive Shaft Fitting. X X X X X X
Rotate tires. X X X
Check spare tire for proper pressure and cor-
rect stowage.XXX
Lubricate tie rod end links. X X X X X X
Drain and refill transfer case fluid.X
Change rear axle fluid. X X
Change front axle fluid. X X
Change 6-spd manual transmission (G-56)
fluid.X
Inspect brake linings. X X
Inspect engine air cleaner filter, replace if
necessary.XX
Replace spark plugs.X
458 SCHEDULE ªBº
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

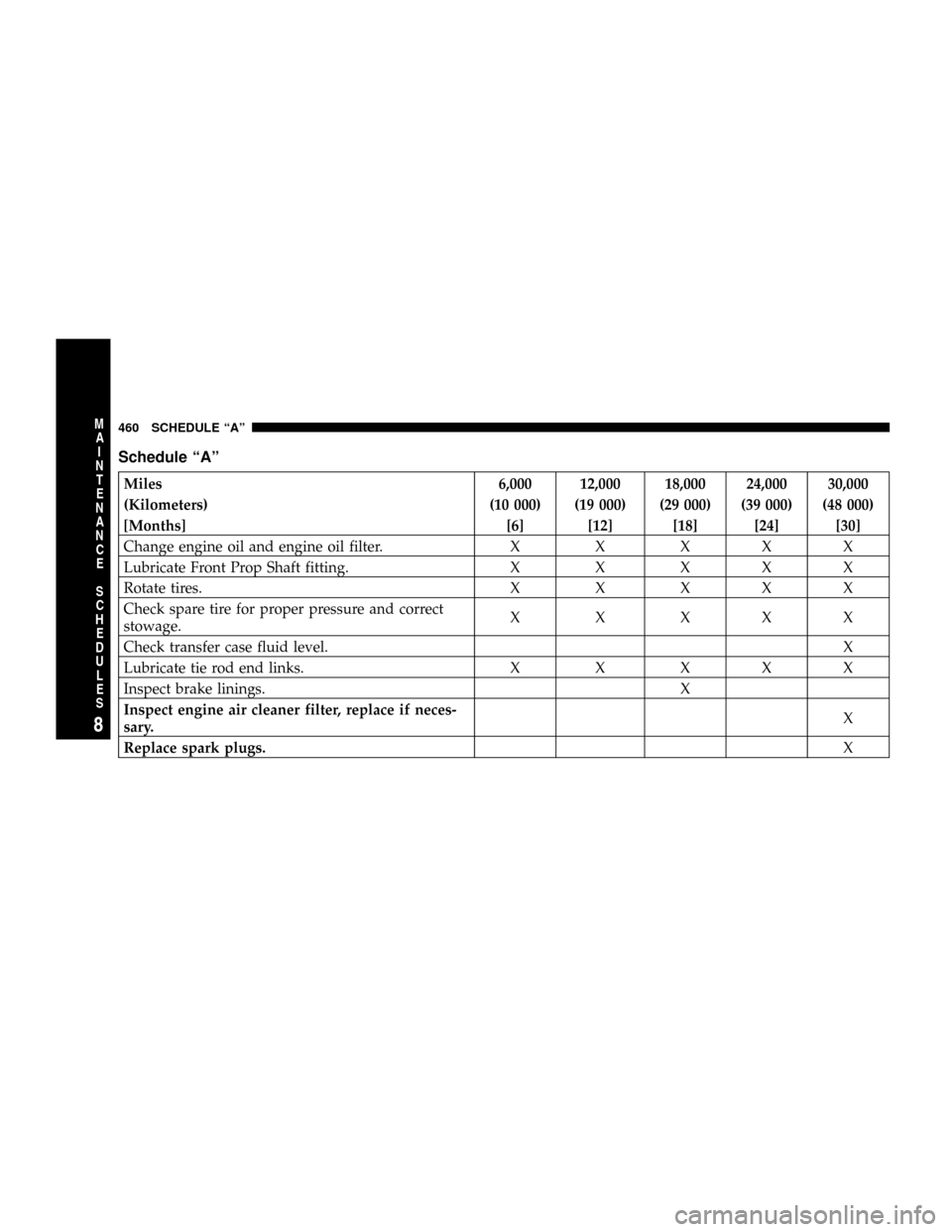

Schedule ªAº
Miles 6,000 12,000 18,000 24,000 30,000
(Kilometers) (10 000) (19 000) (29 000) (39 000) (48 000)
[Months] [6] [12] [18] [24] [30]
Change engine oil and engine oil filter. X X X X X
Lubricate Front Prop Shaft fitting. X X X X X
Rotate tires. X X X X X
Check spare tire for proper pressure and correct
stowage.X X XXX
Check transfer case fluid level.X
Lubricate tie rod end links. X X X X X
Inspect brake linings. X
Inspect engine air cleaner filter, replace if neces-
sary.X
Replace spark plugs.X
460 SCHEDULE ªAº
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

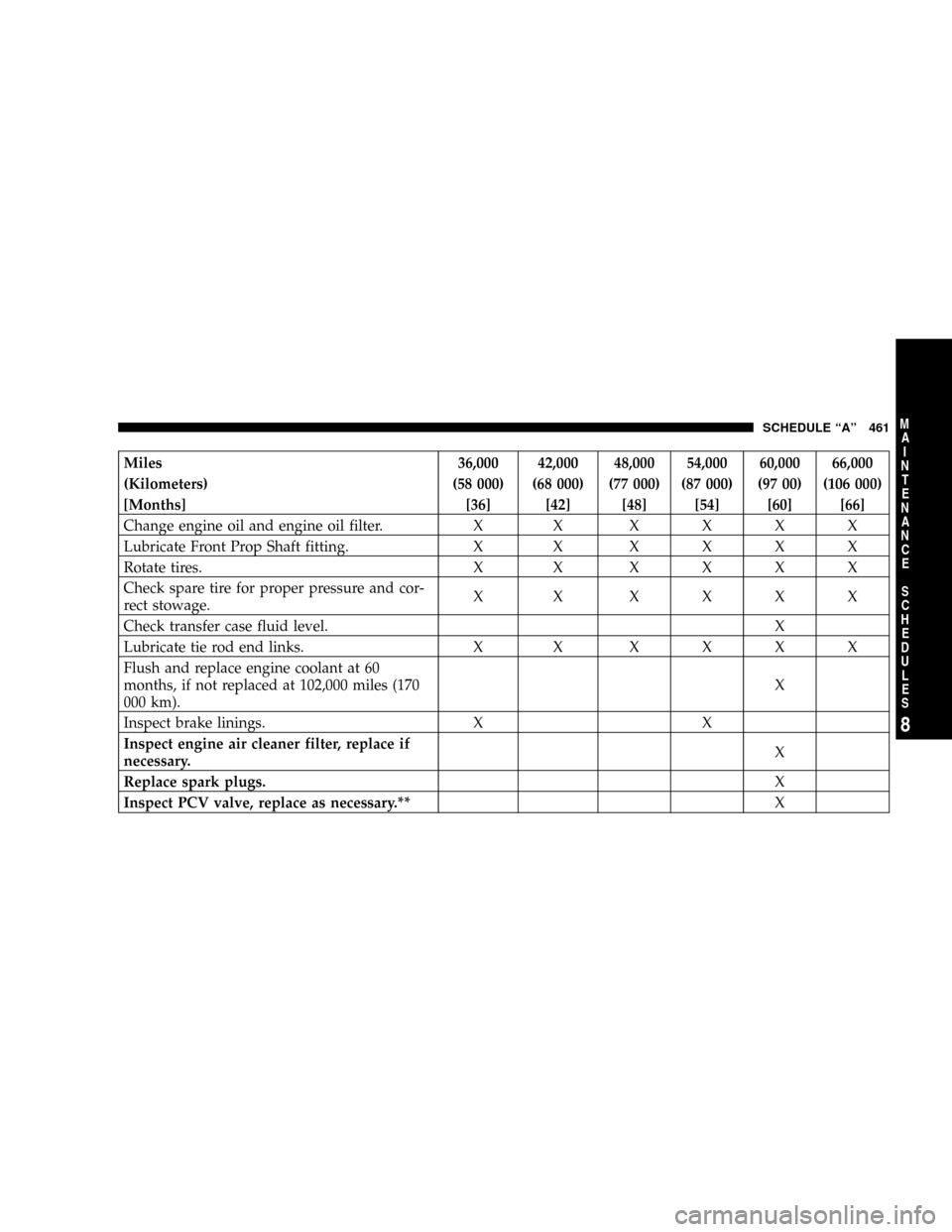

Miles 36,000 42,000 48,000 54,000 60,000 66,000
(Kilometers) (58 000) (68 000) (77 000) (87 000) (97 00) (106 000)
[Months] [36] [42] [48] [54] [60] [66]
Change engine oil and engine oil filter. X X X X X X
Lubricate Front Prop Shaft fitting. X X X X X X
Rotate tires. X X X X X X
Check spare tire for proper pressure and cor-
rect stowage.X X XXXX
Check transfer case fluid level. X
Lubricate tie rod end links. X X X X X X
Flush and replace engine coolant at 60
months, if not replaced at 102,000 miles (170
000 km).X
Inspect brake linings. X X
Inspect engine air cleaner filter, replace if
necessary.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
SCHEDULE ªAº 461
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Miles 72,000 78,000 84,000 90,000 96,000
(Kilometers) (116 000) (126 000) (135 000) (145 000) (154 000)
[Months] [72] [78] [84] [90] [96]
Change engine oil and engine oil filter. X X X X X
Lubricate Front Prop Shaft fitting. X X X X X
Rotate tires. X X X X X
Check spare tire for proper pressure and correct
stowage.X X XXX
Lubricate tie rod end links. X X X X X
Check transfer case fluid level. X
Inspect brake linings. X X
Inspect engine air cleaner filter, replace if neces-
sary.X
Replace spark plugs.X
Inspect PCV valve, replace as necessary.**X
Inspect auto tension drive belt and replace if re-
quired.X
462 SCHEDULE ªAº
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

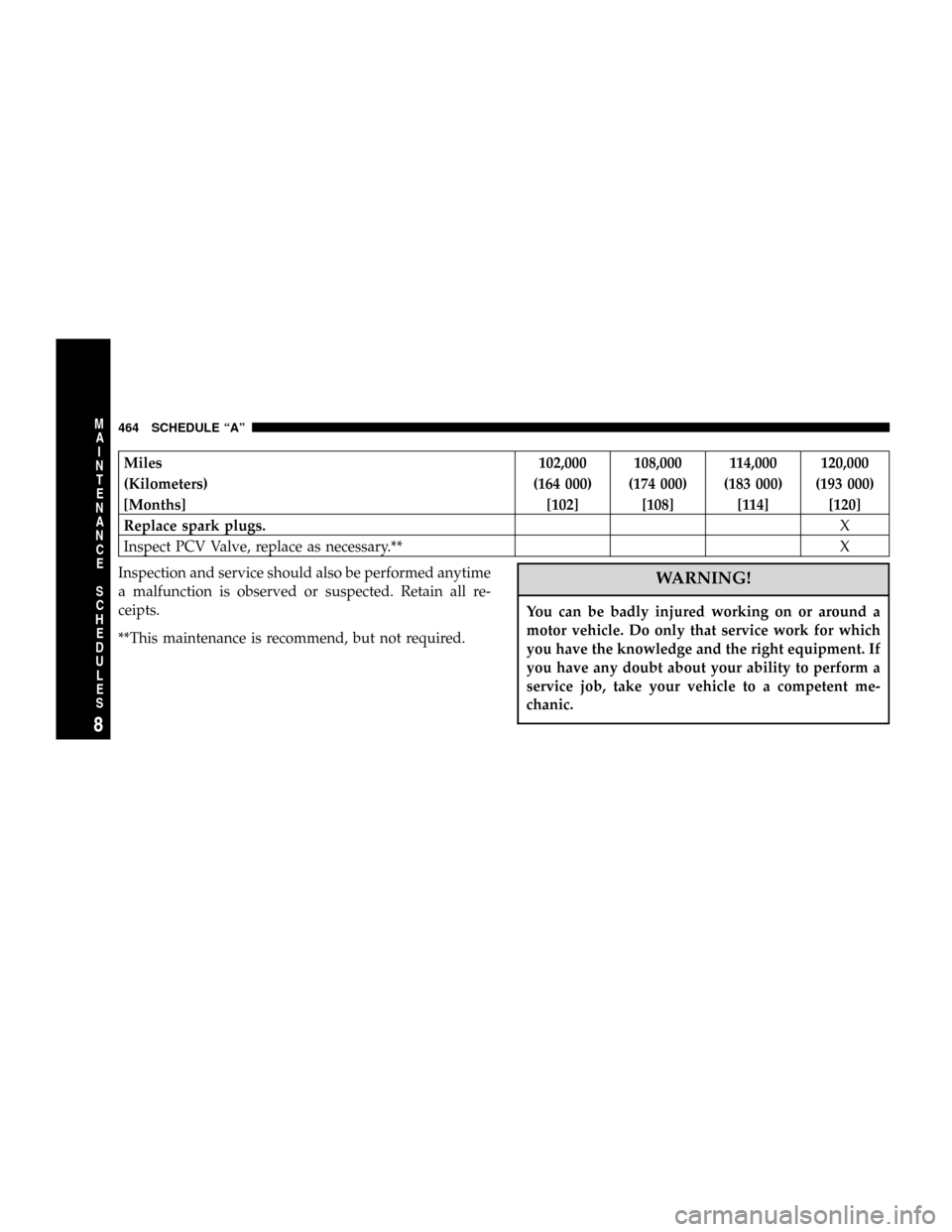

Miles 102,000 108,000 114,000 120,000
(Kilometers) (164 000) (174 000) (183 000) (193 000)
[Months] [102] [108] [114] [120]
Replace spark plugs.X
Inspect PCV Valve, replace as necessary.** X
Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all re-
ceipts.
**This maintenance is recommend, but not required.
WARNING!
You can be badly injured working on or around a
motor vehicle. Do only that service work for which
you have the knowledge and the right equipment. If
you have any doubt about your ability to perform a
service job, take your vehicle to a competent me-
chanic.
