Wire lead corroded ...... A .. Require repair or replacement.
Wire lead open .......... A .. Require repair or replacement.
Wire lead shorted ....... A .. Require repair or replacement.
(1) - Determine cause and correct prior to repair or
replacement of part.
( 2) - Inoperative includes intermittent operation.
\
\
\
\
\
\
\
WIPER ARMS AND BLADES
NOTE: Windshield coatings or waxes can cause blades to not
function as intended. Clean surface before making final
judgment about blade replacement.
WIPER ARM AND BLADE INSPECTION
\
\
\
\
\
\
\
Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Attaching socket
stripped ............... A ............ Require replacement.
Bent .................... A .. Require repair or replacement.
Loose ................... 2 .. Suggest repair or replacement.
Missing ................. C ............ Require replacement.
Noisy ................... 2 .. Suggest repair or replacement.
Size incorrect .......... 2 ............ Suggest replacement.
Tension insufficient .... B .. Require repair or replacement.
Torn .................... A ............ Require replacement.
Worn, affecting
performance ............ A ............ Require replacement.
Worn, not affecting
performance ............ 1 ............ Suggest replacement.
\
\
\
\
\
\
\
WIPER BLADES
See WIPER ARMS AND BLADES .
WIPER HOSES AND NOZZLES
WIPER HOSE AND NOZZLE INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Blocked ................. A .. Require repair or replacement.
Page 592 of 1691
Leaking ................. A .. Require repair or replacement.
Missing ................. C ............ Require replacement.
Oil-soaked (spongy) ..... 1 ............ Suggest replacement.
Spray pattern incorrect . 2 .. Suggest repair or replacement.
Surface cracks (dry-
rotted) ................ 1 ............ Suggest replacement.
\
\
\
\
\
\
\
WIPER LINKAGES
WIPER LINKAGE INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Attaching stud stripped . A ............ Require replacement.
Bent .................... A .. Require repair or replacement.
Inoperative ............. A ........ ( 1) Require replacement.
Loose ................... 2 .. Suggest repair or replacement.
Missing ................. C ............ Require replacement.
Noisy ................... 2 .. Suggest repair or replacement.
Tension insufficient .... B .. Require repair or replacement.
Worn, affecting
performance ............ A ............ Require replacement.
Worn, not affecting
performance ............ 1 ............ Suggest replacement.
( 1) - Inoperative includes intermittent operation.
\
\
\
\
\
\
\
WIPER NOZZLES
See WIPER HOSES AND NOZZLES .
WIPER PUMP RESERVOIRS
WIPER PUMP RESERVOIR INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Cap missing ............. C ............ Require replacement.
Leaking ................. A .. Require repair or replacement.
Missing ................. C ............ Require replacement.
\
\
\
\
\
\
\
Page 593 of 1691
![DODGE RAM 1999 Service Repair Manual WIRING HARNESSES AND CONNECTORS
WIRING HARNESS AND CONNECTOR INSPECTION \
\
\
\
\
\](/img/12/56915/w960_56915-592.png "DODGE RAM 1999 Service Repair Manual WIRING HARNESSES AND CONNECTORS
WIRING HARNESS AND CONNECTOR INSPECTION \
\
\
\
\
\")
WIRING HARNESSES AND CONNECTORS
WIRING HARNESS AND CONNECTOR INSPECTION \
\
\
\
\
\
\
Condition Code Procedure
Application incorrect ... B .. Require repair or replacement.
Attaching hardware
broken ................. A ... Require repair or replacement
of hardware.
Attaching hardware
missing ................ C .......... Require replacement of
hardware.
Attaching hardware not
functioning ............ A ... Require repair or replacement
of hardware.
Connector broken ........ A .. Require repair or replacement.
Connector (Weatherpack
type) leaking .......... A .. Require repair or replacement.
Connector melted ........ A ........... ( 1) Require repair or
replacement.
Connector missing ....... C ............ Require replacement.
Insulation damaged,
conductors exposed ..... A .. Require repair or replacement.
Insulation damaged,
conductors not exposed . 1 ............ Suggest replacement.
Open .................... A .. Require repair or replacement.
Protective shield
(conduit) melted ....... 2 ........... ( 1) Suggest repair or
replacement.
Protective shield
(conduit) missing ...... 2 .. Suggest repair or replacement.
Resistance (voltage drop)
out of specification ... A .. Require repair or replacement.
Routed incorrectly ...... B ................. Require repair.
Secured incorrectly ..... B ................. Require repair.
Shorted ................. A .. Require repair or replacement.
Terminal broken ......... A .. Require repair or replacement.
Terminal burned, affecting
performance ............ A ........... ( 1) Require repair or
replacement.
Terminal burned, not
affecting performance .. 2 .. Suggest repair or replacement.
Terminal corroded,
affecting performance .. A .. Require repair or replacement.
Terminal corroded, not
affecting performance .. 2 .. Suggest repair or replacement.
Terminal loose, affecting
performance ............ B .. Require repair or replacement.
Terminal loose, not
affecting performance .. 1 .. Suggest repair or replacement.
Voltage drop out of
specification .......... A .. Require repair or replacement.
( 1) - Determine cause and correct prior to repair or
replacement of part.
\
\
\
\
\
\
\
Page 594 of 1691
ELE C TR O STA TIC D IS C HAR G E W AR NIN G - B ASIC IN FO RM ATIO N
1999 D odge P ic ku p R 1500
GENERAL INFORMATION
Electrostatic Discharge (ESD) Warning - Basic Information
All Makes amd Models
* PLEASE READ THIS FIRST *
NOTE: This article is intended for general information purposes
only.
INTRODUCTION
All Electrostatic Discharge (ESD) sensitive components
contain solid state circuits (transistors, diodes, semiconductors)
that may become damaged when contacted with an electrostatic charge.
The following information applies to all ESD sensitive devices. The
ESD symbol shown in Fig. 1 may be used on schematics to indicate which
components are ESD sensitive. See Fig. 1. Although different
manufactures may display different symbols to represent ESD sensitive
devices, the handling and measuring precautions and procedures are the
same.
Fig. 1: Sample ESD Symbol
HANDLING STATIC-SENSITIVE CIRCUITS/DEVICES
Page 595 of 1691
When handling an electronic part that is ESD sensitive, the
technician should follow these guidelines to reduce any possible
electrostatic charge build-up on the technician's body and the
electronic part.
1) Always touch a known good ground source before handling
the part. This should be repeated while handling the part and more
frequently after sitting down from a standing position, sliding across
the seat or walking a distance.
2) Avoid touching electrical terminals of the part, unless
instructed by a diagnostic procedure.
3) DO NOT open the package of a new part until it is time to
install the part.
4) Before removing the part from its package, ground the
package to a known good ground source.
CHECKING STATIC-SENSITIVE CIRCUITS/DEVICES
1) Solid State circuits in electronic devices are shown
greatly simplified in schematics. See Fig. 2. Due to the
simplification of the electronic devices on the schematic, resistance
measurements could be misleading or could lead to an electrostatic
discharge. Always follow the recommended diagnostic procedure.
Fig. 2: Sample Schematic Showing Typical ESD Sensitive Device
2) Only measure resistance at the terminals of the devices
when instructed by the recommended diagnostic procedure.
3) When using a voltmeter, be sure to connect the ground lead
first.
Page 596 of 1691
B - E M IS SIO N A PPLIC ATIO N
1999 D odge P ic ku p R 1500
1999 ENGINE PERFORMANCE
Emission Applications - Trucks
CHRY
EMISSION APPLICATIONS
EMISSION APPLICATIONS \
\
\
\
\
\
\
Engine & Major Emission Components & Other
Fuel Systems Systems & Devices Related Devices
\
\b\
\
\
\b\
\
\
2.4L 4-Cyl. SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Caravan & Voyager SPK, (
1) HO2S, CEC, ( 2)( 3) EVAP-LDP,
MIL (
3) EVAP-LDPF, EVAP-VC,
SPK-CC
\
\b\
\
\
\b\
\
\
2.5L 4-Cyl. SFI (
4) CCV, EVAP, TWC, ( 2) EVAP-PSOL, EVAP-PRRV,
Dakota FR, SPK, (
1) HO2S, ( 2)( 3) EVAP-LDP,
CEC, MIL (
3) EVAP-LDPF,
(
5) EVAP-CVV, EVAP-VC,
SPK-CC
\
\b\
\
\
\b\
\
\
3.0L V6 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Caravan & Voyager BP/EGR, SPK, (
2)( 6) EVAP-LDP,
(
1) HO2S, CEC, MIL ( 6) EVAP-LDPF, EVAP-VC,
(
2) BP/EGR-BPT, SPK-CC
\
\b\
\
\
\b\
\
\
3.3L V6 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Caravan, BP/EGR, SPK, (
2)( 3) EVAP-LDP,
Town & Country & (
1) HO2S, CEC, MIL ( 3) EVAP-LDPF, EVAP-VC,
Voyager (
2) BP/EGR-BPT, SPK-CC
\
\b\
\
\
\b\
\
\
3.8L V6 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Caravan & BP/EGR, SPK, (
2)( 3) EVAP-LDP,
Town & Country (
1) HO2S, CEC, MIL ( 3) EVAP-LDPF, EVAP-VC,
(
2) BP/EGR-BPT, SPK-CC
\
\b\
\
\
\b\
\
\
3.9L V6 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Dakota & Durango SPK, (
1) HO2S, CEC, ( 2)( 3) EVAP-LDP,
MIL (
3) EVAP-LDPF,
(
5) EVAP-VV, EVAP-VC,
SPK-CC
\
\b\
\
\
\b\
\
\
3.9L V6 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Ram Pickup SPK, (
1) HO2S, CEC, ( 2)( 6) EVAP-LDP,
MIL (
6) EVAP-LDPF,
(
6) EVAP-VV, EVAP-VC,
SPK-CC
\
\b\
\
\
\b\
\
\
3.9L V6 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Ram Van & SPK, (
1) HO2S, CEC, ( 2)( 3) EVAP-LDP,
Ram Wagon MIL (
3) EVAP-LDPF,
(
5) EVAP-VV, EVAP-VC,
SPK-CC
\
\b\
\
\
\b\
\
\
5.2L V8 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Dakota & Durango SPK, (
1) HO2S, CEC, ( 2)( 3) EVAP-LDP,
MIL (
3) EVAP-LDPF,
(
5) EVAP-VV, EVAP-VC,
SPK-CC
Page 597 of 1691
![DODGE RAM 1999 Service Repair Manual \
\b\
\
\
\b\
\
\
5.2L V8 SFI PCV, EVAP, TWC, FR, (](/img/12/56915/w960_56915-596.png "DODGE RAM 1999 Service Repair Manual \
\b\
\
\
\b\
\
\
5.2L V8 SFI PCV, EVAP, TWC, FR, (")
\
\b\
\
\
\b\
\
\
5.2L V8 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Ram Pickup SPK, (
1) HO2S, CEC, ( 2)( 6) EVAP-LDP,
MIL (
6) EVAP-LDPF,
(
6) EVAP-VV, EVAP-VC,
SPK-CC
\
\b\
\
\
\b\
\
\
5.2L V8 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Ram Van & SPK, (
1) HO2S, CEC, ( 2)( 3) EVAP-LDP,
Ram Wagon MIL (
3) EVAP-LDPF,
(
5) EVAP-VV, EVAP-VC,
SPK-CC
\
\b\
\
\
\b\
\
\
5.2L V8 CNG PCV, TWC, SPK, SPK-CC
Ram Van & (
1) HO2S, CEC, MIL
Ram Wagon
\
\b\
\
\
\b\
\
\
5.9L V8 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Dakota SPK, (
7) HO2S, CEC, ( 2)( 3) EVAP-LDP,
MIL (
3) EVAP-LDPF,
(
5) EVAP-VV, EVAP-VC,
SPK-CC
\
\b\
\
\
\b\
\
\
5.9L V8 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Durango SPK, (
1) HO2S, CEC, ( 2)( 3) EVAP-LDP,
MIL (
3) EVAP-LDPF, ( 5) EVAP-VV,
EVAP-VC, SPK-CC
\
\b\
\
\
\b\
\
\
5.9L V8 SFI PCV, EVAP, (
8) TWC, ( 2) EVAP-PSOL, EVAP-PRRV,
Ram Pickup FR, SPK, (
9) AP, ( 2)( 6) EVAP-LDP,
(
1) HO2S, CEC, ( 6) EVAP-LDPF,
(
9) SRI, MIL ( 6) EVAP-VV, EVAP-VC,
SPK-CC, (
9) AP-RV,
(
1)( 9) AP-CKV
\
\b\
\
\
\b\
\
\
5.9L V8 SFI PCV, EVAP, TWC, FR, (
2) EVAP-PSOL, EVAP-PRRV,
Ram Van & SPK, (
1) HO2S, CEC, ( 2)( 3) EVAP-LDP,
Ram Wagon MIL (
3) EVAP-LDPF,
(
5) EVAP-VV, EVAP-VC,
SPK-CC
\
\b\
\
\
\b\
\
\
5.9L 6-Cyl. AIH, MIL AIH-TS
Turbo Diesel
24-Valve EFI
Ram Pickup
\
\b\
\
\
\b\
\
\
8.0L V10 SFI (
4) CCV, EVAP, ( 2) EVAP-PSOL, EVAP-PRRV,
Ram Pickup (
10) TWC, FR, SPK, ( 2)( 6) EVAP-LDP,
(
9) AP, ( 11) HO2S, ( 6) EVAP-LDPF,
CEC, MIL (
6) EVAP-VV, EVAP-VC,
SPK-CC, (
9) AP-RV,
(
1)( 9) AP-CKV
\
\
\
\
\
\
\
(
1) - Two are required.
(
2) - Electronically controlled.
(
3) - Calif. emission vehicles only.
(
4) - Fixed orifice system without a PCV valve.
(
5) - Except Calif. emission vehicles only.
(
6) - Applies to some models. Refer to underhood vehicle emission
control label for application.
(
7) - On 2WD models, four sensors are used. One on each bank, and
one before and after catalytic converter. On 4WD models, two
sensors are used. One before and after catalytic converter.
Page 598 of 1691
(8) - One used on vehicles with light-duty emissions. Two used on
vehicles with heavy-duty emissions.
(
9) - Used on vehicles with heavy-duty emissions.
(
10 ) - Two catalytic converters are required.
(
11 ) - Four sensors used on vehicles with medium-duty emissions.
Two sensors used on vehicles with heavy-duty emissions.
\
\
\
\
\
\
\
\f
ABBREVIATIONS
ABBREVIATION DEFINITIONS\
\
\
\
\
\
Abbreviation Definition
AIH ................................... Air Intake Heaters
AIH-TS ............................ AIH Temperature Sensor
AP ............................. Air Pump Injection System
AP-CKV .................................... AP Check Valve
AP-RV .................................... AP Relief Valve
BP/EGR ........................... Backpressure EGR System
BP/EGR-BPT ................ BP/EGR Backpressure Transducer
CCV ................................ Crankcase Ventilation
CEC ......................... Computerized Engine Controls
CNG ............................... Compressed Natural Gas
EFI ............................ Electronic Fuel Injection
EGR-CKV .................................. EGR Check Valve
EVAP ............................. Fuel Evaporative System
EVAP-CVV ........................ EVAP Canister Vent Valve
EVAP-LDP ........................ EVAP Leak Detection Pump
EVAP-LDPF ................ EVAP Leak Detection Pump Filter
EVAP-PRRV ............ EVAP Pressure Relief Rollover Valve
EVAP-PSOL ............................ EVAP Purge Solenoid
EVAP-VC .............................. EVAP Vapor Canister
EVAP-VV ........................... EVAP Ventilation Valve
FR ................................... Fillpipe Restrictor
HO2S ................................ Heated Oxygen Sensor
MIL .......................... Malfunction Indicator Light
PCV ....................... Positive Crankcase Ventilation
SFI .................. Sequential Multiport Fuel Injection
SPK ....................................... Spark Controls
SPK-CC ........................... SPK Computer Controlled
TWC ........................ Three-Way Catalytic Converter
\
\
\
\
\
\
Page 599 of 1691
A - E N G IN E/V IN ID
1999 D odge P ic ku p R 1500
1999 ENGINE PERFORMANCE
CHRY - Chrysler Corp. Introduction - Trucks
MODEL IDENTIFICATION
1999 MODEL COVERAGE \
\
\
\
\
\
\
MODEL BODY ENGINE ENGINE FUEL IGNITION
CODE ID
(1) SYSTEM SYSTEM
\
\
\b\b\
\
\b\b\
\
\b\
Caravan & NS 2.4L B SFI (
2) DIS ( 3)
Grand Caravan
\b\
\
\b\b\
\b\
\
3.0L 3 SFI (
2) Hall Effect
\
\b\
\b\
\b\
3.3L R SFI DIS (
3)
\
\b\
\b\
\b\
3.3L G (
4) SFI DIS ( 3)
\
\b\
\b\
\b\
3.8L L SFI DIS (
3)
\
\
\b\b\
\
\b\b\
\
\b\
Dakota AN 2.5L P SFI (
2) Hall Effect
\
\b\
\b\
\b\
3.9L X SFI (
2) Hall Effect
\
\b\
\b\
\b\
5.2L Y SFI (
2) Hall Effect
\
\b\
\b\
\b\
5.9L Z SFI (
2) Hall Effect
\
\
\b\b\
\
\b\b\
\
\b\
Durango DN 3.9L X SFI (
2) Hall Effect
\
\b\
\b\
\b\
5.2L Y SFI (
2) Hall Effect
\
\b\
\b\
\b\
5.9L Z SFI (
2) Hall Effect
\
\
\b\b\
\
\b\b\
\
\b\
Ram Pickup (
5) 3.9L X SFI ( 2) Hall Effect
\
\b\
\b\
\b\
5.2L Y SFI (
2) Hall Effect
\
\b\
\b\
\b\
5.9L LD (
6) Z SFI ( 2) Hall Effect
\
\b\
\b\
\b\
5.9L HD (
7) 5 SFI ( 2) Hall Effect
\
\b\
\b\
\b\
5.9L Diesel 6 EFI (
8) N/A
\
\b\
\b\
\b\
8.0L W SFI (
2) DIS ( 3)
\
\
\b\b\
\
\b\b\
\
\b\
Ram Van & AB 3.9L X SFI (
2) Hall Effect
Ram Wagon
\b\
\
\b\b\
\b\
\
5.2L Y SFI (
2) Hall Effect
\
\b\
\b\
\b\
5.2L 2 (
9) SFI ( 2) Hall Effect
\
\b\
\b\
\b\
5.2L T (
10) SFI ( 2) Hall Effect
\
\b\
\b\
\b\
5.9L Z SFI (
2) Hall Effect
\
\
\b\b\
\
\b\b\
\
\b\
Town & Country NS 3.3L R SFI DIS (
3)
\
\b\
\b\
\b\
3.3L G (
4) SFI DIS ( 3)
\
\b\
\b\
\b\
Page 600 of 1691
![DODGE RAM 1999 Service Repair Manual 3.8L L SFI DIS (3)
\
\
\b\b\
\
\b\b\
\
\](/img/12/56915/w960_56915-599.png "DODGE RAM 1999 Service Repair Manual 3.8L L SFI DIS (3)
\
\
\b\b\
\
\b\b\
\
\")
3.8L L SFI DIS (3)
\
\
\b\b\
\
\b\b\
\
\b\
Voyager & NS 2.4L B SFI DIS (
3)
Grand Voyager
\b\
\
\b\b\
\b\
\
3.0L 3 SFI DIS (
3)
\
\b\
\b\
\b\
3.3L R SFI DIS (
3)
\
\b\
\b\
\b\
3.3L G (
4) SFI DIS ( 3)
\
\b\
\b\
\b\
3.8L L SFI DIS (
3)
\
\
\
\
\
\
\
(
1) - Engine may be identified by 8th character of Vehicle
Identification Number (VIN).
(
2) - Sequential Fuel Injection.
(
3) - Distributorless Ignition System.
(
4) - Engine code "G" indicates flex-fuel.
(
5) - Body code for standard pickup is BR. Body code for
Quad Cab is BE.
(
6) - Light-duty emissions.
(
7) - Heavy-duty emissions.
(
8) - Electronic fuel injection.
(
9) - Engine code "2" indicates Liquid Propane Gas (LPG).
(
10 ) - Engine code "T" indicates Compressed Natural Gas (CNG).
\
\
\
\
\
\
\
\f

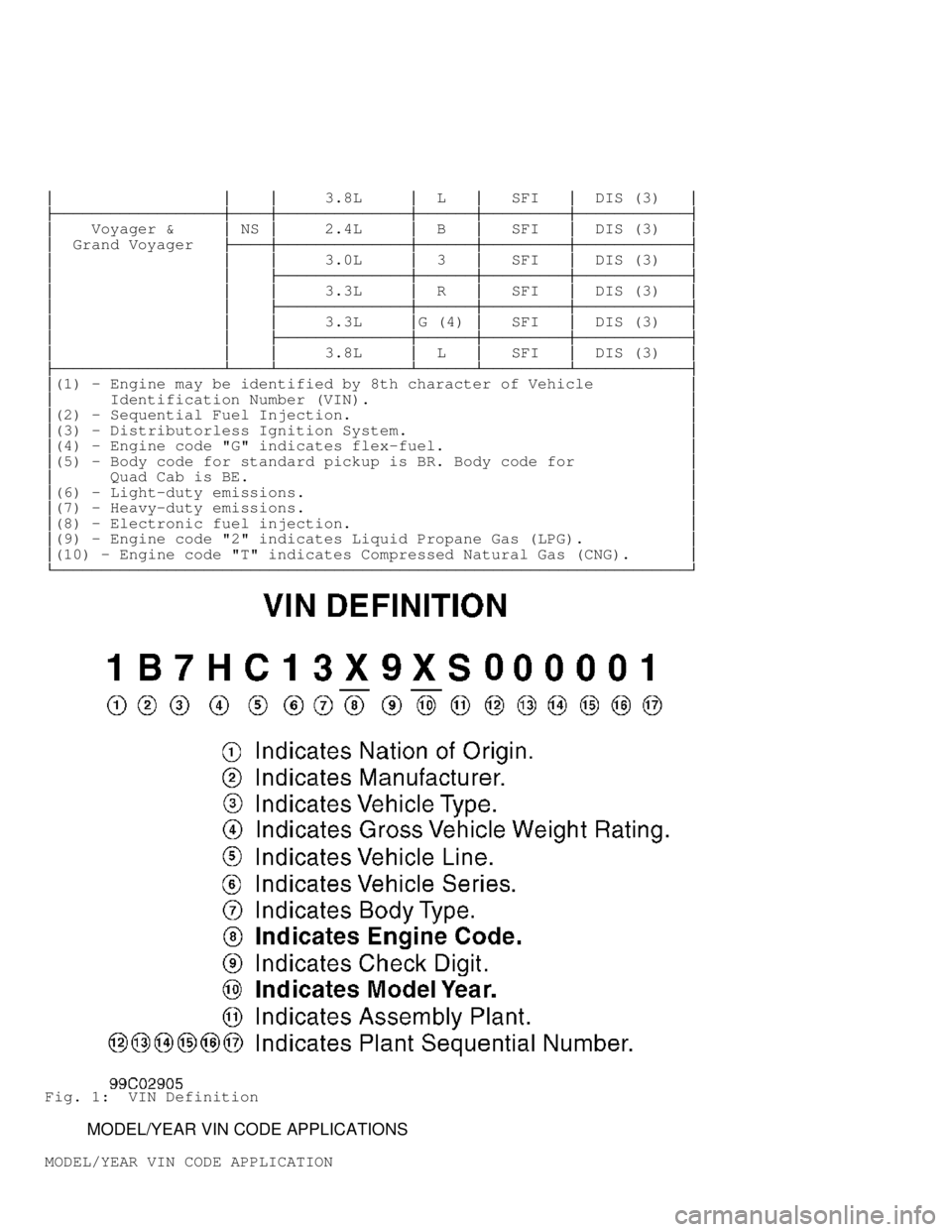

Fig. 1: VIN Definition
MODEL/YEAR VIN CODE APPLICATIONS
MODEL/YEAR VIN CODE APPLICATION
