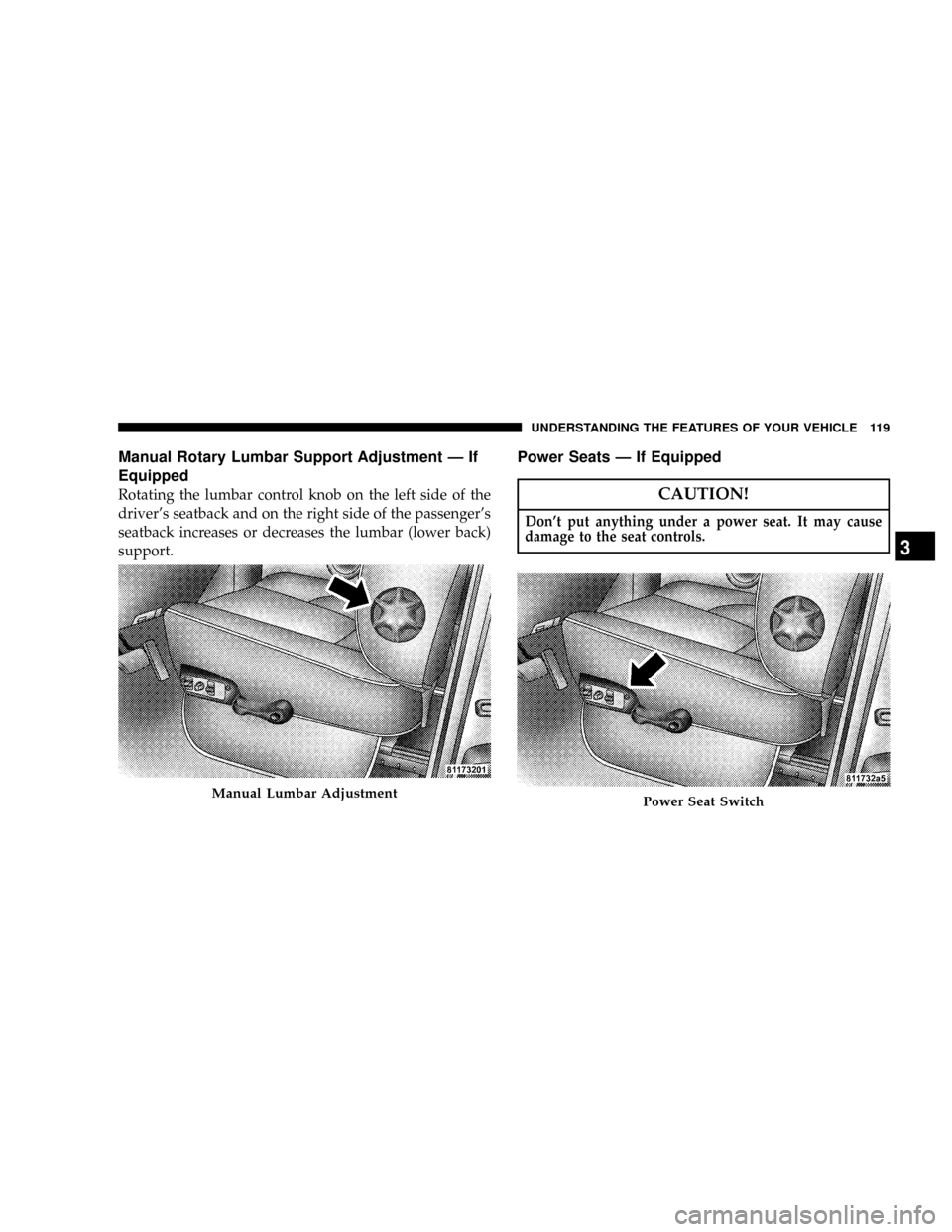

Manual Rotary Lumbar Support Adjustment Ð If
Equipped
Rotating the lumbar control knob on the left side of the
driver's seatback and on the right side of the passenger's
seatback increases or decreases the lumbar (lower back)
support.
Power Seats Ð If Equipped
CAUTION!
Don't put anything under a power seat. It may cause
damage to the seat controls.
Manual Lumbar AdjustmentPower Seat Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
3

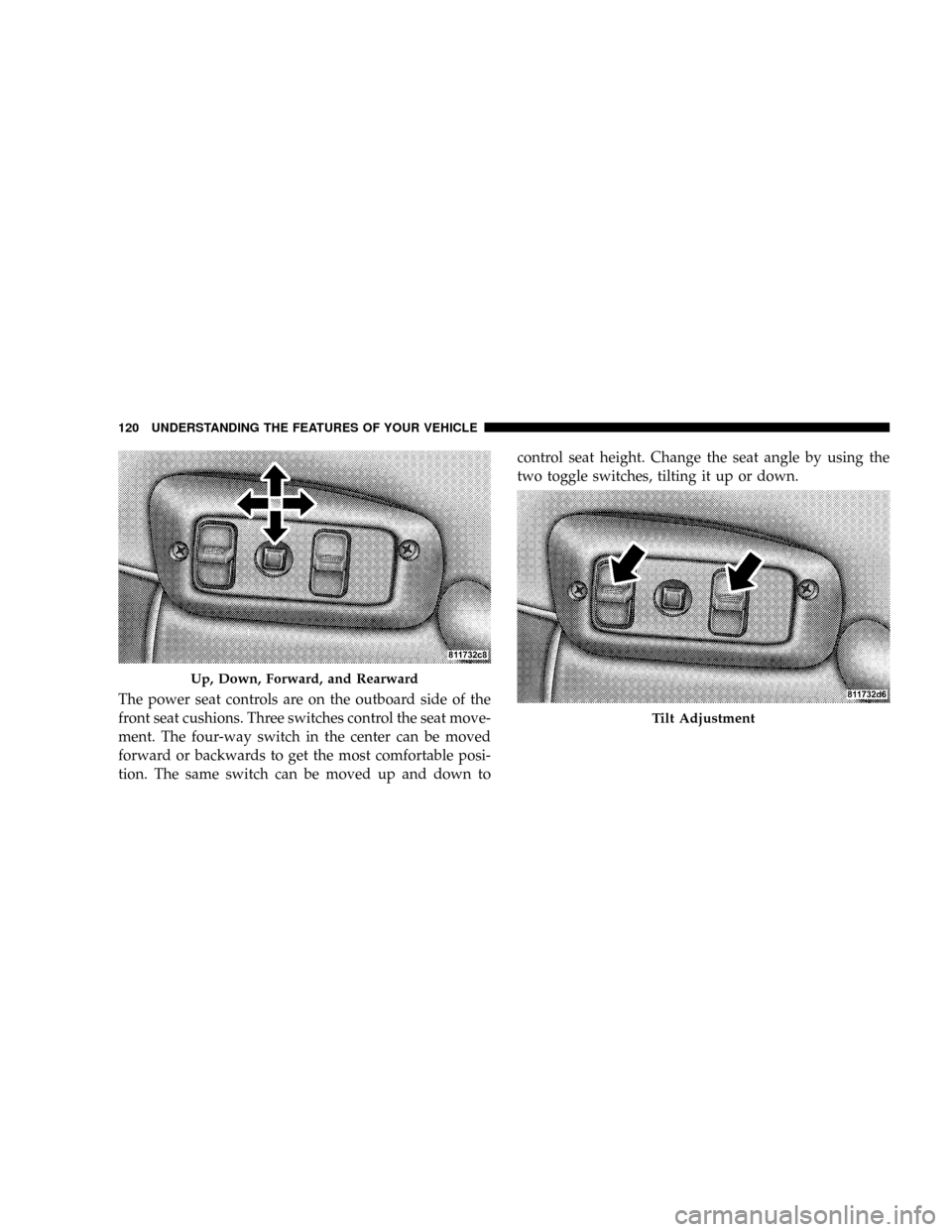

The power seat controls are on the outboard side of the
front seat cushions. Three switches control the seat move-
ment. The four-way switch in the center can be moved
forward or backwards to get the most comfortable posi-
tion. The same switch can be moved up and down tocontrol seat height. Change the seat angle by using the
two toggle switches, tilting it up or down.
Up, Down, Forward, and Rearward
Tilt Adjustment
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

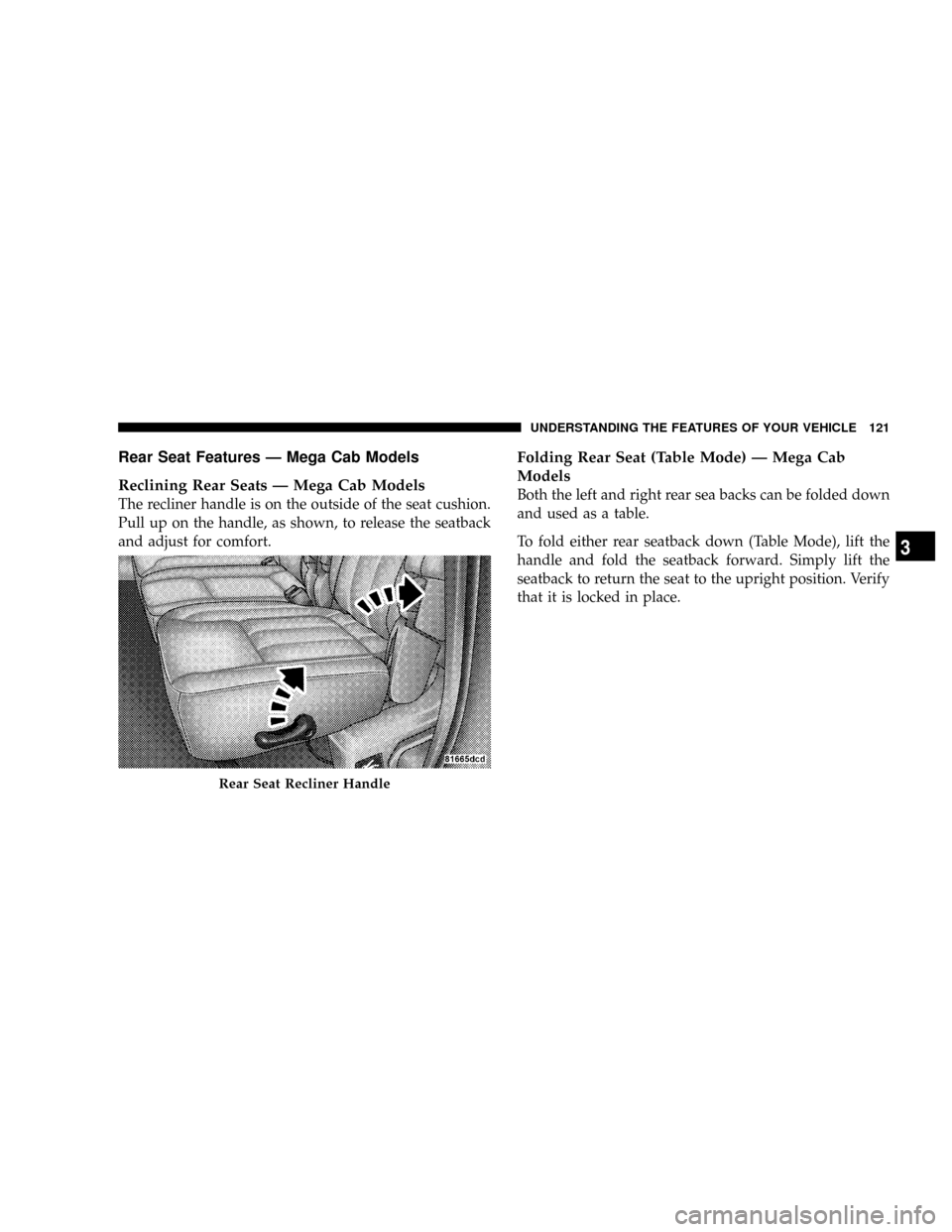

Rear Seat Features Ð Mega Cab Models
Reclining Rear Seats Ð Mega Cab Models
The recliner handle is on the outside of the seat cushion.
Pull up on the handle, as shown, to release the seatback
and adjust for comfort.
Folding Rear Seat (Table Mode) Ð Mega Cab
Models
Both the left and right rear sea backs can be folded down
and used as a table.
To fold either rear seatback down (Table Mode), lift the
handle and fold the seatback forward. Simply lift the
seatback to return the seat to the upright position. Verify
that it is locked in place.
Rear Seat Recliner Handle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121
3

Table Mode HandleTable Mode
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Folding Rear Seat (Kneel Mode) Ð Mega Cab
Models
Both the left and right rear seats can be folded flat (Kneel
Mode) and used for carrying cargo. Each of the rear
seatbacks provide two D-rings and each of the rear
storage bin lids provide two slotted cutouts. Use a cargo
tie down to secure cargo in the cargo carrying area.
WARNING!
²It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
²Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
²Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Securing Cargo
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123
3

WARNING!
Cargo must be securely tied down before driving
your vehicle. Improperly secured cargo can fly
around in a sudden stop and strike someone in the
vehicle, causing serious injury or possible death.
Secure cargo with a cargo tie down using the D-Rings
provided on the back of the seats and the slotted
cutouts in the rear storage bin lid.
NOTE:The rear seat will drop and move forward in
Kneel Mode.

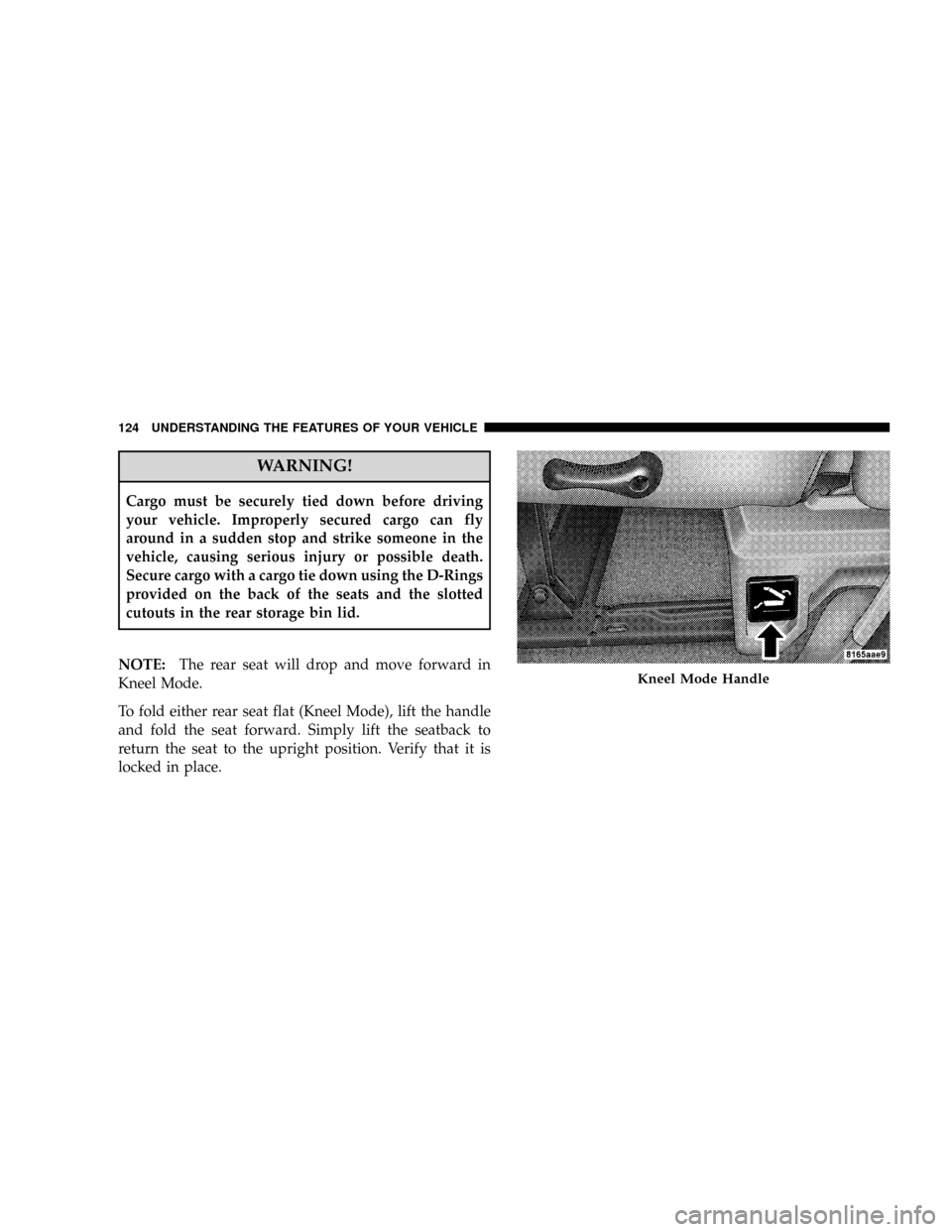

To fold either rear seat flat (Kneel Mode), lift the handle
and fold the seat forward. Simply lift the seatback to
return the seat to the upright position. Verify that it is
locked in place.
Kneel Mode Handle
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Be certain that the seatback is securely locked into
position. If the seatback in not securely locked into
position the seat will not provide the proper stability
for child seats and/or passengers. An improperly
latched seat could cause serious injury.

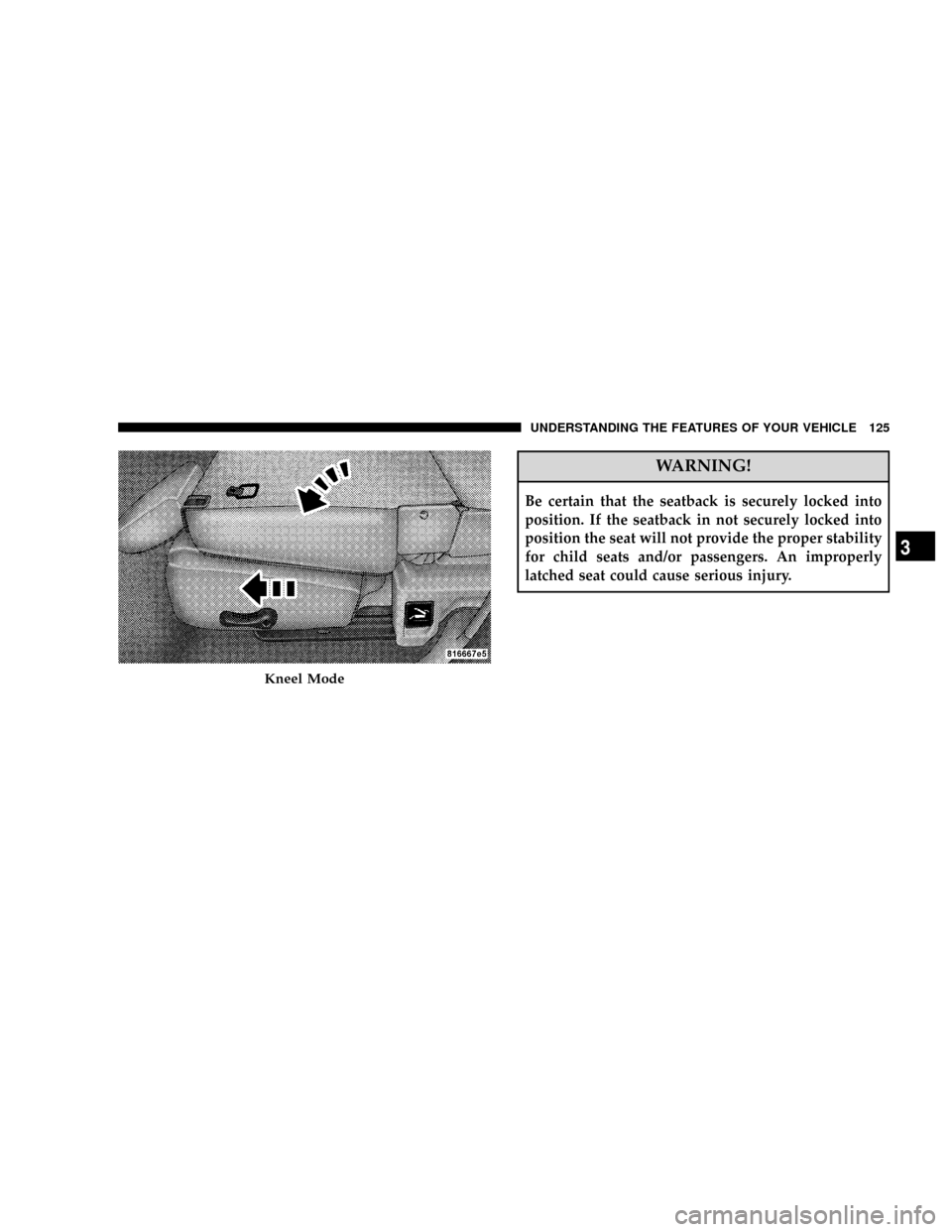

Kneel Mode
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125
3

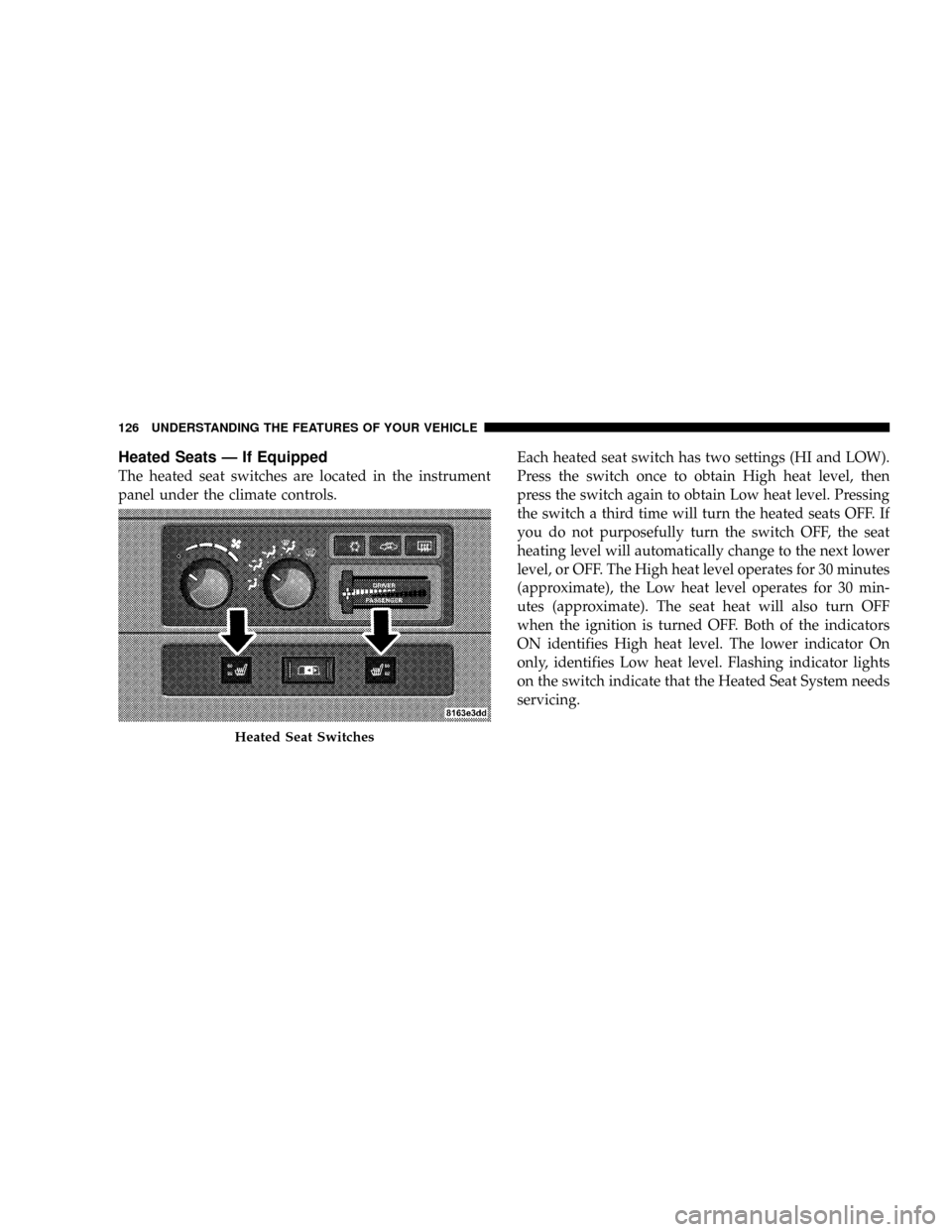

Heated Seats Ð If Equipped
The heated seat switches are located in the instrument
panel under the climate controls.Each heated seat switch has two settings (HI and LOW).
Press the switch once to obtain High heat level, then
press the switch again to obtain Low heat level. Pressing
the switch a third time will turn the heated seats OFF. If
you do not purposefully turn the switch OFF, the seat
heating level will automatically change to the next lower
level, or OFF. The High heat level operates for 30 minutes
(approximate), the Low heat level operates for 30 min-
utes (approximate). The seat heat will also turn OFF
when the ignition is turned OFF. Both of the indicators
ON identifies High heat level. The lower indicator On
only, identifies Low heat level. Flashing indicator lights
on the switch indicate that the Heated Seat System needs
servicing.
Heated Seat Switches
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

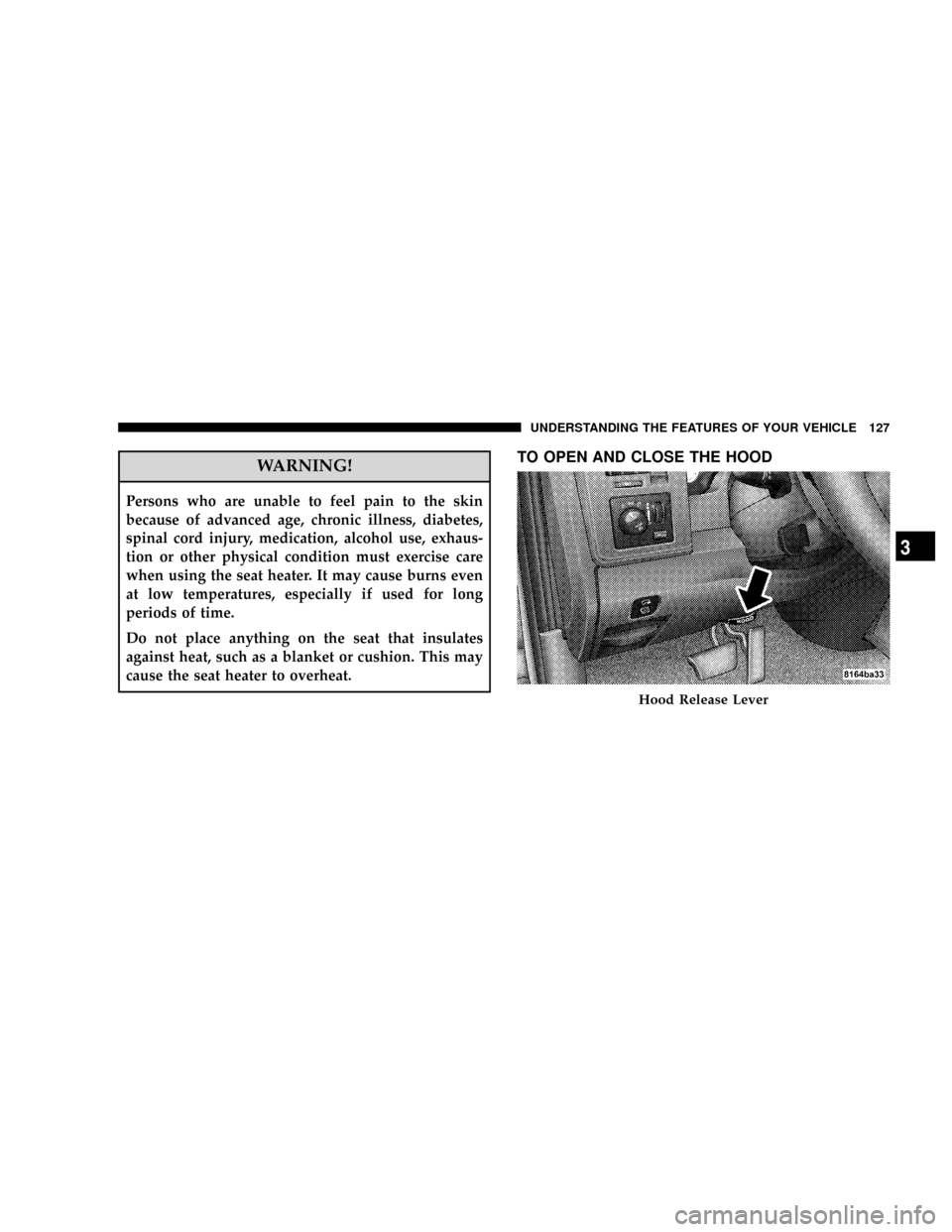

WARNING!
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time.
Do not place anything on the seat that insulates
against heat, such as a blanket or cushion. This may
cause the seat heater to overheat.
TO OPEN AND CLOSE THE HOOD
Hood Release Lever
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127
3

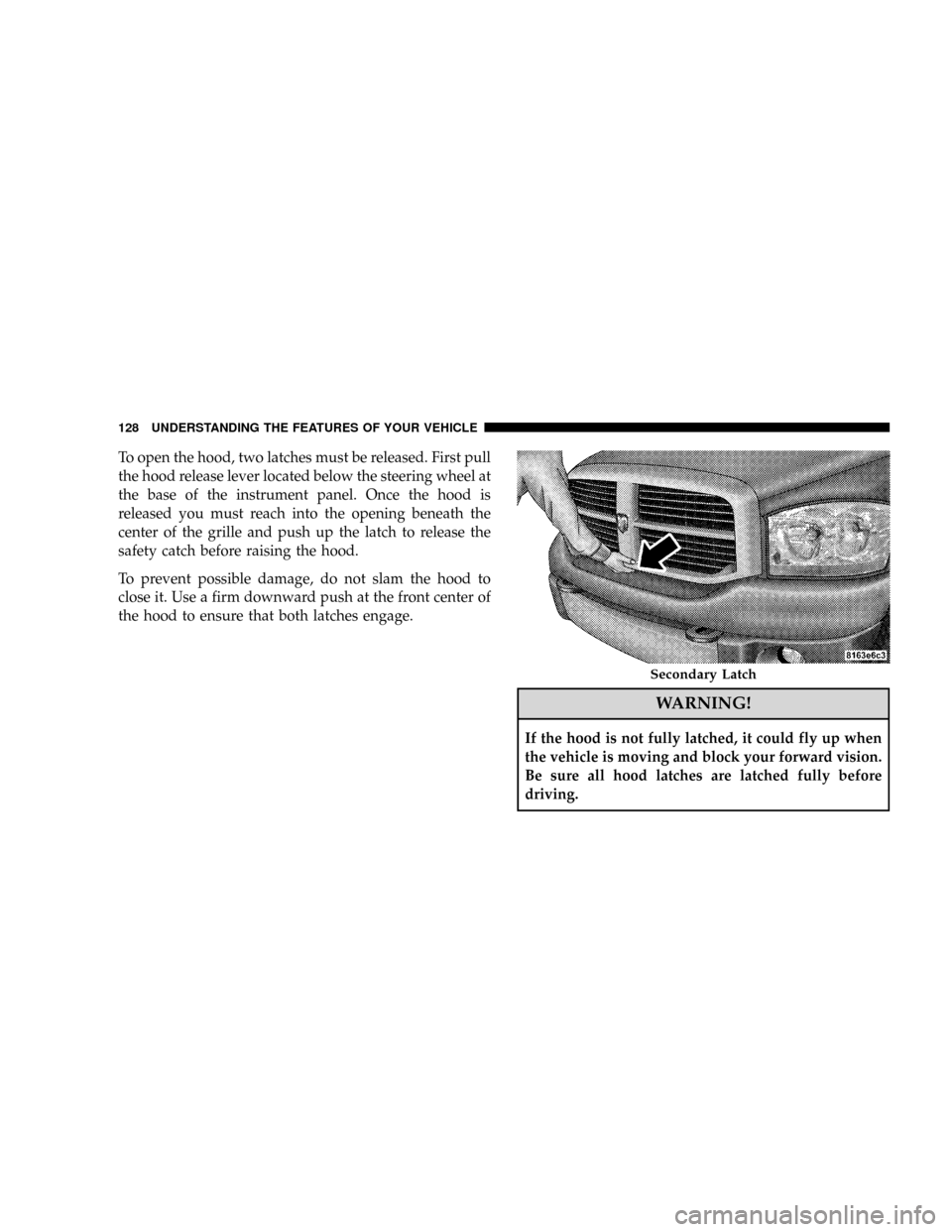

To open the hood, two latches must be released. First pull
the hood release lever located below the steering wheel at
the base of the instrument panel. Once the hood is
released you must reach into the opening beneath the
center of the grille and push up the latch to release the
safety catch before raising the hood.
To prevent possible damage, do not slam the hood to
close it. Use a firm downward push at the front center of
the hood to ensure that both latches engage.
WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are latched fully before
driving.
Secondary Latch
