DODGE RAM 2500 DIESEL 2008 3.G User Guide

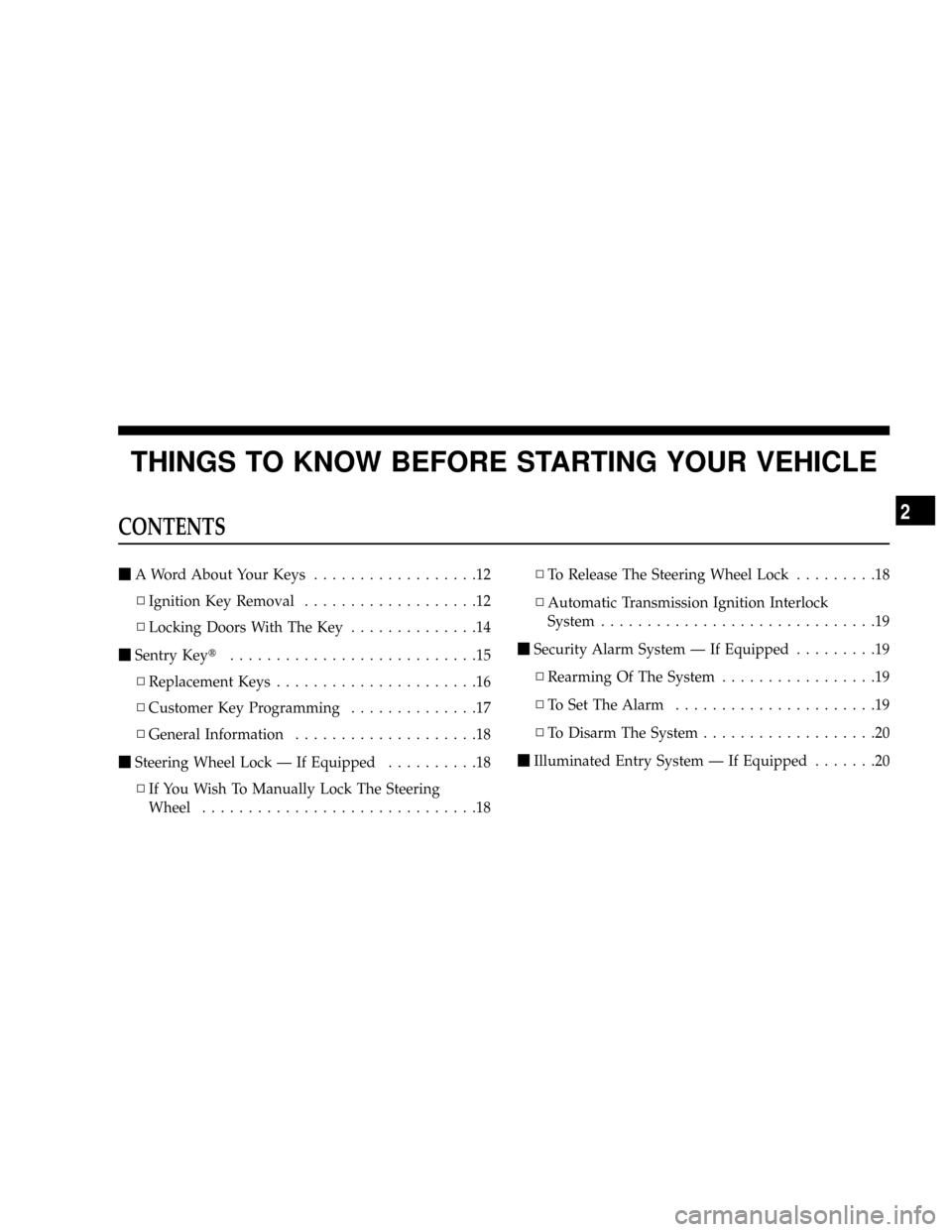

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
mA Word About Your Keys..................12
NIgnition Key Removal...................12
NLocking Doors With The Key..............14
mSentry Keyt...........................15
NReplacement Keys......................16
NCustomer Key Programming..............17
NGeneral Information....................18
mSteering Wheel Lock Ð If Equipped..........18
NIf You Wish To Manually Lock The Steering
Wheel..............................18NTo Release The Steering Wheel Lock.........18
NAutomatic Transmission Ignition Interlock
System..............................19
mSecurity Alarm System Ð If Equipped.........19
NRearming Of The System.................19
NTo Set The Alarm......................19
NTo Disarm The System...................20
mIlluminated Entry System Ð If Equipped.......20
2

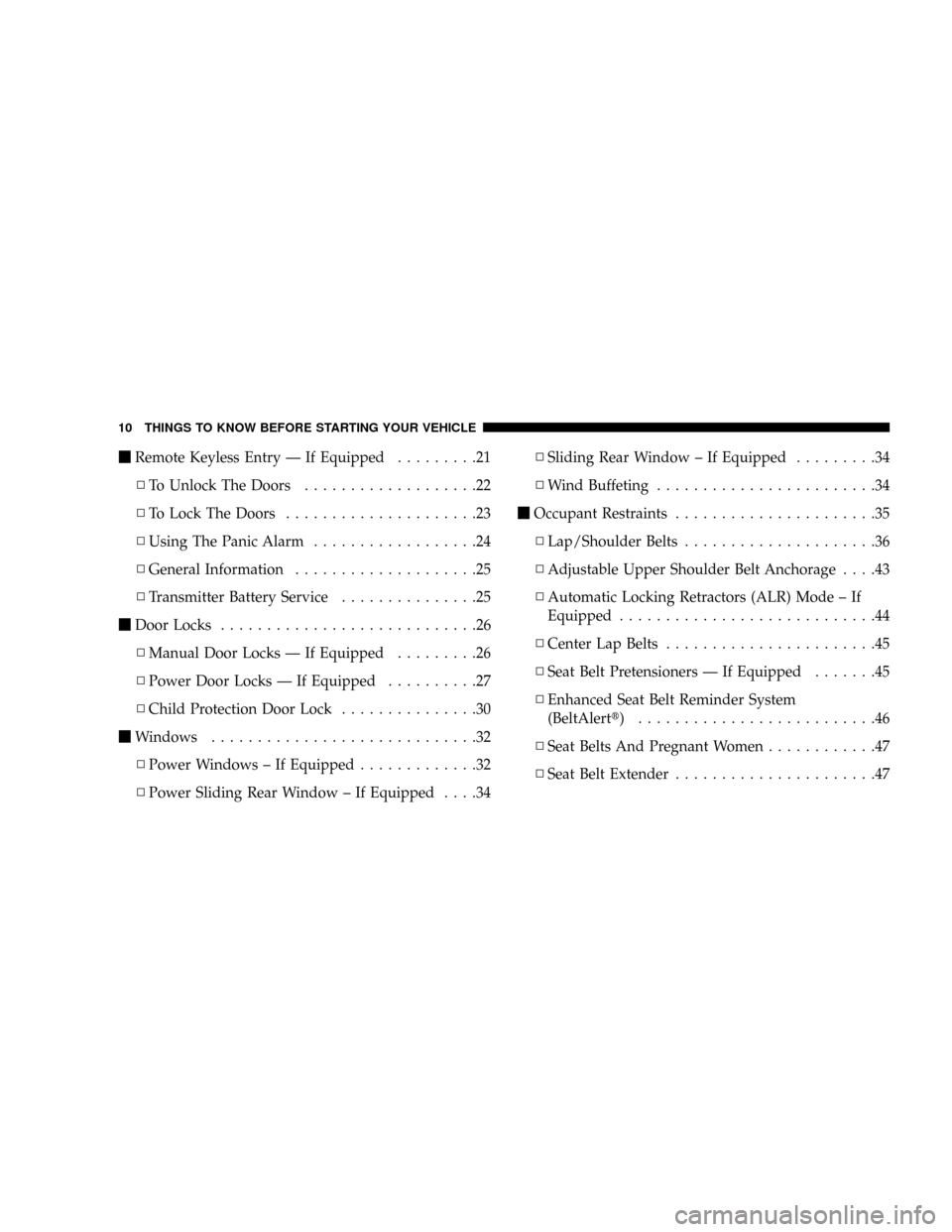

mRemote Keyless Entry Ð If Equipped.........21
NTo Unlock The Doors...................22
NTo Lock The Doors.....................23
NUsing The Panic Alarm..................24
NGeneral Information....................25
NTransmitter Battery Service...............25
mDoor Locks............................26
NManual Door Locks Ð If Equipped.........26
NPower Door Locks Ð If Equipped..........27
NChild Protection Door Lock...............30
mWindows.............................32
NPower Windows ± If Equipped.............32
NPower Sliding Rear Window ± If Equipped....34NSliding Rear Window ± If Equipped.........34
NWind Buffeting........................34
mOccupant Restraints......................35
NLap/Shoulder Belts.....................36
NAdjustable Upper Shoulder Belt Anchorage....43
NAutomatic Locking Retractors (ALR) Mode ± If
Equipped............................44
NCenter Lap Belts.......................45
NSeat Belt Pretensioners Ð If Equipped.......45
NEnhanced Seat Belt Reminder System
(BeltAlertt) ..........................46
NSeat Belts And Pregnant Women............47
NSeat Belt Extender......................47
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

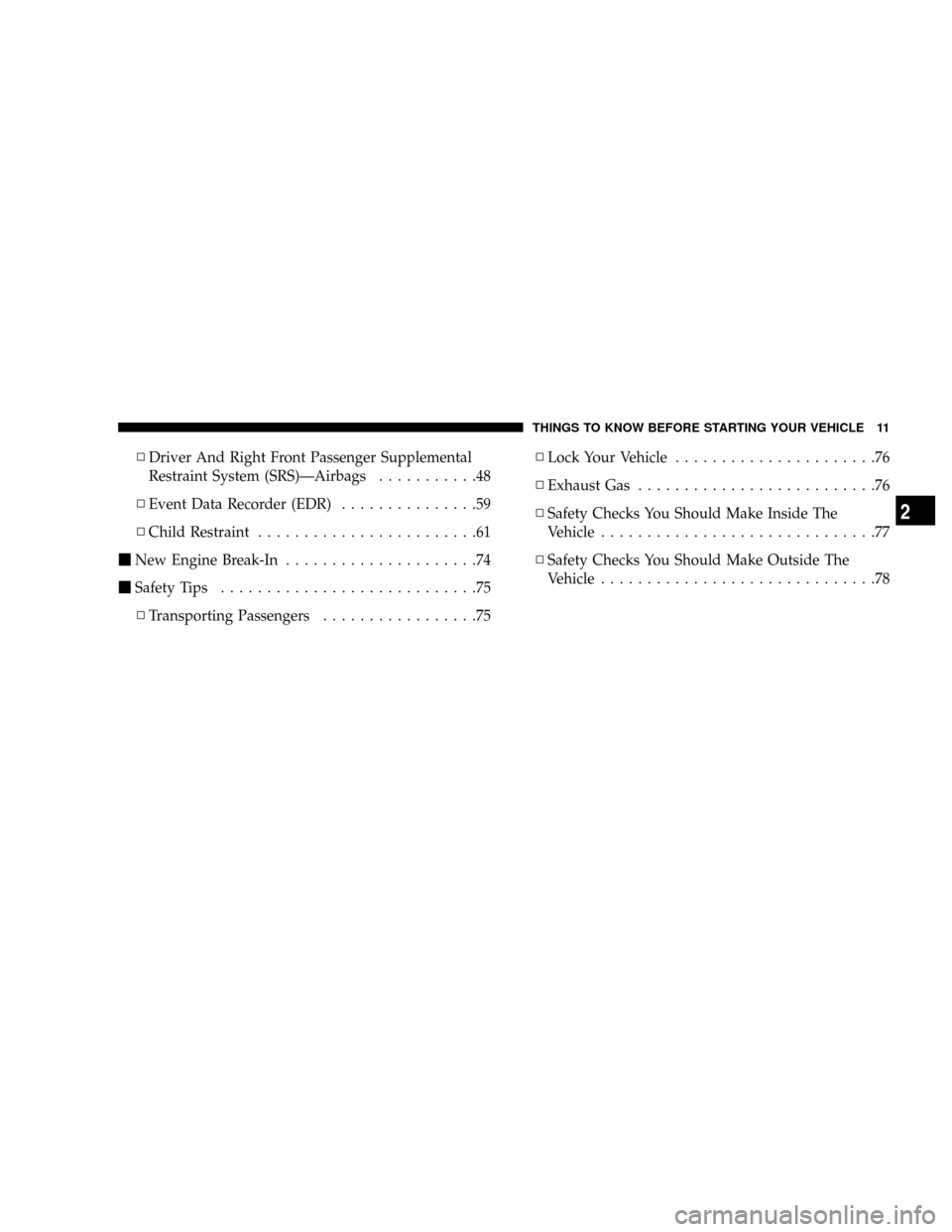

NDriver And Right Front Passenger Supplemental
Restraint System (SRS)ÐAirbags...........48
NEvent Data Recorder (EDR)...............59
NChild Restraint........................61
mNew Engine Break-In.....................74
mSafety Tips............................75
NTransporting Passengers.................75NLock Your Vehicle......................76
NExhaust Gas..........................76
NSafety Checks You Should Make Inside The
Vehicle..............................77
NSafety Checks You Should Make Outside The
Vehicle..............................78
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

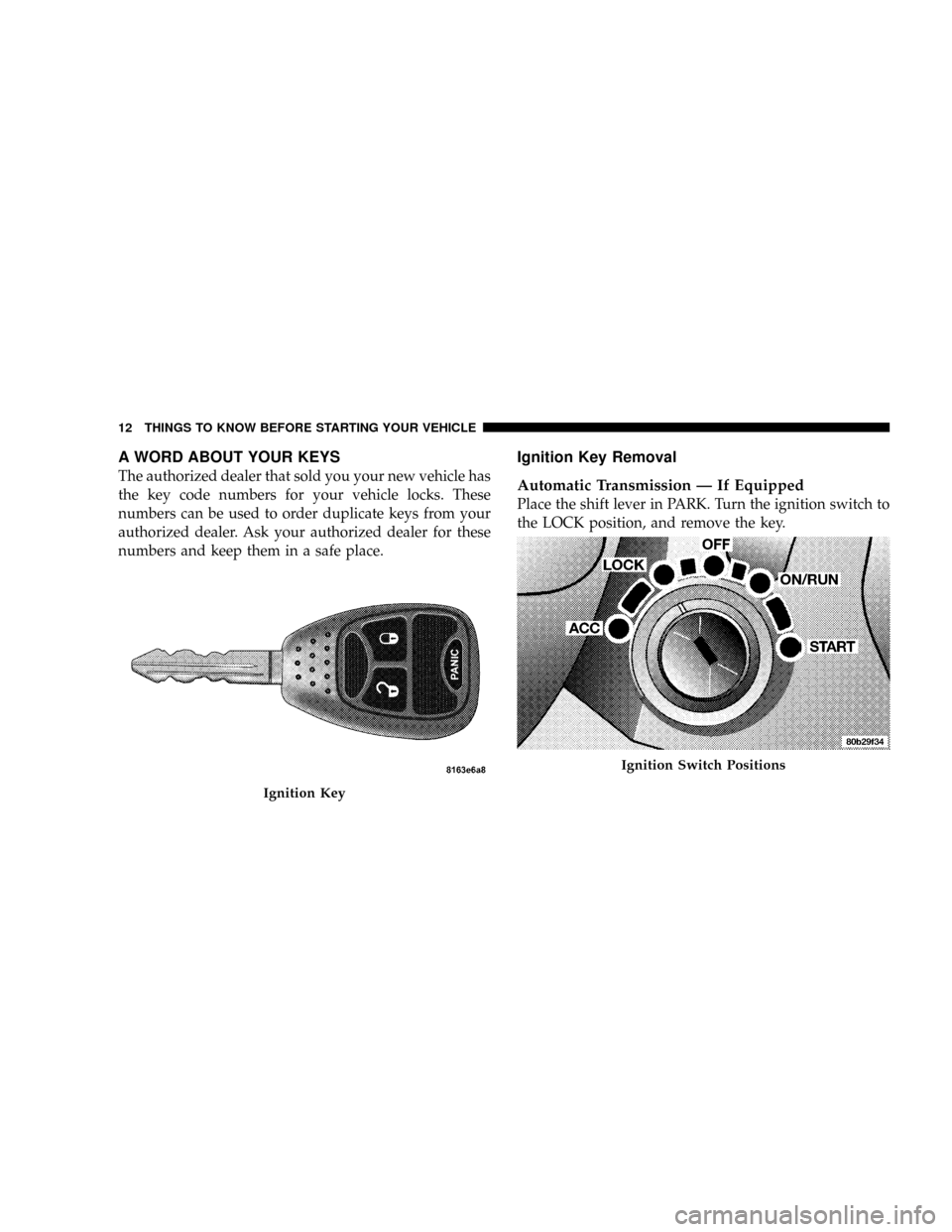

A WORD ABOUT YOUR KEYS
The authorized dealer that sold you your new vehicle has
the key code numbers for your vehicle locks. These
numbers can be used to order duplicate keys from your
authorized dealer. Ask your authorized dealer for these
numbers and keep them in a safe place.
Ignition Key Removal
Automatic Transmission Ð If Equipped
Place the shift lever in PARK. Turn the ignition switch to
the LOCK position, and remove the key.
Ignition Key
Ignition Switch Positions
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

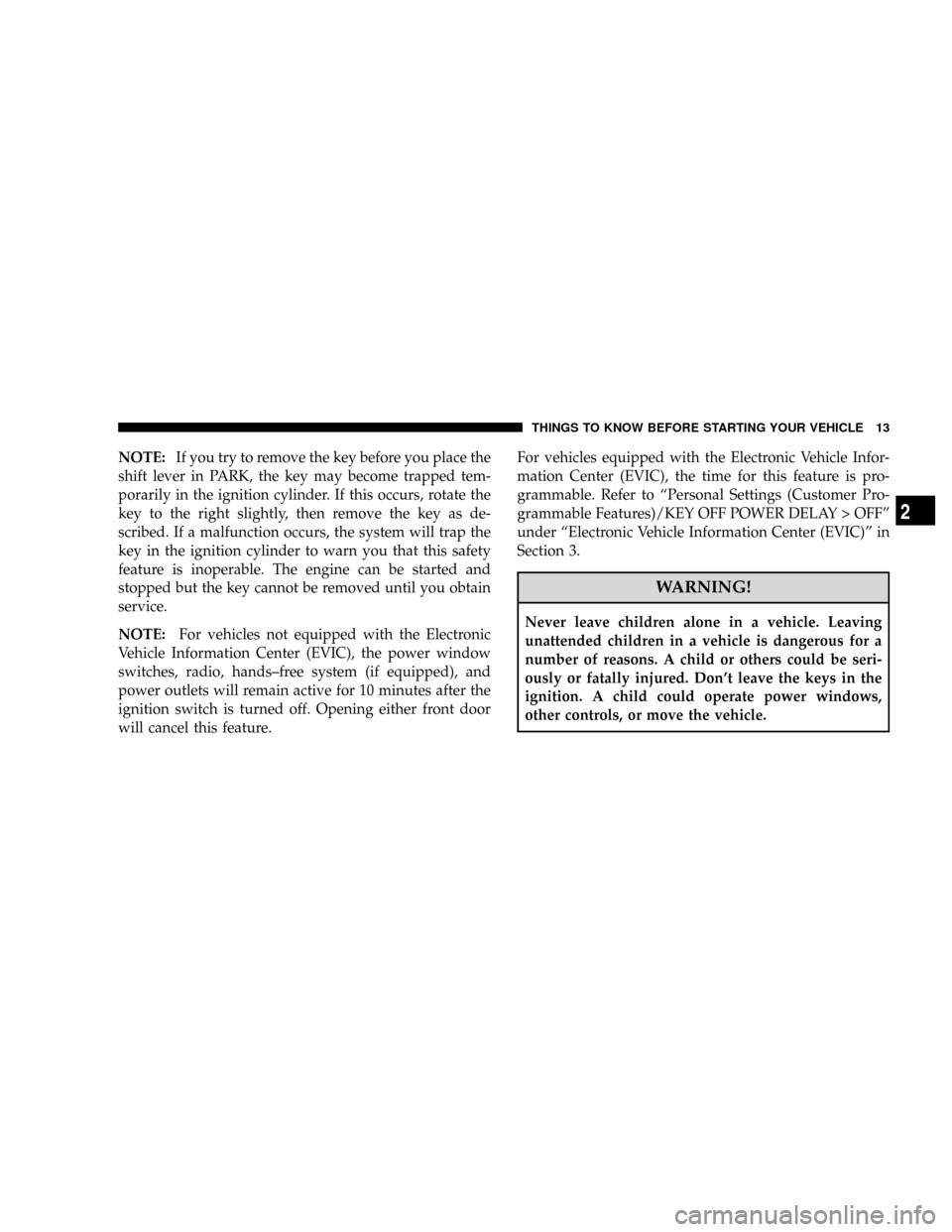

NOTE:If you try to remove the key before you place the
shift lever in PARK, the key may become trapped tem-
porarily in the ignition cylinder. If this occurs, rotate the
key to the right slightly, then remove the key as de-
scribed. If a malfunction occurs, the system will trap the
key in the ignition cylinder to warn you that this safety
feature is inoperable. The engine can be started and
stopped but the key cannot be removed until you obtain
service.
NOTE:For vehicles not equipped with the Electronic
Vehicle Information Center (EVIC), the power window
switches, radio, hands±free system (if equipped), and
power outlets will remain active for 10 minutes after the
ignition switch is turned off. Opening either front door
will cancel this feature.For vehicles equipped with the Electronic Vehicle Infor-
mation Center (EVIC), the time for this feature is pro-
grammable. Refer to ªPersonal Settings (Customer Pro-
grammable Features)/KEY OFF POWER DELAY > OFFº
under ªElectronic Vehicle Information Center (EVIC)º in
Section 3.
WARNING!
Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don't leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

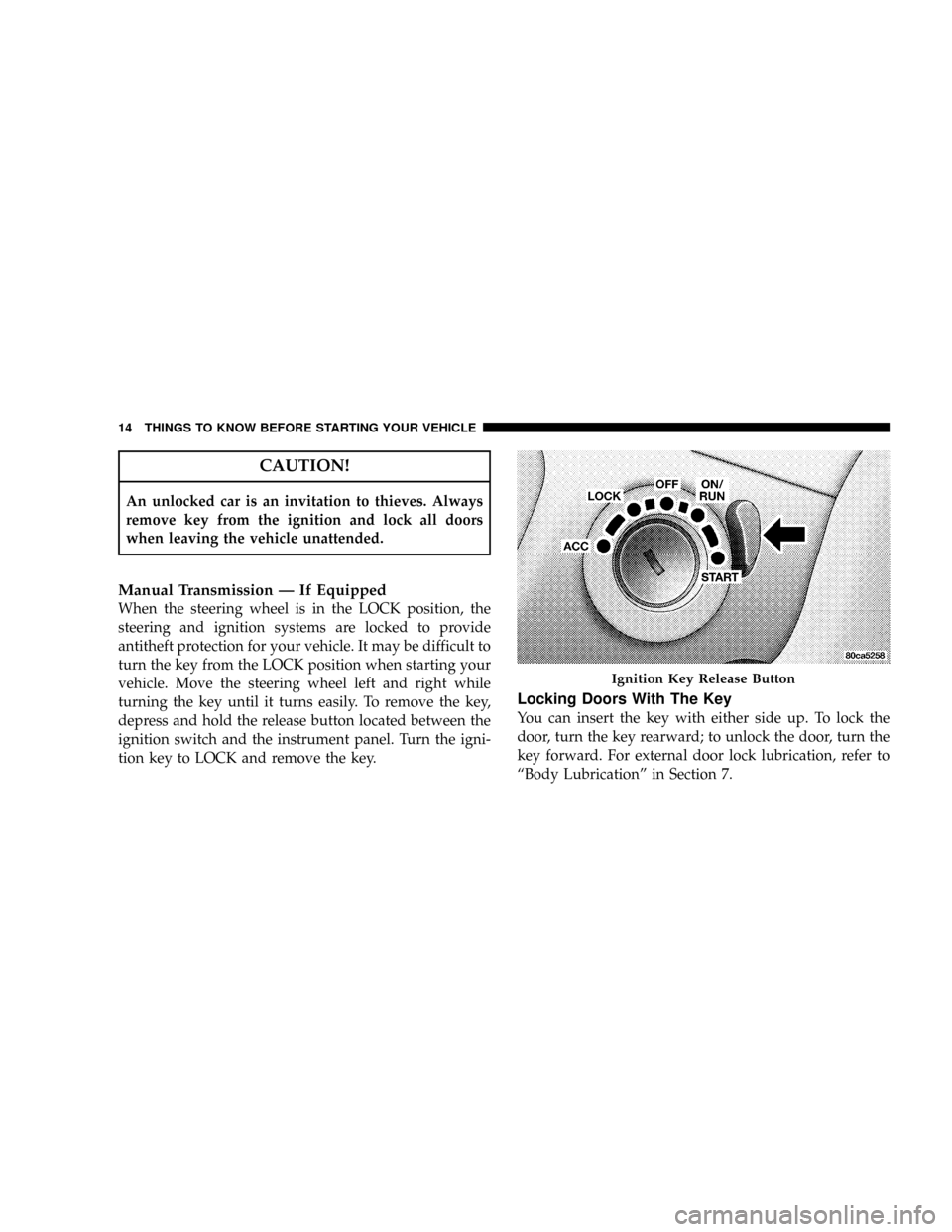

CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Manual Transmission Ð If Equipped
When the steering wheel is in the LOCK position, the
steering and ignition systems are locked to provide
antitheft protection for your vehicle. It may be difficult to
turn the key from the LOCK position when starting your
vehicle. Move the steering wheel left and right while
turning the key until it turns easily. To remove the key,
depress and hold the release button located between the
ignition switch and the instrument panel. Turn the igni-
tion key to LOCK and remove the key.
Locking Doors With The Key
You can insert the key with either side up. To lock the
door, turn the key rearward; to unlock the door, turn the
key forward. For external door lock lubrication, refer to
ªBody Lubricationº in Section 7.
Ignition Key Release Button
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

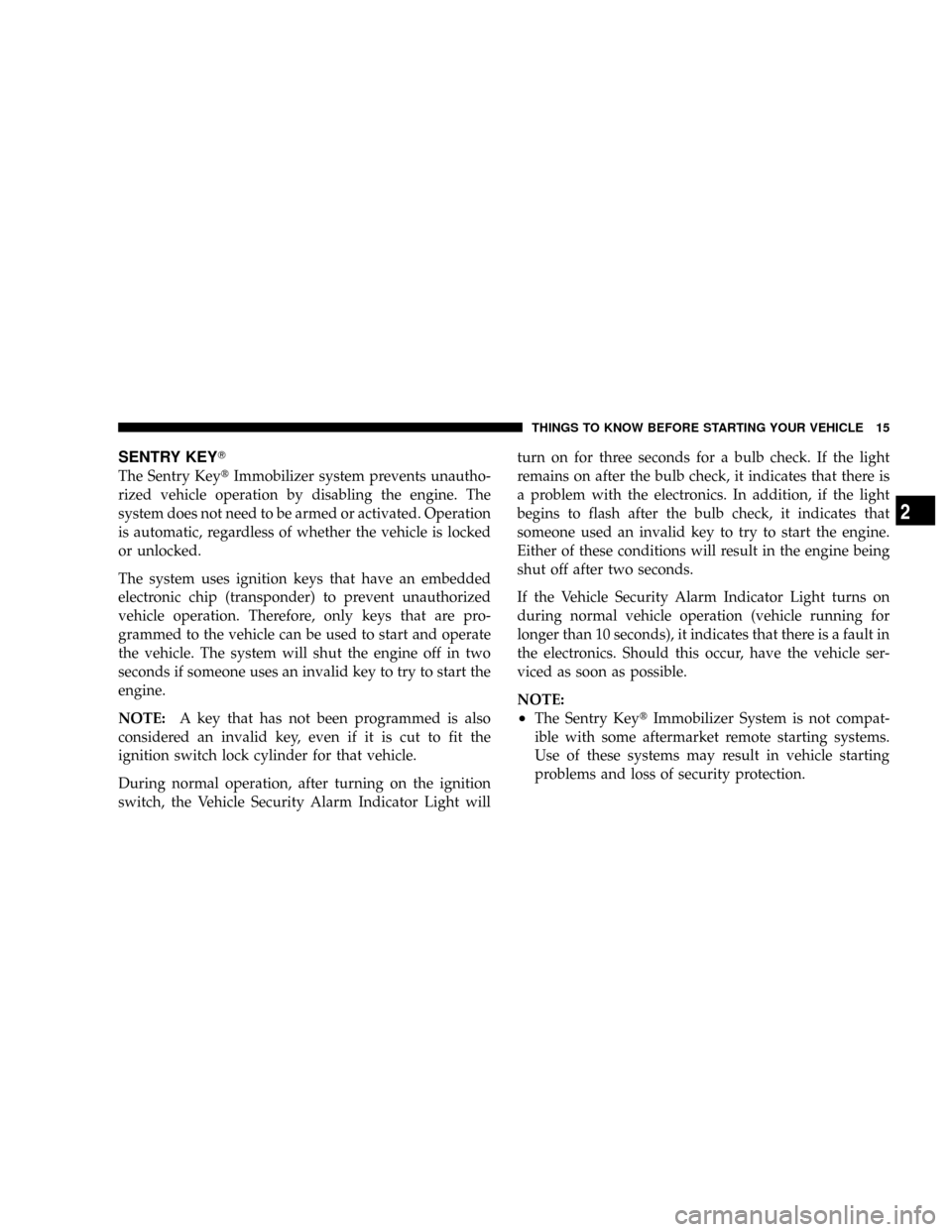

SENTRY KEYT
The Sentry KeytImmobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys that have an embedded
electronic chip (transponder) to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate
the vehicle. The system will shut the engine off in two
seconds if someone uses an invalid key to try to start the
engine.
NOTE:A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Alarm Indicator Light willturn on for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates that there is
a problem with the electronics. In addition, if the light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser-
viced as soon as possible.
NOTE:
²The Sentry KeytImmobilizer System is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

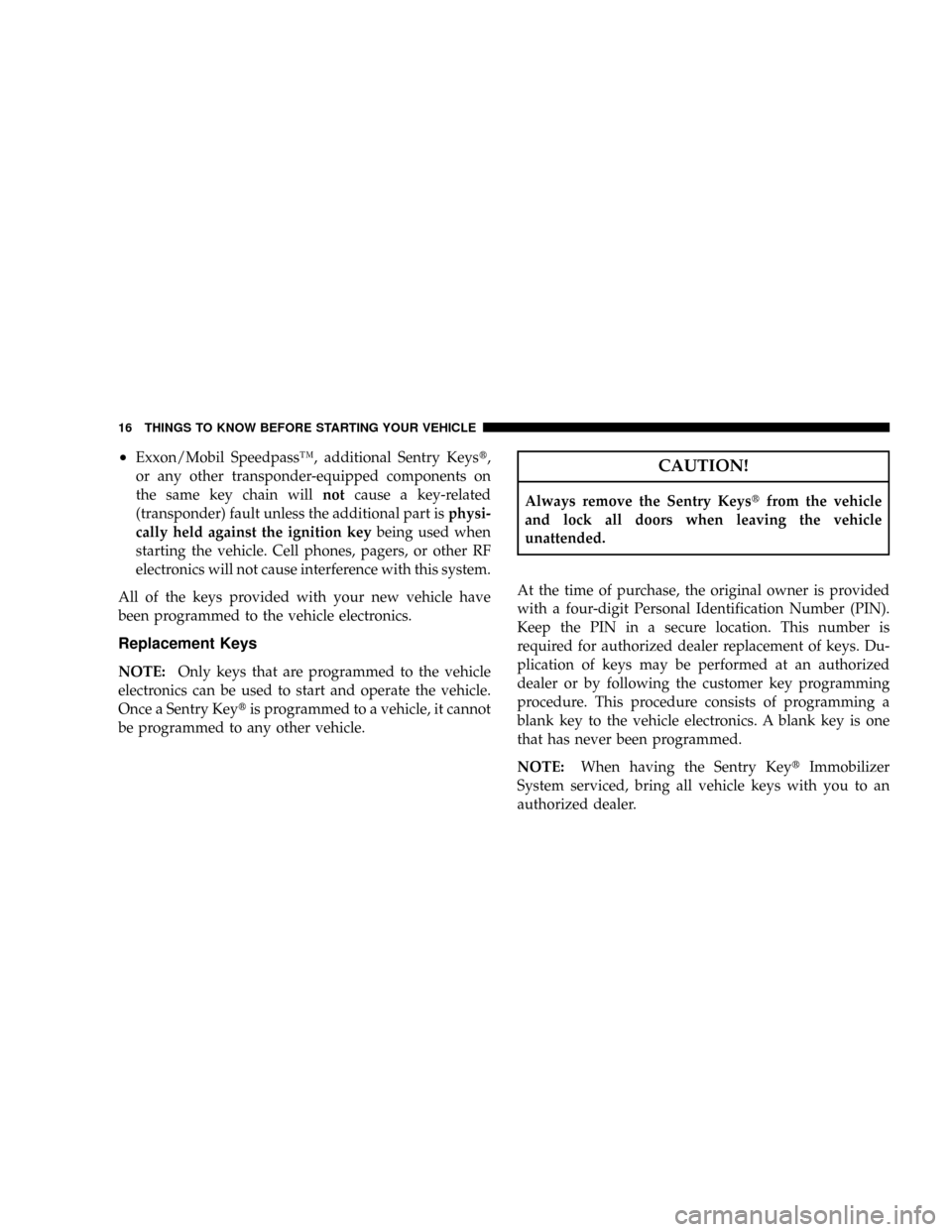

²Exxon/Mobil SpeedpassŸ, additional Sentry Keyst,
or any other transponder-equipped components on
the same key chain willnotcause a key-related
(transponder) fault unless the additional part isphysi-
cally held against the ignition keybeing used when
starting the vehicle. Cell phones, pagers, or other RF
electronics will not cause interference with this system.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE:Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Keytis programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keystfrom the vehicle
and lock all doors when leaving the vehicle
unattended.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of keys. Du-
plication of keys may be performed at an authorized
dealer or by following the customer key programming
procedure. This procedure consists of programming a
blank key to the vehicle electronics. A blank key is one
that has never been programmed.
NOTE:When having the Sentry KeytImmobilizer
System serviced, bring all vehicle keys with you to an
authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

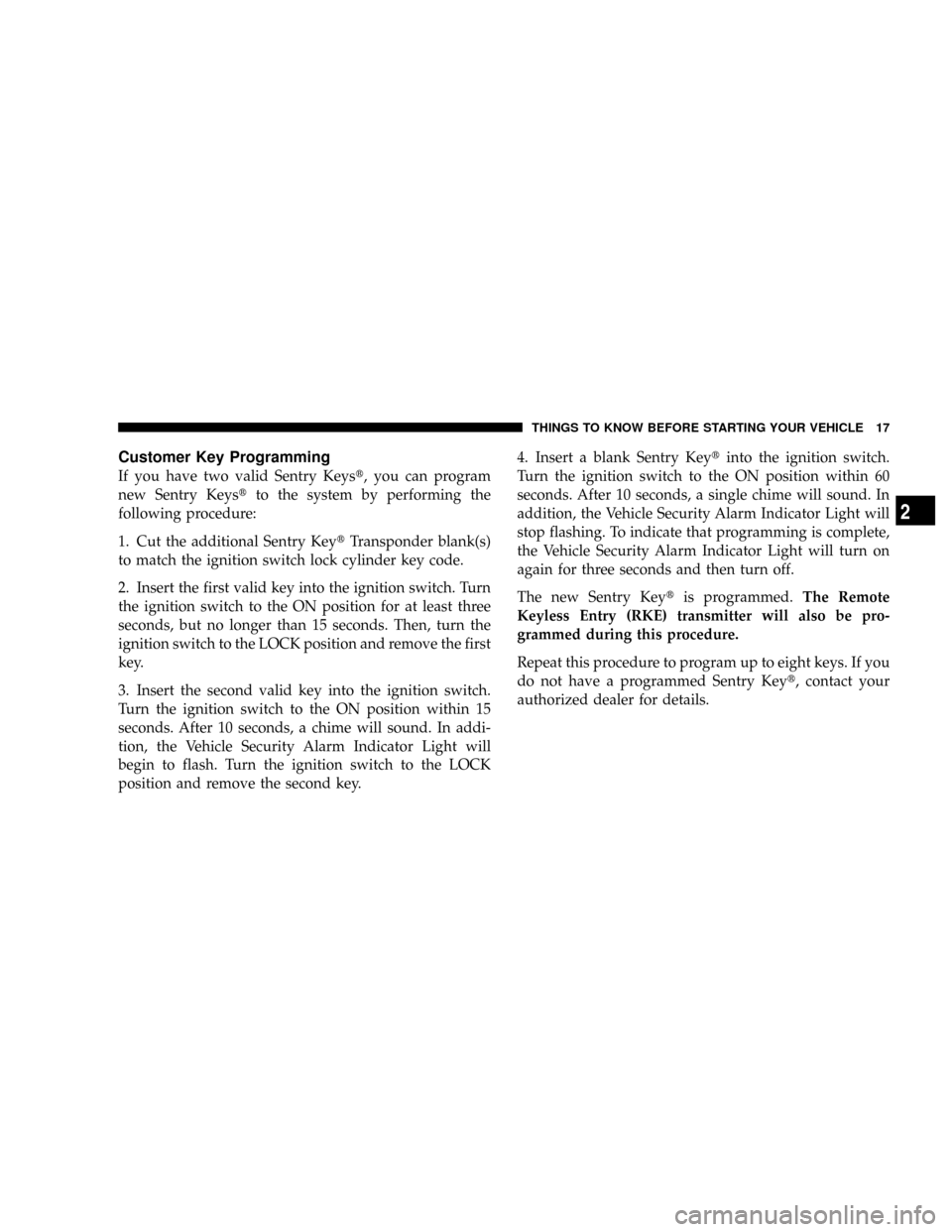

Customer Key Programming
If you have two valid Sentry Keyst, you can program
new Sentry Keystto the system by performing the
following procedure:
1. Cut the additional Sentry KeytTransponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON position for at least three
seconds, but no longer than 15 seconds. Then, turn the
ignition switch to the LOCK position and remove the first
key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within 15
seconds. After 10 seconds, a chime will sound. In addi-
tion, the Vehicle Security Alarm Indicator Light will
begin to flash. Turn the ignition switch to the LOCK
position and remove the second key.4. Insert a blank Sentry Keytinto the ignition switch.
Turn the ignition switch to the ON position within 60
seconds. After 10 seconds, a single chime will sound. In
addition, the Vehicle Security Alarm Indicator Light will
stop flashing. To indicate that programming is complete,
the Vehicle Security Alarm Indicator Light will turn on
again for three seconds and then turn off.
The new Sentry Keytis programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Keyt, contact your
authorized dealer for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2

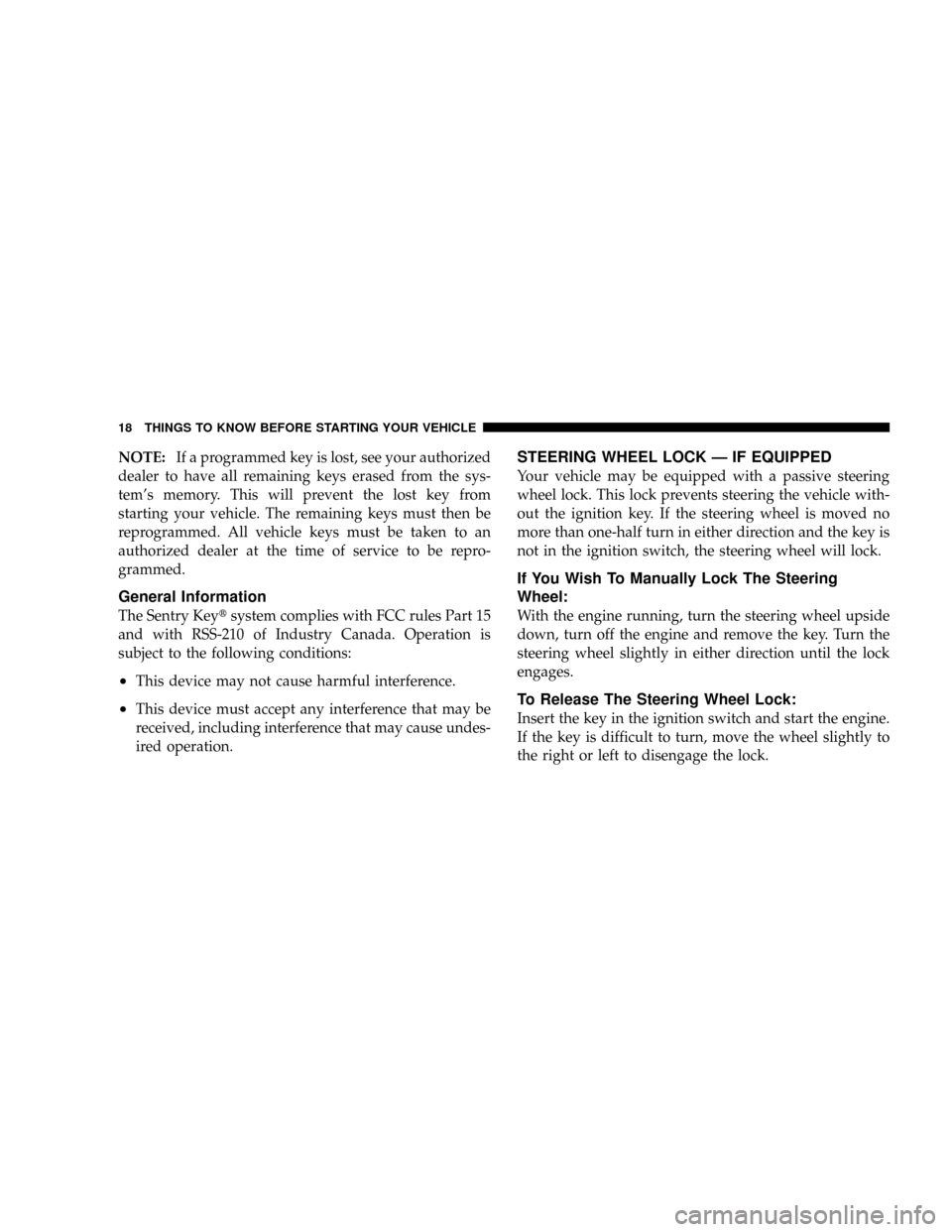

NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem's memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be repro-
grammed.
General Information
The Sentry Keytsystem complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
²This device may not cause harmful interference.
²This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
STEERING WHEEL LOCK Ð IF EQUIPPED
Your vehicle may be equipped with a passive steering
wheel lock. This lock prevents steering the vehicle with-
out the ignition key. If the steering wheel is moved no
more than one-half turn in either direction and the key is
not in the ignition switch, the steering wheel will lock.
If You Wish To Manually Lock The Steering
Wheel:
With the engine running, turn the steering wheel upside
down, turn off the engine and remove the key. Turn the
steering wheel slightly in either direction until the lock
engages.
To Release The Steering Wheel Lock:
Insert the key in the ignition switch and start the engine.
If the key is difficult to turn, move the wheel slightly to
the right or left to disengage the lock.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
