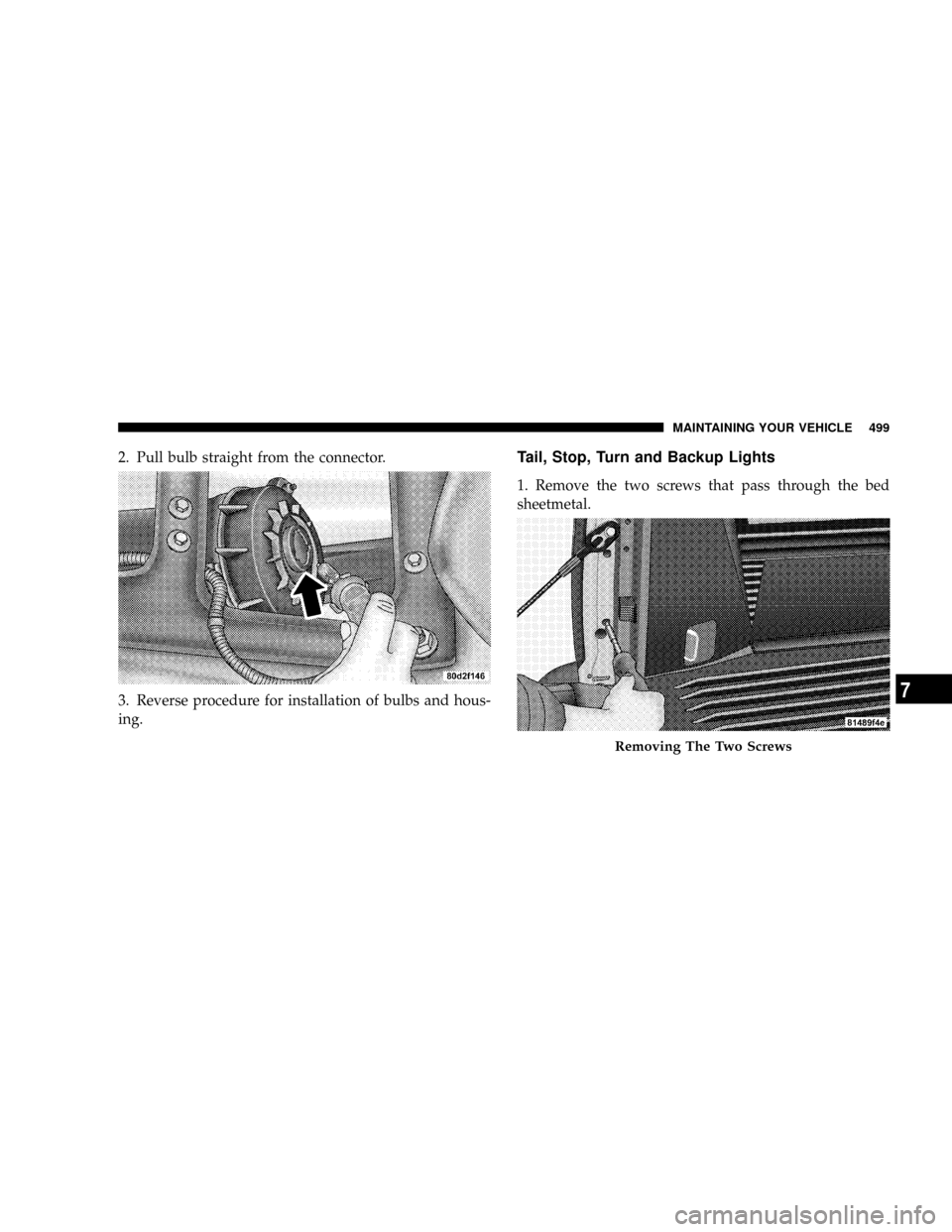

Page 501 of 554
2. Pull bulb straight from the connector.
3. Reverse procedure for installation of bulbs and hous-
ing.Tail, Stop, Turn and Backup Lights
1. Remove the two screws that pass through the bed
sheetmetal.
Removing The Two Screws
MAINTAINING YOUR VEHICLE 499
7

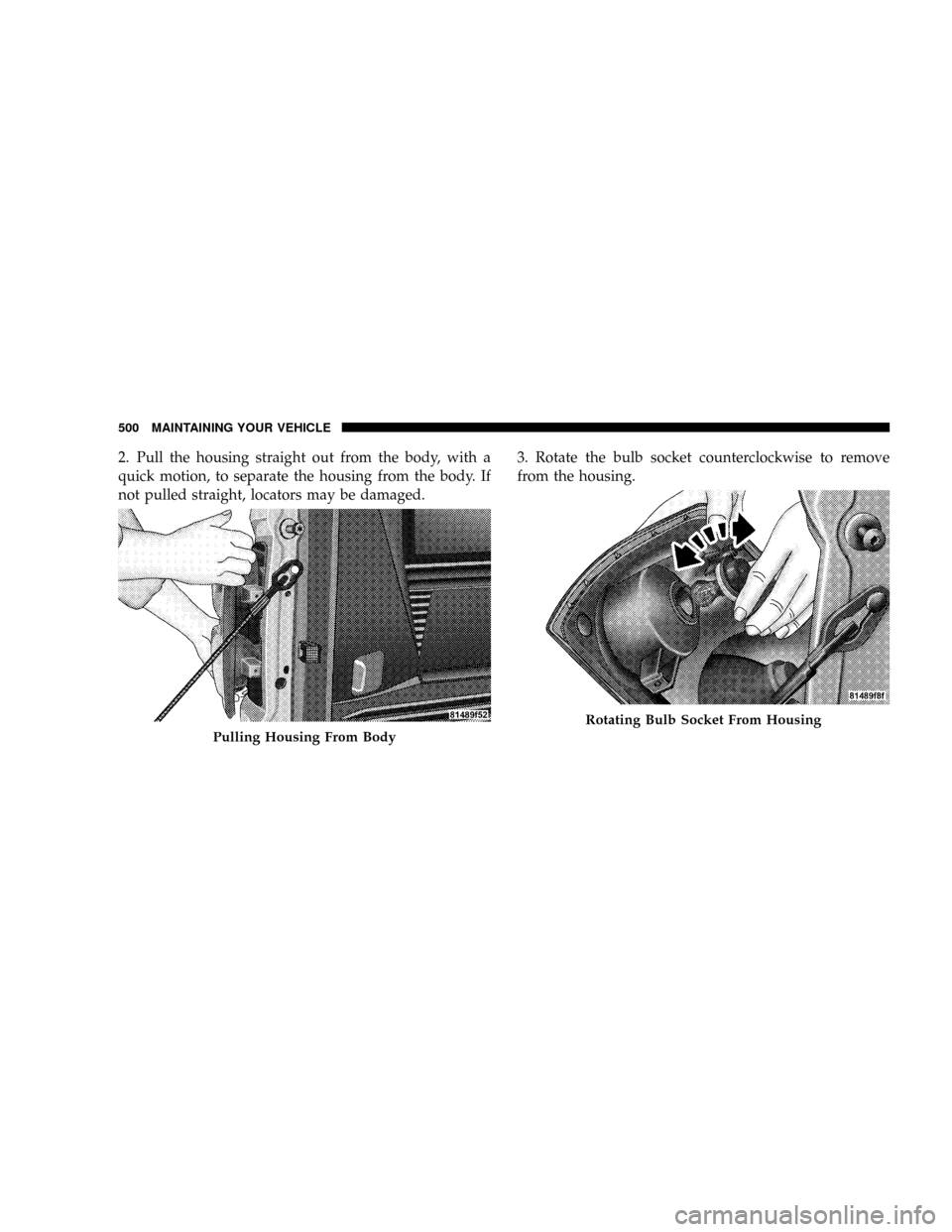

Page 502 of 554
2. Pull the housing straight out from the body, with a
quick motion, to separate the housing from the body. If
not pulled straight, locators may be damaged.3. Rotate the bulb socket counterclockwise to remove
from the housing.
Pulling Housing From Body
Rotating Bulb Socket From Housing
500 MAINTAINING YOUR VEHICLE

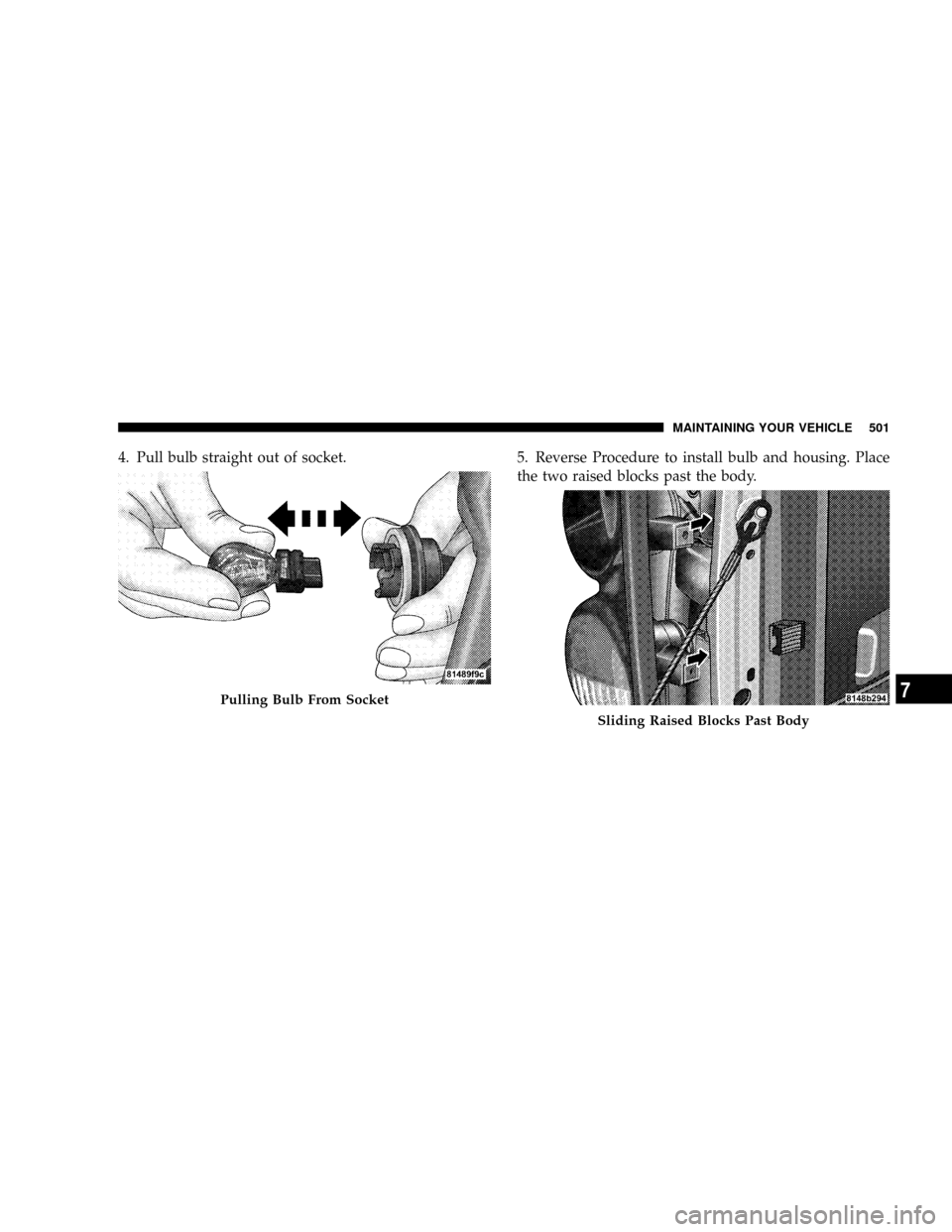

Page 503 of 554
4. Pull bulb straight out of socket. 5. Reverse Procedure to install bulb and housing. Place
the two raised blocks past the body.
Pulling Bulb From Socket
Sliding Raised Blocks Past Body
MAINTAINING YOUR VEHICLE 501
7

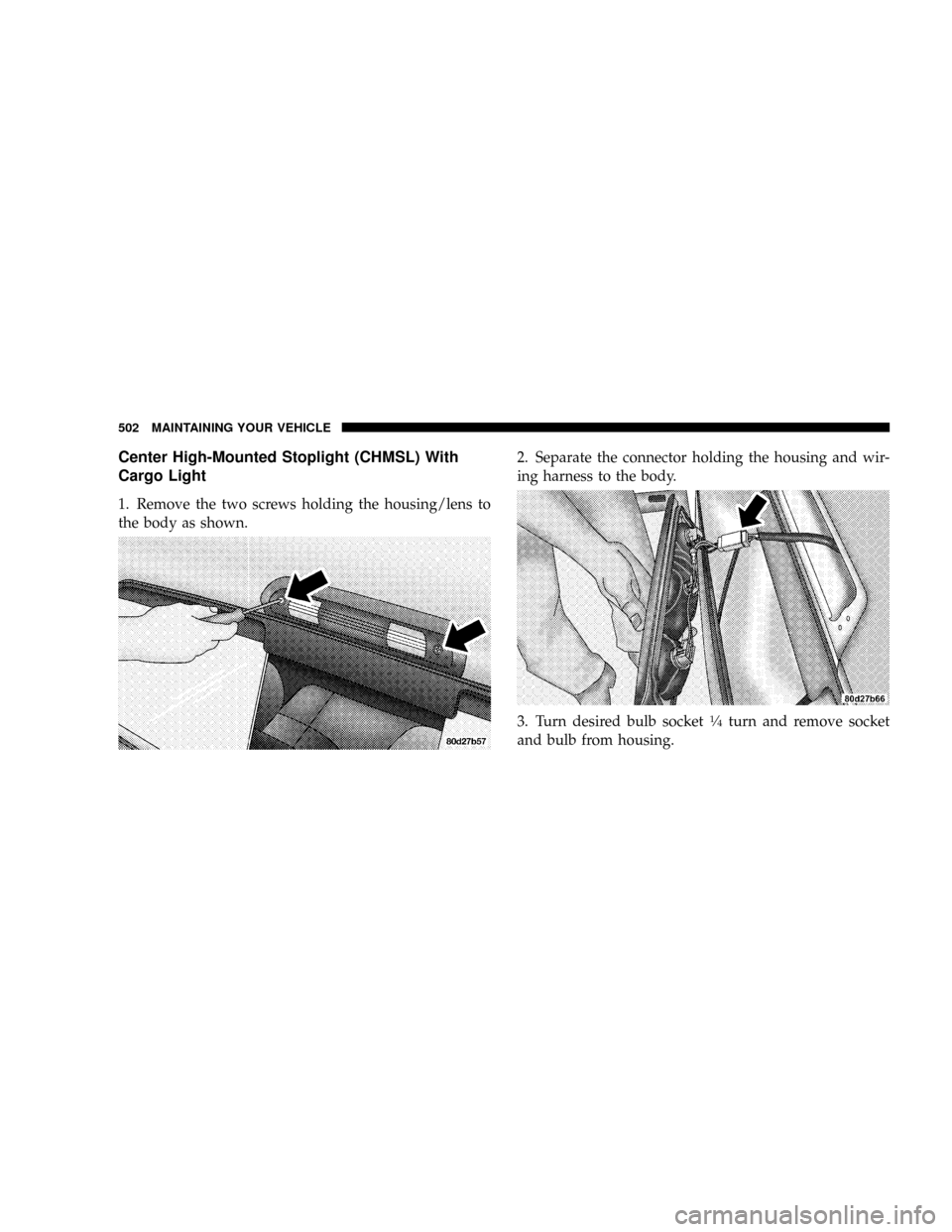

Page 504 of 554
Center High-Mounted Stoplight (CHMSL) With
Cargo Light
1. Remove the two screws holding the housing/lens to
the body as shown.2. Separate the connector holding the housing and wir-
ing harness to the body.
3. Turn desired bulb socket
1¤4turn and remove socket
and bulb from housing.
502 MAINTAINING YOUR VEHICLE

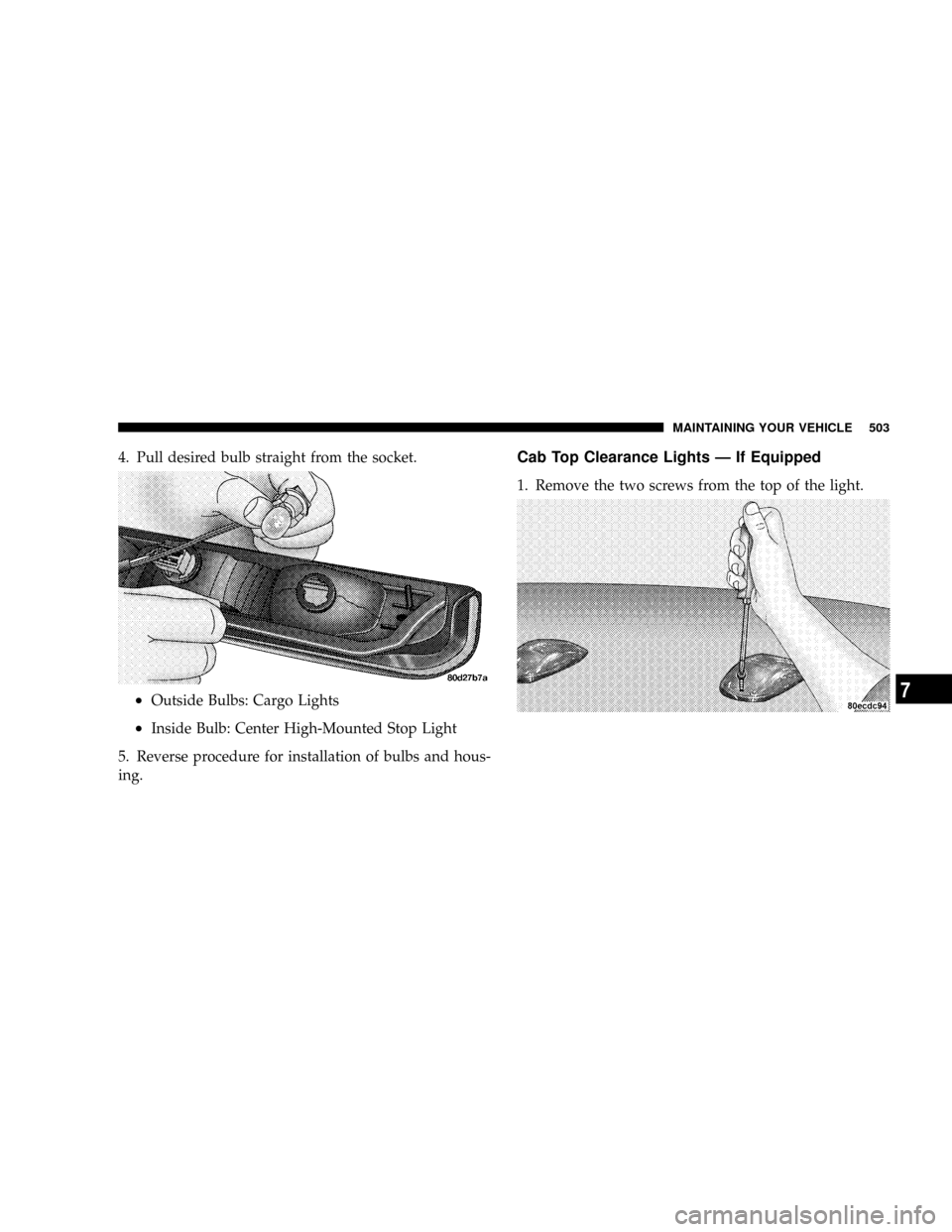

Page 505 of 554
4. Pull desired bulb straight from the socket.
²Outside Bulbs: Cargo Lights
²Inside Bulb: Center High-Mounted Stop Light
5. Reverse procedure for installation of bulbs and hous-
ing.
Cab Top Clearance Lights Ð If Equipped
1. Remove the two screws from the top of the light.
MAINTAINING YOUR VEHICLE 503
7

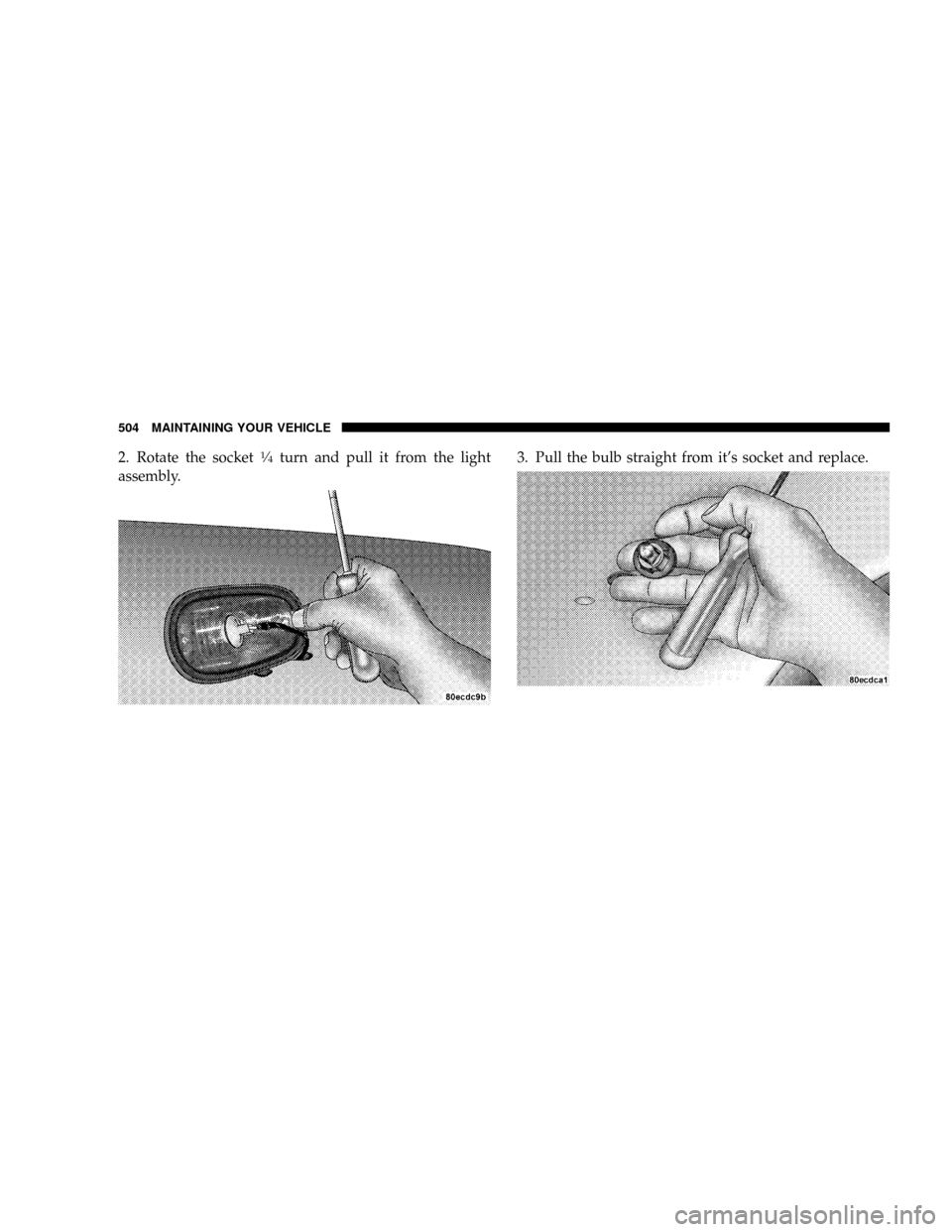

Page 506 of 554
2. Rotate the socket1¤4turn and pull it from the light
assembly.3. Pull the bulb straight from it's socket and replace.
504 MAINTAINING YOUR VEHICLE

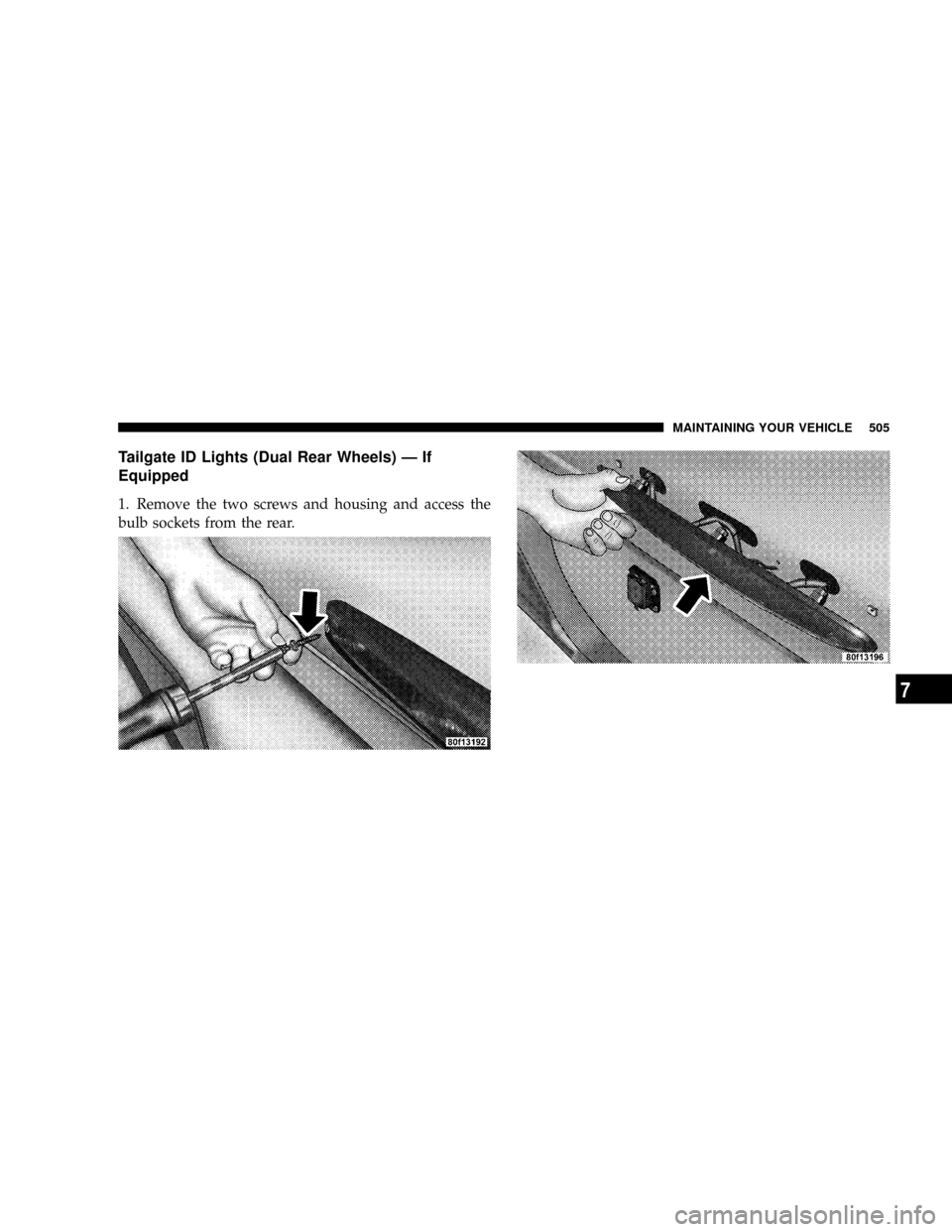

Page 507 of 554
Tailgate ID Lights (Dual Rear Wheels) Ð If
Equipped
1. Remove the two screws and housing and access the
bulb sockets from the rear.
MAINTAINING YOUR VEHICLE 505
7

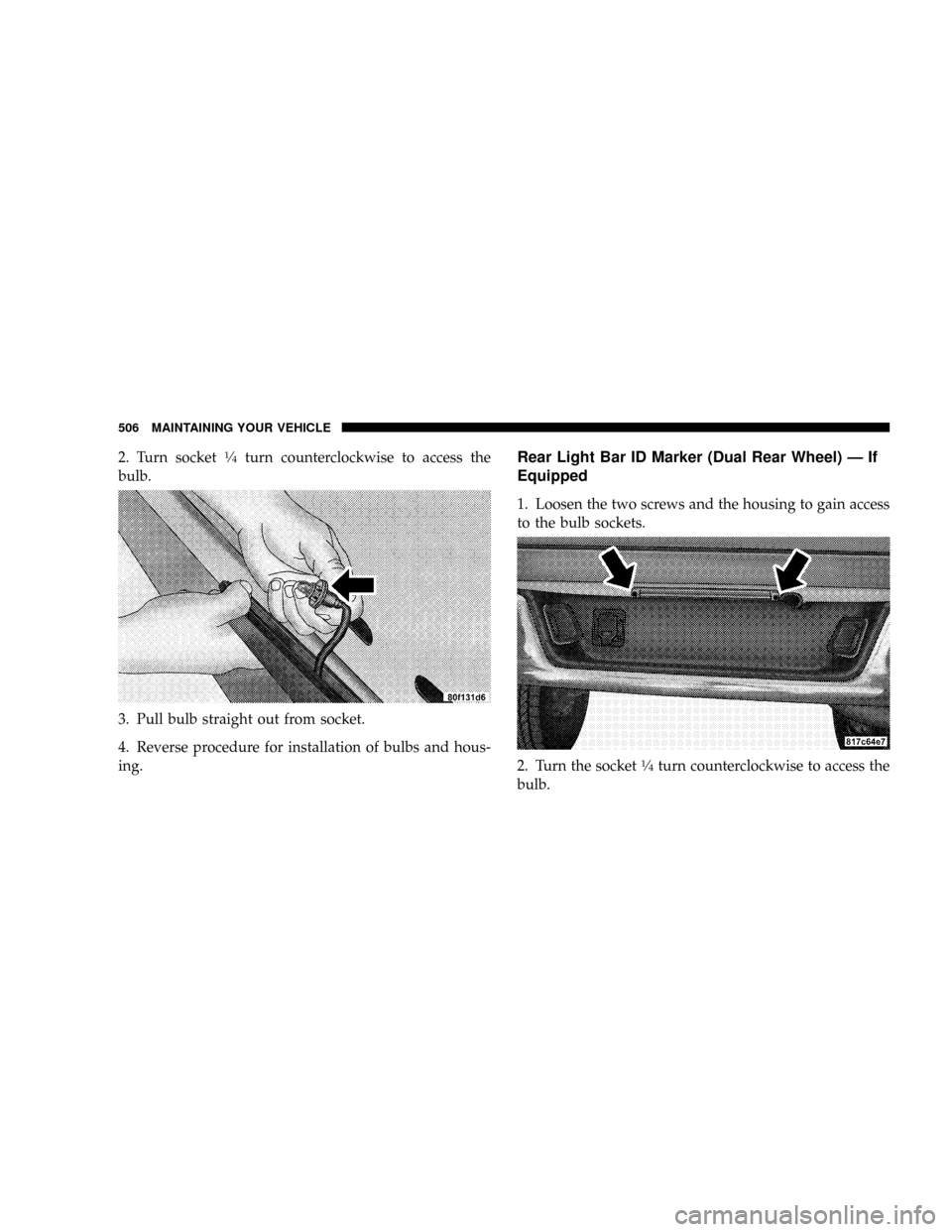

Page 508 of 554
2. Turn socket1¤4turn counterclockwise to access the
bulb.
3. Pull bulb straight out from socket.
4. Reverse procedure for installation of bulbs and hous-
ing.Rear Light Bar ID Marker (Dual Rear Wheel) Ð If
Equipped
1. Loosen the two screws and the housing to gain access
to the bulb sockets.
2. Turn the socket
1¤4turn counterclockwise to access the
bulb.
506 MAINTAINING YOUR VEHICLE

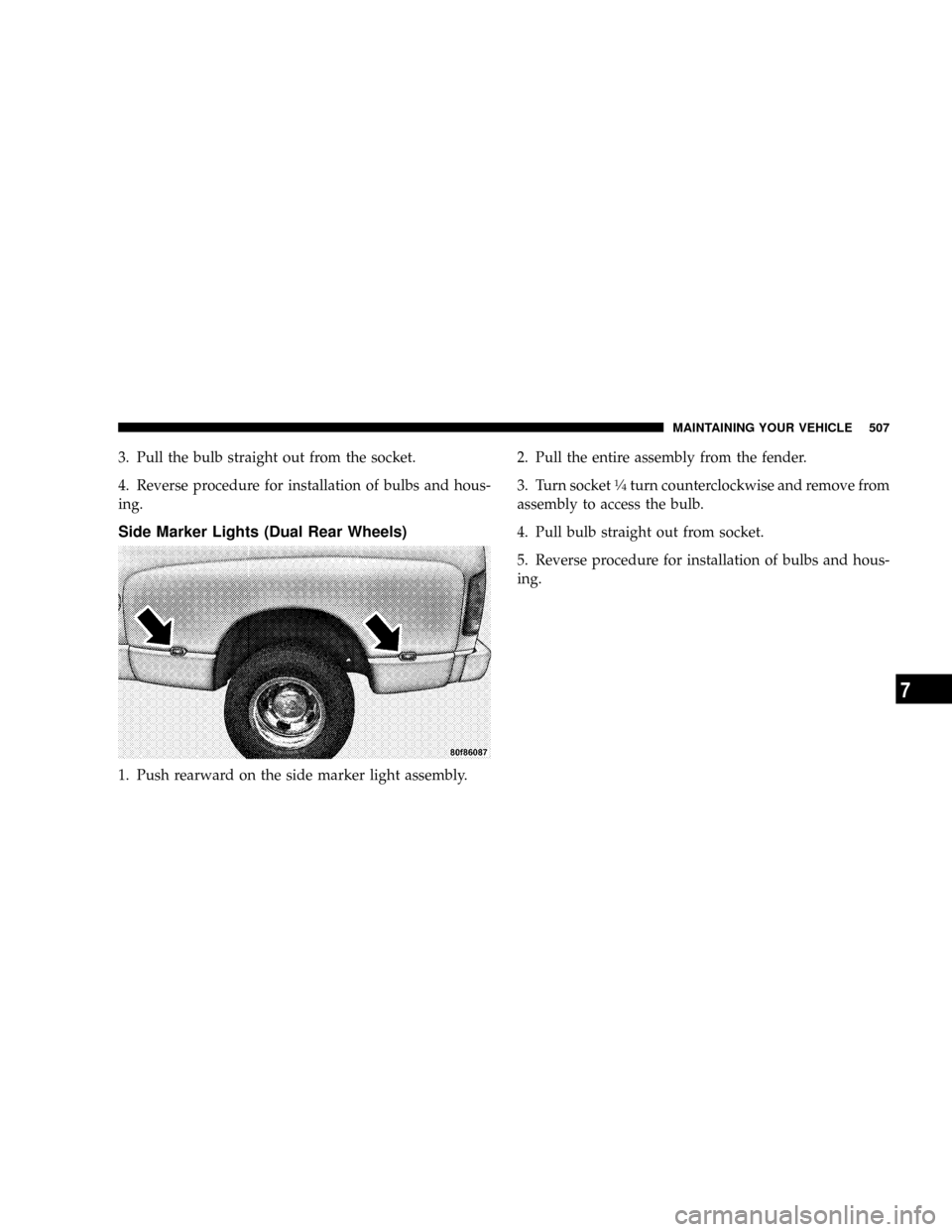

Page 509 of 554
3. Pull the bulb straight out from the socket.
4. Reverse procedure for installation of bulbs and hous-
ing.
Side Marker Lights (Dual Rear Wheels)
1. Push rearward on the side marker light assembly.2. Pull the entire assembly from the fender.
3. Turn socket
1¤4turn counterclockwise and remove from
assembly to access the bulb.
4. Pull bulb straight out from socket.
5. Reverse procedure for installation of bulbs and hous-
ing.
MAINTAINING YOUR VEHICLE 507
7

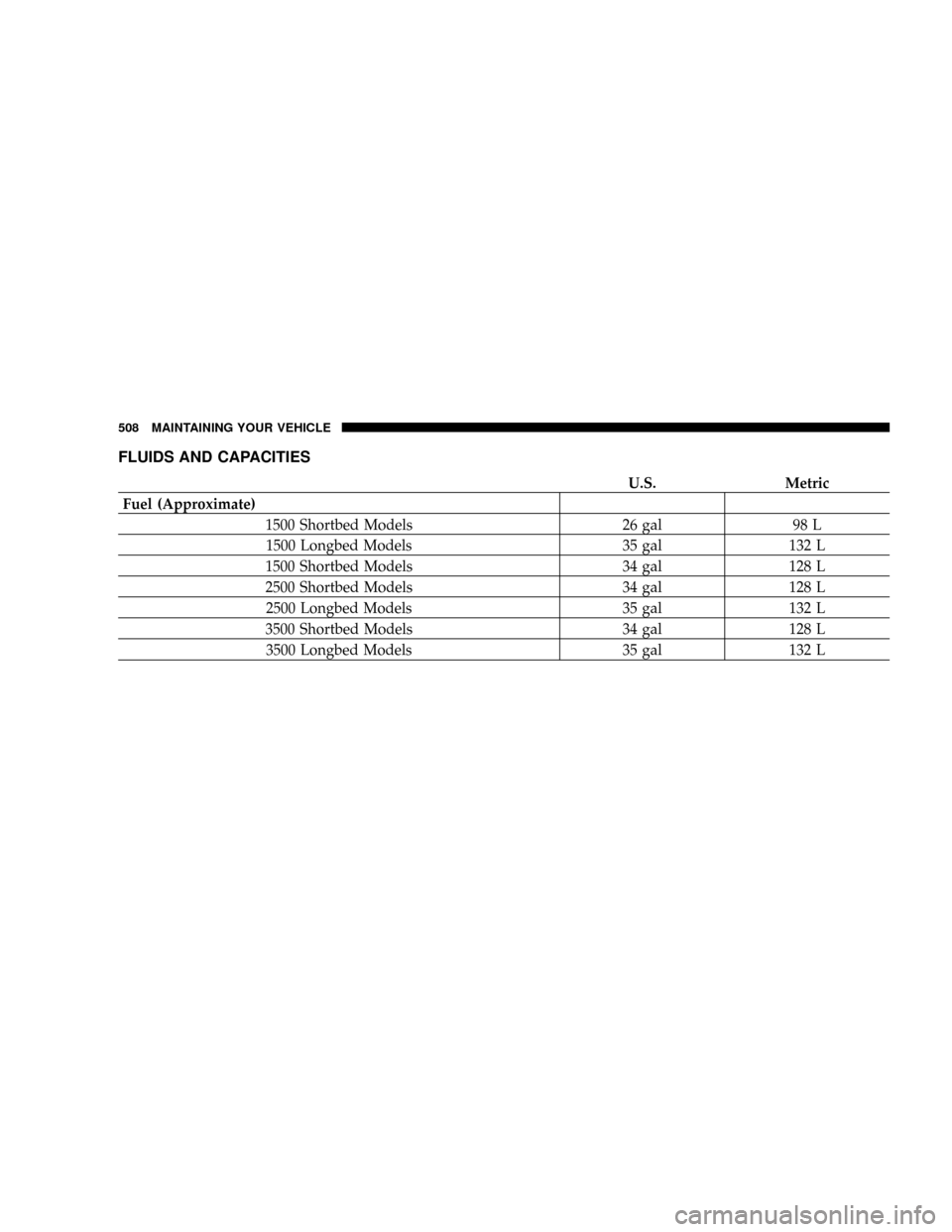

Page 510 of 554
FLUIDS AND CAPACITIES
U.S. Metric
Fuel (Approximate)
1500 Shortbed Models 26 gal 98 L
1500 Longbed Models 35 gal 132 L
1500 Shortbed Models 34 gal 128 L
2500 Shortbed Models 34 gal 128 L
2500 Longbed Models 35 gal 132 L
3500 Shortbed Models 34 gal 128 L
3500 Longbed Models 35 gal 132 L
508 MAINTAINING YOUR VEHICLE
