DODGE RAM 5500 CHASSIS CAB 2009 4.G Owner's Manual

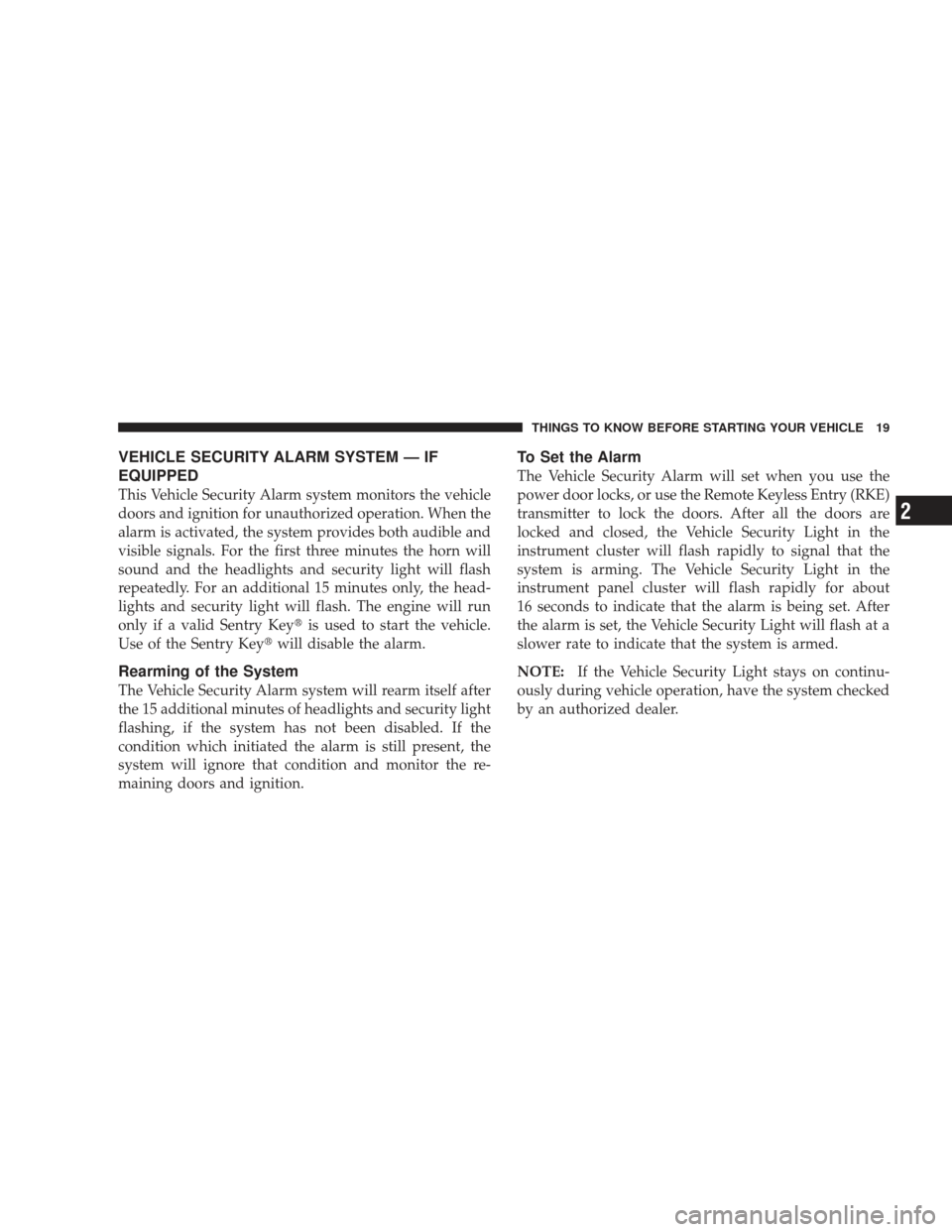

VEHICLE SECURITY ALARM SYSTEM — IF
EQUIPPED
This Vehicle Security Alarm system monitors the vehicle
doors and ignition for unauthorized operation. When the
alarm is activated, the system provides both audible and
visible signals. For the first three minutes the horn will
sound and the headlights and security light will flash
repeatedly. For an additional 15 minutes only, the head-
lights and security light will flash. The engine will run
only if a valid Sentry Keyis used to start the vehicle.
Use of the Sentry Key will disable the alarm.
Rearming of the System
The Vehicle Security Alarm system will rearm itself after
the 15 additional minutes of headlights and security light
flashing, if the system has not been disabled. If the
condition which initiated the alarm is still present, the
system will ignore that condition and monitor the re-
maining doors and ignition.
To Set the Alarm
The Vehicle Security Alarm will set when you use the
power door locks, or use the Remote Keyless Entry (RKE)
transmitter to lock the doors. After all the doors are
locked and closed, the Vehicle Security Light in the
instrument cluster will flash rapidly to signal that the
system is arming. The Vehicle Security Light in the
instrument panel cluster will flash rapidly for about
16 seconds to indicate that the alarm is being set. After
the alarm is set, the Vehicle Security Light will flash at a
slower rate to indicate that the system is armed.
NOTE:If the Vehicle Security Light stays on continu-
ously during vehicle operation, have the system checked
by an authorized dealer.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19
2

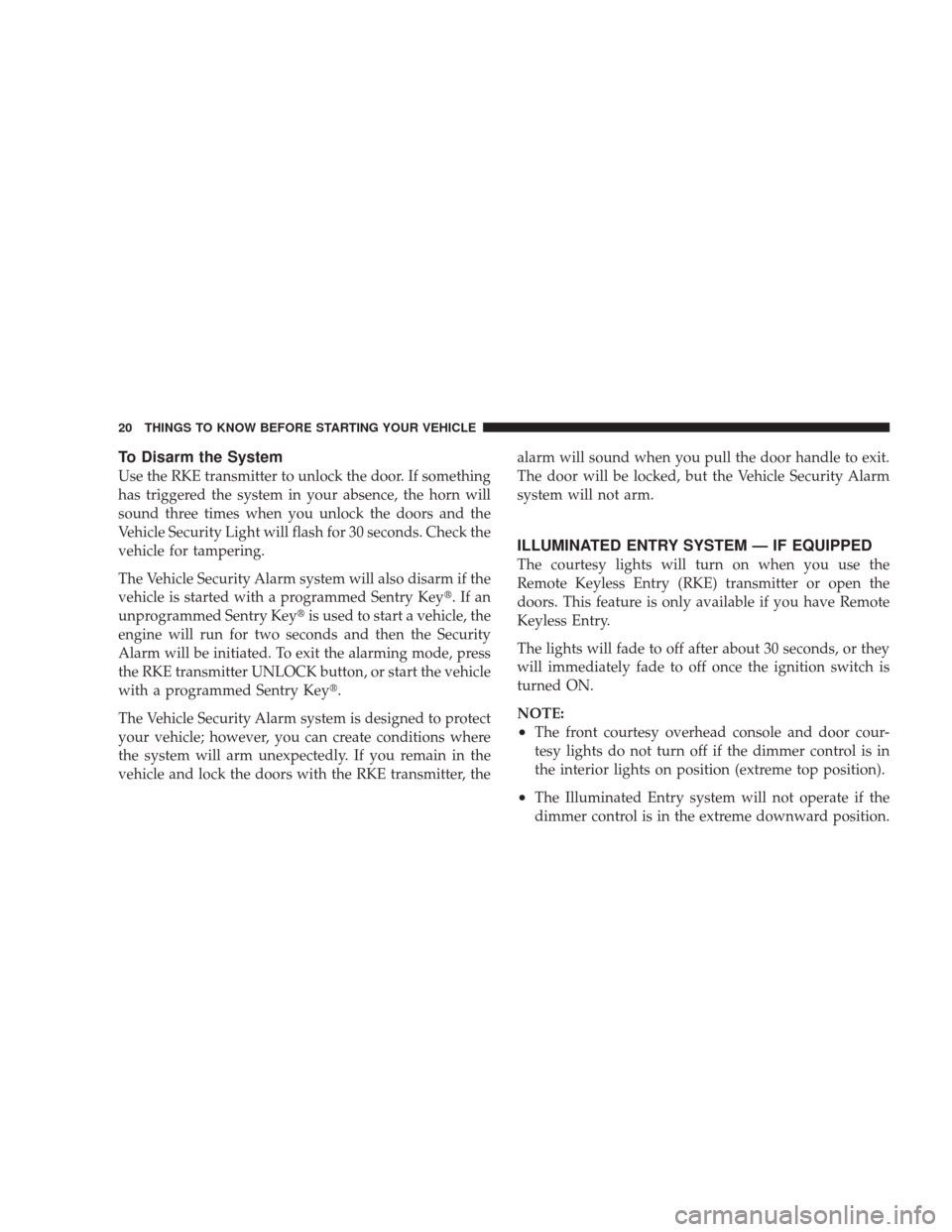

To Disarm the System
Use the RKE transmitter to unlock the door. If something
has triggered the system in your absence, the horn will
sound three times when you unlock the doors and the
Vehicle Security Light will flash for 30 seconds. Check the
vehicle for tampering.
The Vehicle Security Alarm system will also disarm if the
vehicle is started with a programmed Sentry Key.Ifan
unprogrammed Sentry Key is used to start a vehicle, the
engine will run for two seconds and then the Security
Alarm will be initiated. To exit the alarming mode, press
the RKE transmitter UNLOCK button, or start the vehicle
with a programmed Sentry Key.
The Vehicle Security Alarm system is designed to protect
your vehicle; however, you can create conditions where
the system will arm unexpectedly. If you remain in the
vehicle and lock the doors with the RKE transmitter, the alarm will sound when you pull the door handle to exit.
The door will be locked, but the Vehicle Security Alarm
system will not arm.
ILLUMINATED ENTRY SYSTEM — IF EQUIPPED
The courtesy lights will turn on when you use the
Remote Keyless Entry (RKE) transmitter or open the
doors. This feature is only available if you have Remote
Keyless Entry.
The lights will fade to off after about 30 seconds, or they
will immediately fade to off once the ignition switch is
turned ON.
NOTE:
•The front courtesy overhead console and door cour-
tesy lights do not turn off if the dimmer control is in
the interior lights on position (extreme top position).
•The Illuminated Entry system will not operate if the
dimmer control is in the extreme downward position.
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

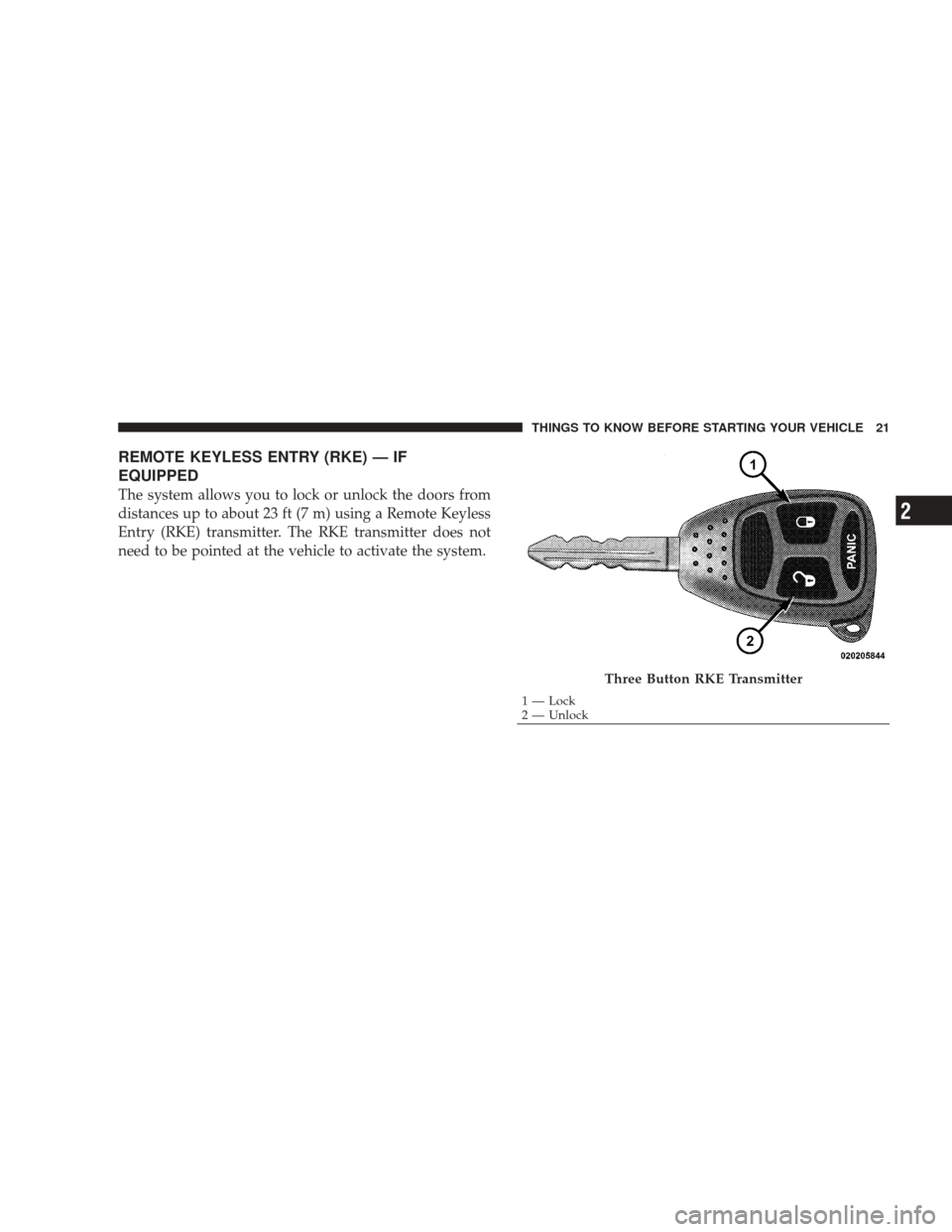

REMOTE KEYLESS ENTRY (RKE) — IF
EQUIPPED
The system allows you to lock or unlock the doors from
distances up to about 23 ft (7 m) using a Remote Keyless
Entry (RKE) transmitter. The RKE transmitter does not
need to be pointed at the vehicle to activate the system.
Three Button RKE Transmitter
1 — Lock
2 — UnlockTHINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21
2

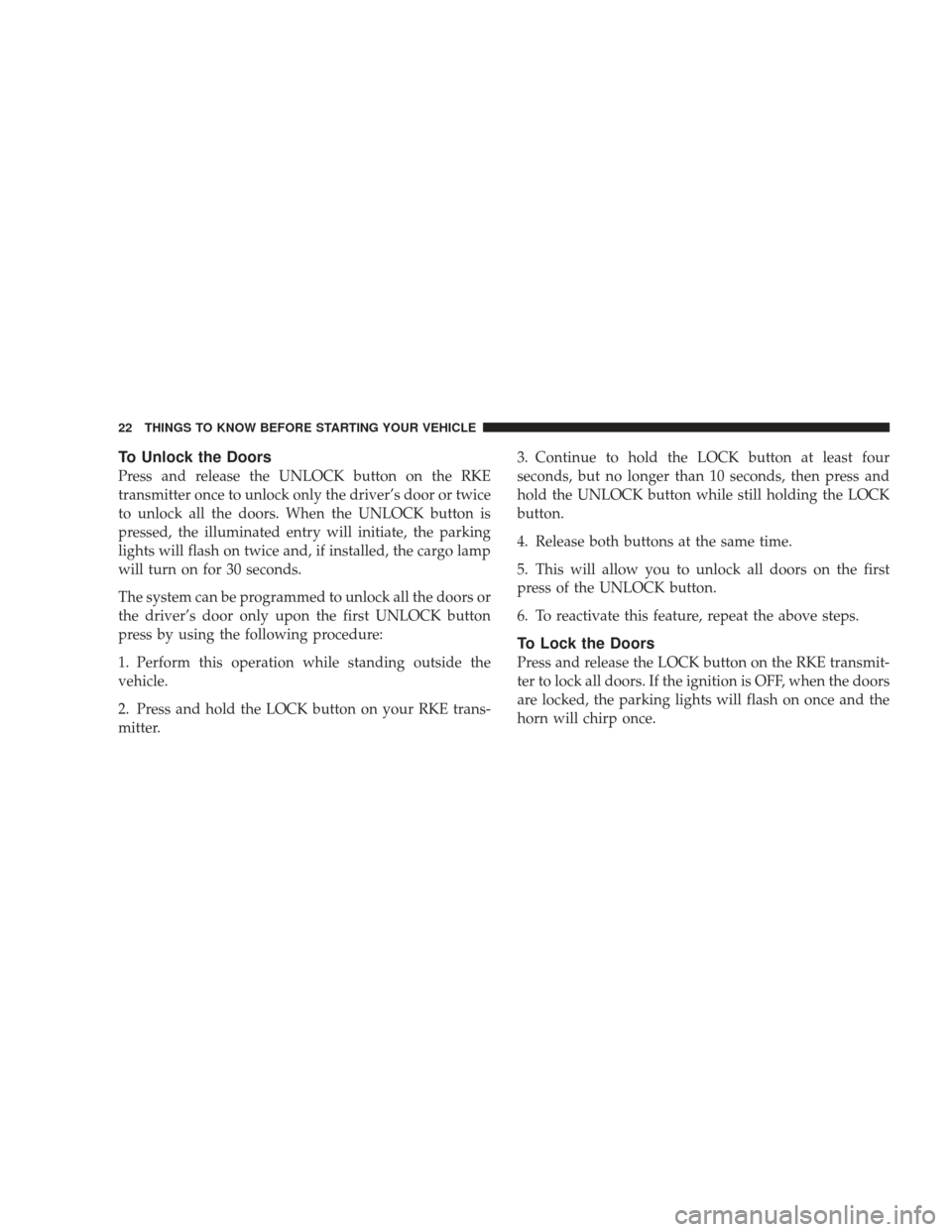

To Unlock the Doors
Press and release the UNLOCK button on the RKE
transmitter once to unlock only the driver’s door or twice
to unlock all the doors. When the UNLOCK button is
pressed, the illuminated entry will initiate, the parking
lights will flash on twice and, if installed, the cargo lamp
will turn on for 30 seconds.
The system can be programmed to unlock all the doors or
the driver’s door only upon the first UNLOCK button
press by using the following procedure:
1. Perform this operation while standing outside the
vehicle.
2. Press and hold the LOCK button on your RKE trans-
mitter.3. Continue to hold the LOCK button at least four
seconds, but no longer than 10 seconds, then press and
hold the UNLOCK button while still holding the LOCK
button.
4. Release both buttons at the same time.
5. This will allow you to unlock all doors on the first
press of the UNLOCK button.
6. To reactivate this feature, repeat the above steps.
To Lock the Doors
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. If the ignition is OFF, when the doors
are locked, the parking lights will flash on once and the
horn will chirp once.
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

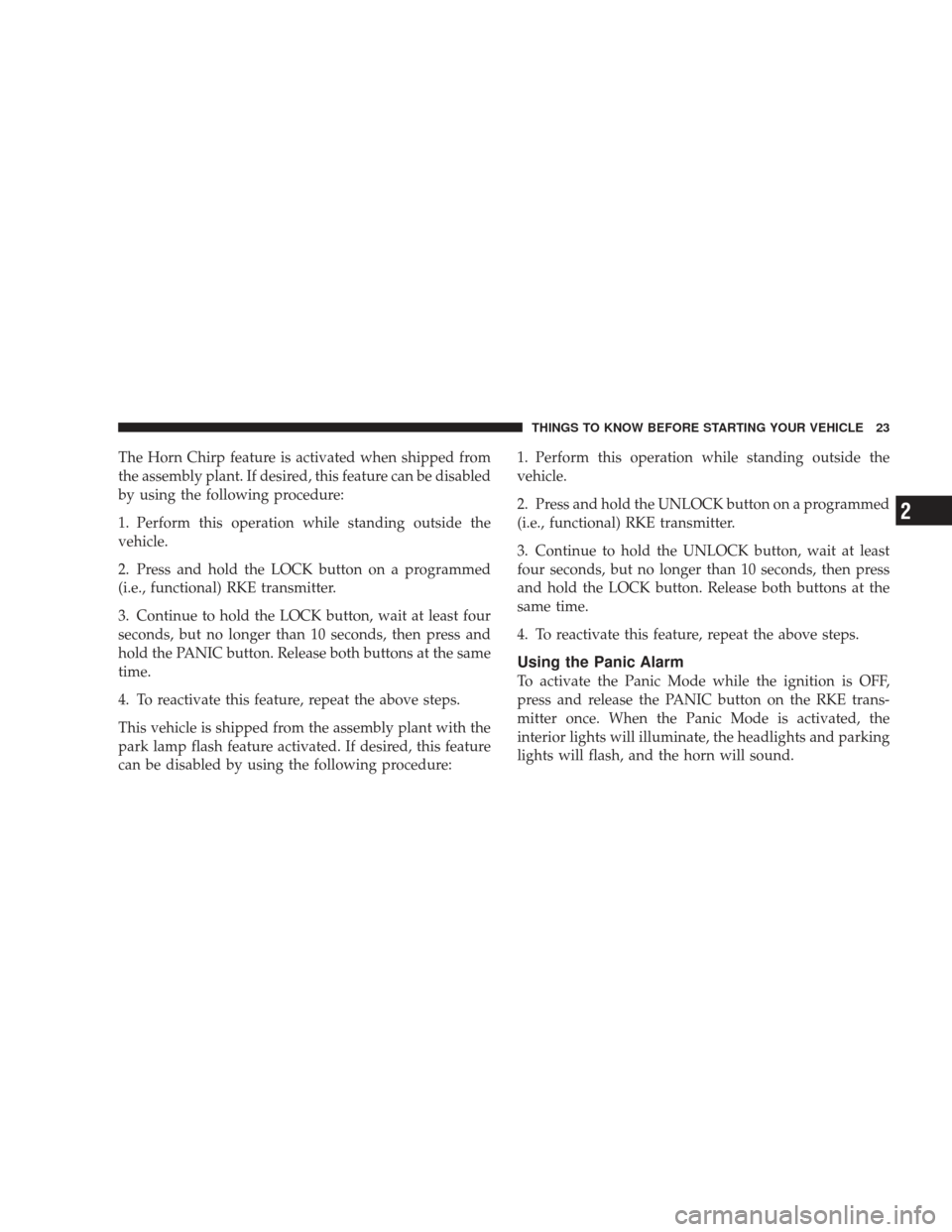

The Horn Chirp feature is activated when shipped from
the assembly plant. If desired, this feature can be disabled
by using the following procedure:
1. Perform this operation while standing outside the
vehicle.
2. Press and hold the LOCK button on a programmed
(i.e., functional) RKE transmitter.
3. Continue to hold the LOCK button, wait at least four
seconds, but no longer than 10 seconds, then press and
hold the PANIC button. Release both buttons at the same
time.
4. To reactivate this feature, repeat the above steps.
This vehicle is shipped from the assembly plant with the
park lamp flash feature activated. If desired, this feature
can be disabled by using the following procedure:1. Perform this operation while standing outside the
vehicle.
2. Press and hold the UNLOCK button on a programmed
(i.e., functional) RKE transmitter.
3. Continue to hold the UNLOCK button, wait at least
four seconds, but no longer than 10 seconds, then press
and hold the LOCK button. Release both buttons at the
same time.
4. To reactivate this feature, repeat the above steps.
Using the Panic Alarm
To activate the Panic Mode while the ignition is OFF,
press and release the PANIC button on the RKE trans-
mitter once. When the Panic Mode is activated, the
interior lights will illuminate, the headlights and parking
lights will flash, and the horn will sound.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

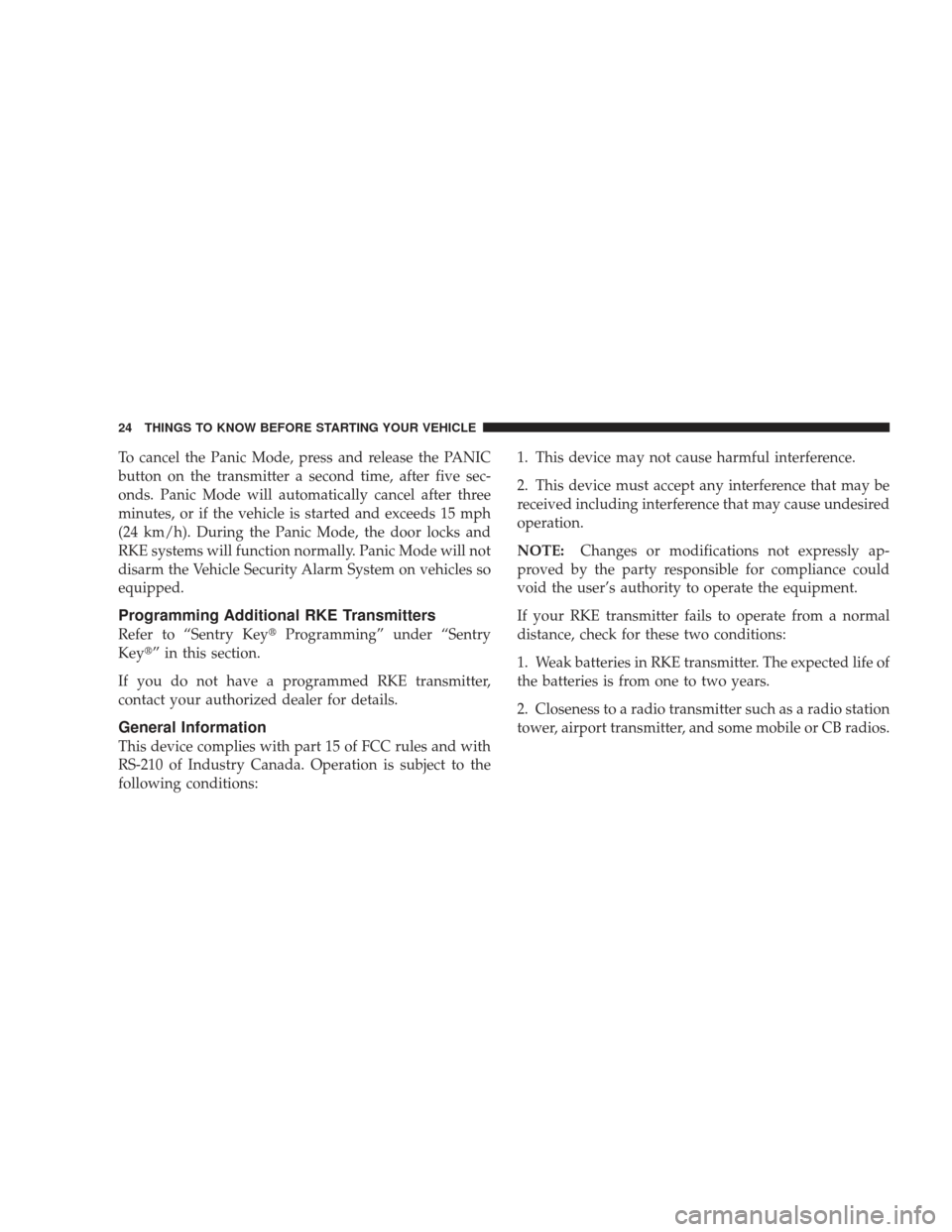

To cancel the Panic Mode, press and release the PANIC
button on the transmitter a second time, after five sec-
onds. Panic Mode will automatically cancel after three
minutes, or if the vehicle is started and exceeds 15 mph
(24 km/h). During the Panic Mode, the door locks and
RKE systems will function normally. Panic Mode will not
disarm the Vehicle Security Alarm System on vehicles so
equipped.
Programming Additional RKE Transmitters
Refer to “Sentry KeyProgramming” under “Sentry
Key” in this section.
If you do not have a programmed RKE transmitter,
contact your authorized dealer for details.
General Information
This device complies with part 15 of FCC rules and with
RS-210 of Industry Canada. Operation is subject to the
following conditions: 1. This device may not cause harmful interference.
2. This device must accept any interference that may be
received including interference that may cause undesired
operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user’s authority to operate the equipment.
If your RKE transmitter fails to operate from a normal
distance, check for these two conditions:
1. Weak batteries in RKE transmitter. The expected life of
the batteries is from one to two years.
2. Closeness to a radio transmitter such as a radio station
tower, airport transmitter, and some mobile or CB radios.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

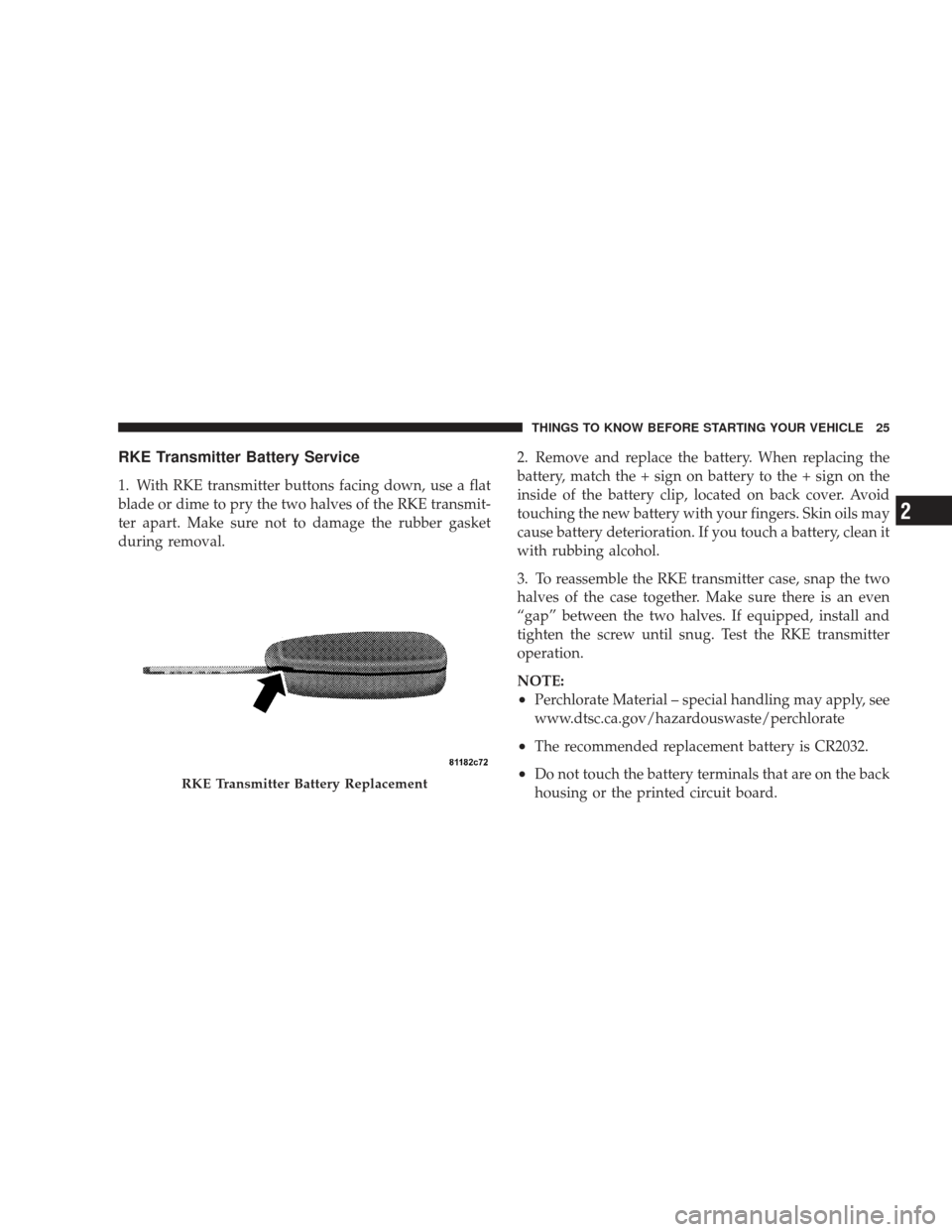

RKE Transmitter Battery Service
1. With RKE transmitter buttons facing down, use a flat
blade or dime to pry the two halves of the RKE transmit-
ter apart. Make sure not to damage the rubber gasket
during removal.2. Remove and replace the battery. When replacing the
battery, match the + sign on battery to the + sign on the
inside of the battery clip, located on back cover. Avoid
touching the new battery with your fingers. Skin oils may
cause battery deterioration. If you touch a battery, clean it
with rubbing alcohol.
3. To reassemble the RKE transmitter case, snap the two
halves of the case together. Make sure there is an even
“gap” between the two halves. If equipped, install and
tighten the screw until snug. Test the RKE transmitter
operation.
NOTE:
•Perchlorate Material – special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate
•The recommended replacement battery is CR2032.
•Do not touch the battery terminals that are on the back
housing or the printed circuit board.RKE Transmitter Battery Replacement
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25
2

REMOTE STARTING SYSTEM — IF EQUIPPED
Your vehicle may be equipped with a remote starting
system, which will allow the vehicle to be started from
distances up to approximately 300 ft (91 m) away from
the vehicle using the Remote Keyless Entry (RKE) trans-
mitter, which is part of your ignition key.
In order to remote start your vehicle, the hood and all the
doors must be closed.Press and release the REMOTE START button
on the RKE transmitter twice, within five sec-
onds. The parking lights will flash and the horn
will honk twice (if programmed). Then, the
engine will start and the vehicle will remain in the
Remote Start mode for a 15-minute cycle.
To cancel remote start, press the REMOTE START button
once.
The parking lamps will remain illuminated to indicate
that the vehicle has remote started and the engine is running. The lamps will turn off when the ignition is
turned to RUN or the remote start is cancelled.
To enter the vehicle while the engine is running during a
remote start, you must first unlock the vehicle using the
UNLOCK button on the RKE transmitter. After the
vehicle is unlocked, you have 15 minutes to enter the
vehicle, insert the key in the ignition and move it to the
RUN position, otherwise the engine will cancel remote
start and automatically turn off.
Remote start will also cancel if any of the following occur:
•The engine stalls or RPM exceeds 2500
•Any engine warning lamps come on
•The hood is opened
•The hazard switch is pressed
•The transmission is moved out of PARK
•The brake pedal is pressed
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

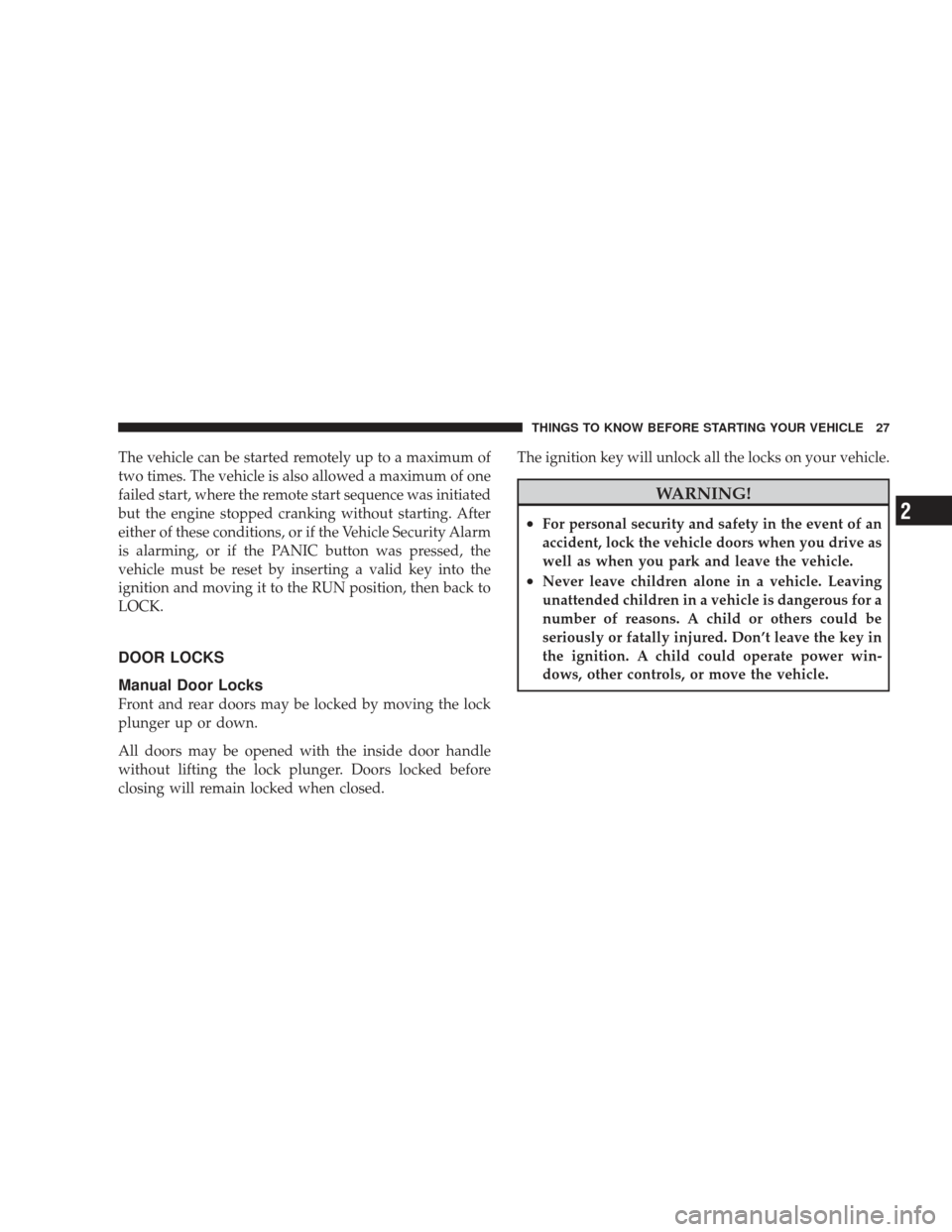

The vehicle can be started remotely up to a maximum of
two times. The vehicle is also allowed a maximum of one
failed start, where the remote start sequence was initiated
but the engine stopped cranking without starting. After
either of these conditions, or if the Vehicle Security Alarm
is alarming, or if the PANIC button was pressed, the
vehicle must be reset by inserting a valid key into the
ignition and moving it to the RUN position, then back to
LOCK.
DOOR LOCKS
Manual Door Locks
Front and rear doors may be locked by moving the lock
plunger up or down.
All doors may be opened with the inside door handle
without lifting the lock plunger. Doors locked before
closing will remain locked when closed.The ignition key will unlock all the locks on your vehicle.
WARNING!
•For personal security and safety in the event of an
accident, lock the vehicle doors when you drive as
well as when you park and leave the vehicle.
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Don’t leave the key in
the ignition. A child could operate power win-
dows, other controls, or move the vehicle.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27
2

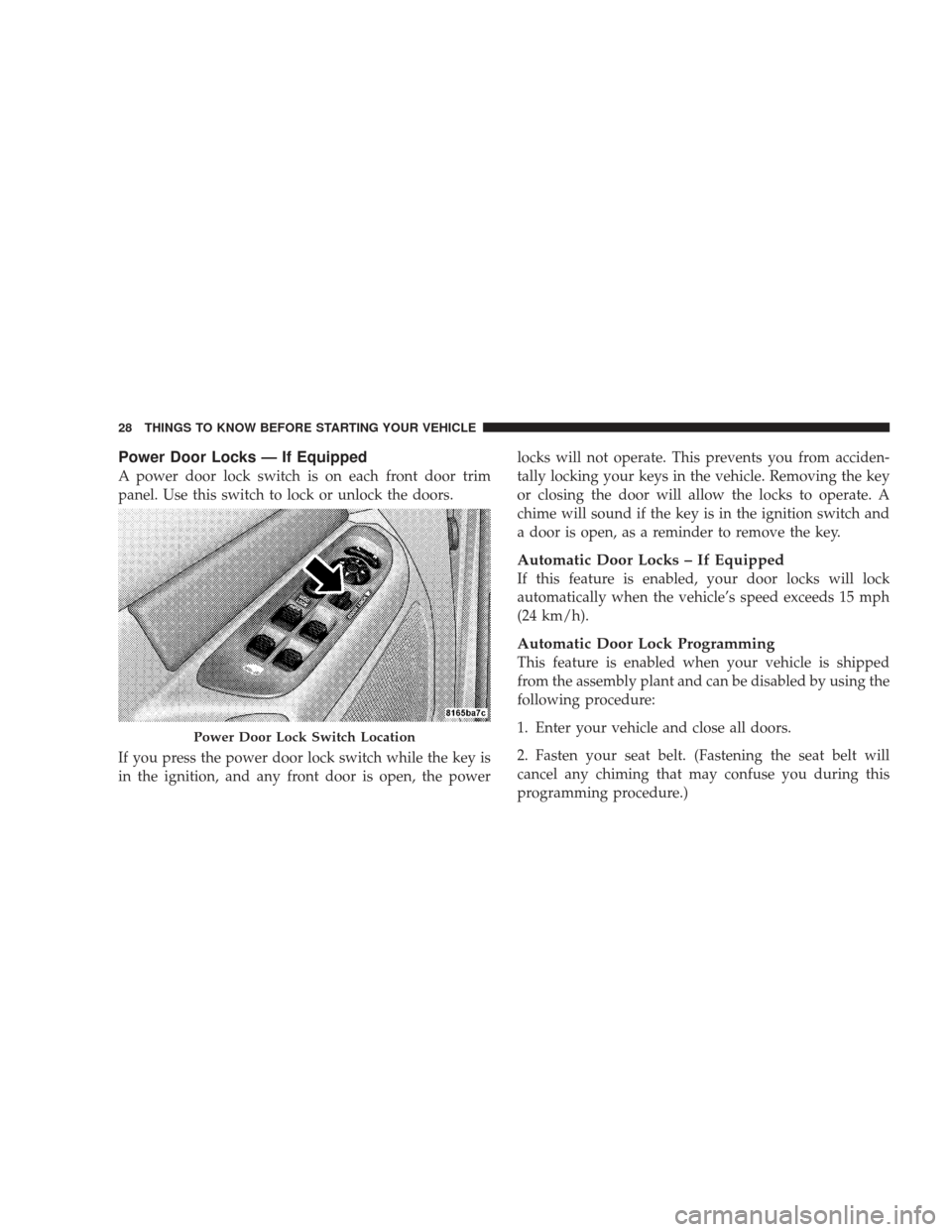

Power Door Locks — If Equipped
A power door lock switch is on each front door trim
panel. Use this switch to lock or unlock the doors.
If you press the power door lock switch while the key is
in the ignition, and any front door is open, the powerlocks will not operate. This prevents you from acciden-
tally locking your keys in the vehicle. Removing the key
or closing the door will allow the locks to operate. A
chime will sound if the key is in the ignition switch and
a door is open, as a reminder to remove the key.
Automatic Door Locks – If Equipped
If this feature is enabled, your door locks will lock
automatically when the vehicle’s speed exceeds 15 mph
(24 km/h).
Automatic Door Lock Programming
This feature is enabled when your vehicle is shipped
from the assembly plant and can be disabled by using the
following procedure:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure.)
Power Door Lock Switch Location
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
