Page 335 of 429

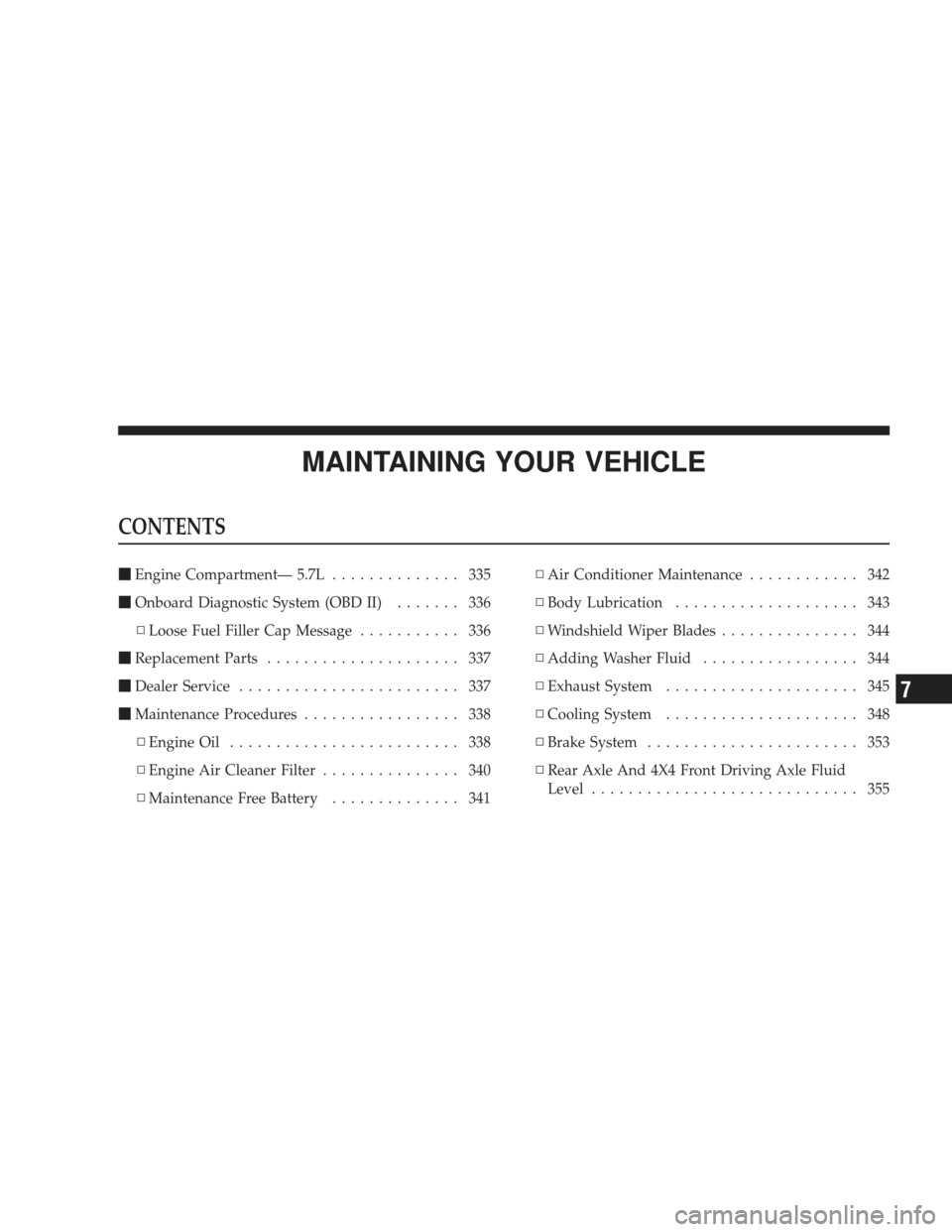

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment— 5.7L .............. 335
Onboard Diagnostic System (OBD II) ....... 336
▫ Loose Fuel Filler Cap Message ........... 336
Replacement Parts ..................... 337
Dealer Service ........................ 337
Maintenance Procedures ................. 338
▫ Engine Oil ......................... 338
▫ Engine Air Cleaner Filter ............... 340
▫ Maintenance Free Battery .............. 341 ▫
Air Conditioner Maintenance ............ 342
▫ Body Lubrication .................... 343
▫ Windshield Wiper Blades ............... 344
▫ Adding Washer Fluid ................. 344
▫ Exhaust System ..................... 345
▫ Cooling System ..................... 348
▫ Brake System ....................... 353
▫ Rear Axle And 4X4 Front Driving Axle Fluid
Level ............................. 355
7
Page 337 of 429

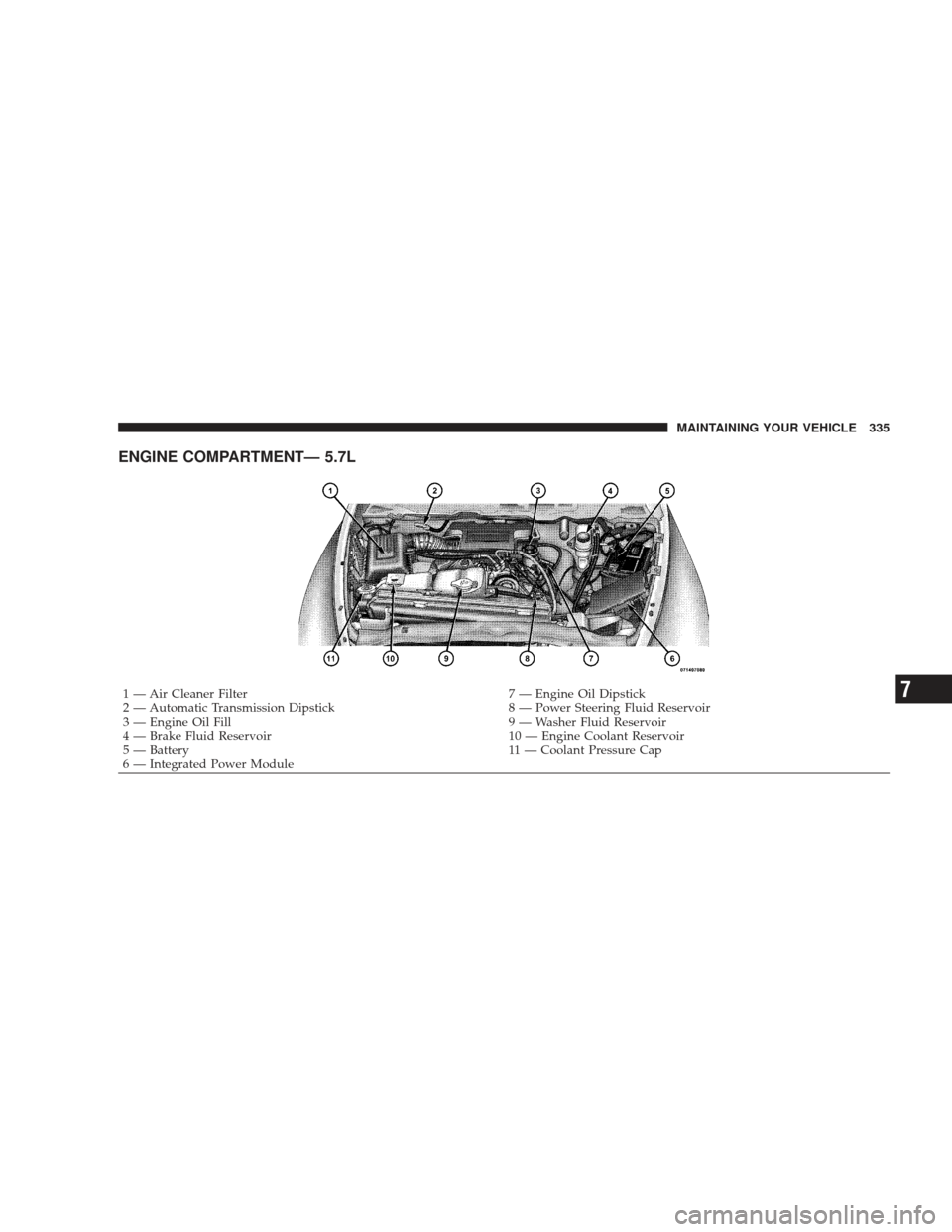

ENGINE COMPARTMENT— 5.7L
1 — Air Cleaner Filter7 — Engine Oil Dipstick
2 — Automatic Transmission Dipstick 8 — Power Steering Fluid Reservoir
3 — Engine Oil Fill 9 — Washer Fluid Reservoir
4 — Brake Fluid Reservoir 10 — Engine Coolant Reservoir
5 — Battery 11 — Coolant Pressure Cap
6 — Integrated Power Module MAINTAINING YOUR VEHICLE 3357
Page 342 of 429

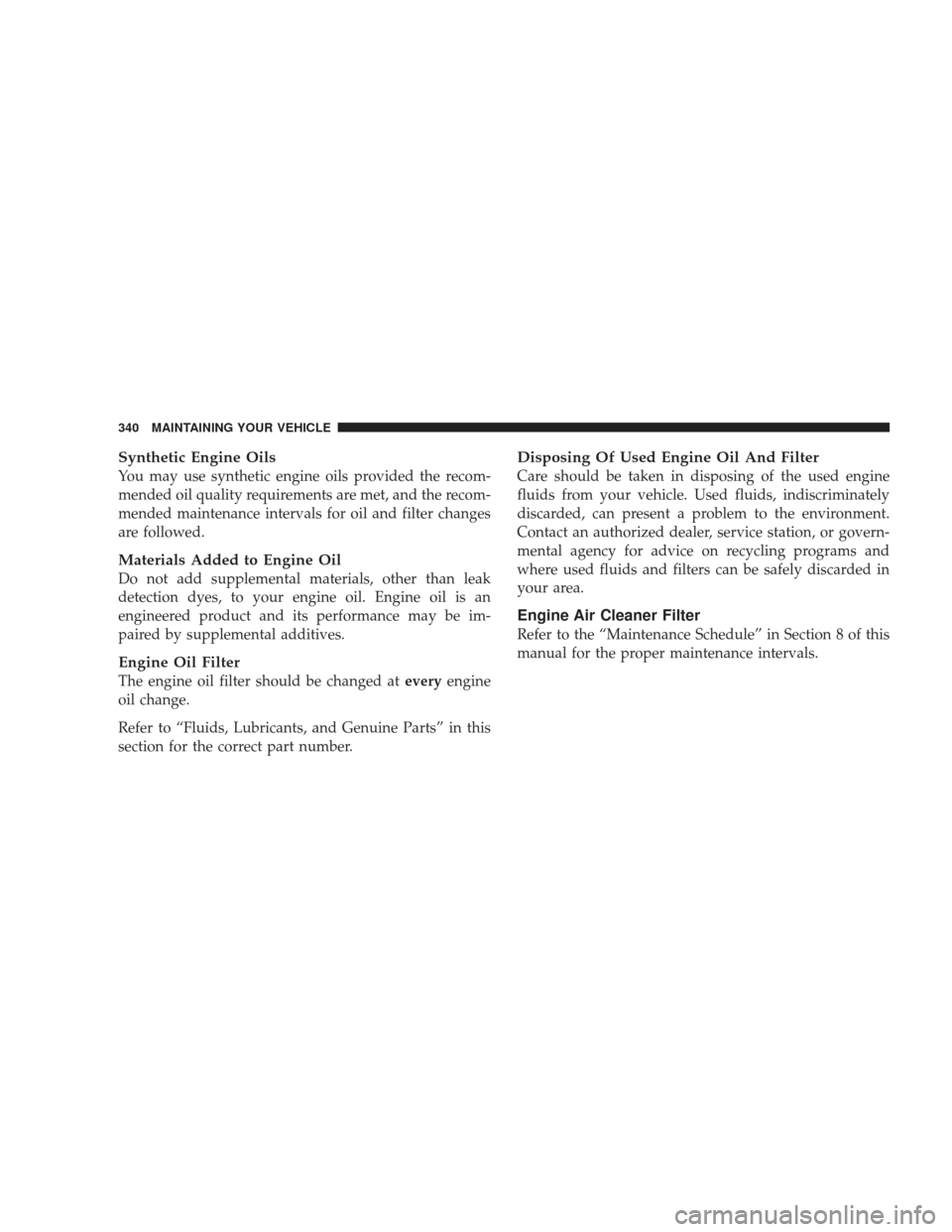

Synthetic Engine Oils
You may use synthetic engine oils provided the recom-
mended oil quality requirements are met, and the recom-
mended maintenance intervals for oil and filter changes
are followed.
Materials Added to Engine Oil
Do not add supplemental materials, other than leak
detection dyes, to your engine oil. Engine oil is an
engineered product and its performance may be im-
paired by supplemental additives.
Engine Oil Filter
The engine oil filter should be changed ateveryengine
oil change.
Refer to “Fluids, Lubricants, and Genuine Parts” in this
section for the correct part number.
Disposing Of Used Engine Oil And Filter
Care should be taken in disposing of the used engine
fluids from your vehicle. Used fluids, indiscriminately
discarded, can present a problem to the environment.
Contact an authorized dealer, service station, or govern-
mental agency for advice on recycling programs and
where used fluids and filters can be safely discarded in
your area.
Engine Air Cleaner Filter
Refer to the “Maintenance Schedule” in Section 8 of this
manual for the proper maintenance intervals.
340 MAINTAINING YOUR VEHICLE
Page 360 of 429

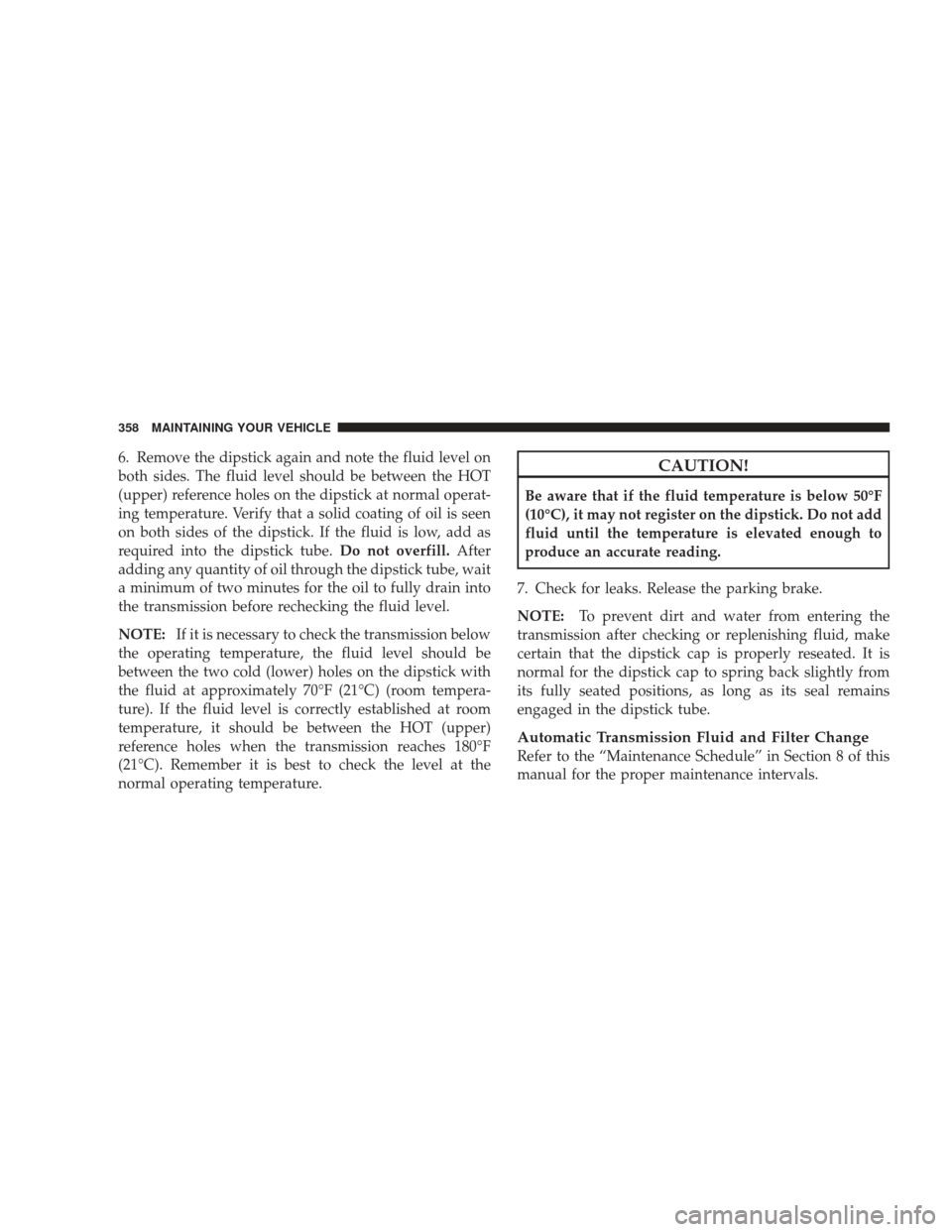

6. Remove the dipstick again and note the fluid level on
both sides. The fluid level should be between the HOT
(upper) reference holes on the dipstick at normal operat-
ing temperature. Verify that a solid coating of oil is seen
on both sides of the dipstick. If the fluid is low, add as
required into the dipstick tube.Do not overfill.After
adding any quantity of oil through the dipstick tube, wait
a minimum of two minutes for the oil to fully drain into
the transmission before rechecking the fluid level.
NOTE: If it is necessary to check the transmission below
the operating temperature, the fluid level should be
between the two cold (lower) holes on the dipstick with
the fluid at approximately 70°F (21°C) (room tempera-
ture). If the fluid level is correctly established at room
temperature, it should be between the HOT (upper)
reference holes when the transmission reaches 180°F
(21°C). Remember it is best to check the level at the
normal operating temperature.CAUTION!
Be aware that if the fluid temperature is below 50°F
(10°C), it may not register on the dipstick. Do not add
fluid until the temperature is elevated enough to
produce an accurate reading.
7. Check for leaks. Release the parking brake.
NOTE: To prevent dirt and water from entering the
transmission after checking or replenishing fluid, make
certain that the dipstick cap is properly reseated. It is
normal for the dipstick cap to spring back slightly from
its fully seated positions, as long as its seal remains
engaged in the dipstick tube.
Automatic Transmission Fluid and Filter Change
Refer to the “Maintenance Schedule” in Section 8 of this
manual for the proper maintenance intervals.
358 MAINTAINING YOUR VEHICLE
Page 379 of 429

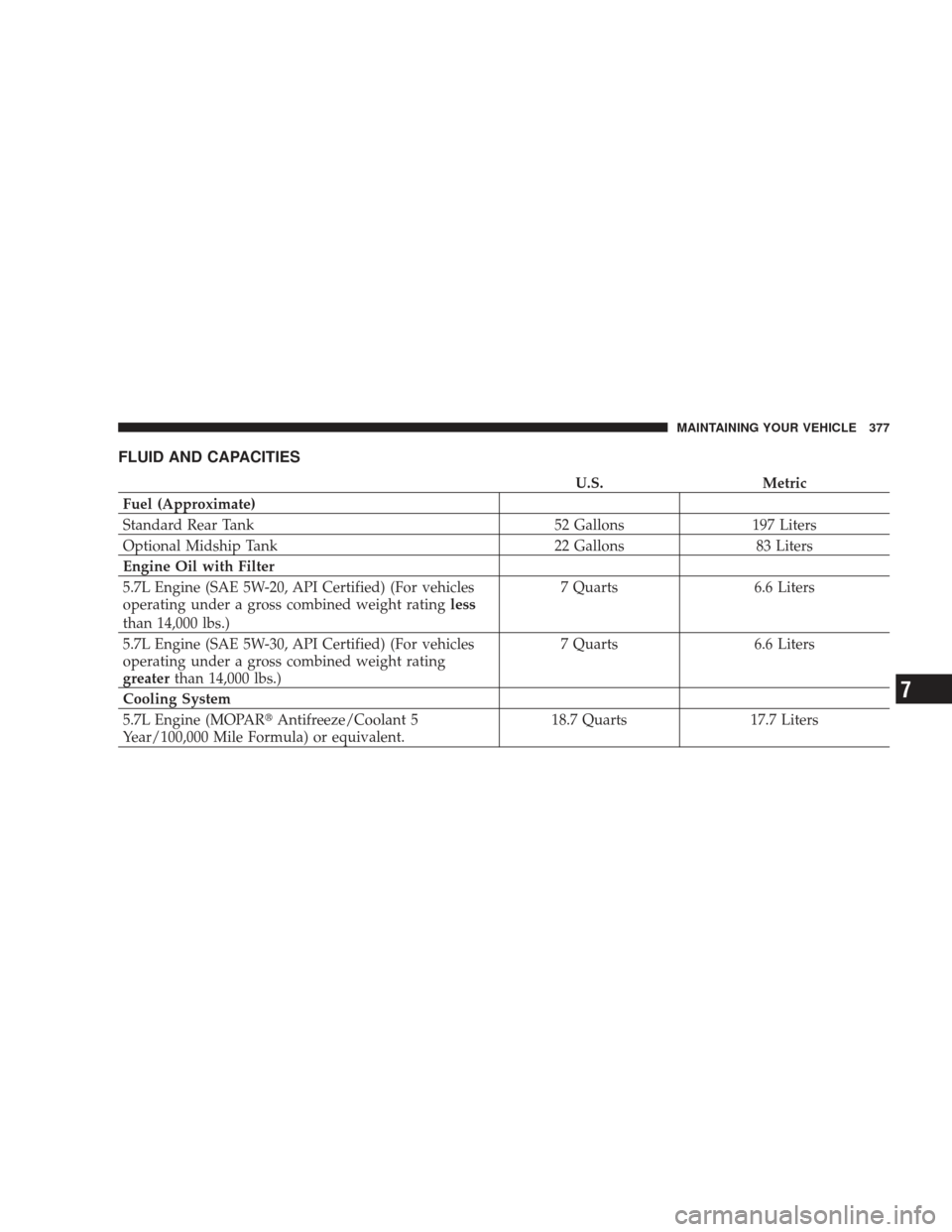

FLUID AND CAPACITIES
U.S.Metric
Fuel (Approximate)
Standard Rear Tank 52 Gallons197 Liters
Optional Midship Tank 22 Gallons83 Liters
Engine Oil with Filter
5.7L Engine (SAE 5W-20, API Certified) (For vehicles
operating under a gross combined weight rating less
than 14,000 lbs.) 7 Quarts
6.6 Liters
5.7L Engine (SAE 5W-30, API Certified) (For vehicles
operating under a gross combined weight rating
greater than 14,000 lbs.) 7 Quarts
6.6 Liters
Cooling System
5.7L Engine (MOPAR Antifreeze/Coolant 5
Year/100,000 Mile Formula) or equivalent. 18.7 Quarts
17.7 Liters
MAINTAINING YOUR VEHICLE 377
7
Page 380 of 429

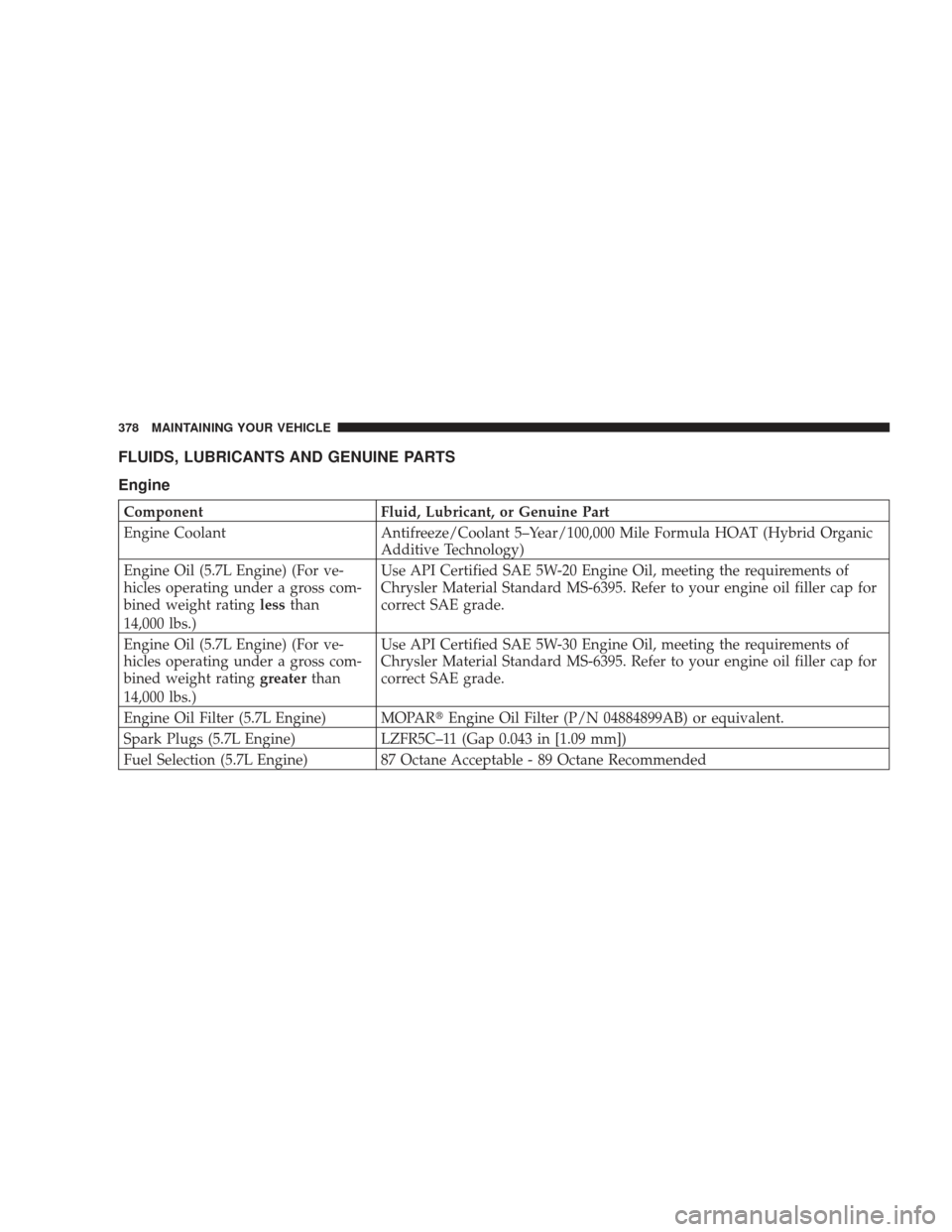

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant Antifreeze/Coolant 5–Year/100,000 Mile Formula HOAT (Hybrid Organic
Additive Technology)
Engine Oil (5.7L Engine) (For ve-
hicles operating under a gross com-
bined weight rating lessthan
14,000 lbs.) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil (5.7L Engine) (For ve-
hicles operating under a gross com-
bined weight rating greaterthan
14,000 lbs.) Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter (5.7L Engine) MOPAR Engine Oil Filter (P/N 04884899AB) or equivalent.
Spark Plugs (5.7L Engine) LZFR5C–11 (Gap 0.043 in [1.09 mm])
Fuel Selection (5.7L Engine) 87 Octane Acceptable - 89 Octane Recommended
378 MAINTAINING YOUR VEHICLE
Page 386 of 429

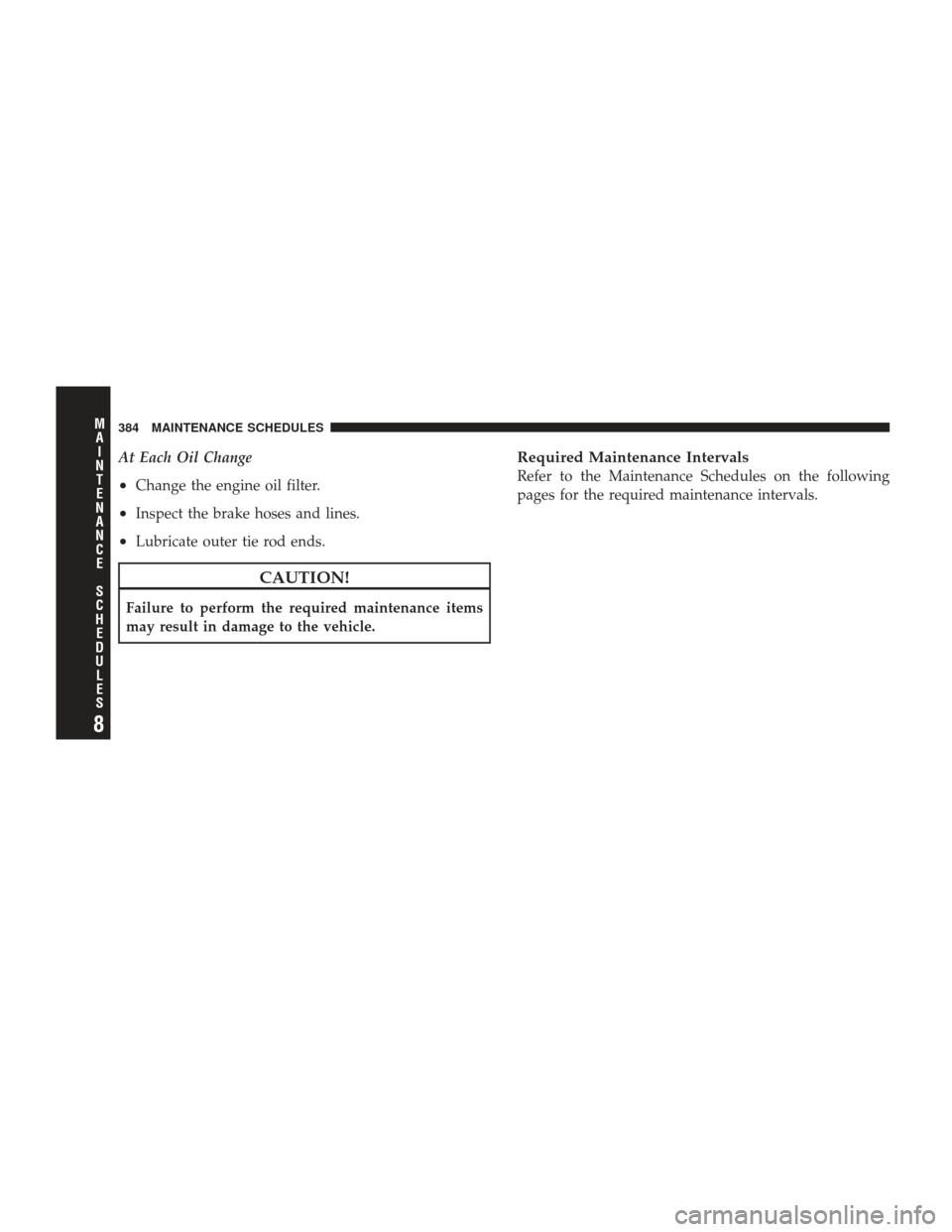

At Each Oil Change
•Change the engine oil filter.
•Inspect the brake hoses and lines.
•Lubricate outer tie rod ends.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
384 MAINTENANCE SCHEDULES
8
MA I
N T
E
N A
N CE
S
C
H E
D
U L
E
S
Page 387 of 429

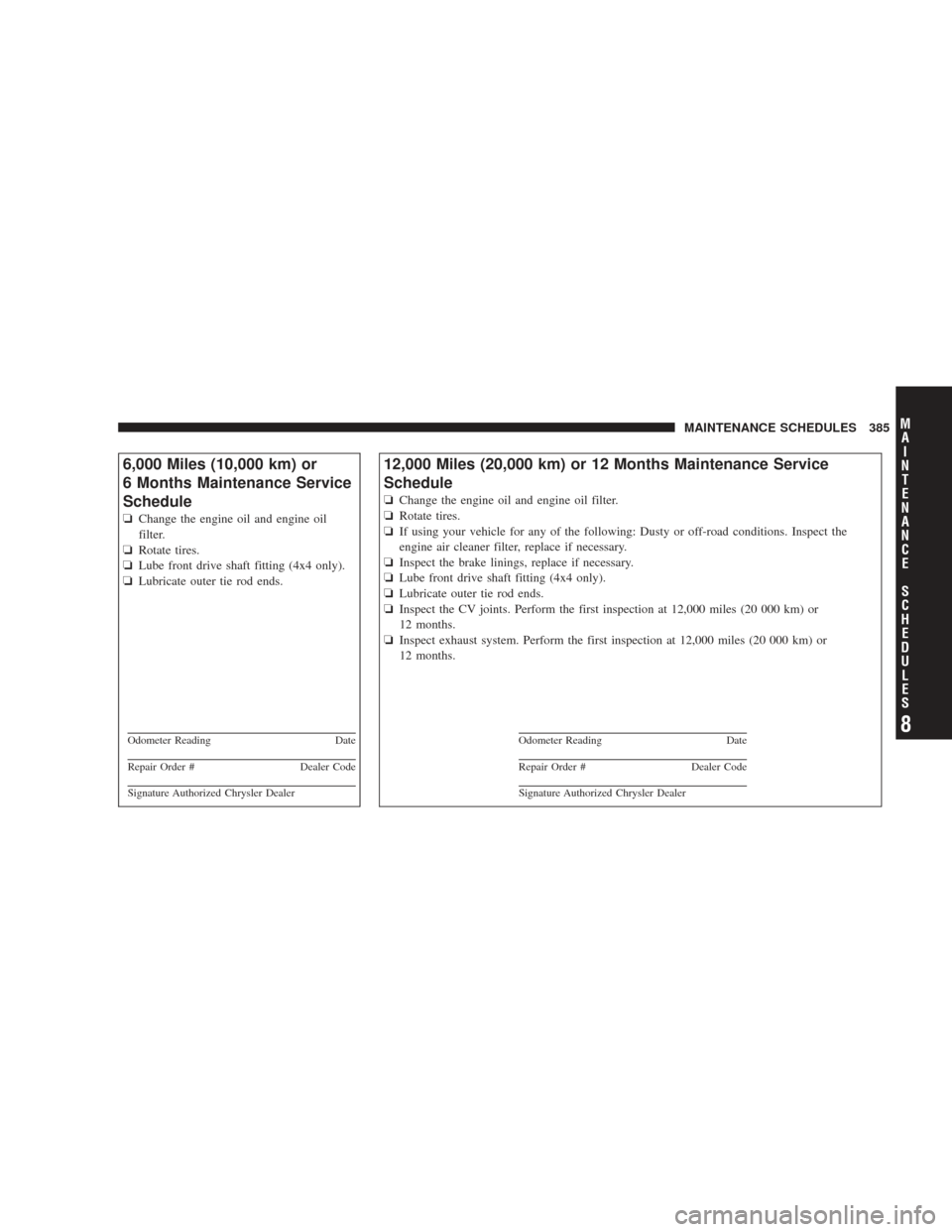

6,000 Miles (10,000 km) or
6 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
❏ Lube front drive shaft fitting (4x4 only).
❏ Lubricate outer tie rod ends.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
12,000 Miles (20,000 km) or 12 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
❏ Inspect the brake linings, replace if necessary.
❏ Lube front drive shaft fitting (4x4 only).
❏ Lubricate outer tie rod ends.
❏ Inspect the CV joints. Perform the first inspection at 12,000 miles (20 000 km) or
12 months.
❏ Inspect exhaust system. Perform the first inspection at 12,000 miles (20 000 km) or
12 months.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 385
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S
Page 388 of 429

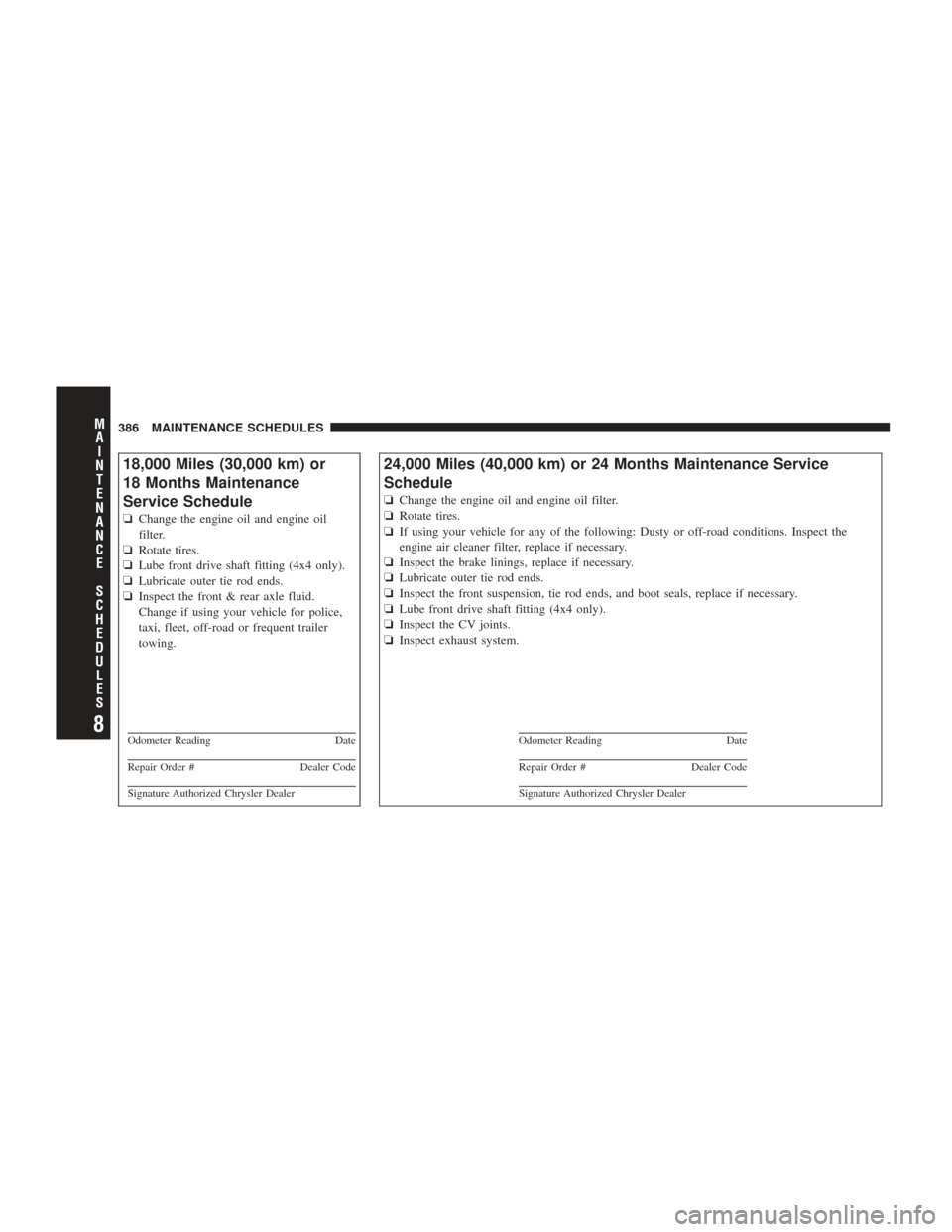

18,000 Miles (30,000 km) or
18 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
❏ Lube front drive shaft fitting (4x4 only).
❏ Lubricate outer tie rod ends.
❏ Inspect the front & rear axle fluid.
Change if using your vehicle for police,
taxi, fleet, off-road or frequent trailer
towing.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
24,000 Miles (40,000 km) or 24 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
❏ Inspect the brake linings, replace if necessary.
❏ Lubricate outer tie rod ends.
❏ Inspect the front suspension, tie rod ends, and boot seals, replace if necessary.
❏ Lube front drive shaft fitting (4x4 only).
❏ Inspect the CV joints.
❏ Inspect exhaust system.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
386 MAINTENANCE SCHEDULES
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S
Page 389 of 429

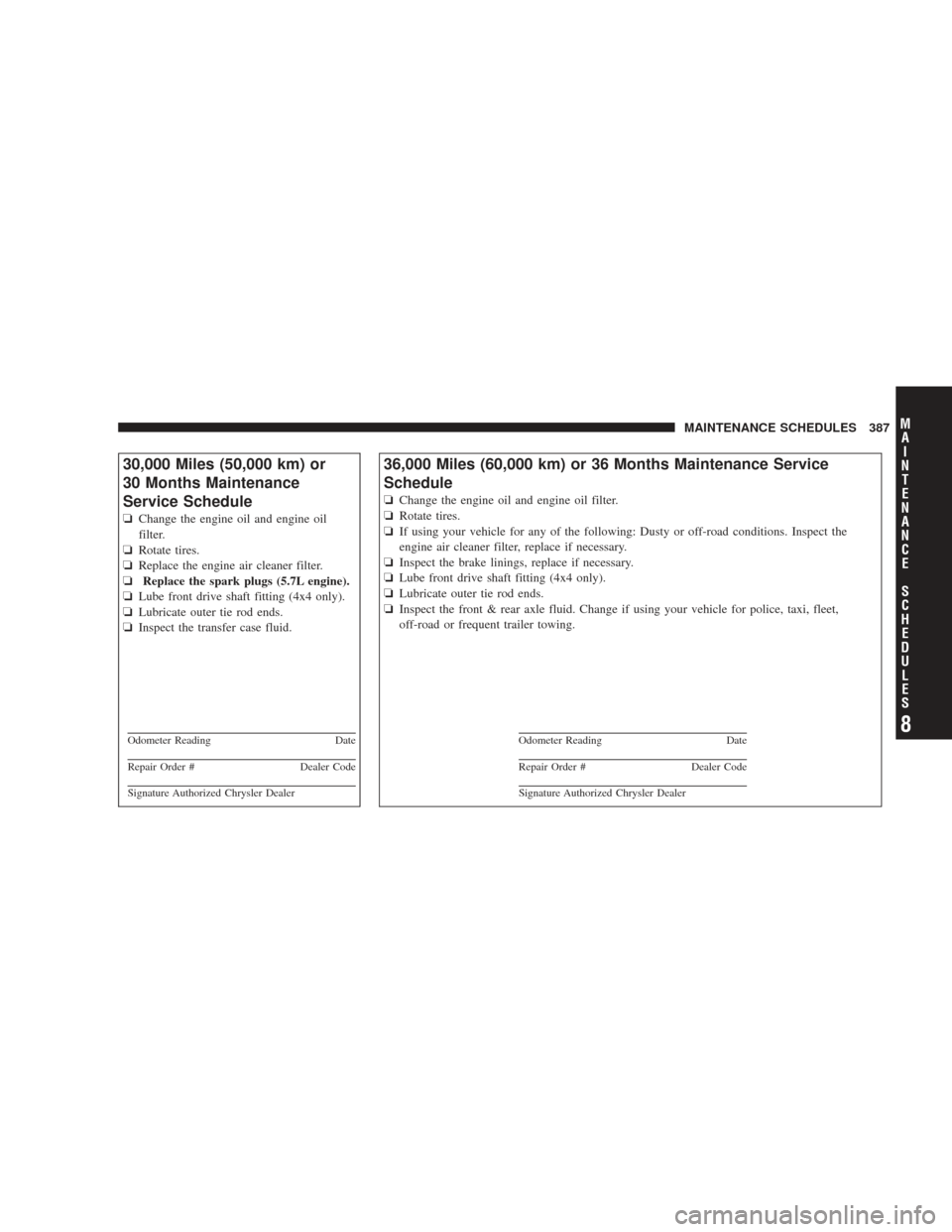

30,000 Miles (50,000 km) or
30 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the spark plugs (5.7L engine).
❏ Lube front drive shaft fitting (4x4 only).
❏ Lubricate outer tie rod ends.
❏ Inspect the transfer case fluid.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
36,000 Miles (60,000 km) or 36 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
❏ Inspect the brake linings, replace if necessary.
❏ Lube front drive shaft fitting (4x4 only).
❏ Lubricate outer tie rod ends.
❏ Inspect the front & rear axle fluid. Change if using your vehicle for police, taxi, fleet,
off-road or frequent trailer towing.
Odometer Reading Date
Repair Order #Dealer Code
Signature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 387
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S
