SEATS
WARNING
WARNINGS - RESTRAINT SYSTEM . . ....... 222
CENTER SEAT
REMOVAL ................................... 223
INSTALLATION .............................. 224
CENTER ARMREST / SEAT BACK
REMOVAL ................................... 225
INSTALLATION .............................. 225
CENTER SEAT BACK INERTIA HINGE COVER
REMOVAL ................................... 226
INSTALLATION .............................. 227
CENTER SEAT BACK HINGE
REMOVAL ................................... 228
INSTALLATION .............................. 230
CENTER SEAT BACK LID
REMOVAL ................................... 232
INSTALLATION .............................. 232
CENTER SEAT CUSHION
REMOVAL ................................... 233
INSTALLATION .............................. 233
CENTER SEAT CUSHION COVER
REMOVAL ................................... 234
INSTALLATION .............................. 234
HEADREST
REMOVAL ................................... 235
INSTALLATION .............................. 235
HEADREST SLEEVE
REMOVAL ................................... 236
INSTALLATION .............................. 236
SEAT - FRONT
REMOVAL ................................... 237
INSTALLATION .............................. 238
SEAT BACK CUSHION / COVER - FRONT
REMOVAL ................................... 240
INSTALLATION .............................. 240
LUMBAR SUPPORT HANDLE/BEZEL
REMOVAL ................................... 241INSTALLATION .............................. 241
SEAT CUSHION / COVER - FRONT
REMOVAL ................................... 243
INSTALLATION .............................. 243
SEAT RISER - FRONT
REMOVAL ................................... 244
INSTALLATION .............................. 244
SEAT - REAR
REMOVAL ................................... 245
INSTALLATION .............................. 246
SEAT BACK - REAR
REMOVAL ................................... 247
INSTALLATION .............................. 247
SEAT BACK CUSHION / COVER - REAR
REMOVAL ................................... 248
INSTALLATION .............................. 248
SEAT CUSHION / COVER - REAR
REMOVAL ................................... 249
INSTALLATION .............................. 249
SEAT CUSHION FRAME - REAR
REMOVAL ................................... 250
INSTALLATION .............................. 250
UNDER SEAT STORAGE BIN LID
REMOVAL ................................... 251
INSTALLATION .............................. 251
UNDER SEAT STORAGE BIN
REMOVAL ................................... 252
INSTALLATION .............................. 252
UNDER SEAT STORAGE BIN COVERING
REMOVAL ................................... 253
INSTALLATION .............................. 253
UNDER SEAT STORAGE BIN LATCH
REMOVAL ................................... 254
INSTALLATION .............................. 254
SEAT BACK REAR - FOOTMANS LOOP
BRACKETS
REMOVAL ................................... 255
INSTALLATION .............................. 255
Page 4572 of 5267

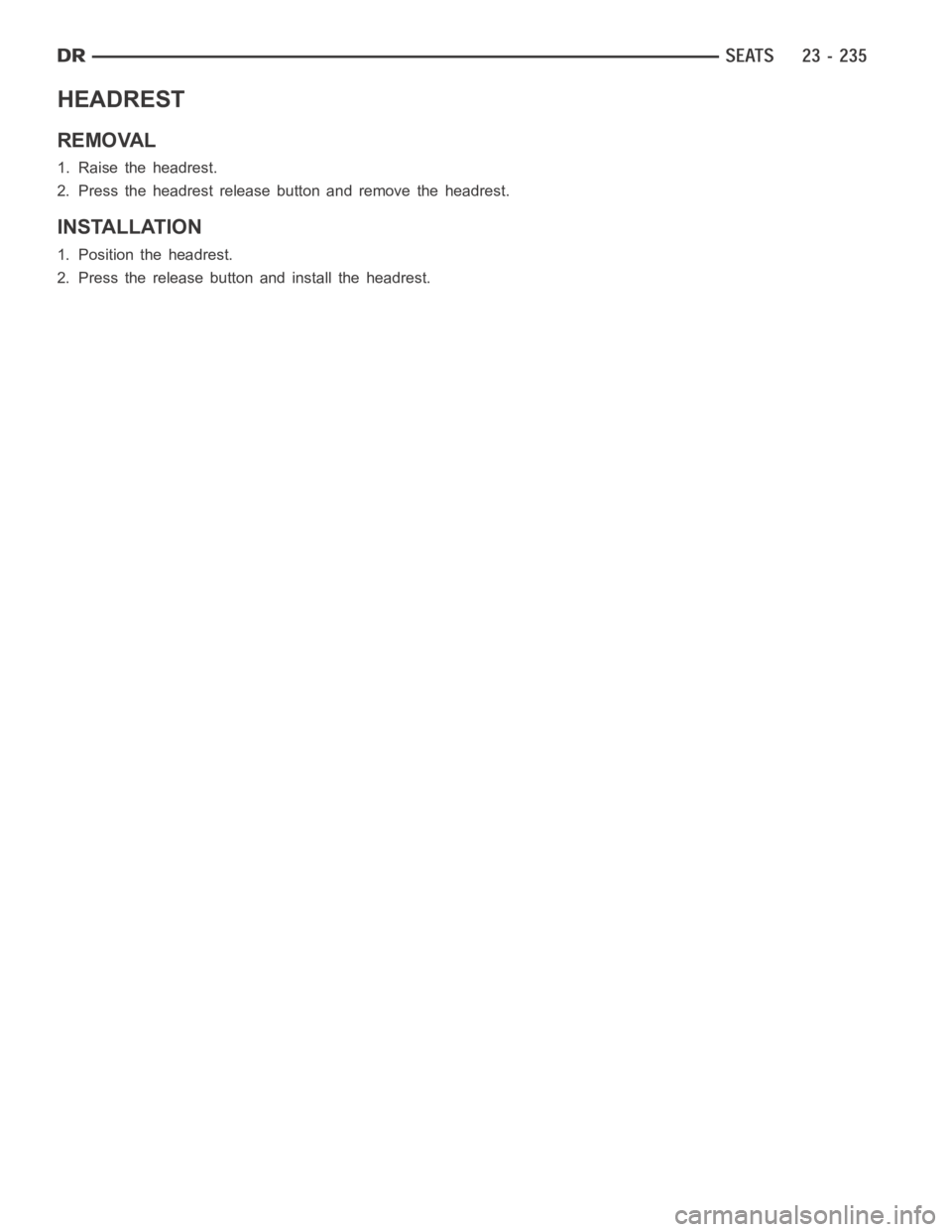

HEADREST
REMOVAL
1. Raise the headrest.
2. Press the headrest release button and remove the headrest.
INSTALLATION
1. Position the headrest.
2. Press the release button and install the headrest.
Page 4573 of 5267

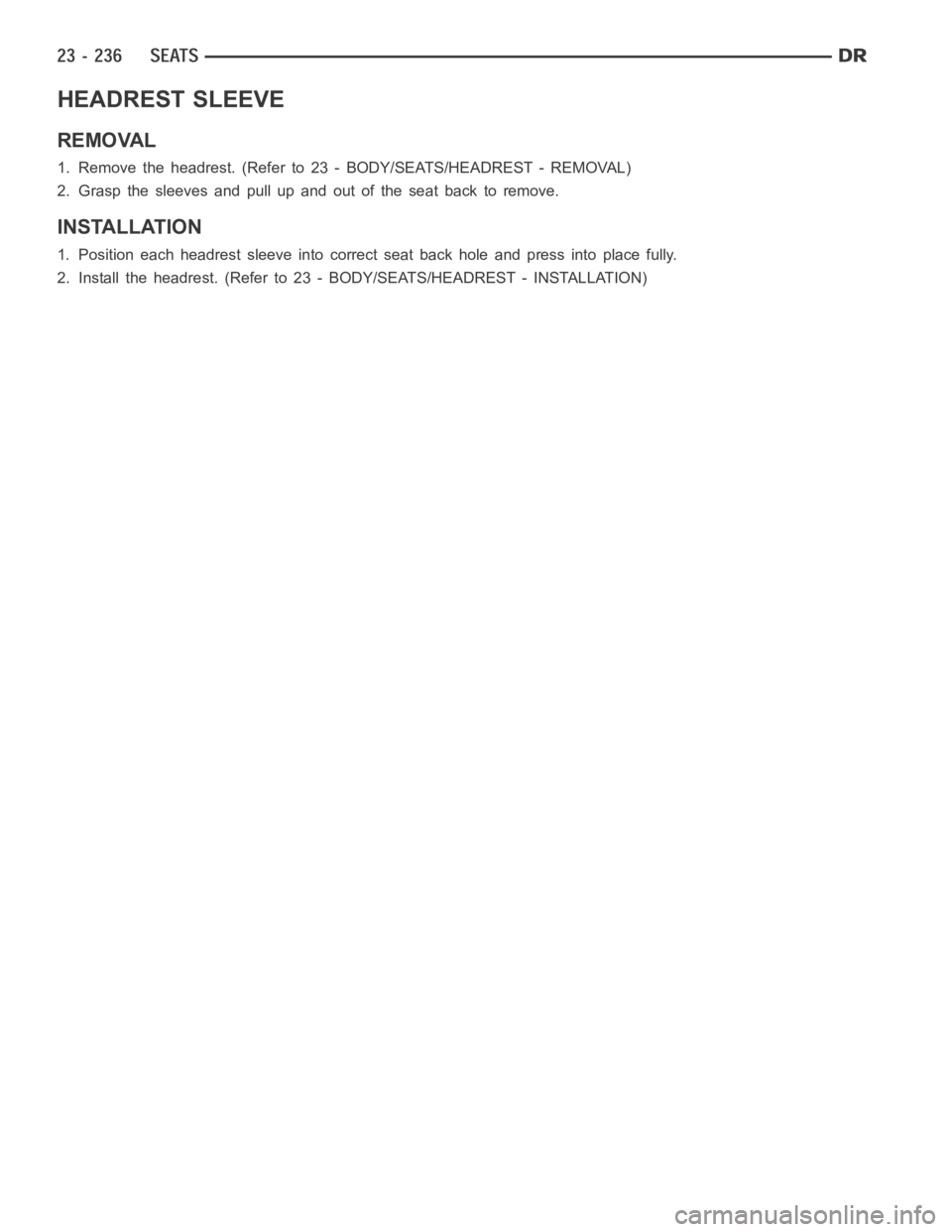

HEADREST SLEEVE
REMOVAL
1. Remove the headrest. (Refer to 23 - BODY/SEATS/HEADREST - REMOVAL)
2. Grasp the sleeves and pull up and out of the seat back to remove.
INSTALLATION
1. Position each headrest sleeve into correct seat back hole and press intoplace fully.
2. Install the headrest. (Refer to 23 - BODY/SEATS/HEADREST - INSTALLATION)
Page 4577 of 5267

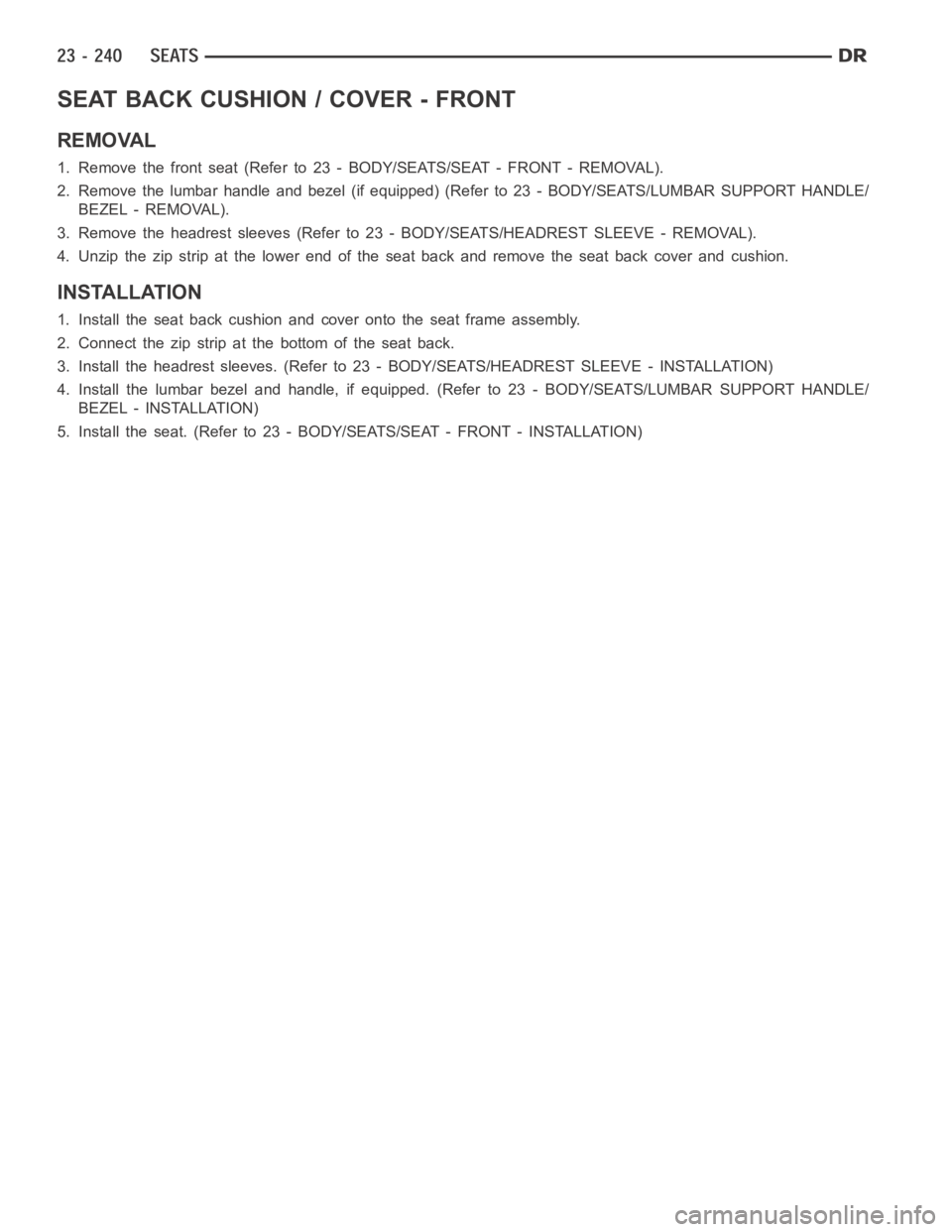

SEAT BACK CUSHION / COVER - FRONT
REMOVAL
1. Remove the front seat (Refer to 23 - BODY/SEATS/SEAT - FRONT - REMOVAL).
2. Remove the lumbar handle and bezel (if equipped) (Refer to 23 - BODY/SEATS/LUMBAR SUPPORT HANDLE/
BEZEL - REMOVAL).
3. Remove the headrest sleeves (Refer to 23 - BODY/SEATS/HEADREST SLEEVE -REMOVAL).
4. Unzip the zip strip at the lower end of the seat back and remove the seat back cover and cushion.
INSTALLATION
1. Install the seat back cushion and cover onto the seat frame assembly.
2. Connect the zip strip at the bottom of the seat back.
3. Install the headrest sleeves. (Refer to 23 - BODY/SEATS/HEADREST SLEEVE-INSTALLATION)
4. Install the lumbar bezel and handle, if equipped. (Refer to 23 - BODY/SEATS/LUMBAR SUPPORT HANDLE/
BEZEL - INSTALLATION)
5. Install the seat. (Refer to 23 - BODY/SEATS/SEAT - FRONT - INSTALLATION)
Page 4585 of 5267

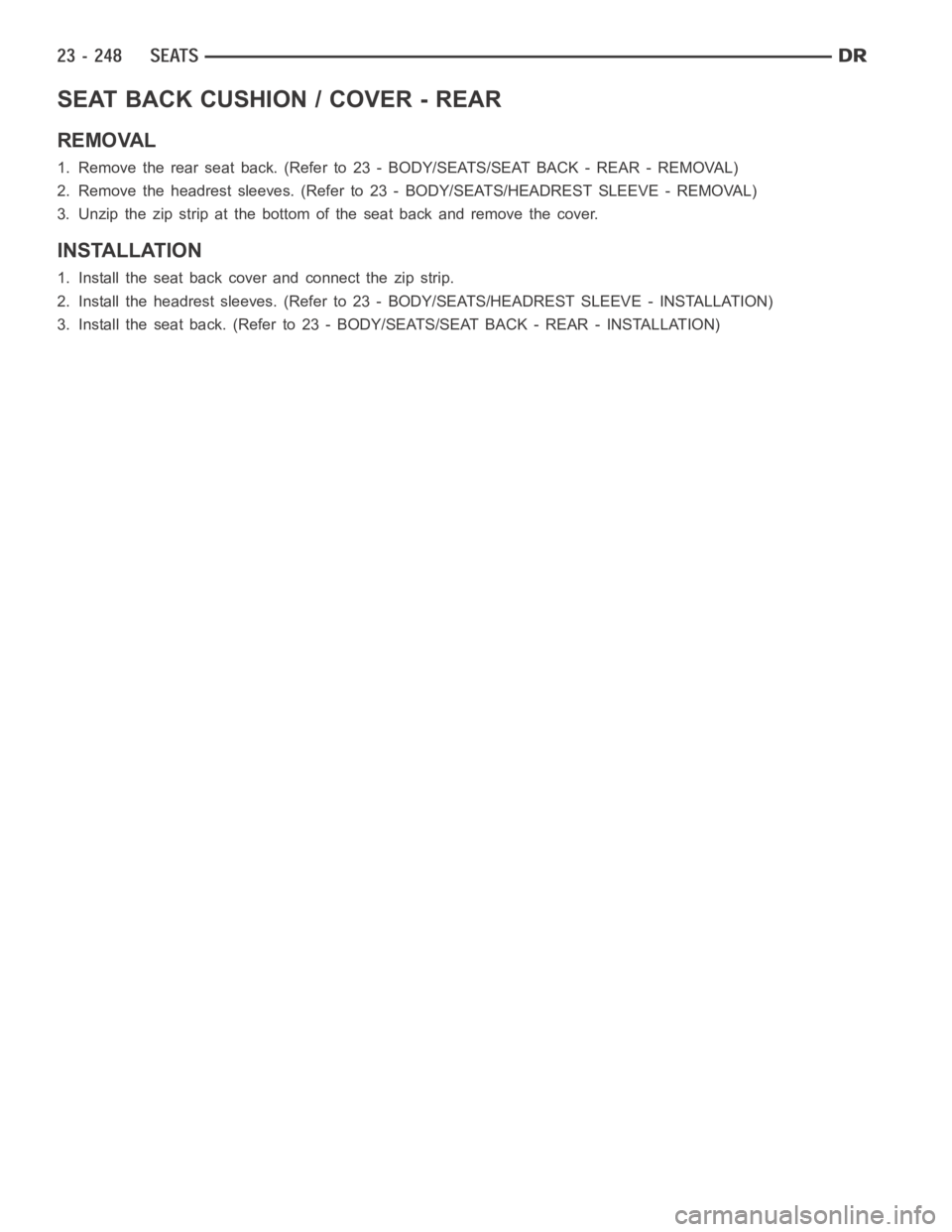

SEAT BACK CUSHION / COVER - REAR
REMOVAL
1. Remove the rear seat back. (Refer to23 - BODY/SEATS/SEAT BACK - REAR - REMOVAL)
2. Remove the headrest sleeves. (Refer to 23 - BODY/SEATS/HEADREST SLEEVE- REMOVAL)
3. Unzip the zip strip at the bottom of the seat back and remove the cover.
INSTALLATION
1. Install the seat back cover and connect the zip strip.
2. Install the headrest sleeves. (Refer to 23 - BODY/SEATS/HEADREST SLEEVE-INSTALLATION)
3. Install the seat back. (Refer to 23 - BODY/SEATS/SEAT BACK - REAR - INSTALLATION)
