DODGE SPRINTER 2004 1.G Owners Manual

UNDERSTANDING YOUR INSTRUMENT PANEL 101
4
SWITCH LOCA TIONSFreightliner-all.book Pag e 101 Monday, December 1, 2003 2:54 PM

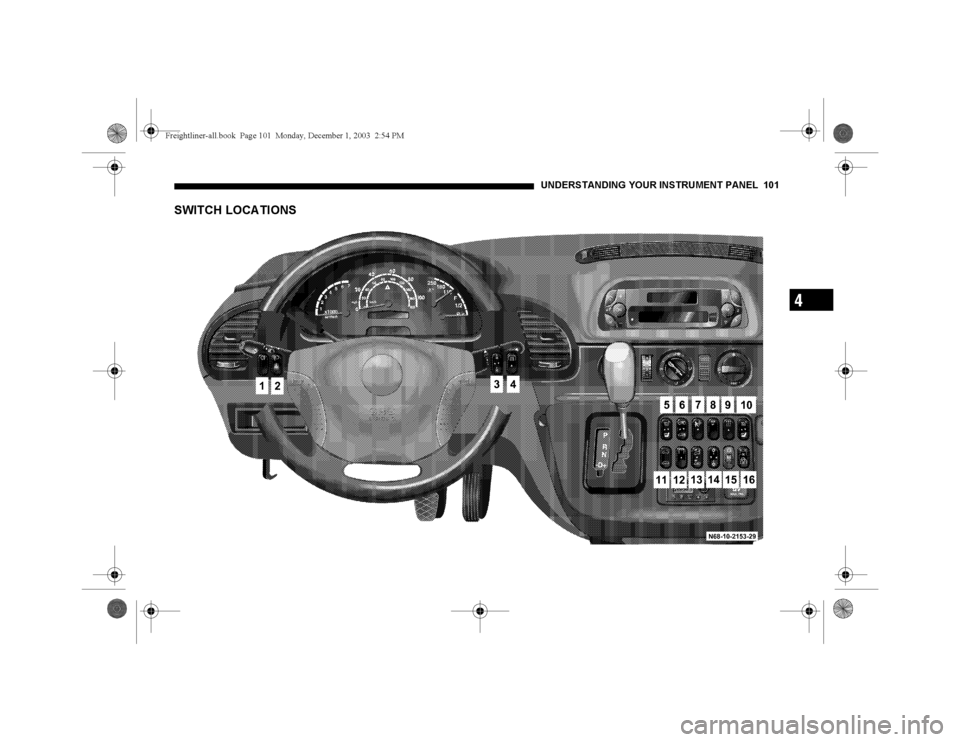

102 UNDERSTANDING YOUR INSTRUMENT PANELLegend for Switch Locations
1. Fog lamp switch (Optional), refer to "Fog Lamp
Switch".
2. Headlamp range control, refer to "Headlamp
Range Control".
3. Auxiliary heat exchanger switch (Optional).
4. Heated rear window (Optional).
5. Left-hand seat heater switch (Optional).
6. Central locking switch with load compartment lock
(Optional).
7. Alarm pushbutton.
8. Deactivate Acceleration skid control (ASR) switch.9. Switch for auxiliary heater – water heater only
(Optional)
10. Right-hand seat heater switch (Optional),
11. Sun roof operation switch (Optional).
12. Interior cargo area lighting (Optional),
refer to "Interior Cargo Area Lighting".
13. Towing/passenger compartment protection switch
(Optional).
14. Airflow switch for the air conditioner for rear
passenger compartment (Optional).
15. Temperature control (Optional).
16. Electric blower switch (Optional).
17. Windshield heater switch (Optional).
18. Constant RPM switch (Optional).Freightliner-all.book Pag e 102 Monday, December 1, 2003 2:54 PM

UNDERSTANDING YOUR INSTRUMENT PANEL 103
4
A SSYST MA INTENA NCE COMPUTER (OPTIONA L)Function button (‘) (1)
Approximately one month or 2,000 miles (3,000 km)
before a service is due, the maintenance symbol
or
lights up when the key is turned to position 2 in the
ignition lock.If the remaining time (in days) is shown, the additional
symbol
È
also appears in the multi-function indicator.
If additional maintenance operations are due, the
maintenance indicator
or
lights up when the key is turned to position 2 in the
ignition lock.
For additional maintenance operations, see Sprinter
Service Booklet.
If a service deadline is exceeded, the display will flash
with a minus sign in front when the key is turned to
position 2 in the ignition lock.
The display will be cancelled when the
button (‘) is pressed, or automatically after
10 seconds.
The remaining time or remaining distance can also be
called up manually.
To manually call up the remaining time/distance:
Activate the multi-function indicator, refer to "Multi-
Function Indicator".
Briefly press the button (‘) twice.
Sy mb
N00.00-2387-00
Sy mb
N00.00-2156-00
Sy mb
N00.00-2388-00
Sy mb
N00.00-2157-00
Freightliner-all.book Pag e 103 Monday, December 1, 2003 2:54 PM

104 UNDERSTANDING YOUR INSTRUMENT PANELDepending on the driving style, the mileage covered
and the operating conditions, the next service due is
displayed either as a remaining distance in "mi"
(in km) or as a remaining time in "days". The length of
time between services should not exceed 2 years.
The display will be cancelled when the
button (‘) is pressed, or automatically after
10 seconds.
When a service has been performed, have the ASSYST
maintenance computer reset by an authorized Sprinter
Dealer.
Should your Sprinter for any reason not be serviced by
an authorized Sprinter Dealer, the ASSYST
maintenance computer can, in exceptional
circumstances, be reset as follows:
Turn the key to position 2 in the ignition lock and
immediately press the button (‘) twice.
Within 10 seconds, return the key to position 0 in the
ignition lock.
Press and hold the button (‘). Turn the key to
position 2 in the ignition lock. Keep the
button (‘) pressed.The maintenance indicator with the current remaining
time/distance is shown.
After about 10 seconds, an acoustic signal will sound
and the maintenance indicator is displayed with the
new remaining time/distance.
Release the button (‘).
NOTE:
The ASSYST maintenance computer provides
information on the optimum maintenance requirements.
If maintenance intervals are not observed, resulting
damage will not be covered by Warranty.
The ASSYST maintenance computer is not an engine
oil gauge.
Engine oil level – for display in instrument cluster, see
next page.
If the engine oil level indicator lamp lights up, refer to
"Engine Oil Level Indicator Lamp".
If the battery is disconnected, the time is not recorded
by the ASSYST maintenance computer. Such periods
must be considered if maintenance intervals are
measured by time.
Freightliner-all.book Pag e 104 Monday, December 1, 2003 2:54 PM

UNDERSTANDING YOUR INSTRUMENT PANEL 105
4
Engine Oil Level – Display in Instrument Cluster
(Vehicles with ASSYST Maintenance Computer only)If the : indicator lamp lights up briefly when the
engine is running, the engine oil level has dropped to
the minimum mark. Check the engine oil level without
delay and add oil to the upper mark on the dipstick. If no engine oil is added and the engine oil level drops
further, a warning buzzer will also sound and
will appear in the multi-function indicator. 2.0 quarts
(about 2.1 liters) of oil must be added.
CAUTION!
If the : indicator lamp lights up, the warning
symbol in the multi-function indicator appears
and the warning buzzer sounds, the operating
safety of the engine is endangered (possibility of
engine damage).
A sudden decrease or absence of oil pressure may
indicate a mechanical failure. Bring the vehicle to
a safe stop, and investigate the cause to prevent
further damage. Do not operate the engine until
the cause has been determined and corrected.
Sy mb
N00.00-2384-00
qt
Freightliner-all.book Pag e 105 Monday, December 1, 2003 2:54 PM

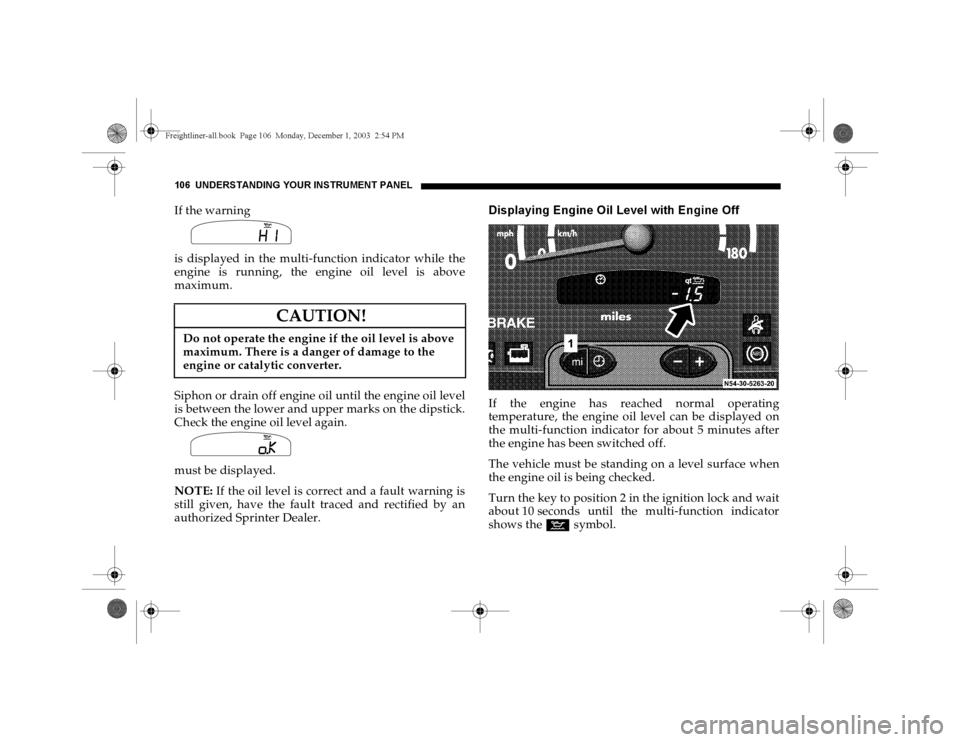

106 UNDERSTANDING YOUR INSTRUMENT PANELIf the warning
is displayed in the multi-function indicator while the
engine is running, the engine oil level is above
maximum.
Siphon or drain off engine oil until the engine oil level
is between the lower and upper marks on the dipstick.
Check the engine oil level again.
must be displayed.
NOTE: If the oil level is correct and a fault warning is
still given, have the fault traced and rectified by an
authorized Sprinter Dealer.
Displaying Engine Oil Level with Engine OffIf the engine has reached normal operating
temperature, the engine oil level can be displayed on
the multi-function indicator for about 5 minutes after
the engine has been switched off.
The vehicle must be standing on a level surface when
the engine oil is being checked.
Turn the key to position 2 in the ignition lock and wait
about 10 seconds until the multi-function indicator
shows the : symbol.
CAUTION!
Do not operate the engine if the oil level is above
maximum. There is a danger of damage to the
engine or catalytic converter.
Sy mb
N00.00-2150-00Sy mb
N00.00-2151-00
Freightliner-all.book Pag e 106 Monday, December 1, 2003 2:54 PM

UNDERSTANDING YOUR INSTRUMENT PANEL 107
4

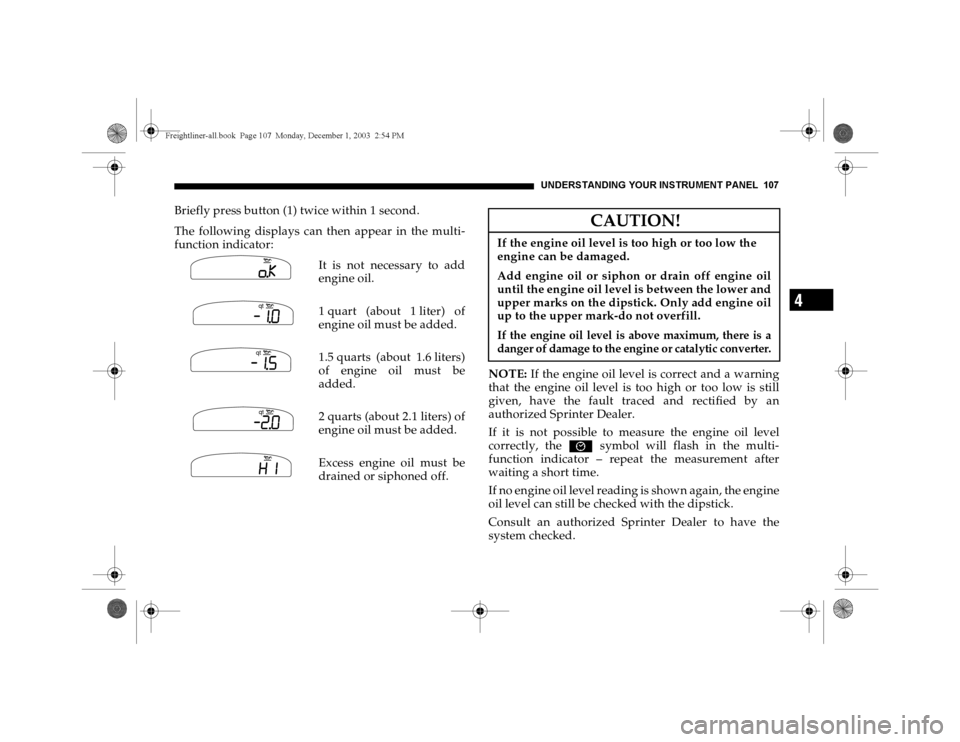

Briefly press button (1) twice within 1 second.
The following displays can then appear in the multi-
function indicator:
It is not necessary to add
engine oil.
1quart (about 1liter) of
engine oil must be added.
1.5 quarts (about 1.6 liters)
of engine oil must be
added.
2 quarts (about 2.1 liters) of
engine oil must be added.
Excess engine oil must be
drained or siphoned off.NOTE: If the engine oil level is correct and a warning
that the engine oil level is too high or too low is still
given, have the fault traced and rectified by an
authorized Sprinter Dealer.
If it is not possible to measure the engine oil level
correctly, the È symbol will flash in the multi-
function indicator – repeat the measurement after
waiting a short time.
If no engine oil level reading is shown again, the engine
oil level can still be checked with the dipstick.
Consult an authorized Sprinter Dealer to have the
system checked.
Sy mb
N00.00-2151-00Sy mb
N00.00-2385-00
qt
Sy mb
N00.00-2386-00
qt
Sy mb
N00.00-2384-00
qt
CAUTION!
If the engine oil level is too high or too low the
engine can be damaged.
Add engine oil or siphon or drain off engine oil
until the engine oil level is between the lower and
upper marks on the dipstick. Only add engine oil
up to the upper mark-do not overfill.If the engine oil level is above maximum, there is a
danger of damage to the engine or catalytic converter.
Freightliner-all.book Pag e 107 Monday, December 1, 2003 2:54 PM

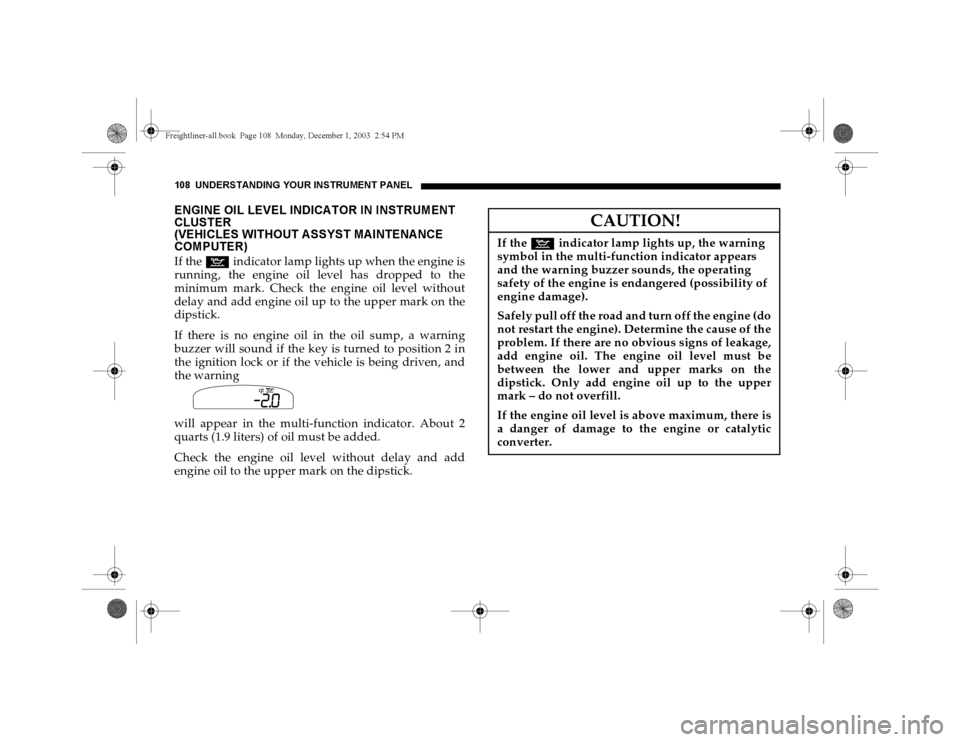

108 UNDERSTANDING YOUR INSTRUMENT PANELENGINE OIL LEVEL INDICATOR IN INSTRUMENT
CLUSTER
(VEHICLES WITHOUT ASSYST MAINTENANCE
COMPUTER)If the : indicator lamp lights up when the engine is
running, the engine oil level has dropped to the
minimum mark. Check the engine oil level without
delay and add engine oil up to the upper mark on the
dipstick.
If there is no engine oil in the oil sump, a warning
buzzer will sound if the key is turned to position 2 in
the ignition lock or if the vehicle is being driven, and
the warning
will appear in the multi-function indicator. About 2
quarts (1.9 liters) of oil must be added.
Check the engine oil level without delay and add
engine oil to the upper mark on the dipstick.
Sy mb
N00.00-2384-00
qt
CAUTION!
If the : indicator lamp lights up, the warning
symbol in the multi-function indicator appears
and the warning buzzer sounds, the operating
safety of the engine is endangered (possibility of
engine damage).
Safely pull off the road and turn off the engine (do
not restart the engine). Determine the cause of the
problem. If there are no obvious signs of leakage,
add engine oil. The engine oil level must be
between the lower and upper marks on the
dipstick. Only add engine oil up to the upper
mark – do not overfill.
If the engine oil level is above maximum, there is
a danger of damage to the engine or catalytic
converter.
Freightliner-all.book Pag e 108 Monday, December 1, 2003 2:54 PM

UNDERSTANDING YOUR INSTRUMENT PANEL 109
4
HEATING, VENTILATIONTemperature control (1)
Airflow control (2)
Air distribution control (3)ZAir to the windshield and from the air vents
XAir to the windshield and footwell and from
the air vents
YAir to the footwell and from the air vents
hAir from the air vents
NOTE: If the vehicle interior has been heated up by
intense sunlight, ventilate the interior briefly before
driving the vehicle.
Only with automatic heater control (Optional):
The selected temperature is reached as quickly as
possible in heater mode and then held constant.
WARNING!
Follow the recommended settings for heating and
cooling given on the following pages. Otherwise
the windows could fog up, impairing visibility
and endangering you and others.
Freightliner-all.book Pag e 109 Monday, December 1, 2003 2:54 PM

110 UNDERSTANDING YOUR INSTRUMENT PANELVentilation1. Set the airflow control (2) to position 3 or 4.
2. Set the temperature control (1) as illustrated (heater
switched off).
3. Set the air distribution control (3) to h.
NOTE: Adjust the air vents as required, refer to "Side
Air Vents and Center Air Vents".
Air Recirculation1. Air recirculation indicator lamp
2. Air recirculation button
To switch on air recirculation:
 Press the air recirculation button – the indicator
lamp lights up.
To switch off air recirculation:
 Press the air rescirculation button again – the
indicator lamp goes out.
