MAINTAINING YOUR VEHICLE 291
7

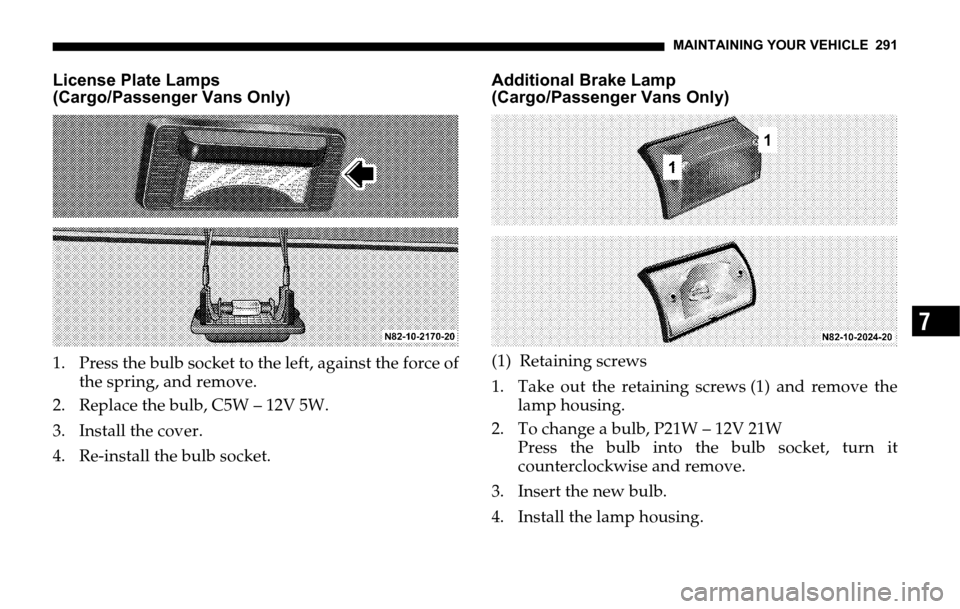

License Plate Lamps
(Cargo/Passenger Vans Only)
1. Press the bulb socket to the left, against the force of
the spring, and remove.
2. Replace the bulb, C5W – 12V 5W.
3. Install the cover.
4. Re-install the bulb socket.Additional Brake Lamp
(Cargo/Passenger Vans Only)
(1) Retaining screws
1. Take out the retaining screws (1) and remove the
lamp housing.
2. To change a bulb, P21W – 12V 21W
Press the bulb into the bulb socket, turn it
counterclockwise and remove.
3. Insert the new bulb.
4. Install the lamp housing.

292 MAINTAINING YOUR VEHICLE

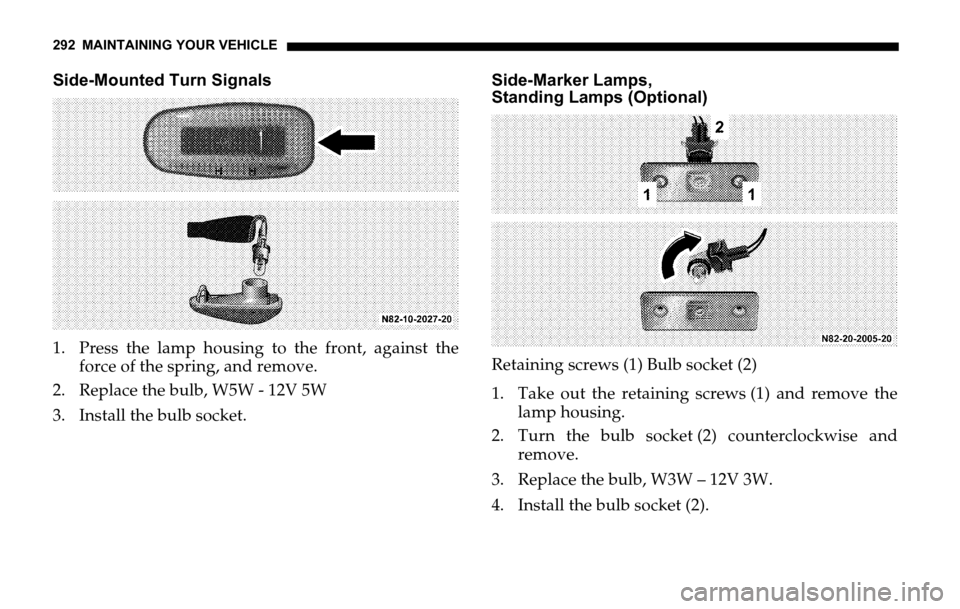

Side-Mounted Turn Signals
1. Press the lamp housing to the front, against the
force of the spring, and remove.
2. Replace the bulb, W5W - 12V 5W
3. Install the bulb socket.Side-Marker Lamps,
Standing Lamps (Optional)
Retaining screws (1) Bulb socket (2)
1. Take out the retaining screws (1) and remove the
lamp housing.
2. Turn the bulb socket (2) counterclockwise and
remove.
3. Replace the bulb, W3W – 12V 3W.
4. Install the bulb socket (2).

MAINTAINING YOUR VEHICLE 293
7

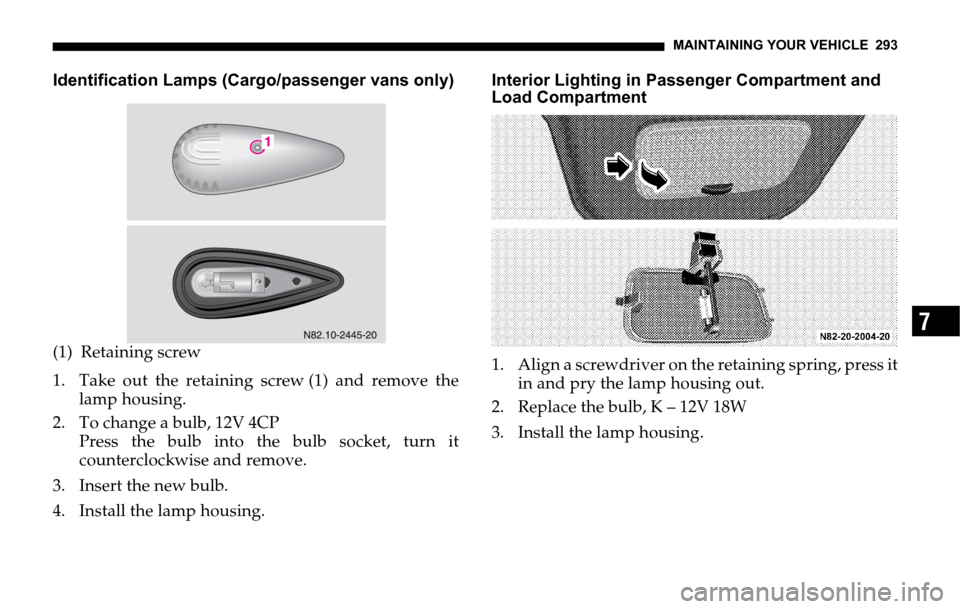

Identification Lamps (Cargo/passenger vans only)
(1) Retaining screw
1. Take out the retaining screw (1) and remove the
lamp housing.
2. To change a bulb, 12V 4CP
Press the bulb into the bulb socket, turn it
counterclockwise and remove.
3. Insert the new bulb.

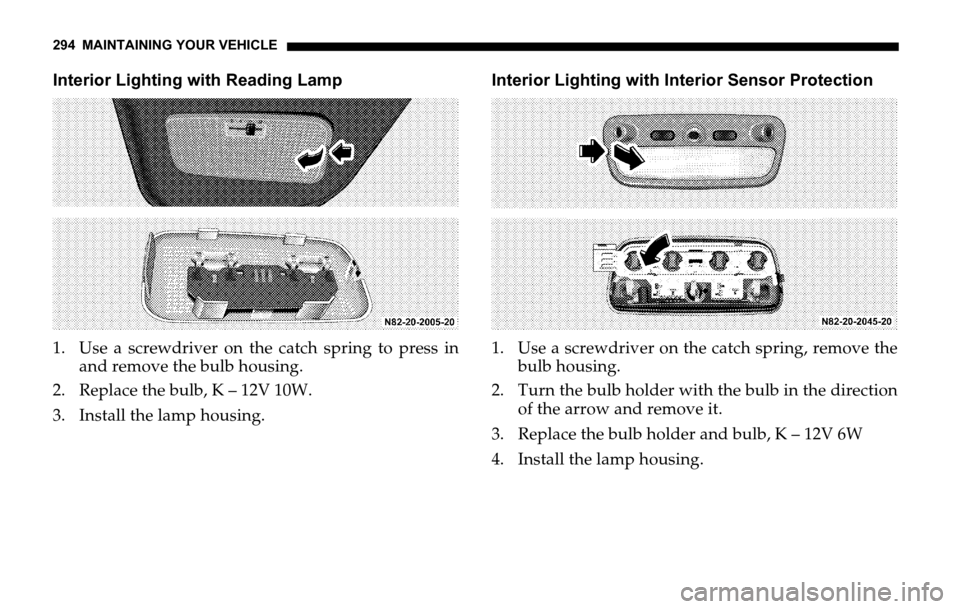

4. Install the lamp housing.Interior Lighting in Passenger Compartment and
Load Compartment
1. Align a screwdriver on the retaining spring, press it
in and pry the lamp housing out.
2. Replace the bulb, K – 12V 18W
3. Install the lamp housing.

294 MAINTAINING YOUR VEHICLE
Interior Lighting with Reading Lamp
1. Use a screwdriver on the catch spring to press in
and remove the bulb housing.
2. Replace the bulb, K – 12V 10W.
3. Install the lamp housing.Interior Lighting with Interior Sensor Protection
1. Use a screwdriver on the catch spring, remove the
bulb housing.
2. Turn the bulb holder with the bulb in the direction
of the arrow and remove it.
3. Replace the bulb holder and bulb, K – 12V 6W
4. Install the lamp housing.

MAINTAINING YOUR VEHICLE 295
7

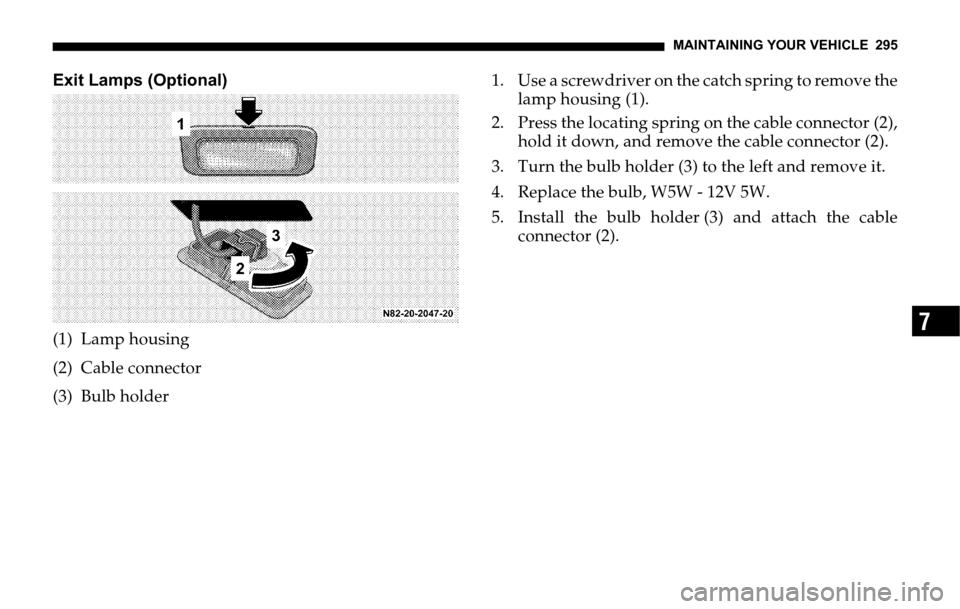

Exit Lamps (Optional)
(1) Lamp housing
(2) Cable connector
(3) Bulb holder1. Use a screwdriver on the catch spring to remove the
lamp housing (1).
2. Press the locating spring on the cable connector (2),
hold it down, and remove the cable connector (2).
3. Turn the bulb holder (3) to the left and remove it.
4. Replace the bulb, W5W - 12V 5W.
5. Install the bulb holder (3) and attach the cable
connector (2).

296 MAINTAINING YOUR VEHICLE
CAPACITIES
Engine with oil filter
Engine oilFuel tank Cooling system Windshield washer
system
Including
reserve fuel
All vehicles about
9.5 US qt
(9.0 l)about
26.4 US gal
(100 l)about
2.8 US gal
(10.5 l)about
2.7 US gal
(10.0 l)about
7.4 US qt
(7.0 l)

MAINTAINING YOUR VEHICLE 297
7
Recommended Fluids and Lubricants
The manufacturer recommends for your vehicle model
the use of DaimlerChrysler approved fluids and
lubricants, e.g. engine oil, gear oil, automatic
transmission fluid, brake fluid, power steering fluid,
coolant and anti-corrosion/anti-freeze fluid only.
WARNING!
Failure to use fluids and lubricants which meet
the standards and specifications described in this
booklet or failure to adhere to the specified re-
placement intervals may result in damage to safe-
ty-related systems of your vehicle, such as the
brake system, which could cause an accident and/
or serious injury to you and others.
Use only fluids and lubricants meeting the
standards and specifications and adhere to
specified replacement intervals.
CAUTION!
Failure to use fluids and lubricants which meet
the standards and specifications described in this
booklet or failure to adhere to the specified
replacement intervals may result in a significantly
shortened service life and/or damage to
components of your vehicle, the repair of which
will not be covered by Warranty.
Use only fluids and lubricants meeting the
standards and specifications and adhere to
specified replacement intervals.

298 MAINTAINING YOUR VEHICLE
The following oils have been determined to meet DaimlerChrysler requirements.aMB approved Engine Oil SAE MB
Sheet
76 Pure Synthetic Motor Oil 5W-40 229.3
76 Royal Triton QLT 15W-40 228.3
Agip All Guard Motor Oil 15W-40 228.3
Agip Eurosport 5W-40 229.3
Agip Synthetic PC 5W-40 229.3
Akron Ultra Clear C1-4
115W-40 228.3
BP Vanellus C6 Global Plus 10W-40 228.3
Brad Penn Euro-Diesel LD 15W-40 228.3
Castrol Elixion
15W-30 228.5
Castrol Tection S
115W-40 228.3
Chevron Delo 400 Multigrade 15W-40 228.3
Diesel Special Benz M&A 15W-40 228.3
Dislub Premium 15W-40 228.3
Exxon XD-3 Extra
115W-40 228.3
FormulaShell Ultra 5W-40 229.3
FormulaShell Ultra AB 5W-30 229.5
Gonher Super Fleet MB-III 15W-40 228.3
Hydroclear Power-D Engine Oil 15W-40 228.3
IDO Premium 15W-40 15W-40 228.3
Kendall GT-1 Full Synthetic Motor Oil 5W-40 229.3
Long Life EF Diesel Engine Oil Multi-
grade15W-40 228.3
Lubral Super Diesel MB-III 15W-40 228.3
Max Raloy Diesel 5W-30 228.5
MB Motorenöl 000 989 60 01 13 10W-40 228.5
Mexlub CF-4 MB-3P 15W-40 228.3
Mobil 1 0W-40 0W-40 229.5
Mobil Delvac 1 5W-40 228.5
Mobil Delvac 1300 Super
115W-40 228.3
Mobil SHC Formula MB 5W-30 229.5
MOPAR
® Part No. 04798231AD15W-40 228.3
Motul 8100 E-Tech 0W-40 0W-40 229.3
Motul 8100 X-cess 5W-40 5W-40 229.3
Panolin Indy SV 5W-40 229.3
Pennzoil European Formula Ultra 5W-30 229.5
Pennzoil Synthetic European Formula 5W-40 229.3
Premium Synthetik Motorenöl 5W-30 229.5
QS Superfleet 15W-40 228.3
Quaker State European Formula Ultra 5W-30 229.5
Quaker State Full Synthetic European For-
mula5W-40 229.3
Quaker State Super Series III
115W-40 228.3
Raloy Diesel Turbo MX 15W-40 228.3

MAINTAINING YOUR VEHICLE 299
7
1. Engine oil also meets API classification CI-4.
Other oils may meet requirements - see oil label to determine.
Raloy Motor Diesel 15W-40 228.3
Repsol Turbo UHPD 10W-40 228.5
Roshfrans Voltro Diesel
115W-40 228.3
Shell Helix Ultra 5W-30 229.3
Shell Helix Ultra 5W-40 229.3
Shell Rimula X CH-4 15W-40 228.3
Shell Rimula X CH-4 20W-50 228.3
Shell Rotella T Multigrade
115W-40 228.3
Super Diesel Oil MB-3 15W-40 228.3
Supreme Duty Diesel Engine Oil Multi-
grade15W-40 228.3
Unoil GX-7 5W-40 229.3
Ursa Premium TDX 10W-30 228.3
Ursa Premium TDX 15W-40 228.3
Valvoline SynPower MXL 0W-30 229.3

300 MAINTAINING YOUR VEHICLE
COMPONENT SERVICE
INTERVALPRODUCT NAME/PRODUCT NUMBER MB
SHEET
Air Conditioning
The air conditioning system of your vehicle contains R-134a, a refrigerant that does not deplete the ozone layer in the
upper atmosphere.
Refrigerant R-134a — Refrigerant R-134a 361.0
Automatic
Transmission Fluidonce only at
80,000 mi
(128,000 km)Shell ATF 3403/M-115
MOPAR® Part No. 05127382AA, or equivalent
Fuchs/Shell ATF 3353236.10
236.12
Brakes
Use brake fluid approved to DaimlerChrysler standard MB 331.0 and/or DaimlerChrysler material standard MS-9971,
brake fluid certified to DOT 4 Plus standards, that also maintains a minimum dry boiling point (ERBP) of 500°F (260°C),
a minimum wet boiling point (WERBP) of 356°F (180°C) and maximum viscosity of 1500 mm
2/s, conforming to FMVSS
116 and ISO 4925.
Brake Fluid 2 years Intac B026D Dry boiling point: 500°F (260°C)
Wet boiling point: 356°F (180°C),
MOPAR® MS-9971 Part No. 04549625AC, or equivalent331.0
Engine Oil 12 months or
10,000 mi
(16,000 km)See "Approved Engine Oils"
