sensor DODGE SPRINTER 2008 2.G User Guide

256 Controls in detailDriving systems
3
Warning displays

The warning displays indicate the dis-
tance between the sensor and the ob-
stacle.
The warning display for the front area is
located on the middle of the dashboard
above the center console.
Front area warning display
1Left-hand side of vehicle
2Right-hand side of vehicle
3Indicator segmentsThe warning displays for the rear left and
right-hand sides are in the exterior mir-
ror concerned.
Warning display in the left-hand exterior
mirror for the area to the rear left-hand side4Left-hand side of vehicle
5Indicator segmentsThe warning display is divided into 5 yellow
and 2 red segments for each side of the ve-
hicle. Parktronic is operational if yellow indi-
cator segments
3
and
5
light up.
N54.65-2074-31
N54.65-2075-31
nf_BA.book Page 256 Friday, January 25, 2008 3:53 PM

312 OperationDriving tips
4
You will find information about the
speed limit for your tires under “Tires
and wheels” in this section
(\2
page 383).
Check regularly, e.g. weekly or when re-
fueling:
\4
the vehicle lighting
\4
the condition of the tires
(\2
page 346) and the tire pressures
(
\2
page 361)
\4
the engine oil level (
\2
page 322)
\4
the brake fluid level (
\2
page 331)
\4
the fluid level in the windshield wash-
er system / headlamp cleaning sys-
tem reservoir (
\2
page 333)
\4
the contamination level of the rear
air-conditioning air cleaner
(\2
page 414)
Your vehicle is equipped with monolith-
ic-type catalytic converters, an impor-
tant element in conjunction with the
oxygen sensors to achieve substantial
control of the pollutants in the exhaust
emissions. Keep your vehicle in proper
operating condition by following our rec-
ommended maintenance instructions as
outlined in your Service Booklet.
Warning
G
Exceeding the permissible maximum
speed can cause tire damage, which
could lead to loss of control of the vehi-
cle.
As the driver, you must find out about the
maximum speed of the vehicle and the re-
sulting permissible maximum speed of
the tires (tire and tire pressure).
Never exceed the speed limit for your
tires under any circumstances
(\2page 383).
Regular checks
Catalytic converter (gasoline engine)
nf_BA.book Page 312 Friday, January 25, 2008 3:53 PM

313 Operation
Driving tips
4
Your vehicle is equipped with an oxida-
tion catalyst, an important element in
conjunction with the oxygen sensors to
achieve substantial control of the pollut-
ants in the exhaust emissions. Keep
your vehicle in proper operating condi-
tion by following our recommended
maintenance instructions as outlined in
your Service Booklet.
!

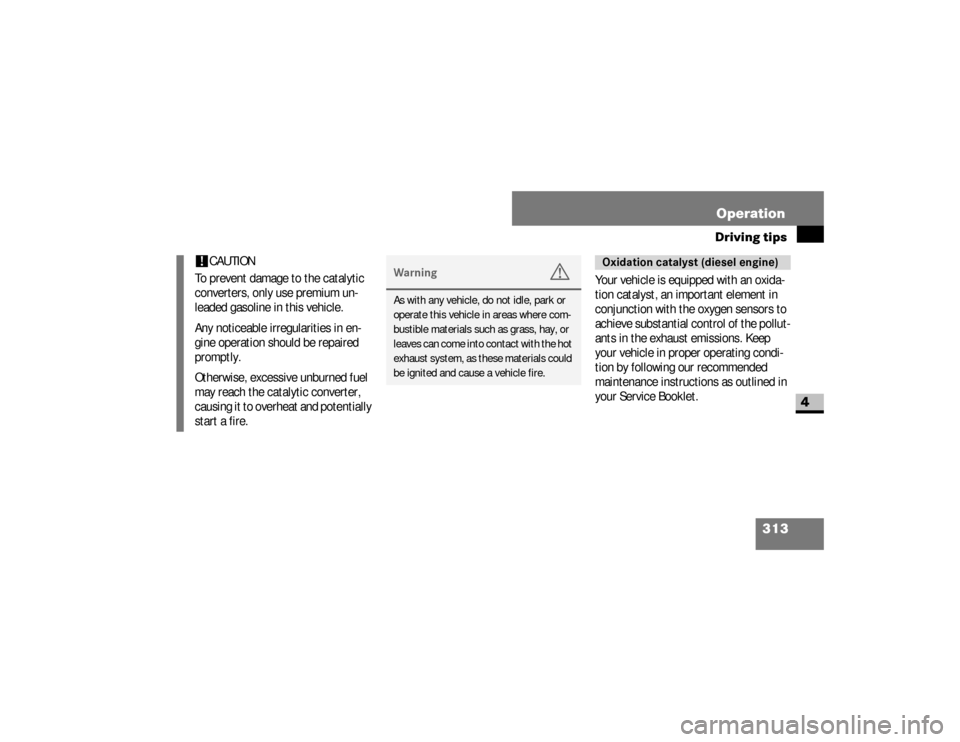

CAUTION
To prevent damage to the catalytic
converters, only use premium un-
leaded gasoline in this vehicle.
Any noticeable irregularities in en-
gine operation should be repaired
promptly.
Otherwise, excessive unburned fuel
may reach the catalytic converter,
causing it to overheat and potentially
start a fire.
Warning
G
As with any vehicle, do not idle, park or
operate this vehicle in areas where com-
bustible materials such as grass, hay, or
leaves can come into contact with the hot
exhaust system, as these materials could
be ignited and cause a vehicle fire.
Oxidation catalyst (diesel engine)
nf_BA.book Page 313 Friday, January 25, 2008 3:53 PM

368 OperationTires and wheels
4

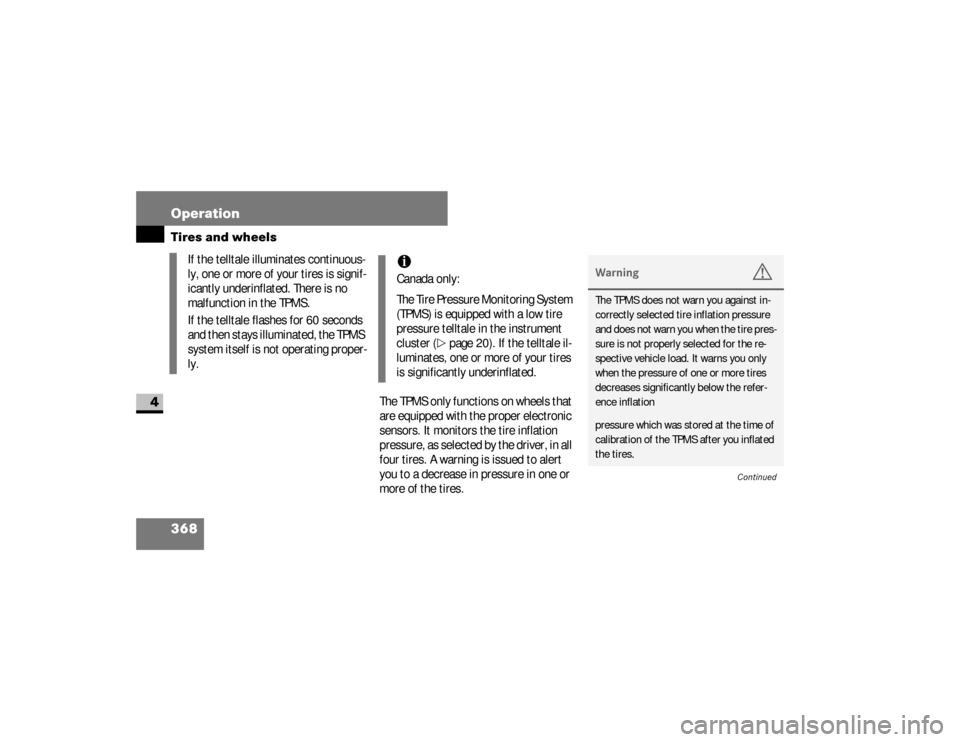

The TPMS only functions on wheels that
are equipped with the proper electronic
sensors. It monitors the tire inflation
pressure, as selected by the driver, in all
four tires. A warning is issued to alert
you to a decrease in pressure in one or
more of the tires. If the telltale illuminates continuous-
ly, one or more of your tires is signif-
icantly underinflated. There is no
malfunction in the TPMS.
If the telltale flashes for 60 seconds
and then stays illuminated, the TPMS
system itself is not operating proper-
ly.
iCanada only:
The Tire Pressure Monitoring System
(TPMS) is equipped with a low tire
pressure telltale in the instrument
cluster (
\2
page 20). If the telltale il-
luminates, one or more of your tires
is significantly underinflated.
Warning
G
The TPMS does not warn you against in-
correctly selected tire inflation pressure
and does not warn you when the tire pres-
sure is not properly selected for the re-
spective vehicle load. It warns you only
when the pressure of one or more tires
decreases significantly below the refer-
ence inflationpressure which was stored at the time of
calibration of the TPMS after you inflated
the tires.
Continued
nf_BA.book Page 368 Friday, January 25, 2008 3:53 PM

374 OperationTires and wheels
4

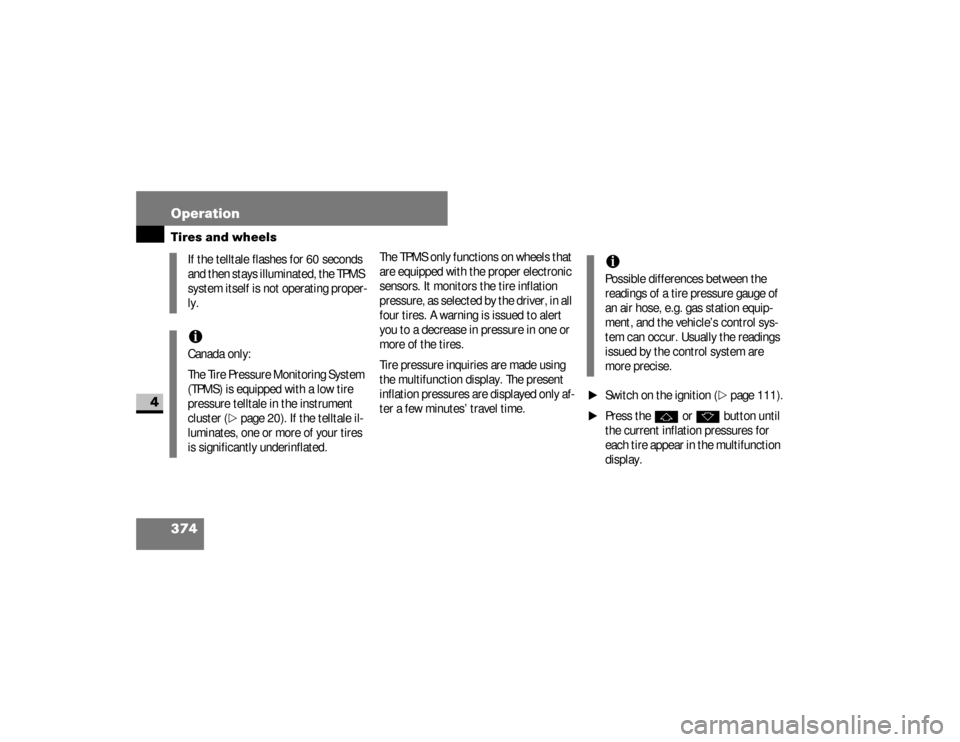

The TPMS only functions on wheels that
are equipped with the proper electronic
sensors. It monitors the tire inflation
pressure, as selected by the driver, in all
four tires. A warning is issued to alert
you to a decrease in pressure in one or
more of the tires.
Tire pressure inquiries are made using
the multifunction display. The present
inflation pressures are displayed only af-
ter a few minutes’ travel time.
\1
Switch on the ignition (
\2
page 111).
\1
Press the
j
or
k
button until
the current inflation pressures for
each tire appear in the multifunction
display. If the telltale flashes for 60 seconds
and then stays illuminated, the TPMS
system itself is not operating proper-
ly.
iCanada only:
The Tire Pressure Monitoring System
(TPMS) is equipped with a low tire
pressure telltale in the instrument
cluster (
\2
page 20). If the telltale il-
luminates, one or more of your tires
is significantly underinflated.
iPossible differences between the
readings of a tire pressure gauge of
an air hose, e.g. gas station equip-
ment, and the vehicle’s control sys-
tem can occur. Usually the readings
issued by the control system are
more precise.
nf_BA.book Page 374 Friday, January 25, 2008 3:53 PM

418 OperationCleaning and care of the vehicle
4
Automatic car washYou can clean the vehicle in an automat-
ic car wash from the very start. It is pref-
erable to use a car wash that does not
have brushes.
If the vehicle is very dirty, prewash it be-
fore you drive into the car wash.\1
Remove the radio / telephone anten-
na and fold the exterior mirrors in be-
fore driving into the automatic car
wash.For information on windshield wiper
switch, see the “Controls in detail” sec-
tion (
\2
page 210).
!
CAUTION
Make sure that the automatic car
w a s h i s s u i t a b l e f o r t h e s i z e o f t h e ve -
hicle.
If you do not remove the radio / tele-
phone antenna and fold in the exteri-
or mirrors, there is a possibility that
the antenna, the exterior mirrors or
the vehicle could be damaged by the
automatic car wash.
!
CAUTION
Make sure that the windshield wiper
switch is set to
0 (\2
page 210), oth-
erwise the rain sensor could be acti-
vated, for example, and the
windshield wipers could be triggered
unintentionally. This could cause
damage to the vehicle.
nf_BA.book Page 418 Friday, January 25, 2008 3:53 PM

422 OperationCleaning and care of the vehicle
4
Headlamps
\1
Wipe the headlamp lenses with a
damp sponge.
Parktronic sensors* The sensors are located in the front and
rear bumpers.\1
Clean the sensors in the bumpers us-
ing water, shampoo and a soft cloth.
Rear view camera lens* The rear view camera is located in the
center of the roof above the third brake
lamp.
!
CAUTION
Only use washer fluid which is suit-
able for plastic lamp lenses.
Unsuitable washer fluid may damage
the plastic headlamp lenses.
For this reason, do not use a dry
cloth, abrasive material, solvent or
solvent-based cleaning agent. You
could otherwise scratch or damage
the lens surface.
1 Parktronic sensors
!
CAUTION
D o n o t u s e d r y , c o a r s e o r h a r d c l o t h s
and do not scrub. You will otherwise
scratch or damage the sensors.
If you clean the sensors with a high-
pressure cleaner or steam cleaner,
observe the information provided by
the manufacturer regarding the dis-
tance to be maintained between the
vehicle and the nozzle of the high-
pressure cleaner.
nf_BA.book Page 422 Friday, January 25, 2008 3:53 PM

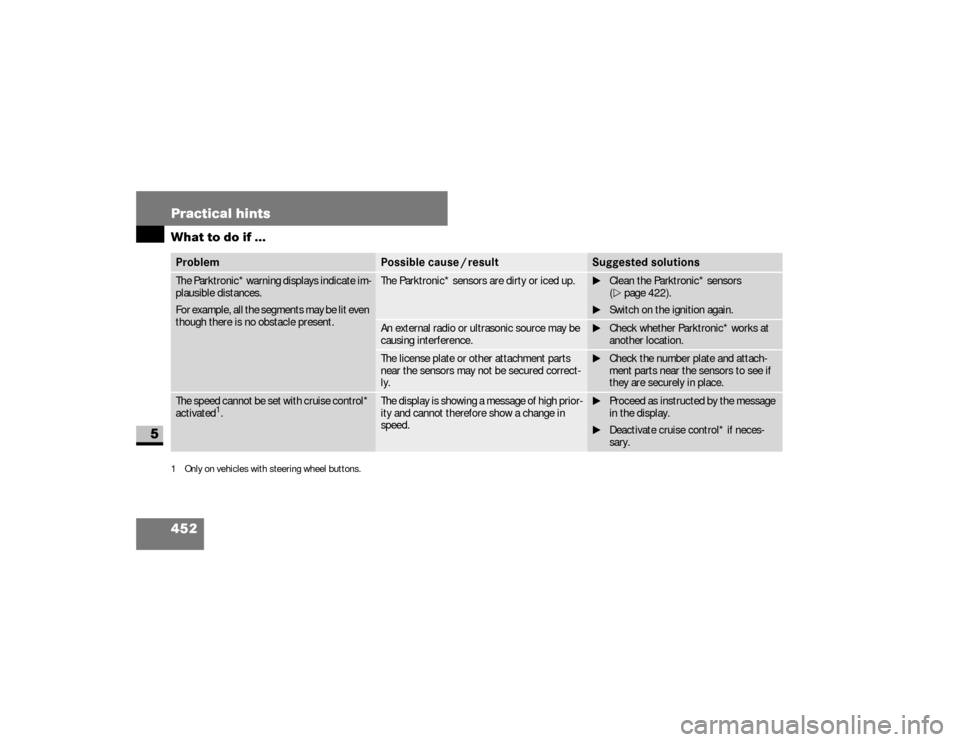

452 Practical hintsWhat to do if ...
5
The Parktronic* warning displays indicate im-
plausible distances.
For example, all the segments may be lit even
though there is no obstacle present.
The Parktronic* sensors are dirty or iced up.
\1Clean the Parktronic* sensors
(\2page 422).
\1Switch on the ignition again.
An external radio or ultrasonic source may be
causing interference.
\1Check whether Parktronic* works at
another location.
The license plate or other attachment parts
near the sensors may not be secured correct-
ly.
\1Check the number plate and attach-
ment parts near the sensors to see if
they are securely in place.
The speed cannot be set with cruise control*
activated
1.
The display is showing a message of high prior-
ity and cannot therefore show a change in
speed.
\1Proceed as instructed by the message
in the display.
\1Deactivate cruise control* if neces-
sary.
1 Only on vehicles with steering wheel buttons.Problem
Possible cause / result
Suggested solutions
nf_BA.book Page 452 Friday, January 25, 2008 3:53 PM

495 Practical hints
Display messages
5

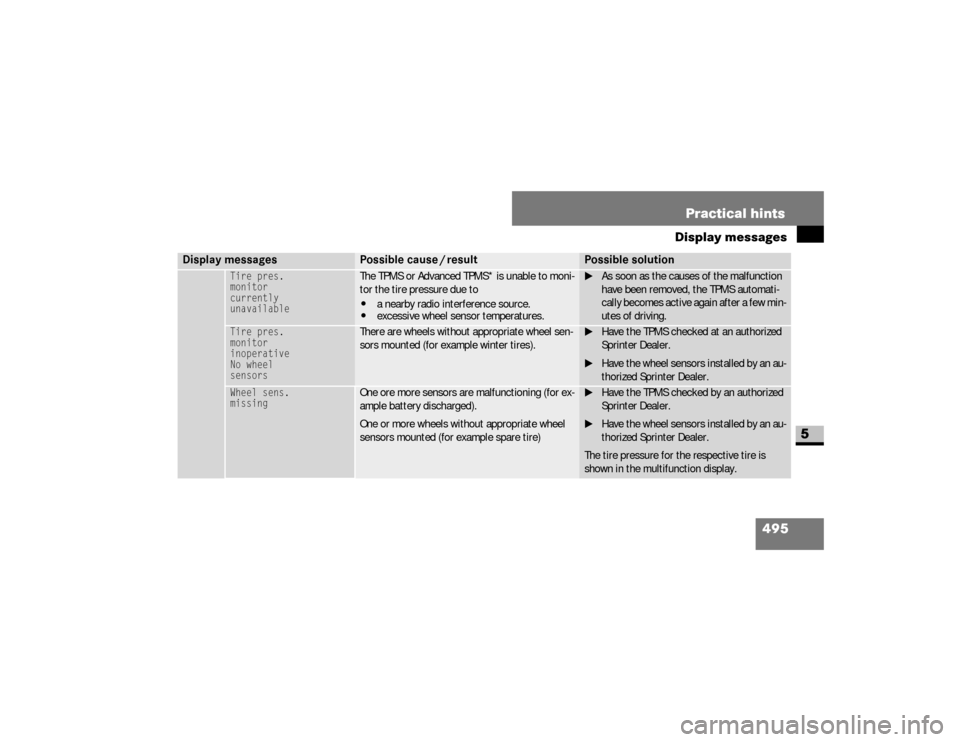

Tire pres.
monitor
currently
unavailable
The TPMS or Advanced TPMS* is unable to moni-
tor the tire pressure due to
\4a nearby radio interference source.
\4excessive wheel sensor temperatures.
\1As soon as the causes of the malfunction
have been removed, the TPMS automati-
cally becomes active again after a few min-
utes of driving.
Tire pres.
monitor
inoperative
No wheel
sensors
There are wheels without appropriate wheel sen-
sors mounted (for example winter tires).
\1Have the TPMS checked at an authorized
Sprinter Dealer.
\1Have the wheel sensors installed by an au-
thorized Sprinter Dealer.
Wheel sens.
missing
One ore more sensors are malfunctioning (for ex-
ample battery discharged).
One or more wheels without appropriate wheel
sensors mounted (for example spare tire)
\1Have the TPMS checked by an authorized
Sprinter Dealer.
\1Have the wheel sensors installed by an au-
thorized Sprinter Dealer.
The tire pressure for the respective tire is
shown in the multifunction display.
Display messages
Possible cause / result
Possible solution
nf_BA.book Page 495 Friday, January 25, 2008 3:53 PM

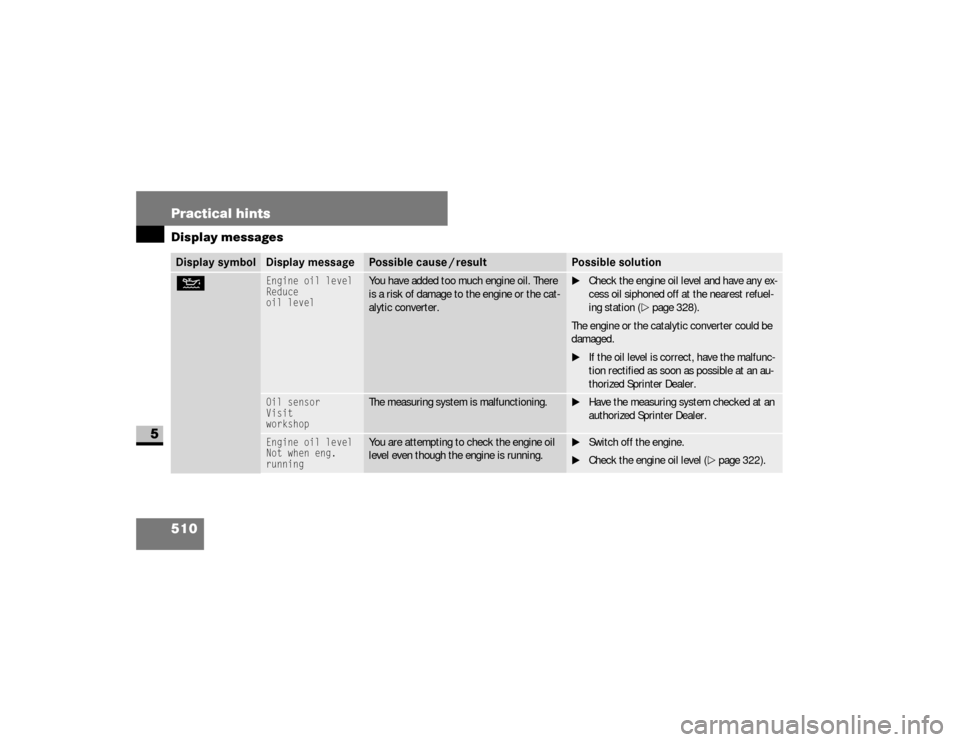

510 Practical hintsDisplay messages
5
N
Engine oil level
Reduce
oil level
You have added too much engine oil. There
is a risk of damage to the engine or the cat-
alytic converter.
\1Check the engine oil level and have any ex-
cess oil siphoned off at the nearest refuel-
ing station (\2page 328).
The engine or the catalytic converter could be
damaged.
\1If the oil level is correct, have the malfunc-
tion rectified as soon as possible at an au-
thorized Sprinter Dealer.
Oil sensor
Visit
workshop
The measuring system is malfunctioning.
\1Have the measuring system checked at an
authorized Sprinter Dealer.
Engine oil level
Not when eng.
running
You are attempting to check the engine oil
level even though the engine is running.
\1Switch off the engine.
\1Check the engine oil level (\2page 322).
Display symbol
Display message
Possible cause / result
Possible solution
nf_BA.book Page 510 Friday, January 25, 2008 3:53 PM
