Cockpit
1
Function
Page
1
Door control panel
31
2
Light switch
130
3
Combination switch\4
Turn signals
\4
High-beam head-
lamps
\4
Windshield wipers
\4
Rear window wiper*
135
131
210
212
4
Cruise control lever*
249
5
Horn
6
Steering wheel without/
with* buttons
25
Function
Page
7
Instrument cluster
20,
142
8
Storage compartment
9
Storage compartment
with interior lamp
137
Overhead control panel*
27
a
Rear-view mirror*
208
b
Rear view camera moni-
tor*
261
c
Warning display for Park-
tronic system*
256
d
Opens / closes the right-
hand side window
244
Function
Page
e
Jack and vehicle tool kit
515
f
Glove box
288
g
Center console
26
h
Selector lever (automatic
transmission)
185
j
Ignition lock
111
k
Additional switch unit
29
l
Handbrake
191
m
Steering wheel adjust-
ment
127
n
Hood lock release
318
o
Additional switch unit
29
nf_BA.book Page 19 Friday, January 25, 2008 3:53 PM
Page 33 of 666
31 At a glance

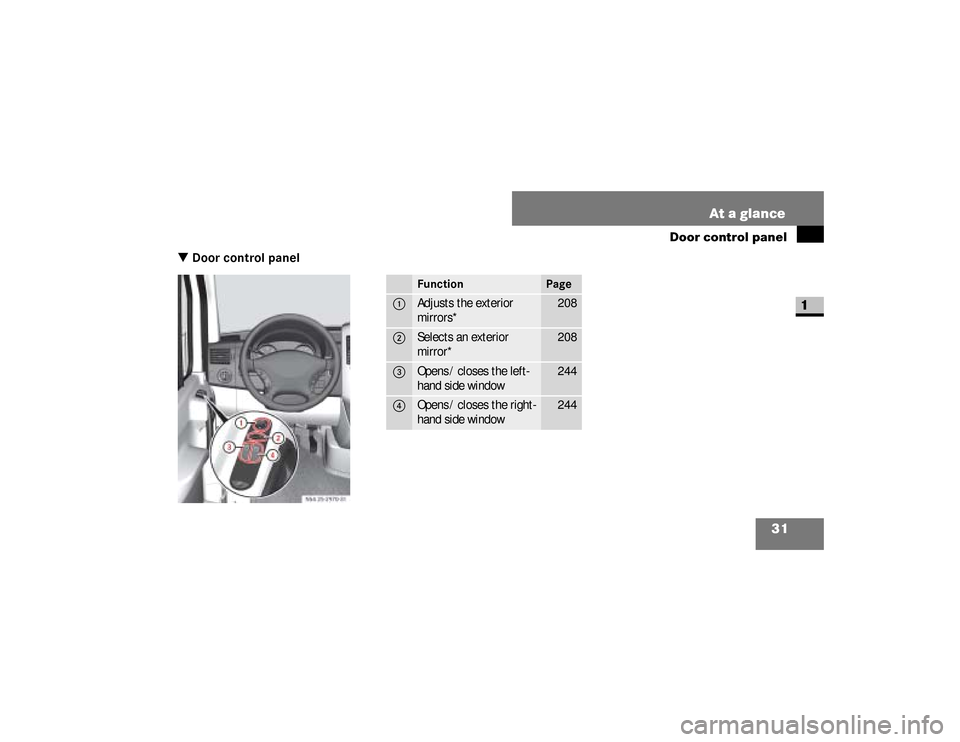

Door control panel
1
\3 Door control panel
N54.25-2914-31
Function
Page
1
Adjusts the exterior
mirrors*
208
2
Selects an exterior
mirror*
208
3
Opens / closes the left-
hand side window
244
4
Opens / closes the right-
hand side window
244
nf_BA.book Page 31 Friday, January 25, 2008 3:53 PM
Page 82 of 666
80 SafetyAnti-theft systems
2
The interior motion sensor is enabled
after approximately 40 seconds.

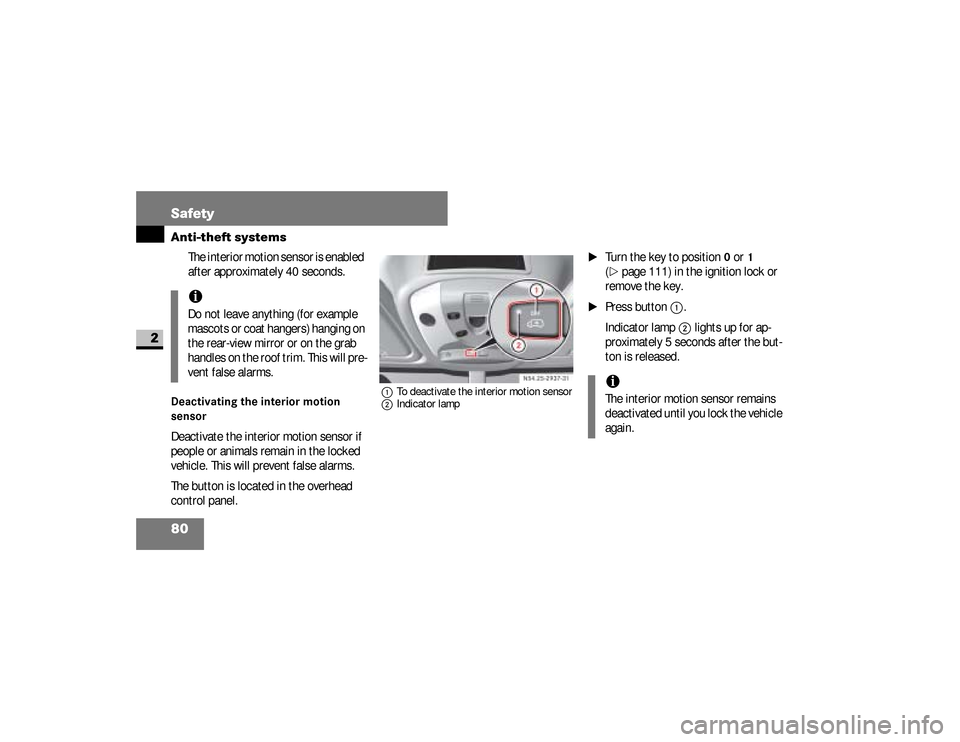

Deactivating the interior motion
sensorDeactivate the interior motion sensor if
people or animals remain in the locked
vehicle. This will prevent false alarms.
The button is located in the overhead
control panel.
1To deactivate the interior motion sensor
2Indicator lamp
\1
Turn the key to position
0 or
1
(
\2
page 111) in the ignition lock or
remove the key.
\1
Press button
1
.
Indicator lamp2
lights up for ap-
proximately 5 seconds after the but-
ton is released.
iDo not leave anything (for example
mascots or coat hangers) hanging on
the rear-view mirror or on the grab
handles on the roof trim. This will pre-
vent false alarms.
iThe interior motion sensor remains
deactivated until you lock the vehicle
again.
nf_BA.book Page 80 Friday, January 25, 2008 3:53 PM
Page 210 of 666
208 Controls in detailGood visibility
3

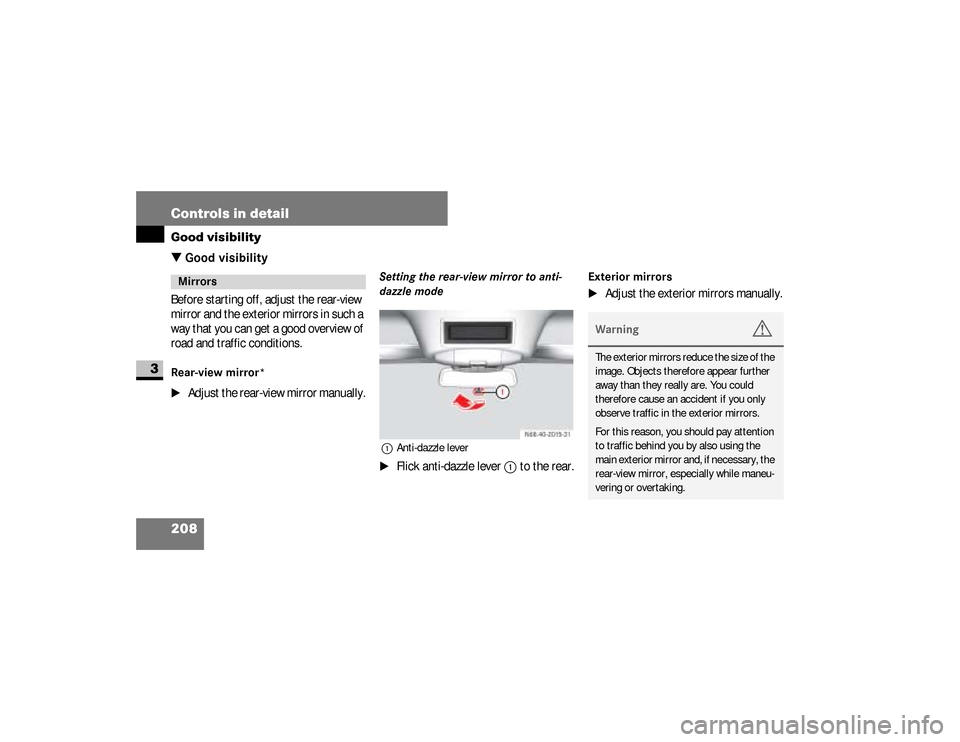

\3 Good visibilityBefore starting off, adjust the rear-view
mirror and the exterior mirrors in such a
way that you can get a good overview of
road and traffic conditions.Rear-view mirror*
\1
Adjust the rear-view mirror manually.
Setting the rear-view mirror to anti-
dazzle mode1Anti-dazzle lever\1
Flick anti-dazzle lever
1
to the rear.
Exterior mirrors
\1
Adjust the exterior mirrors manually.
Mirrors
Warning
G
The exterior mirrors reduce the size of the
image. Objects therefore appear further
away than they really are. You could
therefore cause an accident if you only
observe traffic in the exterior mirrors.
For this reason, you should pay attention
to traffic behind you by also using the
main exterior mirror and, if necessary, the
rear-view mirror, especially while maneu-
vering or overtaking.
nf_BA.book Page 208 Friday, January 25, 2008 3:53 PM
Page 211 of 666
209 Controls in detail
Good visibility
3

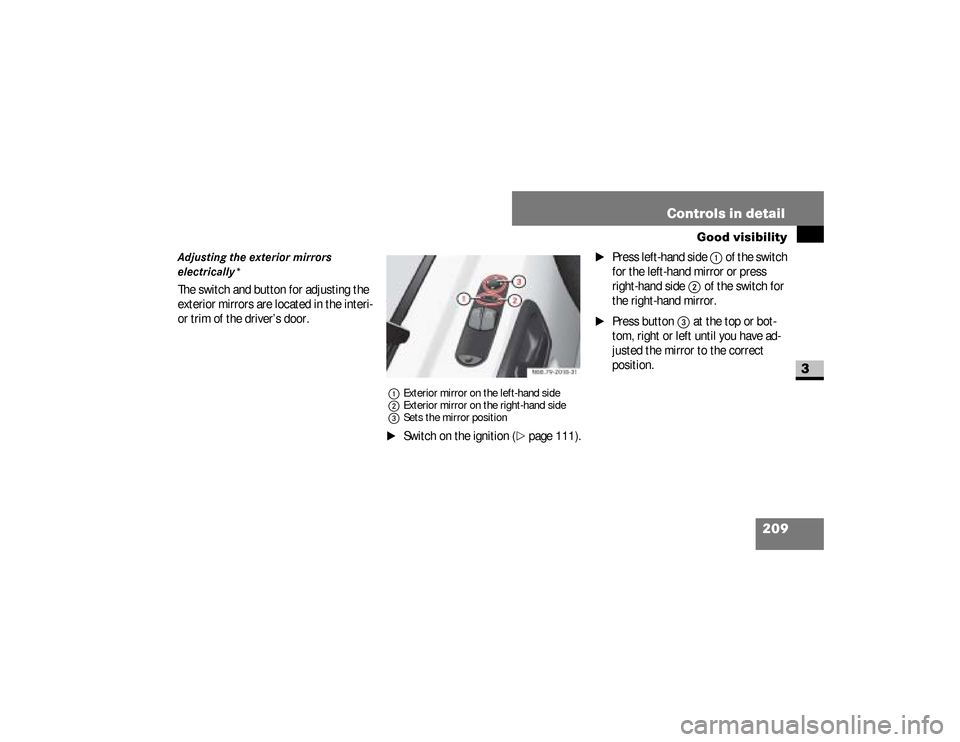

Adjusting the exterior mirrors
electrically*The switch and button for adjusting the
exterior mirrors are located in the interi-
or trim of the driver’s door.
1Exterior mirror on the left-hand side
2Exterior mirror on the right-hand side
3Sets the mirror position\1
Switch on the ignition (
\2
page 111).
\1
Press left-hand side
1
of the switch
for the left-hand mirror or press
right-hand side
2
of the switch
for
the right-hand mirror.
\1
Press button
3
at the top or bot-
tom, right or left until you have ad-
justed the mirror to the correct
position.
nf_BA.book Page 209 Friday, January 25, 2008 3:53 PM
Page 258 of 666
256 Controls in detailDriving systems
3

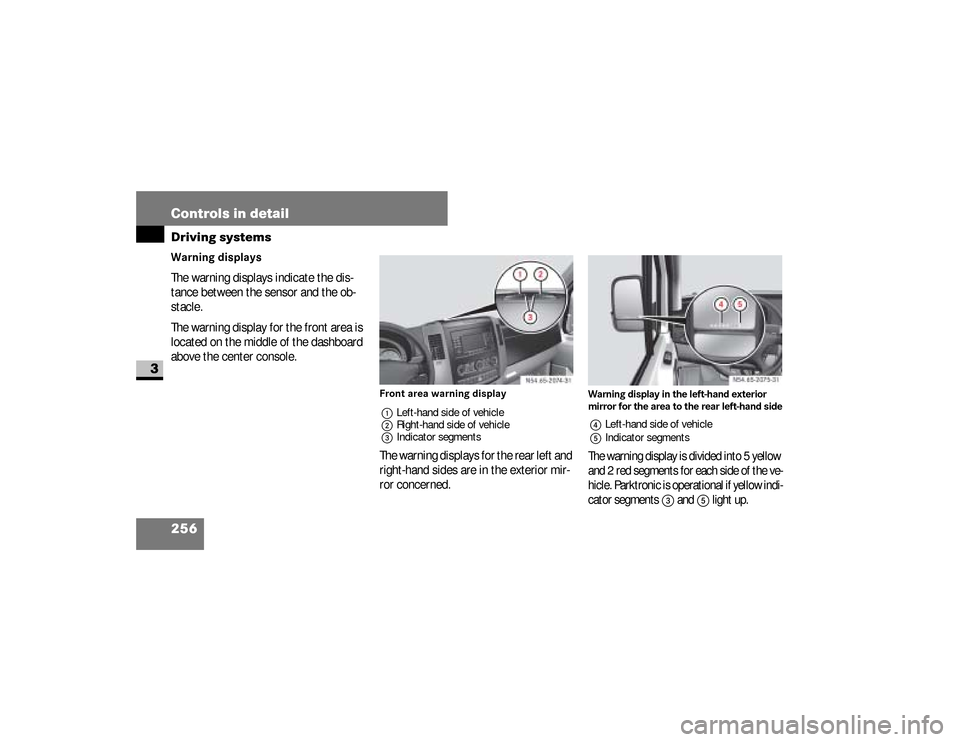

Warning displays
The warning displays indicate the dis-
tance between the sensor and the ob-
stacle.
The warning display for the front area is
located on the middle of the dashboard
above the center console.
Front area warning display
1Left-hand side of vehicle
2Right-hand side of vehicle
3Indicator segmentsThe warning displays for the rear left and
right-hand sides are in the exterior mir-
ror concerned.
Warning display in the left-hand exterior
mirror for the area to the rear left-hand side4Left-hand side of vehicle
5Indicator segmentsThe warning display is divided into 5 yellow
and 2 red segments for each side of the ve-
hicle. Parktronic is operational if yellow indi-
cator segments
3
and
5
light up.
N54.65-2074-31
N54.65-2075-31
nf_BA.book Page 256 Friday, January 25, 2008 3:53 PM
Page 311 of 666
309 Operation
Driving tips
4

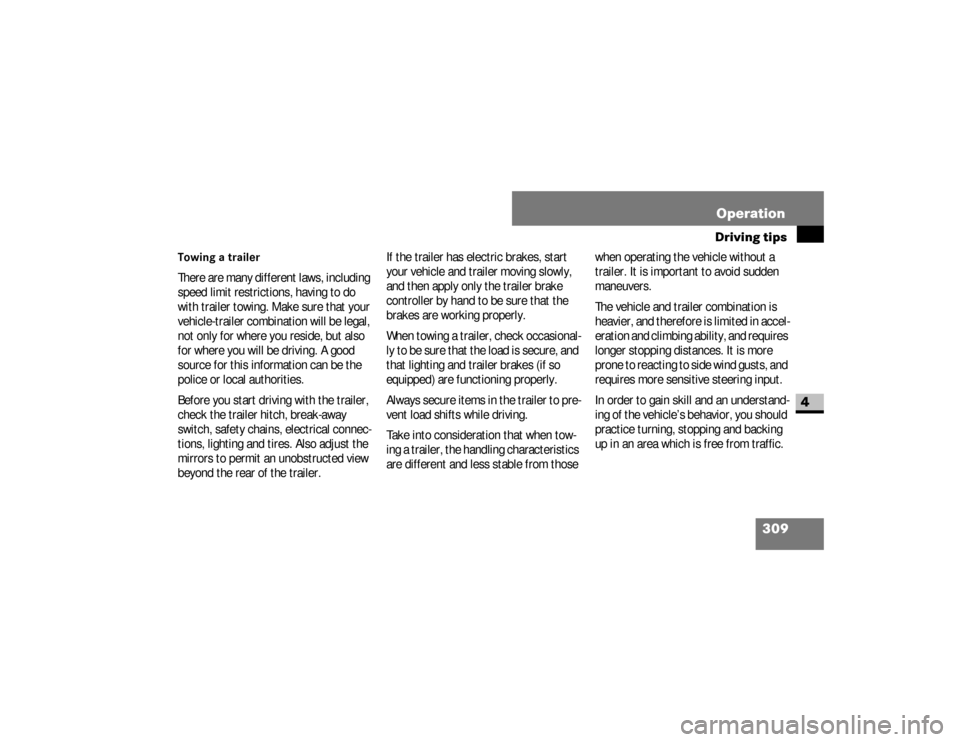

Towing a trailerThere are many different laws, including
speed limit restrictions, having to do
with trailer towing. Make sure that your
vehicle-trailer combination will be legal,
not only for where you reside, but also
for where you will be driving. A good
source for this information can be the
police or local authorities.
Before you start driving with the trailer,
check the trailer hitch, break-away
switch, safety chains, electrical connec-
tions, lighting and tires. Also adjust the
mirrors to permit an unobstructed view
beyond the rear of the trailer.If the trailer has electric brakes, start
your vehicle and trailer moving slowly,
and then apply only the trailer brake
controller by hand to be sure that the
brakes are working properly.
When towing a trailer, check occasional-
ly to be sure that the load is secure, and
that lighting and trailer brakes (if so
equipped) are functioning properly.
Always secure items in the trailer to pre-
vent load shifts while driving.
Take into consideration that when tow-
ing a trailer, the handling characteristics
are different and less stable from those when operating the vehicle without a
trailer. It is important to avoid sudden
maneuvers.
The vehicle and trailer combination is
heavier, and therefore is limited in accel-
eration and climbing ability, and requires
longer stopping distances. It is more
prone to reacting to side wind gusts, and
requires more sensitive steering input.
In order to gain skill and an understand-
ing of the vehicle’s behavior, you should
practice turning, stopping and backing
up in an area which is free from traffic.
nf_BA.book Page 309 Friday, January 25, 2008 3:53 PM
Page 420 of 666
418 OperationCleaning and care of the vehicle
4

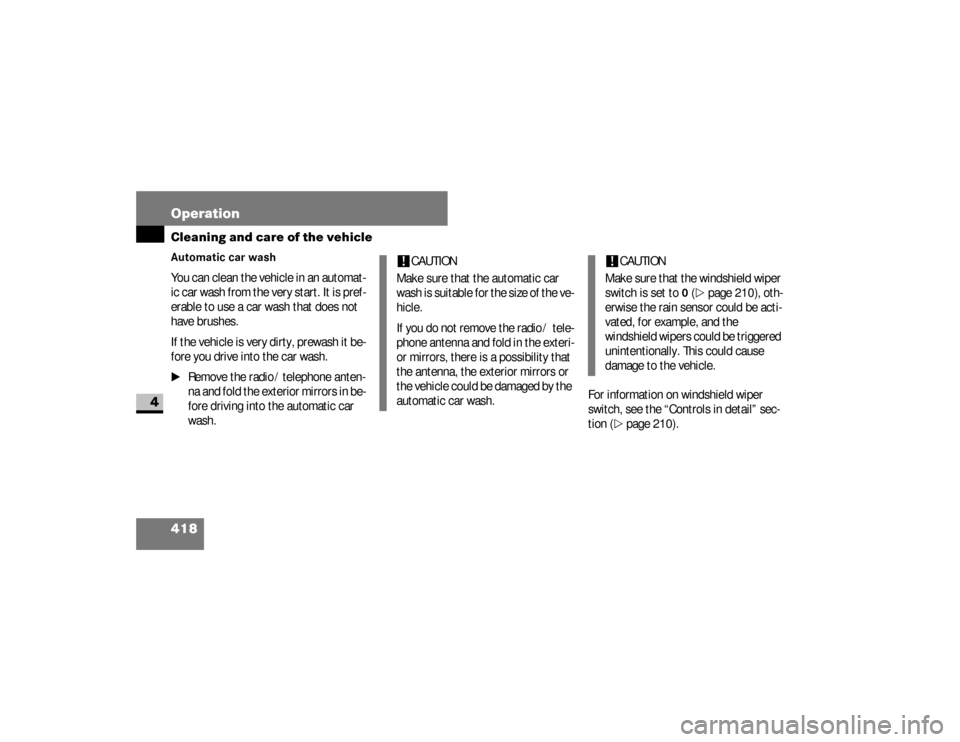

Automatic car washYou can clean the vehicle in an automat-
ic car wash from the very start. It is pref-
erable to use a car wash that does not
have brushes.
If the vehicle is very dirty, prewash it be-
fore you drive into the car wash.\1
Remove the radio / telephone anten-
na and fold the exterior mirrors in be-
fore driving into the automatic car
wash.For information on windshield wiper
switch, see the “Controls in detail” sec-
tion (
\2
page 210).
!
CAUTION
Make sure that the automatic car
w a s h i s s u i t a b l e f o r t h e s i z e o f t h e ve -
hicle.
If you do not remove the radio / tele-
phone antenna and fold in the exteri-
or mirrors, there is a possibility that
the antenna, the exterior mirrors or
the vehicle could be damaged by the
automatic car wash.
!
CAUTION
Make sure that the windshield wiper
switch is set to
0 (\2
page 210), oth-
erwise the rain sensor could be acti-
vated, for example, and the
windshield wipers could be triggered
unintentionally. This could cause
damage to the vehicle.
nf_BA.book Page 418 Friday, January 25, 2008 3:53 PM
Page 428 of 666
426 OperationCleaning and care of the vehicle
4

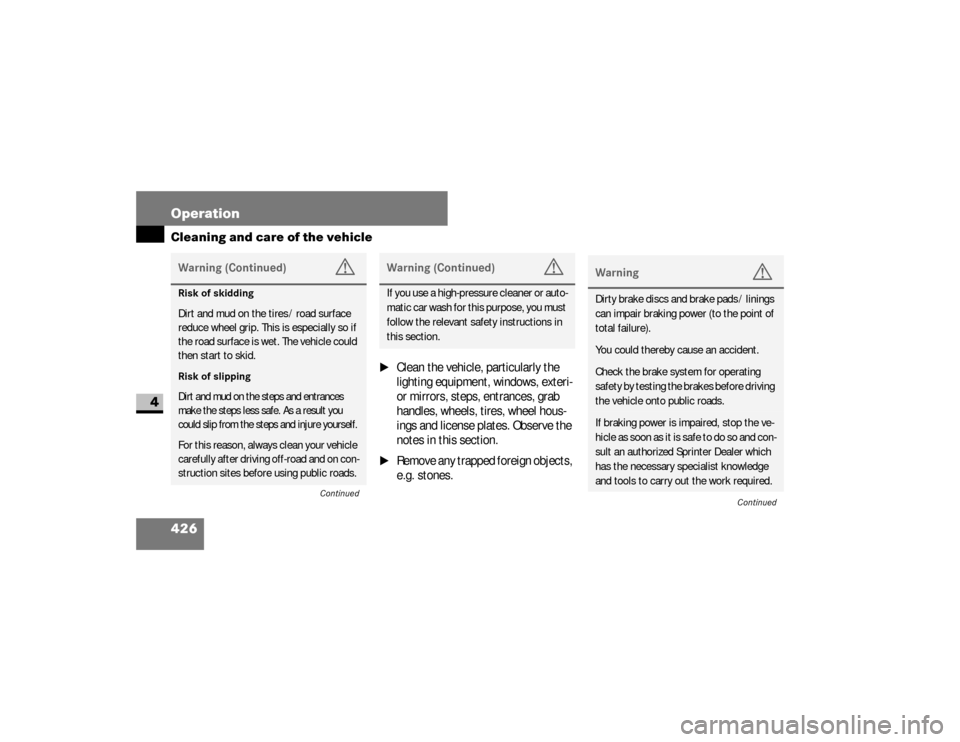

\1
Clean the vehicle, particularly the
lighting equipment, windows, exteri-
or mirrors, steps, entrances, grab
handles, wheels, tires, wheel hous-
ings and license plates. Observe the
notes in this section.
\1
Remove any trapped foreign objects,
e.g. stones.
Warning (Continued)
G
Risk of skiddingDirt and mud on the tires / road surface
reduce wheel grip. This is especially so if
the road surface is wet. The vehicle could
then start to skid.Risk of slippingDirt and mud on the steps and entrances
make the steps less safe. As a result you
could slip from the steps and injure yourself.For this reason, always clean your vehicle
carefully after driving off-road and on con-
struction sites before using public roads.
Continued
Warning (Continued)
G
If you use a high-pressure cleaner or auto-
matic car wash for this purpose, you must
follow the relevant safety instructions in
this section.
Warning
G
Dirty brake discs and brake pads / linings
can impair braking power (to the point of
total failure).You could thereby cause an accident.Check the brake system for operating
safety by testing the brakes before driving
the vehicle onto public roads.If braking power is impaired, stop the ve-
h i c l e a s s o o n a s i t i s s a f e t o d o s o a n d c o n -
sult an authorized Sprinter Dealer which
has the necessary specialist knowledge
and tools to carry out the work required.
Continued
nf_BA.book Page 426 Friday, January 25, 2008 3:53 PM
Page 527 of 666
525 Practical hints
Changing bulbs
5
\3 Changing bulbsBulbs and lights are an important aspect
of vehicle safety. For this reason, make
sure that all bulbs are in working order at
all times.\4
Switch off the lights to avoid a short
circuit.
\4
Only touch new bulbs with a clean
lint-free cloth or something similar.
Do not work with wet or greasy fin-
gers.
\4
Only fit 12 V bulbs of the same type
as before and of the correct wattage.
\4
Have the headlamp setting checked
regularly.
\4
If the newly installed bulb does not
light up either, visit an authorized
Sprinter Dealer.
\4
Have the following LEDs and bulbs
changed at an authorized Sprinter
Dealer:\4
The additional turn signals in the
exterior mirrors
\4
The third brake lamp (cargo and
passenger vans only)*
\4
The bi-xenon headlamps*
\4
The foglamps*
Before changing bulbs
Warning
G
Bulbs and bulb holders can become very
hot. For this reason, allow the light to cool
down before changing the bulb.
Keep bulbs out of the reach of children.
Never use a bulb which has been dropped.
Such a bulb may explode and injure you.
H7 bulbs are pressurized and may ex-
plode when changed. You should there-
fore wear eye protection and gloves when
you are changing them.
nf_BA.book Page 525 Friday, January 25, 2008 3:53 PM
