VEHICLE THEFT ALARM
The system monitors the doors, trunk, and ignition for
unauthorized operation.
If something triggers the alarm, the system will signal for
up to 18 minutes. For the first three minutes the horn will
sound and the headlights and interior lights will flash.
Then the horn will stop and if the source of the trigger is
still present, the lights will continue to flash for another
15 minutes.
NOTE:The engine will not start until you disarm the
system.
To set the alarm:
1. Remove the keys from the ignition switch and get out
of the vehicle.
2. Lock the door using either the power door lock switch,
the key, or the Keyless Entry Transmitter and close all
doors.
3. The light in the instrument cluster will flash rapidly
for 15 seconds. This shows that the system is arming. If
the light comes on but does not flash, the system is stillarmed, but there is a problem in the trunk circuit. After 15
seconds the light will continue to flash slowly. This
shows that the system is fully armed.
To disarm the system:
Unlock a front door using either the key or the Keyless
Entry Transmitter.
Tamper Alert
If the horn sounds 3 times when you unlock a front door
using either a key or the Keyless Entry Transmitter, the
alarm had been triggered. Check the vehicle for tamper-
ing.
Security System Manual Override
The system will not arm if you lock the doors using the
manual lock control.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23
2

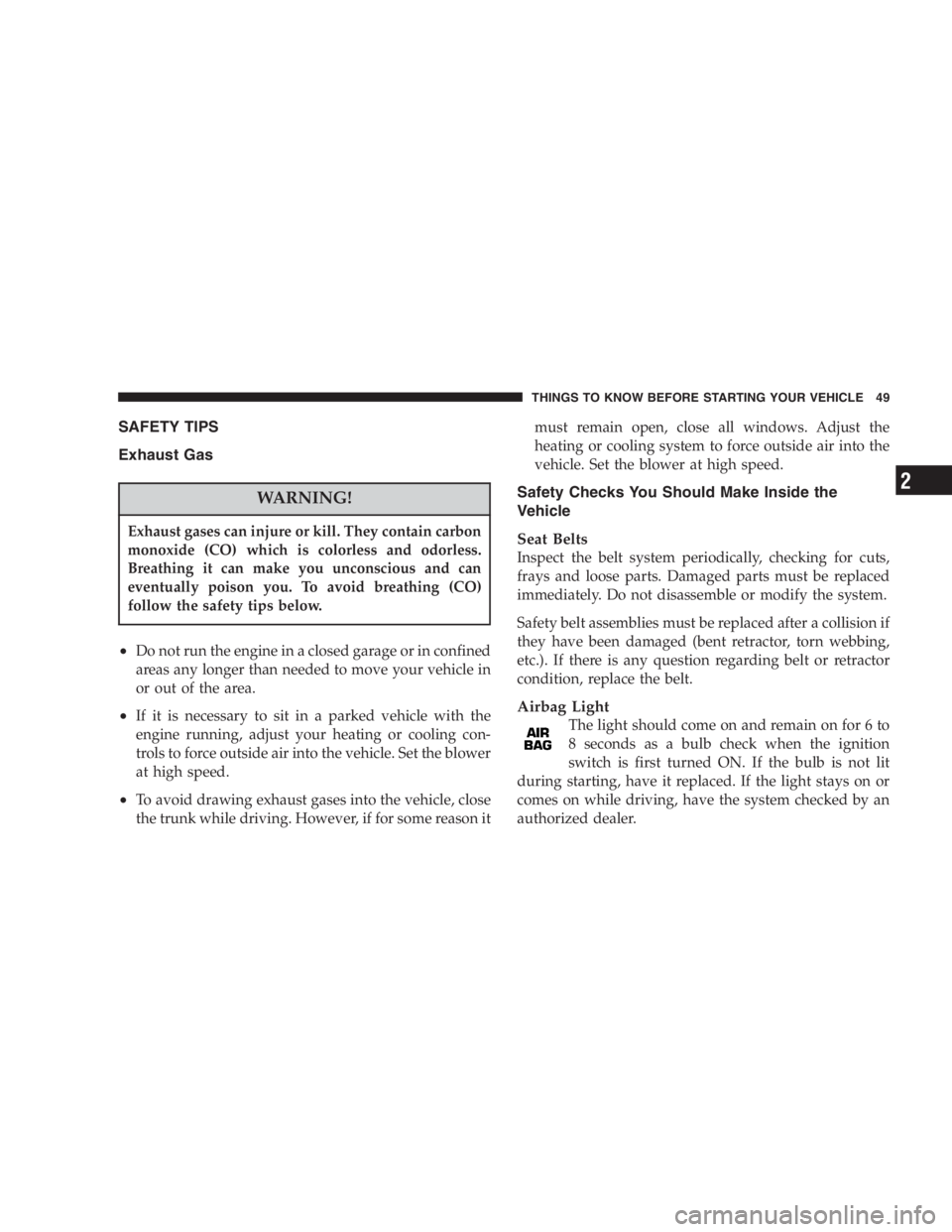

SAFETY TIPS
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO)
follow the safety tips below.
•Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in
or out of the area.
•If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling con-
trols to force outside air into the vehicle. Set the blower
at high speed.
•To avoid drawing exhaust gases into the vehicle, close
the trunk while driving. However, if for some reason itmust remain open, close all windows. Adjust the
heating or cooling system to force outside air into the
vehicle. Set the blower at high speed.
Safety Checks You Should Make Inside the
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Safety belt assemblies must be replaced after a collision if
they have been damaged (bent retractor, torn webbing,
etc.). If there is any question regarding belt or retractor
condition, replace the belt.
Airbag Light
The light should come on and remain on for 6 to
8 seconds as a bulb check when the ignition
switch is first turned ON. If the bulb is not lit
during starting, have it replaced. If the light stays on or
comes on while driving, have the system checked by an
authorized dealer.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49
2

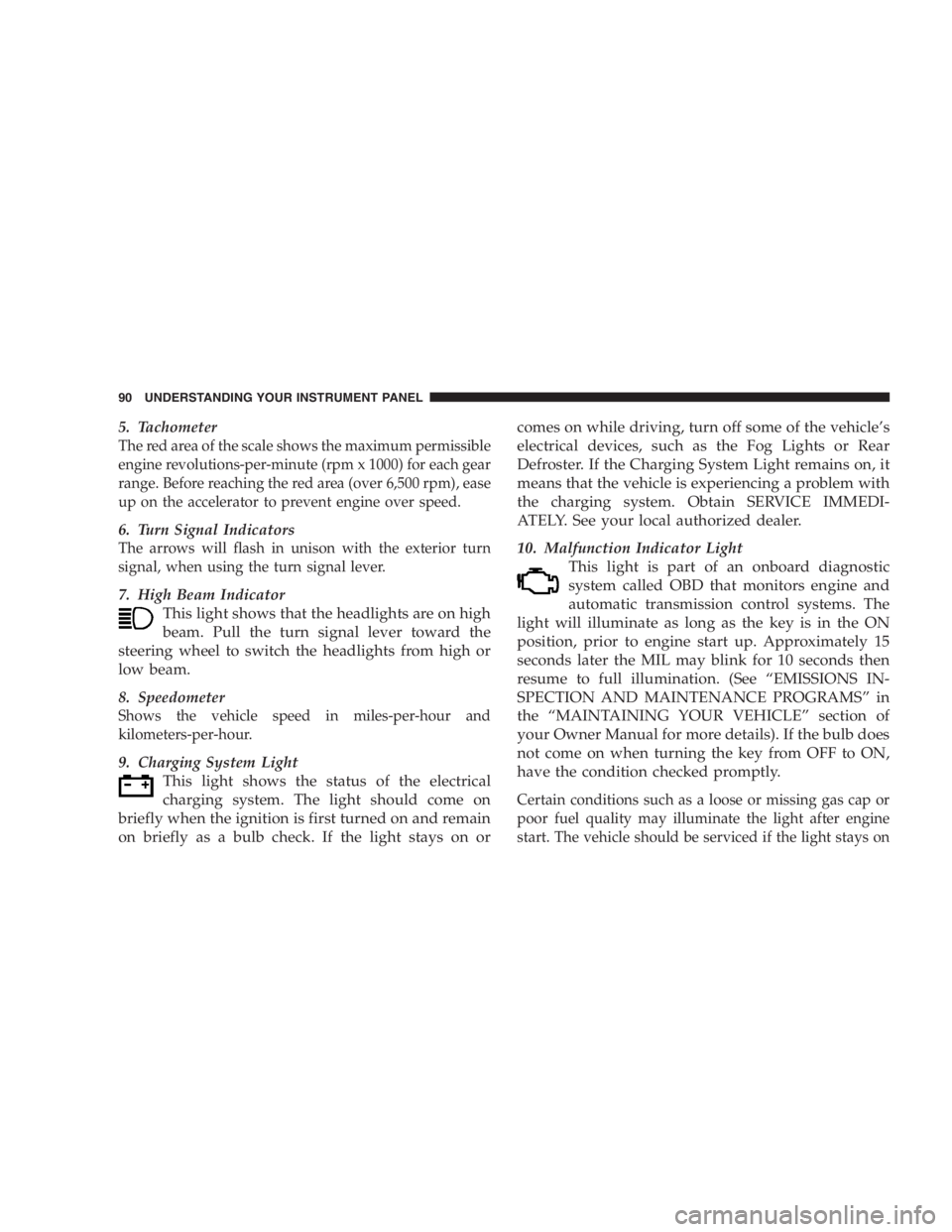

5. Tachometer
The red area of the scale shows the maximum permissible
engine revolutions-per-minute (rpm x 1000) for each gear
range. Before reaching the red area (over 6,500 rpm), ease
up on the accelerator to prevent engine over speed.
6. Turn Signal Indicators
The arrows will flash in unison with the exterior turn
signal, when using the turn signal lever.
7. High Beam Indicator
This light shows that the headlights are on high
beam. Pull the turn signal lever toward the
steering wheel to switch the headlights from high or
low beam.
8. Speedometer
Shows the vehicle speed in miles-per-hour and
kilometers-per-hour.
9. Charging System Light
This light shows the status of the electrical
charging system. The light should come on
briefly when the ignition is first turned on and remain
on briefly as a bulb check. If the light stays on orcomes on while driving, turn off some of the vehicle’s
electrical devices, such as the Fog Lights or Rear
Defroster. If the Charging System Light remains on, it
means that the vehicle is experiencing a problem with
the charging system. Obtain SERVICE IMMEDI-
ATELY. See your local authorized dealer.
10. Malfunction Indicator Light
This light is part of an onboard diagnostic
system called OBD that monitors engine and
automatic transmission control systems. The
light will illuminate as long as the key is in the ON
position, prior to engine start up. Approximately 15
seconds later the MIL may blink for 10 seconds then
resume to full illumination. (See“EMISSIONS IN-
SPECTION AND MAINTENANCE PROGRAMS”in
the“MAINTAINING YOUR VEHICLE”section of
your Owner Manual for more details). If the bulb does
not come on when turning the key from OFF to ON,
have the condition checked promptly.
Certain conditions such as a loose or missing gas cap or
poor fuel quality may illuminate the light after engine
start. The vehicle should be serviced if the light stays on
90 UNDERSTANDING YOUR INSTRUMENT PANEL

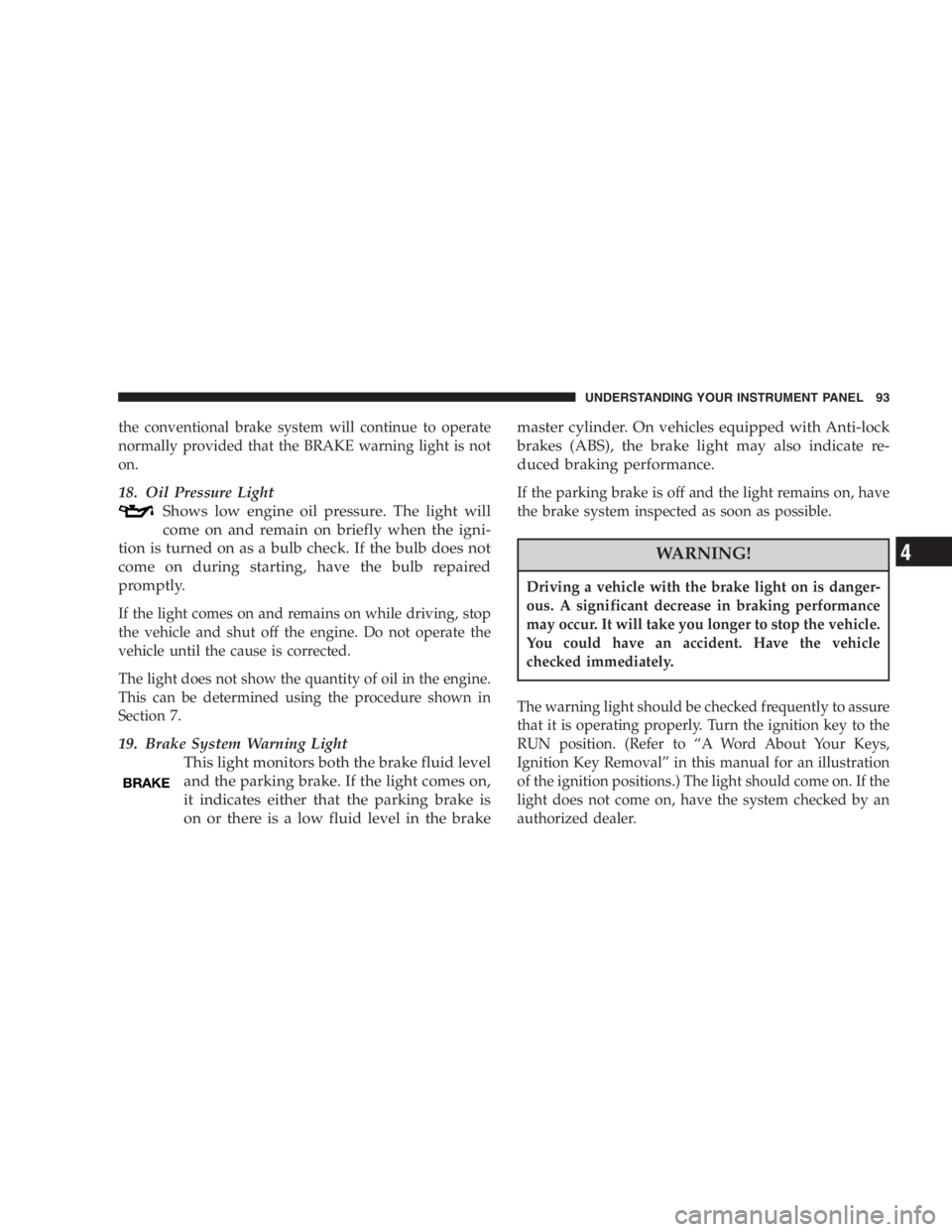

the conventional brake system will continue to operate
normally provided that the BRAKE warning light is not
on.
18. Oil Pressure Light
Shows low engine oil pressure. The light will
come on and remain on briefly when the igni-
tion is turned on as a bulb check. If the bulb does not
come on during starting, have the bulb repaired
promptly.
If the light comes on and remains on while driving, stop
the vehicle and shut off the engine. Do not operate the
vehicle until the cause is corrected.
The light does not show the quantity of oil in the engine.
This can be determined using the procedure shown in
Section 7.
19. Brake System Warning Light
This light monitors both the brake fluid level
and the parking brake. If the light comes on,
it indicates either that the parking brake is
on or there is a low fluid level in the brakemaster cylinder. On vehicles equipped with Anti-lock
brakes (ABS), the brake light may also indicate re-
duced braking performance.
If the parking brake is off and the light remains on, have
the brake system inspected as soon as possible.
WARNING!
Driving a vehicle with the brake light on is danger-
ous. A significant decrease in braking performance
may occur. It will take you longer to stop the vehicle.
You could have an accident. Have the vehicle
checked immediately.
The warning light should be checked frequently to assure
that it is operating properly. Turn the ignition key to the
RUN position. (Refer to“A Word About Your Keys,
Ignition Key Removal”in this manual for an illustration
of the ignition positions.) The light should come on. If the
light does not come on, have the system checked by an
authorized dealer.
UNDERSTANDING YOUR INSTRUMENT PANEL 93
4

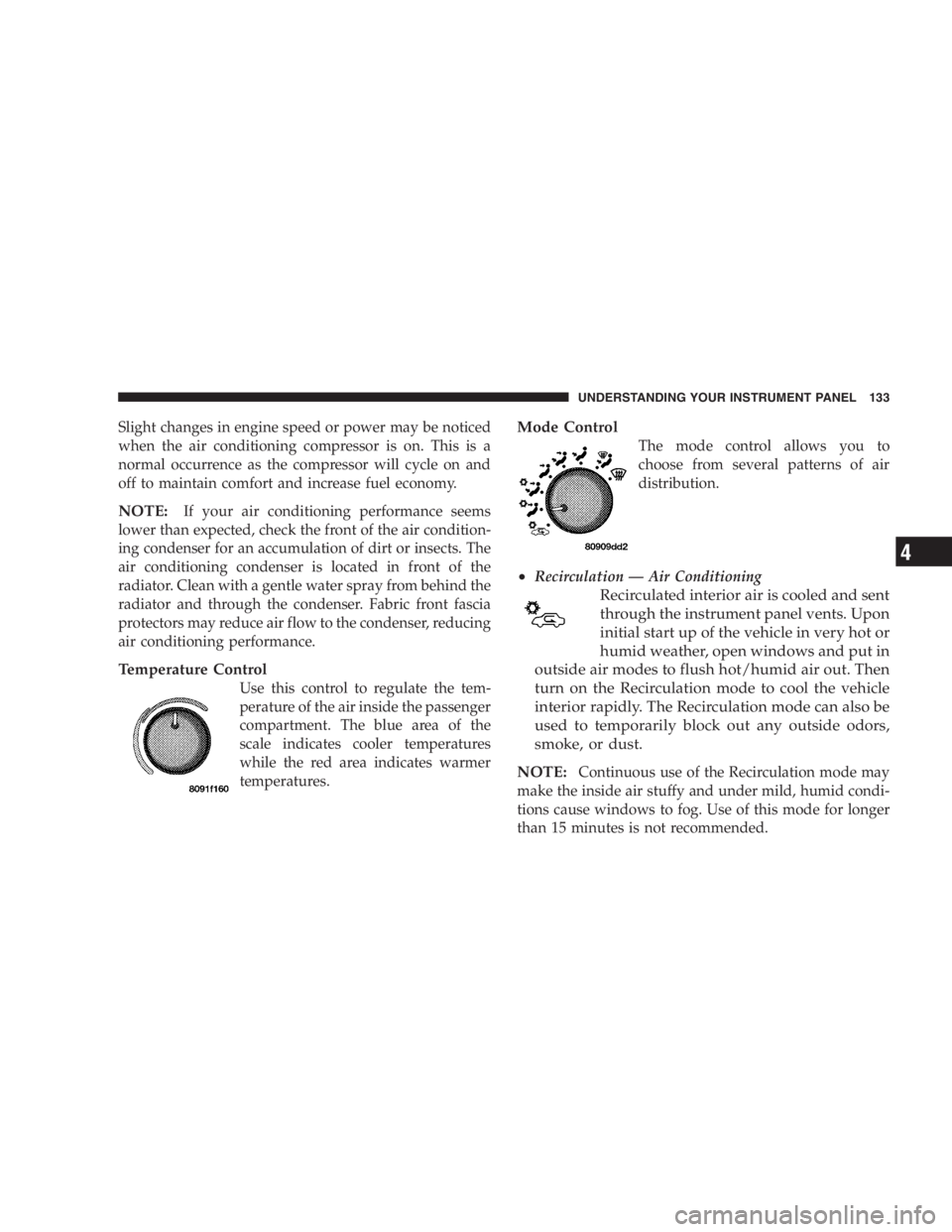

Slight changes in engine speed or power may be noticed
when the air conditioning compressor is on. This is a
normal occurrence as the compressor will cycle on and
off to maintain comfort and increase fuel economy.
NOTE:If your air conditioning performance seems
lower than expected, check the front of the air condition-
ing condenser for an accumulation of dirt or insects. The
air conditioning condenser is located in front of the
radiator. Clean with a gentle water spray from behind the
radiator and through the condenser. Fabric front fascia
protectors may reduce air flow to the condenser, reducing
air conditioning performance.
Temperature Control
Use this control to regulate the tem-
perature of the air inside the passenger
compartment. The blue area of the
scale indicates cooler temperatures
while the red area indicates warmer
temperatures.
Mode Control
The mode control allows you to
choose from several patterns of air
distribution.
•Recirculation—Air Conditioning
Recirculated interior air is cooled and sent
through the instrument panel vents. Upon
initial start up of the vehicle in very hot or
humid weather, open windows and put in
outside air modes to flush hot/humid air out. Then
turn on the Recirculation mode to cool the vehicle
interior rapidly. The Recirculation mode can also be
used to temporarily block out any outside odors,
smoke, or dust.
NOTE:
Continuous use of the Recirculation mode may
make the inside air stuffy and under mild, humid condi-
tions cause windows to fog. Use of this mode for longer
than 15 minutes is not recommended.
UNDERSTANDING YOUR INSTRUMENT PANEL 133
4

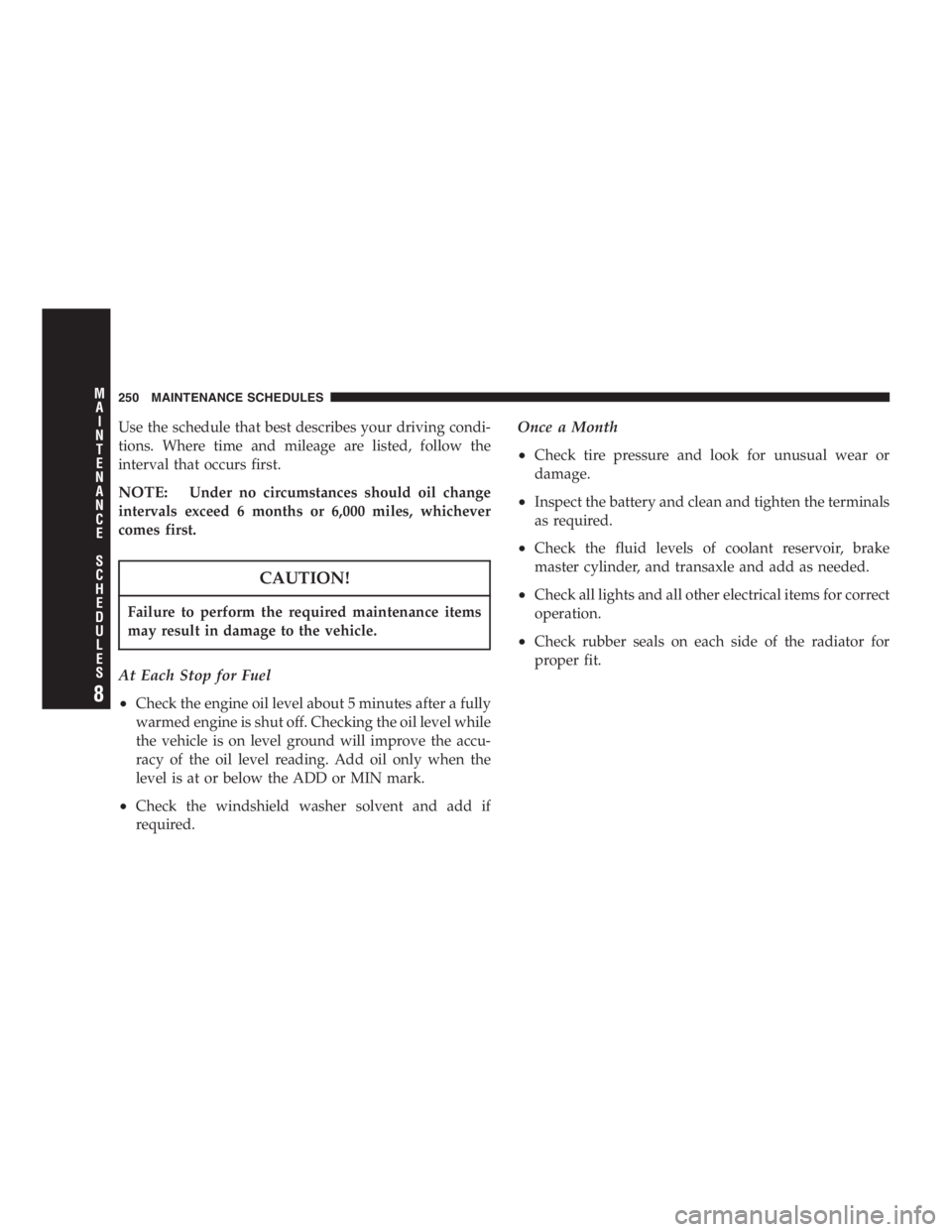

Use the schedule that best describes your driving condi-
tions. Where time and mileage are listed, follow the
interval that occurs first.
NOTE:Under no circumstances should oil change
intervals exceed 6 months or 6,000 miles, whichever
comes first.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
At Each Stop for Fuel
•
Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
Once a Month
•
Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, and transaxle and add as needed.
•Check all lights and all other electrical items for correct
operation.
•Check rubber seals on each side of the radiator for
proper fit.
250 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

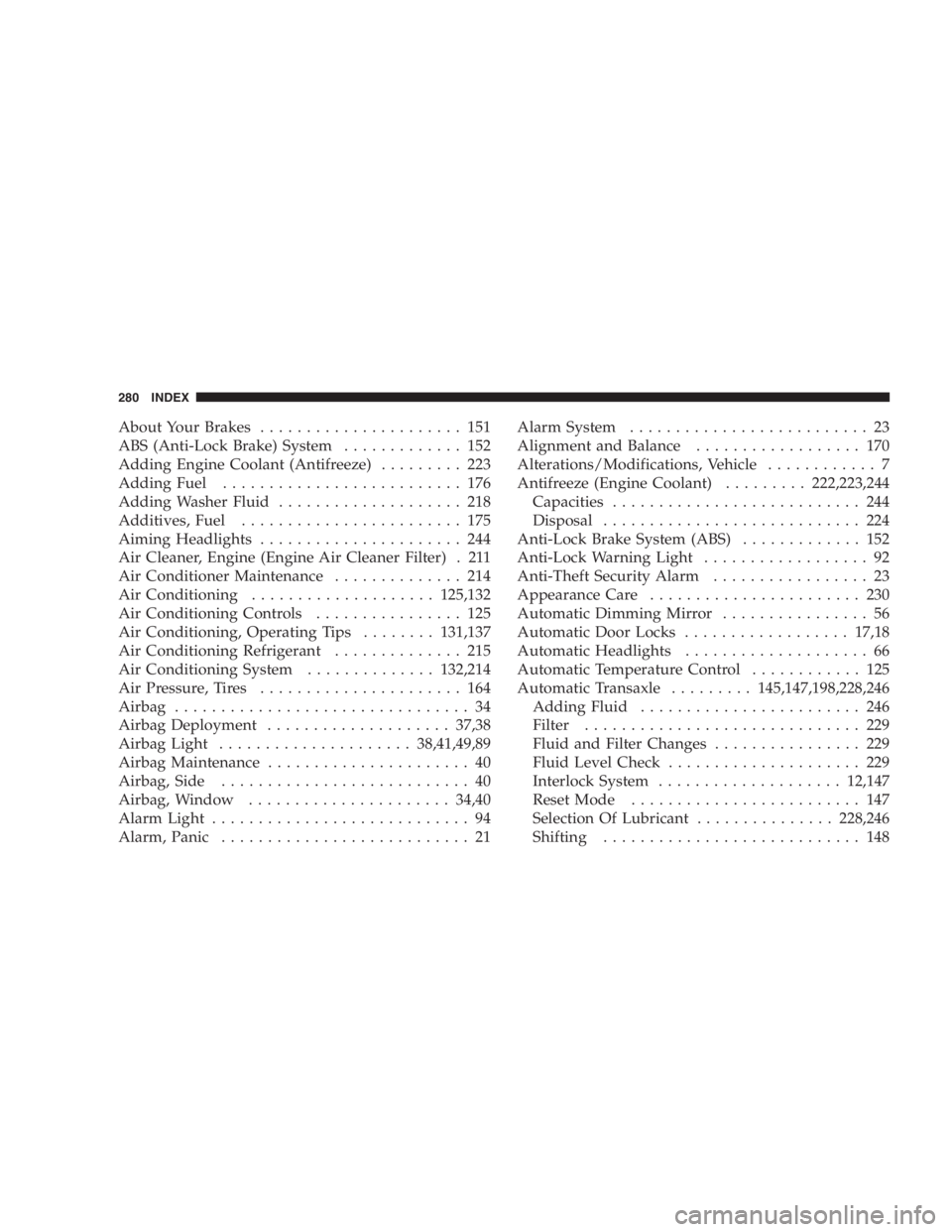

About Your Brakes...................... 151
ABS (Anti-Lock Brake) System............. 152
Adding Engine Coolant (Antifreeze)......... 223
Adding Fuel.......................... 176
Adding Washer Fluid.................... 218
Additives, Fuel........................ 175
Aiming Headlights...................... 244
Air Cleaner, Engine (Engine Air Cleaner Filter) . 211
Air Conditioner Maintenance.............. 214
Air Conditioning....................125,132
Air Conditioning Controls................ 125
Air Conditioning, Operating Tips........131,137
Air Conditioning Refrigerant.............. 215
Air Conditioning System..............132,214
Air Pressure, Tires...................... 164
Airbag................................ 34
Airbag Deployment....................37,38
Airbag Light.....................38,41,49,89
Airbag Maintenance...................... 40
Airbag, Side........................... 40
Airbag, Window......................34,40
Alarm Light............................ 94
Alarm, Panic........................... 21Alarm System.......................... 23
Alignment and Balance.................. 170
Alterations/Modifications, Vehicle............ 7
Antifreeze (Engine Coolant).........222,223,244
Capacities........................... 244
Disposal............................ 224
Anti-Lock Brake System (ABS)............. 152
Anti-Lock Warning Light.................. 92
Anti-Theft Security Alarm................. 23
Appearance Care....................... 230
Automatic Dimming Mirror................ 56
Automatic Door Locks..................17,18
Automatic Headlights.................... 66
Automatic Temperature Control............ 125
Automatic Transaxle.........145,147,198,228,246
Adding Fluid........................ 246
Filter.............................. 229
Fluid and Filter Changes................ 229
Fluid Level Check..................... 229
Interlock System....................12,147
Reset Mode......................... 147
Selection Of Lubricant...............228,246
Shifting............................ 148
280 INDEX

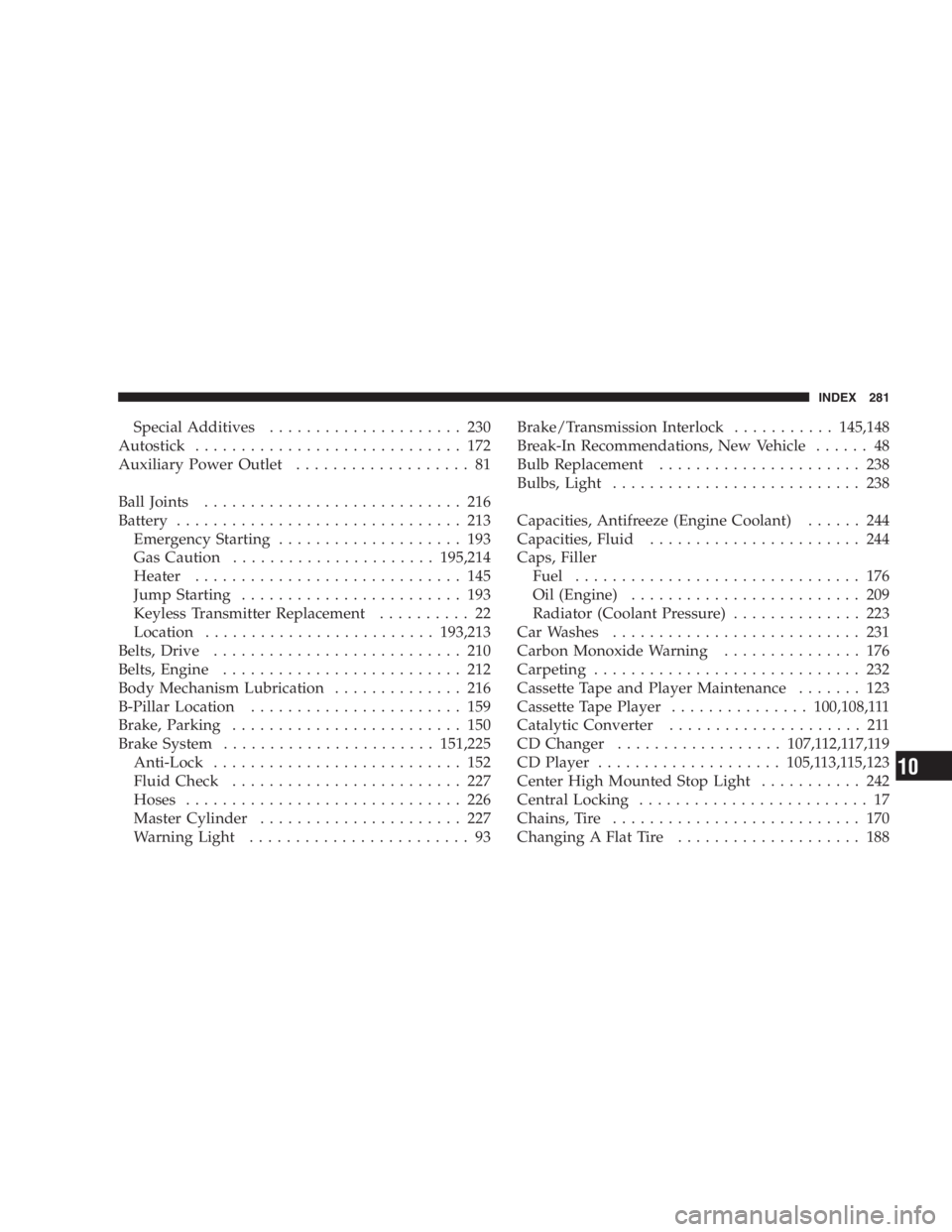

Special Additives..................... 230
Autostick............................. 172
Auxiliary Power Outlet................... 81
Ball Joints............................ 216
Battery............................... 213
Emergency Starting.................... 193
Gas Caution......................195,214
Heater............................. 145
Jump Starting........................ 193
Keyless Transmitter Replacement.......... 22
Location.........................193,213
Belts, Drive........................... 210
Belts, Engine.......................... 212
Body Mechanism Lubrication.............. 216
B-Pillar Location....................... 159
Brake, Parking......................... 150
Brake System.......................151,225
Anti-Lock........................... 152
Fluid Check......................... 227
Hoses.............................. 226
Master Cylinder...................... 227
Warning Light........................ 93Brake/Transmission Interlock...........145,148
Break-In Recommendations, New Vehicle...... 48
Bulb Replacement...................... 238
Bulbs, Light........................... 238
Capacities, Antifreeze (Engine Coolant)...... 244
Capacities, Fluid....................... 244
Caps, Filler
Fuel............................... 176
Oil (Engine)......................... 209
Radiator (Coolant Pressure).............. 223
Car Washes........................... 231
Carbon Monoxide Warning............... 176
Carpeting............................. 232
Cassette Tape and Player Maintenance....... 123
Cassette Tape Player...............100,108,111
Catalytic Converter..................... 211
CD Changer..................107,112,117,119
CD Player....................105,113,115,123
Center High Mounted Stop Light........... 242
Central Locking......................... 17
Chains, Tire........................... 170
Changing A Flat Tire.................... 188
INDEX 281
10

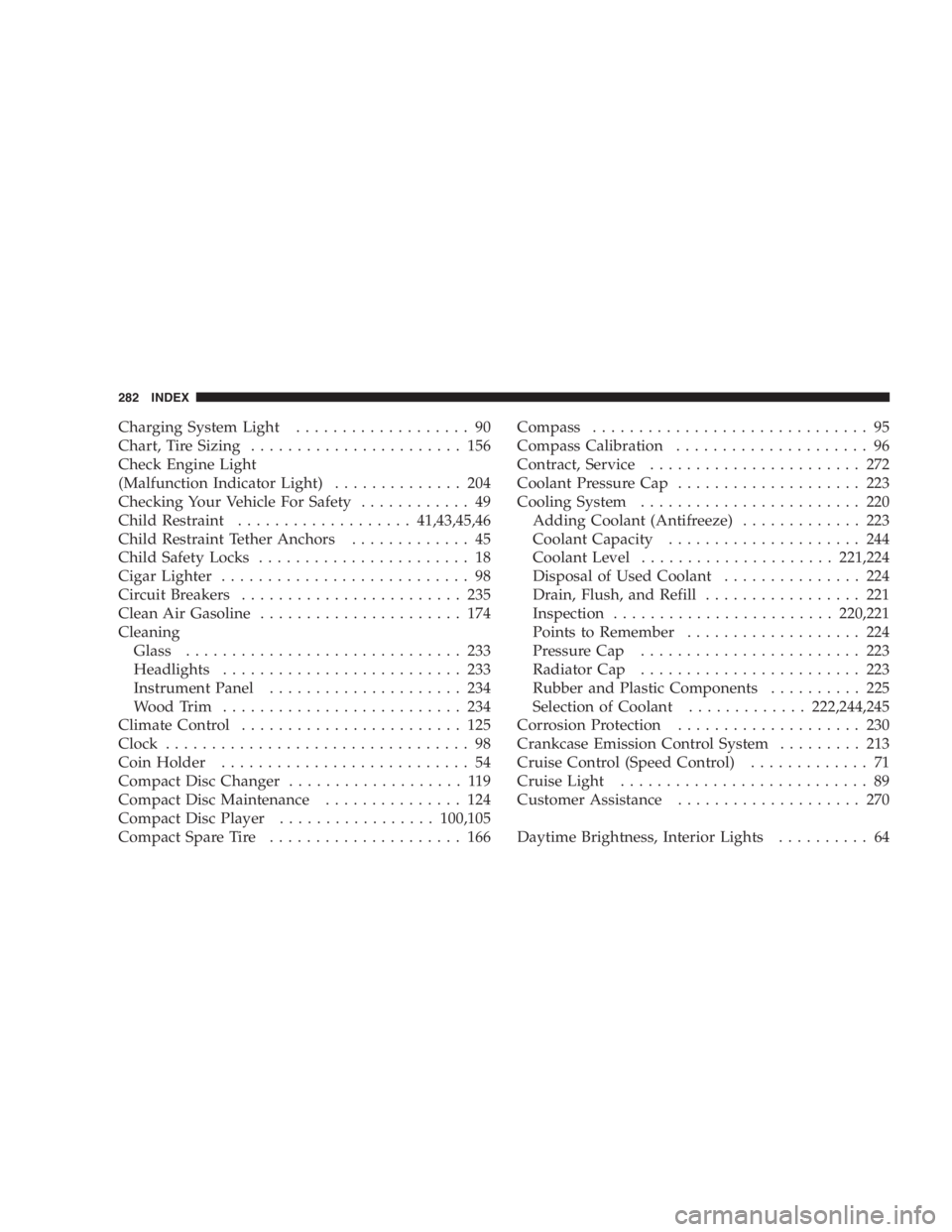

Charging System Light................... 90
Chart, Tire Sizing....................... 156
Check Engine Light
(Malfunction Indicator Light).............. 204
Checking Your Vehicle For Safety............ 49
Child Restraint...................41,43,45,46
Child Restraint Tether Anchors............. 45
Child Safety Locks....................... 18
Cigar Lighter........................... 98
Circuit Breakers........................ 235
Clean Air Gasoline...................... 174
Cleaning
Glass.............................. 233
Headlights.......................... 233
Instrument Panel..................... 234
WoodTrim .......................... 234
Climate Control........................ 125
Clock................................. 98
Coin Holder........................... 54
Compact Disc Changer................... 119
Compact Disc Maintenance............... 124
Compact Disc Player.................100,105
Compact Spare Tire..................... 166Compass.............................. 95
Compass Calibration..................... 96
Contract, Service....................... 272
Coolant Pressure Cap.................... 223
Cooling System........................ 220
Adding Coolant (Antifreeze)............. 223
Coolant Capacity..................... 244
Coolant Level.....................221,224
Disposal of Used Coolant............... 224
Drain, Flush, and Refill................. 221
Inspection........................220,221
Points to Remember................... 224
Pressure Cap........................ 223
Radiator Cap........................ 223
Rubber and Plastic Components.......... 225
Selection of Coolant.............222,244,245
Corrosion Protection.................... 230
Crankcase Emission Control System......... 213
Cruise Control (Speed Control)............. 71
Cruise Light........................... 89
Customer Assistance.................... 270
Daytime Brightness, Interior Lights.......... 64
282 INDEX

Daytime Running Lights.................. 67
Dealer Service......................... 205
Defroster, Rear Window.................. 135
Defroster, Windshield...............50,128,134
Diagnostic System, Onboard............... 203
Dimmer Control........................ 64
Dimmer Switch, Headlight................. 67
Dipsticks
Automatic Transaxle................... 229
Disposal
Antifreeze (Engine Coolant)............. 224
Engine Oil.......................... 210
Door Ajar Warning...................... 17
Door Locks............................ 15
Door Locks, Automatic................... 17
Door Opener, Garage..................... 74
Drive Belts............................ 210
Driving
On Slippery Surfaces.................. 196
Electrical Outlet, Auxiliary................. 81
Electrical Power Outlets................... 81
Electronic Speed Control.................. 71Emergency, In Case of
Freeing Vehicle When Stuck............. 197
Jacking............................. 188
Jump Starting........................ 193
Overheating......................... 186
Towing............................. 197
Emergency Trunk Release...............24,25
Emission Control System Maintenance....204,248
Engine............................201,202
Air Cleaner Filter..................... 211
Block Heater......................... 145
Break-In Recommendations............... 48
Checking Oil Level.................... 206
Compartment.....................201,202
Coolant (Antifreeze)................221,245
Cooling............................ 220
Exhaust Gas Caution.................. 176
Fails to Start......................... 144
Fuel Requirements.................173,244
Oil ..........................206,244,245
Oil Change Interval................... 207
Oil Selection......................208,244
Oil Synthetic......................... 209
INDEX 283
10
