WARNING!
You can be badly injured working on or around a
motor vehicle. Do only that service work for which
you have the knowledge and the proper equipment.
If you have any doubt about your ability to perform
a service job, take your vehicle to a competent
mechanic.
MAINTENANCE PROCEDURES
The pages that follow contain therequiredmaintenance
services determined by the engineers who designed your
vehicle.
Besides the maintenance items for which there are fixed
maintenance intervals, there are other items that should
operate satisfactorily without periodic maintenance.
However, if a malfunction of these items does occur, it
could adversely affect the engine or vehicle performance.
These items should be inspected if a malfunction is
observed or suspected.
Engine Oil
Checking Oil Level
To assure proper lubrication of your vehicle’s engine, the
engine oil must be maintained, at the correct level. Check
the oil level at regular intervals, such as every fuel stop.
The best time to check the oil level is about 5 minutes
after a fully warmed engine is shut off or before starting
the engine after it has sat overnight.
Checking the oil while the vehicle is on level ground will
improve the accuracy of the oil level readings. Maintain
the oil level between the MIN and MAX markings on the
dipstick. Adding one quart of oil when the reading is at
the MIN mark will result in a MAX reading on these
engines.
206 MAINTAINING YOUR VEHICLE

through the condenser as required. Fabric front fascia
protectors may reduce air flow to the condenser, reducing
air conditioning performance.
WARNING!
•Use only refrigerants and compressor lubricants
approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause
the system to fail, requiring costly repairs. Refer
to Section 3 of the Warranty Information book for
further warranty information.
•The air conditioning system contains refrigerant
under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced repairman.
Refrigerant Recovery and Recycling
R-134a Air Conditioning Refrigerant is a hydrofluorocar-
bon (HFC) that is endorsed by the Environmental Pro-
tection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by dealers or other service facilities
using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C System
Sealers, Stop Leak Products, Seal Conditioners, Compres-
sor Oil, or Refrigerants.
Power Steering—Fluid Check
Checking the power steering fluid level at a defined
service interval is not required. The fluid should only be
checked if a leak is suspected, abnormal noises are
apparent, and/or the system is not functioning as antici-
pated. Coordinate inspection efforts through a certified
DaimlerChrysler Dealership.
Before removing the reservoir cap, wipe the outside of
the cap and reservoir so that no dirt can fall into the
reservoir.
MAINTAINING YOUR VEHICLE 215
7

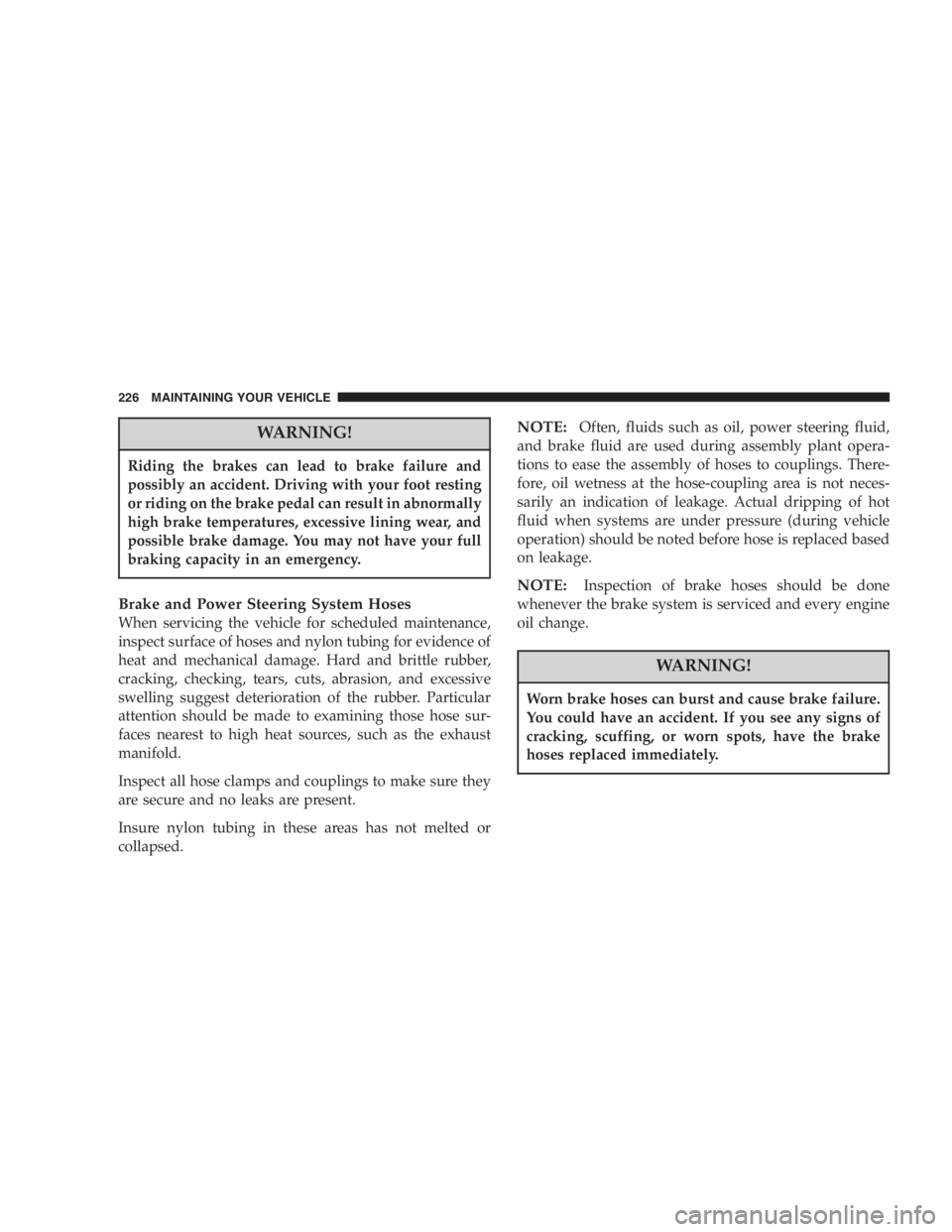

WARNING!
Riding the brakes can lead to brake failure and
possibly an accident. Driving with your foot resting
or riding on the brake pedal can result in abnormally
high brake temperatures, excessive lining wear, and
possible brake damage. You may not have your full
braking capacity in an emergency.
Brake and Power Steering System Hoses
When servicing the vehicle for scheduled maintenance,
inspect surface of hoses and nylon tubing for evidence of
heat and mechanical damage. Hard and brittle rubber,
cracking, checking, tears, cuts, abrasion, and excessive
swelling suggest deterioration of the rubber. Particular
attention should be made to examining those hose sur-
faces nearest to high heat sources, such as the exhaust
manifold.
Inspect all hose clamps and couplings to make sure they
are secure and no leaks are present.
Insure nylon tubing in these areas has not melted or
collapsed.
NOTE:Often, fluids such as oil, power steering fluid,
and brake fluid are used during assembly plant opera-
tions to ease the assembly of hoses to couplings. There-
fore, oil wetness at the hose-coupling area is not neces-
sarily an indication of leakage. Actual dripping of hot
fluid when systems are under pressure (during vehicle
operation) should be noted before hose is replaced based
on leakage.
NOTE:Inspection of brake hoses should be done
whenever the brake system is serviced and every engine
oil change.
WARNING!
Worn brake hoses can burst and cause brake failure.
You could have an accident. If you see any signs of
cracking, scuffing, or worn spots, have the brake
hoses replaced immediately.
226 MAINTAINING YOUR VEHICLE

Use the schedule that best describes your driving condi-
tions. Where time and mileage are listed, follow the
interval that occurs first.
NOTE:Under no circumstances should oil change
intervals exceed 6 months or 6,000 miles, whichever
comes first.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
At Each Stop for Fuel
•
Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
Once a Month
•
Check tire pressure and look for unusual wear or
damage.
•Inspect the battery and clean and tighten the terminals
as required.
•Check the fluid levels of coolant reservoir, brake
master cylinder, and transaxle and add as needed.
•Check all lights and all other electrical items for correct
operation.
•Check rubber seals on each side of the radiator for
proper fit.
250 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Daytime Running Lights.................. 67
Dealer Service......................... 205
Defroster, Rear Window.................. 135
Defroster, Windshield...............50,128,134
Diagnostic System, Onboard............... 203
Dimmer Control........................ 64
Dimmer Switch, Headlight................. 67
Dipsticks
Automatic Transaxle................... 229
Disposal
Antifreeze (Engine Coolant)............. 224
Engine Oil.......................... 210
Door Ajar Warning...................... 17
Door Locks............................ 15
Door Locks, Automatic................... 17
Door Opener, Garage..................... 74
Drive Belts............................ 210
Driving
On Slippery Surfaces.................. 196
Electrical Outlet, Auxiliary................. 81
Electrical Power Outlets................... 81
Electronic Speed Control.................. 71Emergency, In Case of
Freeing Vehicle When Stuck............. 197
Jacking............................. 188
Jump Starting........................ 193
Overheating......................... 186
Towing............................. 197
Emergency Trunk Release...............24,25
Emission Control System Maintenance....204,248
Engine............................201,202
Air Cleaner Filter..................... 211
Block Heater......................... 145
Break-In Recommendations............... 48
Checking Oil Level.................... 206
Compartment.....................201,202
Coolant (Antifreeze)................221,245
Cooling............................ 220
Exhaust Gas Caution.................. 176
Fails to Start......................... 144
Fuel Requirements.................173,244
Oil ..........................206,244,245
Oil Change Interval................... 207
Oil Selection......................208,244
Oil Synthetic......................... 209
INDEX 283
10

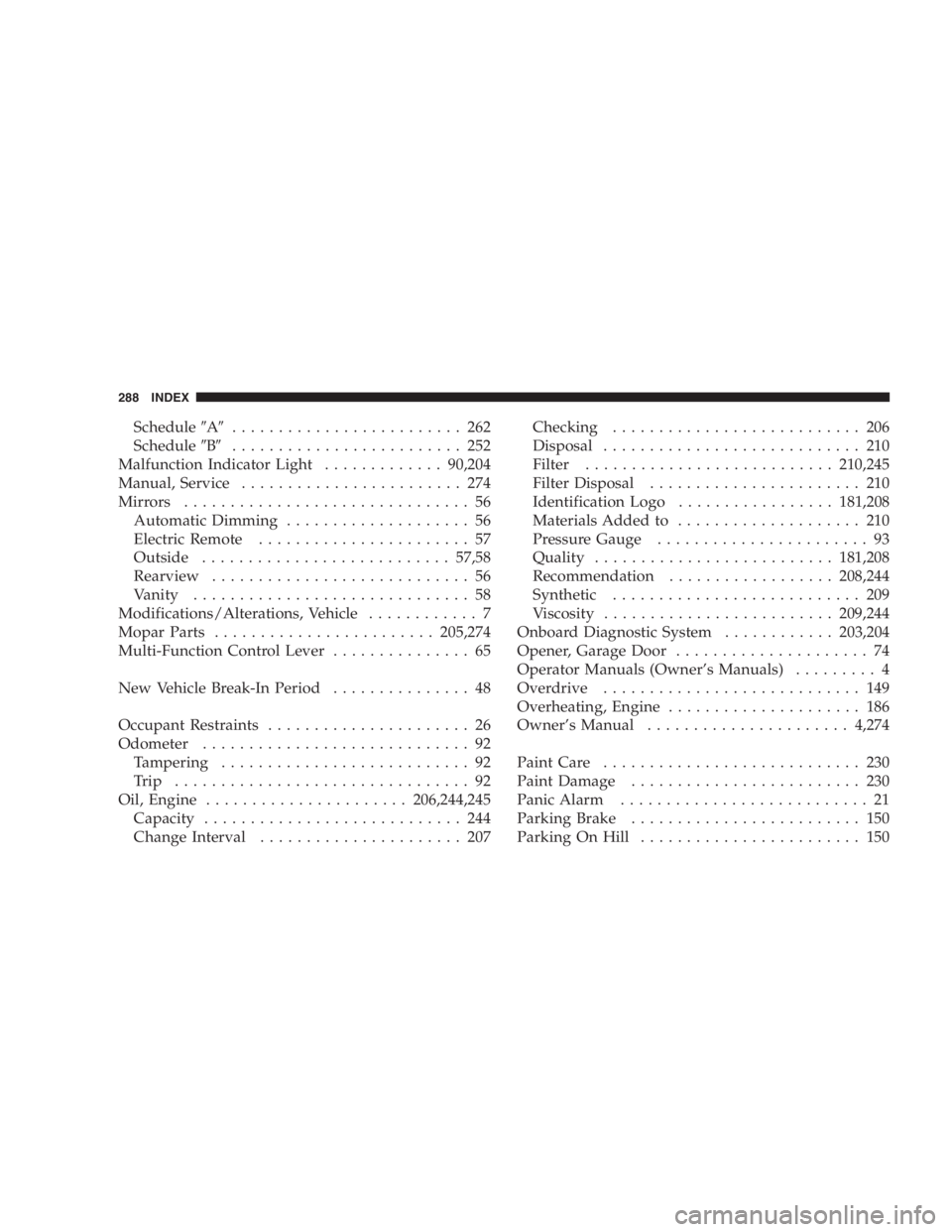

ScheduleA......................... 262
ScheduleB......................... 252
Malfunction Indicator Light.............90,204
Manual, Service........................ 274
Mirrors............................... 56
Automatic Dimming.................... 56
Electric Remote....................... 57
Outside...........................57,58
Rearview............................ 56
Vanity.............................. 58
Modifications/Alterations, Vehicle............ 7
Mopar Parts........................205,274
Multi-Function Control Lever............... 65
New Vehicle Break-In Period............... 48
Occupant Restraints...................... 26
Odometer............................. 92
Tampering........................... 92
Trip ................................ 92
Oil, Engine......................206,244,245
Capacity............................ 244
Change Interval...................... 207Checking........................... 206
Disposal............................ 210
Filter...........................210,245
Filter Disposal....................... 210
Identification Logo.................181,208
Materials Added to.................... 210
Pressure Gauge....................... 93
Quality..........................181,208
Recommendation..................208,244
Synthetic........................... 209
Viscosity.........................209,244
Onboard Diagnostic System............203,204
Opener, Garage Door..................... 74
Operator Manuals (Owner’s Manuals)......... 4
Overdrive............................ 149
Overheating, Engine..................... 186
Owner’s Manual......................4,274
Paint Care............................ 230
Paint Damage......................... 230
Panic Alarm........................... 21
Parking Brake......................... 150
Parking On Hill........................ 150
288 INDEX
