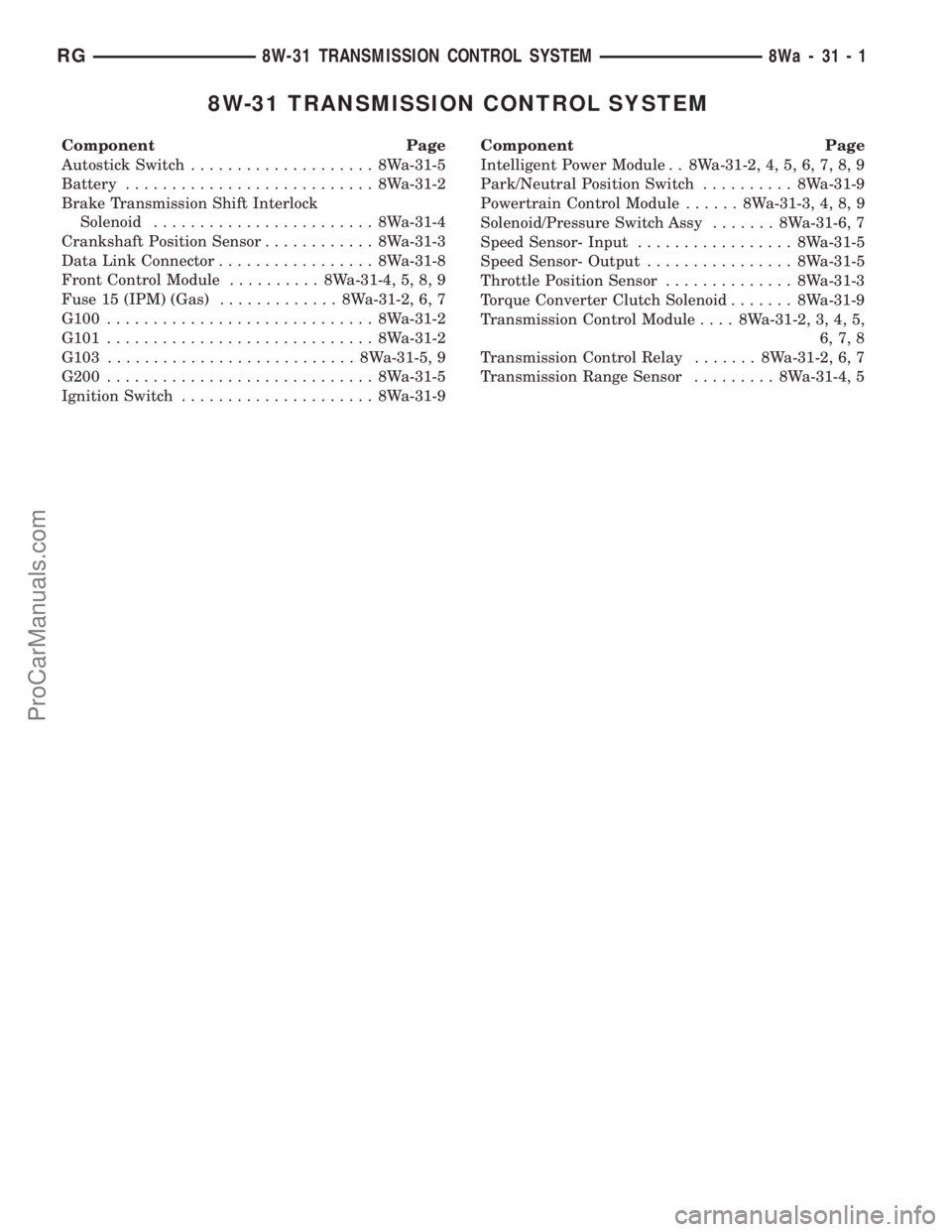

8W-31 TRANSMISSION CONTROL SYSTEM
Component Page
Autostick Switch.................... 8Wa-31-5
Battery........................... 8Wa-31-2
Brake Transmission Shift Interlock
Solenoid........................ 8Wa-31-4
Crankshaft Position Sensor............ 8Wa-31-3
Data Link Connector................. 8Wa-31-8
Front Control Module.......... 8Wa-31-4, 5, 8, 9
Fuse 15 (IPM) (Gas)............. 8Wa-31-2, 6, 7
G100............................. 8Wa-31-2
G101............................. 8Wa-31-2
G103........................... 8Wa-31-5, 9
G200............................. 8Wa-31-5
Ignition Switch..................... 8Wa-31-9Component Page
Intelligent Power Module . . 8Wa-31-2, 4, 5, 6, 7, 8, 9
Park/Neutral Position Switch.......... 8Wa-31-9
Powertrain Control Module...... 8Wa-31-3, 4, 8, 9
Solenoid/Pressure Switch Assy....... 8Wa-31-6, 7
Speed Sensor- Input................. 8Wa-31-5
Speed Sensor- Output................ 8Wa-31-5
Throttle Position Sensor.............. 8Wa-31-3
Torque Converter Clutch Solenoid....... 8Wa-31-9
Transmission Control Module.... 8Wa-31-2, 3, 4, 5,
6, 7, 8
Transmission Control Relay....... 8Wa-31-2, 6, 7
Transmission Range Sensor......... 8Wa-31-4, 5
RG8W-31 TRANSMISSION CONTROL SYSTEM8Wa-31-1
