DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 12 2.5 LITER DIESEL ENGINE REAR 8W - 91 - 24 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1172 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 13 3.3-3.8 LITER ENGINE REAR RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-25 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1173 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 14 3.3-3.8 LITER ENGINE FRONT 8W - 91 - 26 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1174 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 15 INSTRUMENT PANEL HARNESS LHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-27 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1175 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 16 LEFT SIDE INSTRUMENT PANEL LHD 8W - 91 - 28 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1176 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 17 STEERING COLUMN RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-29 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1177 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 18 CENTER INSTRUMENT PANEL 8W - 91 - 30 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1178 of 2399

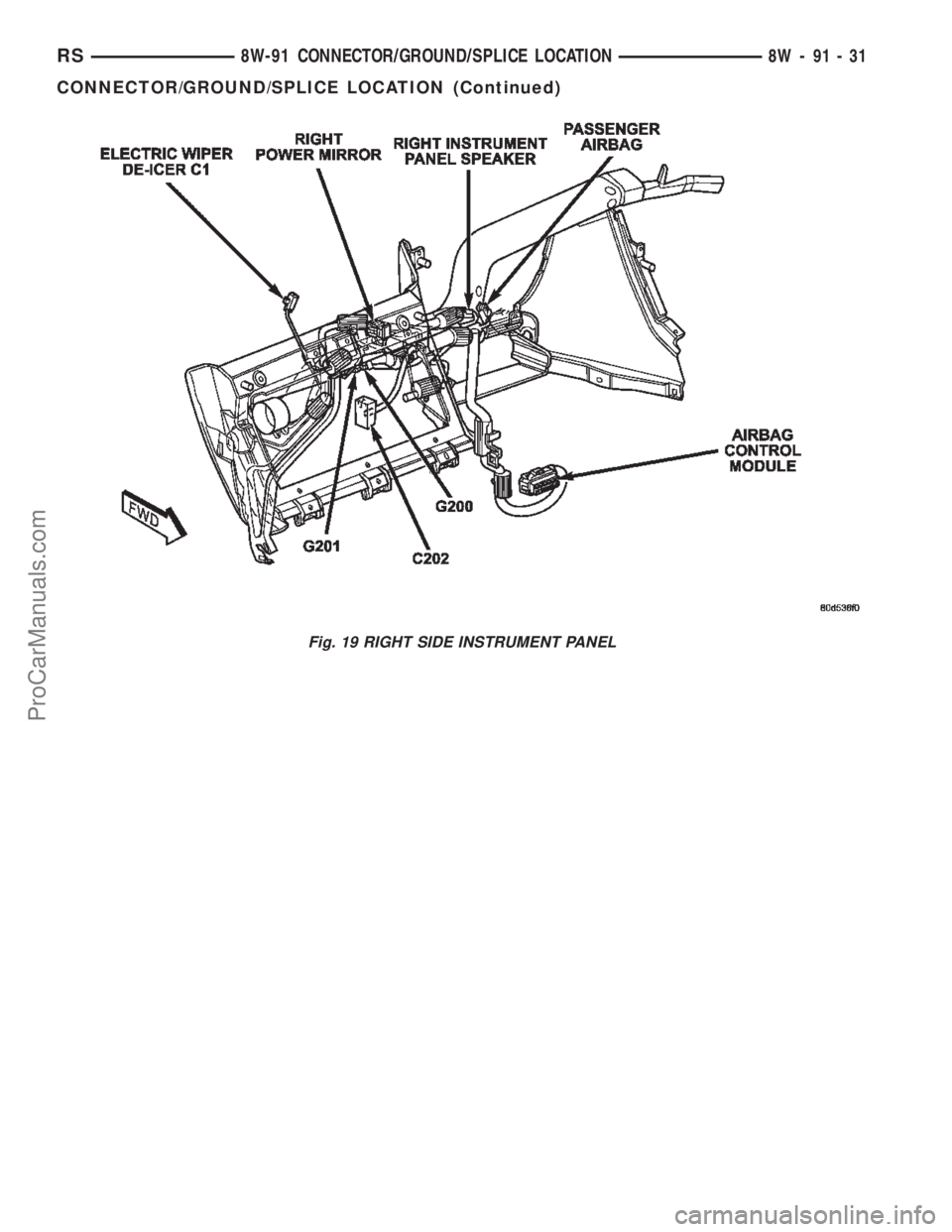

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 19 RIGHT SIDE INSTRUMENT PANEL RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-31 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1179 of 2399

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 20 CENTER INSTRUMENT PANEL RHD 8W - 91 - 32 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1180 of 2399

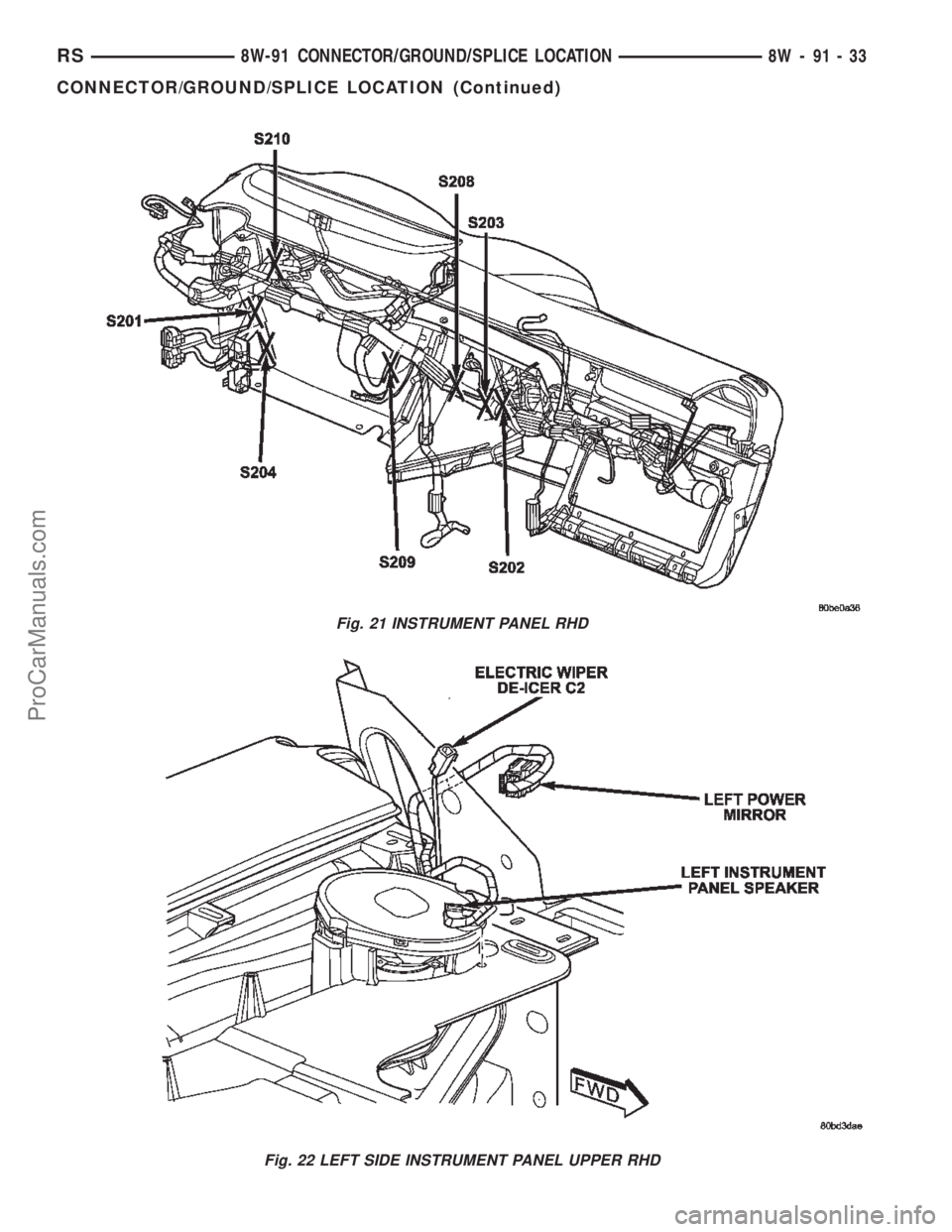

DODGE TOWN AND COUNTRY 2002 Service Manual Fig. 21 INSTRUMENT PANEL RHD Fig. 22 LEFT SIDE INSTRUMENT PANEL UPPER RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-33 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com
