DODGE TOWN AND COUNTRY 2002 Service Manual

Fig. 118 INNER WINDSHIELD FRAME
23 - 208 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

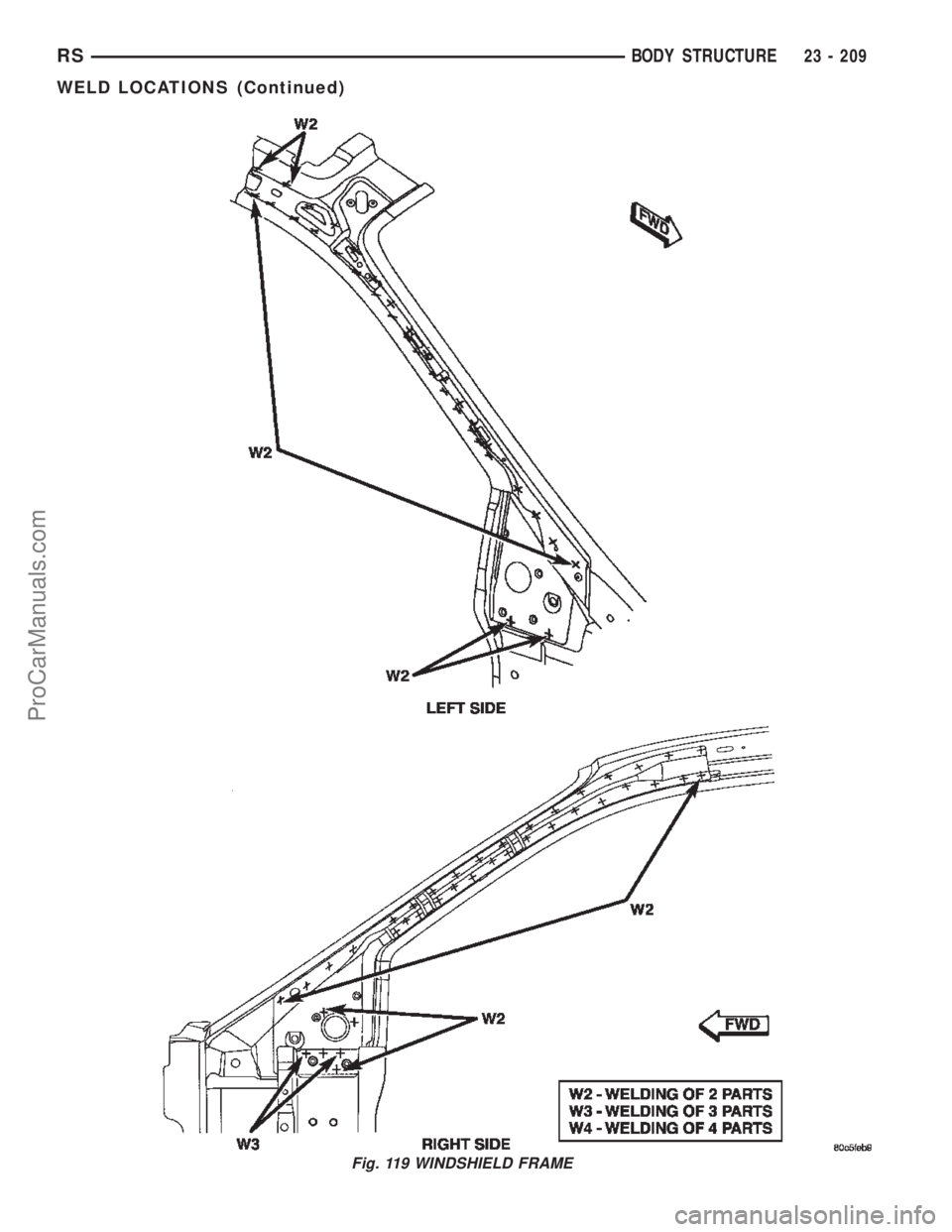

Fig. 119 WINDSHIELD FRAME
RSBODY STRUCTURE23 - 209
WELD LOCATIONS (Continued)
ProCarManuals.com

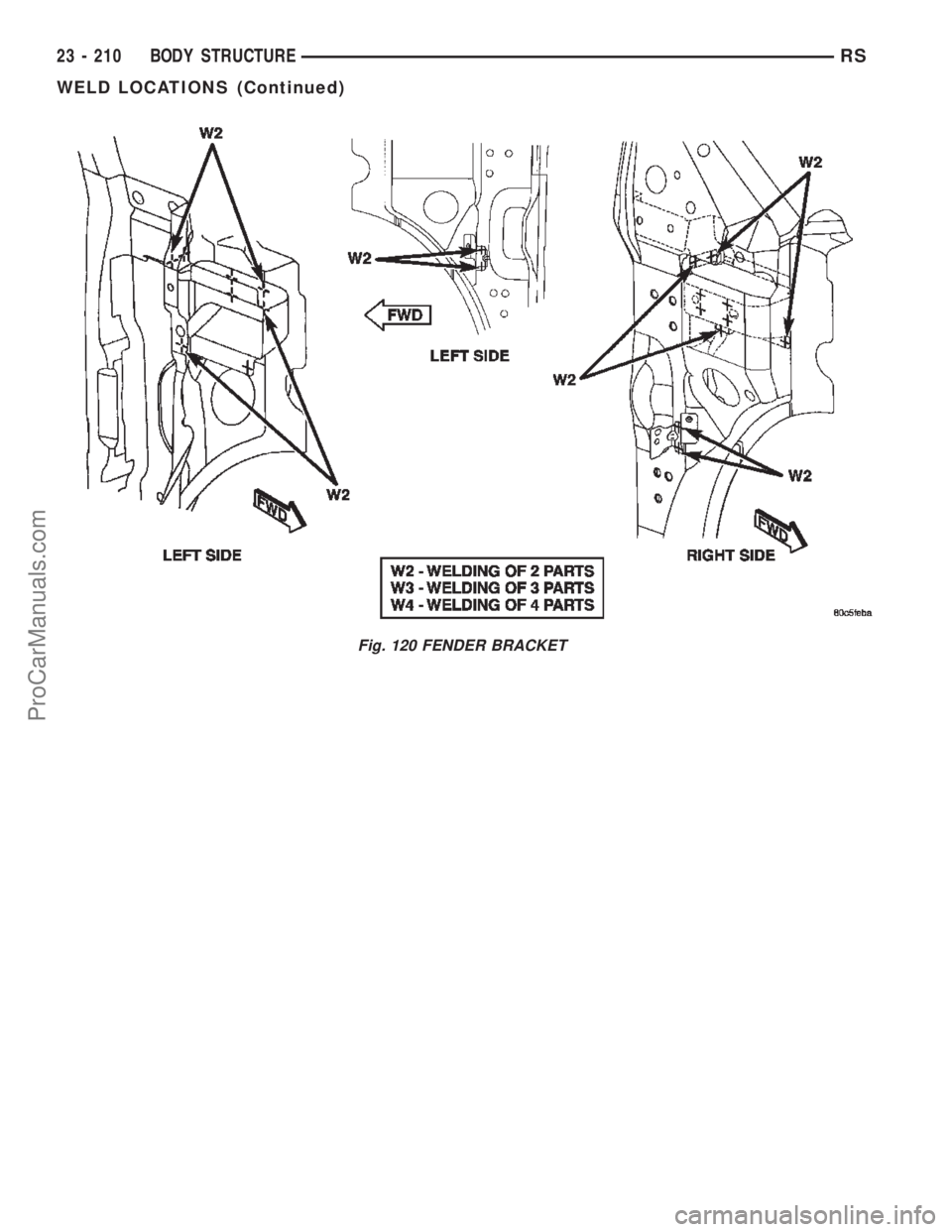

Fig. 120 FENDER BRACKET
23 - 210 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

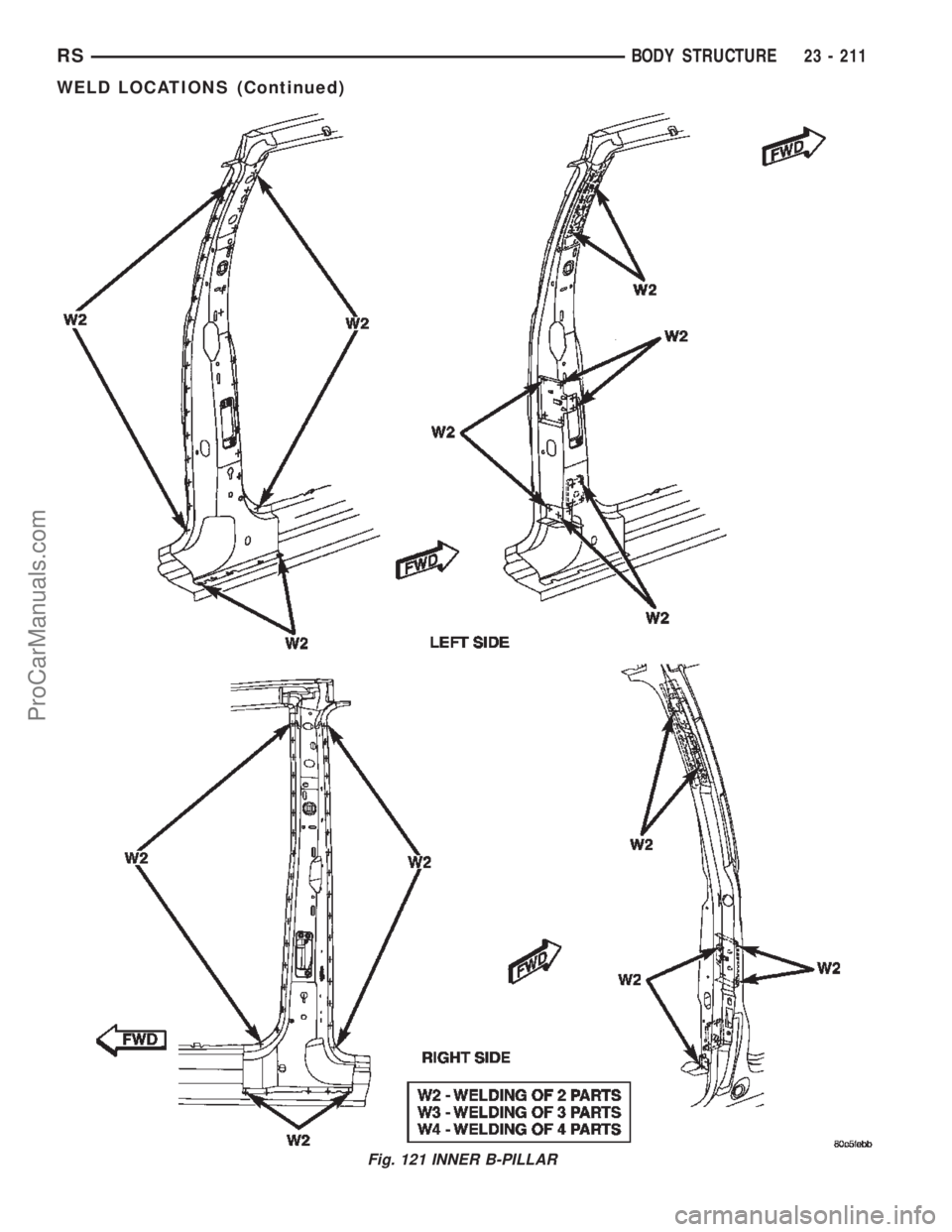

Fig. 121 INNER B-PILLAR
RSBODY STRUCTURE23 - 211
WELD LOCATIONS (Continued)
ProCarManuals.com

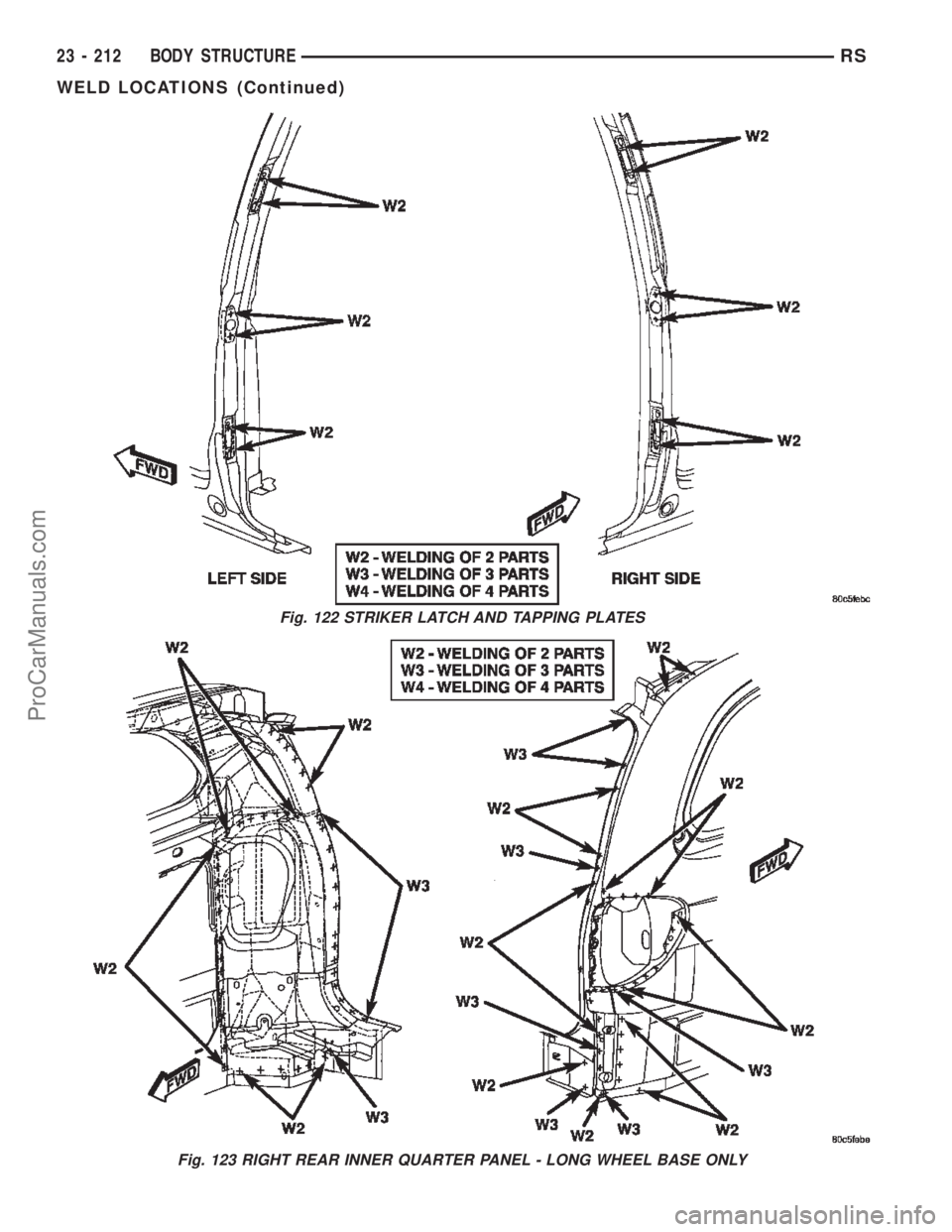

Fig. 122 STRIKER LATCH AND TAPPING PLATES
Fig. 123 RIGHT REAR INNER QUARTER PANEL - LONG WHEEL BASE ONLY
23 - 212 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

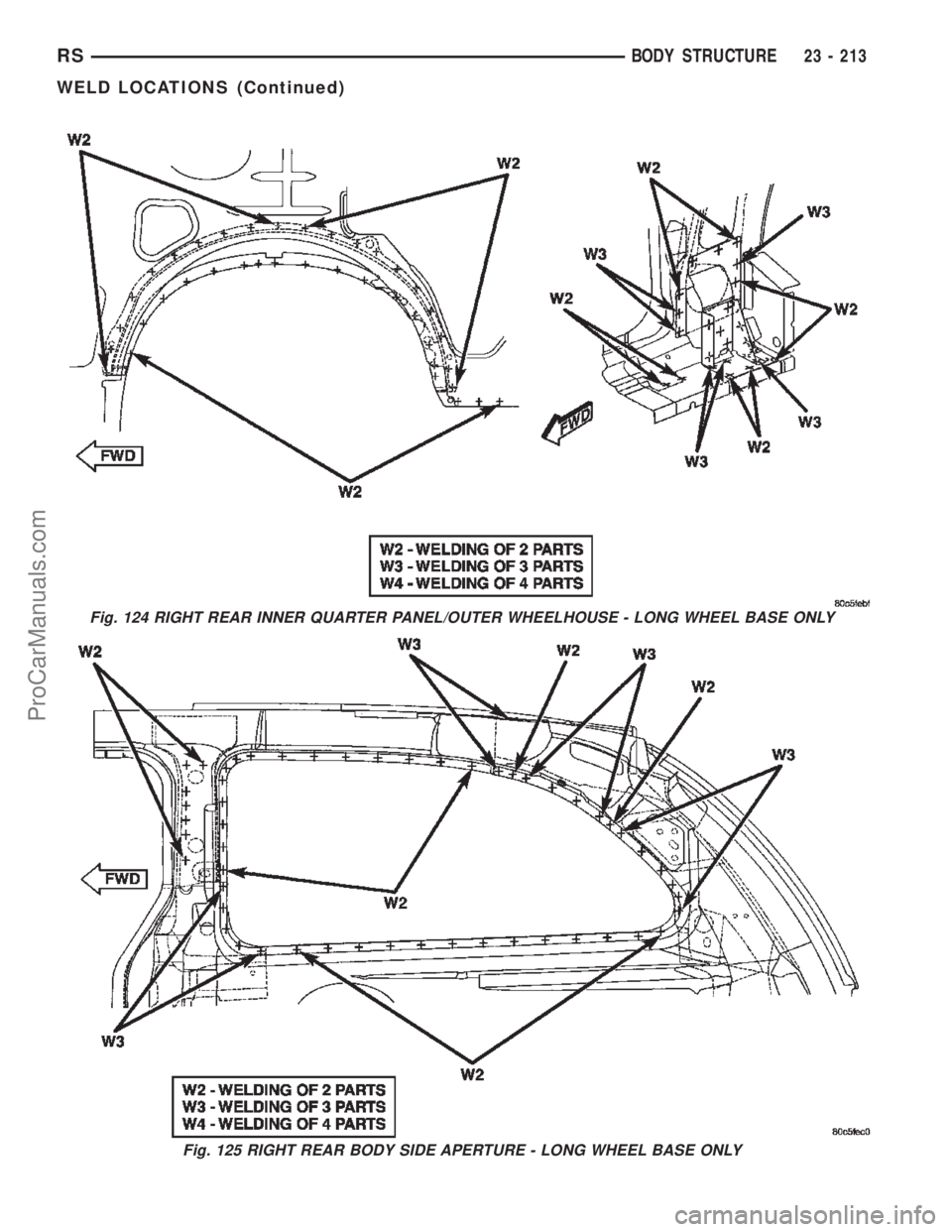

Fig. 124 RIGHT REAR INNER QUARTER PANEL/OUTER WHEELHOUSE - LONG WHEEL BASE ONLY
Fig. 125 RIGHT REAR BODY SIDE APERTURE - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 213
WELD LOCATIONS (Continued)
ProCarManuals.com

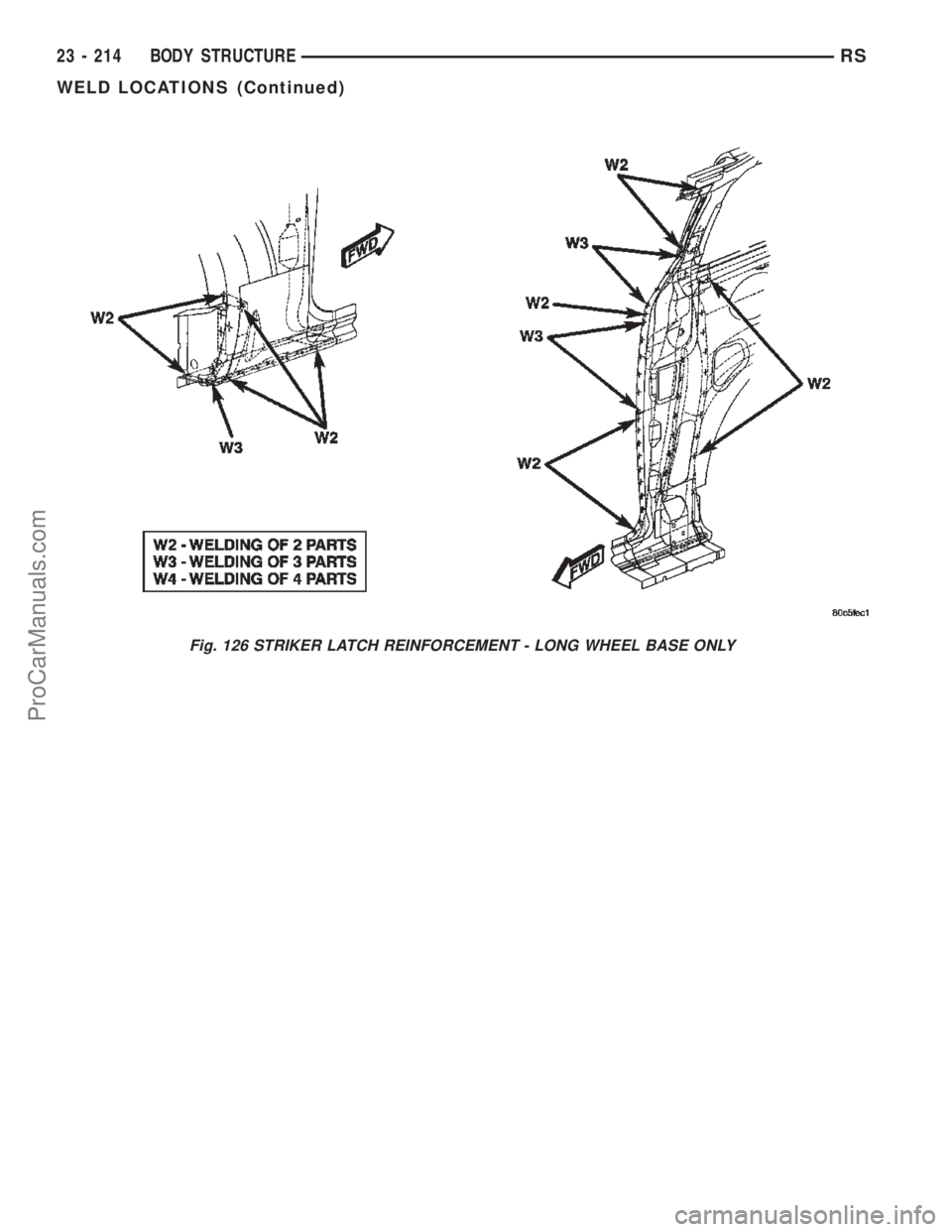

Fig. 126 STRIKER LATCH REINFORCEMENT - LONG WHEEL BASE ONLY
23 - 214 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

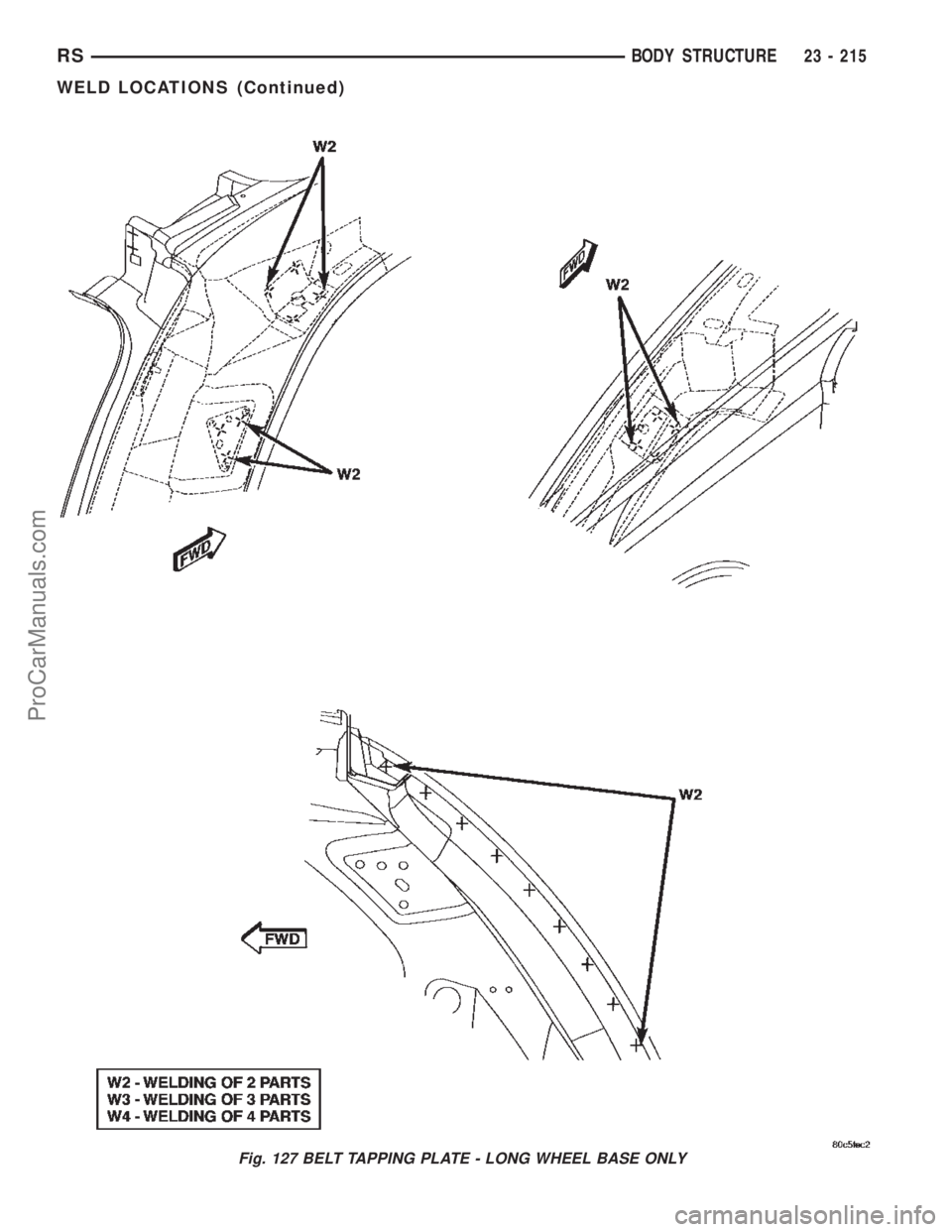

Fig. 127 BELT TAPPING PLATE - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 215
WELD LOCATIONS (Continued)
ProCarManuals.com

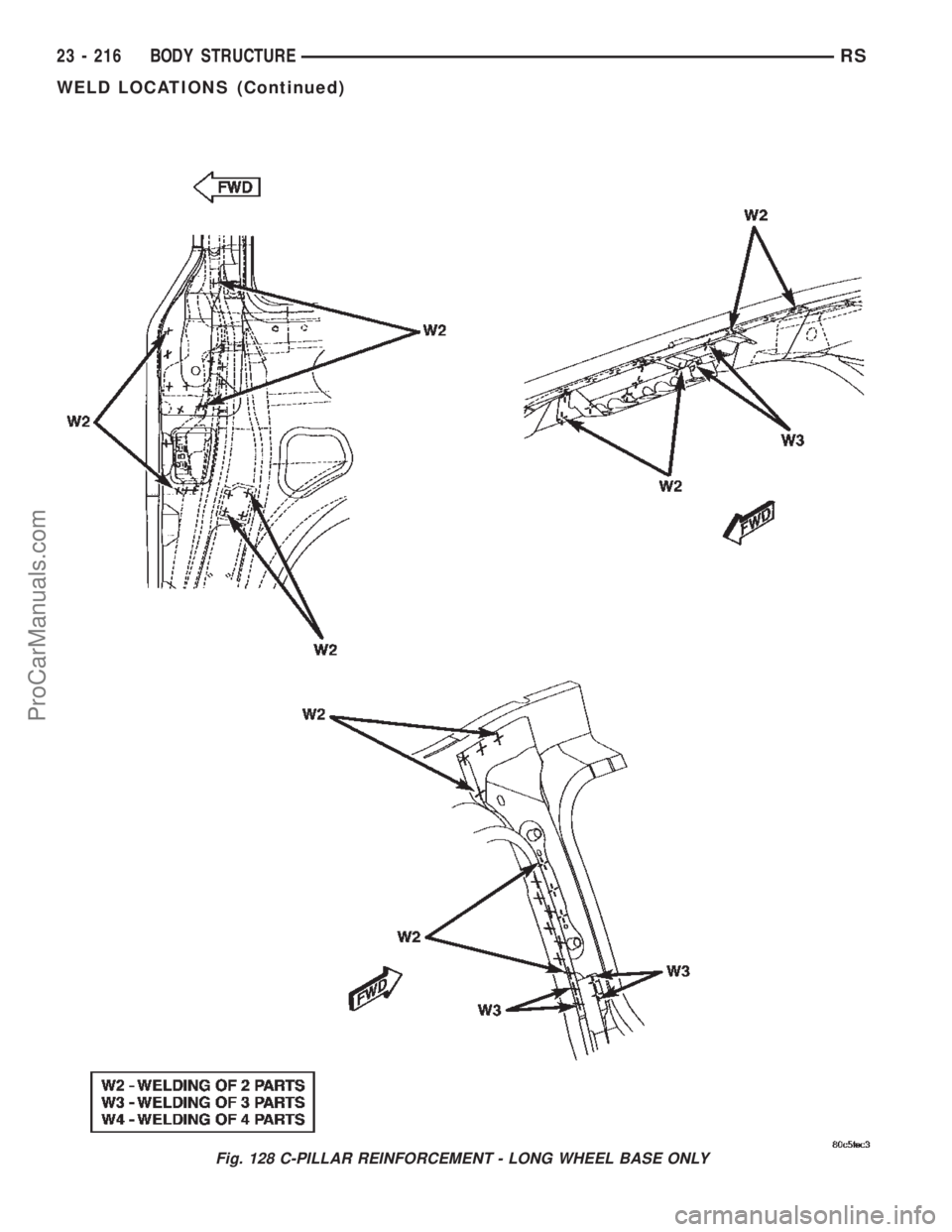

Fig. 128 C-PILLAR REINFORCEMENT - LONG WHEEL BASE ONLY
23 - 216 BODY STRUCTURERS
WELD LOCATIONS (Continued)
ProCarManuals.com

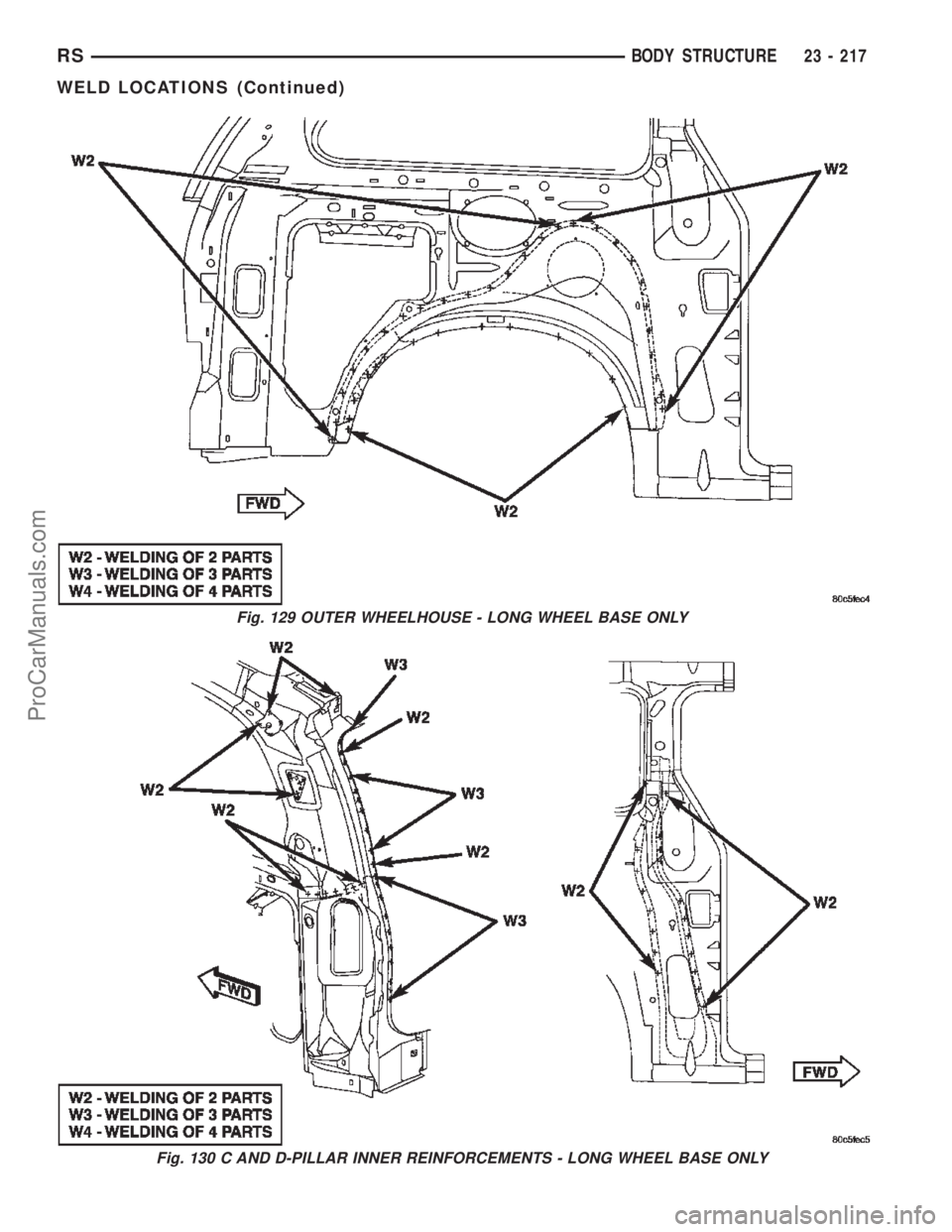

Fig. 129 OUTER WHEELHOUSE - LONG WHEEL BASE ONLY
Fig. 130 C AND D-PILLAR INNER REINFORCEMENTS - LONG WHEEL BASE ONLY
RSBODY STRUCTURE23 - 217
WELD LOCATIONS (Continued)
ProCarManuals.com
