DODGE TOWN AND COUNTRY 2003 Service Manual

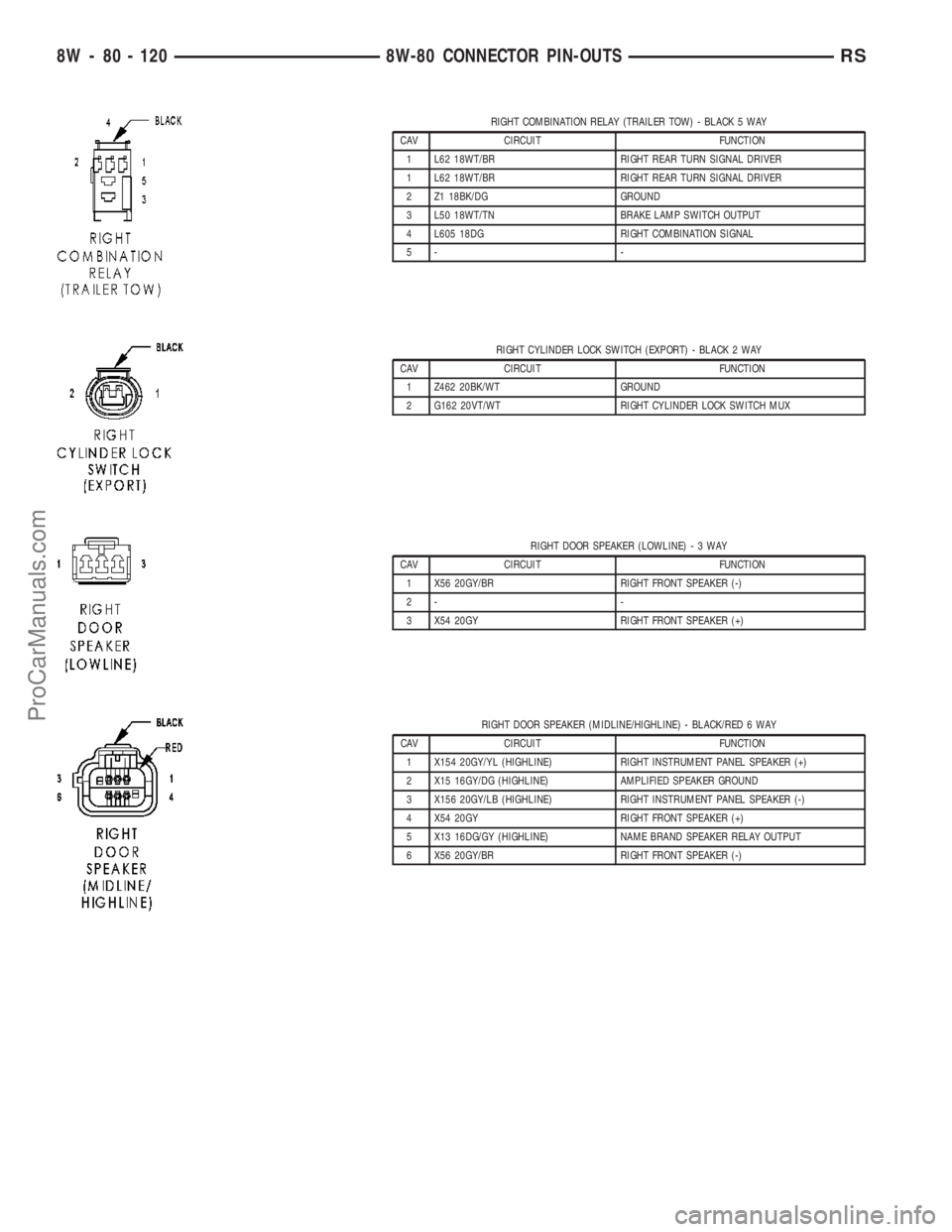

RIGHT COMBINATION RELAY (TRAILER TOW) - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 L62 18WT/BR RIGHT REAR TURN SIGNAL DRIVER
1 L62 18WT/BR RIGHT REAR TURN SIGNAL DRIVER
2 Z1 18BK/DG GROUND
3 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
4 L605 18DG RIGHT COMBINATION SIGNAL
5- -
RIGHT CYLINDER LOCK SWITCH (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z462 20BK/WT GROUND
2 G162 20VT/WT RIGHT CYLINDER LOCK SWITCH MUX
RIGHT DOOR SPEAKER (LOWLINE)-3WAY
CAV CIRCUIT FUNCTION
1 X56 20GY/BR RIGHT FRONT SPEAKER (-)
2- -
3 X54 20GY RIGHT FRONT SPEAKER (+)
RIGHT DOOR SPEAKER (MIDLINE/HIGHLINE) - BLACK/RED 6 WAY
CAV CIRCUIT FUNCTION
1 X154 20GY/YL (HIGHLINE) RIGHT INSTRUMENT PANEL SPEAKER (+)
2 X15 16GY/DG (HIGHLINE) AMPLIFIED SPEAKER GROUND
3 X156 20GY/LB (HIGHLINE) RIGHT INSTRUMENT PANEL SPEAKER (-)
4 X54 20GY RIGHT FRONT SPEAKER (+)
5 X13 16DG/GY (HIGHLINE) NAME BRAND SPEAKER RELAY OUTPUT
6 X56 20GY/BR RIGHT FRONT SPEAKER (-)
8W - 80 - 120 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

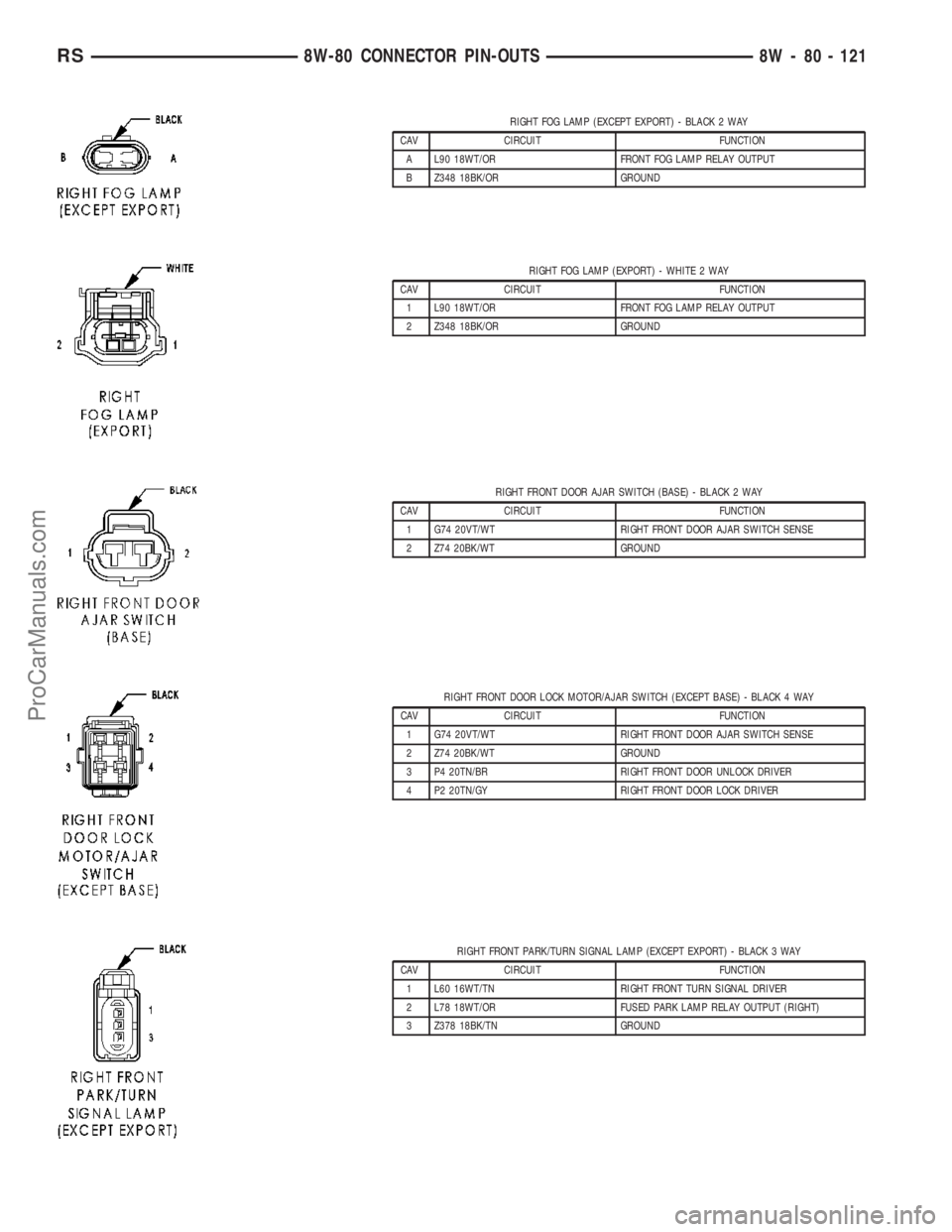

RIGHT FOG LAMP (EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A L90 18WT/OR FRONT FOG LAMP RELAY OUTPUT
B Z348 18BK/OR GROUND
RIGHT FOG LAMP (EXPORT) - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 L90 18WT/OR FRONT FOG LAMP RELAY OUTPUT
2 Z348 18BK/OR GROUND
RIGHT FRONT DOOR AJAR SWITCH (BASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
2 Z74 20BK/WT GROUND
RIGHT FRONT DOOR LOCK MOTOR/AJAR SWITCH (EXCEPT BASE) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
2 Z74 20BK/WT GROUND
3 P4 20TN/BR RIGHT FRONT DOOR UNLOCK DRIVER
4 P2 20TN/GY RIGHT FRONT DOOR LOCK DRIVER
RIGHT FRONT PARK/TURN SIGNAL LAMP (EXCEPT EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L60 16WT/TN RIGHT FRONT TURN SIGNAL DRIVER
2 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 Z378 18BK/TN GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 121
ProCarManuals.com

RIGHT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
RIGHT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q52 20OR RIGHT FULL OPEN SWITCH SENSE
2 Z76 20BK/YL GROUND
RIGHT HEADLAMP (EXCEPT EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L44 16WT/TN RIGHT LOW BEAM DRIVER
2 Z344 16BK/TN GROUND
3 L34 16WT/GY RIGHT HIGH BEAM DRIVER
RIGHT HEADLAMP LEVELING MOTOR (EXPORT) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 Z203 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 L13 16RD HEADLAMP ADJUST SIGNAL
8W - 80 - 122 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

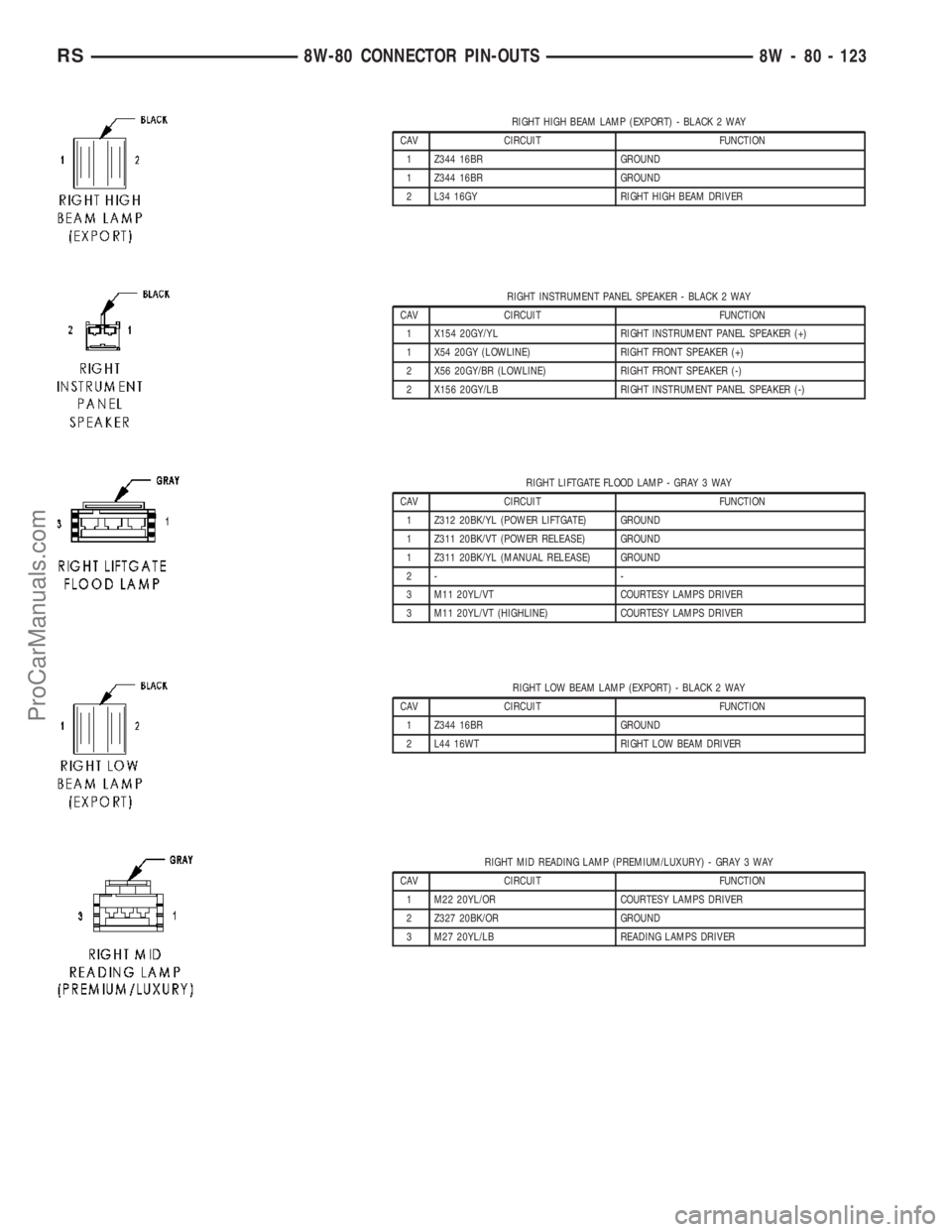

RIGHT HIGH BEAM LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
1 Z344 16BR GROUND
2 L34 16GY RIGHT HIGH BEAM DRIVER
RIGHT INSTRUMENT PANEL SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X154 20GY/YL RIGHT INSTRUMENT PANEL SPEAKER (+)
1 X54 20GY (LOWLINE) RIGHT FRONT SPEAKER (+)
2 X56 20GY/BR (LOWLINE) RIGHT FRONT SPEAKER (-)
2 X156 20GY/LB RIGHT INSTRUMENT PANEL SPEAKER (-)
RIGHT LIFTGATE FLOOD LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z312 20BK/YL (POWER LIFTGATE) GROUND
1 Z311 20BK/VT (POWER RELEASE) GROUND
1 Z311 20BK/YL (MANUAL RELEASE) GROUND
2- -
3 M11 20YL/VT COURTESY LAMPS DRIVER
3 M11 20YL/VT (HIGHLINE) COURTESY LAMPS DRIVER
RIGHT LOW BEAM LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L44 16WT RIGHT LOW BEAM DRIVER
RIGHT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 123
ProCarManuals.com

RIGHT PARK LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
RIGHT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P174 20TN/LB (EXPORT) RIGHT FOLDING MIRROR UNFOLD DRIVER
2- -
3- -
4 P68 20TN/YL (MEMORY) RIGHT MIRROR HORIZONTAL POSITION SIGNAL
5 P66 20TN/LG (MEMORY) RIGHT MIRROR SENSOR GROUND
6 P67 20TN/OR (MEMORY) RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P160 20TN/LG (LHD EXPORT) PASSENGER FOLDING MIRROR RELAY OUTPUT
7 P159 20TN/DG (RHD) DRIVER FOLDING MIRROR FOLD DRIVER
8 Z216 20BK/DB (HEATED MIRRORS) GROUND
9 C16 20DB/GY (HEATED MIRRORS) FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P72 20TN/GY RIGHT MIRROR UP DRIVER
12 P74 20TN/DB RIGHT MIRROR LEFT DRIVER
RIGHT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 Z362 18BK/BR (EXPORT) GROUND
1 L62 18WT/BR (EXCEPT EXPORT) RIGHT REAR TURN SIGNAL DRIVER
2 L62 18WT/BR (EXPORT) RIGHT REAR TURN SIGNAL DRIVER
3 L50 18WT/TN (EXPORT) BRAKE LAMP SWITCH OUTPUT
3 L78 18WT/OR (EXCEPT EXPORT) FUSED PARK LAMP RELAY OUTPUT (RIGHT)
4 L1 18WT/LG BACK-UP LAMP DRIVER
5 L38 20WT/YL (EXPORT) REAR FOG LAMP SWITCH OUTPUT
5 Z362 18BK/BR (EXCEPT EXPORT) GROUND
6 L50 18WT/TN (EXCEPT EXPORT) PRIMARY BRAKE SWITCH SIGNAL
6 L78 18WT/OR (EXPORT) FUSED PARK LAMP RELAY OUTPUT (RIGHT)
8W - 80 - 124 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

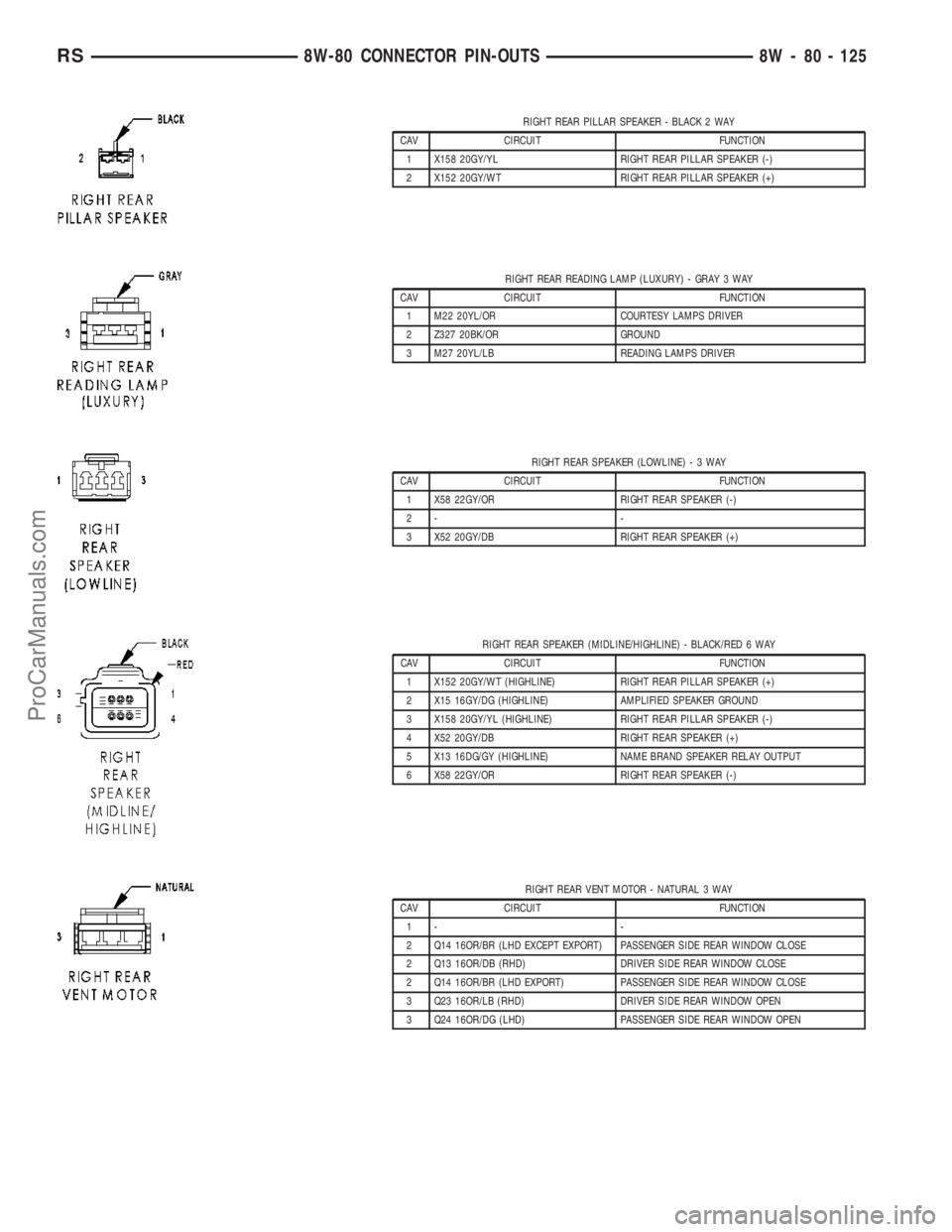

RIGHT REAR PILLAR SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X158 20GY/YL RIGHT REAR PILLAR SPEAKER (-)
2 X152 20GY/WT RIGHT REAR PILLAR SPEAKER (+)
RIGHT REAR READING LAMP (LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
RIGHT REAR SPEAKER (LOWLINE)-3WAY
CAV CIRCUIT FUNCTION
1 X58 22GY/OR RIGHT REAR SPEAKER (-)
2- -
3 X52 20GY/DB RIGHT REAR SPEAKER (+)
RIGHT REAR SPEAKER (MIDLINE/HIGHLINE) - BLACK/RED 6 WAY
CAV CIRCUIT FUNCTION
1 X152 20GY/WT (HIGHLINE) RIGHT REAR PILLAR SPEAKER (+)
2 X15 16GY/DG (HIGHLINE) AMPLIFIED SPEAKER GROUND
3 X158 20GY/YL (HIGHLINE) RIGHT REAR PILLAR SPEAKER (-)
4 X52 20GY/DB RIGHT REAR SPEAKER (+)
5 X13 16DG/GY (HIGHLINE) NAME BRAND SPEAKER RELAY OUTPUT
6 X58 22GY/OR RIGHT REAR SPEAKER (-)
RIGHT REAR VENT MOTOR - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 Q14 16OR/BR (LHD EXCEPT EXPORT) PASSENGER SIDE REAR WINDOW CLOSE
2 Q13 16OR/DB (RHD) DRIVER SIDE REAR WINDOW CLOSE
2 Q14 16OR/BR (LHD EXPORT) PASSENGER SIDE REAR WINDOW CLOSE
3 Q23 16OR/LB (RHD) DRIVER SIDE REAR WINDOW OPEN
3 Q24 16OR/DG (LHD) PASSENGER SIDE REAR WINDOW OPEN
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 125
ProCarManuals.com

RIGHT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
RIGHT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X20 20RD/BK RADIO CONTROL MUX
2 X920 20RD/DB RADIO CONTROL MUX RETURN
RIGHT REPEATER LAMP (EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+) (HAZARD)
2 L162 20WT/VT RIGHT SIDE REPEATER LAMP FEED
RIGHT SEAT AIRBAG - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R34 18WT/BK (EXPORT) RIGHT SEAT SQUIB LINE 2
1 R32 18LB/OR (EXCEPT EXPORT) RIGHT SEAT SQUIB LINE 1
2 R34 18LB/WT (EXCEPT EXPORT) RIGHT SEAT SQUIB LINE 2
2 R32 18DG/WT (EXPORT) RIGHT SEAT SQUIB LINE 1
8W - 80 - 126 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

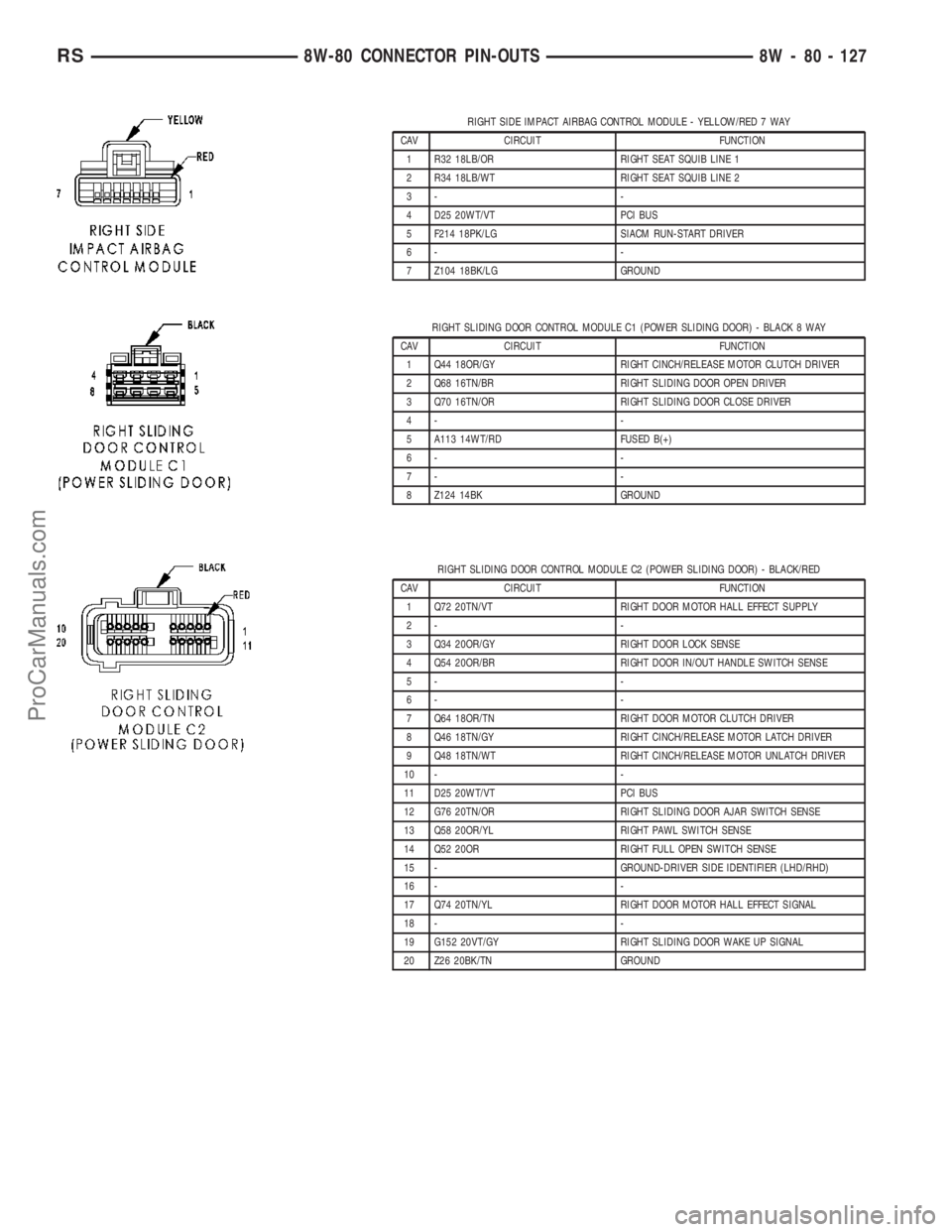

RIGHT SIDE IMPACT AIRBAG CONTROL MODULE - YELLOW/RED 7 WAY
CAV CIRCUIT FUNCTION
1 R32 18LB/OR RIGHT SEAT SQUIB LINE 1
2 R34 18LB/WT RIGHT SEAT SQUIB LINE 2
3- -
4 D25 20WT/VT PCI BUS
5 F214 18PK/LG SIACM RUN-START DRIVER
6- -
7 Z104 18BK/LG GROUND
RIGHT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q44 18OR/GY RIGHT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q68 16TN/BR RIGHT SLIDING DOOR OPEN DRIVER
3 Q70 16TN/OR RIGHT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z124 14BK GROUND
RIGHT SLIDING DOOR CONTROL MODULE C2 (POWER SLIDING DOOR) - BLACK/RED
CAV CIRCUIT FUNCTION
1 Q72 20TN/VT RIGHT DOOR MOTOR HALL EFFECT SUPPLY
2- -
3 Q34 20OR/GY RIGHT DOOR LOCK SENSE
4 Q54 20OR/BR RIGHT DOOR IN/OUT HANDLE SWITCH SENSE
5- -
6- -
7 Q64 18OR/TN RIGHT DOOR MOTOR CLUTCH DRIVER
8 Q46 18TN/GY RIGHT CINCH/RELEASE MOTOR LATCH DRIVER
9 Q48 18TN/WT RIGHT CINCH/RELEASE MOTOR UNLATCH DRIVER
10 - -
11 D25 20WT/VT PCI BUS
12 G76 20TN/OR RIGHT SLIDING DOOR AJAR SWITCH SENSE
13 Q58 20OR/YL RIGHT PAWL SWITCH SENSE
14 Q52 20OR RIGHT FULL OPEN SWITCH SENSE
15 - GROUND-DRIVER SIDE IDENTIFIER (LHD/RHD)
16 - -
17 Q74 20TN/YL RIGHT DOOR MOTOR HALL EFFECT SIGNAL
18 - -
19 G152 20VT/GY RIGHT SLIDING DOOR WAKE UP SIGNAL
20 Z26 20BK/TN GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 127
ProCarManuals.com

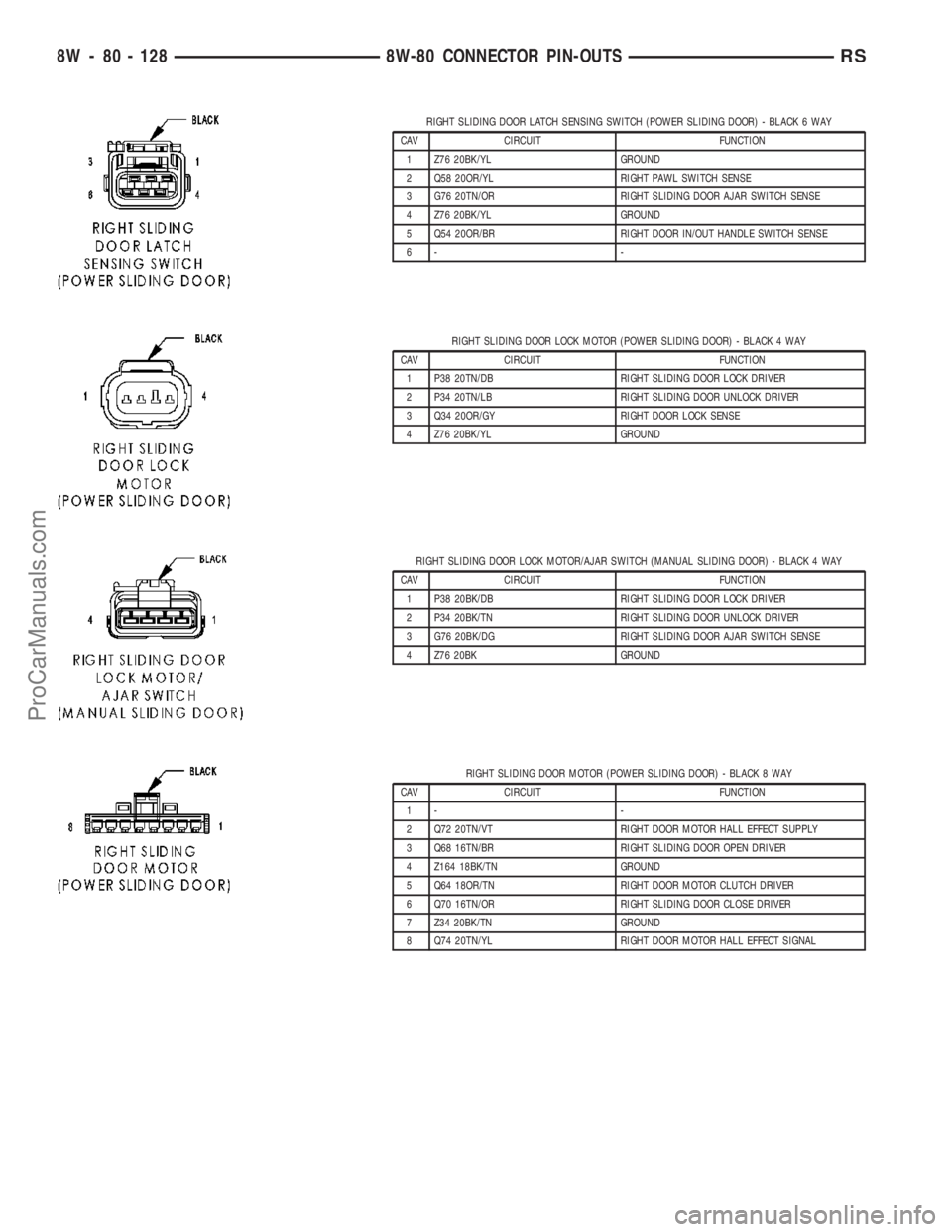

RIGHT SLIDING DOOR LATCH SENSING SWITCH (POWER SLIDING DOOR) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 Z76 20BK/YL GROUND
2 Q58 20OR/YL RIGHT PAWL SWITCH SENSE
3 G76 20TN/OR RIGHT SLIDING DOOR AJAR SWITCH SENSE
4 Z76 20BK/YL GROUND
5 Q54 20OR/BR RIGHT DOOR IN/OUT HANDLE SWITCH SENSE
6- -
RIGHT SLIDING DOOR LOCK MOTOR (POWER SLIDING DOOR) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P38 20TN/DB RIGHT SLIDING DOOR LOCK DRIVER
2 P34 20TN/LB RIGHT SLIDING DOOR UNLOCK DRIVER
3 Q34 20OR/GY RIGHT DOOR LOCK SENSE
4 Z76 20BK/YL GROUND
RIGHT SLIDING DOOR LOCK MOTOR/AJAR SWITCH (MANUAL SLIDING DOOR) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P38 20BK/DB RIGHT SLIDING DOOR LOCK DRIVER
2 P34 20BK/TN RIGHT SLIDING DOOR UNLOCK DRIVER
3 G76 20BK/DG RIGHT SLIDING DOOR AJAR SWITCH SENSE
4 Z76 20BK GROUND
RIGHT SLIDING DOOR MOTOR (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1- -
2 Q72 20TN/VT RIGHT DOOR MOTOR HALL EFFECT SUPPLY
3 Q68 16TN/BR RIGHT SLIDING DOOR OPEN DRIVER
4 Z164 18BK/TN GROUND
5 Q64 18OR/TN RIGHT DOOR MOTOR CLUTCH DRIVER
6 Q70 16TN/OR RIGHT SLIDING DOOR CLOSE DRIVER
7 Z34 20BK/TN GROUND
8 Q74 20TN/YL RIGHT DOOR MOTOR HALL EFFECT SIGNAL
8W - 80 - 128 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

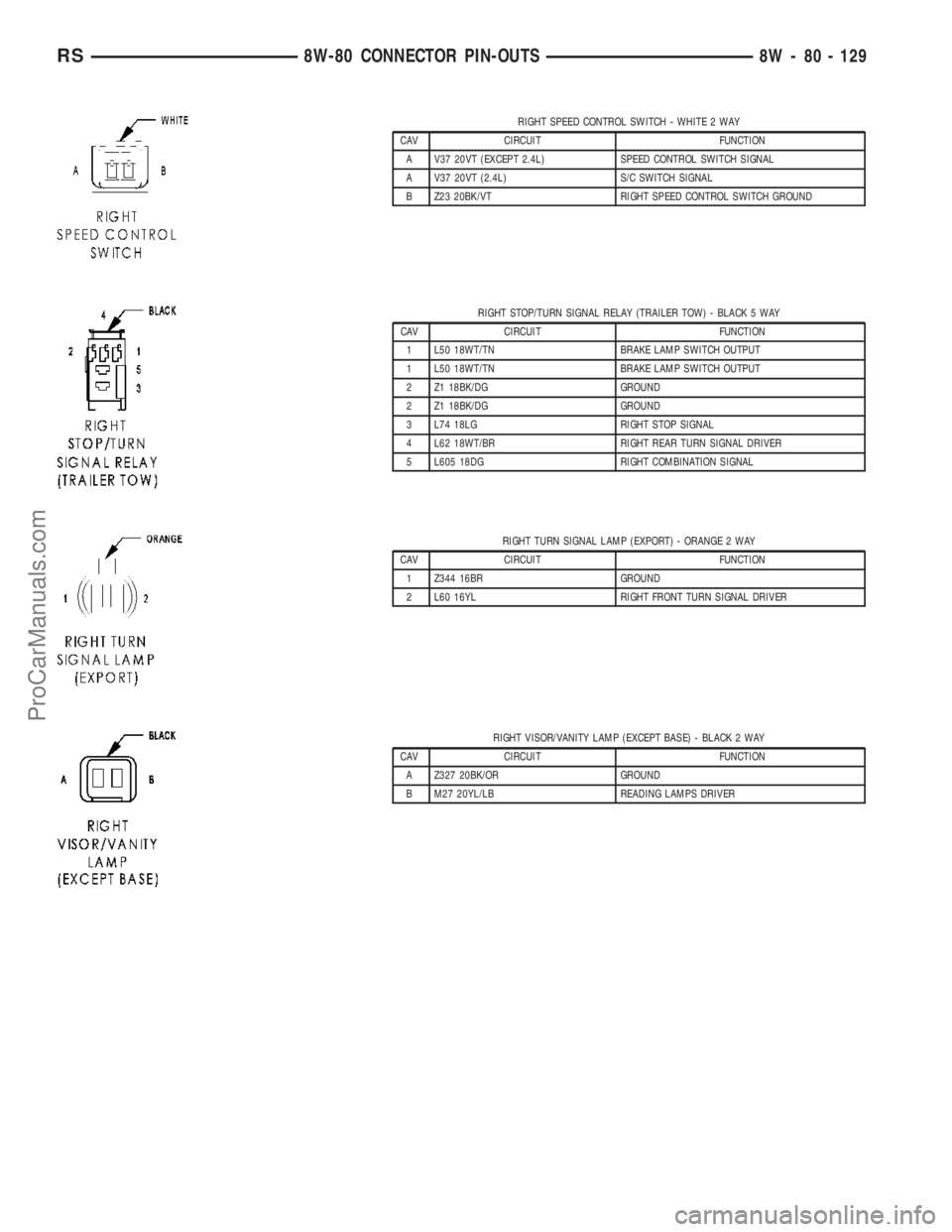

RIGHT SPEED CONTROL SWITCH - WHITE 2 WAY
CAV CIRCUIT FUNCTION
A V37 20VT (EXCEPT 2.4L) SPEED CONTROL SWITCH SIGNAL
A V37 20VT (2.4L) S/C SWITCH SIGNAL
B Z23 20BK/VT RIGHT SPEED CONTROL SWITCH GROUND
RIGHT STOP/TURN SIGNAL RELAY (TRAILER TOW) - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
1 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 Z1 18BK/DG GROUND
2 Z1 18BK/DG GROUND
3 L74 18LG RIGHT STOP SIGNAL
4 L62 18WT/BR RIGHT REAR TURN SIGNAL DRIVER
5 L605 18DG RIGHT COMBINATION SIGNAL
RIGHT TURN SIGNAL LAMP (EXPORT) - ORANGE 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L60 16YL RIGHT FRONT TURN SIGNAL DRIVER
RIGHT VISOR/VANITY LAMP (EXCEPT BASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A Z327 20BK/OR GROUND
B M27 20YL/LB READING LAMPS DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 129
