Component Page

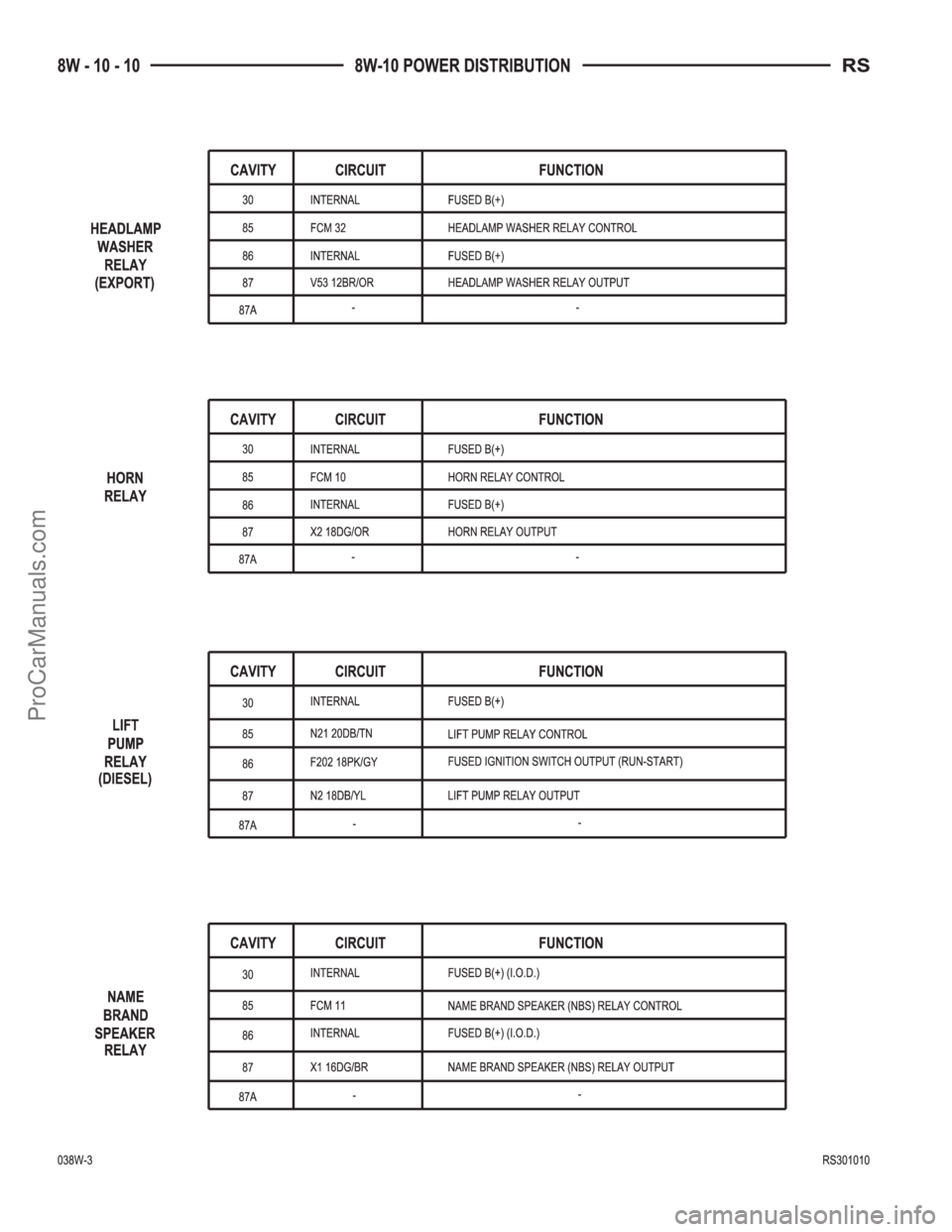

Headlamp Washer Relay........ 8W-10-26, 56, 67
High Note Horn.................... 8W-10-36
Horn Relay.................. 8W-10-17, 36, 63
Ignition Coil....................... 8W-10-44
Ignition Switch . . . 8W-10-18, 25, 37, 38, 47, 48, 49,
52, 57, 58, 64
Instrument Cluster............... 8W-10-25, 55

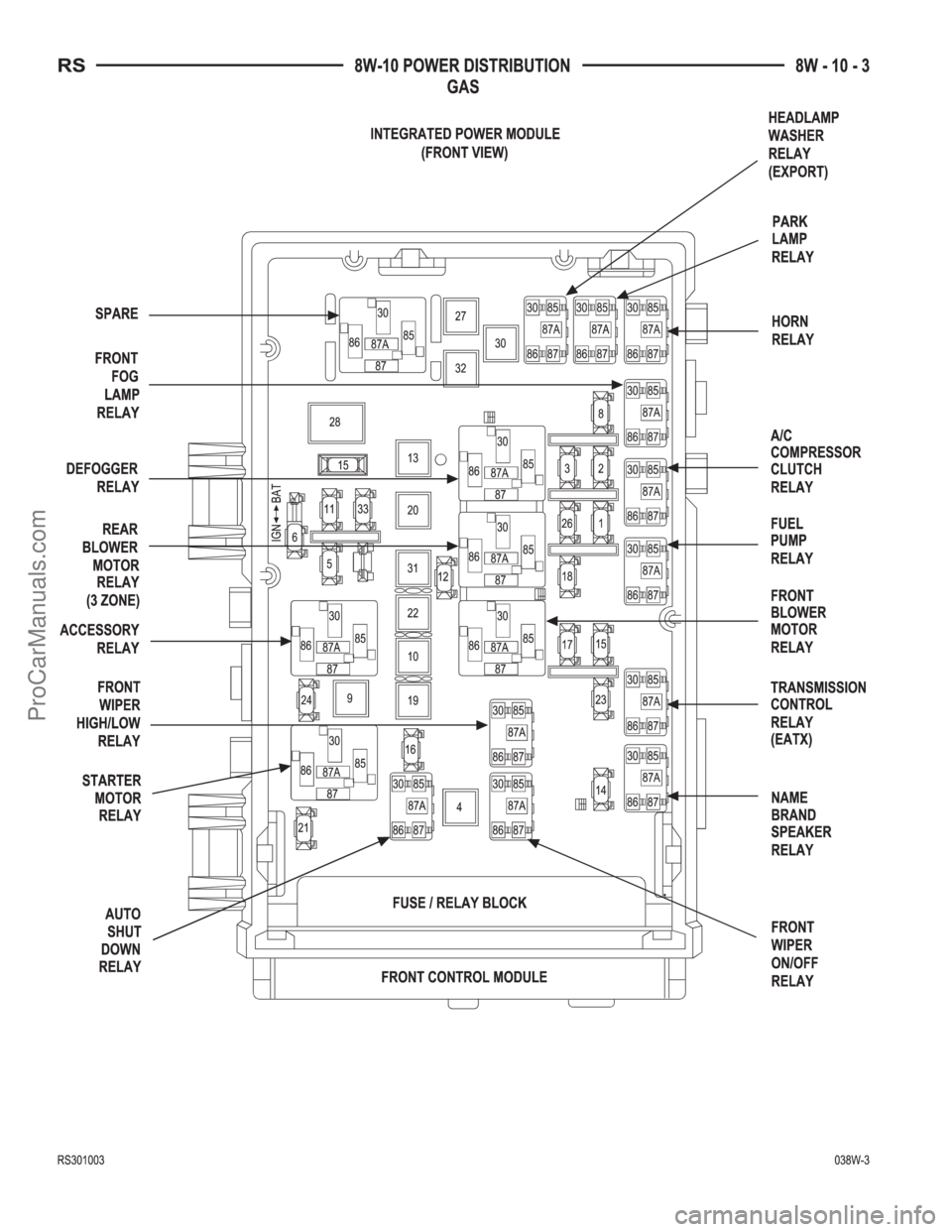

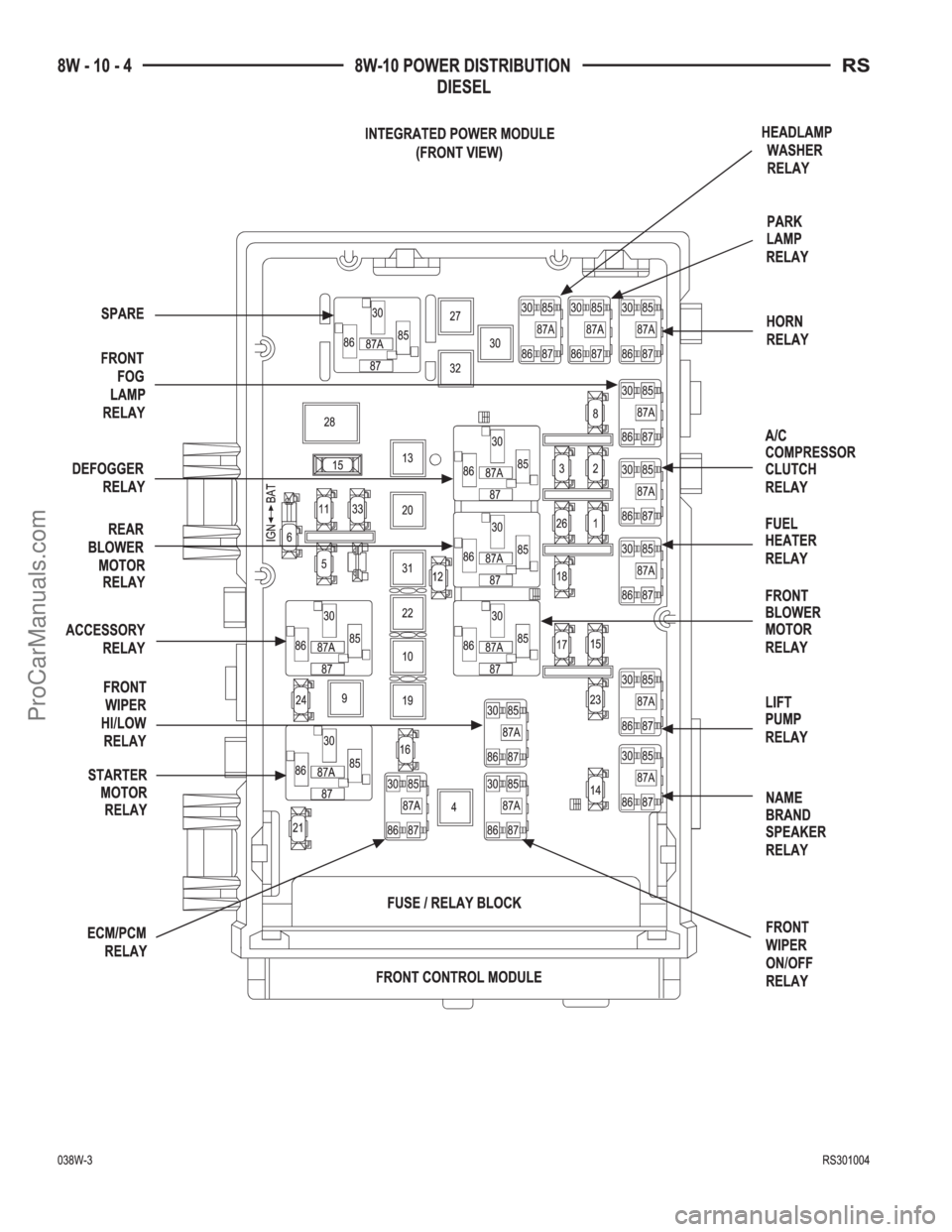

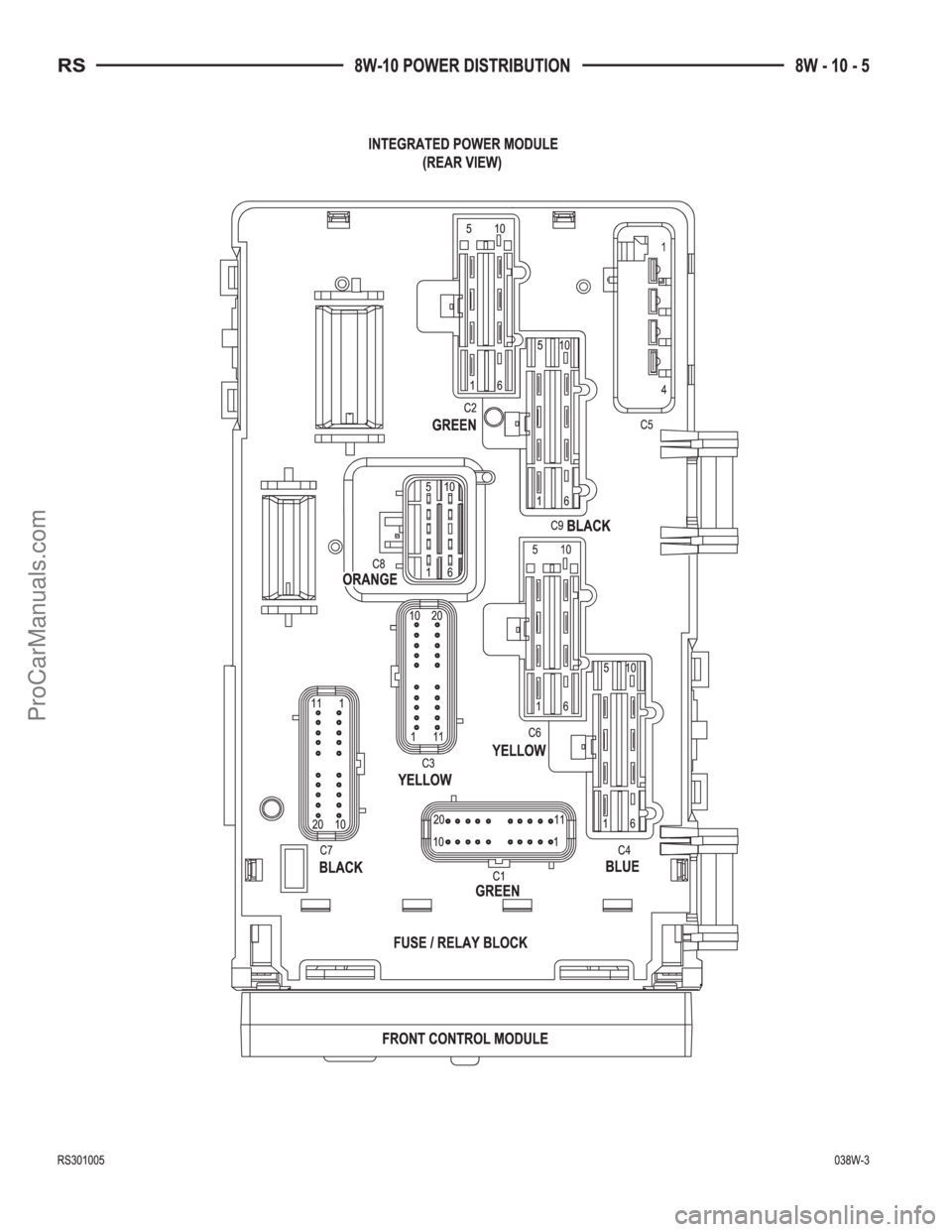

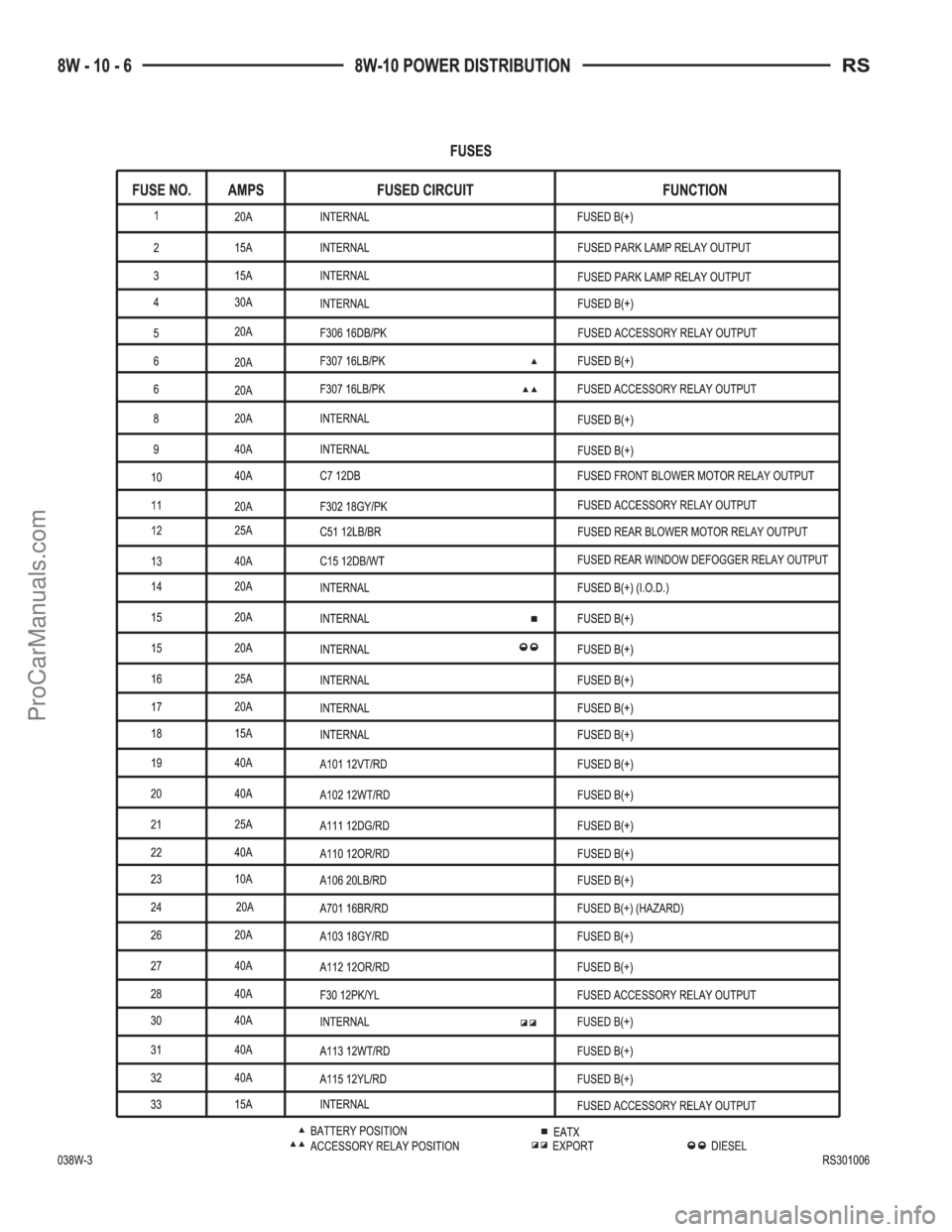

Integrated Power
Module............. 8W-10-3, 4, 5, 13, 15, 16,
17, 18, 19, 20, 21, 22, 23, 24, 25, 26,
27, 29, 30, 31, 33, 36, 37, 38, 39, 40,
41, 42, 43, 44, 45, 46, 47, 48, 50, 51,
52, 53, 55, 56, 57, 58, 59, 60, 61, 62,
63, 64, 65, 66, 67, 68, 69, 70, 72
Leak Detection Pump................ 8W-10-50
Left B-Pillar Switch................. 8W-10-33
Left Combination Relay.............. 8W-10-71
Left Door Speaker.................. 8W-10-40
Left Fog Lamp.................. 8W-10-15, 27
Left Front Park/Turn Signal Lamp . . 8W-10-15, 28,
60, 69
Left Headlamp..................... 8W-10-61
Left Headlamp Leveling Motor . . . 8W-10-29, 66, 69
Left High Beam Lamp............... 8W-10-62
Left Low Beam Lamp................ 8W-10-62
Left Park Lamp................. 8W-10-29, 69
Left Power Mirror................... 8W-10-40
Left Rear Lamp Assembly . 8W-10-28, 29, 69, 70, 71
Left Rear Speaker.................. 8W-10-40
Left Repeater Lamp................. 8W-10-55
Left Side Impact Airbag Control Module . 8W-10-66
Left Sliding Door Control Module....... 8W-10-56
Left Stop/Turn Signal Relay........... 8W-10-71
Left Turn Signal Lamp............... 8W-10-60
License Lamp................ 8W-10-28, 29, 69
Lift Pump Motor................. 8W-10-23, 45
Lift Pump Relay................. 8W-10-23, 45
Low Note Horn..................... 8W-10-36
Mass Air Flow Sensor................ 8W-10-46
Memory Seat/Mirror Module.......... 8W-10-53
Message Center.................... 8W-10-55
Name Brand Speaker Relay..... 8W-10-20, 40, 63
Overhead Console................... 8W-10-41
Oxygen Sensor 1/1 Upstream.......... 8W-10-44
Oxygen Sensor 1/2 Downstream........ 8W-10-44

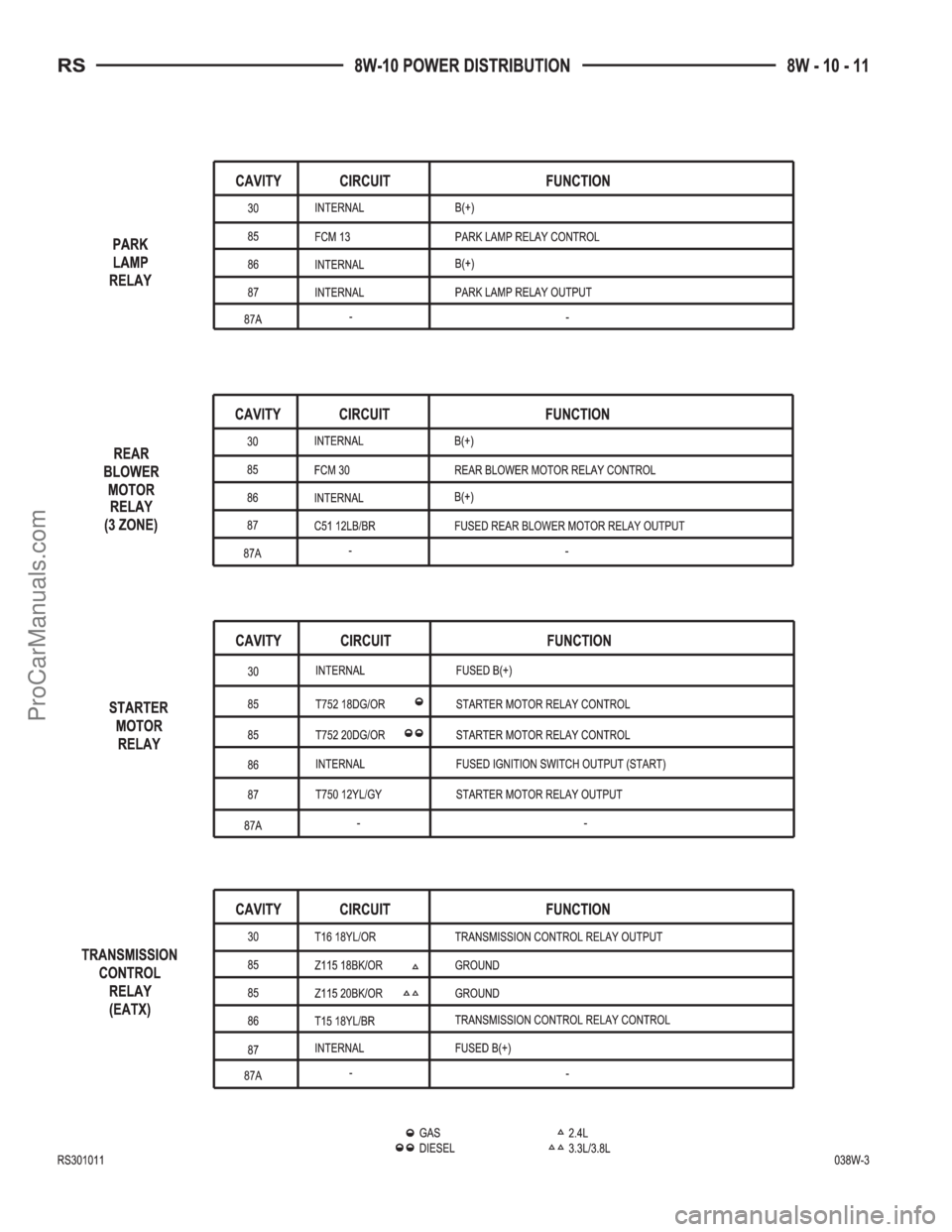

Park Lamp Relay.......... 8W-10-15, 28, 29, 63
Passenger Door Lock Switch........ 8W-10-31, 33
Passenger Folding Mirror
Relay............... 8W-10-22, 24, 47, 48, 51
Passenger Heated Seat Module........ 8W-10-54
Passenger Power Seat Switch.......... 8W-10-54
Passenger Power Window Switch....... 8W-10-31
Power Liftgate Module............... 8W-10-56
Power Mirror Switch........ 8W-10-22, 24, 50, 51
Power Outlet...................... 8W-10-36Component Page
Power Seat Circuit Breaker........ 8W-10-25, 53
Power Window Circuit Breaker...... 8W-10-16, 31
Power Window Switch............... 8W-10-34
Powertrain Control
Module.......... 8W-10-18, 21, 22, 37, 42, 43,
44, 47, 48, 50, 59, 65, 66, 72
PTC4 ......................... 8W-10-20, 40
PTC7 ................... 8W-10-16, 17, 18, 36
Radiator Fan Relay............ 8W-10-26, 55, 59
Radiator Fan Relay No. 1.......... 8W-10-13, 46
Radiator Fan Relay No. 2....... 8W-10-26, 46, 55
Radiator Fan Relay No. 3............. 8W-10-46
Radio......................... 8W-10-32, 41
Rear A/C-Heater Unit............. 8W-10-19, 39
Rear Blower Motor Relay.... 8W-10-19, 20, 39, 67
Rear Power Outlet............ 8W-10-16, 31, 32
Rear Washer Pump Motor....... 8W-10-16, 31, 72
Rear Window Defogger Grid........ 8W-10-20, 40
Rear Wiper Motor................... 8W-10-33
Remote Keyless Entry Module......... 8W-10-41
Right B-Pillar Switch................ 8W-10-33
Right Combination Relay............. 8W-10-71
Right Door Speaker................. 8W-10-40
Right Fog Lamp................. 8W-10-15, 27
Right Front Park/Turn Signal
Lamp.................. 8W-10-15, 28, 60, 64
Right Headlamp.................... 8W-10-61
Right Headlamp Leveling Motor . . 8W-10-29, 64, 66
Right High Beam Lamp.............. 8W-10-62
Right Low Beam Lamp............... 8W-10-62
Right Park Lamp................ 8W-10-29, 64
Right Power Mirror................. 8W-10-40
Right Rear Lamp Assembly . . . 8W-10-15, 28, 29, 70
Right Rear Speaker................. 8W-10-40
Right Repeater Lamp................ 8W-10-55
Right Side Impact Airbag Control
Module......................... 8W-10-66
Right Sliding Door Control Module..... 8W-10-56
Right Stop/Turn Signal Relay.......... 8W-10-71
Right Turn Signal Lamp.............. 8W-10-60
Sentry Key Immobilizer
Module.............. 8W-10-41, 49, 52, 57, 58
Solenoid/Pressure Switch Assy...... 8W-10-42, 43
Starter Motor.......... 8W-10-13, 14, 18, 37, 38
Starter Motor Relay...... 8W-10-18, 37, 38, 57, 58
Sunroof Module.................... 8W-10-56
Thatcham Alarm Module....... 8W-10-49, 52, 58
Trailer Tow Connector............ 8W-10-28, 69
Transmission Control
Module........... 8W-10-21, 37, 43, 65, 66, 72
Transmission Control Relay..... 8W-10-21, 42, 43
Vehicle Speed Sensor................ 8W-10-45
Washer Fluid Level Switch............ 8W-10-64
Wiper Module................ 8W-10-16, 30, 63
8W - 10 - 2 8W-10 POWER DISTRIBUTIONRS
