8W-15 GROUND DISTRIBUTION
Component PageA/C Compressor Clutch......................8W-15-8, 9
A/C-Heater Control......................8W-15-10, 12
Adjustable Pedals Module.....................8W-15-11
Airbag Control Module.......................8W-15-13
Auto Temp Control.........................8W-15-10
Automatic Day/Night Mirror...................8W-15-23
Back-Up Lamp Switch......................8W-15-4, 8
Battery.............................8W-15-2, 3, 4
Body Control Module.......................8W-15-24
Brake Fluid Level Switch.....................8W-15-19
Brake Lamp Switch........................8W-15-19
Cabin Heater Assist.........................8W-15-9
Center Dome Lamp........................8W-15-23
Center High Mounted Stop Lamp.................8W-15-28
Clutch Pedal Interlock Switch...................8W-15-19
Clutch Pedal Upstop Switch....................8W-15-20
Controller Antilock Brake...................8W-15-2, 3, 4
Crank Case Ventilation Heater...................8W-15-9

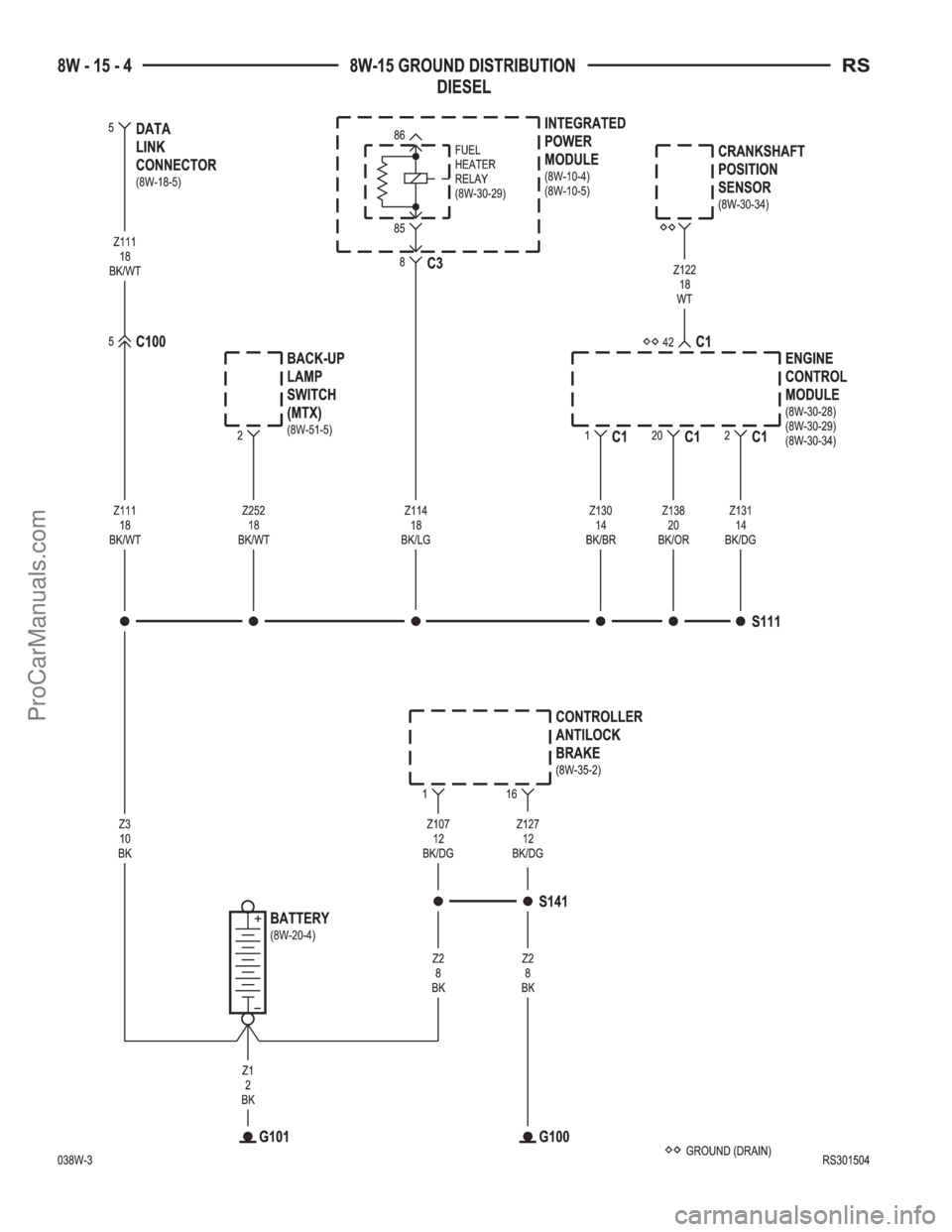

Crankshaft Position Sensor.....................8W-15-4
Data Link Connector...................8W-15-2, 3, 4, 19
Dosing Pump............................8W-15-9
Driver Door Courtesy Lamp..................8W-15-16, 22
Driver Door Lock Switch....................8W-15-16, 22
Driver Heated Seat Cushion....................8W-15-18
Driver Heated Seat Module....................8W-15-18
Driver Power Seat Switch.....................8W-15-18
Driver Power Window Switch...................8W-15-16
Driver Power Window Switch...................8W-15-22
DVD/CD Changer.........................8W-15-11
Engine Control Module.......................8W-15-4
Floor Console Lamp........................8W-15-27
Floor Console Power Outlet....................8W-15-27
Front Blower Module.......................8W-15-12
Front Cigar Lighter........................8W-15-10
Front Control Module....................8W-15-8, 9, 20
Front Reading Lamps/Switch...................8W-15-23
Fuel Heater............................8W-15-27
Fuel Heater Relay..........................8W-15-4
Fuel Pump Module.........................8W-15-27
G100..............................8W-15-2, 3, 4
G101..............................8W-15-2, 3, 4
G102..............................8W-15-5, 6, 7
G103...............................8W-15-8, 9
G200............................8W-15-10, 11, 12
G201................................8W-15-13
G202................................8W-15-14
G300........................8W-15-15, 17, 18, 19, 20
G301..........................8W-15-21, 22, 23, 24
G302............................8W-15-25, 26, 27
G303..............................8W-15-27, 28

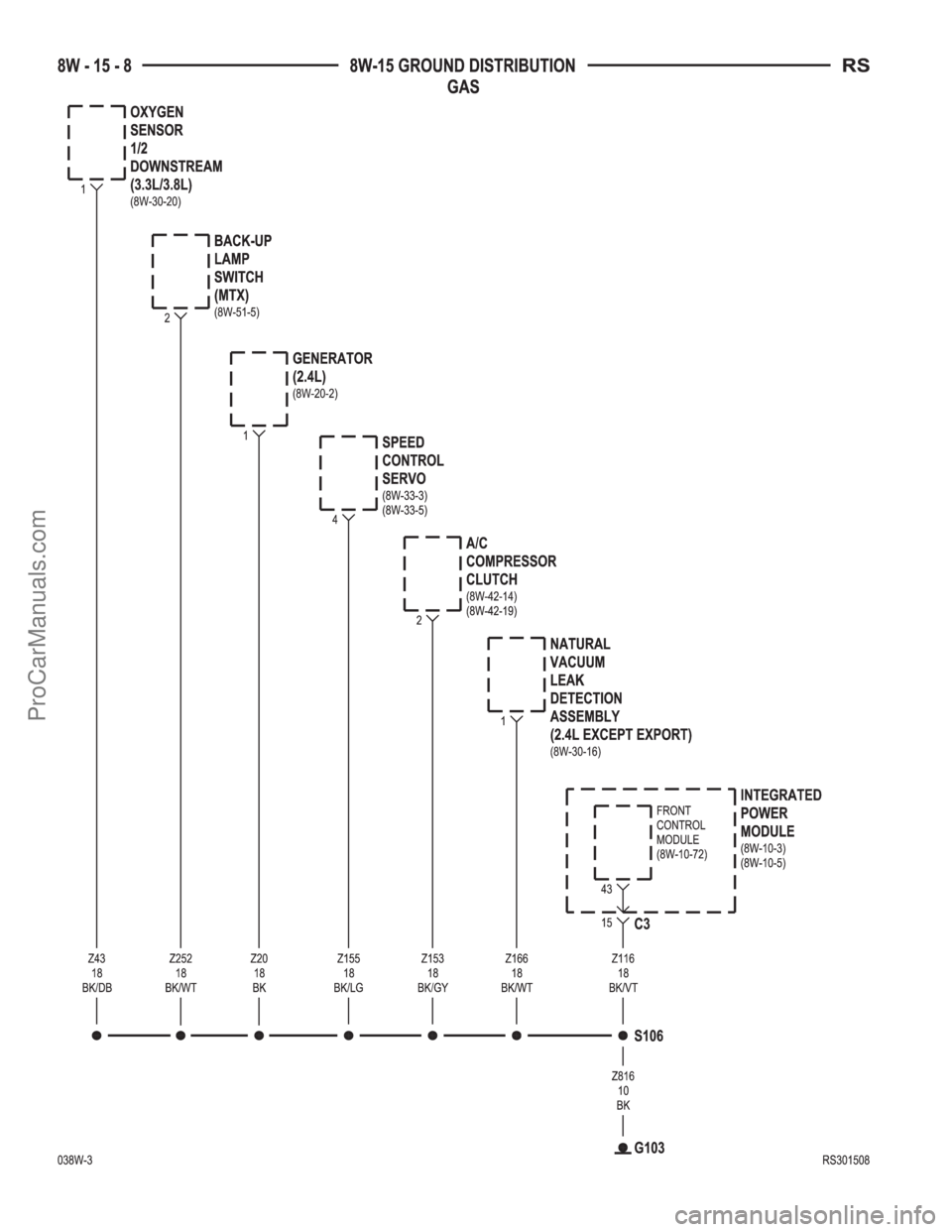

Generator..............................8W-15-8
Headlamp Switch.........................8W-15-10

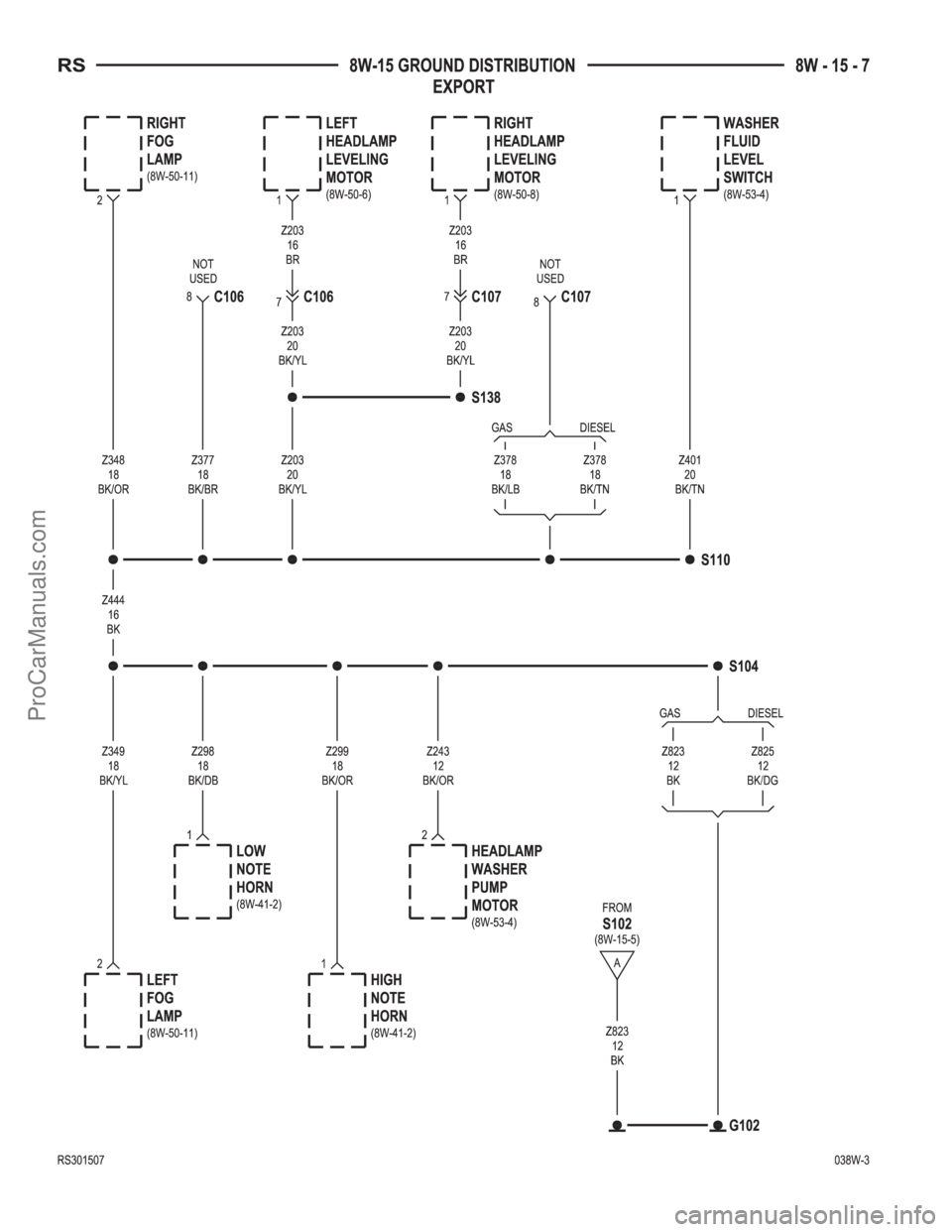

Headlamp Washer Pump Motor..................8W-15-7

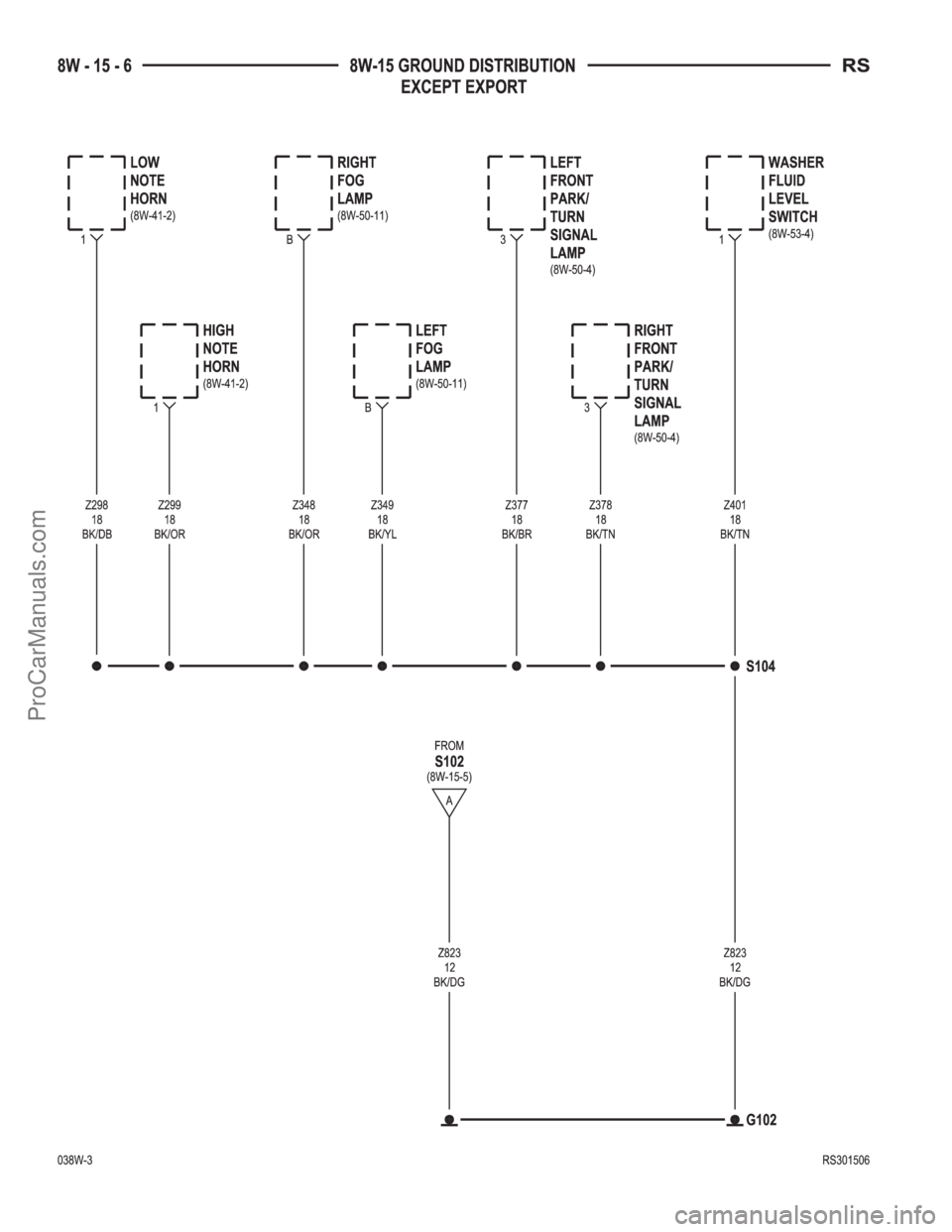

High Note Horn..........................8W-15-6 7
Hood Ajar Switch.........................8W-15-20
Instrument Cluster........................8W-15-10
Instrument Panel Switch Bank..................8W-15-11
Integrated Power Module..............8W-15-2, 3, 4, 8, 9, 20
Left B-Pillar Switch........................8W-15-19
Left Cinch/Release Motor.....................8W-15-15
Left Combination Relay......................8W-15-26
Left Cylinder Lock Switch...................8W-15-16 17
Left Door Speaker.........................8W-15-14
Left Fog Lamp..........................8W-15-6, 7
Left Front Door Ajar Switch....................8W-15-17
Left Front Door Lock Motor/Ajar Switch...........8W-15-16, 17
Left Front Park/Turn Signal Lamp.................8W-15-6
Left Full Open Switch.......................8W-15-15
Left Headlamp...........................8W-15-20
Left Headlamp Leveling Motor...................8W-15-7
Left High Beam Lamp.......................8W-15-20
Left Liftgate Flood Lamp.....................8W-15-28
Left Low Beam Lamp.......................8W-15-20
Left Mid Reading Lamp......................8W-15-23
Left Park Lamp..........................8W-15-20
Left Power Mirror.........................8W-15-11
Left Rear Lamp Assembly.....................8W-15-26
Left Rear Reading Lamp......................8W-15-23
Left Rear Speaker.........................8W-15-14
Left Side Impact Airbag Control Module.............8W-15-13
Left Sliding Door Control Module.................8W-15-15
Left Sliding Door Latch Sensing Switch.............8W-15-15
Left Sliding Door Lock Motor...................8W-15-15
Left Sliding Door Lock Motor/Ajar Switch............8W-15-15Component PageLeft Sliding Door Motor......................8W-15-15
Left Stop/Turn Signal Relay....................8W-15-26
Left Turn Signal Lamp......................8W-15-20
Left Visor/Vanity Lamp......................8W-15-23
License Lamp.........................8W-15-25, 28
Lift Pump Motor..........................8W-15-27
Liftgate Ajar Switch........................8W-15-28
Liftgate Cinch/Release Motor...................8W-15-25
Liftgate Cylinder Lock Switch...................8W-15-28
Liftgate Right Pinch Sensor....................8W-15-25
Low Note Horn..........................8W-15-6, 7
Memory Seat/Mirror Module...................8W-15-18
Natural Vacuum Leak Detection Assembly.............8W-15-8
Overhead Console.........................8W-15-23

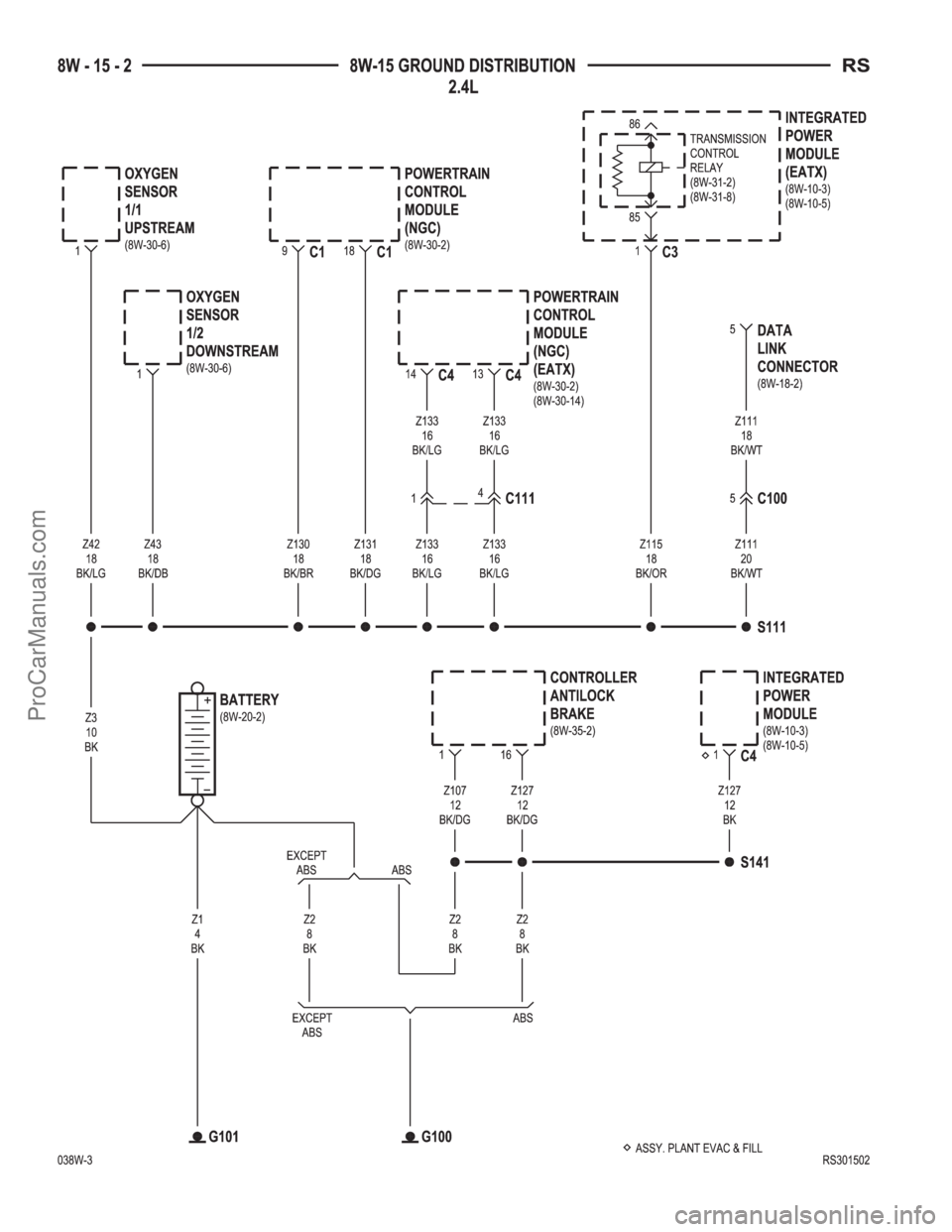

Oxygen Sensor 1/1 Upstream....................8W-15-2
Oxygen Sensor 1/2 Downstream.................8W-15-2, 8
Passenger Door Courtesy Lamp................8W-15-17, 22
Passenger Door Lock Switch.................8W-15-17, 22
Passenger Heated Seat Cushion..................8W-15-24
Passenger Heated Seat Module..................8W-15-24
Passenger Power Seat Switch...................8W-15-24
Passenger Power Window Switch...............8W-15-17, 22
Power Folding Mirror Switch...................8W-15-12
Power Liftgate Module.......................8W-15-25
Power Liftgate Motor.......................8W-15-25
Power Mirror Switch........................8W-15-12
Power Outlet............................8W-15-10
Power Window Switch.......................8W-15-16
Powertrain Control Module...................8W-15-2, 3

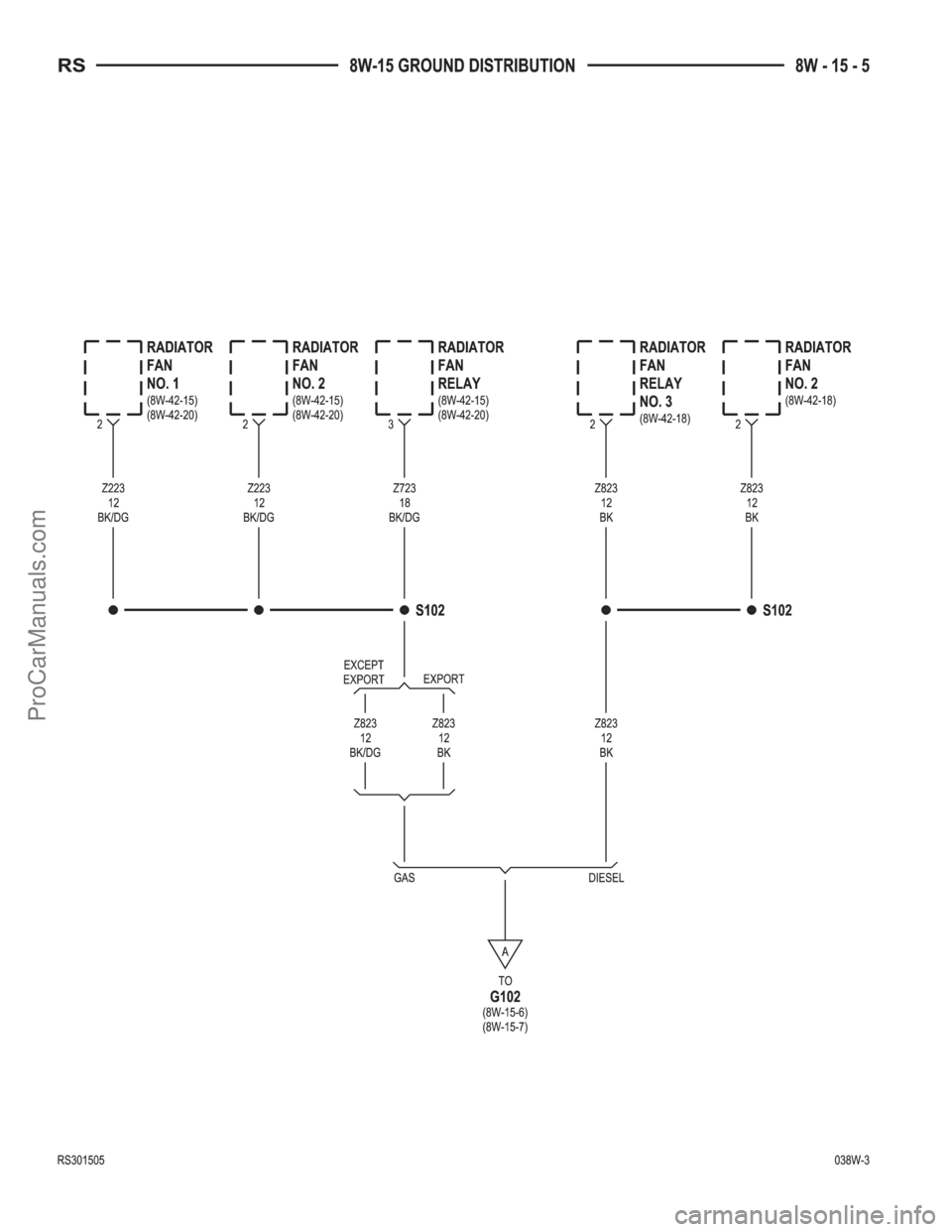

Radiator Fan No. 1.........................8W-15-5
Radiator Fan No. 2.........................8W-15-5
Radiator Fan Relay.........................8W-15-5
Radiator Fan Relay No. 3......................8W-15-5
Radio................................8W-15-14
Rear Auto Temp Control Switch..................8W-15-19
Rear Blower Front Control Switch................8W-15-12
Rear Blower Motor Power Module..............8W-15-12, 27
Rear Blower Rear Control Switch.................8W-15-19
Rear Dome Lamp.........................8W-15-23
Rear Power Outlet.........................8W-15-27
Rear Window Defogger Grid....................8W-15-28
Rear Wiper Motor.........................8W-15-28
Remote Keyless Entry Module...................8W-15-11
Right B-Pillar Switch.......................8W-15-24
Right Cinch/Release Motor....................8W-15-21
Right Combination Relay.....................8W-15-26
Right Cylinder Lock Switch....................8W-15-22
Right Door Speaker........................8W-15-14
Right Fog Lamp.........................8W-15-6, 7
Right Front Door Ajar Switch...................8W-15-22
Right Front Door Lock Motor/Ajar Switch............8W-15-22
Right Front Park/Turn Signal Lamp................8W-15-6
Right Full Open Switch......................8W-15-21
Right Headlamp..........................8W-15-20
Right Headlamp Leveling Motor..................8W-15-7
Right High Beam Lamp......................8W-15-20
Right Liftgate Flood Lamp....................8W-15-28
Right Low Beam Lamp......................8W-15-20
Right Mid Reading Lamp.....................8W-15-23
Right Park Lamp..........................8W-15-20
Right Power Mirror........................8W-15-11
Right Rear Lamp Assembly....................8W-15-27
Right Rear Reading Lamp.....................8W-15-23
Right Rear Speaker........................8W-15-14
Right Side Impact Airbag Control Module............8W-15-13
Right Sliding Door Control Module................8W-15-21
Right Sliding Door Latch Sensing Switch.............8W-15-21
Right Sliding Door Lock Motor..................8W-15-21
Right Sliding Door Lock Motor/Ajar Switch...........8W-15-21
Right Sliding Door Motor.....................8W-15-21
Right Stop/Turn Signal Relay...................8W-15-26
Right Turn Signal Lamp......................8W-15-20
Right Visor/Vanity Lamp.....................8W-15-23
Sentry Key Immobilizer Module..................8W-15-11
Speed Control Servo.........................8W-15-8
Sunroof Module..........................8W-15-26
Sunroof Switch...........................8W-15-23
Traction Control Switch......................8W-15-11
Trailer Tow Connector.......................8W-15-26

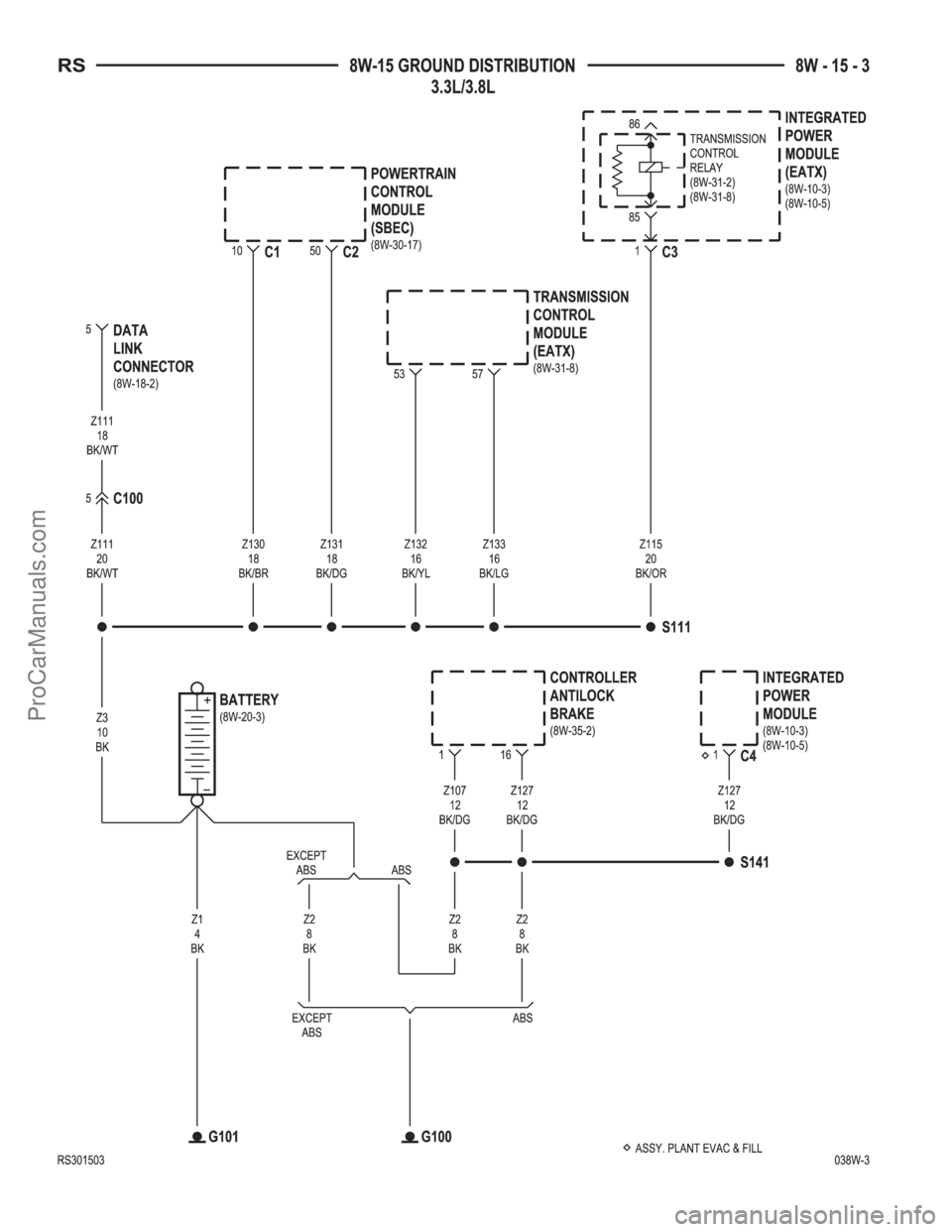

Transmission Control Module....................8W-15-3
Transmission Control Relay...................8W-15-2, 3
Washer Fluid Level Switch....................8W-15-6, 7
Wiper Module...........................8W-15-19
RS8W-15 GROUND DISTRIBUTION8W-15-1
