DODGE TOWN AND COUNTRY 2004 Service Manual

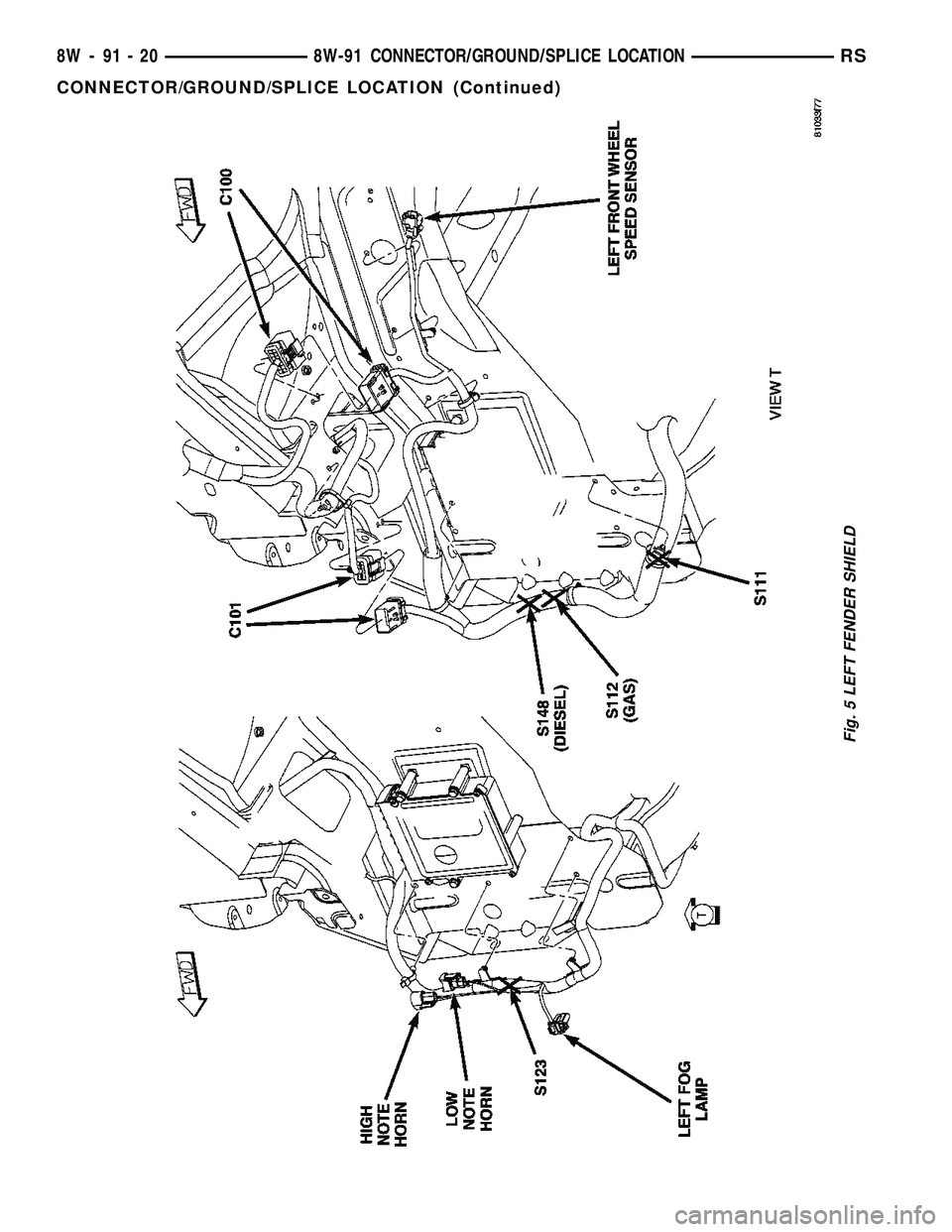

Fig. 5 LEFT FENDER SHIELD
8W - 91 - 20 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

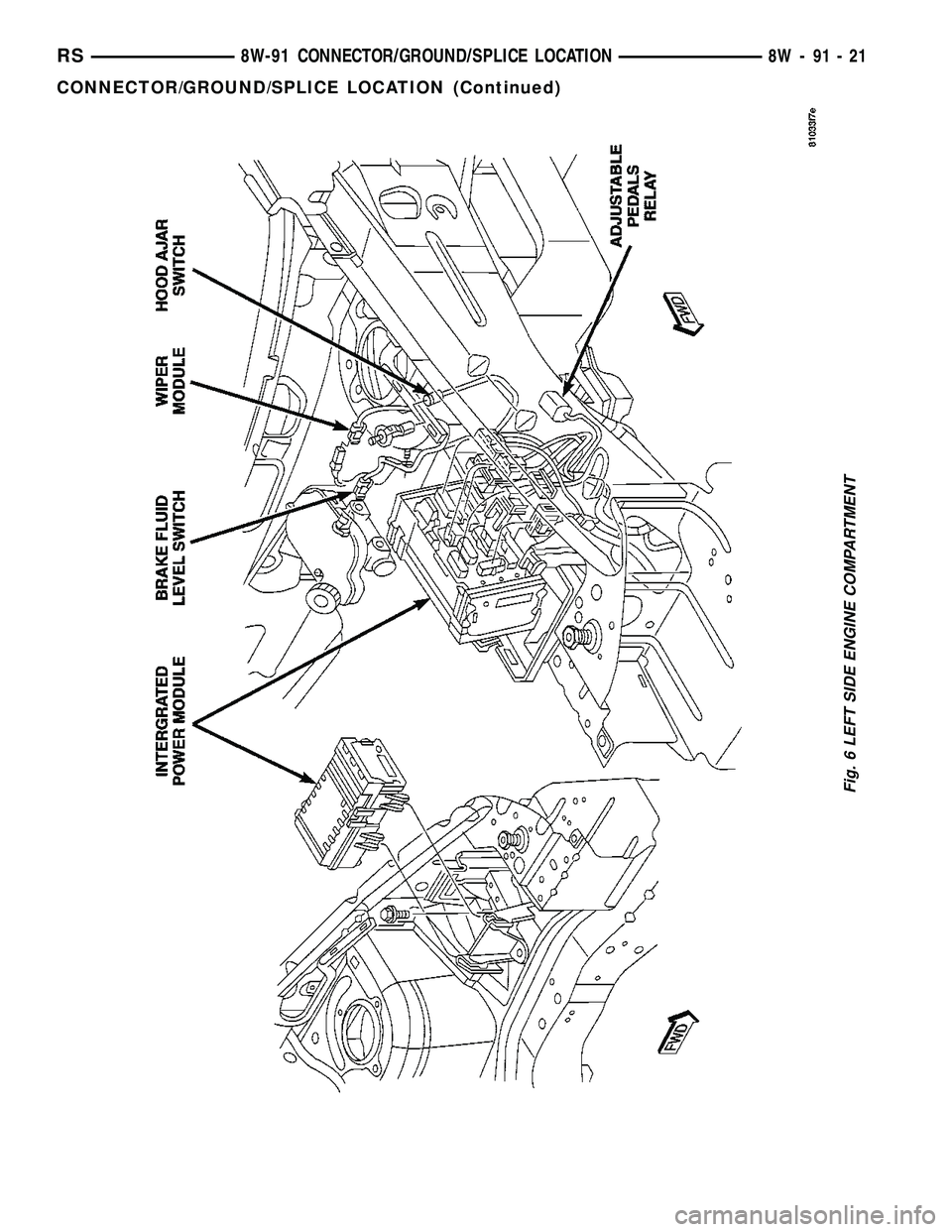

Fig. 6 LEFT SIDE ENGINE COMPARTMENT
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-21
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

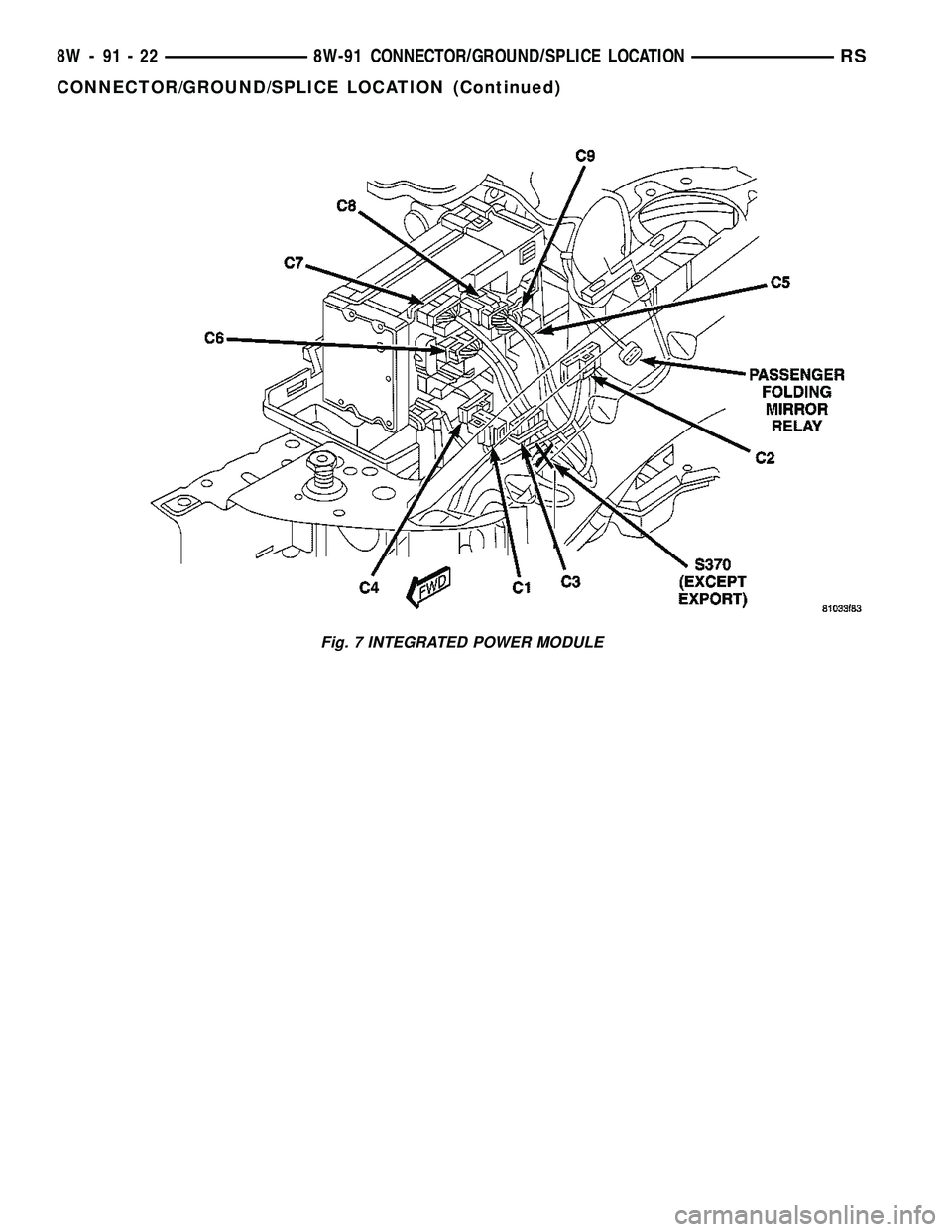

Fig. 7 INTEGRATED POWER MODULE
8W - 91 - 22 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

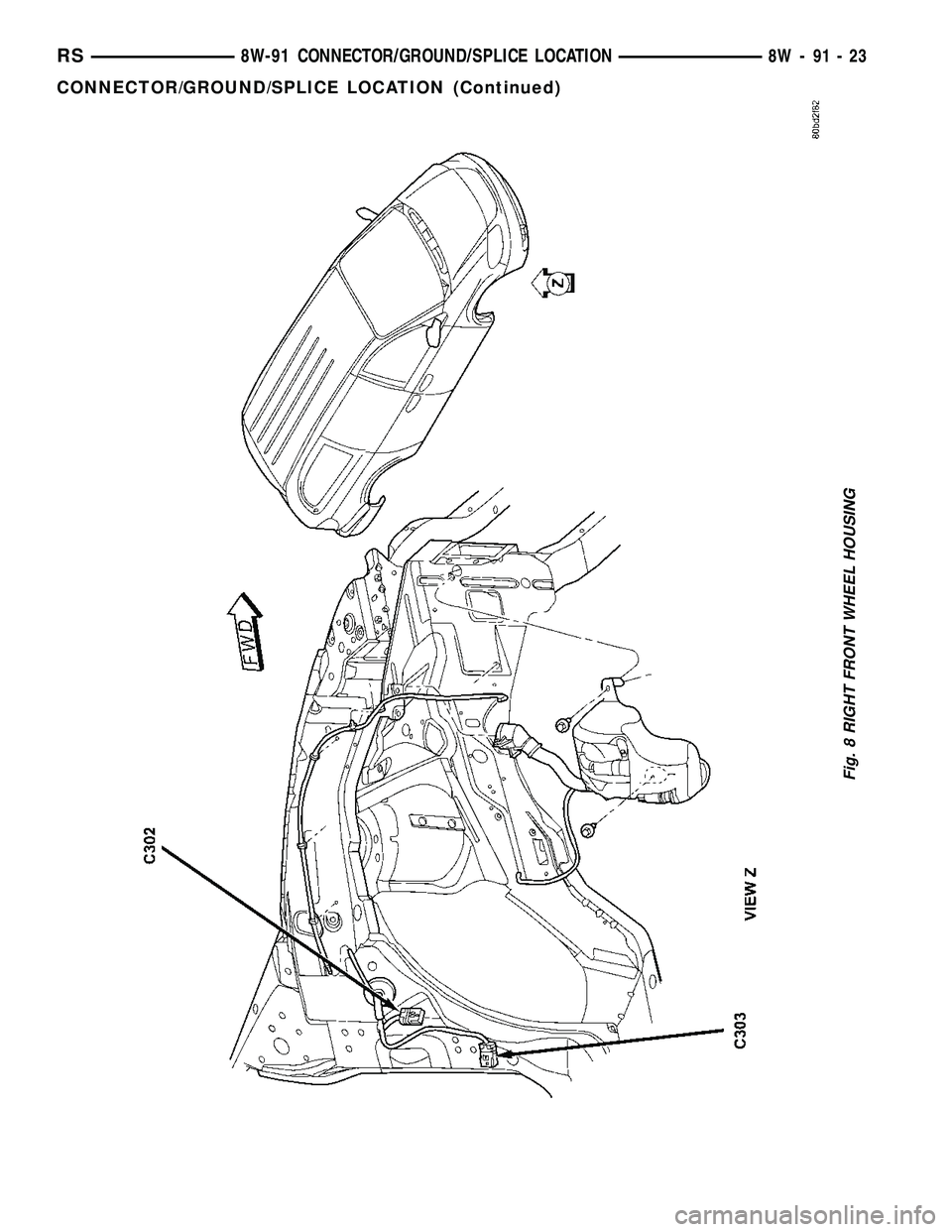

Fig. 8 RIGHT FRONT WHEEL HOUSING
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-23
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 9 INLET AIR SENSORS
8W - 91 - 24 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

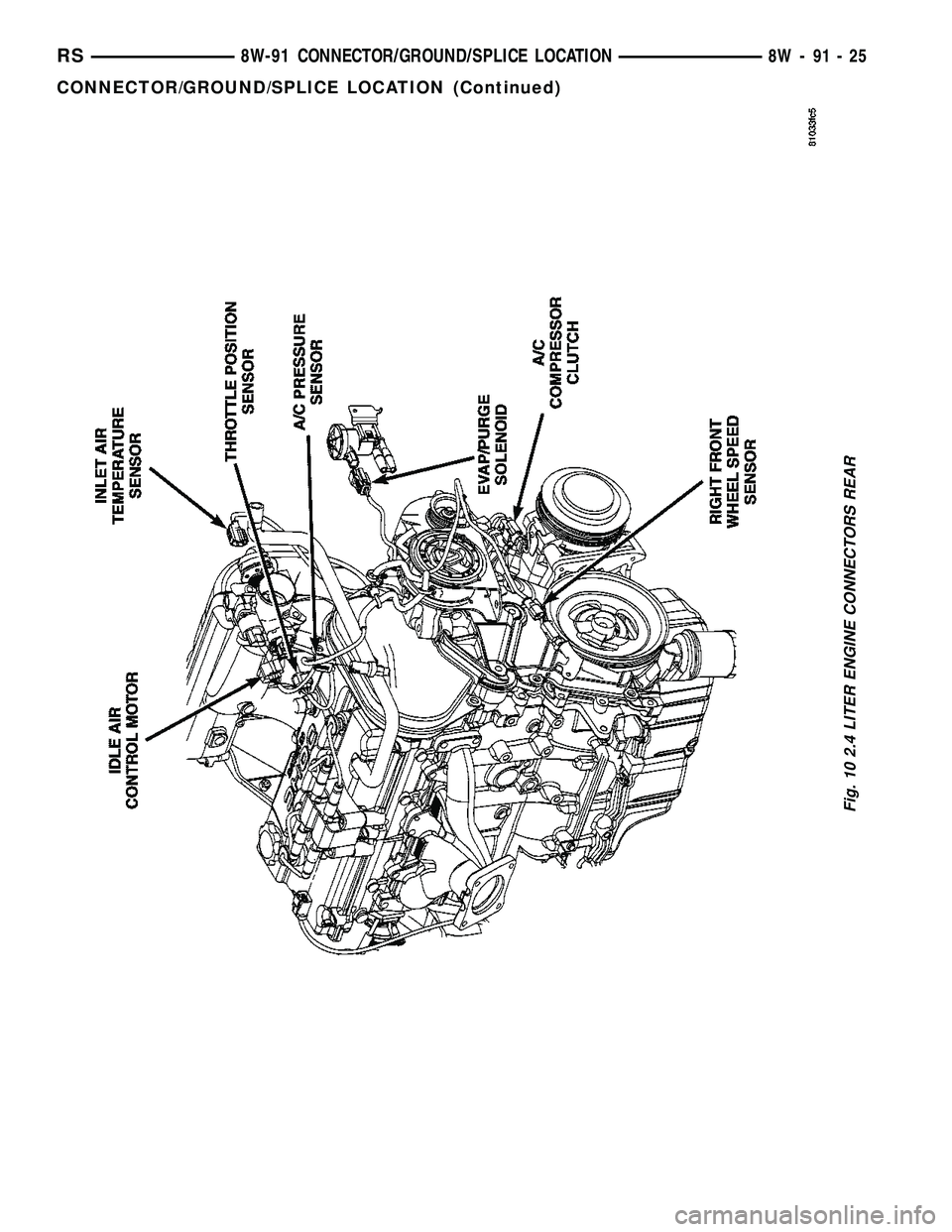

Fig. 10 2.4 LITER ENGINE CONNECTORS REAR
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-25
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

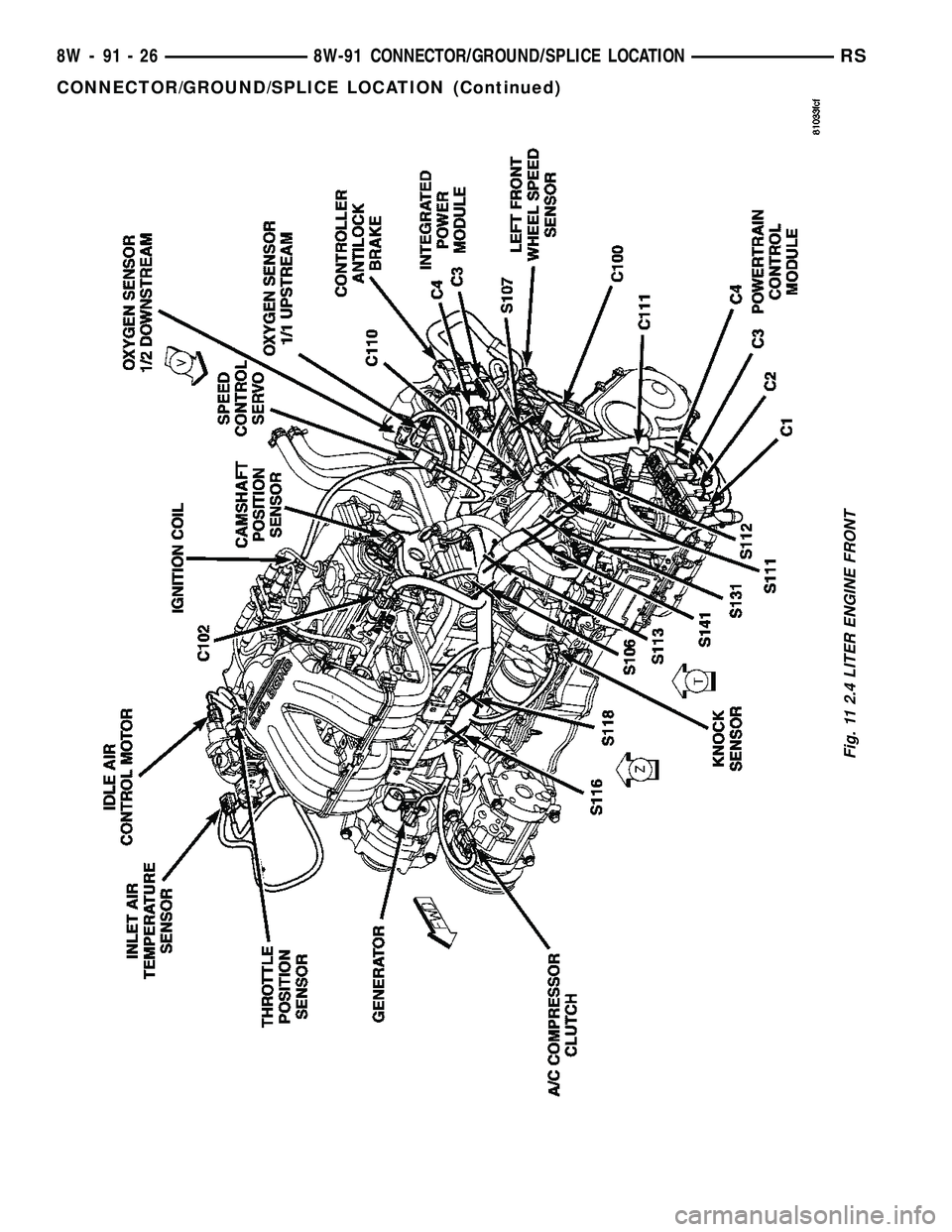

Fig. 11 2.4 LITER ENGINE FRONT
8W - 91 - 26 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 12 OXYGEN SENSORS
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-27
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

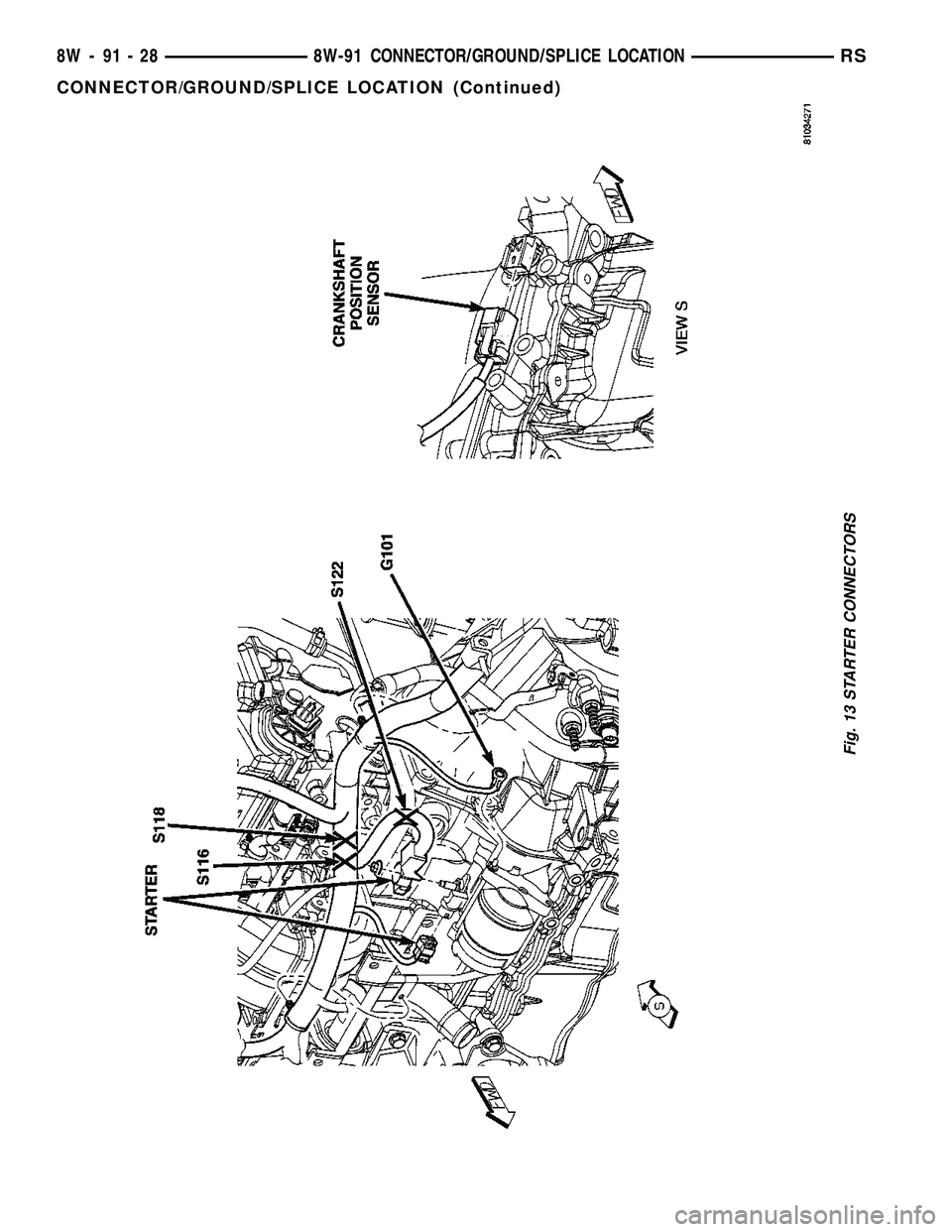

Fig. 13 STARTER CONNECTORS
8W - 91 - 28 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

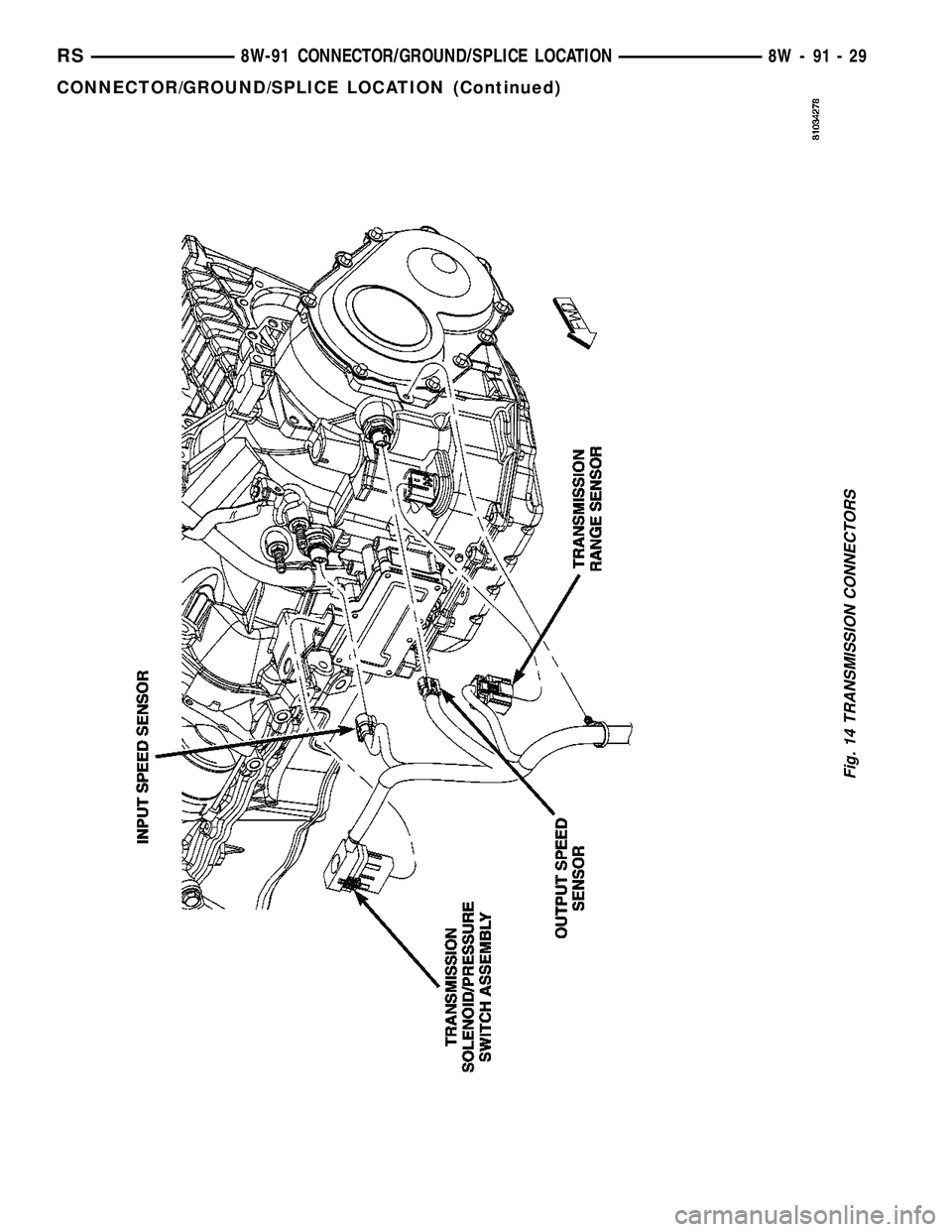

Fig. 14 TRANSMISSION CONNECTORS
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-29
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
