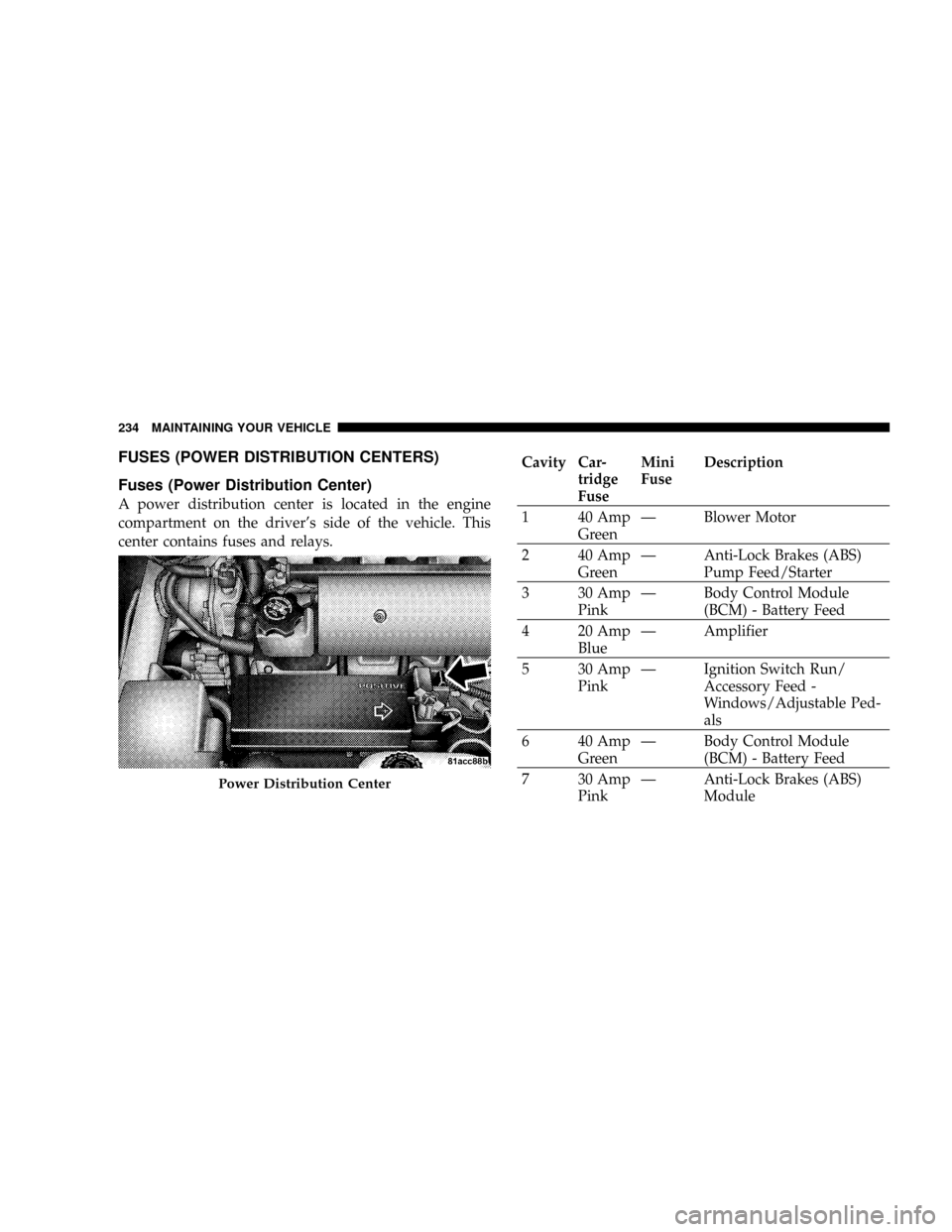

FUSES (POWER DISTRIBUTION CENTERS)
Fuses (Power Distribution Center)
A power distribution center is located in the engine
compartment on the driver's side of the vehicle. This
center contains fuses and relays.
Cavity Car-
tridge
FuseMini
FuseDescription
1 40 Amp
GreenÐ Blower Motor
2 40 Amp
GreenÐ Anti-Lock Brakes (ABS)
Pump Feed/Starter
3 30 Amp
PinkÐ Body Control Module
(BCM) - Battery Feed
4 20 Amp
BlueÐ Amplifier
5 30 Amp
PinkÐ Ignition Switch Run/
Accessory Feed -
Windows/Adjustable Ped-
als
6 40 Amp
GreenÐ Body Control Module
(BCM) - Battery Feed
7 30 Amp
PinkÐ Anti-Lock Brakes (ABS)
Module
Power Distribution Center
234 MAINTAINING YOUR VEHICLE

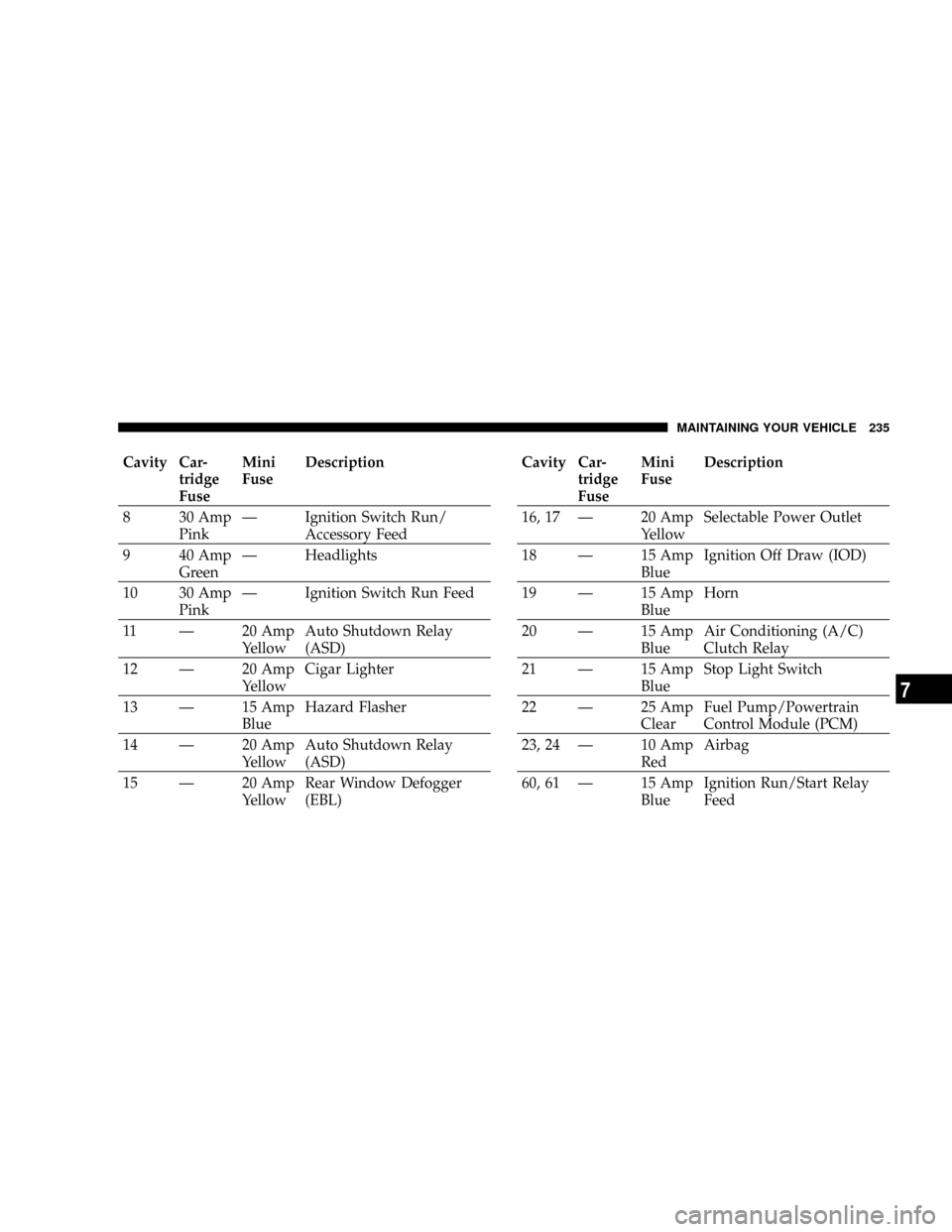

Cavity Car-
tridge
FuseMini
FuseDescription
8 30 Amp
PinkÐ Ignition Switch Run/
Accessory Feed
9 40 Amp
GreenÐ Headlights
10 30 Amp
PinkÐ Ignition Switch Run Feed
11 Ð 20 Amp
YellowAuto Shutdown Relay
(ASD)
12 Ð 20 Amp
YellowCigar Lighter
13 Ð 15 Amp
BlueHazard Flasher
14 Ð 20 Amp
YellowAuto Shutdown Relay
(ASD)
15 Ð 20 Amp
YellowRear Window Defogger
(EBL)Cavity Car-
tridge
FuseMini
FuseDescription
16, 17 Ð 20 Amp
YellowSelectable Power Outlet
18 Ð 15 Amp
BlueIgnition Off Draw (IOD)
19 Ð 15 Amp
BlueHorn
20 Ð 15 Amp
BlueAir Conditioning (A/C)
Clutch Relay
21 Ð 15 Amp
BlueStop Light Switch
22 Ð 25 Amp
ClearFuel Pump/Powertrain
Control Module (PCM)
23, 24 Ð 10 Amp
RedAirbag
60, 61 Ð 15 Amp
BlueIgnition Run/Start Relay
Feed
MAINTAINING YOUR VEHICLE 235
7

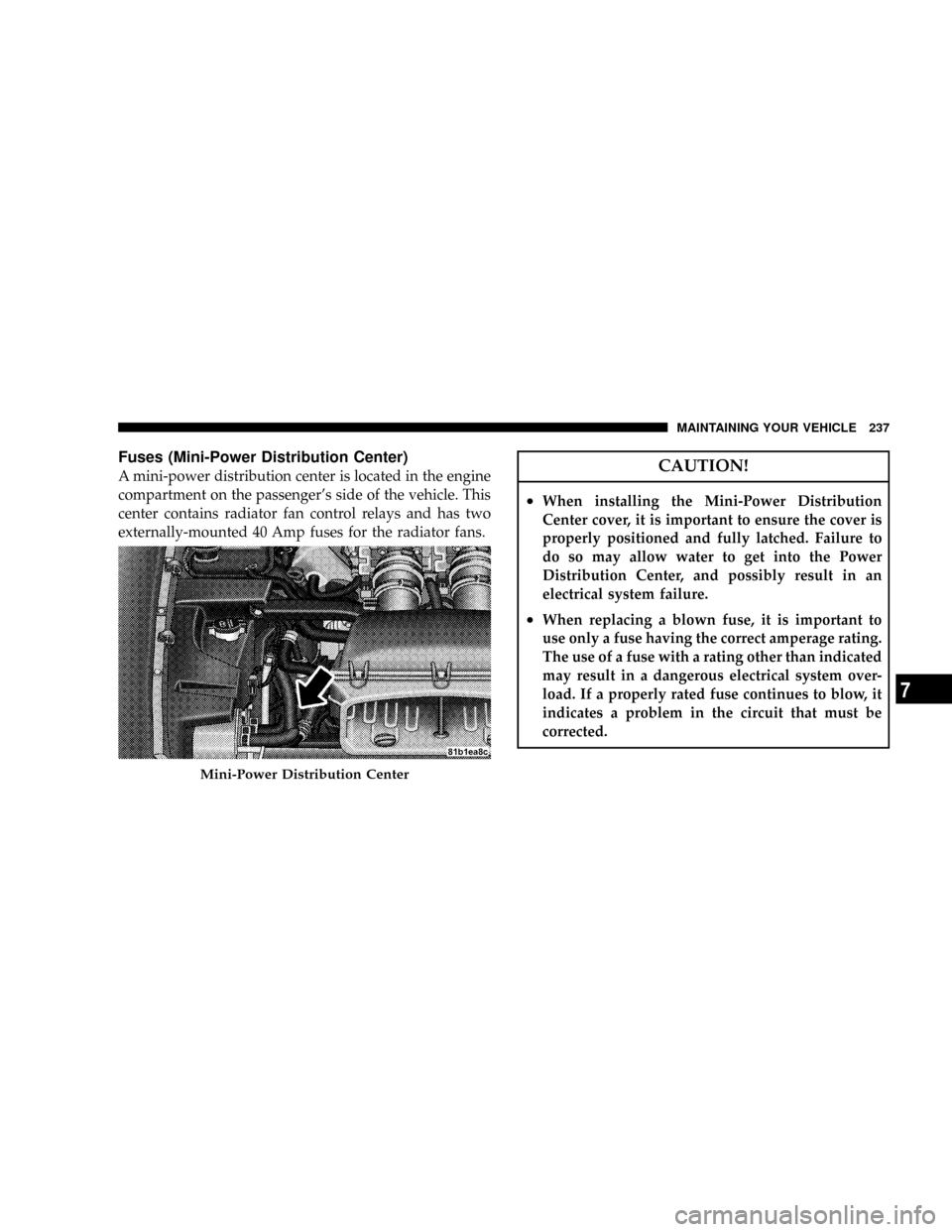

Fuses (Mini-Power Distribution Center)
A mini-power distribution center is located in the engine
compartment on the passenger's side of the vehicle. This
center contains radiator fan control relays and has two
externally-mounted 40 Amp fuses for the radiator fans.CAUTION!
²When installing the Mini-Power Distribution
Center cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Power
Distribution Center, and possibly result in an
electrical system failure.
²When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
Mini-Power Distribution Center
