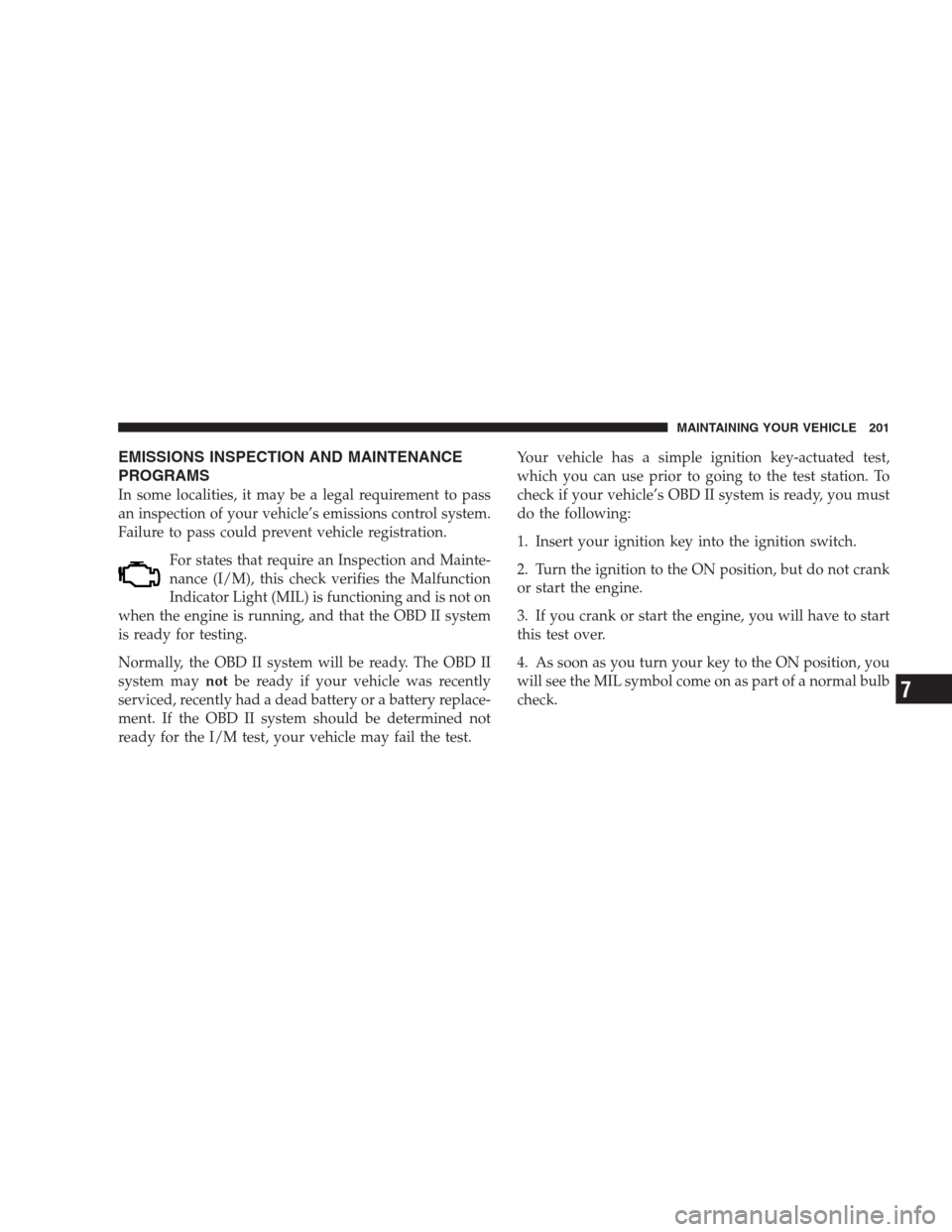

EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the Malfunction
Indicator Light (MIL) is functioning and is not on
when the engine is running, and that the OBD II system
is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system maynotbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Insert your ignition key into the ignition switch.
2. Turn the ignition to the ON position, but do not crank
or start the engine.
3. If you crank or start the engine, you will have to start
this test over.
4. As soon as you turn your key to the ON position, you
will see the MIL symbol come on as part of a normal bulb
check.
MAINTAINING YOUR VEHICLE 201
7

•The Vehicle Security Alarm is disabled when the
Battery Save Feature is enabled. Therefore, the vehicle
is not protected when the Battery Save Feature is
enabled.
•The exterior and interior lighting functions will not
work when the Battery Save Feature is enabled.
To Deactivate the Battery Save Feature
1. Press the exterior driver’s door handle once to wake
up the vehicle. Then, press the handle again to open the
door.
NOTE:If the door does not open (vehicle is armed),
press the RKE UNLOCK button to unlock the vehicle.
2. Insert the key into the ignition switch.
3. Turn the ignition switch to the ON/RUN position. The
Battery Save Feature will turn off.NOTE:If the ignition switch is NOT turned to ON/
RUN position, the Battery Save Feature will be enabled
45 seconds after the driver’s door is closed.
Air Conditioner Maintenance
For best possible performance, your air conditioner
should be checked and serviced by an authorized dealer
at the start of each warm season. This service should
include cleaning of the condenser fins and a performance
test. Drive belt tension should also be checked at this
time.
NOTE:If A/C performance seems less then normal,
check the front of the A/C condenser (located in front of
the radiator) for dirt and insect accumulation. Clean with
a gentle water spray as required. Front end fascia protec-
tors may reduce air flow to the condenser and radiator,
reducing A/C and engine cooling performance.
MAINTAINING YOUR VEHICLE 211
7

Then, either disconnect the battery at the negative
terminal or use the “Battery Save Feature” to conserve
battery power. Refer to “Battery Save Feature” under
“Maintenance Procedures” in this section for details.
NOTE:Disconnecting the battery causes the engine
control system to lose memory of some “learned” func-
tions. After reconnecting the battery, the engine may run
rough until the control module “relearns” these func-
tions. Using the Battery Save Feature will prevent the
engine controller from loosing its memory.
CAUTION!
Use care when disconnecting the remote positive
cable. It is connected to the battery and can short out
to any metal on the vehicle. Always tape or wrap the
exposed cable end to prevent electrical shorts.Check the battery every four to six weeks to ensure that
the voltage is above 12.40 Volts. The voltage will drop
more rapidly in hot temperatures. If battery voltage
drops below 12.40 Volts, follow the battery recharge
procedure in the Service Manual.
NOTE:To help prevent the battery from discharging
during shorter periods of inactivity, perform the follow-
ing:
1. Make sure that the trunk/liftgate, hood, doors, win-
dows, and convertible top are completely closed.
2. Make sure that Remote Keyless Entry (RKE) transmit-
ter is operating and that the battery is good.
3. Make sure that the HOOD, TRUNK/LIFTGATE, and
DOOR switches are in adjustment. Perform the quick
system check, which follows:
Use the remote transmitter to set the alarm. If the alarm
SET light comes on and flashes, the system is operating
MAINTAINING YOUR VEHICLE 235
7

At Each Stop for Fuel
•Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
•Check the windshield washer solvent and add if
required.
Once a Month
•Check tire pressure and look for unusual wear or
damage.
•Inspect the battery, and clean and tighten the terminals
as required.
•Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering, and transmission,
and add as needed.
•Check all lights and all other electrical items for correct
operation.
At Each Oil Change
•Change the engine oil filter.
•Inspect the exhaust system.
NOTE:Also, inspect the exhaust system if you notice a
change in the sound of the exhaust system, or if the
exhaust fumes can be detected inside the vehicle.
•Inspect the brake hoses.
•Inspect the suspension components.
•Lubricate door hinges and check springs.
•Check the engine coolant level, hoses, and clamps.
•Check power steering fluid level.
252 MAINTENANCE SCHEDULES
8
M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

Location..........................192,207
Saving Feature (Protection)............... 210
Storing Vehicle........................ 210
Belts, Seat............................33,34
Body Mechanism Lubrication............... 212
Boot, Convertible Top...................69,74
B-Pillar Location........................ 156
Brake, Parking.......................... 145
Brake System........................147,222
Anti-Lock (ABS)....................147,148
Fluid Check.......................222,248
Master Cylinder....................... 222
Warning Light........................ 104
Break-In Recommendations, New Vehicle.....59,147
Bulb Replacement....................... 237
Bulbs, Light............................ 236
Capacities, Antifreeze (Engine Coolant)........ 246
Capacities, Fluid........................ 246Caps, Filler
Fuel................................ 175
Oil (Engine).......................... 205
Power Steering........................ 144
Radiator (Coolant Pressure)............... 219
Car Washes............................ 227
Carbon Monoxide Warning...............60,174
CD (Compact Disc) Changer................ 116
CD (Compact Disc) Player............... 111,115
Cellular Phone.......................... 125
Chains, Tire............................ 167
Charging System Light.................... 109
Chart, Tire Sizing........................ 153
Check Engine Light
(Malfunction Indicator Light)............... 201
Checks, Safety........................... 60
Child Restraint....................53,54,55,58
Child Restraint Tether Anchors............... 56
Circuit Breakers......................... 230
INDEX 281
10

Door Locks............................. 25
Door Locks, Automatic.................... 27
Doors................................. 25
Driving
On Slippery Surfaces.................... 141
Through Flowing, Rising, or Shallow
Standing Water........................ 142
Electric Remote Mirrors.................... 78
Electronic Throttle Control Warning Light...... 104
Emergency Brake........................ 145
Emergency, In Case of
Freeing Vehicle When Stuck............... 195
Hazard Warning Flasher................. 180
Jump Starting......................... 192
Overheating.......................... 180
Towing............................. 196
Emission Control System Maintenance......201,250Engine............................... 199
Air Cleaner.......................... 206
Break-In Recommendations................ 59
Checking Oil Level..................... 203
Compartment......................... 199
Coolant (Antifreeze).................217,247
Cooling..........................108,216
Exhaust Gas Caution................31,60,174
Fails to Start.......................... 136
Flooded, Starting...................... 136
Fuel Requirements..................170,246
Oil ...........................203,246,247
Oil Change Interval.................... 204
Oil Disposal.......................... 206
Oil Filler Cap......................... 205
Oil Filter............................ 206
Oil Selection.......................205,246
Overheating.......................108,180
Engine Oil Viscosity...................205,246
INDEX 283
10

Engine Oil Viscosity Chart................. 205
Ethanol............................... 171
Exhaust Gas Caution..............31,60,174,214
Exhaust System.......................60,214
Exterior Finish Care...................... 227
Filters
Air Cleaner.......................... 206
Engine Oil........................206,247
Engine Oil Disposal.................... 206
Finish Care............................ 227
Flashers
Hazard Warning....................103,180
Turn Signal........................85,103
Flash-To-Pass........................... 86
Flooded Engine Starting................... 136
Floor Console........................... 94
Fluid Capacities......................... 246
Fluid Leaks............................. 62Fluid Level Checks
Brake............................222,248
Capacities........................... 246
Clutch Fluid.......................... 224
Cooling System....................... 217
Engine Oil........................... 203
Manual Transmission.................224,248
Power Steering.....................144,248
Fluids................................ 247
Fluids, Lubricants and Genuine Parts.......... 247
Fog Lights.........................83,84,101
Four-Way Hazard Flasher.................. 180
Freeing A Stuck Vehicle................... 195
Fuel................................. 170
Adding............................. 175
Clean Air............................ 171
Ethanol............................. 171
Filler Cap (Gas Cap).................... 175
Gasoline............................ 170
284 INDEX

Battery Saver........................84,88
Brake Warning........................ 104
Bulb Replacement...................... 236
Courtesy/Reading...................... 87
Daytime Running....................... 84
Dimmer Switch, Headlight................ 86
Electronic Throttle Control Warning......... 104
Engine Temperature Warning.............. 108
Exterior Check......................... 62
Fog ..............................84,101
Hazard Warning Flasher..............103,180
Headlight Switch....................... 83
Headlights.........................83,238
Headlights On Reminder................. 84
High Beam.........................86,101
High Beam Indicator.................... 101
Illuminated Entry....................... 18
Instrument Cluster...................... 83
Intensity Control....................... 88Interior............................86,88
Lights On Reminder..................... 84
LowTire ............................ 105
Malfunction Indicator (Check Engine)........ 102
Map Reading.......................... 87
Oil Pressure.......................... 109
Park................................ 83
Passing.............................. 86
Reading.............................. 87
Seat Belt Reminder..................... 107
Service...........................236,237
Service Engine Soon (Malfunction Indicator) . . . 102
Tire Pressure Monitoring (TPMS)........105,169
Turn Signal........................85,103
Voltage............................. 109
Loading Vehicle
Tires ............................... 156
Locks................................. 25
Door................................ 25
INDEX 287
10

Power Door........................... 26
Low Tire Indicator....................... 169
Low Tire Pressure System.................. 169
Lubrication, Body....................... 212
Maintenance Free Battery.................. 207
Maintenance Procedures................... 203
Maintenance Schedule.................... 250
Light Duty Schedule “B”................. 253
Schedule “A”......................... 263
Schedule “B”......................... 253
Malfunction Indicator Light (Check Engine) . . 102,201
Manual, Service......................... 275
Manual Transmission..................... 137
Fluid Level Check...................224,248
Lubricant Selection..................... 248
Shift Speeds.......................... 139
Message Center......................... 101
Methanol............................. 171Mirrors................................ 77
Electric Remote........................ 78
Outside............................77,78
Rearview............................. 77
Modifications/Alterations, Vehicle............. 7
Monitor, Tire Pressure System............... 169
Mopar Parts.........................202,274
MTBE/ETBE........................... 171
Multi-Function Control Lever................ 83
New Vehicle Break-In Period................ 59
Occupant Restraints....................... 33
Octane Rating, Gasoline (Fuel).............. 170
Odometer............................. 100
Trip ................................ 100
Oil, Engine.......................203,246,247
Capacity............................ 246
Change Interval....................... 204
288 INDEX

Checking............................ 203
Dipstick............................. 203
Disposal............................ 206
Filter............................206,247
Filter Disposal........................ 206
Materials Added to..................... 206
Pressure Gauge....................... 108
Recommendation...................205,246
Viscosity..........................205,246
Oil Filter, Selection....................... 206
Onboard Diagnostic System..............200,201
Operator Manual (Owner’s Manual)............ 4
Outside Rearview Mirrors.................. 77
Overheating, Engine...................... 180
Owner’s Manual (Operator Manual).........4,275
Paint Care............................. 226
Paint Damage.......................... 226
Panic Alarm............................ 21Parking Brake.......................... 145
Parking On Hill......................... 145
Passing Light........................... 86
Pedals, Adjustable........................ 92
Pets.................................. 59
Pets, Transporting........................ 59
Placard, Tire and Loading Information......... 156
Polishing and Waxing..................... 227
Power
Accessory Delay......................13,28
Brakes.............................. 147
Distribution Center (Fuses)............... 230
Door Locks........................... 26
Mirrors.............................. 78
Steering............................. 144
Windows............................. 28
Pregnant Women and Seat Belts.............. 41
Programming Transmitters
(Remote Keyless Entry).................... 22
INDEX 289
10
