NOTE:Until the convertible top system has had ad-
equate time to break-in, it may take a greater effort to
engage the latch hook and close the latch. However,
several weeks of normal convertible top usage will
reduce these efforts.
9. Raise both sun visors if so desired.
10. Adjust the windows as desired.
Convertible Top Boot Cover Installation — If
Equipped
1. Open the trunk.
2. Lower the convertible top. Verify that the latch handle

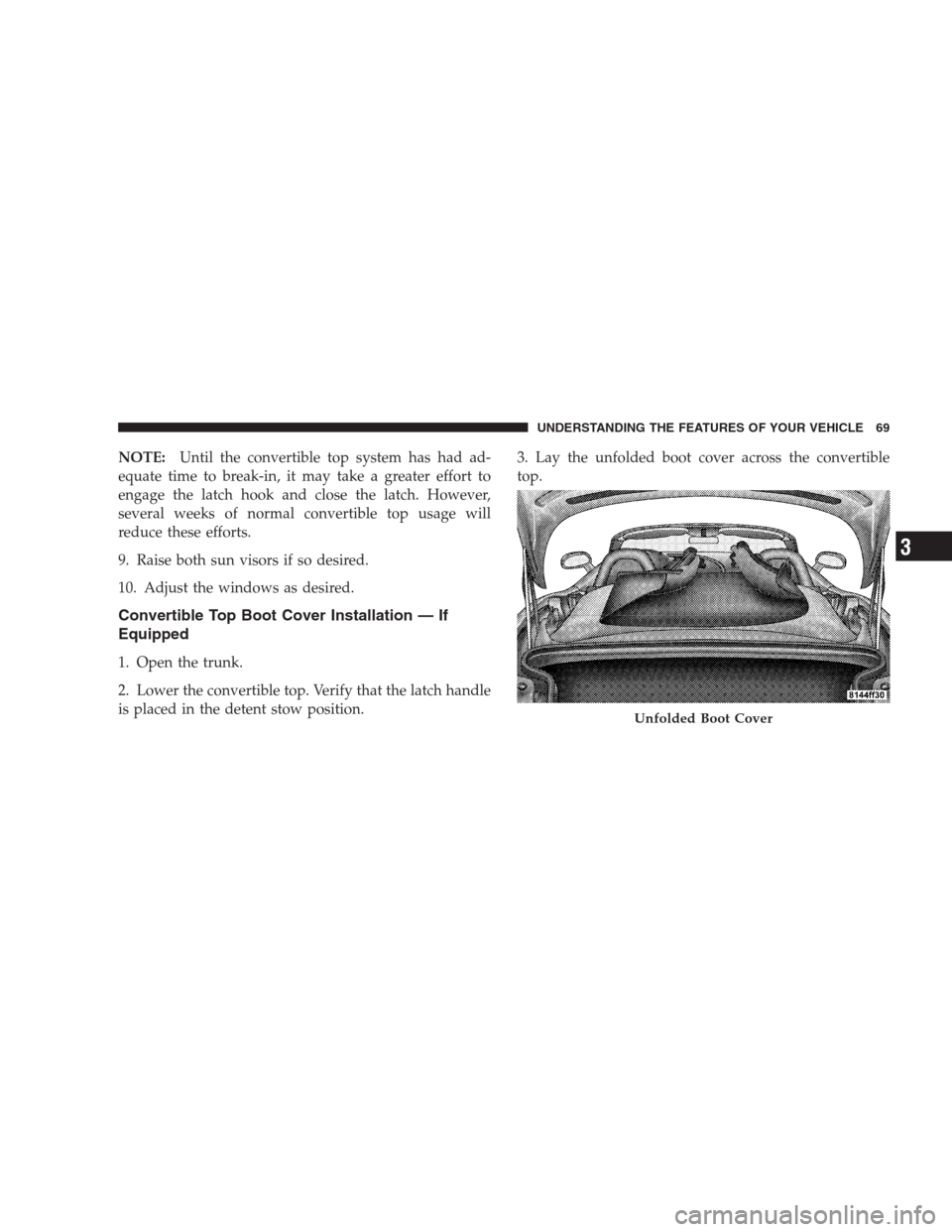

is placed in the detent stow position.3. Lay the unfolded boot cover across the convertible
top.
Unfolded Boot Cover
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 69
3

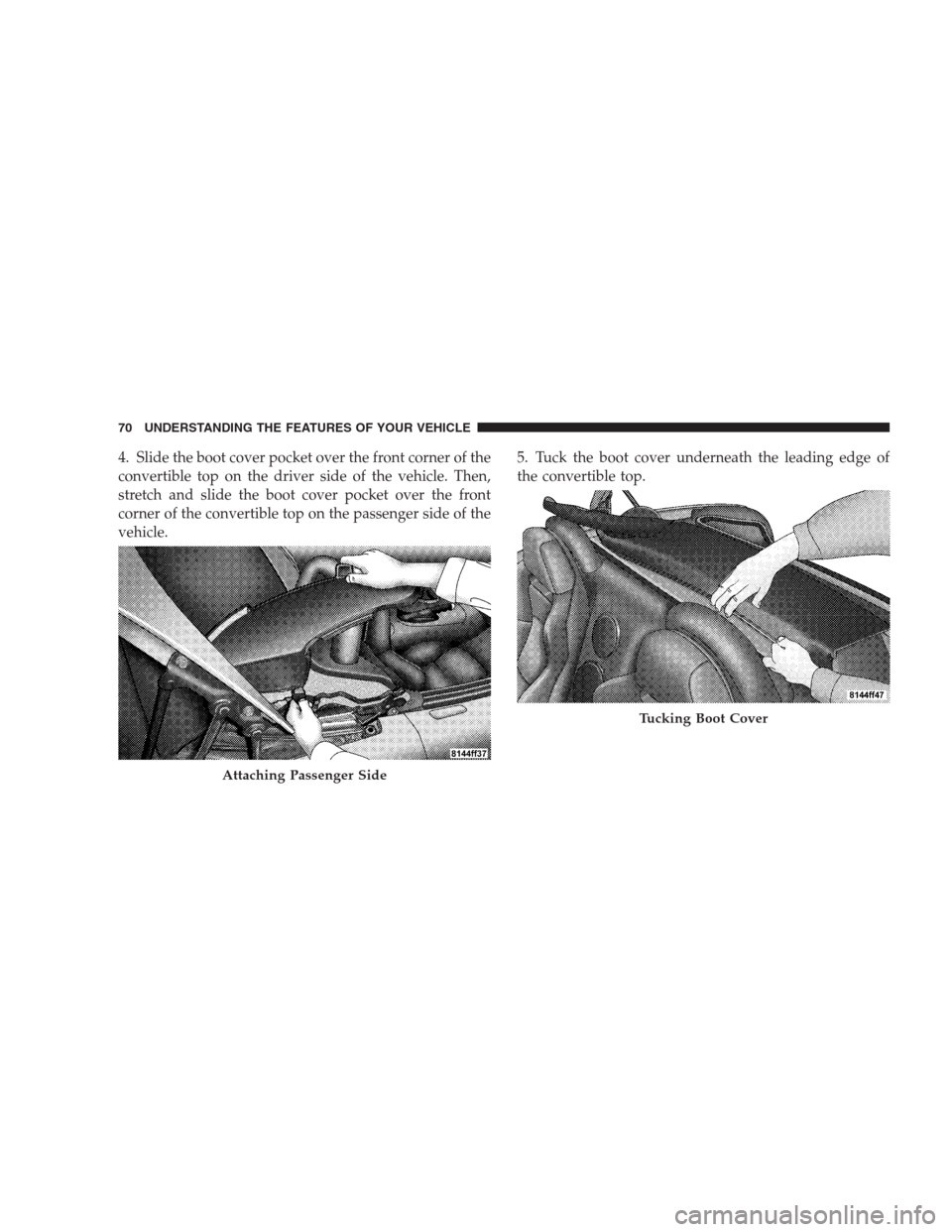

4. Slide the boot cover pocket over the front corner of the
convertible top on the driver side of the vehicle. Then,
stretch and slide the boot cover pocket over the front
corner of the convertible top on the passenger side of the
vehicle.5. Tuck the boot cover underneath the leading edge of
the convertible top.
Attaching Passenger Side
Tucking Boot Cover
70 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

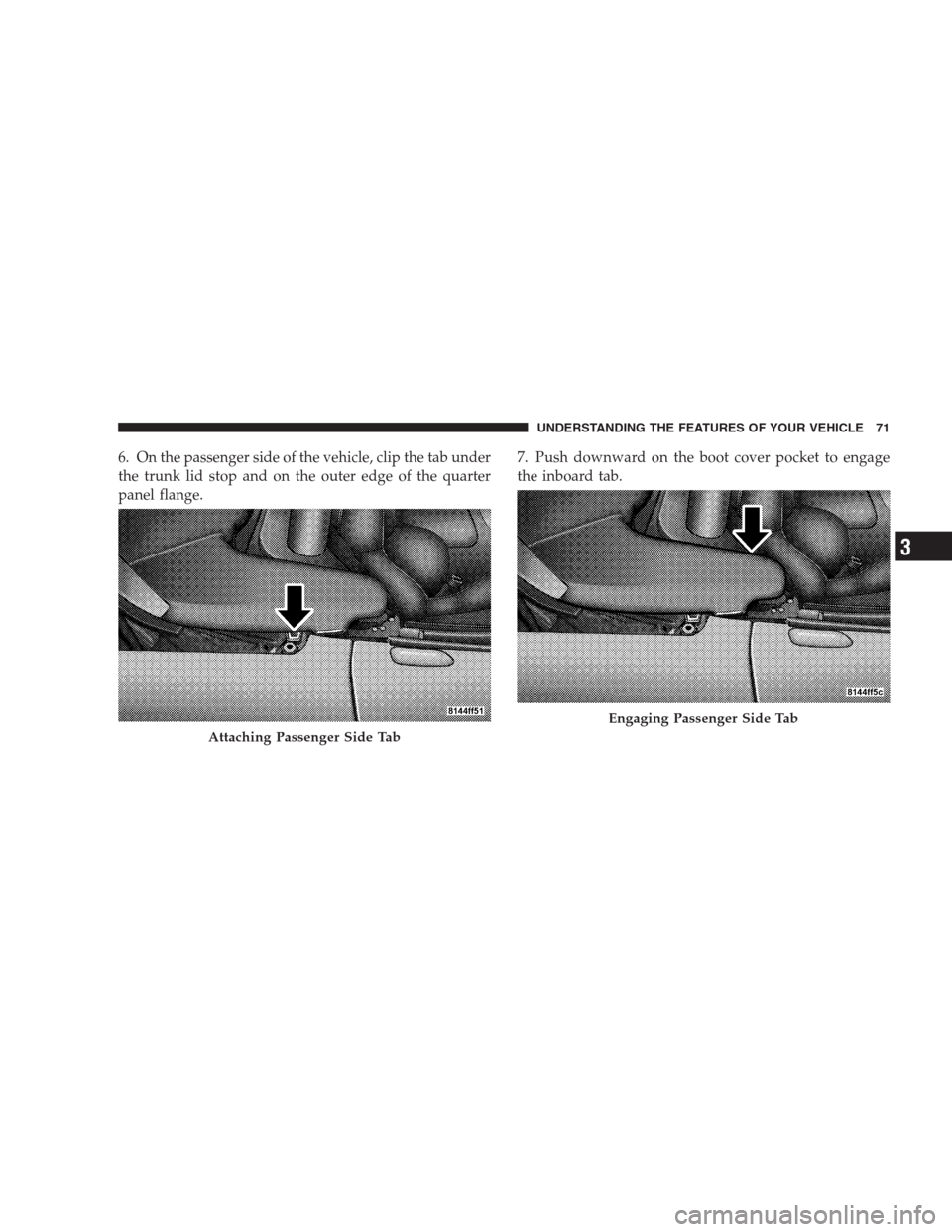

6. On the passenger side of the vehicle, clip the tab under
the trunk lid stop and on the outer edge of the quarter
panel flange.7. Push downward on the boot cover pocket to engage
the inboard tab.
Attaching Passenger Side Tab
Engaging Passenger Side Tab
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 71
3

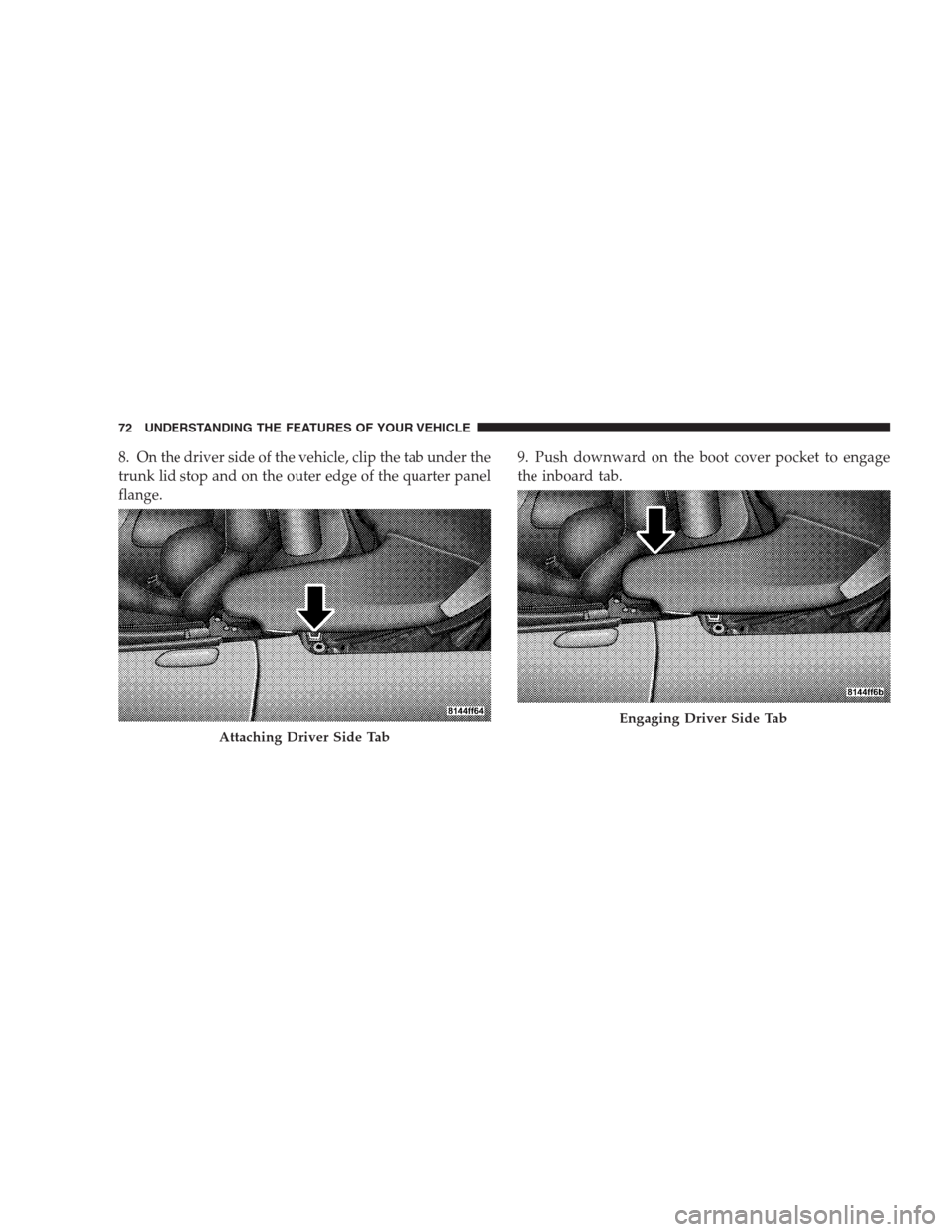

8. On the driver side of the vehicle, clip the tab under the
trunk lid stop and on the outer edge of the quarter panel
flange.9. Push downward on the boot cover pocket to engage
the inboard tab.
Attaching Driver Side Tab
Engaging Driver Side Tab
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

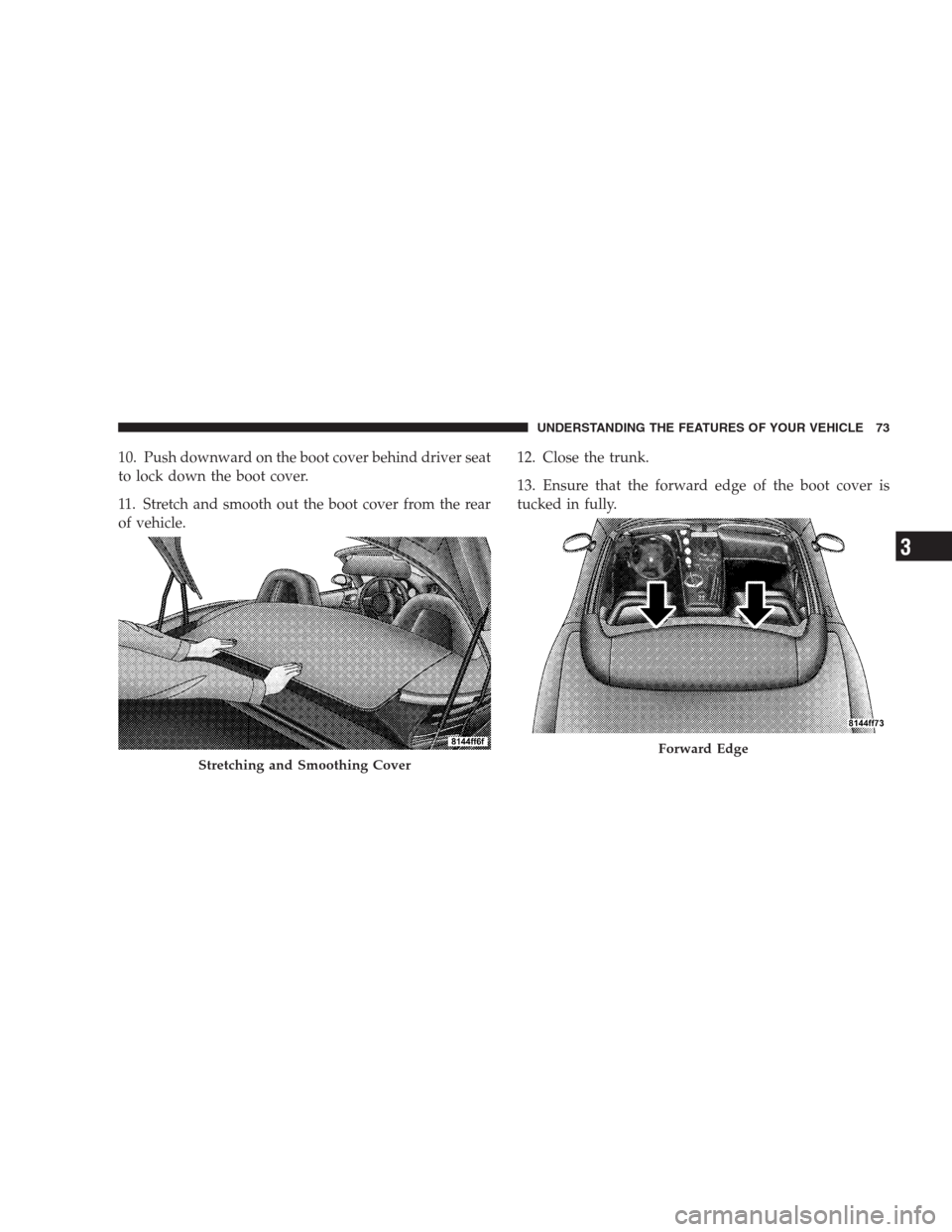

10. Push downward on the boot cover behind driver seat
to lock down the boot cover.
11. Stretch and smooth out the boot cover from the rear
of vehicle.12. Close the trunk.
13. Ensure that the forward edge of the boot cover is
tucked in fully.
Stretching and Smoothing Cover
Forward Edge
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73
3

Convertible Top Boot Cover Removal and
Storage
1. Open the trunk.

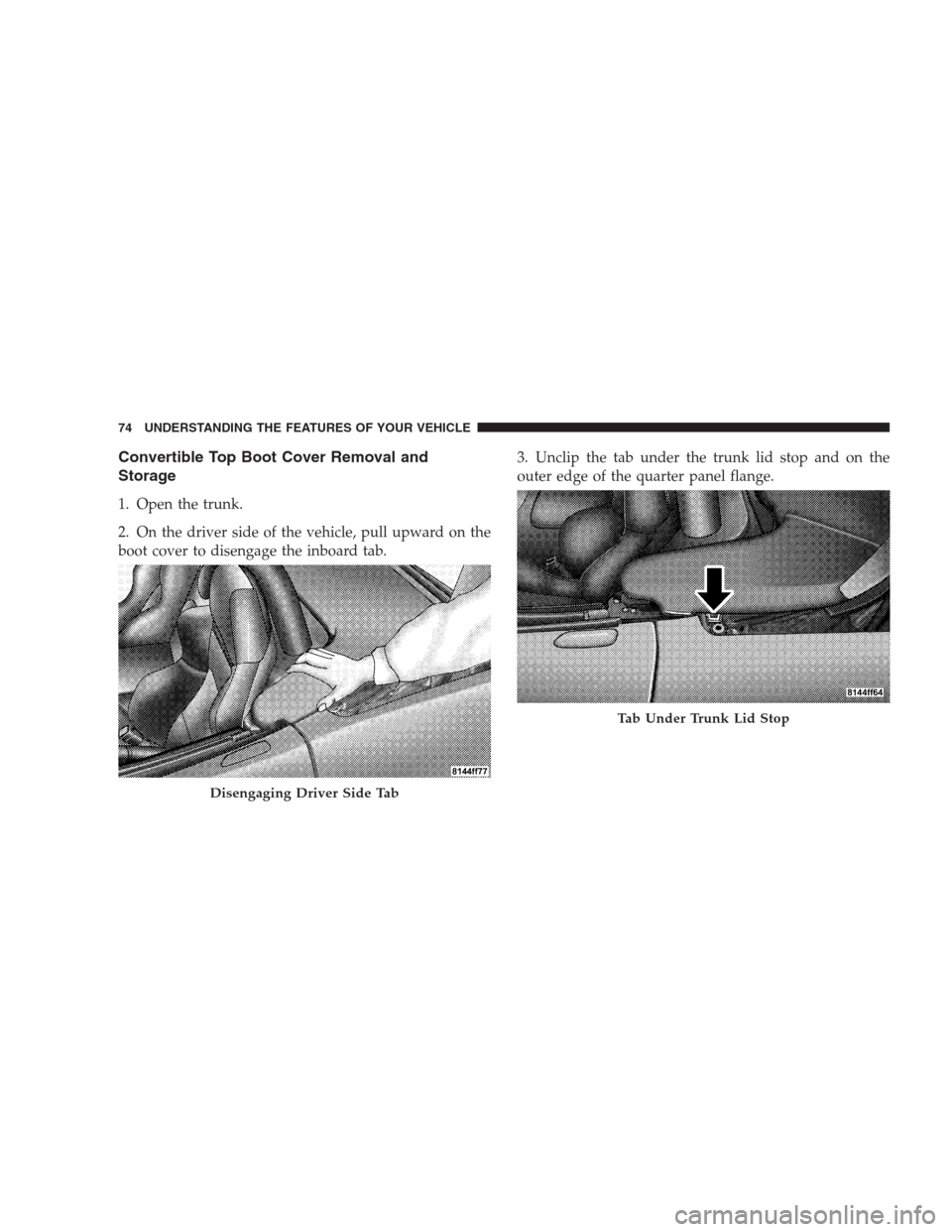

2. On the driver side of the vehicle, pull upward on the
boot cover to disengage the inboard tab.3. Unclip the tab under the trunk lid stop and on the
outer edge of the quarter panel flange.
Disengaging Driver Side Tab
Tab Under Trunk Lid Stop
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

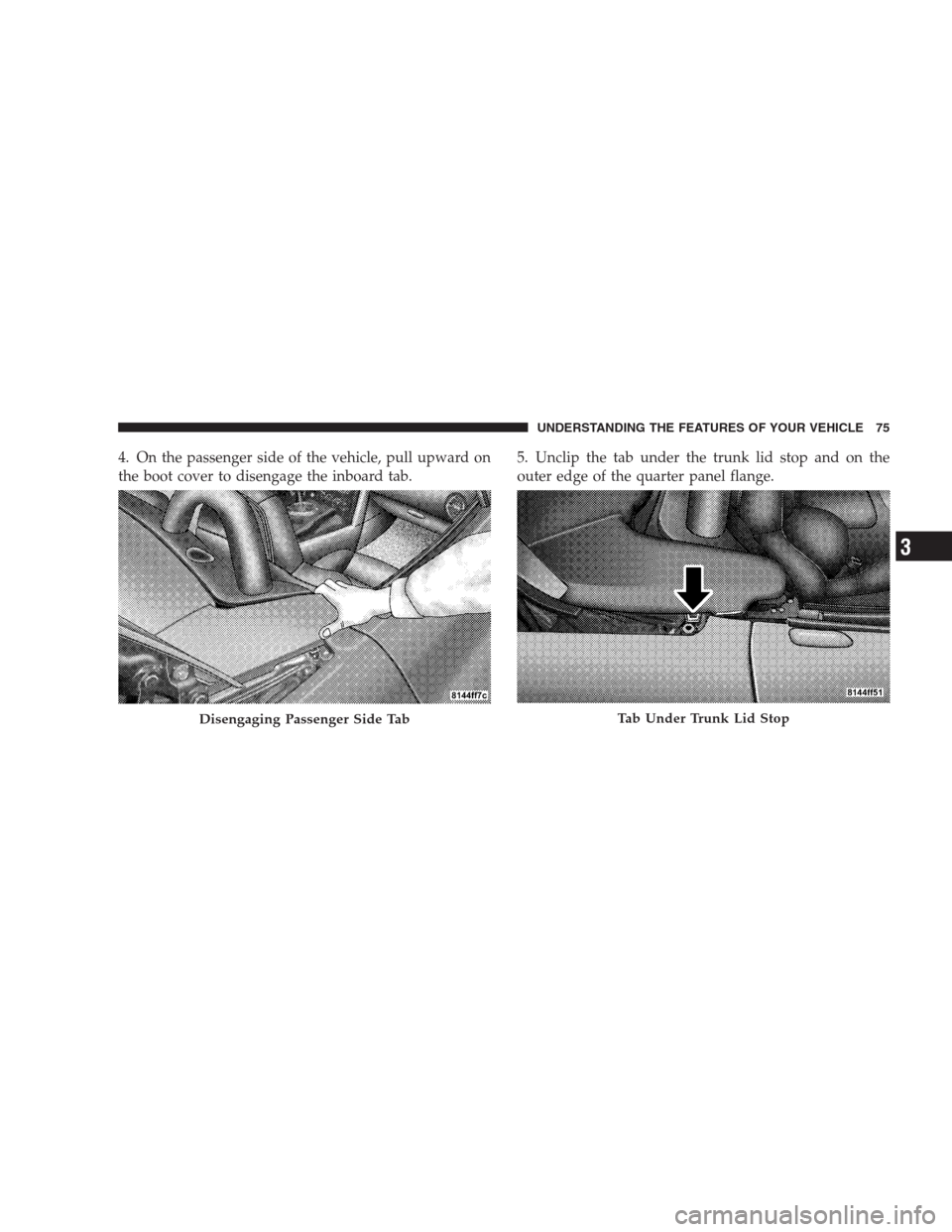

4. On the passenger side of the vehicle, pull upward on
the boot cover to disengage the inboard tab.5. Unclip the tab under the trunk lid stop and on the
outer edge of the quarter panel flange.
Disengaging Passenger Side TabTab Under Trunk Lid Stop
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3

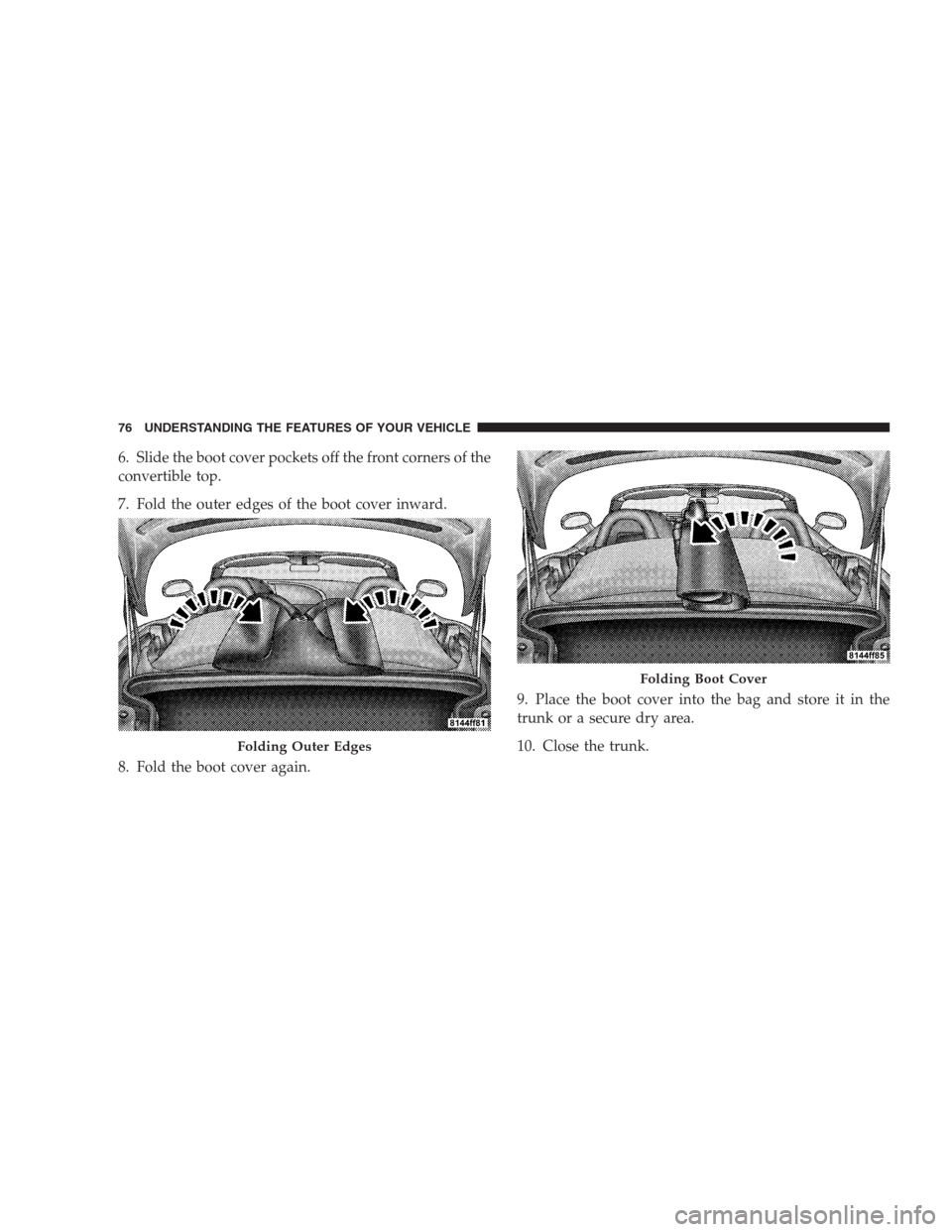

6. Slide the boot cover pockets off the front corners of the
convertible top.
7. Fold the outer edges of the boot cover inward.
8. Fold the boot cover again.9. Place the boot cover into the bag and store it in the
trunk or a secure dry area.
10. Close the trunk.
Folding Outer Edges
Folding Boot Cover
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

MIRRORS
Inside Day/Night Mirror
Adjust the mirror to center on the view through the rear
window. A pivot system allows for horizontal and verti-
cal mirror adjustment.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of the vehicle). The mirror should be adjusted while
set in the day position (toward the windshield).
Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
Adjusting Rearview Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3

NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger side convex mirror.
Power Mirrors
The power mirror switch is located on the driver’s door
trim panel below the door handle. Press the button
marked “L” to select the driver’s outside mirror or the
button marked “R” to select the passenger’s outside
mirror. After selecting a mirror, either press on the top,bottom, left, or right side of the directional switch and the
mirror will move in the direction that the arrow is
pointing. To return the power mirror switch to the
neutral (off) position, press lightly on the push button not
previously pressed until the opposite push button pops
outward.
Power Mirror Controls
