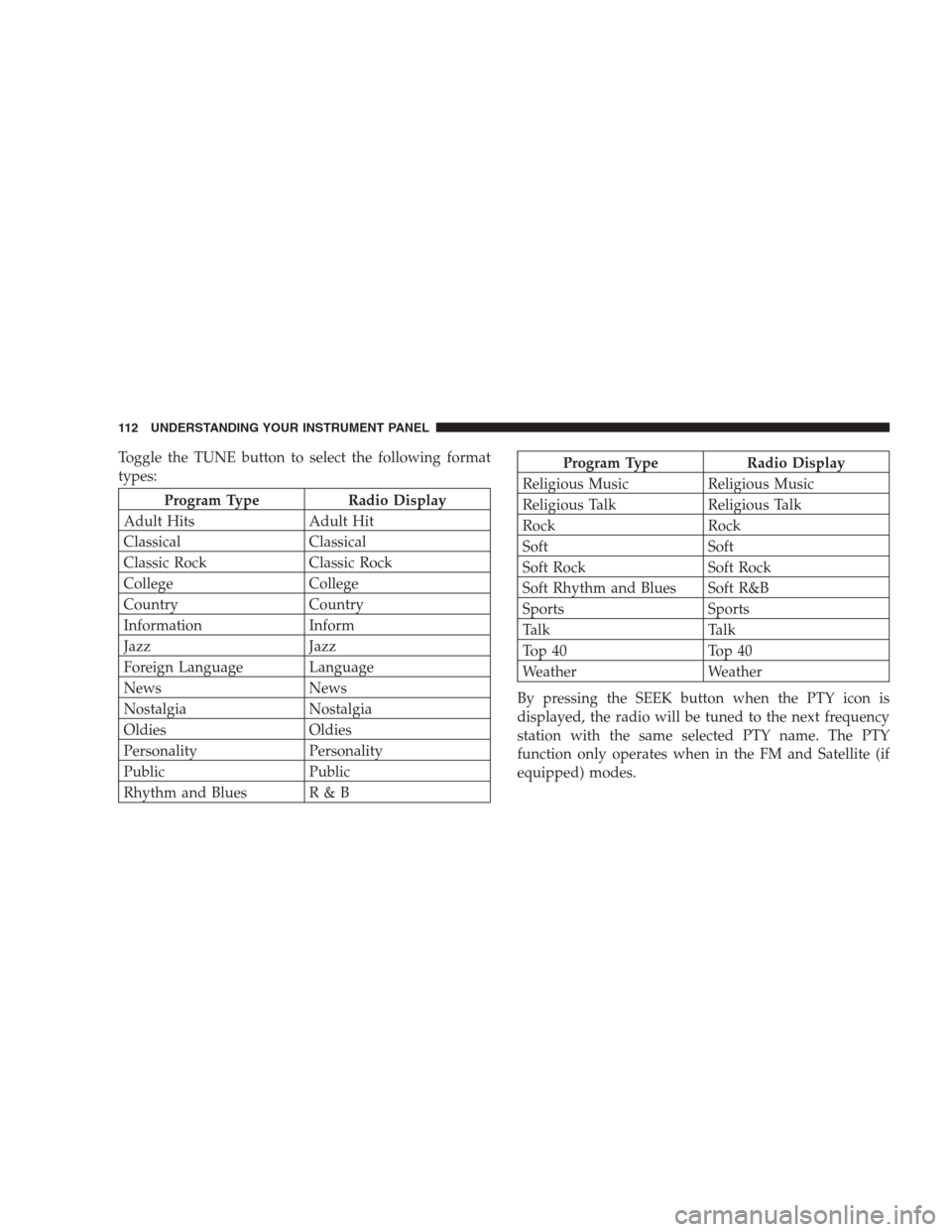

Toggle the TUNE button to select the following format
types:
Program Type Radio Display
Adult Hits Adult Hit
Classical Classical
Classic Rock Classic Rock
College College
Country Country
Information Inform
Jazz Jazz
Foreign Language Language
News News
Nostalgia Nostalgia
Oldies Oldies
Personality Personality
Public Public
Rhythm and Blues R & B
Program Type Radio Display
Religious Music Religious Music
Religious Talk Religious Talk
Rock Rock
Soft Soft
Soft Rock Soft Rock
Soft Rhythm and Blues Soft R&B
Sports Sports
Talk Talk
Top 40 Top 40
Weather Weather
By pressing the SEEK button when the PTY icon is
displayed, the radio will be tuned to the next frequency
station with the same selected PTY name. The PTY
function only operates when in the FM and Satellite (if
equipped) modes.
112 UNDERSTANDING YOUR INSTRUMENT PANEL

Temperature Control
Use this control to regulate the tem-
perature of the air inside the passen-
ger compartment. The blue area of the
control indicates cooler temperatures
while the red area indicates warmer
temperatures.
Mode Control
Use this control to select the direction
of air flow.
NOTE:The dot between the mode control icons is a mix
position between the two modes.The mode settings are as follows:
•Recirculation Control
Air is recirculated inside the vehicle. You may
choose between Bi-Level and Panel air outlets
while in this mode. Use this mode to tempo-
rarily block out any outside odors, smoke, or
dust and to cool the interior rapidly upon initial start up
in very hot or humid weather.
•Panel
Air is directed through the outlets in the instrument
panel. These outlets can be adjusted to direct air
flow.
•Bi-Level
Air is directed through the instrument panel and
floor outlets. A small amount of air is also directed
through the defrost outlets.
UNDERSTANDING YOUR INSTRUMENT PANEL 127
4

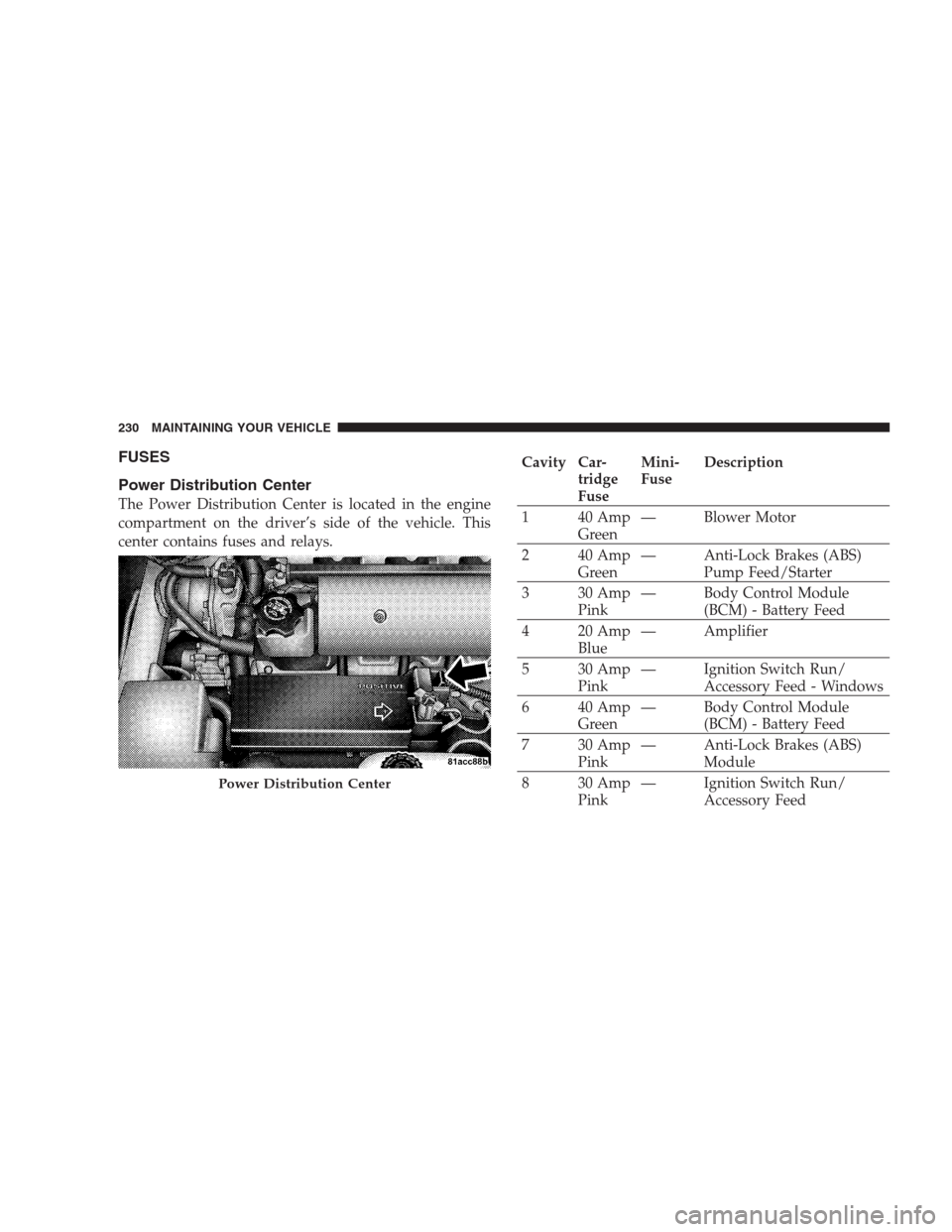

FUSES
Power Distribution Center
The Power Distribution Center is located in the engine
compartment on the driver’s side of the vehicle. This
center contains fuses and relays.
Cavity Car-
tridge
FuseMini-
FuseDescription
1 40 Amp
Green— Blower Motor
2 40 Amp
Green— Anti-Lock Brakes (ABS)
Pump Feed/Starter
3 30 Amp
Pink— Body Control Module
(BCM) - Battery Feed
4 20 Amp
Blue— Amplifier
5 30 Amp
Pink— Ignition Switch Run/
Accessory Feed - Windows
6 40 Amp
Green— Body Control Module
(BCM) - Battery Feed
7 30 Amp
Pink— Anti-Lock Brakes (ABS)
Module
8 30 Amp
Pink— Ignition Switch Run/
Accessory Feed
Power Distribution Center
230 MAINTAINING YOUR VEHICLE

Cavity Car-
tridge
FuseMini-
FuseDescription
9 40 Amp
Green— Headlights
10 30 Amp
Pink— Ignition Switch Run Feed
11 — 20 Amp
YellowAuto Shutdown Relay
(ASD)
12 — 20 Amp
YellowCigar Lighter
13 — 15 Amp
BlueHazard Flasher
14 — 20 Amp
YellowAuto Shutdown Relay
(ASD)
15 — 20 Amp
YellowRear Window Defogger
(EBL)
16, 17 — 20 Amp
YellowSelectable Power OutletCavity Car-
tridge
FuseMini-
FuseDescription
18 — 15 Amp
BlueIgnition Off Draw (IOD)
19 — 15 Amp
BlueHorn
20 — 15 Amp
BlueAir Conditioning (A/C)
Clutch Relay
21 — 15 Amp
BlueSTOP LIGHT Switch
22 — 25 Amp
ClearFuel Pump/Powertrain
Control Module (PCM)
23, 24 — 10 Amp
RedAirbag
60, 61 — 15 Amp
BlueIgnition Run/Start Relay
Feed
62, 63 — 15 Amp
BlueGauges
MAINTAINING YOUR VEHICLE 231
7

LIGHT BULBS — Exterior
(Coupe Models) Bulb Number
Low/High Beam High Intensity Discharge
(HID) Headlight.... Serviced at authorized dealer only
Auxiliary High Beam Headlight......(HB3A) 9005XS
Front Park/Turn Signal Light.............3157AK
Fog Light.......................(H10 U) 9145
Front Side Marker Light..................2886X
Center High Mounted Stop Light (CHMSL). . . 16 LED
(not serviceable)
Tail/Stop/Turn Signal Light................3157
Rear Marker Light........................ 194
Backup Light...........................3157
License Light........................... 168
NOTE:Upon turning the High Intensity Discharge
(HID) Headlights on, there is a blue hue to the lamps.
This diminishes and becomes more white after approxi-
mately 10 seconds as the system charges.BULB REPLACEMENT
Auxiliary High Beam Headlight, Front Park/Turn
Signal Light, Front Side Marker Light
1. Remove the push pin from the upper outer corner of
the splash shield and remove the splash shield.
MAINTAINING YOUR VEHICLE 237
7

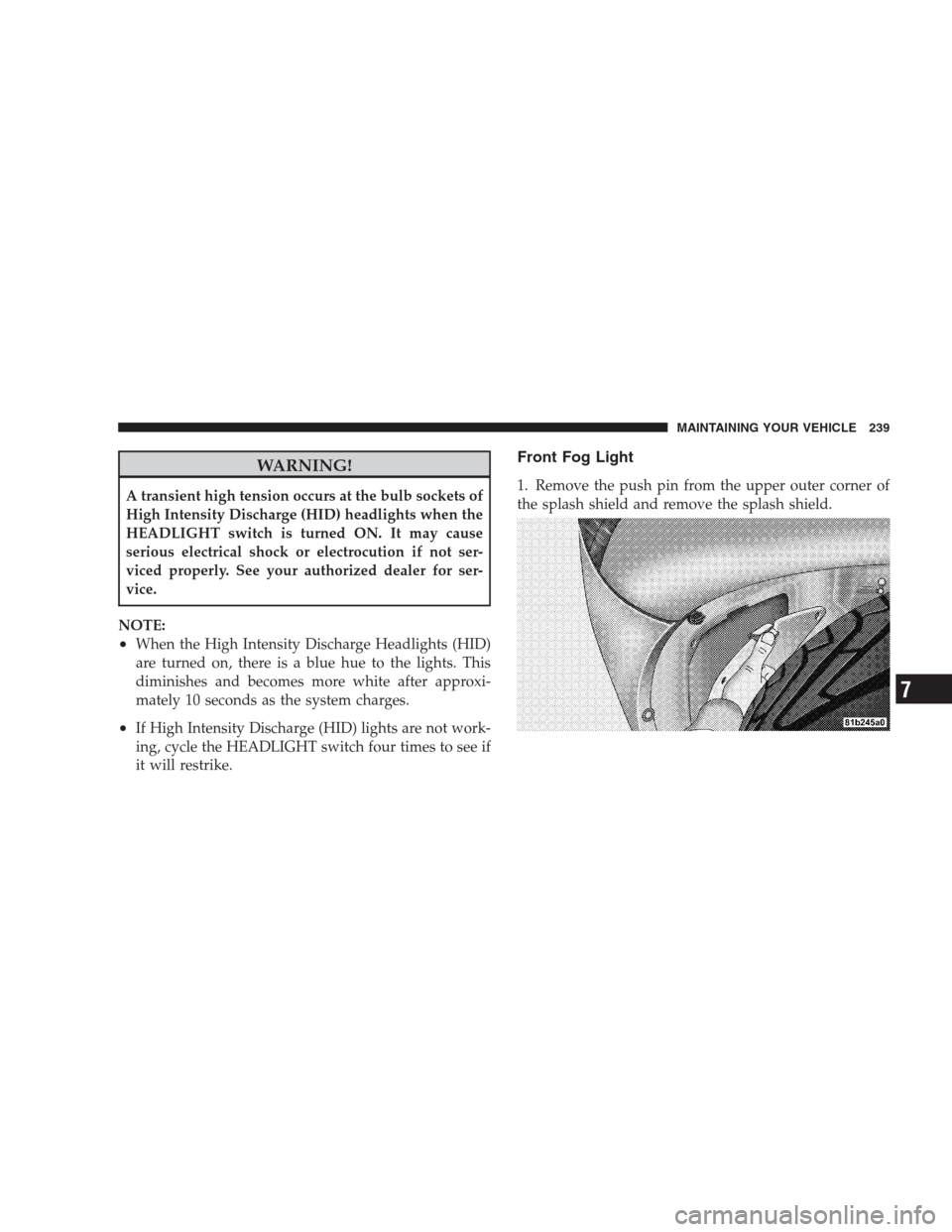

WARNING!
A transient high tension occurs at the bulb sockets of
High Intensity Discharge (HID) headlights when the
HEADLIGHT switch is turned ON. It may cause
serious electrical shock or electrocution if not ser-
viced properly. See your authorized dealer for ser-
vice.
NOTE:
•When the High Intensity Discharge Headlights (HID)
are turned on, there is a blue hue to the lights. This
diminishes and becomes more white after approxi-
mately 10 seconds as the system charges.
•If High Intensity Discharge (HID) lights are not work-
ing, cycle the HEADLIGHT switch four times to see if
it will restrike.
Front Fog Light
1. Remove the push pin from the upper outer corner of
the splash shield and remove the splash shield.
