air conditioning DODGE VIPER 2009 ZB II / 2.G Owners Manual

▫Selecting Satellite Mode In RBB, RAH, REV
And RBK Radios..................... 122
▫Selecting Satellite Mode In RBP, RBU, RAZ,
RB1 And RBQ Radios.................. 122
▫Selecting a Channel................... 122
▫Storing And Selecting Pre-Set Channels..... 123
▫Using The PTY (Program Type) Button
(If Equipped)........................ 123
▫PTY (Scan) Button.................... 123
▫PTY (Seek) Button.................... 124▫Satellite Antenna..................... 124
▫Reception Quality.................... 124
Radio Antenna........................ 124
CD/DVD Maintenance.................. 124
Radio Operation And Cellular Phones....... 125
Climate Controls...................... 125
▫Air Conditioning And Heating System..... 126
▫Operating Tips...................... 129
98 UNDERSTANDING YOUR INSTRUMENT PANEL

3. Do not apply paper or tape to the disc; avoid scratch-
ing the disc.
4. Do not use solvents such as benzene, thinner, cleaners,
or antistatic sprays.
5. Store the disc in its case after playing.
6. Do not expose the disc to direct sunlight.
7. Do not store the disc where temperatures may become
too high.
NOTE:If you experience difficulty in playing a particu-
lar disc, it may be damaged (i.e. scratched, reflective
coating removed, a hair, moisture or dew on the disc)
oversized, or have theft protection encoding. Try a
known good disc before considering disc player service.RADIO OPERATION AND CELLULAR PHONES
Under certain conditions, the cellular phone being ON in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the cellular phone antenna. This condition
is not harmful to the radio. If your radio performance
does not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during cellular phone operation.
CLIMATE CONTROLS
The Air Conditioning and Heating System is designed to
make you comfortable in all types of weather.
UNDERSTANDING YOUR INSTRUMENT PANEL 125
4

Air Conditioning and Heating SystemBlower Control
Use this control to regulate the
amount of air forced through the sys-
tem in any mode you select. Turn the
control clockwise to increase fan
speed. Turn the control to the O (Off)
position to shut off the fan and to
prevent any outside air from entering
the vehicle. This also turns off the A/C compressor.
NOTE:For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
Air Conditioning And Heater Controls
126 UNDERSTANDING YOUR INSTRUMENT PANEL

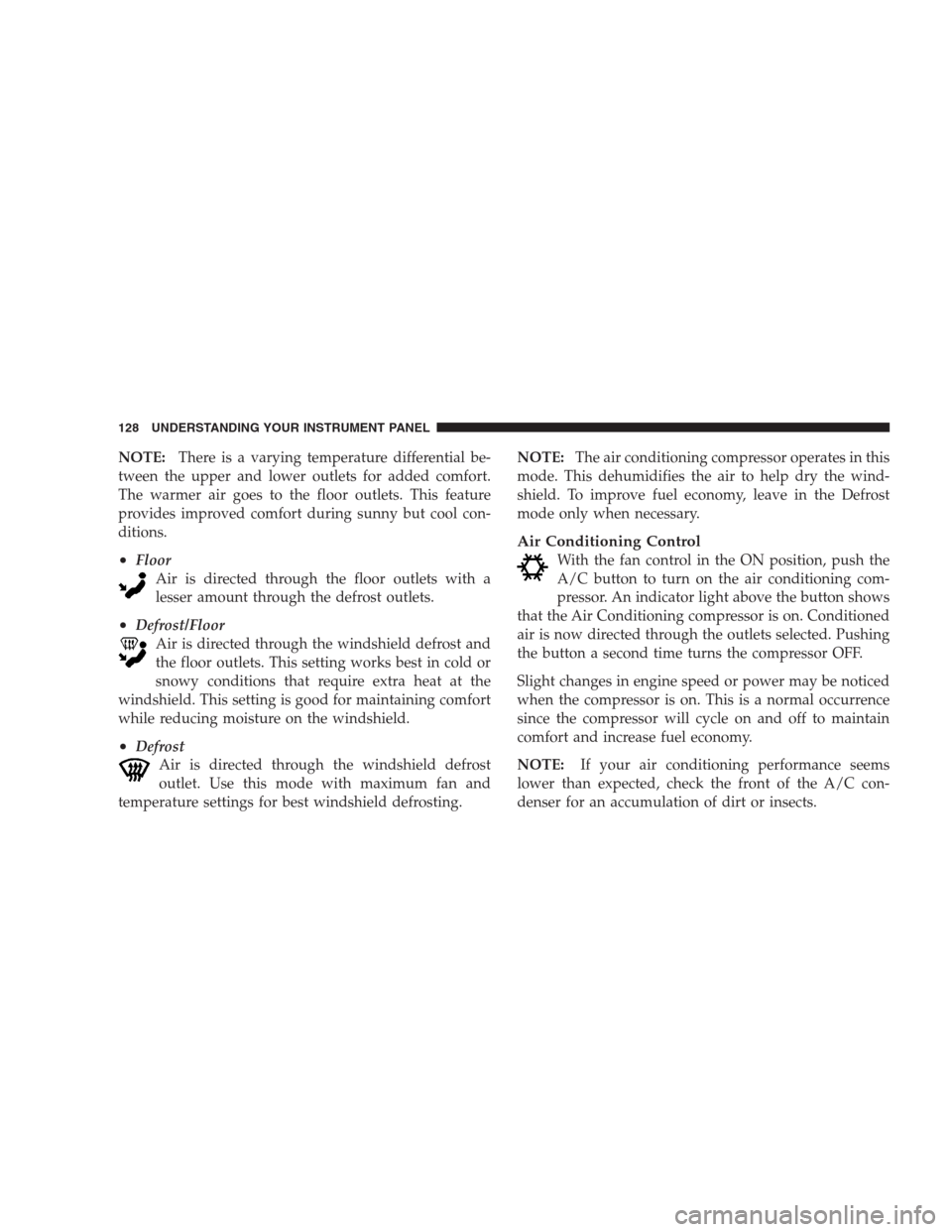

NOTE:There is a varying temperature differential be-
tween the upper and lower outlets for added comfort.
The warmer air goes to the floor outlets. This feature
provides improved comfort during sunny but cool con-
ditions.
•Floor
Air is directed through the floor outlets with a
lesser amount through the defrost outlets.
•Defrost/Floor
Air is directed through the windshield defrost and
the floor outlets. This setting works best in cold or
snowy conditions that require extra heat at the
windshield. This setting is good for maintaining comfort
while reducing moisture on the windshield.
•Defrost
Air is directed through the windshield defrost
outlet. Use this mode with maximum fan and
temperature settings for best windshield defrosting.NOTE:The air conditioning compressor operates in this
mode. This dehumidifies the air to help dry the wind-
shield. To improve fuel economy, leave in the Defrost
mode only when necessary.
Air Conditioning Control
With the fan control in the ON position, push the
A/C button to turn on the air conditioning com-
pressor. An indicator light above the button shows
that the Air Conditioning compressor is on. Conditioned
air is now directed through the outlets selected. Pushing
the button a second time turns the compressor OFF.
Slight changes in engine speed or power may be noticed
when the compressor is on. This is a normal occurrence
since the compressor will cycle on and off to maintain
comfort and increase fuel economy.
NOTE:If your air conditioning performance seems
lower than expected, check the front of the A/C con-
denser for an accumulation of dirt or insects.
128 UNDERSTANDING YOUR INSTRUMENT PANEL

Operating Tips
NOTE:Refer to the chart at the end of this section for
suggested control settings for various weather condi-
tions.
Summer Operation
The engine cooling system in air-conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. A 50% solution of ethylene
glycol antifreeze coolant in water is recommended. Refer
to “Maintenance Procedures” in Section 7 of this manual
for proper coolant selection.
Winter Operation
•
Use the Defrost mode to direct cold air away from the
occupants during engine warm-up in cold weather.
•The blower air will heat faster in cold weather if you
use only the low blower speeds for the first ten
minutes of vehicle operation.
•Use of the air Recirculation mode during winter
months is not recommended because it may cause
window fogging.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will insure ad-
equate system lubrication to minimize the possibility of
compressor damage when the system is started again.
UNDERSTANDING YOUR INSTRUMENT PANEL 129
4

•In city traffic —While moving, shift into the highest
gear possible to reduce engine RPM.
NOTE:There are steps that you can take to slow down
an impending overheat condition. If your air conditioner
is on, turn it off. The air conditioning system adds heat to
the cooling system and turning off the A/C removes this
heat. You can also turn the temperature control to maxi-
mum heat, the mode control to floor, and the fan control
to high. This allows the heater core to act as a supplement
to the radiator and aids in removing heat from the
cooling system.WARNING!
A hot cooling system is dangerous. You or others
could be badly burned by steam or boiling coolant. If
your temperature gauge pointer is in the red area,
turn off the engine immediately. You may want to call
a service center for service. If you decide to look
under the hood yourself, see Section 7 of this manual.
Follow the warnings under the “Radiator Cap” para-
graph.
TIREFIT KIT
Small punctures in the tire tread can be sealed with
TIREFIT. Foreign objects (e.g., screws or nails) should not
be removed from the tire. TIREFIT can be used in outside
temperatures down to approximately -4°F (-20°C).
WHAT TO DO IN EMERGENCIES 181
6

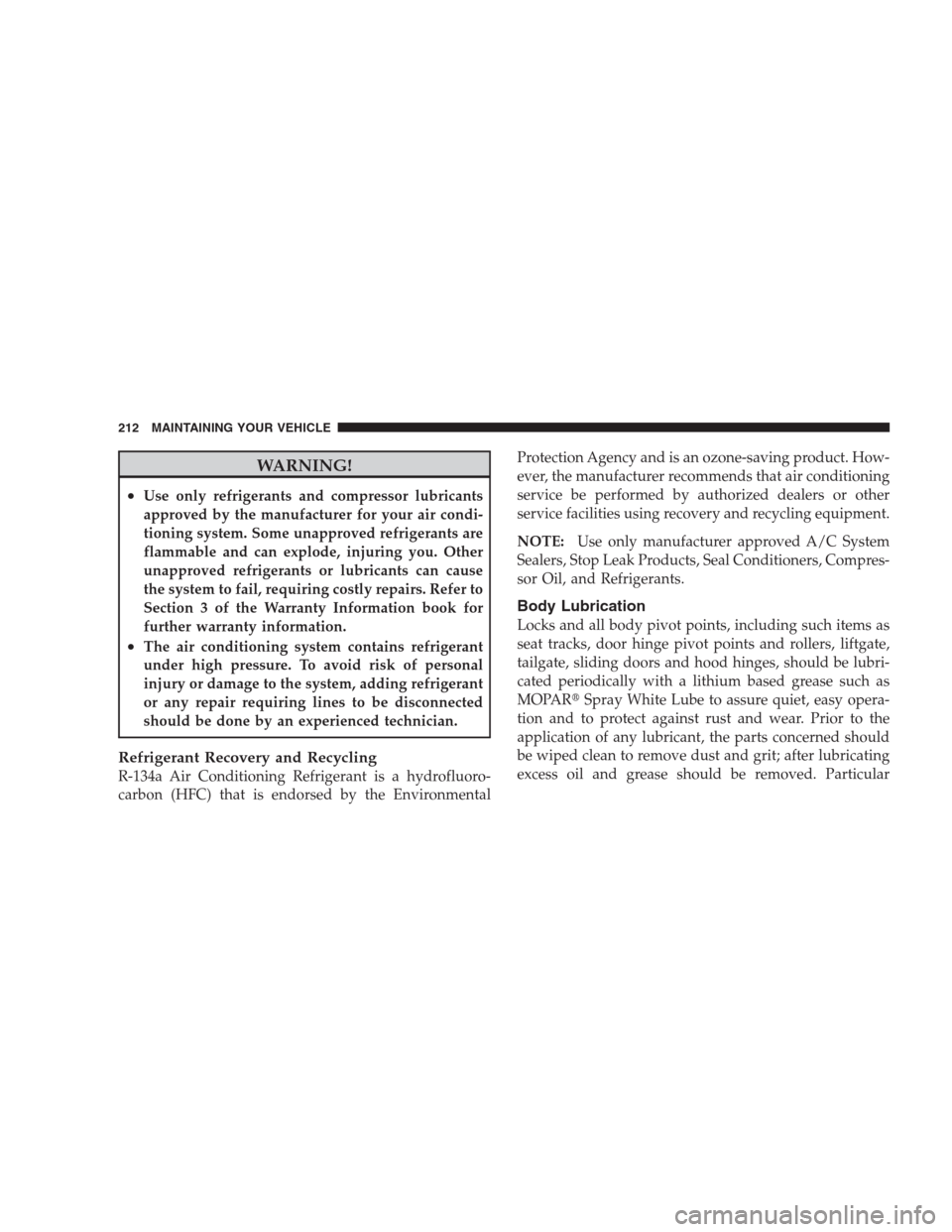

WARNING!
•Use only refrigerants and compressor lubricants
approved by the manufacturer for your air condi-
tioning system. Some unapproved refrigerants are
flammable and can explode, injuring you. Other
unapproved refrigerants or lubricants can cause
the system to fail, requiring costly repairs. Refer to
Section 3 of the Warranty Information book for
further warranty information.
•The air conditioning system contains refrigerant
under high pressure. To avoid risk of personal
injury or damage to the system, adding refrigerant
or any repair requiring lines to be disconnected
should be done by an experienced technician.
Refrigerant Recovery and Recycling
R-134a Air Conditioning Refrigerant is a hydrofluoro-
carbon (HFC) that is endorsed by the EnvironmentalProtection Agency and is an ozone-saving product. How-
ever, the manufacturer recommends that air conditioning
service be performed by authorized dealers or other
service facilities using recovery and recycling equipment.
NOTE:Use only manufacturer approved A/C System
Sealers, Stop Leak Products, Seal Conditioners, Compres-
sor Oil, and Refrigerants.
Body Lubrication
Locks and all body pivot points, including such items as
seat tracks, door hinge pivot points and rollers, liftgate,
tailgate, sliding doors and hood hinges, should be lubri-
cated periodically with a lithium based grease such as
MOPARSpray White Lube to assure quiet, easy opera-
tion and to protect against rust and wear. Prior to the
application of any lubricant, the parts concerned should
be wiped clean to remove dust and grit; after lubricating
excess oil and grease should be removed. Particular
212 MAINTAINING YOUR VEHICLE

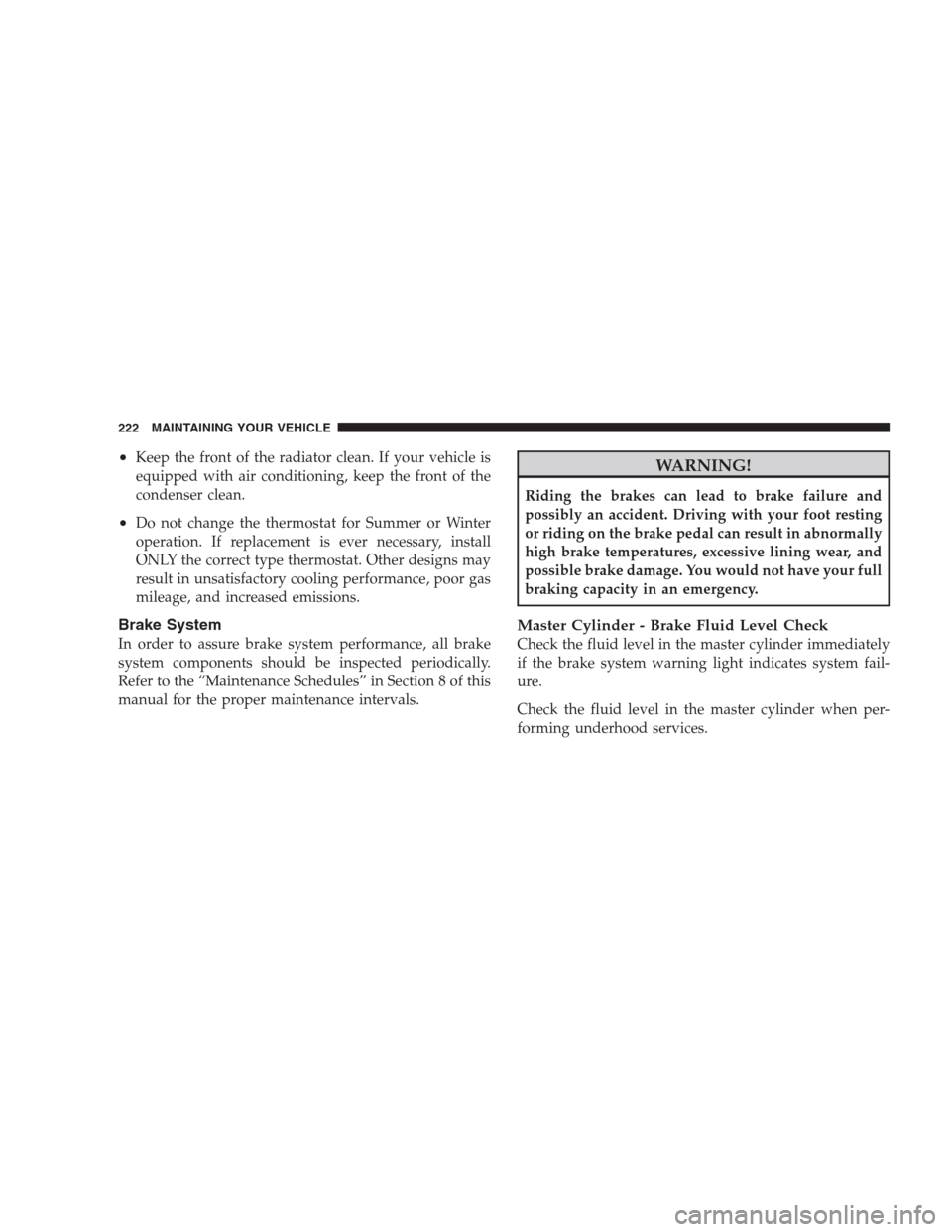

•Keep the front of the radiator clean. If your vehicle is
equipped with air conditioning, keep the front of the
condenser clean.
•Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install
ONLY the correct type thermostat. Other designs may
result in unsatisfactory cooling performance, poor gas
mileage, and increased emissions.
Brake System
In order to assure brake system performance, all brake
system components should be inspected periodically.
Refer to the “Maintenance Schedules” in Section 8 of this
manual for the proper maintenance intervals.
WARNING!
Riding the brakes can lead to brake failure and
possibly an accident. Driving with your foot resting
or riding on the brake pedal can result in abnormally
high brake temperatures, excessive lining wear, and
possible brake damage. You would not have your full
braking capacity in an emergency.
Master Cylinder - Brake Fluid Level Check
Check the fluid level in the master cylinder immediately
if the brake system warning light indicates system fail-
ure.
Check the fluid level in the master cylinder when per-
forming underhood services.
222 MAINTAINING YOUR VEHICLE

Cavity Car-
tridge
FuseMini-
FuseDescription
9 40 Amp
Green— Headlights
10 30 Amp
Pink— Ignition Switch Run Feed
11 — 20 Amp
YellowAuto Shutdown Relay
(ASD)
12 — 20 Amp
YellowCigar Lighter
13 — 15 Amp
BlueHazard Flasher
14 — 20 Amp
YellowAuto Shutdown Relay
(ASD)
15 — 20 Amp
YellowRear Window Defogger
(EBL)
16, 17 — 20 Amp
YellowSelectable Power OutletCavity Car-
tridge
FuseMini-
FuseDescription
18 — 15 Amp
BlueIgnition Off Draw (IOD)
19 — 15 Amp
BlueHorn
20 — 15 Amp
BlueAir Conditioning (A/C)
Clutch Relay
21 — 15 Amp
BlueSTOP LIGHT Switch
22 — 25 Amp
ClearFuel Pump/Powertrain
Control Module (PCM)
23, 24 — 10 Amp
RedAirbag
60, 61 — 15 Amp
BlueIgnition Run/Start Relay
Feed
62, 63 — 15 Amp
BlueGauges
MAINTAINING YOUR VEHICLE 231
7

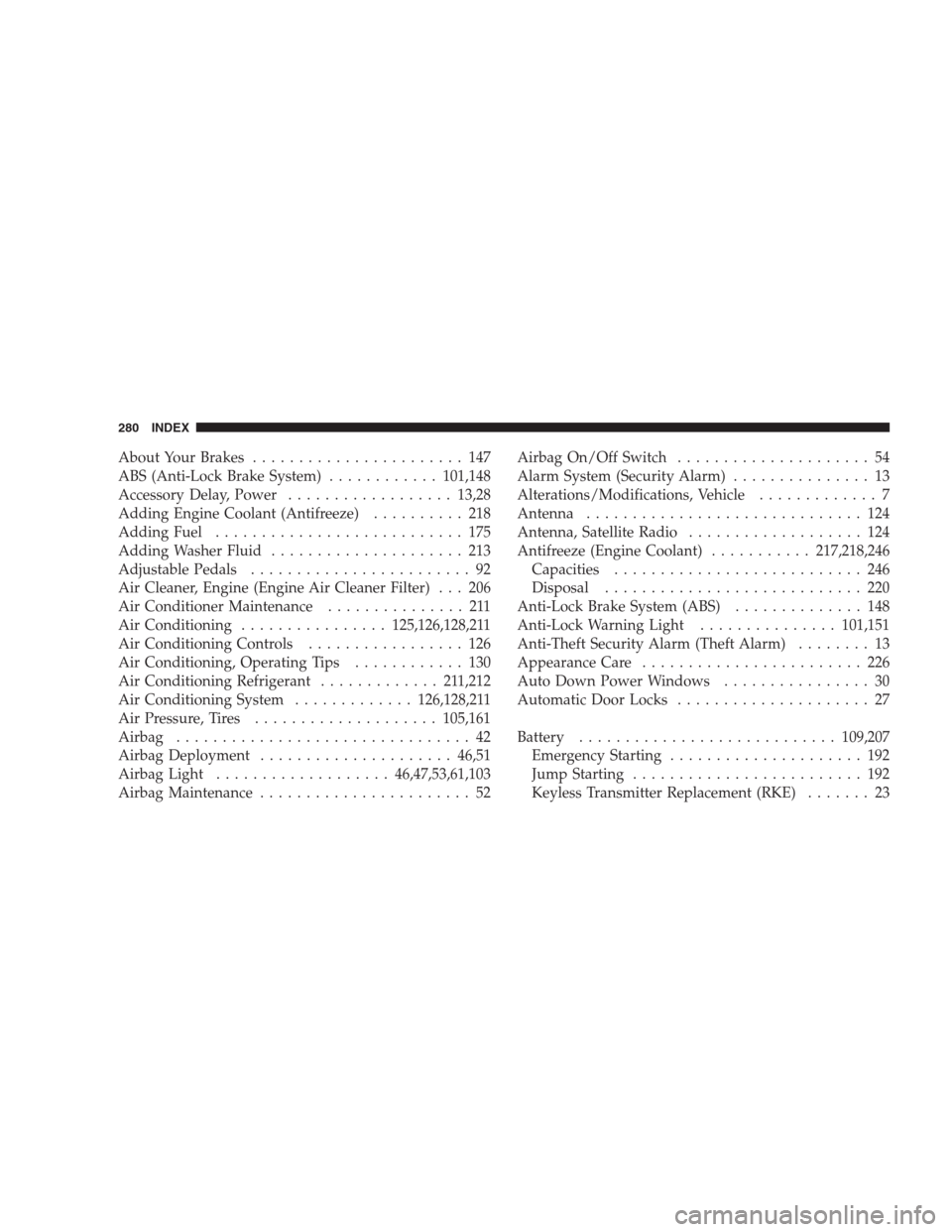

About Your Brakes....................... 147
ABS (Anti-Lock Brake System)............101,148
Accessory Delay, Power..................13,28
Adding Engine Coolant (Antifreeze).......... 218
Adding Fuel........................... 175
Adding Washer Fluid..................... 213
Adjustable Pedals........................ 92
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 206
Air Conditioner Maintenance............... 211
Air Conditioning................125,126,128,211
Air Conditioning Controls................. 126
Air Conditioning, Operating Tips............ 130
Air Conditioning Refrigerant............. 211,212
Air Conditioning System.............126,128,211
Air Pressure, Tires....................105,161
Airbag................................ 42
Airbag Deployment.....................46,51
Airbag Light...................46,47,53,61,103
Airbag Maintenance....................... 52Airbag On/Off Switch..................... 54
Alarm System (Security Alarm)............... 13
Alterations/Modifications, Vehicle............. 7
Antenna.............................. 124
Antenna, Satellite Radio................... 124
Antifreeze (Engine Coolant)...........217,218,246
Capacities........................... 246
Disposal............................ 220
Anti-Lock Brake System (ABS).............. 148
Anti-Lock Warning Light...............101,151
Anti-Theft Security Alarm (Theft Alarm)........ 13
Appearance Care........................ 226
Auto Down Power Windows................ 30
Automatic Door Locks..................... 27
Battery............................109,207
Emergency Starting..................... 192
Jump Starting......................... 192
Keyless Transmitter Replacement (RKE)....... 23
280 INDEX
