NOTE:The liftgate release switch will be ignored under
the following conditions:
•When the ignition is in RUN and the parking brake is
not set.
•When vehicle speed is not 0 mph (0 km/h).
•When all doors are locked (except for RKE transmitter
liftgate access). Refer to “Entering the liftgate with the
System Armed — Coupe” under “Security Alarm
System” in this section for additional information.
The word “DECK” will flash in the odometer when the
liftgate is open. With the key in the ignition switch, this
display will turn off approximately 40 seconds after
switching OFF the ignition, or if the Power Accessory
Delay feature is active, it will turn off approximately
40 seconds after the delay feature times out.
WARNING!
•Driving with the liftgate open can allow poison-
ous exhaust gases into your vehicle. You and your
passengers could be injured by these fumes. Keep
the liftgate closed when you are operating the
vehicle.
•If you are required to drive with the liftgate open,
make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Gas props support the liftgate in the open position.
However, because the gas pressure drops with tempera-
ture, it may be necessary to assist the props when
opening the liftgate in cold weather.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
2

•Avoid excessive idling.
•Check the engine oil level at every fuel fill.
NOTE:A new engine will consume some oil during the
first few thousand miles (kilometers) of operation. This
should be considered as a normal part of the break-in and
not interpreted as a sign of difficulty.
SAFETY TIPS
Exhaust System
WARNING!
Exhaust gases contain carbon monoxide, an ex-
tremely toxic gas that by itself is colorless and
odorless. To avoid inhaling these gases, the following
precautions should be observed:
(Continued)
WARNING! (Continued)
•Do not run the engine in a closed garage or in
confined areas any longer than needed to move
your vehicle in or out of the area.
•It may be necessary to sit in a parked vehicle with
the engine running for more than a short period. If
so, adjust your climate control system to force
outside air into the vehicle. Set the blower at high
speed and the controls in any position except OFF
or RECIRC.
•The best protection against carbon monoxide entry
into the vehicle body is a properly maintained
engine exhaust system.
Be aware of changes in the sound of the exhaust system,
exhaust fumes detected inside the vehicle, or damage to
the underside or rear of the vehicle. Have a competent
mechanic inspect the complete exhaust system and adja-
cent body areas for broken, damaged, deteriorated or
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

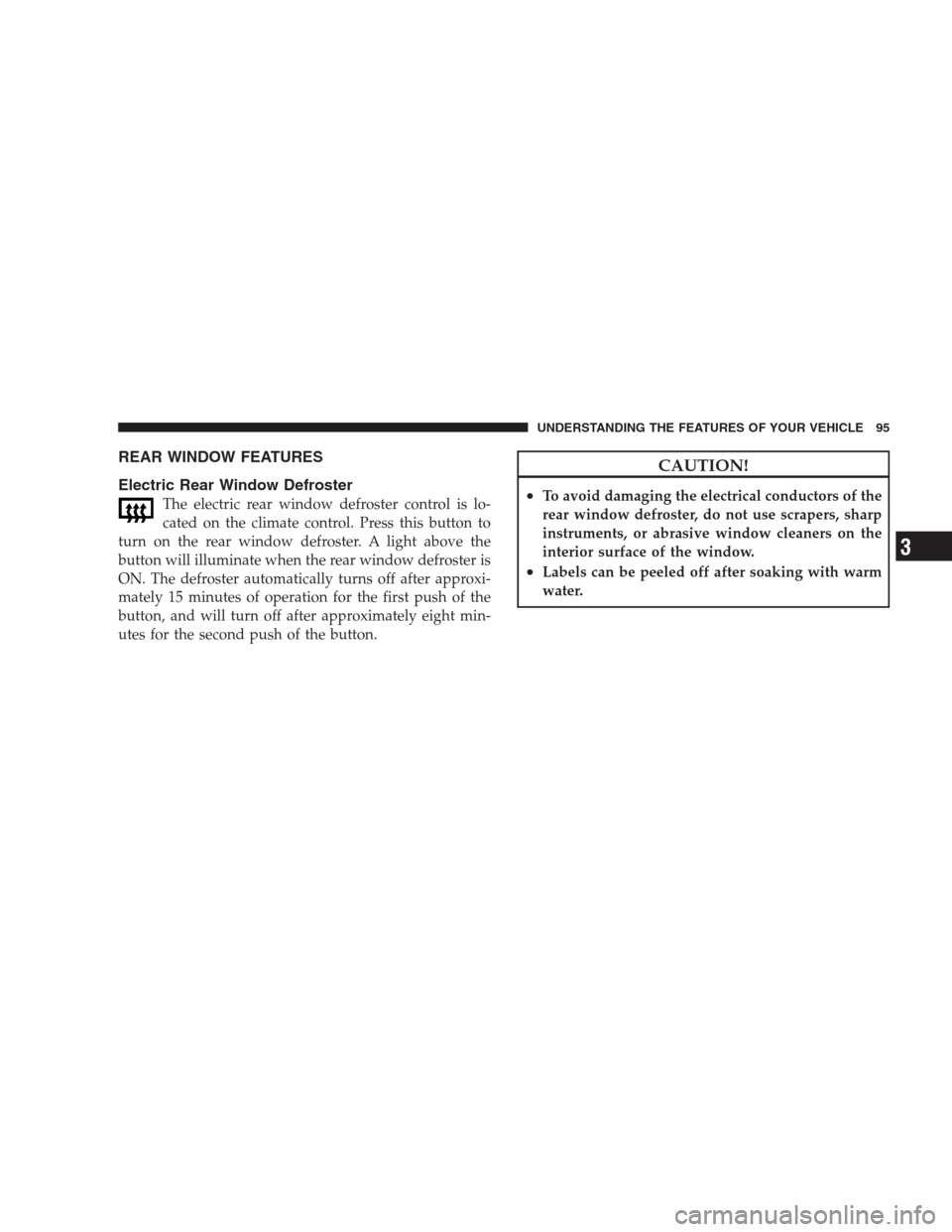

REAR WINDOW FEATURES
Electric Rear Window Defroster
The electric rear window defroster control is lo-
cated on the climate control. Press this button to
turn on the rear window defroster. A light above the
button will illuminate when the rear window defroster is
ON. The defroster automatically turns off after approxi-
mately 15 minutes of operation for the first push of the
button, and will turn off after approximately eight min-
utes for the second push of the button.
CAUTION!
•To avoid damaging the electrical conductors of the
rear window defroster, do not use scrapers, sharp
instruments, or abrasive window cleaners on the
interior surface of the window.
•Labels can be peeled off after soaking with warm
water.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3

▫Selecting Satellite Mode In RBB, RAH, REV
And RBK Radios..................... 122
▫Selecting Satellite Mode In RBP, RBU, RAZ,
RB1 And RBQ Radios.................. 122
▫Selecting a Channel................... 122
▫Storing And Selecting Pre-Set Channels..... 123
▫Using The PTY (Program Type) Button
(If Equipped)........................ 123
▫PTY (Scan) Button.................... 123
▫PTY (Seek) Button.................... 124▫Satellite Antenna..................... 124
▫Reception Quality.................... 124
Radio Antenna........................ 124
CD/DVD Maintenance.................. 124
Radio Operation And Cellular Phones....... 125
Climate Controls...................... 125
▫Air Conditioning And Heating System..... 126
▫Operating Tips...................... 129
98 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT PANEL FEATURES
1 - Air Outlet 7 - Speedometer/Odometer 13 - Climate Control
2 - Sound System Speaker 8 - Oil Pressure Gauge 14 - ENGINE START Button
3 - Main Message Center 9 - Passenger Airbag Off Light 15 - Voltage Gauge
4 - Fuel Gauge 10 - Passenger Airbag 16 - Engine Coolant Temperature Gauge
5 - Auxiliary Message Center 11 - Glove Compartment 17 - Engine Oil Temperature Gauge
6 - Tachometer 12 - Sound System Controls 18 - TRIP ButtonUNDERSTANDING YOUR INSTRUMENT PANEL 99
4

3. Do not apply paper or tape to the disc; avoid scratch-
ing the disc.
4. Do not use solvents such as benzene, thinner, cleaners,
or antistatic sprays.
5. Store the disc in its case after playing.
6. Do not expose the disc to direct sunlight.
7. Do not store the disc where temperatures may become
too high.
NOTE:If you experience difficulty in playing a particu-
lar disc, it may be damaged (i.e. scratched, reflective
coating removed, a hair, moisture or dew on the disc)
oversized, or have theft protection encoding. Try a
known good disc before considering disc player service.RADIO OPERATION AND CELLULAR PHONES
Under certain conditions, the cellular phone being ON in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the cellular phone antenna. This condition
is not harmful to the radio. If your radio performance
does not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during cellular phone operation.
CLIMATE CONTROLS
The Air Conditioning and Heating System is designed to
make you comfortable in all types of weather.
UNDERSTANDING YOUR INSTRUMENT PANEL 125
4

Air Conditioning and Heating SystemBlower Control
Use this control to regulate the
amount of air forced through the sys-
tem in any mode you select. Turn the
control clockwise to increase fan
speed. Turn the control to the O (Off)
position to shut off the fan and to
prevent any outside air from entering
the vehicle. This also turns off the A/C compressor.
NOTE:For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
Air Conditioning And Heater Controls
126 UNDERSTANDING YOUR INSTRUMENT PANEL

Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal Motor
IF YOU NEED CONSUMER ASSISTANCE 277
9

Clean Air Gasoline....................... 171
Climate Control......................... 125
Clock................................ 110
Clutch Fluid........................... 224
Compact Disc (CD) Maintenance............. 124
Console............................... 94
Console, Floor........................... 94
Contract, Service........................ 273
Convertible............................. 65
Convertible Boot.......................69,74
Convertible Top.......................65,228
Convertible Top Maintenance............... 228
Coolant Pressure Cap (Radiator Cap).......... 219
Cooling System......................... 216
Adding Coolant (Antifreeze).............. 218
Coolant Capacity...................... 246
Coolant Level......................217,220
Disposal of Used Coolant................ 220
Drain, Flush, and Refill.................. 217Inspection........................... 220
Points to Remember.................... 221
Pressure Cap......................... 219
Radiator Cap......................... 219
Selection of Coolant (Antifreeze)......217,246,247
Customer Assistance..................... 271
Daytime Running Lights................... 84
Dealer Service.......................... 203
Defroster, Rear Window.................... 95
Defroster, Windshield...................61,128
Delay (Intermittent) Wipers................. 90
Diagnostic System, Onboard................ 200
Dimmer Control......................... 88
Dimmer Switch, Headlight.................. 86
Dipsticks
Power Steering........................ 144
Disposal
Antifreeze (Engine Coolant)............... 220
282 INDEX

INTRODUCTION INTRODUCTION HOW TO USE THIS MANUAL WARNINGS AND CAUTIONS VEHICLE IDENTIFICATION NUMBER VEHICLE MODIFICATIONS/ALTERATIONS THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS
Ignition Key RemovalKey-In-Ignition ReminderVEHICLE SECURITY ALARM SYSTEM Rearming of the SystemTo Arm the SystemTo Disarm the SystemElectronicImmobilization System - Canada OnlyILLUMINATED ENTRY SYSTEM REMOTE KEYLESS ENTRY (RKE)
To Unlock the DoorsTo Lock the DoorsTo Unlatch the Trunk/LiftgateUsing The Panic AlarmProgramming Additional TransmittersBattery ReplacementGeneral InformationDOOR LOCKS Manual Door LockPower Door LocksWINDOWS Power WindowsAuto Down Feature
Wind BuffetingLIFTGATE - COUPE MODELS ONLY TRUNK LOCK AND RELEASE - CONVERTIBLE MODELS ONLY TRUNK SAFETY WARNING - CONVERTIBLE MODELS ONLY Trunk Emergency ReleaseOCCUPANT RESTRAINTS Lap/Shoulder BeltsLap/Shoulder
Belt Untwisting ProcedureEnhanced Seat Belt Reminder System (BeltAlert) Automatic Locking ModeSeat Belts and Pregnant WomenSeat Belt ExtenderDriver and Passenger Supplemental Restraint System (SRS) - AirbagChild RestraintBREAK-IN RECOMMENDATIONS
SAFETY TIPS Exhaust SystemSafety Checks You Should Make Inside the VehiclePeriodic Safety Checks You Should Make Outside The VehicleUNDERSTANDINGTHE FEATURES OF YOUR VEHICLE CONVERTIBLE TOP OPERATION - IF EQUIPPED To Lower the
TopTo Raise the TopConvertible Top Boot Cover Installation - If EquippedConvertible Top Boot Cover Removal and StorageMIRRORS Inside Day/Night MirrorOutside MirrorsPower MirrorsSEATS Manual Seat AdjustmentsTO OPEN AND CLOSE THE HOOD LIGHTS Exterior
and Interior Lighting ControlHeadlights and Parking LightsHeadlight Time DelayDaytime Running LightsLights-On ReminderBattery Saver Feature -Exterior LightsFog LightsTurn Signals High Beam/Low Beam Select SwitchFlash-to-PassInterior LightsWINDSHIELD WIPERS
AND WASHERS Intermittent Wiper SystemMist FeatureWindshield WashersTILT STEERING COLUMN ADJUSTABLE PEDALS Adjustable Foot RestCONSOLE FEATURES REAR WINDOW FEATURES Electric Rear Window DefrosterUNDERSTANDING YOUR
INSTRUMENT PANEL INSTRUMENT PANEL FEATURES INSTRUMENT CLUSTER DESCRIPTION SpeedometerMessage CenterGauges and Indicator LightsSETTING THE DIGITAL CLOCK Clock Setting ProcedureSALES CODE RAH - AM AND FM STEREO RADIO
WITH CD PLAYER AND CD/DVD CHANGER CONTROLS Radio OperationCD Player OperationCD/DVD Changer OperationNotes On Playing MP3 FilesOperation Instructions - (CD Mode For MP3 Audio Play)SATELLITE RADIO - IF EQUIPPED System ActivationElectronic
Serial Number/Sirius Identification Number (ENS/SID)Selecting Satellite Mode in RBB, RAH, REV and RBK RadiosSelecting Satellite Mode in RBP, RBU,RAZ, RB1 and RBQ RadiosSelecting a ChannelStoring and Selecting Pre-Set ChannelsUsing the PTY (Program Type)
Button (If Equipped)PTY (SCAN) ButtonPTY (SEEK) ButtonSatellite AntennaReception QualityRADIO ANTENNA CD/DVD MAINTENANCE RADIO OPERATION AND CELLULAR PHONES CLIMATE CONTROLS Air Conditioning and Heating System Operating Tips
STARTING AND OPERATING STARTING PROCEDURES Normal StartingIf Engine Fails to StartAfter StartingMANUAL TRANSMISSION Recommended Shift SpeedsSkip Shift Indicator LightDRIVING ON SLIPPERY SURFACES AccelerationTraction DRIVING THROUGH
WATER Flowing/Rising WaterShallow Standing WaterPOWER STEERING Power Steering Fluid CheckPARKING BRAKE BRAKE SYSTEM Brake Pad Break-InAnti-Lock Brake SystemTIRE SAFETY INFORMATION Tire Markings Tire Identification Number (TIN)Tire Loading
and Tire PressureTIRES - GENERAL INFORMATION Tire PressureTire Inflation PressuresTire Pressures for High Speed OperationRadial Ply TiresTire SpinningTread Wear IndicatorsLife of TireReplacement TiresTire StorageTIRE CHAINS SNOW TIRES TIRE ROTATION
RECOMMENDATIONS TIRE PRESSURE MONITOR SYSTEM (TPMS) Low Tire IndicatorFUEL REQUIREMENTS 8.4L EngineReformulated GasolineGasoline/Oxygenate BlendsE-85 Usage In Non-Flex Fuel VehiclesMMT In GasolineMaterials Added to FuelFuel System
CautionsCarbon Monoxide WarningsADDING FUEL Fuel Filler Cap (Gas Cap)TRAILER TOWING RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle (Flat towing with all four wheels on the ground)GROUND CLEARANCE
WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHER IF YOUR ENGINE OVERHEATS TIREFIT KIT TIREFIT StorageTIREFIT Usage PrecautionsTIREFIT Kit Components and Operation Sealing a Tire with TIREFITJUMP-STARTING PROCEDURES FREEING
A STUCK VEHICLE TOWING A DISABLED VEHICLE MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT - 8.4L ONBOARD DIAGNOSTIC SYSTEM (OBD II) EMISSIONS INSPECTION AND MAINTENANCE PROGRAMS REPLACEMENT PARTS DEALER
SERVICE MAINTENANCE PROCEDURES Engine OilEngine Oil FilterEngine Air Cleaner FilterMaintenance-Free BatteryBattery Save FeatureAir Conditioner MaintenanceBody LubricationWindshield Wiper BladesAdding Washer FluidExhaust SystemCooling SystemBrake
SystemManual TransmissionHydraulic ClutchRear AxleAppearance Care And Protection From CorrosionFUSES Power Distribution CenterMini-Power Distribution CenterVEHICLE STORAGE REPLACEMENT BULBS BULB REPLACEMENT Auxiliary High Beam Headlight,
Front Park/Turn Signal Light, Front Side Marker LightHigh Intensity Discharge Headlights (HID)Front Fog LightTaillight, Tail/Stop Light, Rear Marker LightTaillight, Tail/Stop Light, Rear Marker Light (Coupe Models)Backup Light, Rear Turn Signal LightLicense LightFLUIDS
AND CAPACITIES FLUIDS, LUBRICANTS, AND GENUINE PARTS EngineChassisMAINTENANCE SCHEDULES EMISSIONS CONTROL SYSTEM MAINTENANCE MAINTENANCE SCHEDULES MAINTENANCE SCHEDULE BMAINTENANCE SCHEDULE AIF YOU
NEED CONSUMER ASSISTANCE SUGGESTIONS FOR OBTAINING SERVICE FOR YOUR VEHICLE Prepare For The AppointmentPrepare A ListBe Reasonable With RequestsIF YOU NEED ASSISTANCE Chrysler LLC Customer CenterChrysler Canada Inc. Customer
CenterIn Mexico contactCustomer Assistance For The Hearing Or Speech Impaired (TDD/TTY)Service ContractWARRANTY INFORMATION (U.S. Vehicles Only) MOPAR PARTS REPORTING SAFETY DEFECTS In The 50 United States And Washington, D.CIn Canada
PUBLICATION ORDER FORMS DEPARTMENT OF TRANSPORTATION UNIFORM TIRE QUALITY GRADES TreadwearTraction GradesTemperature GradesINDEX
