high beam DODGE VIPER 2009 ZB II / 2.G Owners Manual

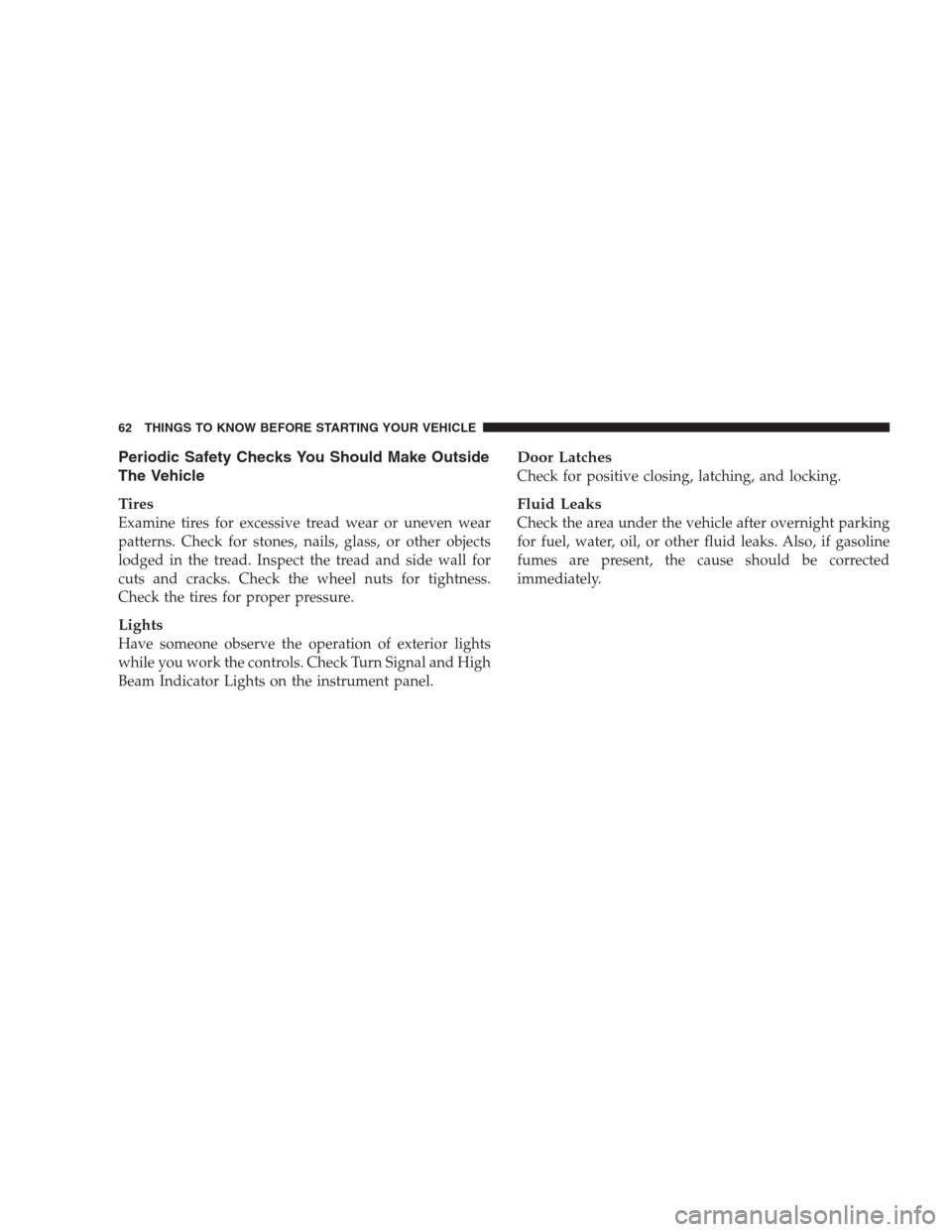

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect the tread and side wall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check Turn Signal and High
Beam Indicator Lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check the area under the vehicle after overnight parking
for fuel, water, oil, or other fluid leaks. Also, if gasoline
fumes are present, the cause should be corrected
immediately.
62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫Lights-On Reminder................... 84
▫Battery Saver Feature — Exterior Lights...... 84
▫Fog Lights.......................... 84
▫Turn Signals......................... 85
▫High Beam/Low Beam Select Switch........ 86
▫Flash-To-Pass........................ 86
▫Interior Lights........................ 86
Windshield Wipers And Washers............ 89
▫Intermittent Wiper System............... 90▫Mist Feature......................... 90
▫Windshield Washers.................... 91
Tilt Steering Column.................... 91
Adjustable Pedals....................... 92
▫Adjustable Foot Rest................... 94
Console Features....................... 94
Rear Window Features................... 95
▫Electric Rear Window Defroster........... 95
64 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

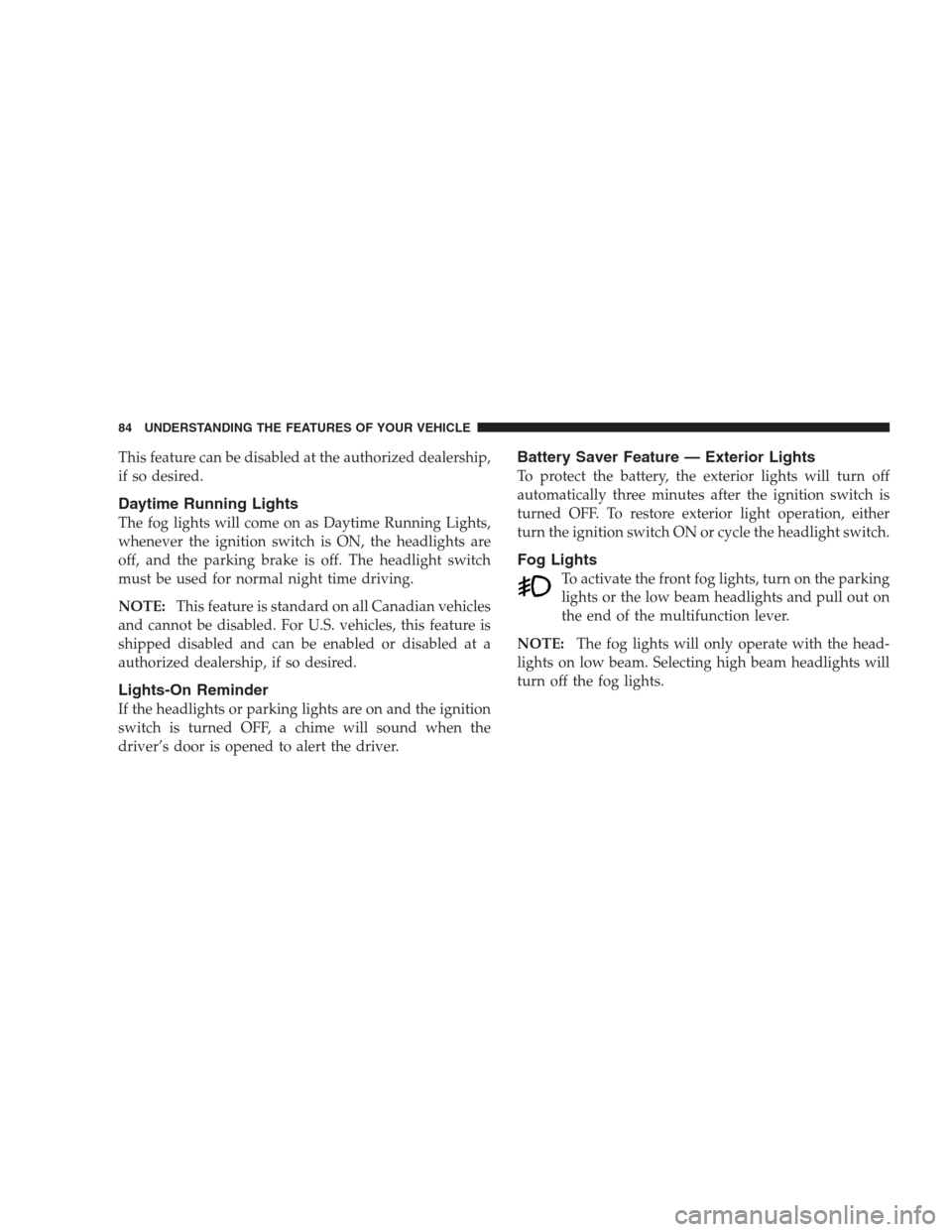

This feature can be disabled at the authorized dealership,
if so desired.
Daytime Running Lights
The fog lights will come on as Daytime Running Lights,
whenever the ignition switch is ON, the headlights are
off, and the parking brake is off. The headlight switch
must be used for normal night time driving.
NOTE:This feature is standard on all Canadian vehicles
and cannot be disabled. For U.S. vehicles, this feature is
shipped disabled and can be enabled or disabled at a
authorized dealership, if so desired.
Lights-On Reminder
If the headlights or parking lights are on and the ignition
switch is turned OFF, a chime will sound when the
driver’s door is opened to alert the driver.
Battery Saver Feature — Exterior Lights
To protect the battery, the exterior lights will turn off
automatically three minutes after the ignition switch is
turned OFF. To restore exterior light operation, either
turn the ignition switch ON or cycle the headlight switch.
Fog Lights
To activate the front fog lights, turn on the parking
lights or the low beam headlights and pull out on
the end of the multifunction lever.
NOTE:The fog lights will only operate with the head-
lights on low beam. Selecting high beam headlights will
turn off the fog lights.
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

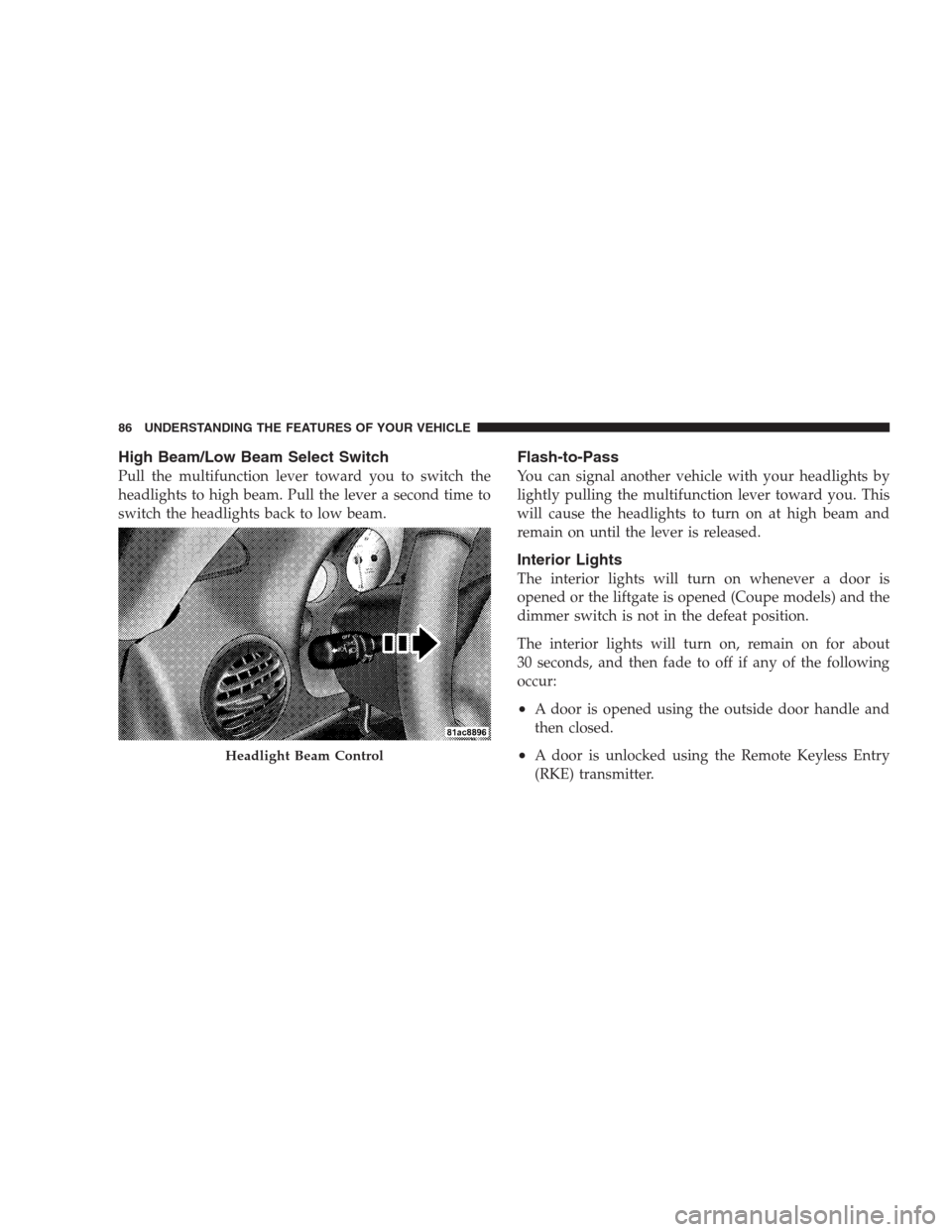

High Beam/Low Beam Select Switch
Pull the multifunction lever toward you to switch the
headlights to high beam. Pull the lever a second time to
switch the headlights back to low beam.
Flash-to-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will cause the headlights to turn on at high beam and
remain on until the lever is released.
Interior Lights
The interior lights will turn on whenever a door is
opened or the liftgate is opened (Coupe models) and the
dimmer switch is not in the defeat position.
The interior lights will turn on, remain on for about
30 seconds, and then fade to off if any of the following
occur:
•A door is opened using the outside door handle and
then closed.
•A door is unlocked using the Remote Keyless Entry
(RKE) transmitter.Headlight Beam Control
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•The word “DECK” will flash in the display if the
trunk/liftgate is open.
•The words “LOW TIRE” will flash slowly in the
display and a chime will sound if the tire pressure is
low.
•The words “FLAT TIRE” will flash rapidly in the
display and a chime will sound if critically low tire
pressure is detected.
Message Center
When the appropriate conditions ex-
ist, the Message Center displays the
following indicators and warnings:
High Beam Light
This light will turn on when the high beam
headlights are on. Pull the Multifunction Lever on
the left side of the steering column toward you to switch
the headlights from low beam to high beam. Pull the
lever a second time to switch the headlights back to low
beam.
Front Fog Light Indicator
This light will turn on when the front fog lights are
on.
Anti-Lock Brake (ABS) Warning Light
The amber Anti-Lock Brake Warning Light will
turn on and stay on briefly as a bulb check
when the ignition is first turned on. If the light
does not turn on during starting, see your
authorized dealer for service.
UNDERSTANDING YOUR INSTRUMENT PANEL 101
4

▫Brake System....................... 222
▫Manual Transmission.................. 224
▫Hydraulic Clutch..................... 224
▫Rear Axle.......................... 226
▫Appearance Care And Protection From
Corrosion.......................... 226
Fuses.............................. 230
▫Power Distribution Center.............. 230
▫Mini-Power Distribution Center.......... 233
Vehicle Storage....................... 234
Replacement Bulbs..................... 236
Bulb Replacement..................... 237▫Auxiliary High Beam Headlight, Front
Park/Turn Signal Light, Front Side Marker
Light............................. 237
▫High Intensity Discharge Headlights (HID) . . 238
▫Front Fog Light...................... 239
▫
Taillight, Tail/Stop Light, Rear Marker Light. . 240
▫
Taillight, Tail/Stop Light, Rear Marker Light
(Coupe Models)
...................... 241
▫Backup Light, Rear Turn Signal Light...... 242
▫License Light....................... 245
Fluids And Capacities................... 246
Fluids, Lubricants, And Genuine Parts....... 247
▫Engine............................ 247
▫Chassis............................ 248
198 MAINTAINING YOUR VEHICLE

properly. If not, there is a problem with a switch or the
system. See your authorized dealer for service.
•Cover the vehicle whenever possible to prevent acci-
dental damage to the finish.
REPLACEMENT BULBS
LIGHT BULBS — Interior Bulb Number
Message Center Indicators.................. 103
Cluster................................ 103
Gauge Pack............................ 103
Heater Control........................... 37
Interior Light..........................212–2
Courtesy Foot Well Lights.................. 194
Cargo Light (Coupe Liftgate)................ 168LIGHT BULBS — Exterior
(Convertible Models) Bulb Number
Low/High Beam High Intensity Discharge
(HID) Headlight.... Serviced at authorized dealer only
Auxiliary High Beam Headlight......(HB3A) 9005XS
Front Park/Turn Signal Light.............3157AK
Fog Light.......................(H10 U) 9145
Front Side Marker Light..................2886X
Center High Mounted Stop Light (CHMSL). . . 16 LED
(not serviceable)
Tail/Stop Light.........................3157
Taillight............................... 194
Rear Marker Light........................ 194
Backup Light...........................3157
Rear Turn Signal Light..................3457AK
License Light........................... 168
236 MAINTAINING YOUR VEHICLE

LIGHT BULBS — Exterior
(Coupe Models) Bulb Number
Low/High Beam High Intensity Discharge
(HID) Headlight.... Serviced at authorized dealer only
Auxiliary High Beam Headlight......(HB3A) 9005XS
Front Park/Turn Signal Light.............3157AK
Fog Light.......................(H10 U) 9145
Front Side Marker Light..................2886X
Center High Mounted Stop Light (CHMSL). . . 16 LED
(not serviceable)
Tail/Stop/Turn Signal Light................3157
Rear Marker Light........................ 194
Backup Light...........................3157
License Light........................... 168
NOTE:Upon turning the High Intensity Discharge
(HID) Headlights on, there is a blue hue to the lamps.
This diminishes and becomes more white after approxi-
mately 10 seconds as the system charges.BULB REPLACEMENT
Auxiliary High Beam Headlight, Front Park/Turn
Signal Light, Front Side Marker Light
1. Remove the push pin from the upper outer corner of
the splash shield and remove the splash shield.
MAINTAINING YOUR VEHICLE 237
7

2.Turn the appropriate bulb and socket assembly counter-
clockwise, and then pull it out of the headlight assembly.3. Pull the bulb out of the socket assembly.
4. Push the replacement bulb into the socket assembly.
5. Reinstall the bulb and socket assembly into the head-
light assembly, and then turn it clockwise.
6. Install the splash shield and push pin.
High Intensity Discharge Headlights (HID)
The headlights are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
HEADLIGHT switch off and the key removed.Because
of this, you should not attempt to service a headlight
bulb yourself. If a headlight bulb fails, take your
vehicle to an authorized dealer for service.
1 — Front Side Marker Light
2 — Front Park/Turn Signal Light
3 — Low/High Beam HID Headlight
4 — Auxiliary High Beam Headlight
5 — Headlight Adjustment — Aim Up and Down 238 MAINTAINING YOUR VEHICLE

Gauge.............................. 109
Methanol............................ 171
Octane Rating......................170,247
Requirements......................170,246
Tank Capacity........................ 246
Fuel System Caution..................... 175
Fueling............................... 175
Fuses................................ 230
Gas Cap (Fuel Filler Cap).................. 175
Gasoline, Clean Air...................... 171
Gasoline (Fuel)......................... 170
Gasoline, Reformulated................... 171
Gauges............................... 107
Coolant Temperature.................... 108
Fuel................................ 109
Oil Pressure.......................... 108
Speedometer......................... 100
Tachometer.......................... 107Voltmeter............................ 109
General Information...................... 24
Glass Cleaning.......................... 228
Ground Clearance....................... 177
Hazard
Driving Through Flowing, Rising, or Shallow
Standing Water........................ 142
Hazard Warning Flasher................103,180
Headlights..........................83,238
High Beam........................... 86
High Beam/Low Beam Select Switch......... 86
Lights On Reminder..................... 84
Passing.............................. 86
Switch............................... 83
Time Delay........................... 83
Heater.............................125,126
High Beam Indicator..................... 101
High Beam/Low Beam Select (Dimmer) Switch . . . 86
INDEX 285
