Turn Signals
Move the multifunction lever upward or downward and
the corresponding turn signal indicator on the instru-
ment panel will flash to show proper operation of the
front and rear turn signal lights.You can also signal a lane change by moving the lever
partially upward or downward without moving beyond
the detent. The turn signals will continue to operate until
you release the multifunction lever.
If either light has a very fast flash rate, check for a
defective outside light bulb. If an indicator fails to light
when the multifunction lever is moved, it would suggest
that the fuse or indicator is defective or there may be a
circuit failure.
Turn Signal Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

Certain conditions such as a loose or missing gas cap,
poor fuel quality, etc., may illuminate the light after
engine start. The vehicle should be serviced if the light
remains on through several of your typical driving
cycles. In most situations, the vehicle will drive normally
and will not require towing.
The MIL flashes to alert you to serious conditions that
could lead to immediate loss of power or severe catalytic
converter damage. The vehicle should be serviced as
soon as possible if this occurs.
CAUTION!
Prolonged driving with the light on could cause
further damage to the emission control system. It
could also affect fuel economy and driveability. The
vehicle must be serviced before any state emissions
tests can be performed.

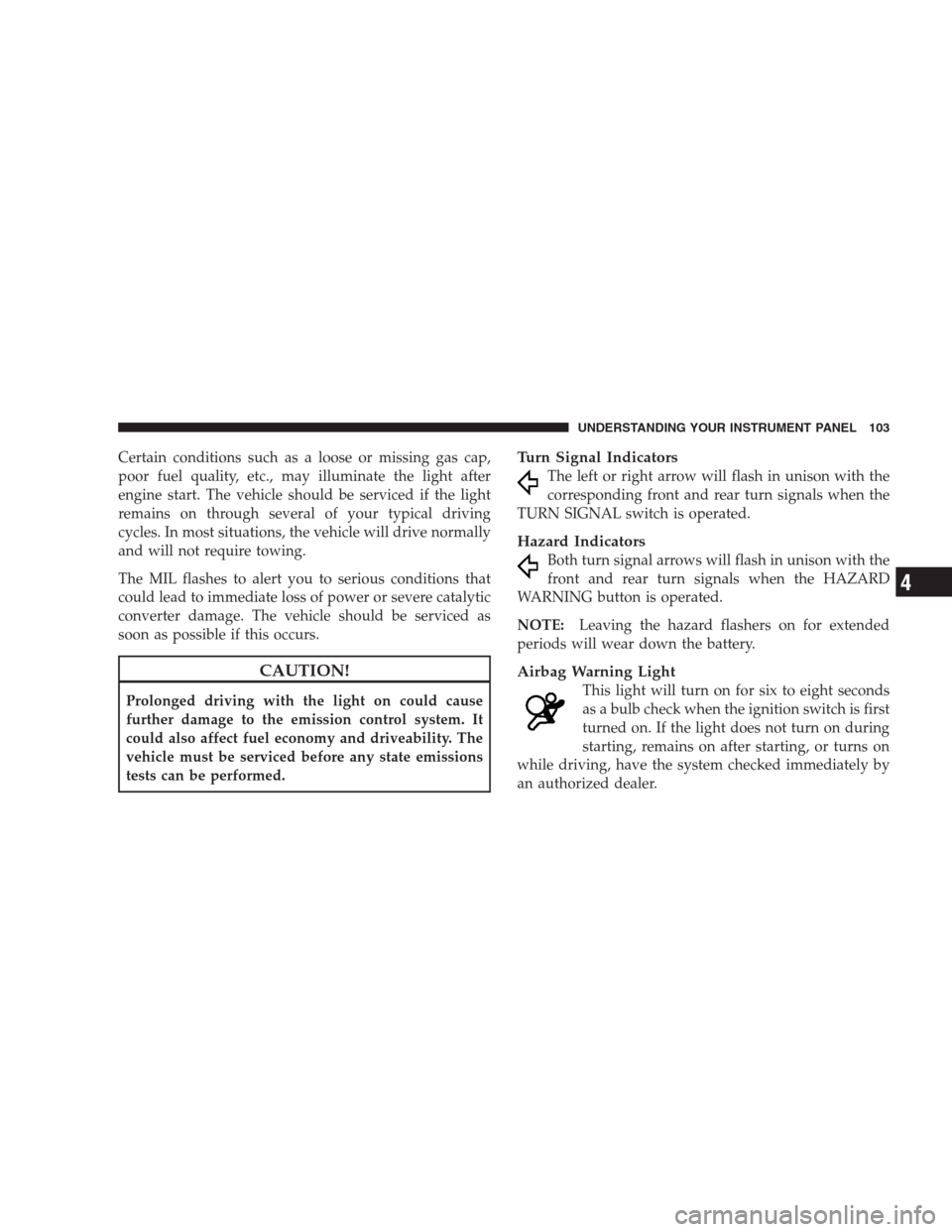

Turn Signal Indicators
The left or right arrow will flash in unison with the
corresponding front and rear turn signals when the
TURN SIGNAL switch is operated.
Hazard Indicators
Both turn signal arrows will flash in unison with the
front and rear turn signals when the HAZARD
WARNING button is operated.
NOTE:Leaving the hazard flashers on for extended
periods will wear down the battery.
Airbag Warning Light
This light will turn on for six to eight seconds
as a bulb check when the ignition switch is first
turned on. If the light does not turn on during
starting, remains on after starting, or turns on
while driving, have the system checked immediately by
an authorized dealer.
UNDERSTANDING YOUR INSTRUMENT PANEL 103
4

▫Brake System....................... 222
▫Manual Transmission.................. 224
▫Hydraulic Clutch..................... 224
▫Rear Axle.......................... 226
▫Appearance Care And Protection From
Corrosion.......................... 226
Fuses.............................. 230
▫Power Distribution Center.............. 230
▫Mini-Power Distribution Center.......... 233
Vehicle Storage....................... 234
Replacement Bulbs..................... 236
Bulb Replacement..................... 237▫Auxiliary High Beam Headlight, Front
Park/Turn Signal Light, Front Side Marker
Light............................. 237
▫High Intensity Discharge Headlights (HID) . . 238
▫Front Fog Light...................... 239
▫
Taillight, Tail/Stop Light, Rear Marker Light. . 240
▫
Taillight, Tail/Stop Light, Rear Marker Light
(Coupe Models)
...................... 241
▫Backup Light, Rear Turn Signal Light...... 242
▫License Light....................... 245
Fluids And Capacities................... 246
Fluids, Lubricants, And Genuine Parts....... 247
▫Engine............................ 247
▫Chassis............................ 248
198 MAINTAINING YOUR VEHICLE

properly. If not, there is a problem with a switch or the
system. See your authorized dealer for service.
•Cover the vehicle whenever possible to prevent acci-
dental damage to the finish.
REPLACEMENT BULBS
LIGHT BULBS — Interior Bulb Number
Message Center Indicators.................. 103
Cluster................................ 103
Gauge Pack............................ 103
Heater Control........................... 37
Interior Light..........................212–2
Courtesy Foot Well Lights.................. 194
Cargo Light (Coupe Liftgate)................ 168LIGHT BULBS — Exterior
(Convertible Models) Bulb Number
Low/High Beam High Intensity Discharge
(HID) Headlight.... Serviced at authorized dealer only
Auxiliary High Beam Headlight......(HB3A) 9005XS
Front Park/Turn Signal Light.............3157AK
Fog Light.......................(H10 U) 9145
Front Side Marker Light..................2886X
Center High Mounted Stop Light (CHMSL). . . 16 LED
(not serviceable)
Tail/Stop Light.........................3157
Taillight............................... 194
Rear Marker Light........................ 194
Backup Light...........................3157
Rear Turn Signal Light..................3457AK
License Light........................... 168
236 MAINTAINING YOUR VEHICLE

LIGHT BULBS — Exterior
(Coupe Models) Bulb Number
Low/High Beam High Intensity Discharge
(HID) Headlight.... Serviced at authorized dealer only
Auxiliary High Beam Headlight......(HB3A) 9005XS
Front Park/Turn Signal Light.............3157AK
Fog Light.......................(H10 U) 9145
Front Side Marker Light..................2886X
Center High Mounted Stop Light (CHMSL). . . 16 LED
(not serviceable)
Tail/Stop/Turn Signal Light................3157
Rear Marker Light........................ 194
Backup Light...........................3157
License Light........................... 168
NOTE:Upon turning the High Intensity Discharge
(HID) Headlights on, there is a blue hue to the lamps.
This diminishes and becomes more white after approxi-
mately 10 seconds as the system charges.BULB REPLACEMENT
Auxiliary High Beam Headlight, Front Park/Turn
Signal Light, Front Side Marker Light

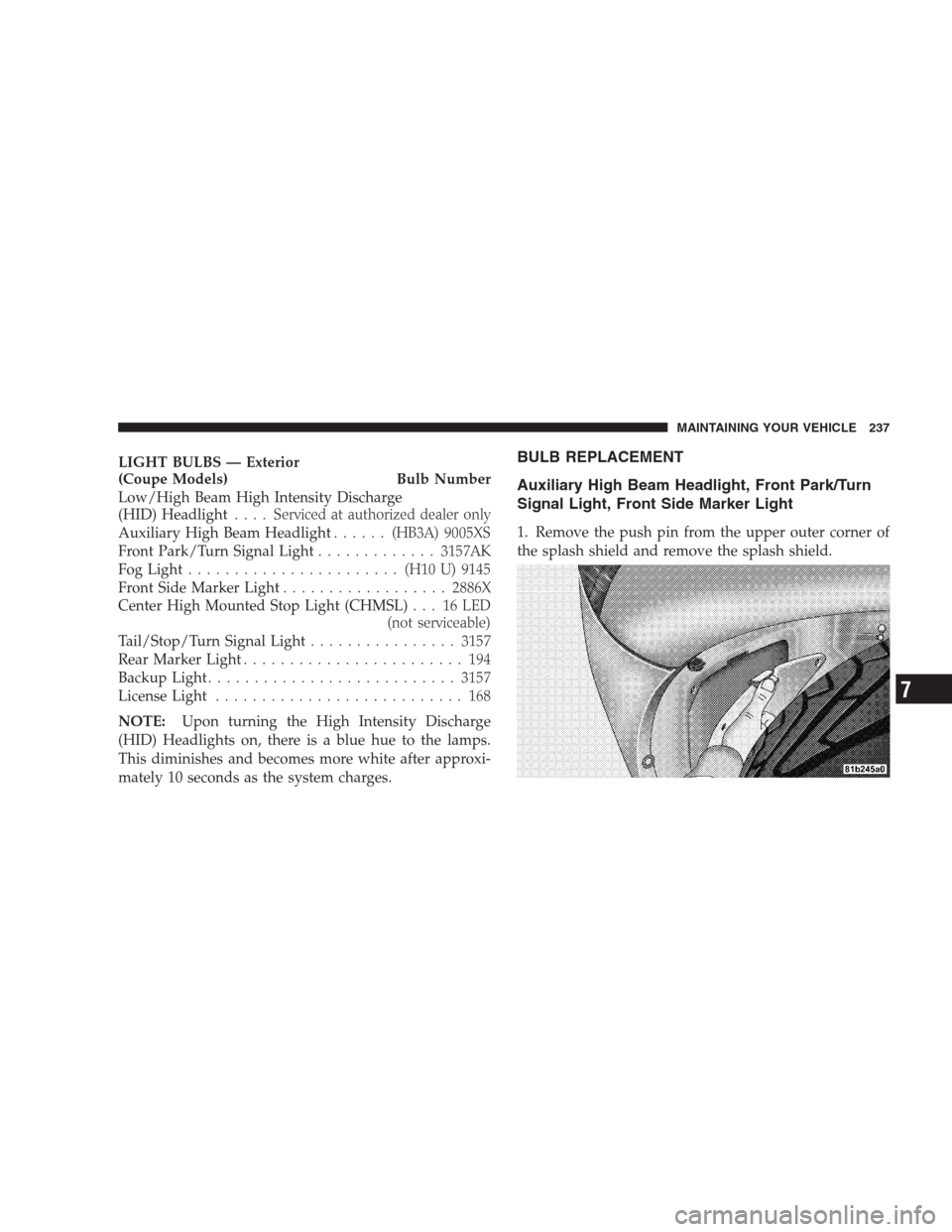

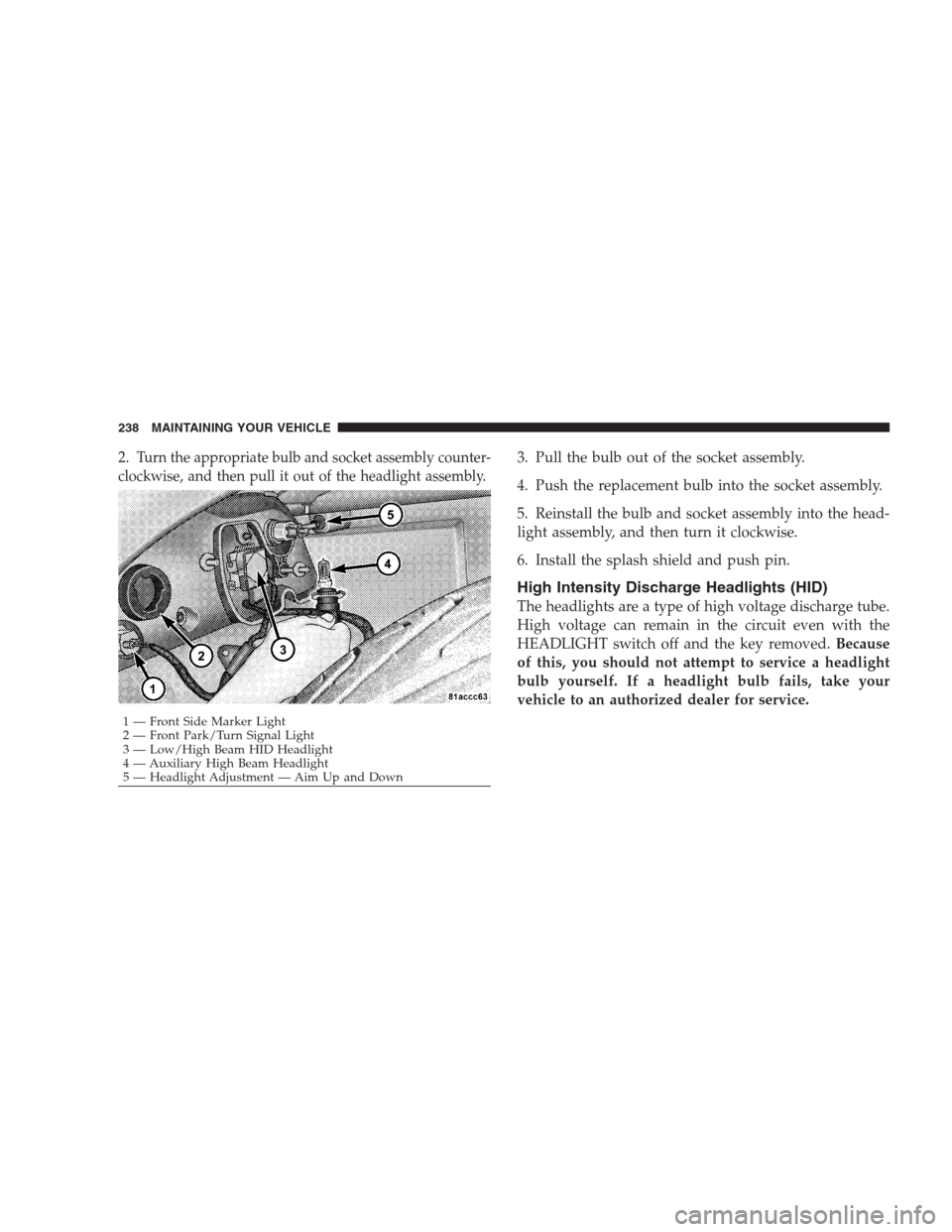

1. Remove the push pin from the upper outer corner of
