instrument cluster DODGE VIPER 2013 VX / 3.G Owners Manual

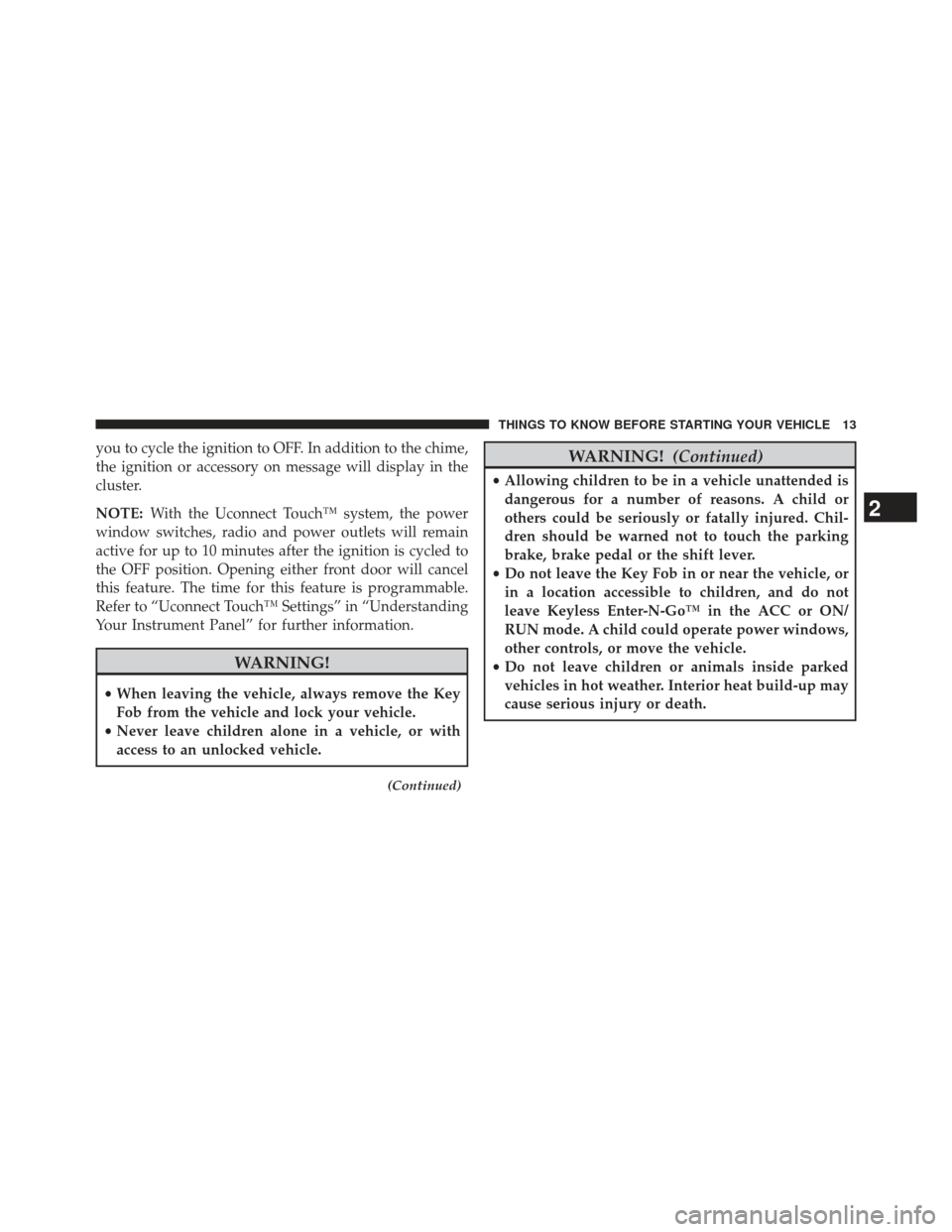

you to cycle the ignition to OFF. In addition to the chime,
the ignition or accessory on message will display in the
cluster.
NOTE:With the Uconnect Touch™ system, the power
window switches, radio and power outlets will remain
active for up to 10 minutes after the ignition is cycled to
the OFF position. Opening either front door will cancel
this feature. The time for this feature is programmable.
Refer to “Uconnect Touch™ Settings” in “Understanding
Your Instrument Panel” for further information.
WARNING!
• When leaving the vehicle, always remove the Key
Fob from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
(Continued)
WARNING! (Continued)
•Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the shift lever.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave Keyless Enter-N-Go™ in the ACC or ON/
RUN mode. A child could operate power windows,
other controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

NOTE:
•You may not hear all of the tones due to mobile phone
network configurations. This is normal.
• Some paging and voice mail systems have system time
out settings that are too short and may not allow the
use of this feature.

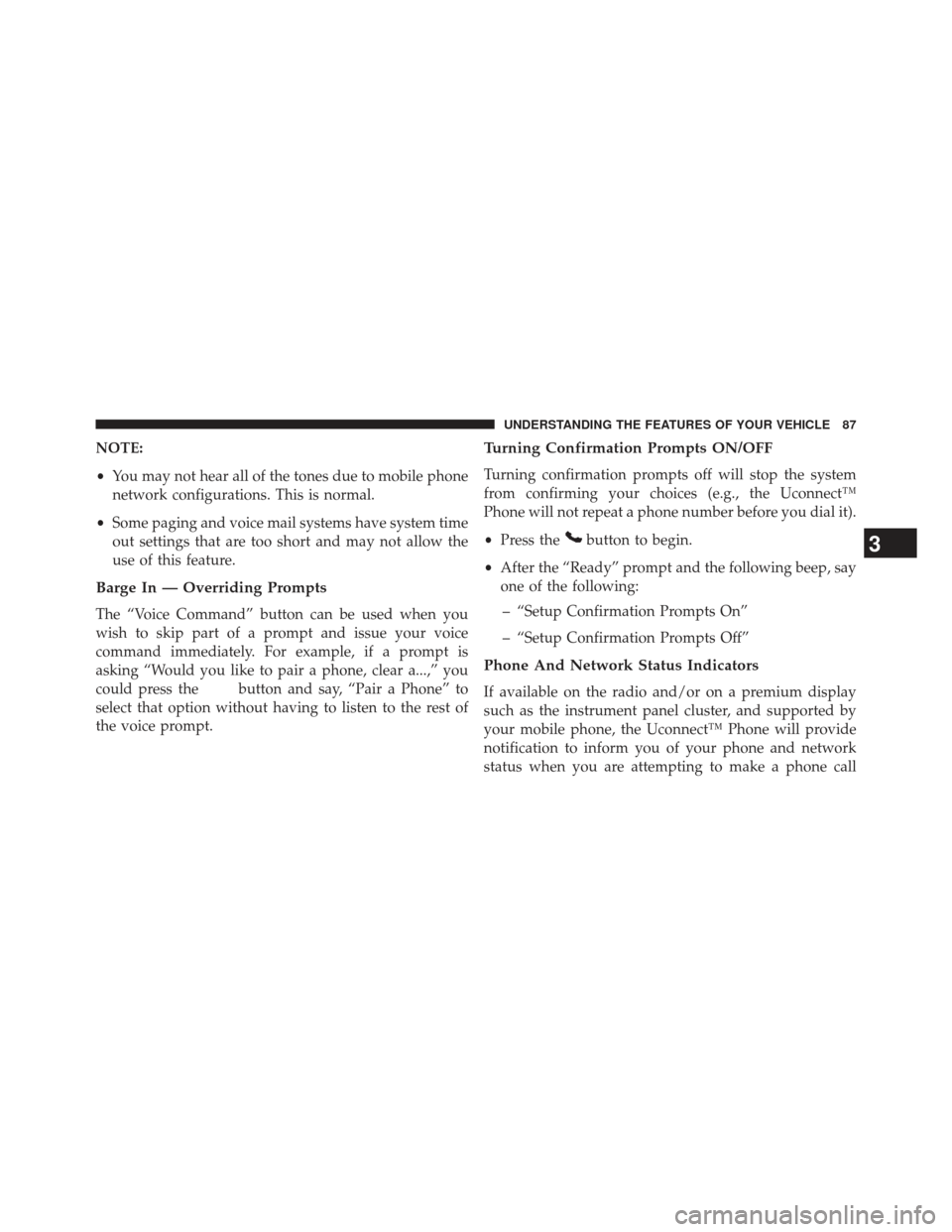

Barge In — Overriding Prompts
The “Voice Command” button can be used when you
wish to skip part of a prompt and issue your voice
command immediately. For example, if a prompt is
asking “Would you like to pair a phone, clear a...,” you
could press the
button and say, “Pair a Phone” to
select that option without having to listen to the rest of
the voice prompt.
Turning Confirmation Prompts ON/OFF
Turning confirmation prompts off will stop the system
from confirming your choices (e.g., the Uconnect™
Phone will not repeat a phone number before you dial it).
• Press the
button to begin.
• After the “Ready” prompt and the following beep, say
one of the following:
– “Setup Confirmation Prompts On”
– “Setup Confirmation Prompts Off”
Phone And Network Status Indicators
If available on the radio and/or on a premium display
such as the instrument panel cluster, and supported by
your mobile phone, the Uconnect™ Phone will provide
notification to inform you of your phone and network
status when you are attempting to make a phone call
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

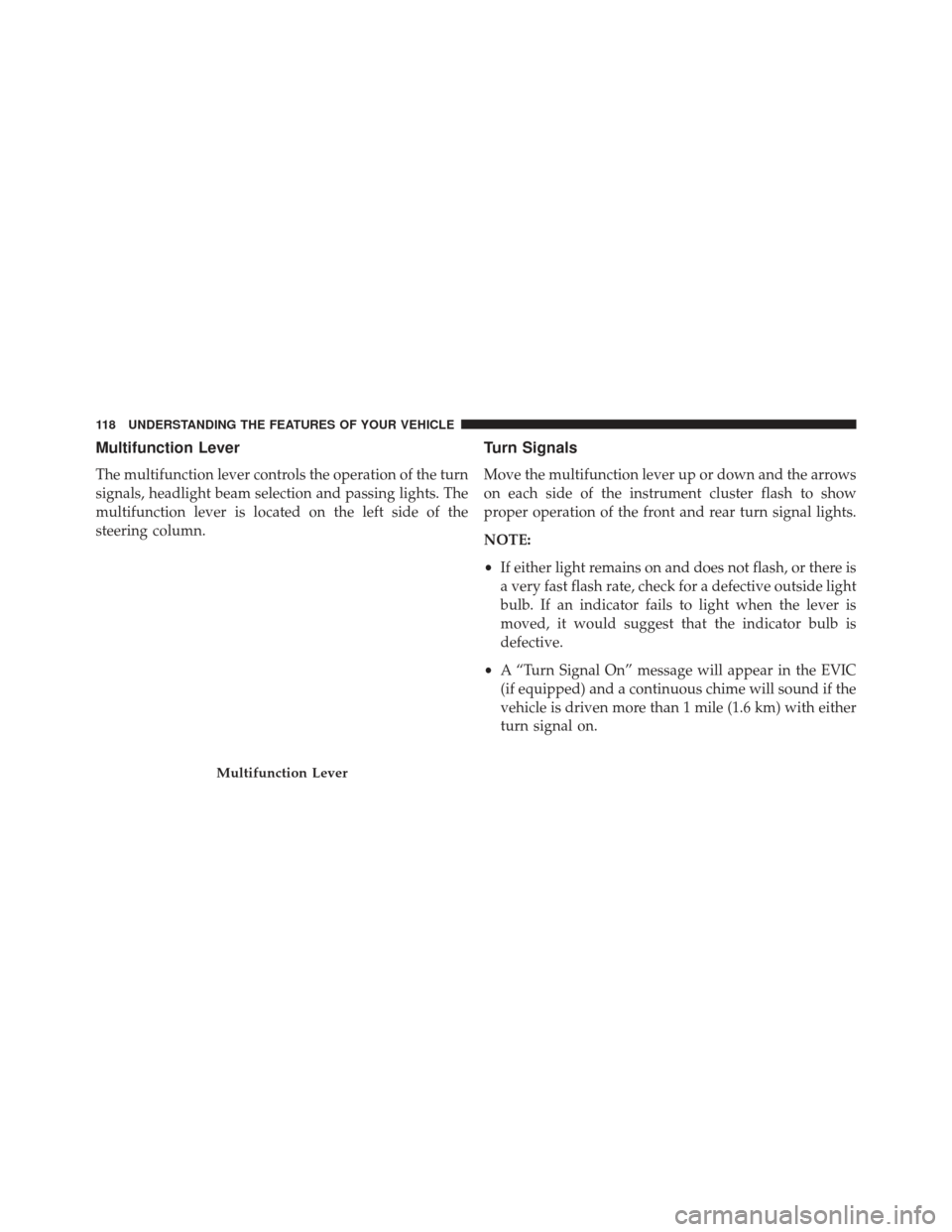

Multifunction Lever
The multifunction lever controls the operation of the turn
signals, headlight beam selection and passing lights. The
multifunction lever is located on the left side of the
steering column.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
NOTE:
•If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
• A “Turn Signal On” message will appear in the EVIC
(if equipped) and a continuous chime will sound if the
vehicle is driven more than 1 mile (1.6 km) with either
turn signal on.
Multifunction Lever
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

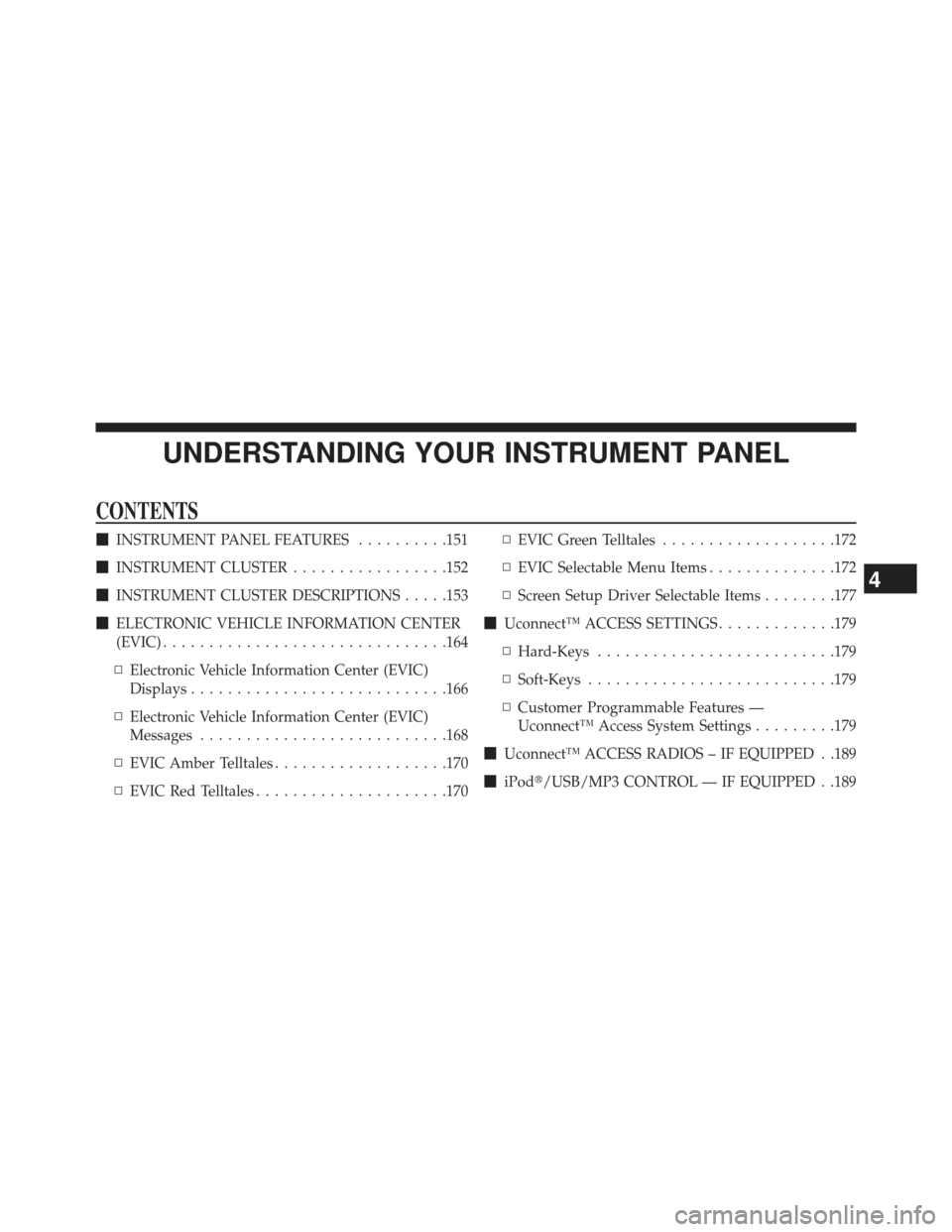

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........151
 INSTRUMENT CLUSTER .................152
 INSTRUMENT CLUSTER DESCRIPTIONS .....153
 ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) .............................. .164
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... .166
▫ Electronic Vehicle Information Center (EVIC)
Messages .......................... .168
▫ EVIC Amber Telltales ...................170
▫ EVIC Red Telltales .....................170 ▫
EVIC Green Telltales ...................172
▫ EVIC Selectable Menu Items ..............172
▫ Screen Setup Driver Selectable Items ........177
 Uconnect™ ACCESS SETTINGS .............179
▫ Hard-Keys ......................... .179
▫ Soft-Keys .......................... .179
▫ Customer Programmable Features —
Uconnect™ Access System Settings .........179
 Uconnect™ ACCESS RADIOS – IF EQUIPPED . .189
 iPod/USB/MP3 CONTROL — IF EQUIPPED . .189
4

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Passenger Air Bag 11 — Climate Controls
2 — Sound System Speaker 7 — Glove Compartment 12 — Dimmer Controls
3 — Instrument Cluster 8 — Uconnect Touch™ System 13 — Headlight Switch
4 — Keyless Enter-N-Go™ Start/Stop Button 9 — Uconnect Touch™ System Hard Controls
5 — Glove Compartment Lock 10 — Switch Bank (Screen Off, Hazard Switch, Back Button)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 151

INSTRUMENT CLUSTER
152 UNDERSTANDING YOUR INSTRUMENT PANEL

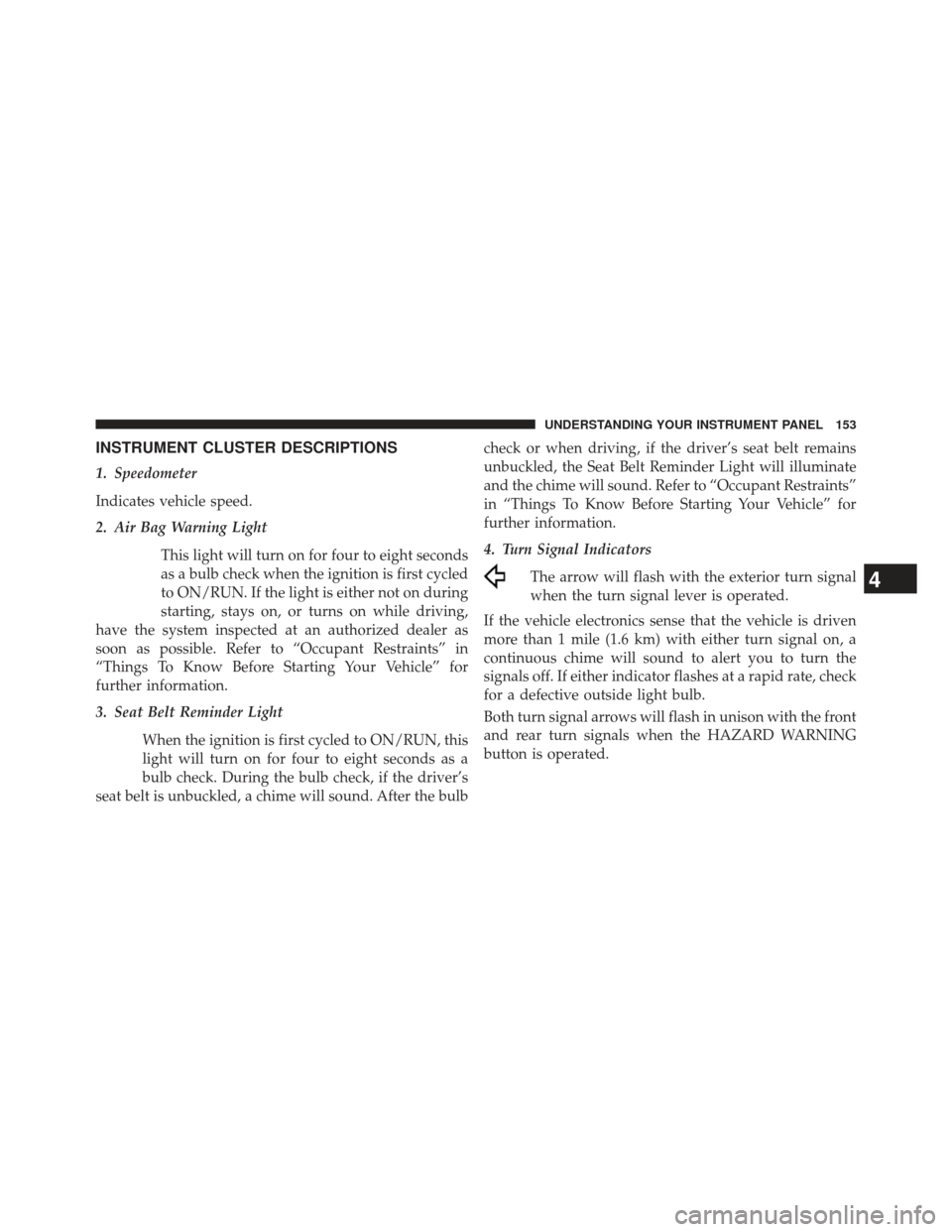

INSTRUMENT CLUSTER DESCRIPTIONS
1. Speedometer
Indicates vehicle speed.
2. Air Bag Warning LightThis light will turn on for four to eight seconds
as a bulb check when the ignition is first cycled
to ON/RUN. If the light is either not on during
starting, stays on, or turns on while driving,
have the system inspected at an authorized dealer as
soon as possible. Refer to “Occupant Restraints” in
“Things To Know Before Starting Your Vehicle” for
further information.
3. Seat Belt Reminder Light
When the ignition is first cycled to ON/RUN, this
light will turn on for four to eight seconds as a
bulb check. During the bulb check, if the driver’s
seat belt is unbuckled, a chime will sound. After the bulb check or when driving, if the driver’s seat belt remains
unbuckled, the Seat Belt Reminder Light will illuminate
and the chime will sound. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.
4. Turn Signal Indicators
The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
If the vehicle electronics sense that the vehicle is driven
more than 1 mile (1.6 km) with either turn signal on, a
continuous chime will sound to alert you to turn the
signals off. If either indicator flashes at a rapid rate, check
for a defective outside light bulb.
Both turn signal arrows will flash in unison with the front
and rear turn signals when the HAZARD WARNING
button is operated.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 153

NOTE:Leaving the hazard flashers on for extended
periods will wear down the battery.

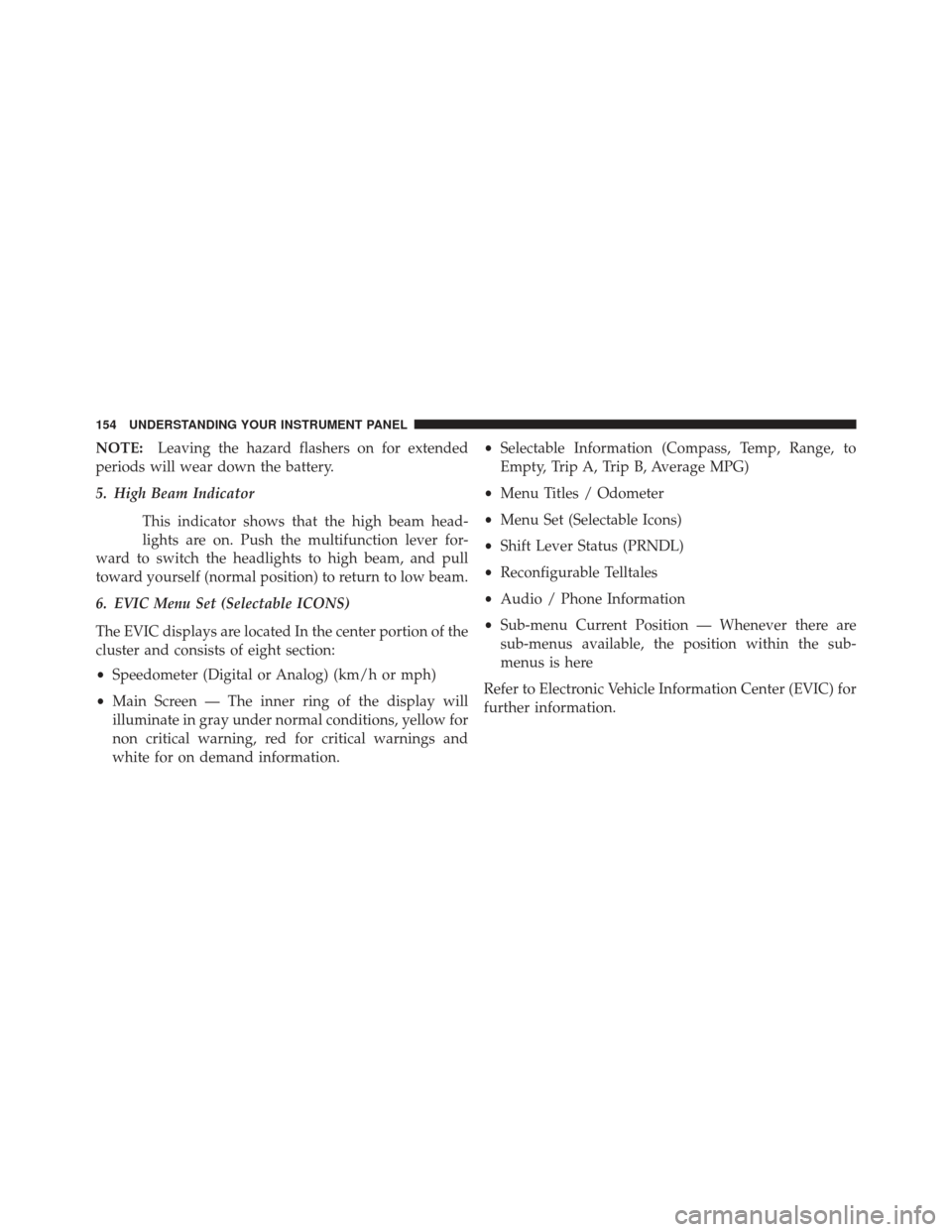

5. High Beam Indicator
This indicator shows that the high beam head-
lights are on. Push the multifunction lever for-
ward to switch the headlights to high beam, and pull
toward yourself (normal position) to return to low beam.
6. EVIC Menu Set (Selectable ICONS)
The EVIC displays are located In the center portion of the
cluster and consists of eight section:
• Speedometer (Digital or Analog) (km/h or mph)
• Main Screen — The inner ring of the display will
illuminate in gray under normal conditions, yellow for
non critical warning, red for critical warnings and
white for on demand information. •
Selectable Information (Compass, Temp, Range, to
Empty, Trip A, Trip B, Average MPG)
• Menu Titles / Odometer
• Menu Set (Selectable Icons)
• Shift Lever Status (PRNDL)
• Reconfigurable Telltales
• Audio / Phone Information
• Sub-menu Current Position — Whenever there are
sub-menus available, the position within the sub-
menus is here
Refer to Electronic Vehicle Information Center (EVIC) for
further information.
154 UNDERSTANDING YOUR INSTRUMENT PANEL

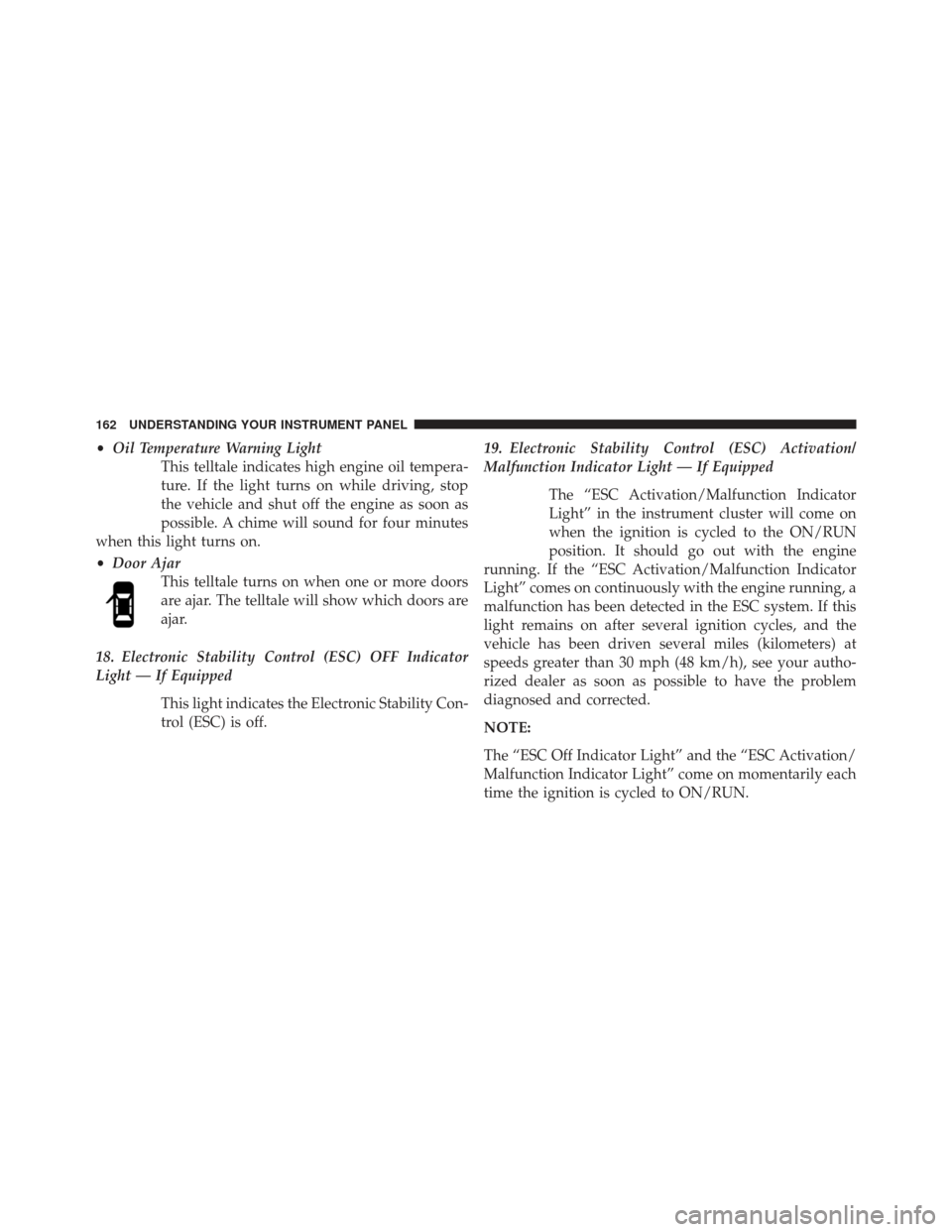

•Oil Temperature Warning Light
This telltale indicates high engine oil tempera-
ture. If the light turns on while driving, stop
the vehicle and shut off the engine as soon as
possible. A chime will sound for four minutes
when this light turns on.
• Door Ajar
This telltale turns on when one or more doors
are ajar. The telltale will show which doors are
ajar.
18. Electronic Stability Control (ESC) OFF Indicator
Light — If Equipped This light indicates the Electronic Stability Con-
trol (ESC) is off. 19. Electronic Stability Control (ESC) Activation/
Malfunction Indicator Light — If Equipped
The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
when the ignition is cycled to the ON/RUN
position. It should go out with the engine
running. If the “ESC Activation/Malfunction Indicator
Light” comes on continuously with the engine running, a
malfunction has been detected in the ESC system. If this
light remains on after several ignition cycles, and the
vehicle has been driven several miles (kilometers) at
speeds greater than 30 mph (48 km/h), see your autho-
rized dealer as soon as possible to have the problem
diagnosed and corrected.
NOTE:
The “ESC Off Indicator Light” and the “ESC Activation/
Malfunction Indicator Light” come on momentarily each
time the ignition is cycled to ON/RUN.
162 UNDERSTANDING YOUR INSTRUMENT PANEL

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.This system allows the driver to select a variety of useful
information by pressing the switches mounted on the
steering wheel. The EVIC consists of the following:
•
Digital Speedometer
• SRT Performance Info
• Vehicle Info
• Fuel Economy Info
• Trip A
• Trip B
• Radio Info
• Stored Messages
• Screen Setup
• Diagnostic Codes
• Vehicle Hibernation Settings
164 UNDERSTANDING YOUR INSTRUMENT PANEL
