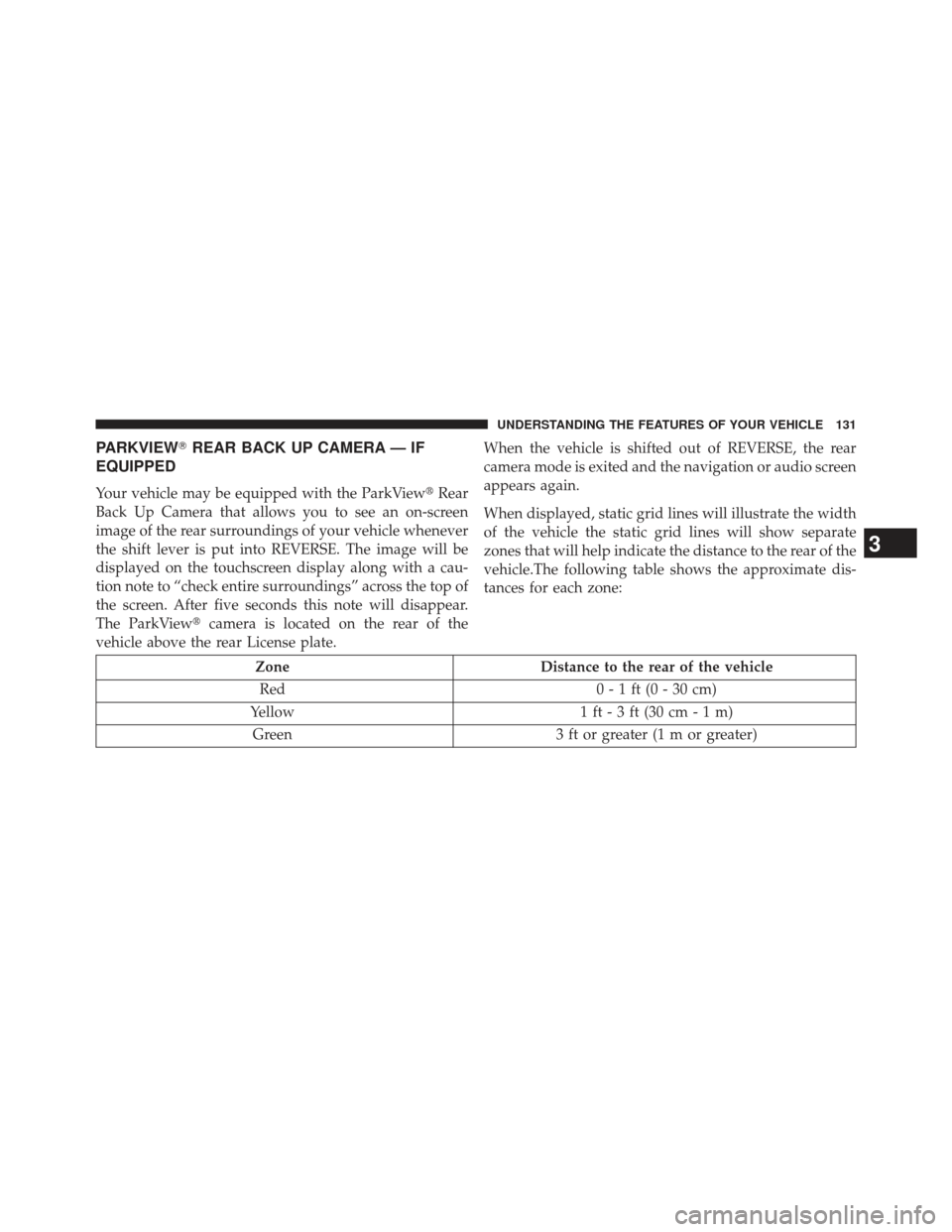

PARKVIEWREAR BACK UP CAMERA — IF
EQUIPPED
Your vehicle may be equipped with the ParkView Rear
Back Up Camera that allows you to see an on-screen
image of the rear surroundings of your vehicle whenever
the shift lever is put into REVERSE. The image will be
displayed on the touchscreen display along with a cau-
tion note to “check entire surroundings” across the top of
the screen. After five seconds this note will disappear.
The ParkView camera is located on the rear of the
vehicle above the rear License plate. When the vehicle is shifted out of REVERSE, the rear
camera mode is exited and the navigation or audio screen
appears again.
When displayed, static grid lines will illustrate the width
of the vehicle the static grid lines will show separate
zones that will help indicate the distance to the rear of the
vehicle.The following table shows the approximate dis-
tances for each zone:
Zone
Distance to the rear of the vehicle
Red 0 - 1 ft (0 - 30 cm)
Yellow 1 ft - 3 ft (30 cm - 1 m)
Green 3 ft or greater (1 m or greater)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131

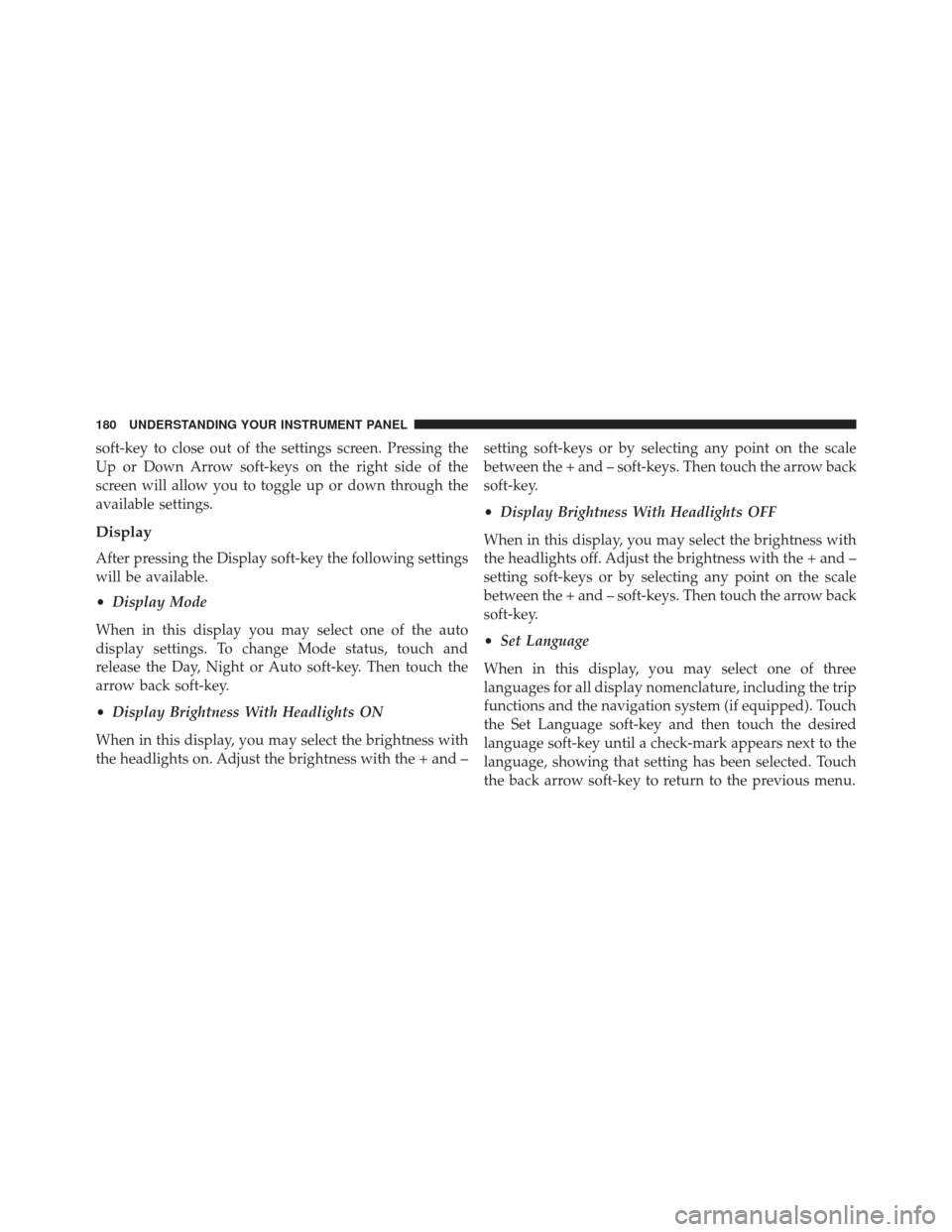

soft-key to close out of the settings screen. Pressing the
Up or Down Arrow soft-keys on the right side of the
screen will allow you to toggle up or down through the
available settings.
Display
After pressing the Display soft-key the following settings
will be available.
•Display Mode
When in this display you may select one of the auto
display settings. To change Mode status, touch and
release the Day, Night or Auto soft-key. Then touch the
arrow back soft-key.
• Display Brightness With Headlights ON
When in this display, you may select the brightness with
the headlights on. Adjust the brightness with the + and – setting soft-keys or by selecting any point on the scale
between the + and – soft-keys. Then touch the arrow back
soft-key.
•
Display Brightness With Headlights OFF
When in this display, you may select the brightness with
the headlights off. Adjust the brightness with the + and –
setting soft-keys or by selecting any point on the scale
between the + and – soft-keys. Then touch the arrow back
soft-key.
• Set Language
When in this display, you may select one of three
languages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Touch
the Set Language soft-key and then touch the desired
language soft-key until a check-mark appears next to the
language, showing that setting has been selected. Touch
the back arrow soft-key to return to the previous menu.
180 UNDERSTANDING YOUR INSTRUMENT PANEL

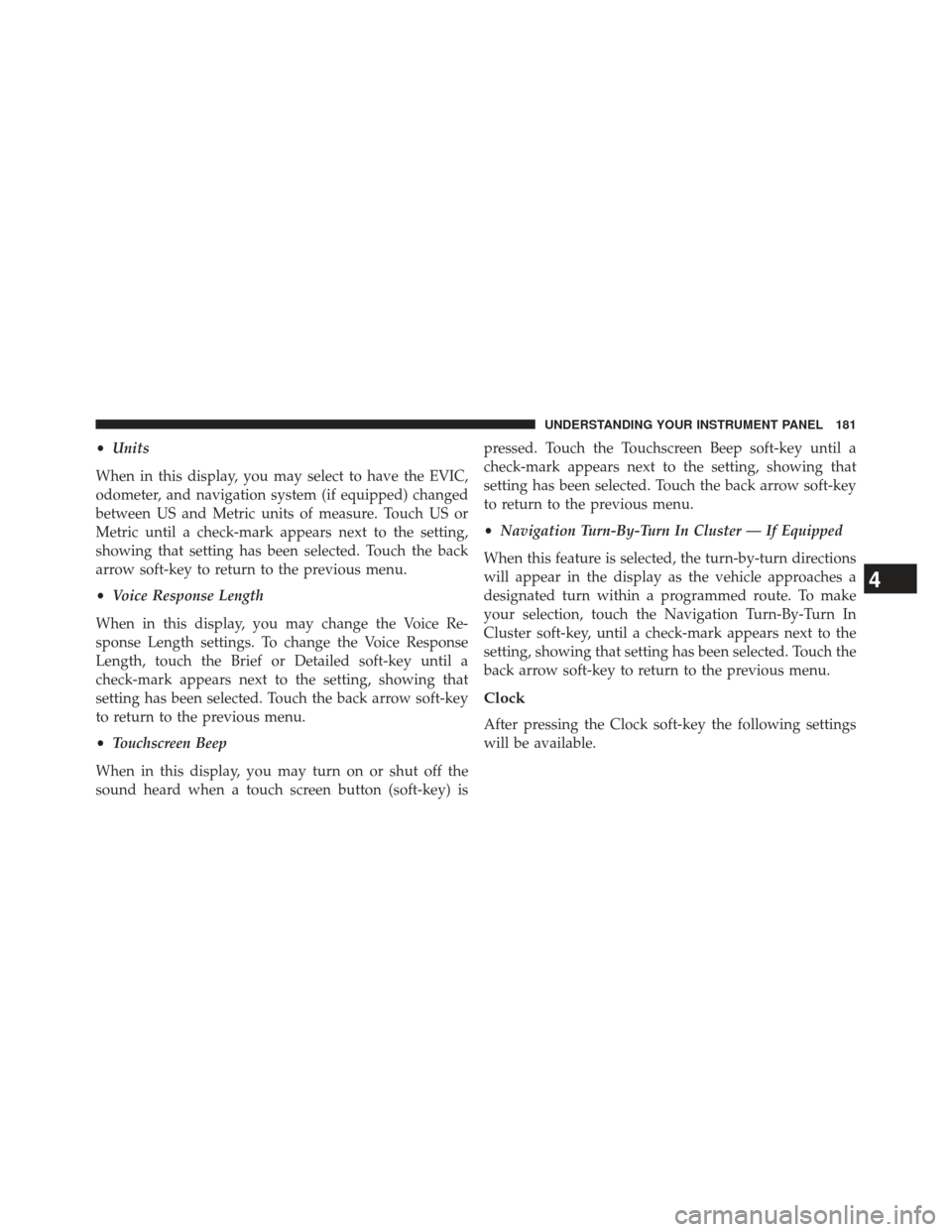

•Units
When in this display, you may select to have the EVIC,
odometer, and navigation system (if equipped) changed
between US and Metric units of measure. Touch US or
Metric until a check-mark appears next to the setting,
showing that setting has been selected. Touch the back
arrow soft-key to return to the previous menu.
• Voice Response Length
When in this display, you may change the Voice Re-
sponse Length settings. To change the Voice Response
Length, touch the Brief or Detailed soft-key until a
check-mark appears next to the setting, showing that
setting has been selected. Touch the back arrow soft-key
to return to the previous menu.
• Touchscreen Beep
When in this display, you may turn on or shut off the
sound heard when a touch screen button (soft-key) is pressed. Touch the Touchscreen Beep soft-key until a
check-mark appears next to the setting, showing that
setting has been selected. Touch the back arrow soft-key
to return to the previous menu.
•
Navigation Turn-By-Turn In Cluster — If Equipped
When this feature is selected, the turn-by-turn directions
will appear in the display as the vehicle approaches a
designated turn within a programmed route. To make
your selection, touch the Navigation Turn-By-Turn In
Cluster soft-key, until a check-mark appears next to the
setting, showing that setting has been selected. Touch the
back arrow soft-key to return to the previous menu.
Clock
After pressing the Clock soft-key the following settings
will be available.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 181

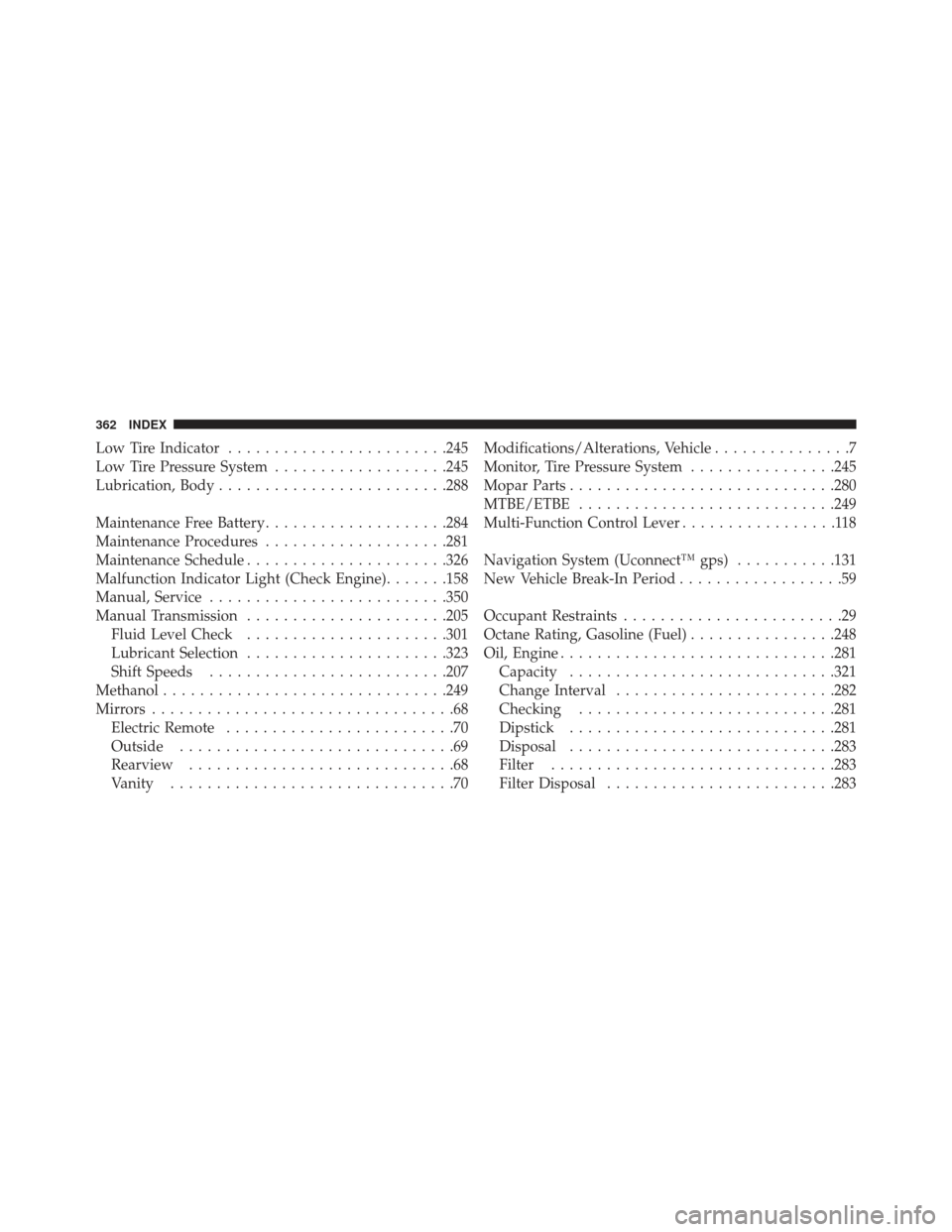

Low Tire Indicator....................... .245
Low Tire Pressure System ...................245
Lubrication, Body ........................ .288
Maintenance Free Battery ....................284
Maintenance Procedures ....................281
Maintenance Schedule ..................... .326
Malfunction Indicator Light (Check Engine) .......158
Manual, Service ......................... .350
Manual Transmission ..................... .205
Fluid Level Check ..................... .301
Lubricant Selection ..................... .323
Shift Speeds ......................... .207
Methanol .............................. .249
Mirrors .................................68
Electric Remote .........................70
Outside ..............................69
Rearview .............................68
Vanity ...............................70 Modifications/Alterations, Vehicle
...............7
Monitor, Tire Pressure System ................245
Mopar Parts ............................ .280
MTBE/ETBE ........................... .249
Multi-Function Control Lever .................118
Navigation System (Uconnect™ gps) ...........131
New Vehicle Break-In Period ..................59
Occupant Restraints ........................29
Octane Rating, Gasoline (Fuel) ................248
Oil, Engine ............................. .281
Capacity ............................ .321
Change Interval ....................... .282
Checking ........................... .281
Dipstick ............................ .281
Disposal ............................ .283
Filter .............................. .283
Filter Disposal ........................ .283
362 INDEX
