16. EVIC Amber Telltale Lights
When the appropriate conditions exist, the following
EVIC Amber Telltale Lights will display:
•Windshield Washer Fluid Low Indicator — If
Equipped This light will turn on to indicate the wind-
shield washer fluid is low
• Low Fuel Light
When the fuel level reaches approximately 3.0 gal
(11.0 L) this light will turn on, and remain on until
fuel is added.
17. EVIC Red Telltale Lights
When the appropriate conditions exist, the following
EVIC Red Telltale Lights will display: •
Engine Temperature
This telltale warns of an overheated engine con-
dition. As temperatures rise and the gauge ap-
proaches H, or 260°F, this telltale will illuminate
and a single chime will sound after reaching a set
threshold. Further overheating will cause the tempera-
ture gauge to pass H, or 260°F, a continuous chime will
occur until the engine is allowed to cool.
If the telltale turns on while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve-
hicle. If the temperature reading does not return to
normal, turn the engine off immediately and call for
service. Refer to “If Your Engine Overheats” in “What To
Do In Emergencies” for more information.
160 UNDERSTANDING YOUR INSTRUMENT PANEL

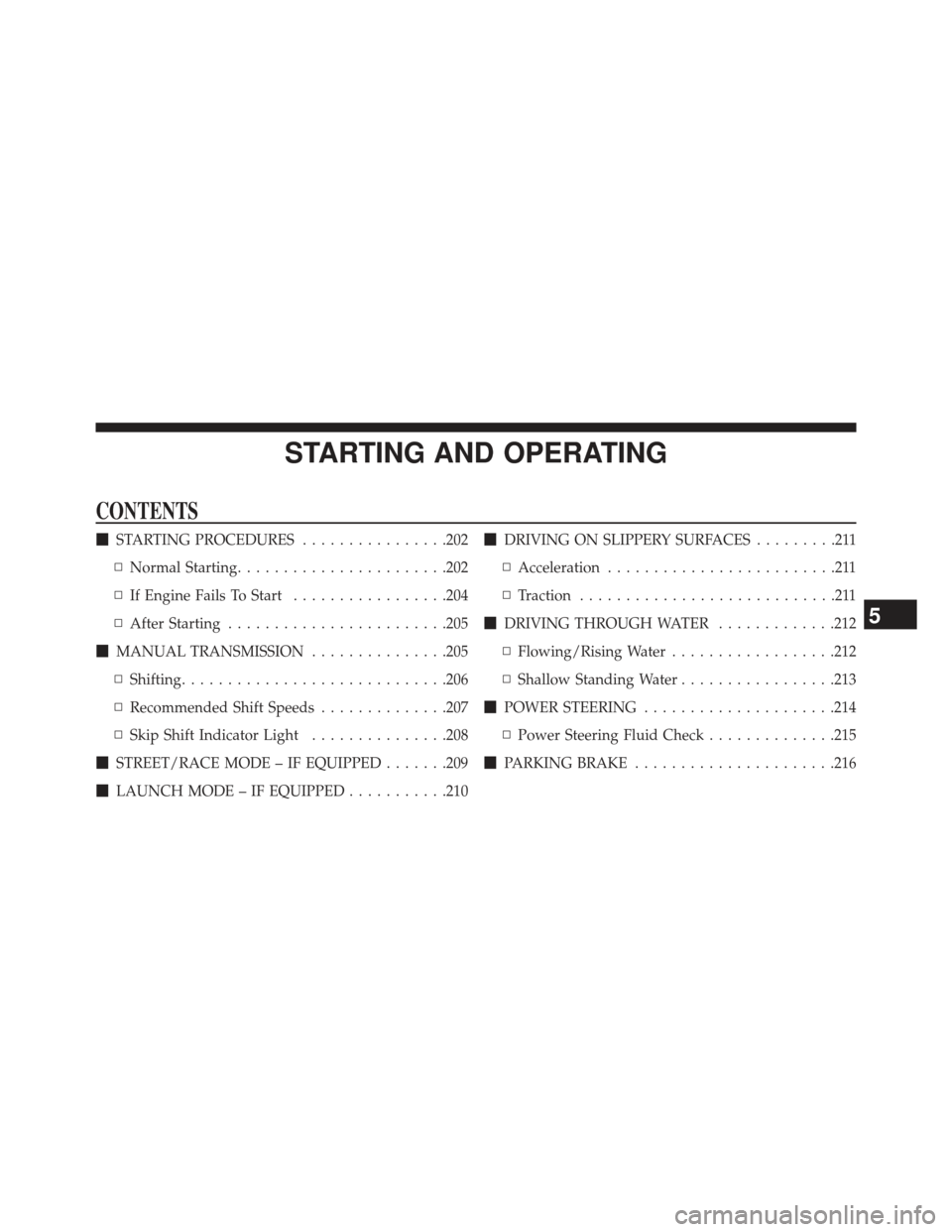

STARTING AND OPERATING
CONTENTS
STARTING PROCEDURES ................202
▫ Normal Starting ...................... .202
▫ If Engine Fails To Start .................204
▫ After Starting ....................... .205
 MANUAL TRANSMISSION ...............205
▫ Shifting ............................ .206
▫ Recommended Shift Speeds ..............207
▫ Skip Shift Indicator Light ...............208
 STREET/RACE MODE – IF EQUIPPED .......209
 LAUNCH MODE – IF EQUIPPED ...........210
DRIVING ON SLIPPERY SURFACES .........211
▫ Acceleration .........................211
▫ Traction ............................211
 DRIVING THROUGH WATER .............212
▫ Flowing/Rising Water ..................212
▫ Shallow Standing Water .................213
 POWER STEERING .....................214
▫ Power Steering Fluid Check ..............215
 PARKING BRAKE ..................... .216
5

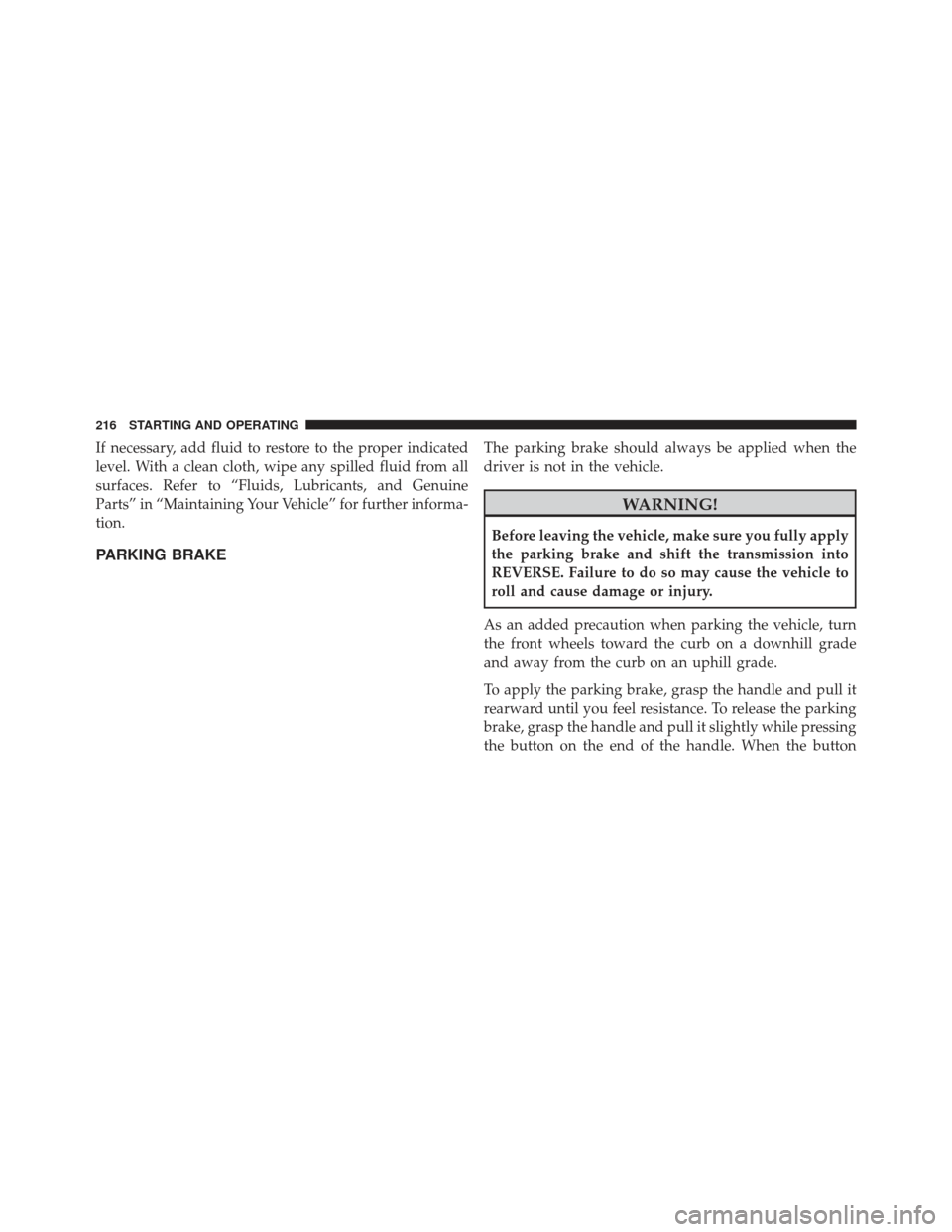

If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further informa-
tion.
PARKING BRAKE
The parking brake should always be applied when the
driver is not in the vehicle.
WARNING!
Before leaving the vehicle, make sure you fully apply
the parking brake and shift the transmission into
REVERSE. Failure to do so may cause the vehicle to
roll and cause damage or injury.
As an added precaution when parking the vehicle, turn
the front wheels toward the curb on a downhill grade
and away from the curb on an uphill grade.
To apply the parking brake, grasp the handle and pull it
rearward until you feel resistance. To release the parking
brake, grasp the handle and pull it slightly while pressing
the button on the end of the handle. When the button
216 STARTING AND OPERATING

4. Remove the cap from the valve stem and then screwthe fitting at the end of the Sealant Hose (6) onto the
valve stem.
5. Uncoil the Power Plug (8) and insert the plug into the vehicle’s 12 Volt power outlet.
NOTE: Do not remove foreign objects (e.g., screws or
nails) from the tire.
(C) Injecting TIREFIT Sealant Into The Deflated
Tire:
• Always start the engine before turning ON the TIRE-
FIT kit.
NOTE: Manual transmission vehicles must have the
parking brake engaged and the shift lever in NEUTRAL.
• After pressing the Power Button (4), the sealant (white
fluid) will flow from the Sealant Bottle (1) through the
Sealant Hose (6) and into the tire. NOTE:
Sealant may leak out through the puncture in the
tire.
If the sealant (white fluid) does not flow within0–10
seconds through the Sealant Hose (6):
1. Press the Power Button (4) to turn Off the TIREFIT kit. Disconnect the Sealant Hose (6) from the valve stem.
Make sure the valve stem is free of debris. Reconnect
the Sealant Hose (6) to the valve stem. Check that the
Mode Select Knob (5) is in the Sealant Mode position
and not Air Mode. Press the Power Button (4) to turn
On the TIREFIT kit.
2. Connect the Power Plug (8) to a different 12 Volt power outlet in your vehicle or another vehicle, if
available. Make sure the engine is running before
turning ON the TIREFIT kit.
3. The Sealant Bottle (1) may be empty due to previous use. Call for assistance.6
WHAT TO DO IN EMERGENCIES 265

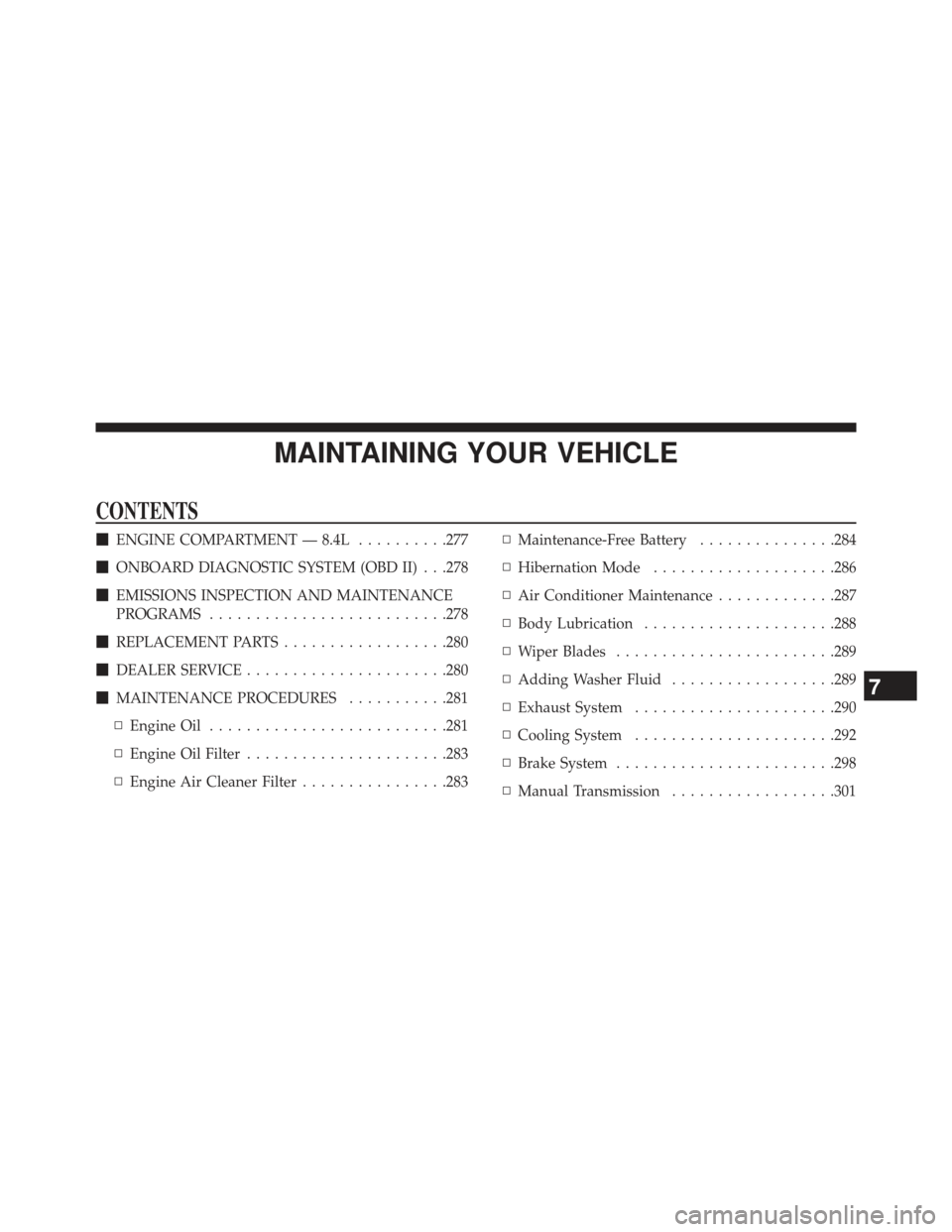

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 8.4L ..........277
 ONBOARD DIAGNOSTIC SYSTEM (OBD II) . . .278
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .278
 REPLACEMENT PARTS ..................280
 DEALER SERVICE ..................... .280
 MAINTENANCE PROCEDURES ...........281
▫ Engine Oil ......................... .281
▫ Engine Oil Filter ..................... .283
▫ Engine Air Cleaner Filter ................283 ▫
Maintenance-Free Battery ...............284
▫ Hibernation Mode ....................286
▫ Air Conditioner Maintenance .............287
▫ Body Lubrication .....................288
▫ Wiper Blades ....................... .289
▫ Adding Washer Fluid ..................289
▫ Exhaust System ..................... .290
▫ Cooling System ..................... .292
▫ Brake System ....................... .298
▫ Manual Transmission ..................301
7

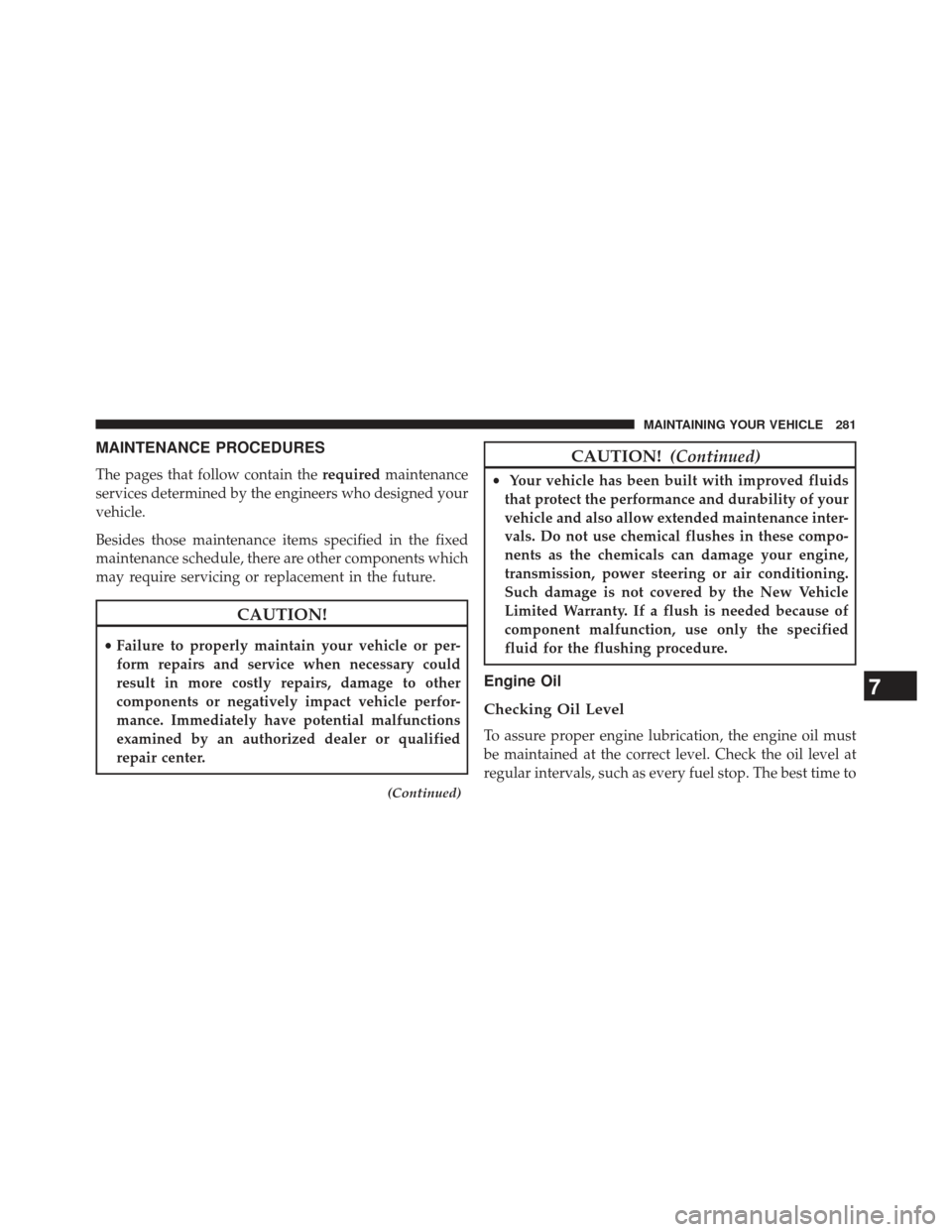

MAINTENANCE PROCEDURES
The pages that follow contain therequiredmaintenance
services determined by the engineers who designed your
vehicle.
Besides those maintenance items specified in the fixed
maintenance schedule, there are other components which
may require servicing or replacement in the future.
CAUTION!
• Failure to properly maintain your vehicle or per-
form repairs and service when necessary could
result in more costly repairs, damage to other
components or negatively impact vehicle perfor-
mance. Immediately have potential malfunctions
examined by an authorized dealer or qualified
repair center.
(Continued)
CAUTION! (Continued)
•Your vehicle has been built with improved fluids
that protect the performance and durability of your
vehicle and also allow extended maintenance inter-
vals. Do not use chemical flushes in these compo-
nents as the chemicals can damage your engine,
transmission, power steering or air conditioning.
Such damage is not covered by the New Vehicle
Limited Warranty. If a flush is needed because of
component malfunction, use only the specified
fluid for the flushing procedure.
Engine Oil
Checking Oil Level
To assure proper engine lubrication, the engine oil must
be maintained at the correct level. Check the oil level at
regular intervals, such as every fuel stop. The best time to
7
MAINTAINING YOUR VEHICLE 281

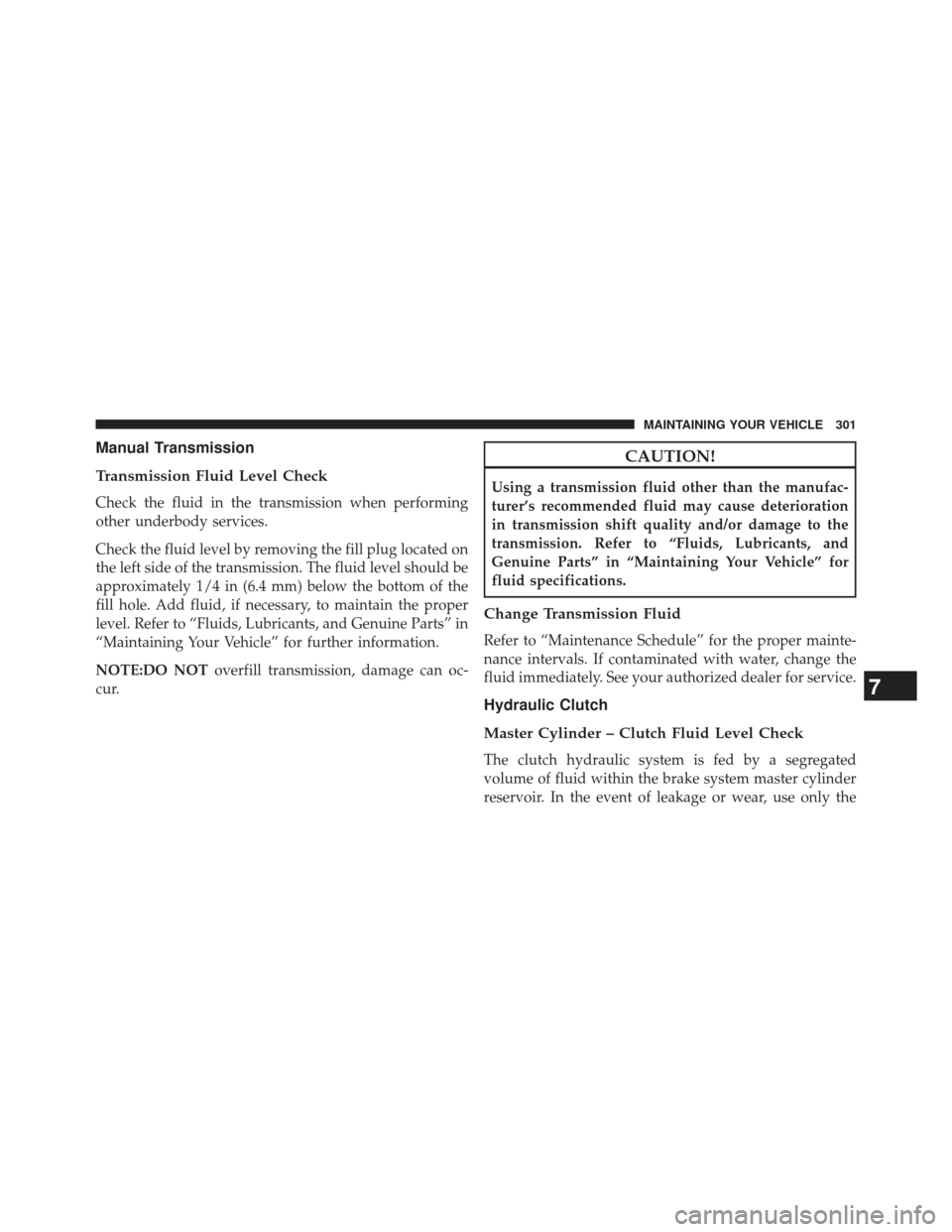

Manual Transmission
Transmission Fluid Level Check
Check the fluid in the transmission when performing
other underbody services.
Check the fluid level by removing the fill plug located on
the left side of the transmission. The fluid level should be
approximately 1/4 in (6.4 mm) below the bottom of the
fill hole. Add fluid, if necessary, to maintain the proper
level. Refer to “Fluids, Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for further information.
NOTE:DO NOToverfill transmission, damage can oc-
cur.
CAUTION!
Using a transmission fluid other than the manufac-
turer’s recommended fluid may cause deterioration
in transmission shift quality and/or damage to the
transmission. Refer to “Fluids, Lubricants, and
Genuine Parts” in “Maintaining Your Vehicle” for
fluid specifications.
Change Transmission Fluid
Refer to “Maintenance Schedule” for the proper mainte-
nance intervals. If contaminated with water, change the
fluid immediately. See your authorized dealer for service.
Hydraulic Clutch
Master Cylinder – Clutch Fluid Level Check
The clutch hydraulic system is fed by a segregated
volume of fluid within the brake system master cylinder
reservoir. In the event of leakage or wear, use only the
7
MAINTAINING YOUR VEHICLE 301

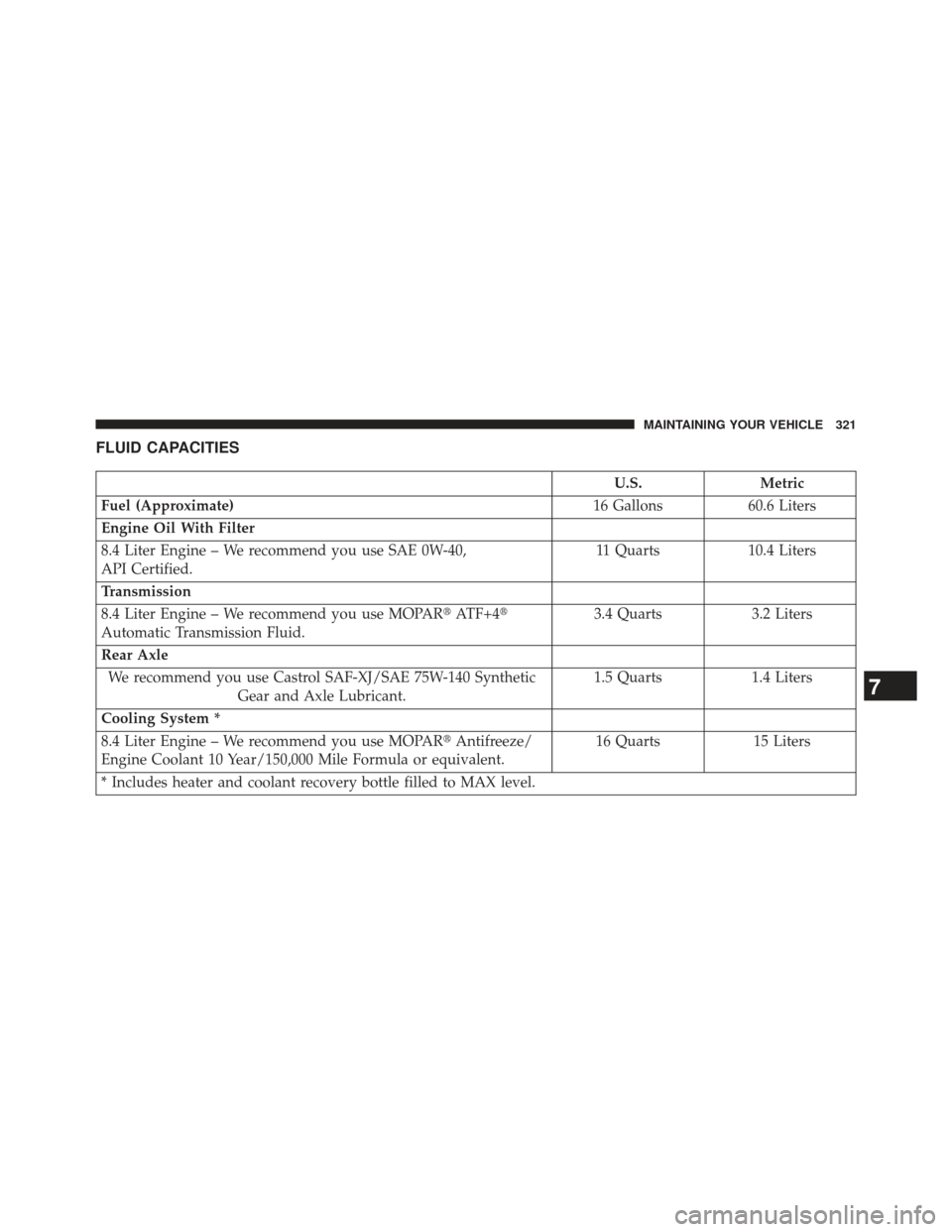

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 16 Gallons60.6 Liters
Engine Oil With Filter
8.4 Liter Engine – We recommend you use SAE 0W-40,
API Certified. 11 Quarts
10.4 Liters
Transmission
8.4 Liter Engine – We recommend you use MOPAR ATF+4
Automatic Transmission Fluid. 3.4 Quarts
3.2 Liters
Rear Axle We recommend you use Castrol SAF-XJ/SAE 75W-140 Synthetic Gear and Axle Lubricant. 1.5 Quarts
1.4 Liters
Cooling System *
8.4 Liter Engine – We recommend you use MOPAR Antifreeze/
Engine Coolant 10 Year/150,000 Mile Formula or equivalent. 16 Quarts
15 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
7
MAINTAINING YOUR VEHICLE 321

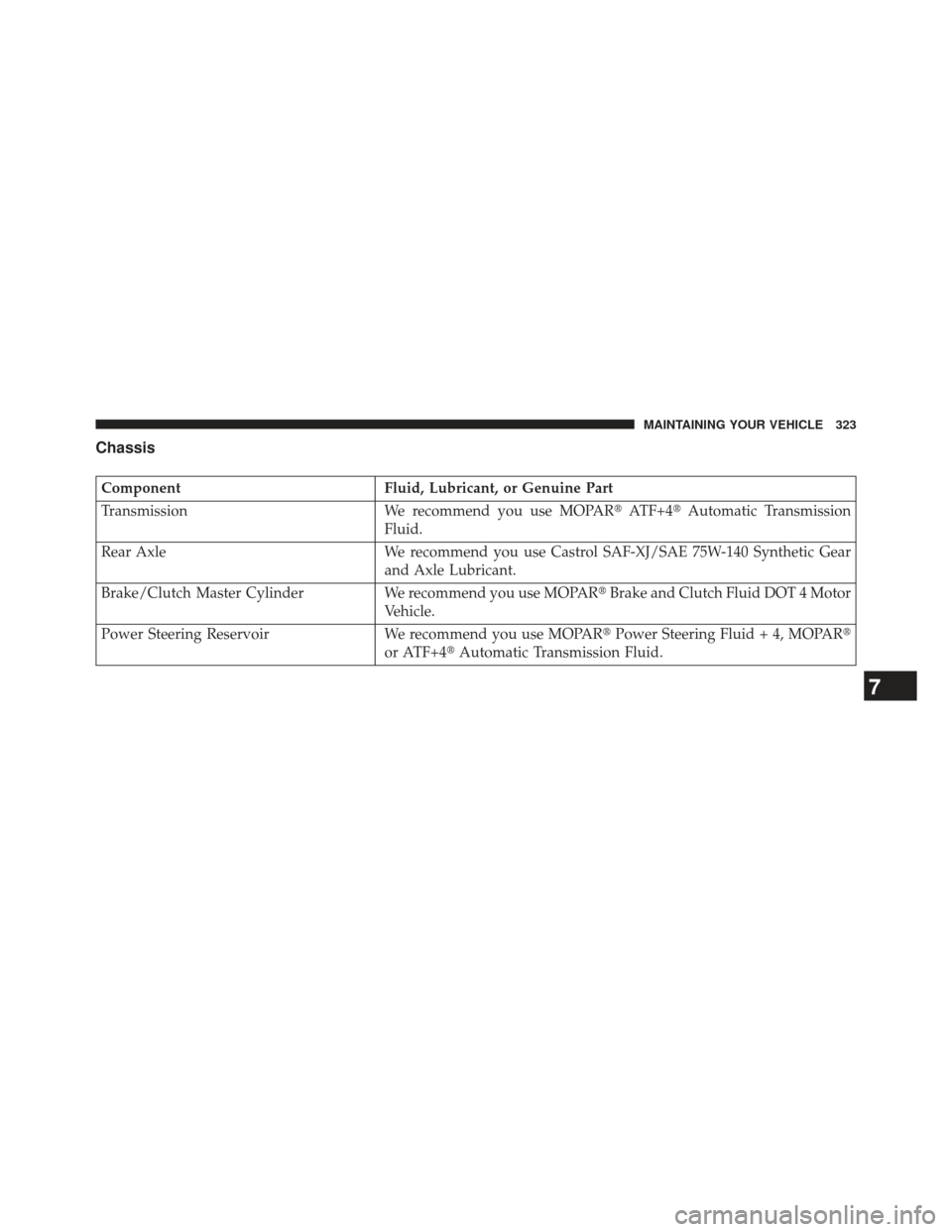

Chassis
ComponentFluid, Lubricant, or Genuine Part
Transmission We recommend you use MOPARATF+4 Automatic Transmission
Fluid.
Rear Axle We recommend you use Castrol SAF-XJ/SAE 75W-140 Synthetic Gear
and Axle Lubricant.
Brake/Clutch Master Cylinder We recommend you use MOPARBrake and Clutch Fluid DOT 4 Motor
Vehicle.
Power Steering Reservoir We recommend you use MOPARPower Steering Fluid + 4, MOPAR
or ATF+4 Automatic Transmission Fluid.
7
MAINTAINING YOUR VEHICLE 323

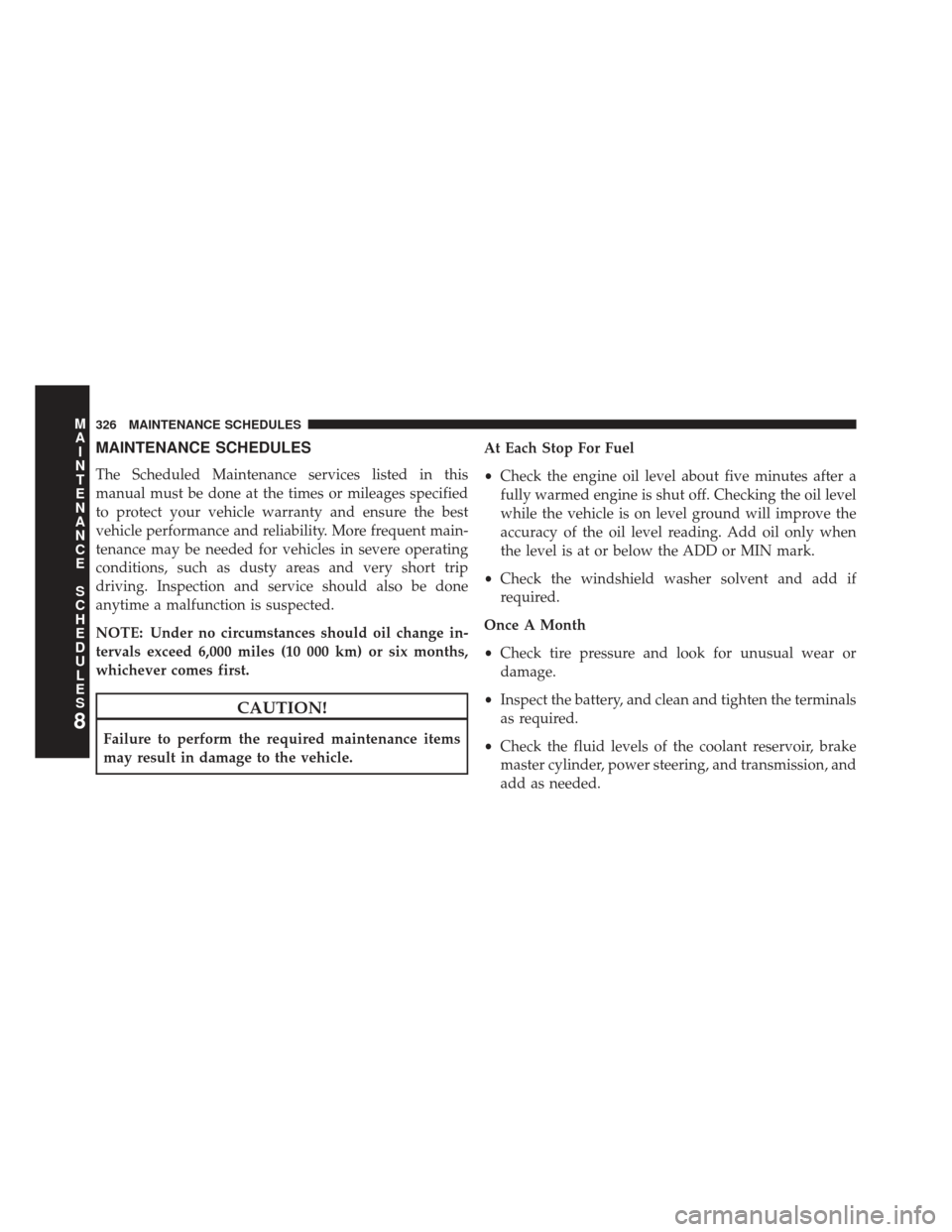

MAINTENANCE SCHEDULES
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
NOTE: Under no circumstances should oil change in-
tervals exceed 6,000 miles (10 000 km) or six months,
whichever comes first.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.At Each Stop For Fuel
•
Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
• Check the windshield washer solvent and add if
required.
Once A Month
• Check tire pressure and look for unusual wear or
damage.
• Inspect the battery, and clean and tighten the terminals
as required.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering, and transmission, and
add as needed.8
M A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S326 MAINTENANCE SCHEDULES
