washer fluid DODGE VIPER 2013 VX / 3.G Owners Manual

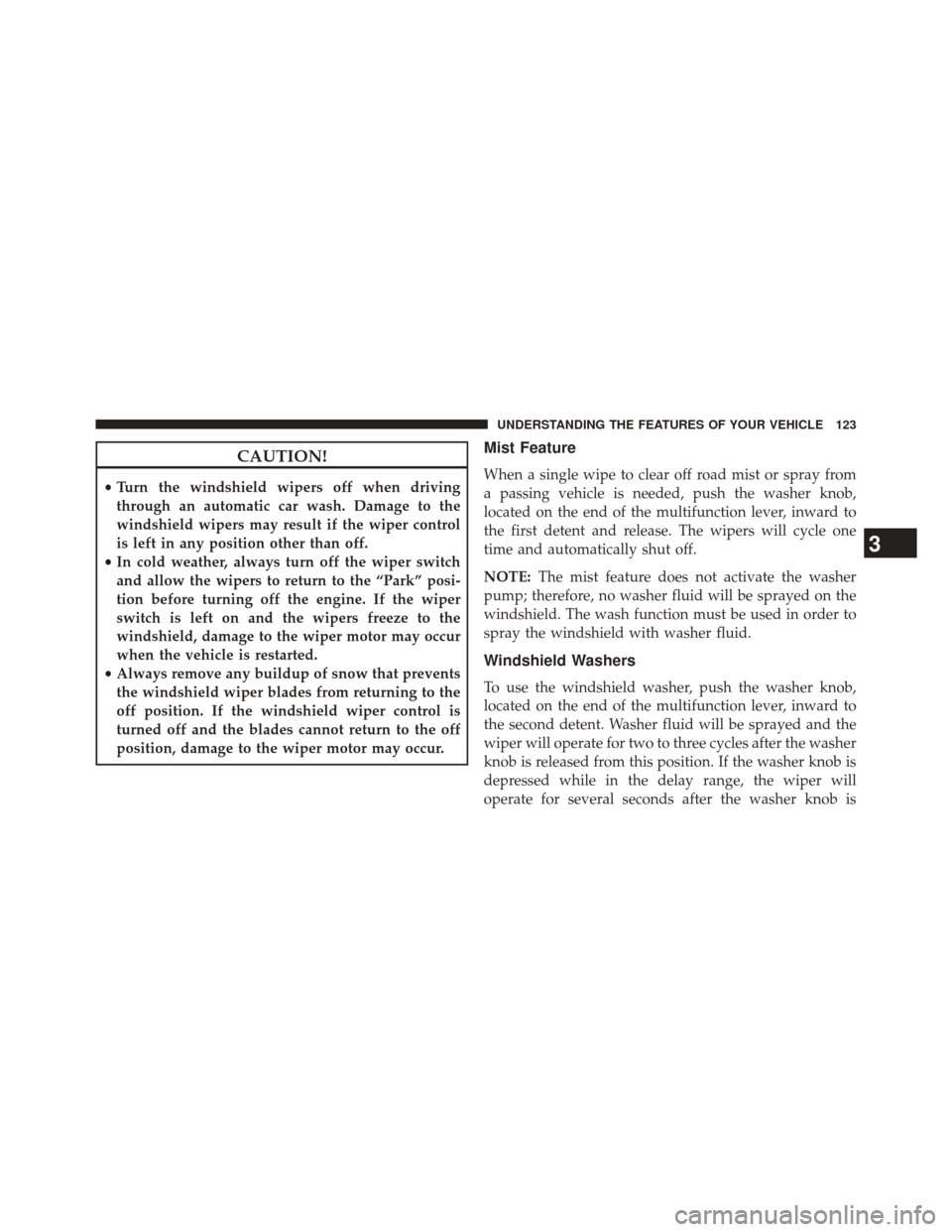

CAUTION!
•Turn the windshield wipers off when driving
through an automatic car wash. Damage to the
windshield wipers may result if the wiper control
is left in any position other than off.
• In cold weather, always turn off the wiper switch
and allow the wipers to return to the “Park” posi-
tion before turning off the engine. If the wiper
switch is left on and the wipers freeze to the
windshield, damage to the wiper motor may occur
when the vehicle is restarted.
• Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.
Mist Feature
When a single wipe to clear off road mist or spray from
a passing vehicle is needed, push the washer knob,
located on the end of the multifunction lever, inward to
the first detent and release. The wipers will cycle one
time and automatically shut off.
NOTE: The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Windshield Washers
To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to
the second detent. Washer fluid will be sprayed and the
wiper will operate for two to three cycles after the washer
knob is released from this position. If the washer knob is
depressed while in the delay range, the wiper will
operate for several seconds after the washer knob is
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123

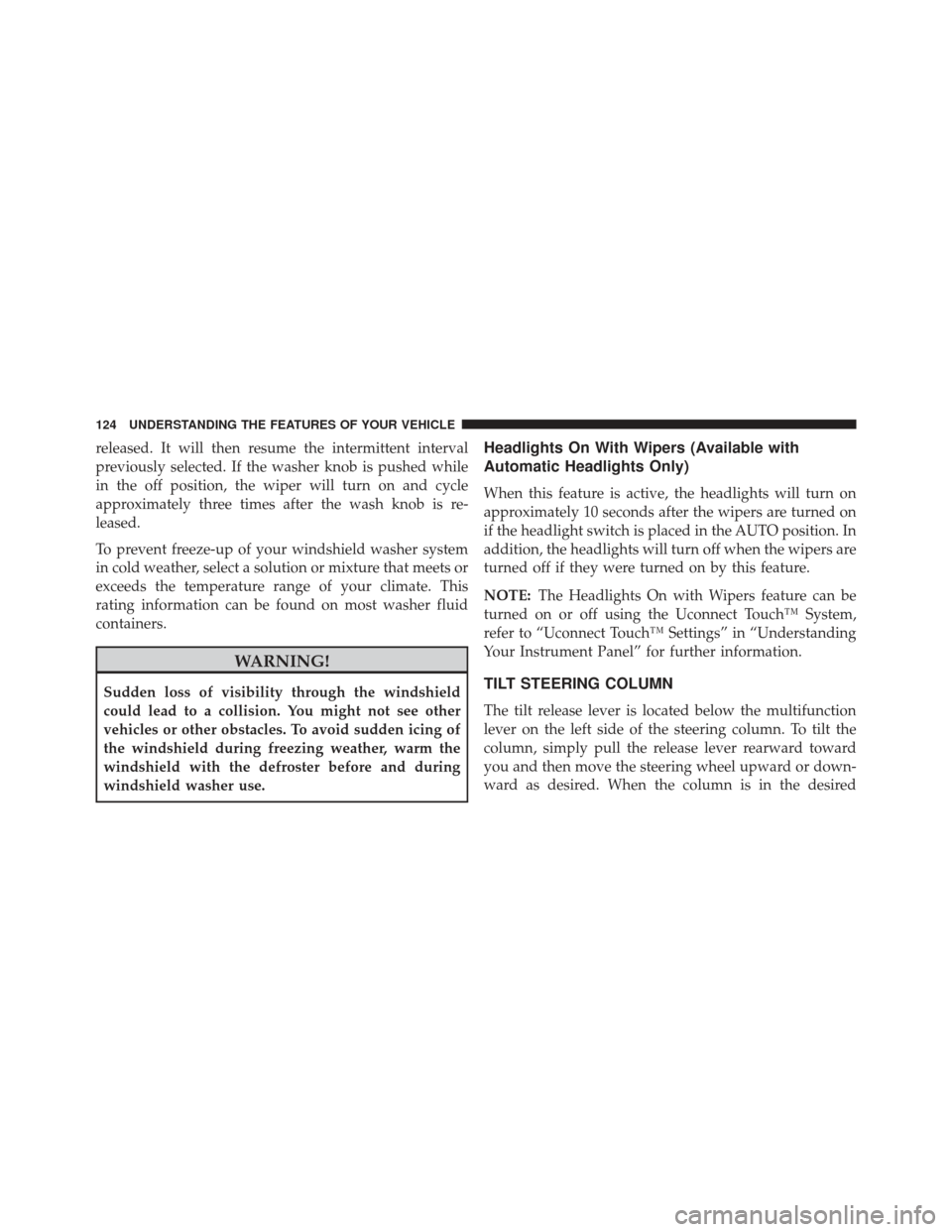

released. It will then resume the intermittent interval
previously selected. If the washer knob is pushed while
in the off position, the wiper will turn on and cycle
approximately three times after the wash knob is re-
leased.
To prevent freeze-up of your windshield washer system
in cold weather, select a solution or mixture that meets or
exceeds the temperature range of your climate. This
rating information can be found on most washer fluid
containers.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Headlights On With Wipers (Available with
Automatic Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the headlight switch is placed in the AUTO position. In
addition, the headlights will turn off when the wipers are
turned off if they were turned on by this feature.
NOTE:The Headlights On with Wipers feature can be
turned on or off using the Uconnect Touch™ System,
refer to “Uconnect Touch™ Settings” in “Understanding
Your Instrument Panel” for further information.
TILT STEERING COLUMN
The tilt release lever is located below the multifunction
lever on the left side of the steering column. To tilt the
column, simply pull the release lever rearward toward
you and then move the steering wheel upward or down-
ward as desired. When the column is in the desired
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

16. EVIC Amber Telltale Lights
When the appropriate conditions exist, the following
EVIC Amber Telltale Lights will display:
•Windshield Washer Fluid Low Indicator — If
Equipped This light will turn on to indicate the wind-
shield washer fluid is low
• Low Fuel Light
When the fuel level reaches approximately 3.0 gal
(11.0 L) this light will turn on, and remain on until
fuel is added.
17. EVIC Red Telltale Lights
When the appropriate conditions exist, the following
EVIC Red Telltale Lights will display: •
Engine Temperature
This telltale warns of an overheated engine con-
dition. As temperatures rise and the gauge ap-
proaches H, or 260°F, this telltale will illuminate
and a single chime will sound after reaching a set
threshold. Further overheating will cause the tempera-
ture gauge to pass H, or 260°F, a continuous chime will
occur until the engine is allowed to cool.
If the telltale turns on while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve-
hicle. If the temperature reading does not return to
normal, turn the engine off immediately and call for
service. Refer to “If Your Engine Overheats” in “What To
Do In Emergencies” for more information.
160 UNDERSTANDING YOUR INSTRUMENT PANEL

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 8.4L ..........277
 ONBOARD DIAGNOSTIC SYSTEM (OBD II) . . .278
 EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .278
 REPLACEMENT PARTS ..................280
 DEALER SERVICE ..................... .280
 MAINTENANCE PROCEDURES ...........281
▫ Engine Oil ......................... .281
▫ Engine Oil Filter ..................... .283
▫ Engine Air Cleaner Filter ................283 ▫
Maintenance-Free Battery ...............284
▫ Hibernation Mode ....................286
▫ Air Conditioner Maintenance .............287
▫ Body Lubrication .....................288
▫ Wiper Blades ....................... .289
▫ Adding Washer Fluid ..................289
▫ Exhaust System ..................... .290
▫ Cooling System ..................... .292
▫ Brake System ....................... .298
▫ Manual Transmission ..................301
7

ENGINE COMPARTMENT — 8.4L
1 — Washer Fluid Reservoir6 — Brake/Clutch Fluid Reservoir
2 — Coolant Pressure Cap 7 — Engine Oil Fill
3 — Engine Oil Dipstick 8 — Power Steering Fluid Reservoir
4 — Power Distribution Center 9 — Air Cleaner Filter
5 — Remote Jump Start Positive Battery Post
7
MAINTAINING YOUR VEHICLE 277

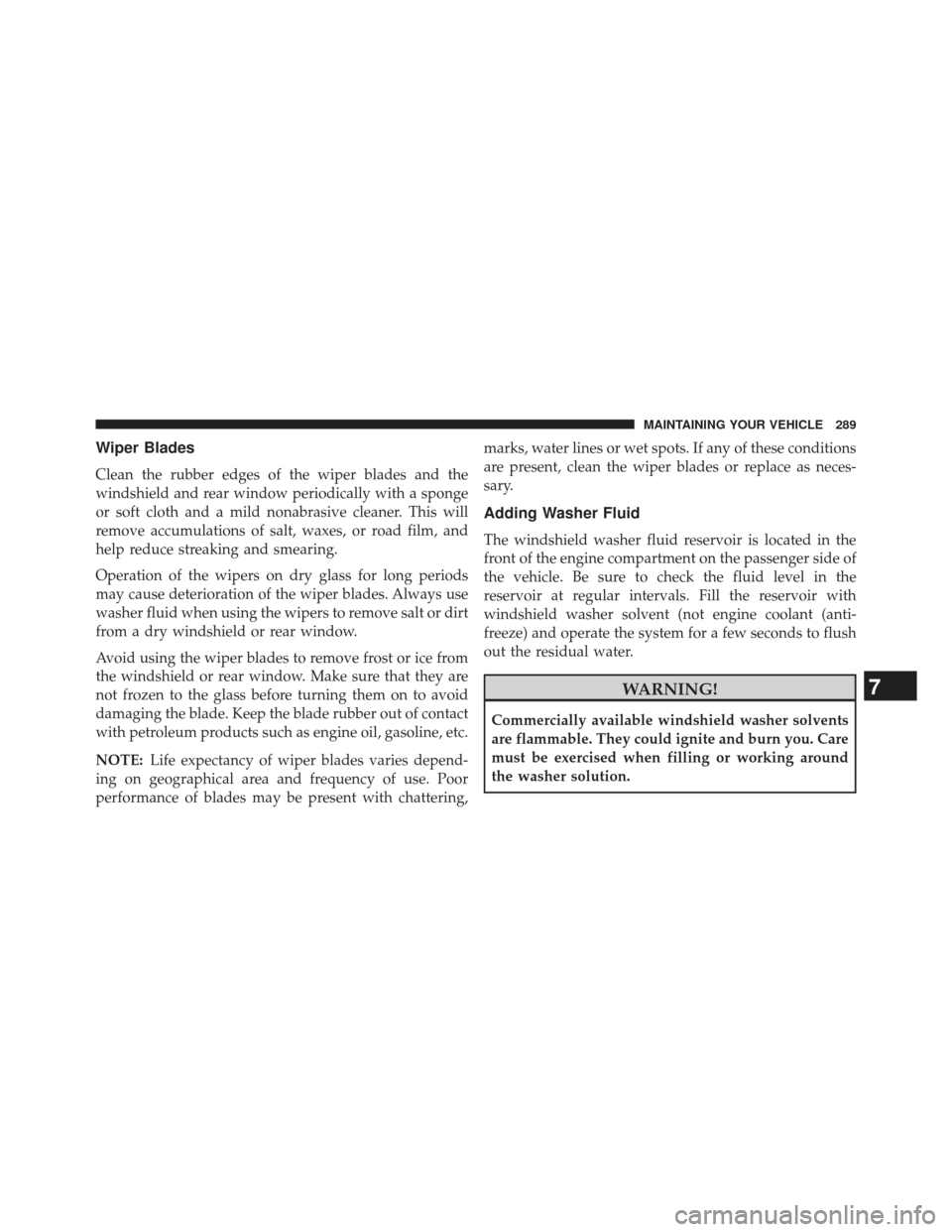

Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield and rear window periodically with a sponge
or soft cloth and a mild nonabrasive cleaner. This will
remove accumulations of salt, waxes, or road film, and
help reduce streaking and smearing.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield or rear window.
Avoid using the wiper blades to remove frost or ice from
the windshield or rear window. Make sure that they are
not frozen to the glass before turning them on to avoid
damaging the blade. Keep the blade rubber out of contact
with petroleum products such as engine oil, gasoline, etc.
NOTE:Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering, marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Adding Washer Fluid
The windshield washer fluid reservoir is located in the
front of the engine compartment on the passenger side of
the vehicle. Be sure to check the fluid level in the
reservoir at regular intervals. Fill the reservoir with
windshield washer solvent (not engine coolant (anti-
freeze) and operate the system for a few seconds to flush
out the residual water.
WARNING!
Commercially available windshield washer solvents
are flammable. They could ignite and burn you. Care
must be exercised when filling or working around
the washer solution.
7
MAINTAINING YOUR VEHICLE 289

MAINTENANCE SCHEDULES
The Scheduled Maintenance services listed in this
manual must be done at the times or mileages specified
to protect your vehicle warranty and ensure the best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving. Inspection and service should also be done
anytime a malfunction is suspected.
NOTE: Under no circumstances should oil change in-
tervals exceed 6,000 miles (10 000 km) or six months,
whichever comes first.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.At Each Stop For Fuel
•
Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the ADD or MIN mark.
• Check the windshield washer solvent and add if
required.
Once A Month
• Check tire pressure and look for unusual wear or
damage.
• Inspect the battery, and clean and tighten the terminals
as required.
• Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering, and transmission, and
add as needed.8
M A I
N T
E
N
A
N
C E
S
C
H E
D
U L
E
S326 MAINTENANCE SCHEDULES

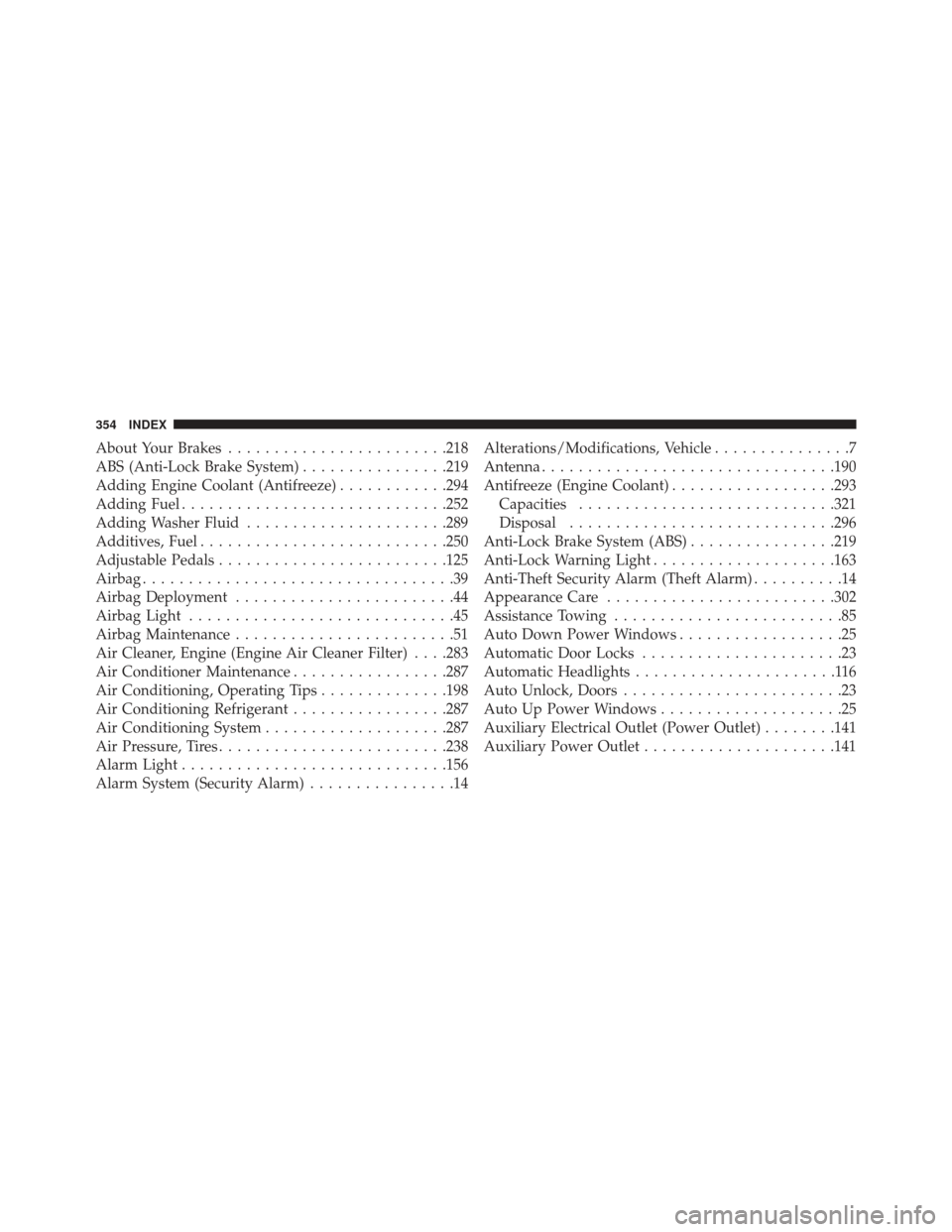

About Your Brakes....................... .218
ABS (Anti-Lock Brake System) ................219
Adding Engine Coolant (Antifreeze) ............294
Adding Fuel ............................ .252
Adding Washer Fluid ..................... .289
Additives, Fuel .......................... .250
Adjustable Pedals ........................ .125
Airbag ..................................39
Airbag Deployment ........................44
Airbag Light .............................45
Airbag Maintenance ........................51
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . .283
Air Conditioner Maintenance .................287
Air Conditioning, Operating Tips ..............198
Air Conditioning Refrigerant .................287
Air Conditioning System ....................287
Air Pressure, Tires ........................ .238
Alarm Light ............................ .156
Alarm System (Security Alarm) ................14Alterations/Modifications, Vehicle
...............7
Antenna ............................... .190
Antifreeze (Engine Coolant) ..................293
Capacities ........................... .321
Disposal ............................ .296
Anti-Lock Brake System (ABS) ................219
Anti-Lock Warning Light ....................163
Anti-Theft Security Alarm (Theft Alarm) ..........14
Appearance Care ........................ .302
Assistance Towing .........................85
Auto Down Power Windows ..................25
Automatic Door Locks ......................23
Automatic Headlights ......................116
Auto Unlock, Doors ........................23
Auto Up Power Windows ....................25
Auxiliary Electrical Outlet (Power Outlet) ........141
Auxiliary Power Outlet .....................141
354 INDEX

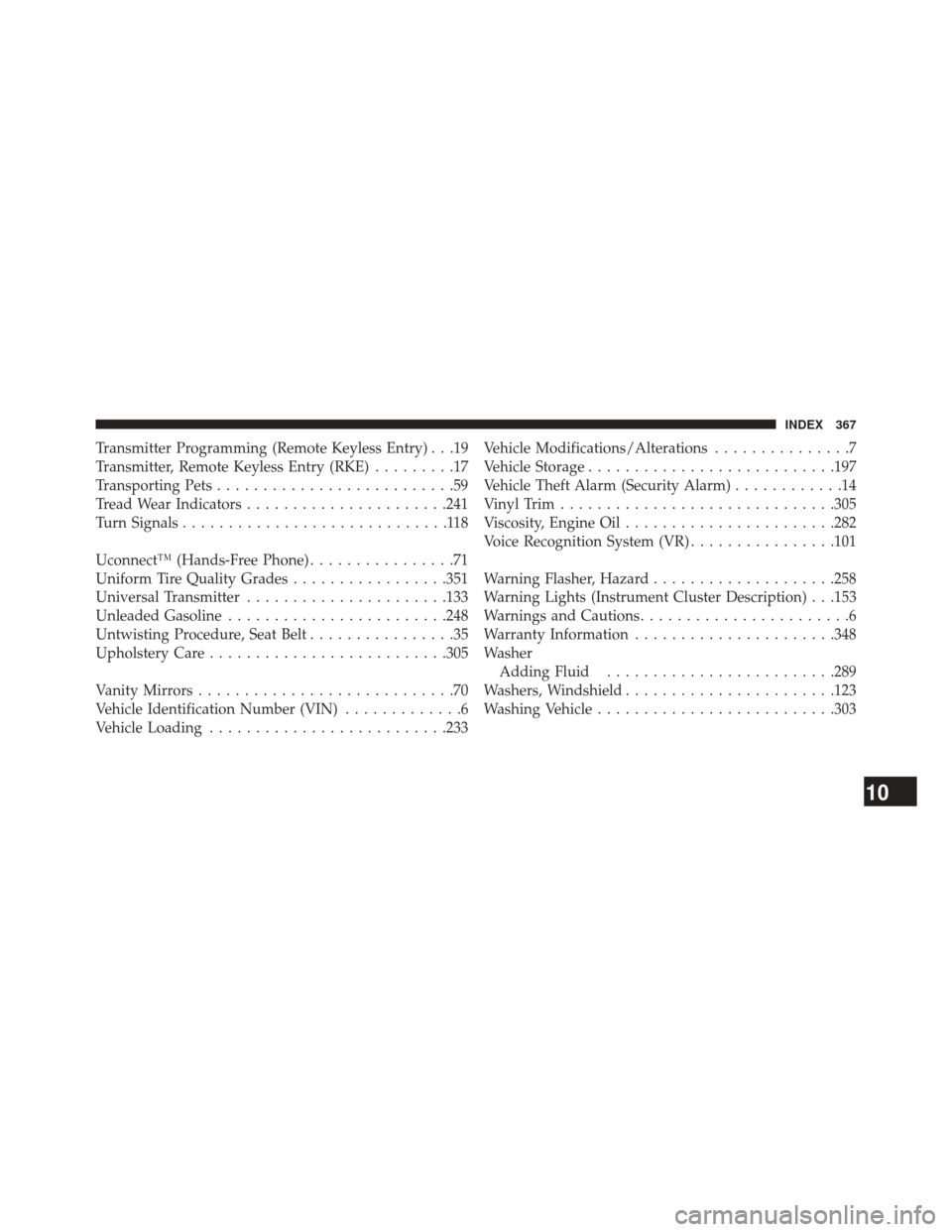

Transmitter Programming (Remote Keyless Entry) . . .19
Transmitter, Remote Keyless Entry (RKE).........17
Transporting Pets ..........................59
Tread Wear Indicators ..................... .241
Turn Signals .............................118
Uconnect™ (Hands-Free Phone) ................71
Uniform Tire Quality Grades .................351
Universal Transmitter ..................... .133
Unleaded Gasoline ....................... .248
Untwisting Procedure, Seat Belt ................35
Upholstery Care ......................... .305
Vanity Mirrors ............................70
Vehicle Identification Number (VIN) .............6
Vehicle Loading ......................... .233Vehicle Modifications/Alterations
...............7
Vehicle Storage .......................... .197
Vehicle Theft Alarm (Security Alarm) ............14
Vinyl Trim ............................. .305
Viscosity, Engine Oil ...................... .282
Voice Recognition System (VR) ................101
Warning Flasher, Hazard ....................258
Warning Lights (Instrument Cluster Description) . . .153
Warnings and Cautions .......................6
Warranty Information ..................... .348
Washer Adding Fluid ........................ .289
Washers, Windshield ...................... .123
Washing Vehicle ......................... .303
10
INDEX 367
