mirror DODGE VIPER 2016 VX / 3.G Owners Manual

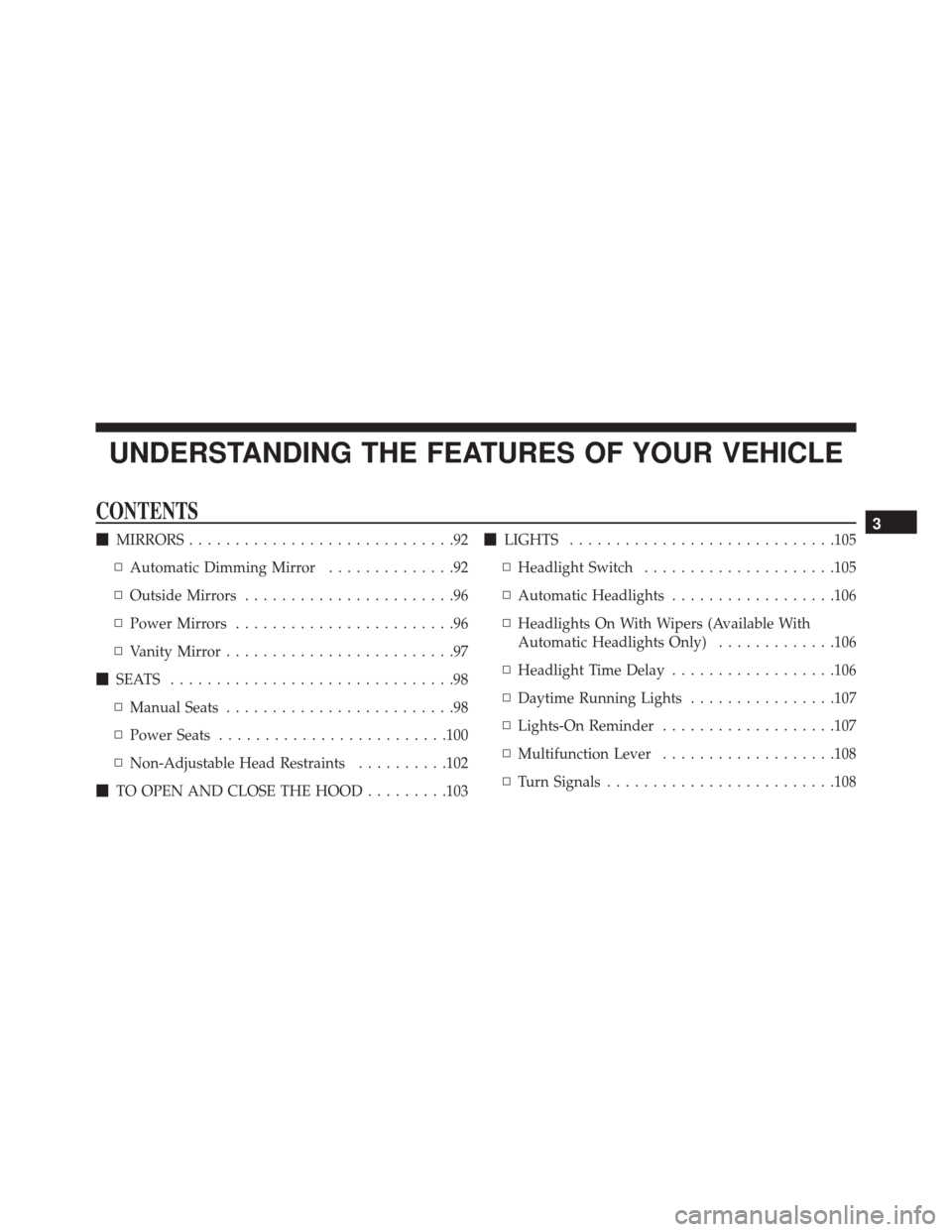

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS .............................92
▫ Automatic Dimming Mirror ..............92
▫ Outside Mirrors .......................96
▫ Power Mirrors ........................96
▫ Vanity Mirror .........................97
 SEATS ...............................98
▫ Manual Seats .........................98
▫ Power Seats ........................ .100
▫ Non-Adjustable Head Restraints ..........102
 TO OPEN AND CLOSE THE HOOD .........103
LIGHTS ............................ .105
▫ Headlight Switch .....................105
▫ Automatic Headlights ..................106
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) .............106
▫ Headlight Time Delay ..................106
▫ Daytime Running Lights ................107
▫ Lights-On Reminder ...................107
▫ Multifunction Lever ...................108
▫ Turn Signals ........................ .1083

MIRRORS
Automatic Dimming Mirror
This mirror automatically adjusts for headlight glare
from vehicles behind you. This feature will be defaulted
on, and only be disabled when the vehicle is moving in
reverse.If Equipped, the rearview mirror contains an ASSIST and
a 9-1-1 button.
Automatic Dimming Mirror
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

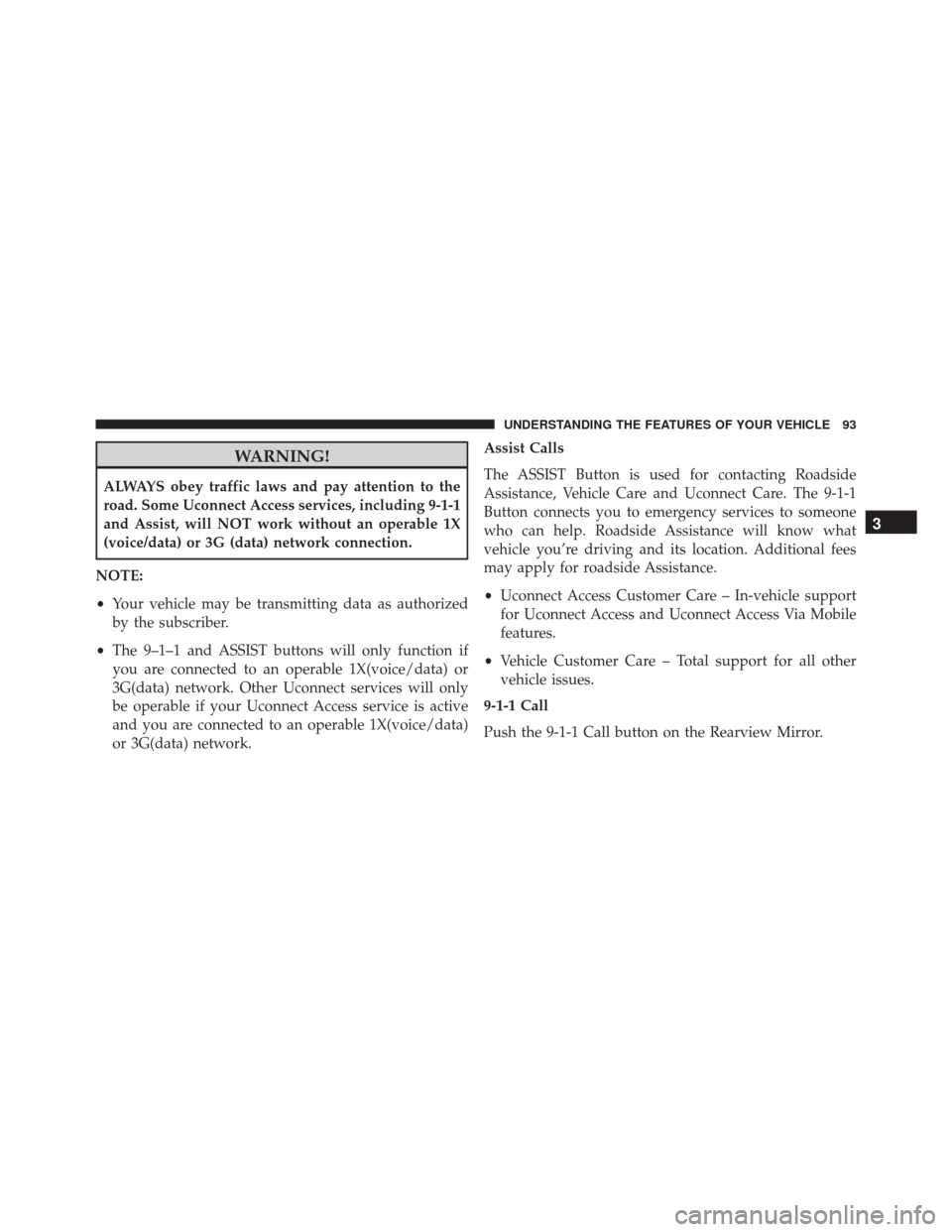

WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable 1X
(voice/data) or 3G (data) network connection.
NOTE:
• Your vehicle may be transmitting data as authorized
by the subscriber.
• The 9–1–1 and ASSIST buttons will only function if
you are connected to an operable 1X(voice/data) or
3G(data) network. Other Uconnect services will only
be operable if your Uconnect Access service is active
and you are connected to an operable 1X(voice/data)
or 3G(data) network. Assist Calls
The ASSIST Button is used for contacting Roadside
Assistance, Vehicle Care and Uconnect Care. The 9-1-1
Button connects you to emergency services to someone
who can help. Roadside Assistance will know what
vehicle you’re driving and its location. Additional fees
may apply for roadside Assistance.
•
Uconnect Access Customer Care – In-vehicle support
for Uconnect Access and Uconnect Access Via Mobile
features.
• Vehicle Customer Care – Total support for all other
vehicle issues.
9-1-1 Call
Push the 9-1-1 Call button on the Rearview Mirror.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

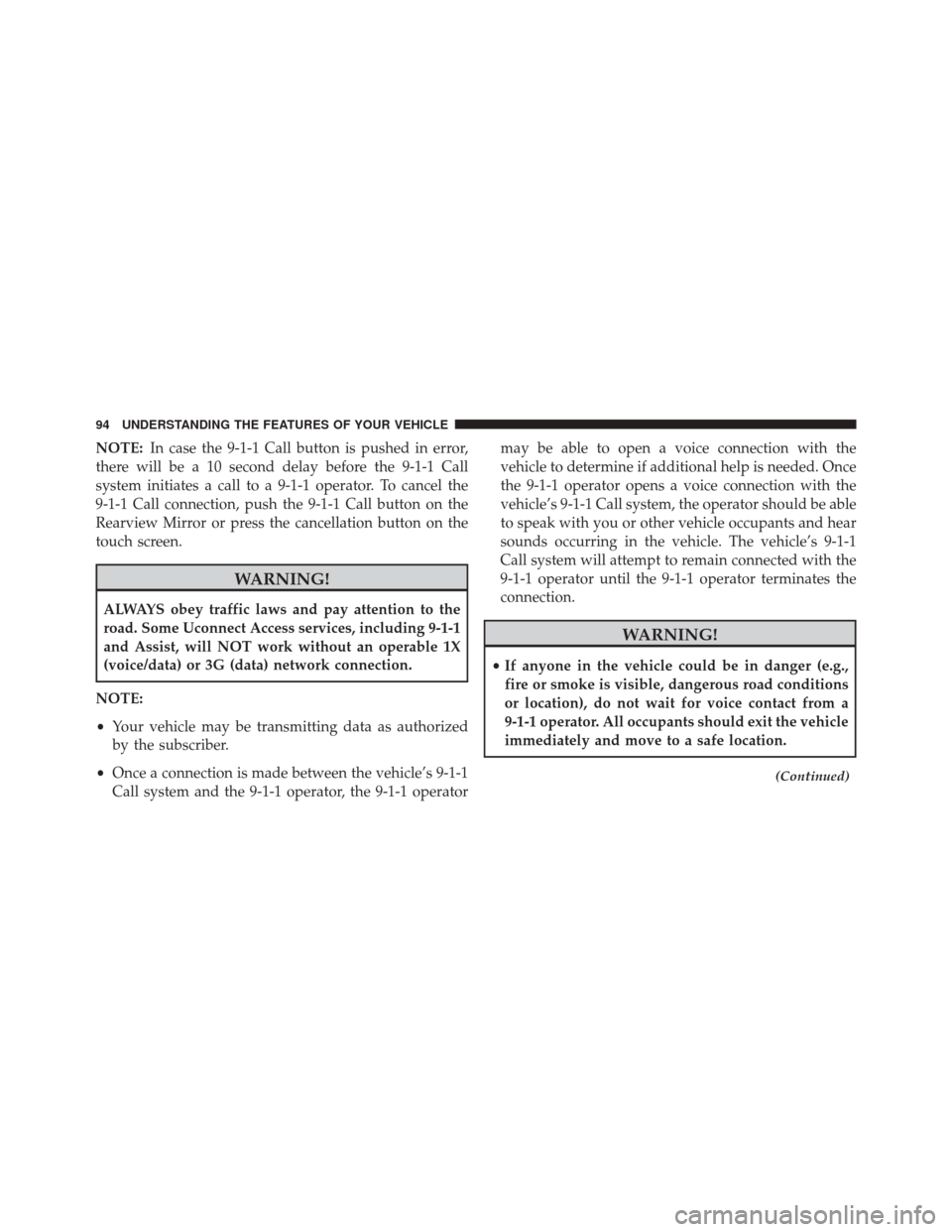

NOTE:In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call
system initiates a call to a 9-1-1 operator. To cancel the
9-1-1 Call connection, push the 9-1-1 Call button on the
Rearview Mirror or press the cancellation button on the
touch screen.
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable 1X
(voice/data) or 3G (data) network connection.
NOTE:
• Your vehicle may be transmitting data as authorized
by the subscriber.
• Once a connection is made between the vehicle’s 9-1-1
Call system and the 9-1-1 operator, the 9-1-1 operator may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the 9-1-1 operator opens a voice connection with the
vehicle’s 9-1-1 Call system, the operator should be able
to speak with you or other vehicle occupants and hear
sounds occurring in the vehicle. The vehicle’s 9-1-1
Call system will attempt to remain connected with the
9-1-1 operator until the 9-1-1 operator terminates the
connection.
WARNING!
•
If anyone in the vehicle could be in danger (e.g.,
fire or smoke is visible, dangerous road conditions
or location), do not wait for voice contact from a
9-1-1 operator. All occupants should exit the vehicle
immediately and move to a safe location.
(Continued)
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

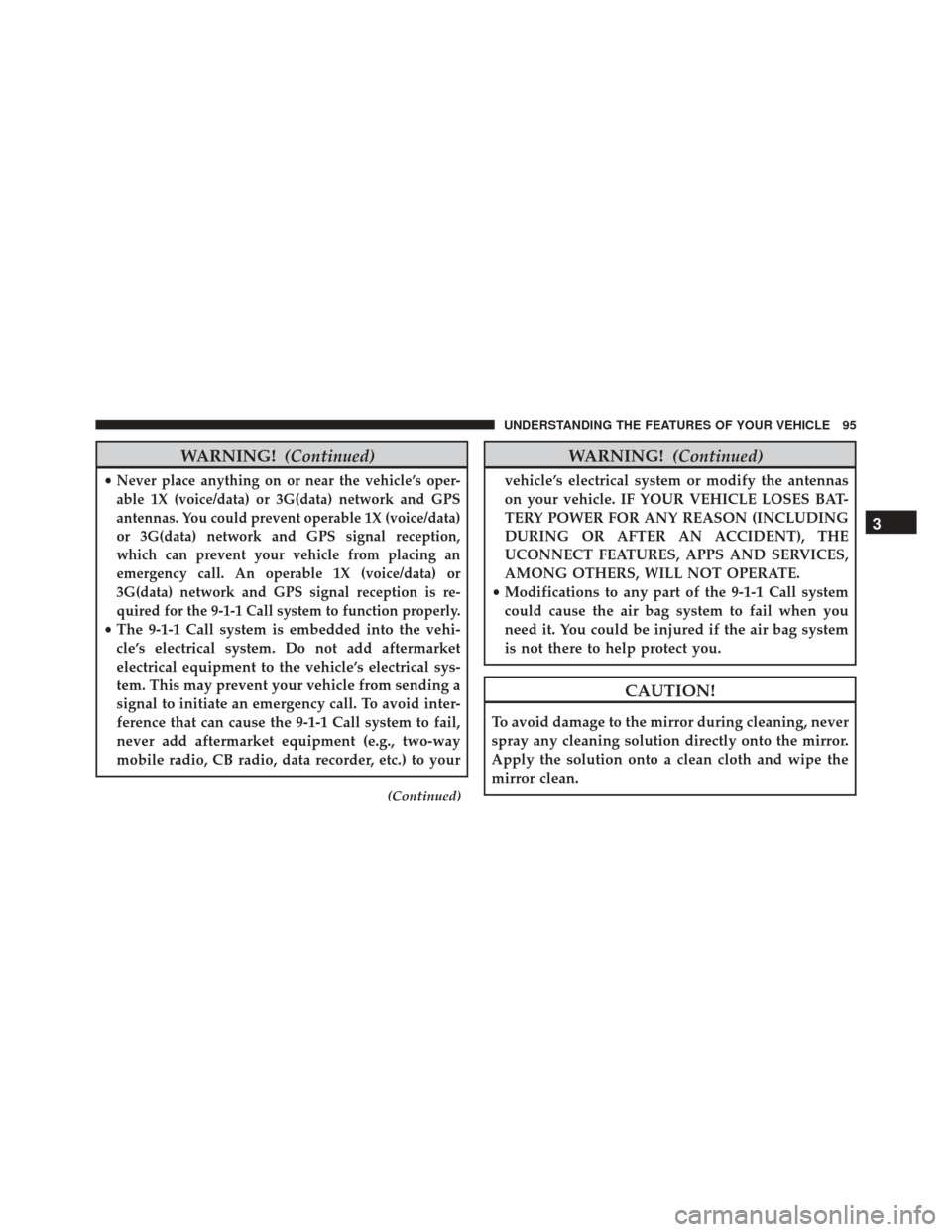

WARNING!(Continued)
•Never place anything on or near the vehicle’s oper-
able 1X (voice/data) or 3G(data) network and GPS
antennas. You could prevent operable 1X (voice/data)
or 3G(data) network and GPS signal reception,
which can prevent your vehicle from placing an
emergency call. An operable 1X (voice/data) or
3G(data) network and GPS signal reception is re-
quired for the 9-1-1 Call system to function properly.
• The 9-1-1 Call system is embedded into the vehi-
cle’s electrical system. Do not add aftermarket
electrical equipment to the vehicle’s electrical sys-
tem. This may prevent your vehicle from sending a
signal to initiate an emergency call. To avoid inter-
ference that can cause the 9-1-1 Call system to fail,
never add aftermarket equipment (e.g., two-way
mobile radio, CB radio, data recorder, etc.) to your
(Continued)
WARNING! (Continued)
vehicle’s electrical system or modify the antennas
on your vehicle. IF YOUR VEHICLE LOSES BAT-
TERY POWER FOR ANY REASON (INCLUDING
DURING OR AFTER AN ACCIDENT), THE
UCONNECT FEATURES, APPS AND SERVICES,
AMONG OTHERS, WILL NOT OPERATE.
• Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side mirror.
Power Mirrors
The power mirror controls are located on the driver-side
door trim panel.
Power Mirror Controls
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The power mirror controls consist of mirror select but-
tons and a four-way mirror control switch. To adjust a
mirror, push either the L (left) or R (right) to select the
mirror that you want to adjust.
NOTE:A light in the selected button will illuminate
indicating the mirror is activated and can be adjusted.
Using the mirror control switch, push on any of the four
arrows for the direction that you want the mirror to
move.
Vanity Mirror
A vanity mirror is on the passenger side sun visor. To use
the mirror, rotate the sun visor downward and swing the
mirror cover upward.Vanity Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

CAUTION!(Continued)
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
Auxiliary Jumper Harness
The Viper is equipped with an auxiliary power jumper,
allowing an electronic device to be directly connected to
the vehicle without having to use the console power
outlets. Power to the device will be controlled by the
ignition switch. NOTE:
The electronic device must draw less than five
amps to prevent damage.
To install, remove the mirror cover by pulling straight
down and separating the cover pieces.
Mirror Cover Removal
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Connect the auxiliary port jumper into the unused con-
nector taped to the wiring bundle. Connect the other end
of the auxiliary port jumper to the electronic device.
NOTE:The red wire in the bundle is the power wire and
will provide the positive 12 volts to the electronic device. Re-install the mirror cover and be sure to not pinch the
wires that go into the electronic device.
Auxiliary Port Jumper
Mirror Cover Installation
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135

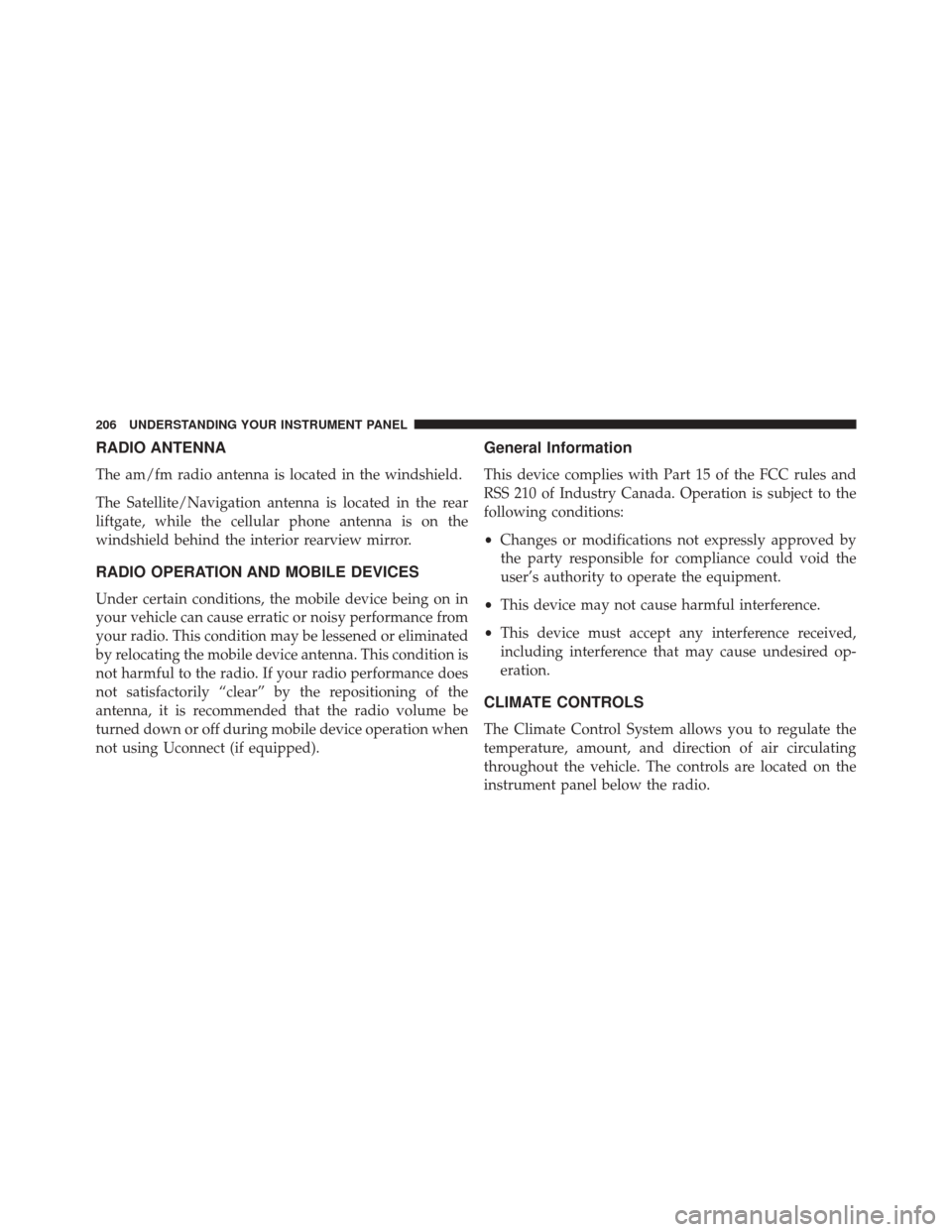

RADIO ANTENNA
The am/fm radio antenna is located in the windshield.
The Satellite/Navigation antenna is located in the rear
liftgate, while the cellular phone antenna is on the
windshield behind the interior rearview mirror.
RADIO OPERATION AND MOBILE DEVICES
Under certain conditions, the mobile device being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the mobile device antenna. This condition is
not harmful to the radio. If your radio performance does
not satisfactorily “clear” by the repositioning of the
antenna, it is recommended that the radio volume be
turned down or off during mobile device operation when
not using Uconnect (if equipped).
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired op-
eration.
CLIMATE CONTROLS
The Climate Control System allows you to regulate the
temperature, amount, and direction of air circulating
throughout the vehicle. The controls are located on the
instrument panel below the radio.
