Page 369 of 423

Power Distribution Center
The Power Distribution Center is located in the engine
compartment on the driver’s side of the vehicle. This
center contains fuses and relays.
Cavity Relay Cartridge Fuse Mini-Fuse Description
3— 40 Amp Green — Rad Fan
4 — 40 Amp Green — Rad Fan Rly High
5 — 40 Amp Green — ABS/ESP Pump Feed
6 — 40 Amp Green — Starter
Power Distribution Center
7
MAINTAINING YOUR VEHICLE 367
Page 370 of 423

Cavity Relay Cartridge Fuse Mini-Fuse Description
7— 40 Amp Green — CBC (Ext. Lighting #1)
8 — 40 Amp Green — CBC (Ext. Lighting #2)
9 — 30 Amp Pink — CBC (Lighting, Washer Pump)
10 — 30 Amp Pink — CBC (Power Lock)
11 — Jumper Black — B+ Jumper
12 — 25 Amp Clear — ABS/ESP Valve Feed
13 — — 20 Amp Yel-
low Horn
14 — — 10 Amp Red A/C Clutch
15 — — 10 Amp Red Diagnostic, Fuel Door, Stop Switch
16 — — 15 Amp
Blue KIN, RF Hub
17 — — 25 Amp cir-
cuit breaker Power Seats
18 — 30 Amp Pink — Driver Door Mod
368 MAINTAINING YOUR VEHICLE
Page 371 of 423

Cavity Relay Cartridge Fuse Mini-Fuse Description
19— 30 Amp Pink — Passenger Door Mod
20 — 30 Amp Pink — Rear Window Defroster
21 — 20 Amp Blue — Wiper
22 — Jumper Black — B+ Jumper
23 — — 15 Amp
Blue HVAC MOD, Cluster, ICS-Switch Bank
24 — — 25 Amp
Clear PCM-Powertrain Control Module
25 — — 25 Amp
Clear Fuel Pump
26 — — 20 Amp Yel-
low ASD #1
27 — — 20 Amp Yel-
low ASD #2
28 — — —Spare
7
MAINTAINING YOUR VEHICLE 369

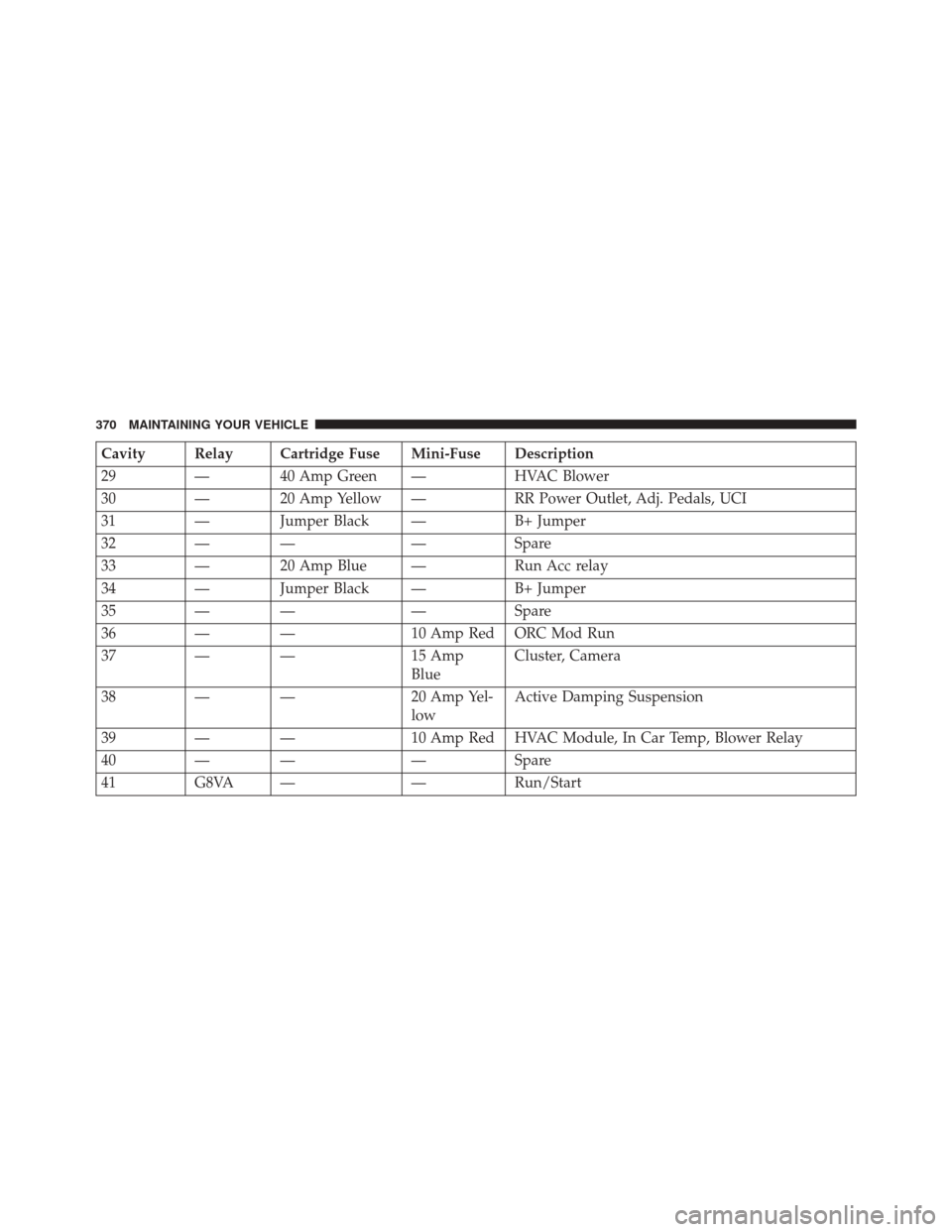

Page 372 of 423

Cavity Relay Cartridge Fuse Mini-Fuse Description
29— 40 Amp Green — HVAC Blower
30 — 20 Amp Yellow — RR Power Outlet, Adj. Pedals, UCI
31 — Jumper Black — B+ Jumper
32 — — —Spare
33 — 20 Amp Blue — Run Acc relay
34 — Jumper Black — B+ Jumper
35 — — —Spare
36 — — 10 Amp Red ORC Mod Run
37 — — 15 Amp
Blue Cluster, Camera
38 — — 20 Amp Yel-
low Active Damping Suspension
39 — — 10 Amp Red HVAC Module, In Car Temp, Blower Relay
40 — — —Spare
41 G8VA — —Run/Start
370 MAINTAINING YOUR VEHICLE
Page 373 of 423

Cavity Relay Cartridge Fuse Mini-Fuse Description
42G8VA — —Fuel Door
43AC (For-
ward Fuse) — —
2 Amp Grey SCCM
43BE
(Rearward
Fuse) — —
10 Amp Red Corax
44AC (For-
ward Fuse) — —
10 Amp Red Rear View Mirror, Aux Port Jumper.
44BE
(Rearward
Fuse) — —
10 Amp Red IBS
45 — — 10 Amp Red PCM-Powertrain Control Module, Fuel Pump Re-
lay.
46 — — 10 Amp Red ESC Module, Stop Lamp Switch
47 — — 10 Amp Red ORC Module, Passenger Seat OCM
48 — — 10 Amp Red SCCM
7
MAINTAINING YOUR VEHICLE 371
Page 374 of 423

Cavity Relay Cartridge Fuse Mini-Fuse Description
49— — 25 Amp
Clear Amplifier
50 HC Micro — —Rad Fan
51 HC Micro — —Rad Fan Relay SER/PAR
52 HC Micro — —Starter Relay
53 HC Micro — —Rear Window Defroster Relay
54 HC Relay — —Rad Fan Relay High
55 HC Micro — —Wiper ON/OFF
56 HC Micro — —Wiper LO/HI
57 G8VA — —Horn Relay
58 G8VA — —A/C Clutch Relay
59 HC Micro — —HVAC Blower
60 HC Micro — —Fuel Pump
61 G8VA — —Run Relay #1
62 G8VA — —Run Relay #2
372 MAINTAINING YOUR VEHICLE
Page 375 of 423

Cavity Relay Cartridge Fuse Mini-Fuse Description
63HC Micro — —ASD #1
64 HC Micro — —ASD #2
65 G8VA — —Run Accy #1, Pop Up, Driver Door Window
Switch
66 — — —Spare
NOTE: A 15 Amp fuse for the radio system is located
in-line at the battery positive terminal.
7
MAINTAINING YOUR VEHICLE 373
Page 399 of 423

In Mexico Contact
Av. Prolongacion Paseo de la Reforma, 1240
Sante Fe C.P. 05109
Mexico, D. F.
In Mexico City: 5081-7568
Outside Mexico City: 1-800-505-1300
Customer Assistance For The Hearing Or Speech
Impaired (TDD/TTY)
To assist customers who have hearing difficulties, the
manufacturer has installed special TDD (Telecommuni-
cation Devices for the Deaf) equipment at its customer
center. Any hearing or speech impaired customer, who
has access to a TDD or a conventional teletypewriter
(TTY) in the United States, can communicate with the
manufacturer by dialing 1-800-380-CHRY.Canadian residents with hearing difficulties that require
assistance can use the special needs relay service offered
by Bell Canada. For TTY teletypewriter users, dial 711
and for Voice callers, dial 1-800-855-0511 to connect with
a Bell Relay Service operator.
Service Contract
You may have purchased a service contract for a vehicle
to help protect you from the high cost of unexpected
repairs after the manufacturer’s New Vehicle Limited
Warranty expires. The manufacturer stands behind only
the manufacturer’s service contracts. If you purchased a
manufacturer’s service contract, you will receive Plan
Provisions and an Owner Identification Card in the mail
within three weeks of the vehicle delivery date. If you
have any questions about the service contract, call the
manufacturer’s Service Contract National Customer
Hotline at 1-800-521-9922 (Canadian residents, call (800)
465-2001 English / (800) 387-9983 French).
9
IF YOU NEED CONSUMER ASSISTANCE 397
