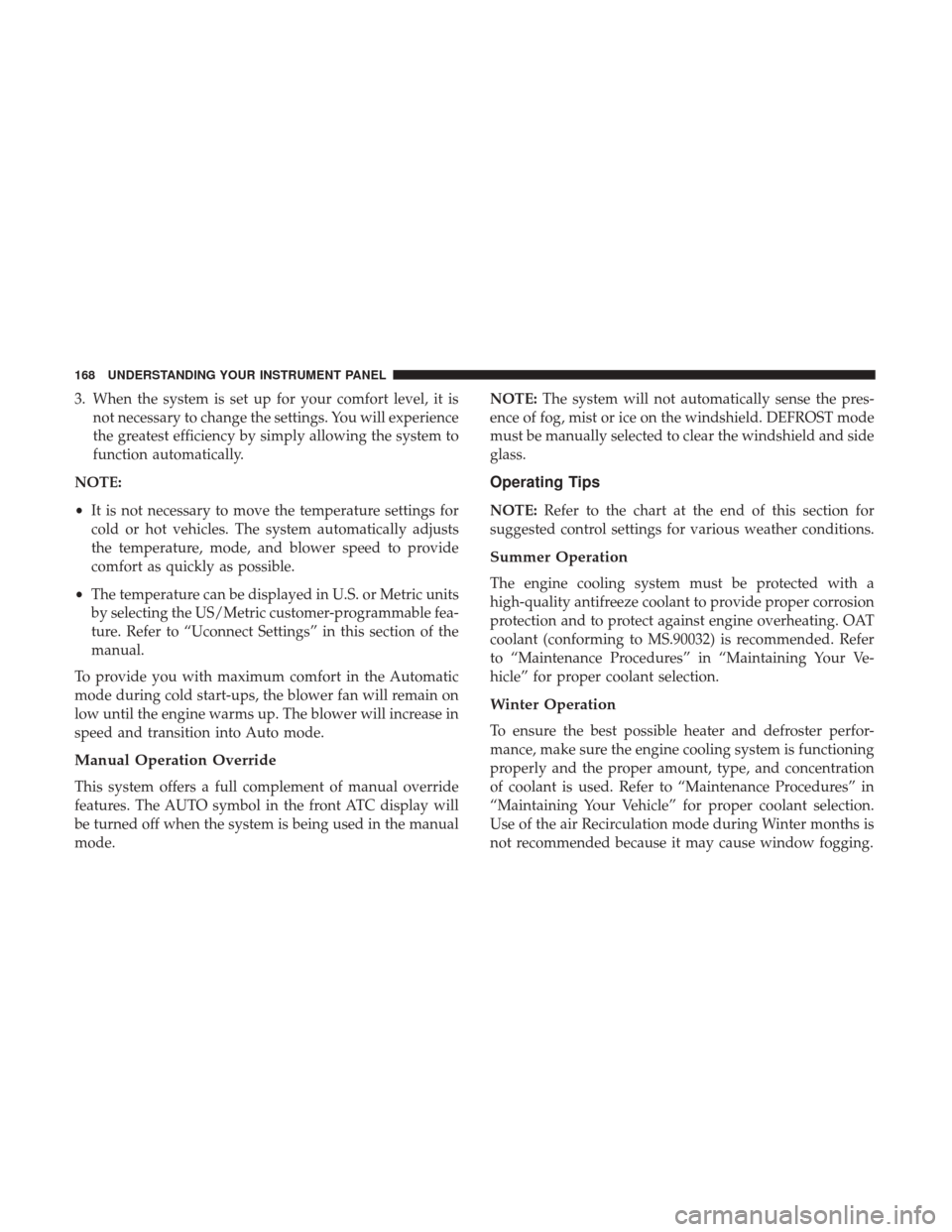

3. When the system is set up for your comfort level, it isnot necessary to change the settings. You will experience
the greatest efficiency by simply allowing the system to
function automatically.
NOTE:
• It is not necessary to move the temperature settings for
cold or hot vehicles. The system automatically adjusts
the temperature, mode, and blower speed to provide
comfort as quickly as possible.
• The temperature can be displayed in U.S. or Metric units
by selecting the US/Metric customer-programmable fea-
ture. Refer to “Uconnect Settings” in this section of the
manual.
To provide you with maximum comfort in the Automatic
mode during cold start-ups, the blower fan will remain on
low until the engine warms up. The blower will increase in
speed and transition into Auto mode.
Manual Operation Override
This system offers a full complement of manual override
features. The AUTO symbol in the front ATC display will
be turned off when the system is being used in the manual
mode. NOTE:
The system will not automatically sense the pres-
ence of fog, mist or ice on the windshield. DEFROST mode
must be manually selected to clear the windshield and side
glass.
Operating Tips
NOTE: Refer to the chart at the end of this section for
suggested control settings for various weather conditions.
Summer Operation
The engine cooling system must be protected with a
high-quality antifreeze coolant to provide proper corrosion
protection and to protect against engine overheating. OAT
coolant (conforming to MS.90032) is recommended. Refer
to “Maintenance Procedures” in “Maintaining Your Ve-
hicle” for proper coolant selection.
Winter Operation
To ensure the best possible heater and defroster perfor-
mance, make sure the engine cooling system is functioning
properly and the proper amount, type, and concentration
of coolant is used. Refer to “Maintenance Procedures” in
“Maintaining Your Vehicle” for proper coolant selection.
Use of the air Recirculation mode during Winter months is
not recommended because it may cause window fogging.
168 UNDERSTANDING YOUR INSTRUMENT PANEL

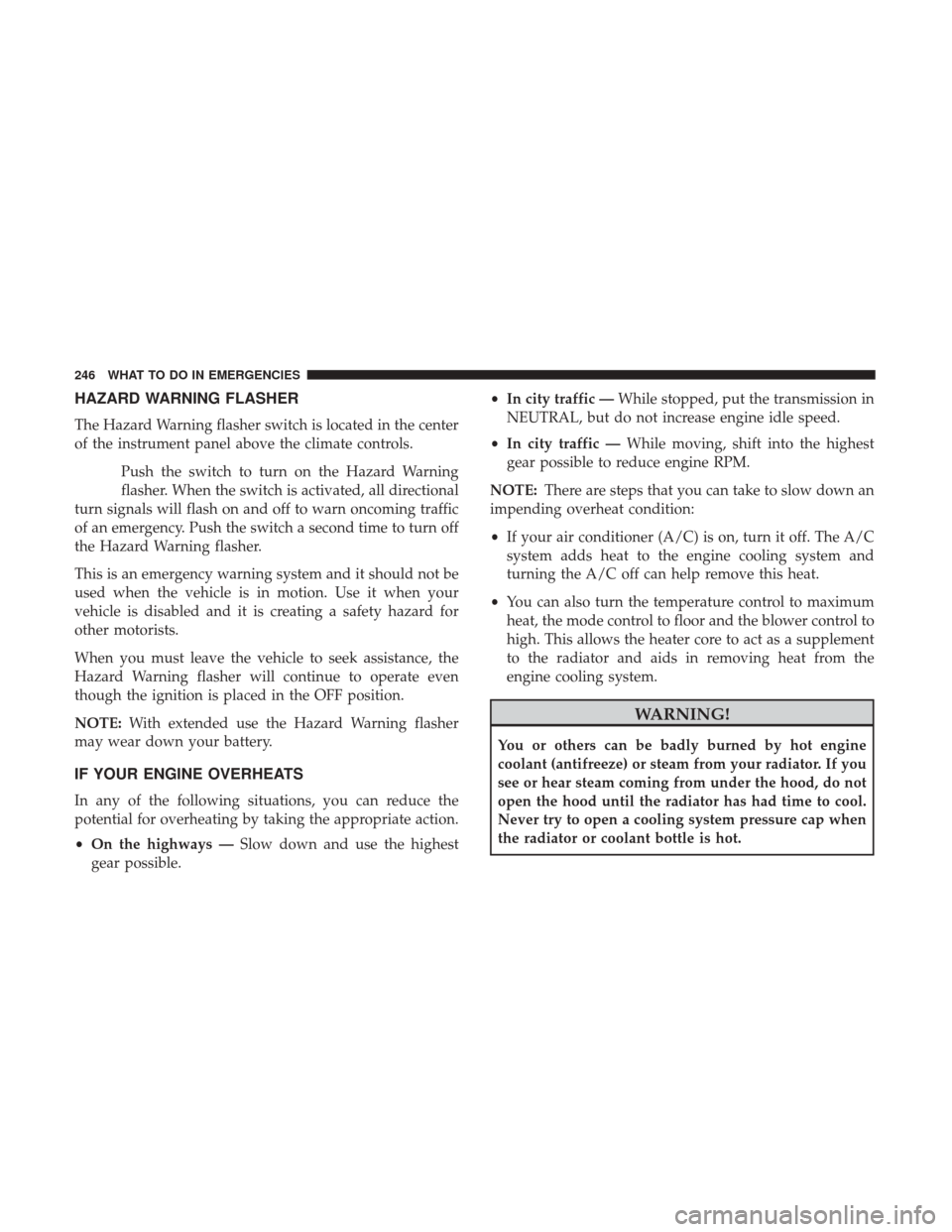

HAZARD WARNING FLASHER
The Hazard Warning flasher switch is located in the center
of the instrument panel above the climate controls.Push the switch to turn on the Hazard Warning
flasher. When the switch is activated, all directional
turn signals will flash on and off to warn oncoming traffic
of an emergency. Push the switch a second time to turn off
the Hazard Warning flasher.
This is an emergency warning system and it should not be
used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.
When you must leave the vehicle to seek assistance, the
Hazard Warning flasher will continue to operate even
though the ignition is placed in the OFF position.
NOTE: With extended use the Hazard Warning flasher
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate action.
• On the highways — Slow down and use the highest
gear possible. •
In city traffic — While stopped, put the transmission in
NEUTRAL, but do not increase engine idle speed.
• In city traffic — While moving, shift into the highest
gear possible to reduce engine RPM.
NOTE: There are steps that you can take to slow down an
impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
• You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control to
high. This allows the heater core to act as a supplement
to the radiator and aids in removing heat from the
engine cooling system.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.
246 WHAT TO DO IN EMERGENCIES

NOTE:The battery is located underneath an access panel
inside the rear compartment on the left side of the vehicle.
A remote battery terminal is located in the engine compart-
ment for jump-starting. Connecting The Jumper Cables
1. Wear eye protection and remove any metal jewelry such
as watchbands or bracelets that might make an inadver-
tent electrical contact.
2. When boost is provided by a battery in another vehicle, park that vehicle within booster cable reach, but without
allowing the vehicles to touch one another.
3. Set the parking brake, place the transmission in NEU- TRAL, and turn the ignition OFF on both vehicles.
4. Turn off the heater, radio, and all unnecessary electrical loads.
5. Remove the plastic fuse cover to gain access to the remote jump-start positive (+)post in the engine com-
partment. Refer to the following illustration for remote
jump-starting connections.
Battery Location
1 — Positive Battery Post
2 — Negative Battery Post
6
WHAT TO DO IN EMERGENCIES 257

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Message Center Indicators Serviced At Authorized Dealer
Cluster LED (Serviced At Authorized Dealer)
Gauge Pack Serviced At Authorized Dealer
Heater Control Serviced At Authorized Dealer
Interior Lamp LED (Serviced At Authorized Dealer)
Courtesy Foot Well Lights W3W
Cargo Lamp (Coupe Liftgate) LED (Serviced At Authorized Dealer)
Exterior Bulbs
Bulb Number
Low/High Beam Headlamp HID (Serviced At Authorized Dealer)
Front Park/Turn Signal Lamp LED (Serviced At Authorized Dealer)
Daytime Running Lamp (DRL) LED (Serviced At Authorized Dealer)
Front Side Marker Lamp 2821M
Center High Mounted Stop Lamp (CHMSL) LED (Serviced At Authorized Dealer)
Tail/Stop/Turn Signal Lamp LED (Serviced At Authorized Dealer)
Rear Marker Lamp 2821M
Backup Lamp LED (Serviced At Authorized Dealer)
License Lamp LED (Serviced At Authorized Dealer)
296 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 16 Gallons 60.6 Liters
Engine Oil With Filter
We recommend you use synthetic SAE 0W-40, API Certified. 11 Quarts10.4 Liters
Transmission
We recommend you use MOPAR ATF+4 Automatic Transmission Fluid. 3.4 Quarts3.2 Liters
Rear Axle
We recommend you use Castrol SAF-XJ/SAE 75W-140 Synthetic Gear and
Axle Lubricant. 1.5 Quarts
1.4 Liters
Cooling System *
We recommend you use MOPAR Antifreeze/Engine Coolant (OAT coolant
conforming to MS.90032) 10 Year/150,000 Mile Formula or equivalent). 16 Quarts
15 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT
coolant conforming to MS.90032.
Engine Oil We recommend you use a full synthetic 0W-40 engine oil such as MOPAR or Pennzoil Ultra
or equivalent engine oil.
