DODGE VIPER SRT 2016 VX / 3.G Owners Manual

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect the tread and sidewall for
cuts and cracks. Check the wheel nuts for tightness.
Check the tires for proper pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected. The cause
should be located and corrected immediately.
2

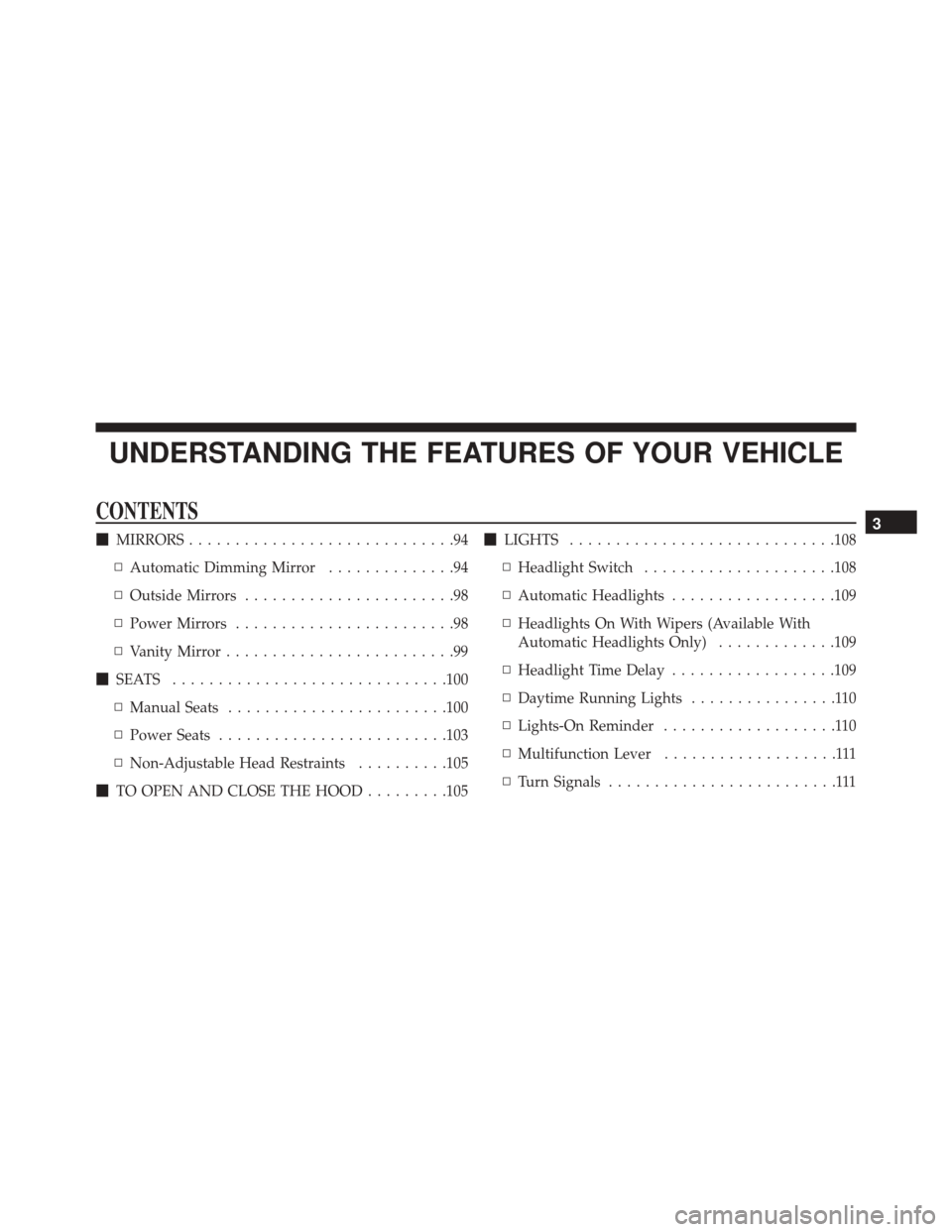

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS .............................94
▫ Automatic Dimming Mirror ..............94
▫ Outside Mirrors .......................98
▫ Power Mirrors ........................98
▫ Vanity Mirror .........................99
 SEATS ............................. .100
▫ Manual Seats ....................... .100
▫ Power Seats ........................ .103
▫ Non-Adjustable Head Restraints ..........105
 TO OPEN AND CLOSE THE HOOD .........105
LIGHTS ............................ .108
▫ Headlight Switch .....................108
▫ Automatic Headlights ..................109
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) .............109
▫ Headlight Time Delay ..................109
▫ Daytime Running Lights ................110
▫ Lights-On Reminder ...................110
▫ Multifunction Lever ...................111
▫ Turn Signals .........................1113

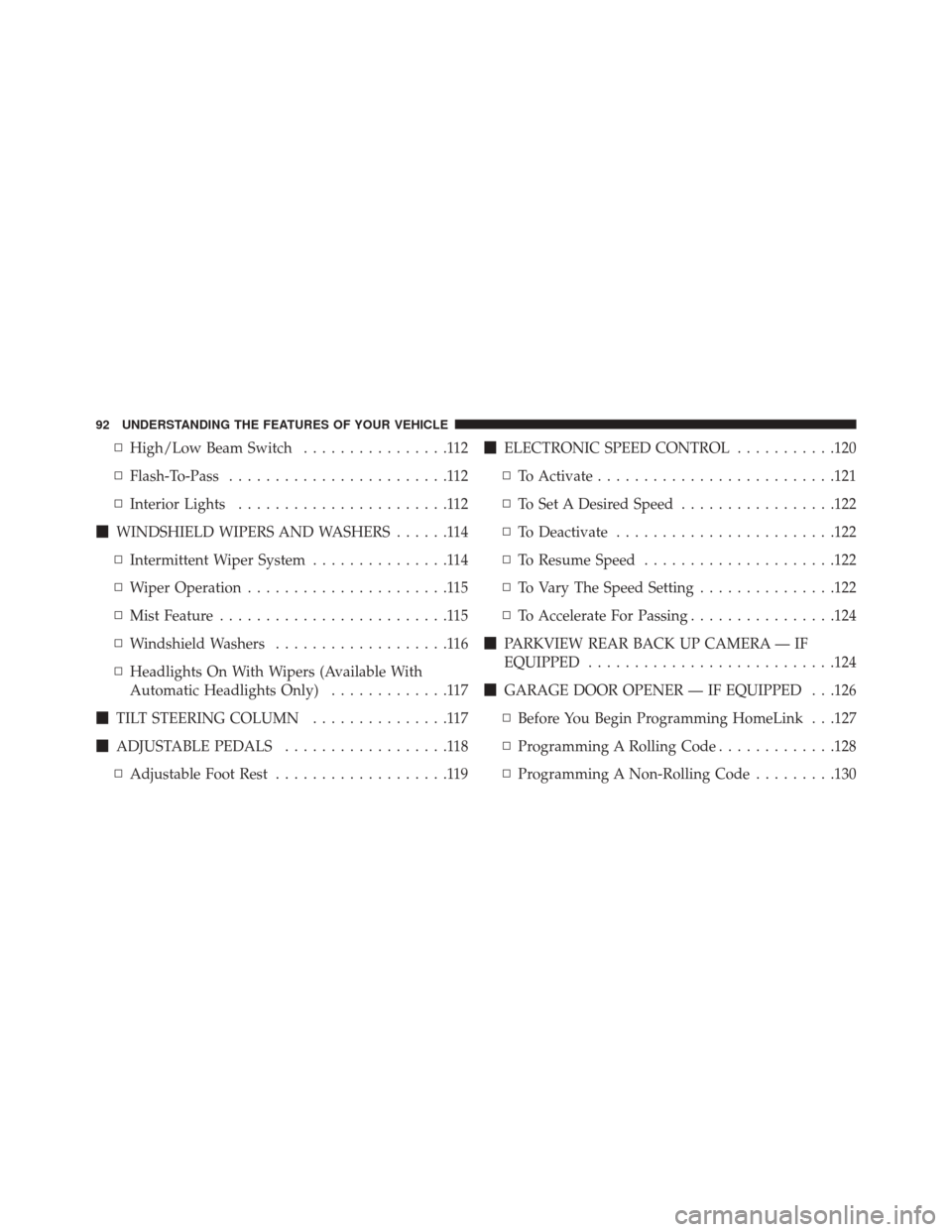

▫High/Low Beam Switch ................112
▫ Flash-To-Pass ........................112
▫ Interior Lights .......................112
 WINDSHIELD WIPERS AND WASHERS ......114
▫ Intermittent Wiper System ...............114
▫ Wiper Operation ......................115
▫ Mist Feature .........................115
▫ Windshield Washers ...................116
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) .............117
 TILT STEERING COLUMN ...............117
 ADJUSTABLE PEDALS ..................118
▫ Adjustable Foot Rest ...................119
ELECTRONIC SPEED CONTROL ...........120
▫ To Activate ......................... .121
▫ To Set A Desired Speed .................122
▫ To Deactivate ....................... .122
▫ To Resume Speed .....................122
▫ To Vary The Speed Setting ...............122
▫ To Accelerate For Passing ................124
 PARKVIEW REAR BACK UP CAMERA — IF
EQUIPPED .......................... .124
 GARAGE DOOR OPENER — IF EQUIPPED . . .126
▫ Before You Begin Programming HomeLink . . .127
▫ Programming A Rolling Code .............128
▫ Programming A Non-Rolling Code .........130
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

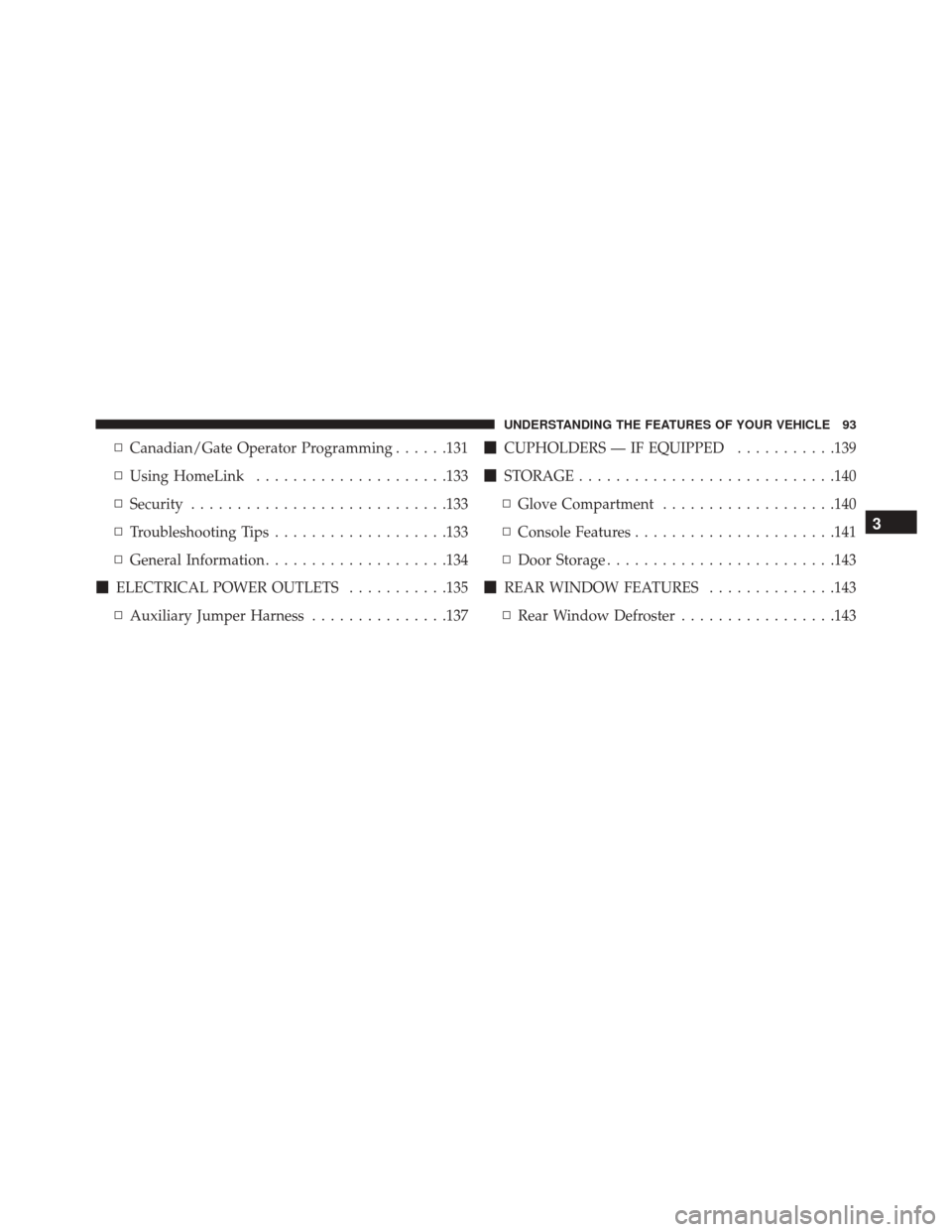

▫Canadian/Gate Operator Programming ......131
▫ Using HomeLink .....................133
▫ Security ........................... .133
▫ Troubleshooting Tips ...................133
▫ General Information ....................134
 ELECTRICAL POWER OUTLETS ...........135
▫ Auxiliary Jumper Harness ...............137
CUPHOLDERS — IF EQUIPPED ...........139
 STORAGE ........................... .140
▫ Glove Compartment ...................140
▫ Console Features ..................... .141
▫ Door Storage ........................ .143
 REAR WINDOW FEATURES ..............143
▫ Rear Window Defroster .................143
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93

MIRRORS
Automatic Dimming Mirror
This mirror automatically adjusts for headlight glare
from vehicles behind you. This feature will be defaulted
on, and only be disabled when the vehicle is moving in
reverse.If Equipped, the rearview mirror contains an ASSIST and
a 9-1-1 button.
Automatic Dimming Mirror
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

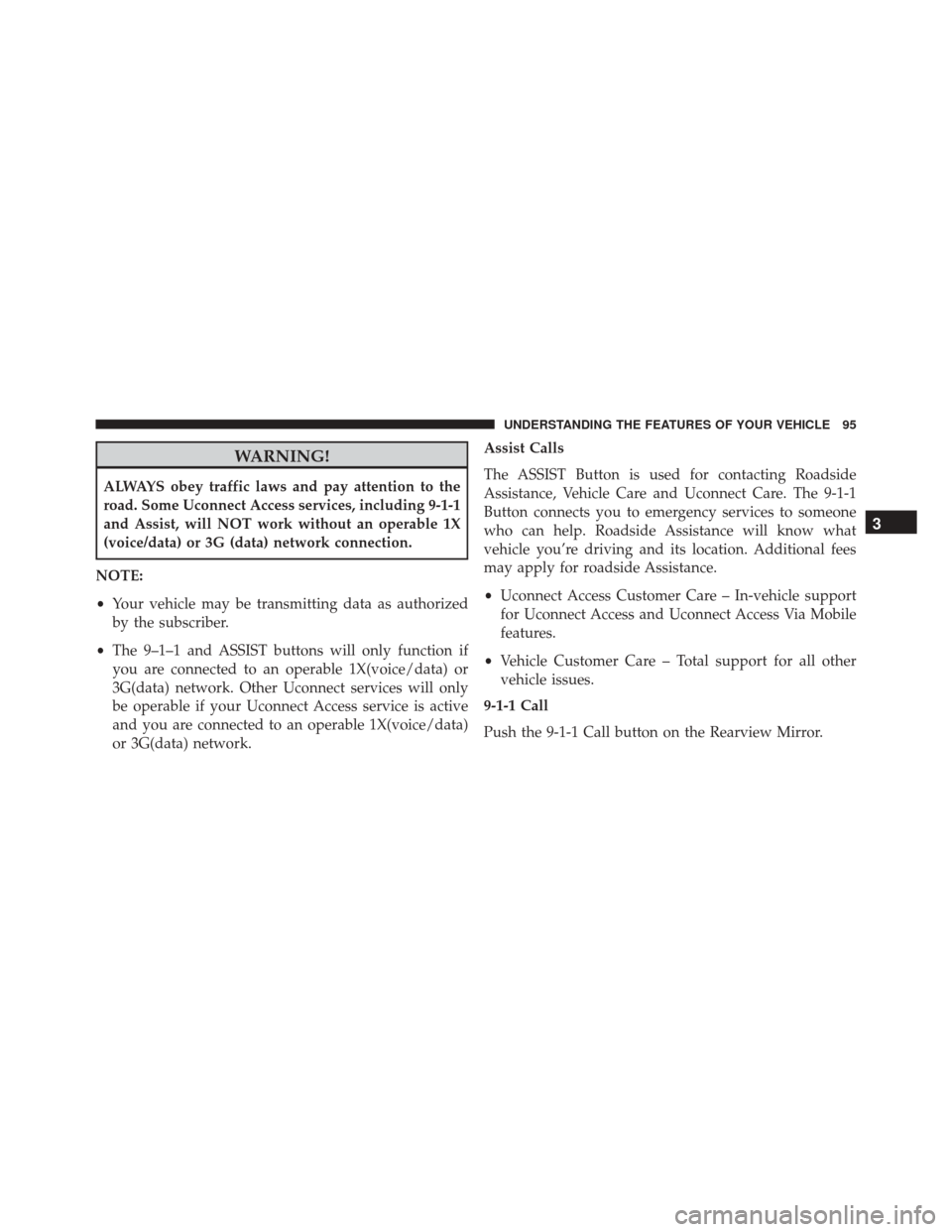

WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable 1X
(voice/data) or 3G (data) network connection.
NOTE:
• Your vehicle may be transmitting data as authorized
by the subscriber.
• The 9–1–1 and ASSIST buttons will only function if
you are connected to an operable 1X(voice/data) or
3G(data) network. Other Uconnect services will only
be operable if your Uconnect Access service is active
and you are connected to an operable 1X(voice/data)
or 3G(data) network. Assist Calls
The ASSIST Button is used for contacting Roadside
Assistance, Vehicle Care and Uconnect Care. The 9-1-1
Button connects you to emergency services to someone
who can help. Roadside Assistance will know what
vehicle you’re driving and its location. Additional fees
may apply for roadside Assistance.
•
Uconnect Access Customer Care – In-vehicle support
for Uconnect Access and Uconnect Access Via Mobile
features.
• Vehicle Customer Care – Total support for all other
vehicle issues.
9-1-1 Call
Push the 9-1-1 Call button on the Rearview Mirror.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95

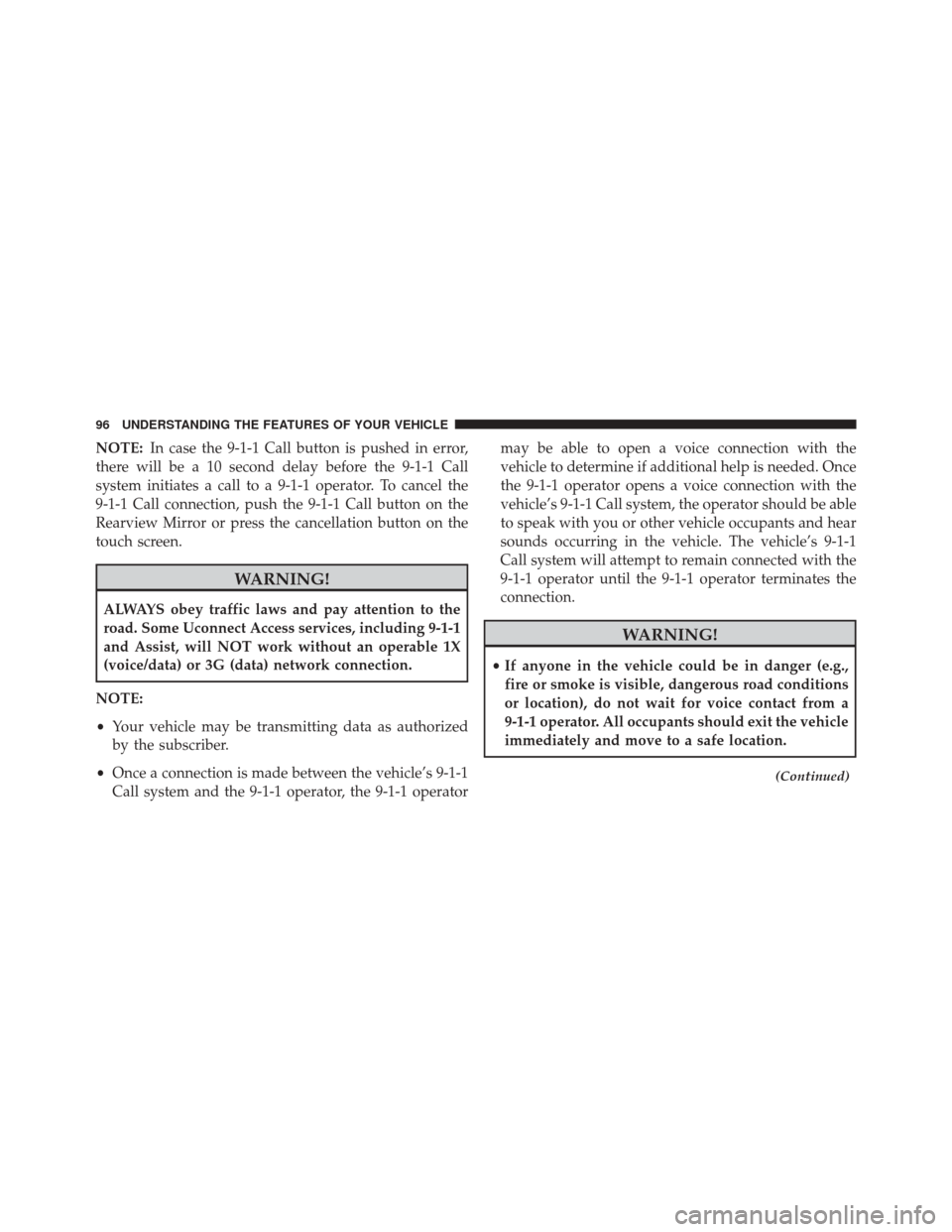

NOTE:In case the 9-1-1 Call button is pushed in error,
there will be a 10 second delay before the 9-1-1 Call
system initiates a call to a 9-1-1 operator. To cancel the
9-1-1 Call connection, push the 9-1-1 Call button on the
Rearview Mirror or press the cancellation button on the
touch screen.
WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable 1X
(voice/data) or 3G (data) network connection.
NOTE:
• Your vehicle may be transmitting data as authorized
by the subscriber.
• Once a connection is made between the vehicle’s 9-1-1
Call system and the 9-1-1 operator, the 9-1-1 operator may be able to open a voice connection with the
vehicle to determine if additional help is needed. Once
the 9-1-1 operator opens a voice connection with the
vehicle’s 9-1-1 Call system, the operator should be able
to speak with you or other vehicle occupants and hear
sounds occurring in the vehicle. The vehicle’s 9-1-1
Call system will attempt to remain connected with the
9-1-1 operator until the 9-1-1 operator terminates the
connection.
WARNING!
•
If anyone in the vehicle could be in danger (e.g.,
fire or smoke is visible, dangerous road conditions
or location), do not wait for voice contact from a
9-1-1 operator. All occupants should exit the vehicle
immediately and move to a safe location.
(Continued)
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

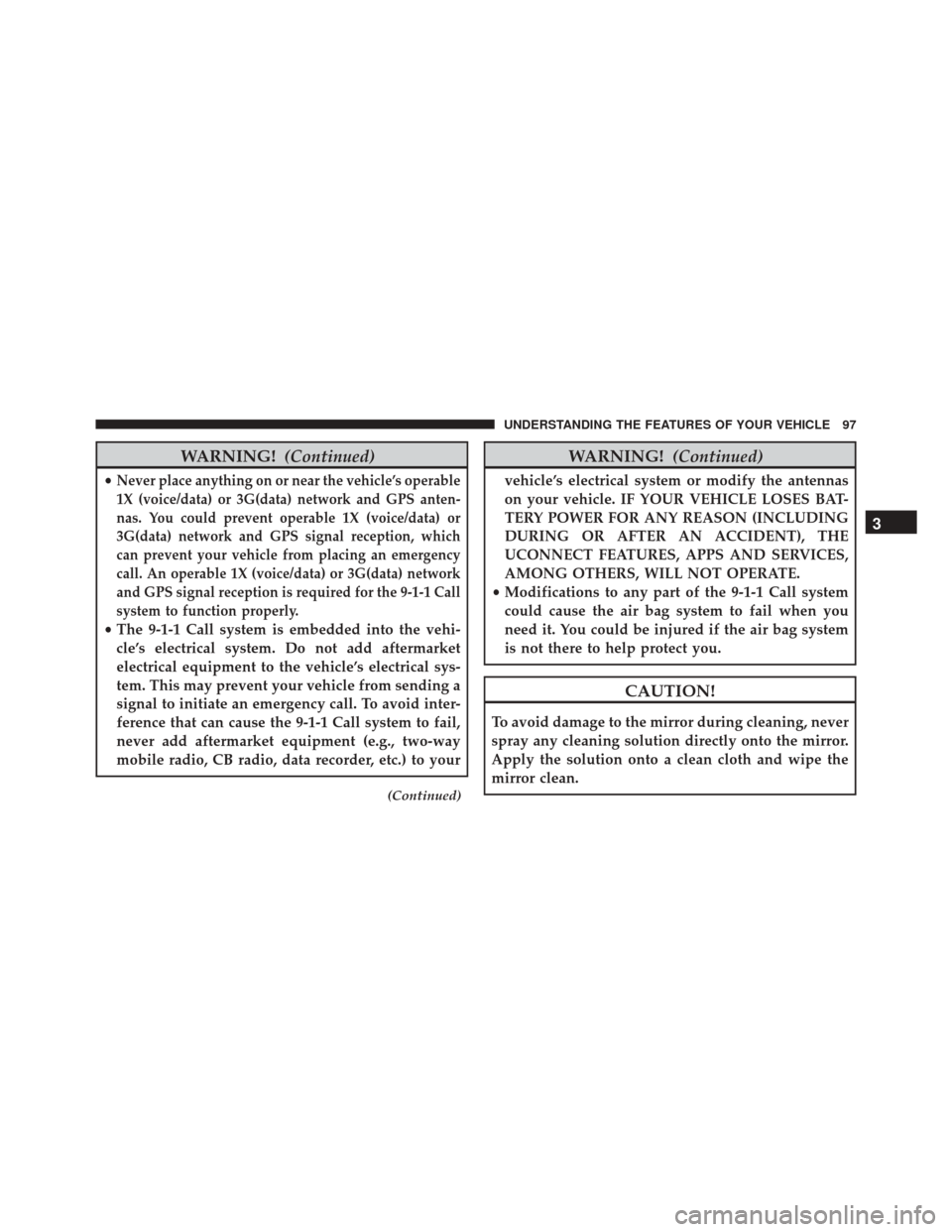

WARNING!(Continued)
•Never place anything on or near the vehicle’s operable
1X (voice/data) or 3G(data) network and GPS anten-
nas. You could prevent operable 1X (voice/data) or
3G(data) network and GPS signal reception, which
can prevent your vehicle from placing an emergency
call. An operable 1X (voice/data) or 3G(data) network
and GPS signal reception is required for the 9-1-1 Call
system to function properly.
• The 9-1-1 Call system is embedded into the vehi-
cle’s electrical system. Do not add aftermarket
electrical equipment to the vehicle’s electrical sys-
tem. This may prevent your vehicle from sending a
signal to initiate an emergency call. To avoid inter-
ference that can cause the 9-1-1 Call system to fail,
never add aftermarket equipment (e.g., two-way
mobile radio, CB radio, data recorder, etc.) to your
(Continued)
WARNING! (Continued)
vehicle’s electrical system or modify the antennas
on your vehicle. IF YOUR VEHICLE LOSES BAT-
TERY POWER FOR ANY REASON (INCLUDING
DURING OR AFTER AN ACCIDENT), THE
UCONNECT FEATURES, APPS AND SERVICES,
AMONG OTHERS, WILL NOT OPERATE.
• Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97

Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger side mirror.
Power Mirrors
The power mirror controls are located on the driver-side
door trim panel.
Power Mirror Controls
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
