DODGE VIPER SRT 2016 VX / 3.G User Guide
Manufacturer: DODGE, Model Year: 2016, Model line: VIPER SRT, Model: DODGE VIPER SRT 2016 VX / 3.GPages: 427, PDF Size: 3.02 MB

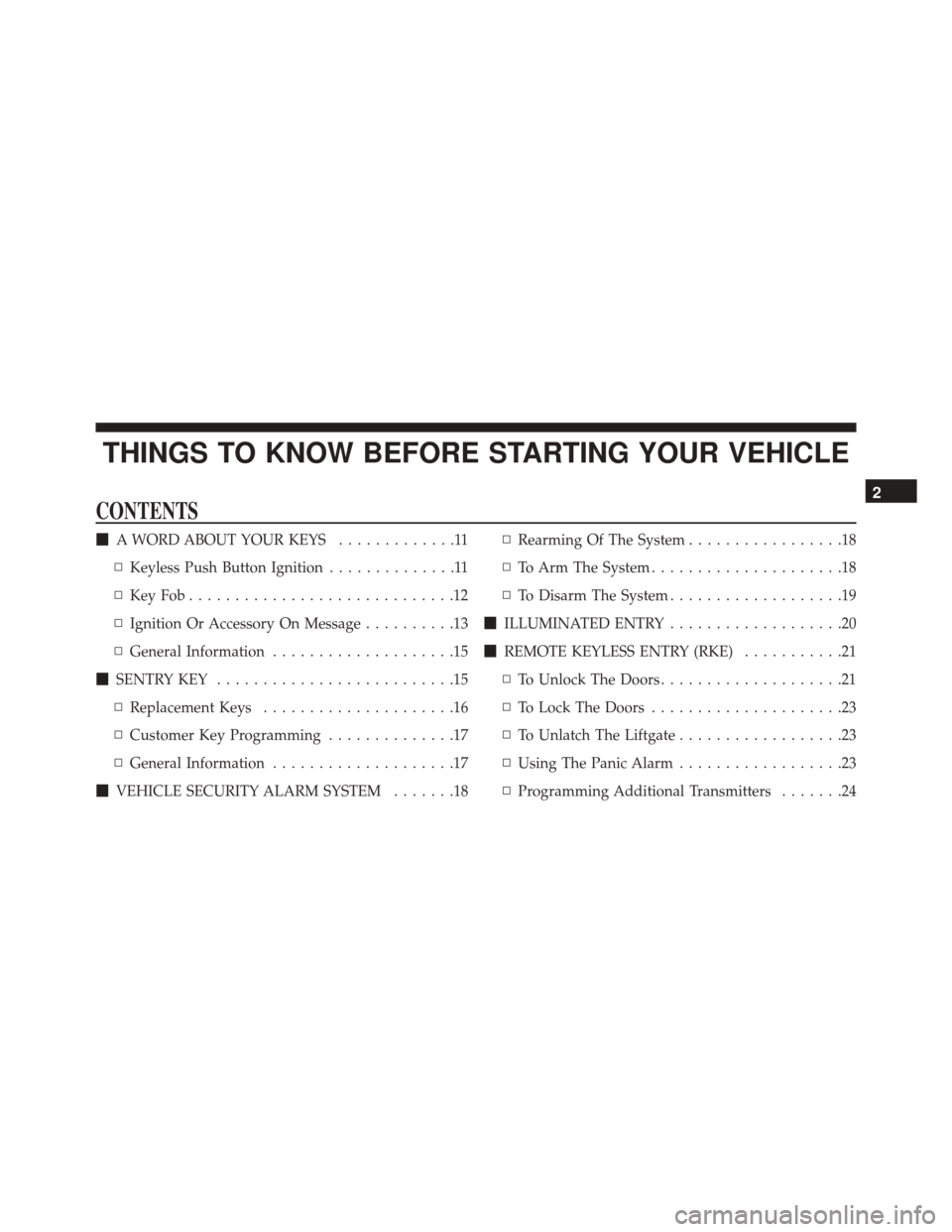

Page 11 of 427
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A WORD ABOUT YOUR KEYS .............11
▫ Keyless Push Button Ignition ..............11
▫ KeyFob.............................12
▫ Ignition Or Accessory On Message ..........13
▫ General Information ....................15
SENTRY KEY ..........................15
▫ Replacement Keys .....................16
▫ Customer Key Programming ..............17
▫ General Information ....................17
VEHICLE SECURITY ALARM SYSTEM .......18▫
Rearming Of The System .................18
▫ To Arm The System .....................18
▫ To Disarm The System ...................19
ILLUMINATED ENTRY ...................20
REMOTE KEYLESS ENTRY (RKE) ...........21
▫ To Unlock The Doors ....................21
▫ To Lock The Doors .....................23
▫ To Unlatch The Liftgate ..................23
▫ Using The Panic Alarm ..................23
▫ Programming Additional Transmitters .......24
2

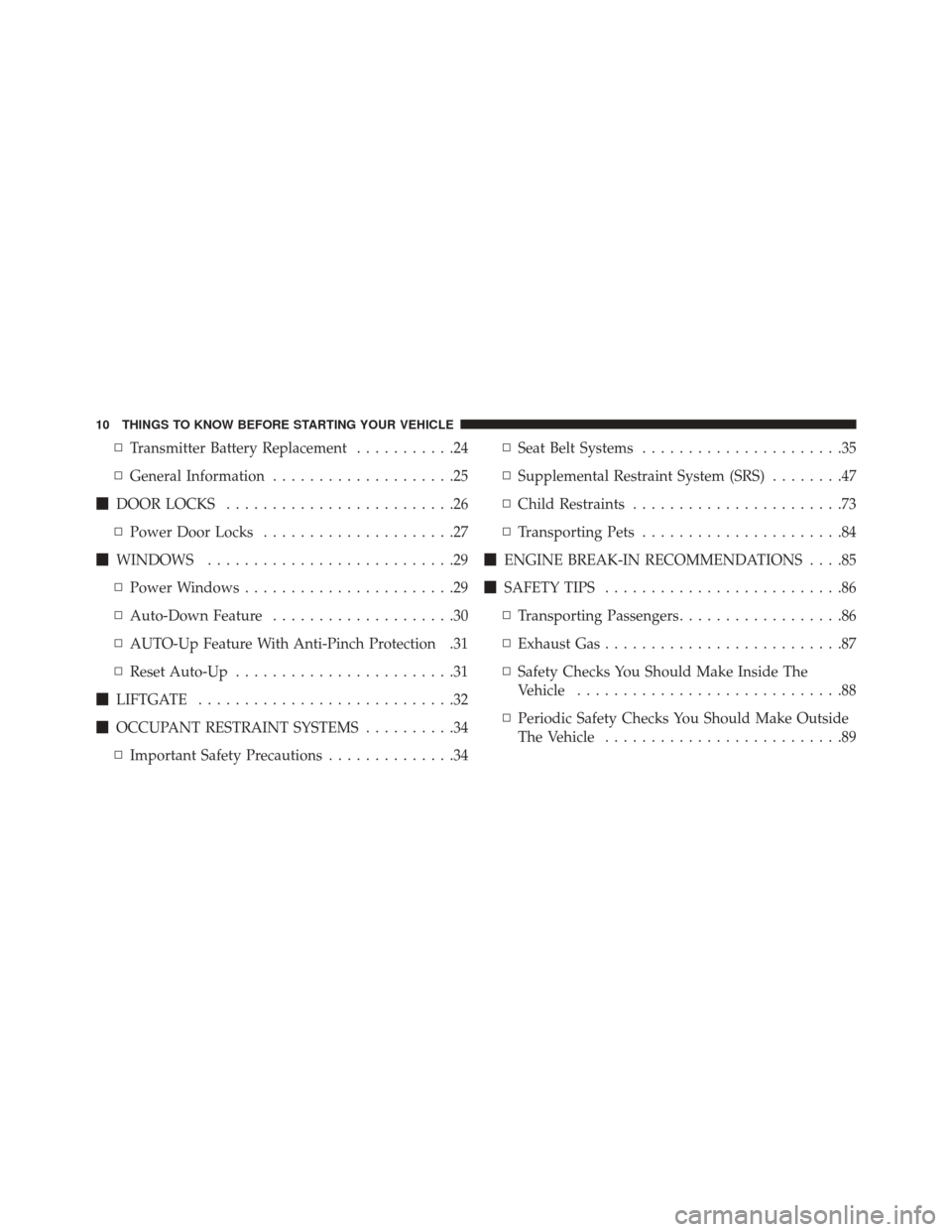

Page 12 of 427
▫Transmitter Battery Replacement ...........24
▫ General Information ....................25
DOOR LOCKS .........................26
▫ Power Door Locks .....................27
WINDOWS ...........................29
▫ Power Windows .......................29
▫ Auto-Down Feature ....................30
▫ AUTO-Up Feature With Anti-Pinch Protection .31
▫ Reset Auto-Up ........................31
LIFTGATE ............................32
OCCUPANT RESTRAINT SYSTEMS ..........34
▫ Important Safety Precautions ..............34▫
Seat Belt Systems ......................35
▫ Supplemental Restraint System (SRS) ........47
▫ Child Restraints .......................73
▫ Transporting Pets ......................84
ENGINE BREAK-IN RECOMMENDATIONS ....85
SAFETY TIPS ..........................86
▫ Transporting Passengers ..................86
▫ Exhaust Gas ..........................87
▫ Safety Checks You Should Make Inside The
Vehicle .............................88
▫ Periodic Safety Checks You Should Make Outside
The Vehicle ..........................89
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 13 of 427
A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system. This system
consists of a Key Fob with Remote Keyless Entry (RKE)
transmitter and a Keyless Push Button Ignition.
Keyless Enter-N-Go Feature
This vehicle is equipped with the Keyless Enter-N-Go
ignition feature.
Keyless Push Button Ignition
This feature allows the driver to operate the ignition with
the push of a button, as long as the Remote Keyless Entry
(RKE) transmitter is in the passenger compartment.
The Keyless Push Button Ignition has four operating
positions; three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start
RUN will illuminate.NOTE:
In case the ignition does not change with the
push of a button, the RKE transmitter (Key Fob) may
have a low or dead battery.
Keyless Push Button Ignition
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
Page 14 of 427
Key Fob
The Key Fob also contains the Remote Keyless Entry
(RKE) transmitter and an emergency key, which stores in
the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the Key Fob go dead.
You can keep the emergency key with you when valet
parking.
To remove the emergency key, slide the mechanical latch
on the back of the Key Fob sideways with your thumb
and then pull the key out with your other hand.
NOTE:In the event that the FOB does not start the
vehicle (FOB not Found message) use the FOB nose
(furthest point from key ring) and push the start button.
FOB replaces the finger.
— RKE Liftgate Button
— RKE Door Unlock Button
— RKE Door Lock Button
— RKE PANIC Alarm Button
Remote Keyless Entry (RKE) Transmitter
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 15 of 427
Ignition Or Accessory On Message
Opening the driver’s door when the ignition is in ACC or
ON (engine not running), a chime will sound to remind
you to cycle the ignition to OFF. In addition to the chime,
the ignition or accessory on message will display in the
cluster.
NOTE:With the Uconnect system, the power window
switches, radio and power outlets will remain active for
up to 10 minutes after the ignition is cycled to the OFF
position. Opening either front door will cancel this
feature. The time for this feature is programmable. Refer
to “Uconnect Settings” in “Understanding Your Instru-
ment Panel” for further information.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13

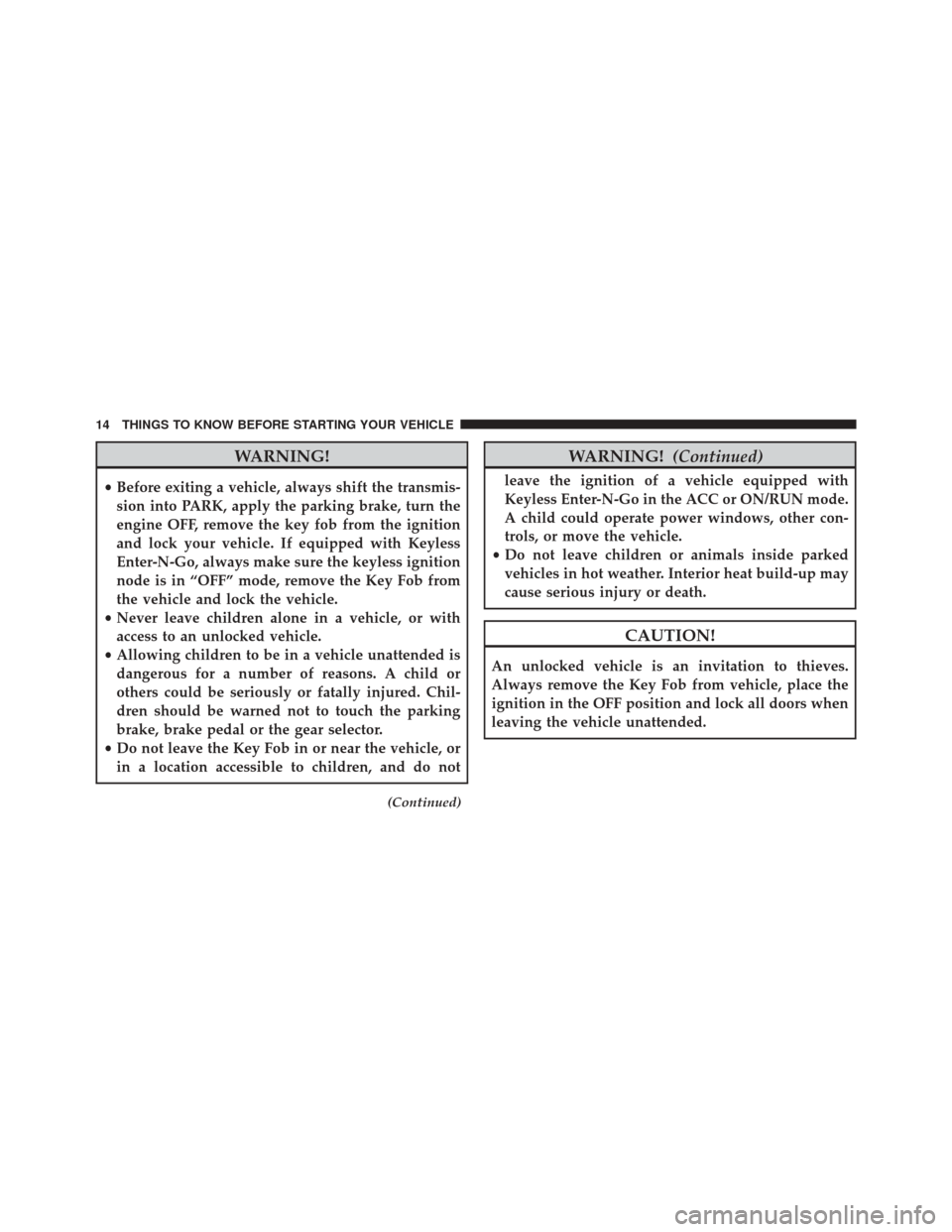

Page 16 of 427
WARNING!
•Before exiting a vehicle, always shift the transmis-
sion into PARK, apply the parking brake, turn the
engine OFF, remove the key fob from the ignition
and lock your vehicle. If equipped with Keyless
Enter-N-Go, always make sure the keyless ignition
node is in “OFF” mode, remove the Key Fob from
the vehicle and lock the vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
(Continued)
WARNING! (Continued)
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode.
A child could operate power windows, other con-
trols, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation to thieves.
Always remove the Key Fob from vehicle, place the
ignition in the OFF position and lock all doors when
leaving the vehicle unattended.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 17 of 427

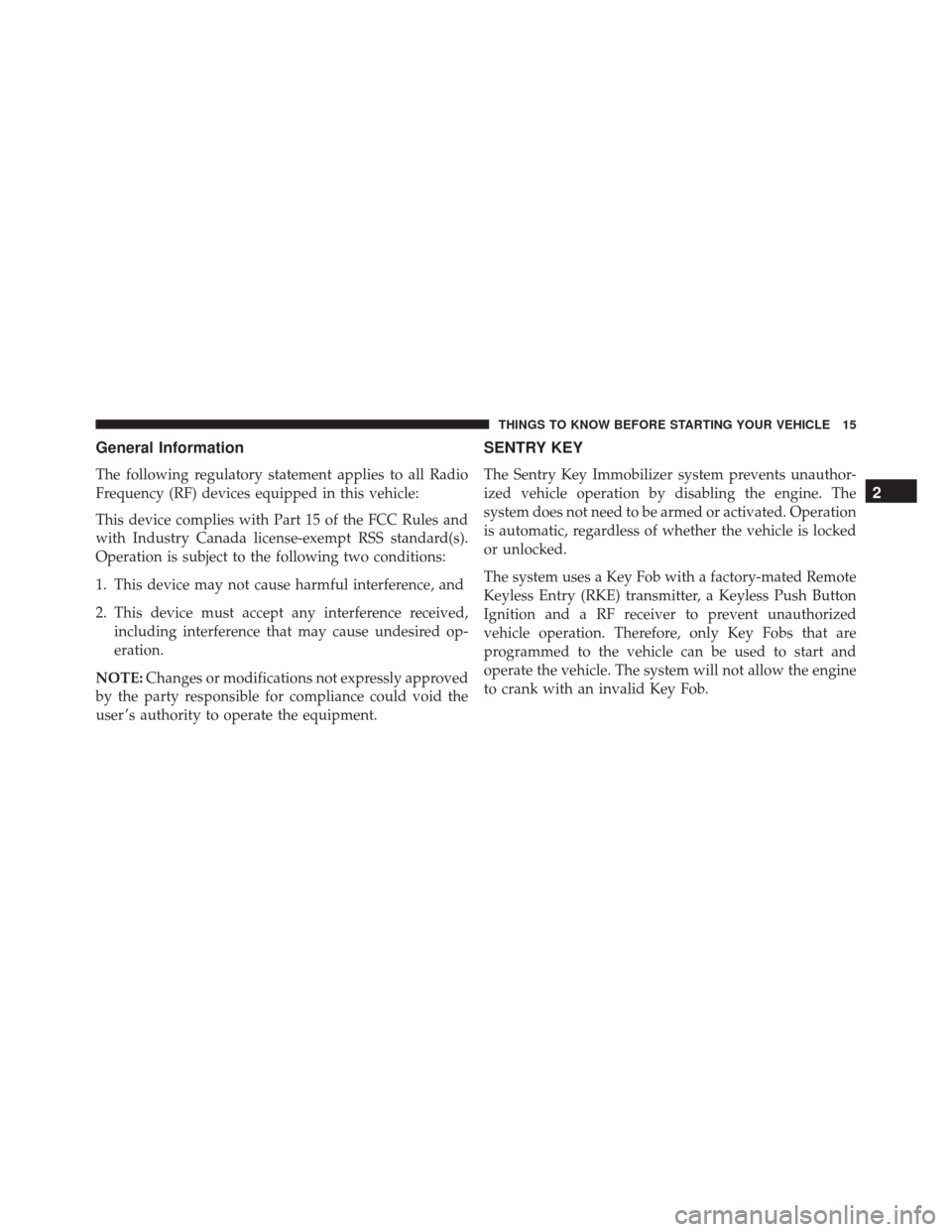

General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
SENTRY KEY
The Sentry Key Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key Fob with a factory-mated Remote
Keyless Entry (RKE) transmitter, a Keyless Push Button
Ignition and a RF receiver to prevent unauthorized
vehicle operation. Therefore, only Key Fobs that are
programmed to the vehicle can be used to start and
operate the vehicle. The system will not allow the engine
to crank with an invalid Key Fob.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

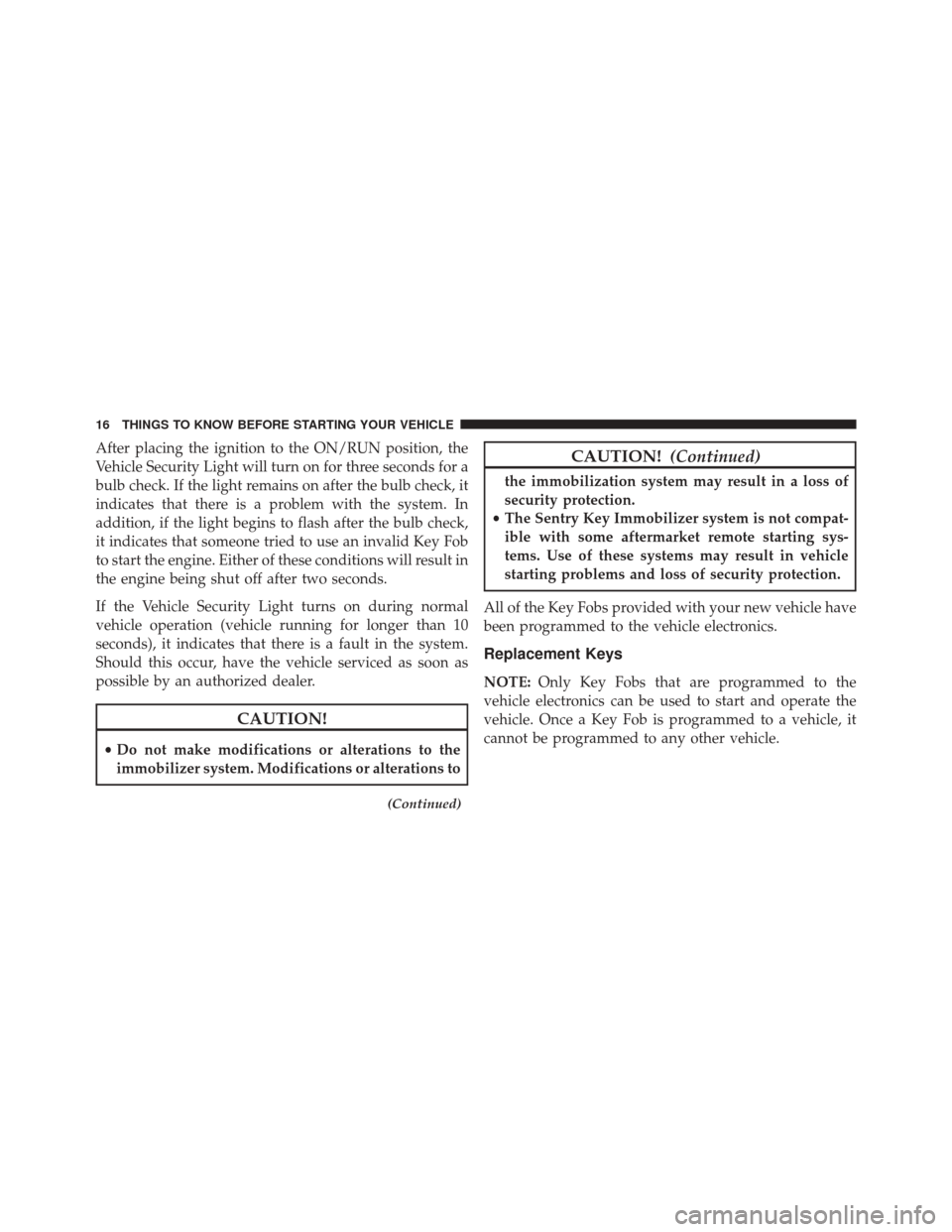

Page 18 of 427
After placing the ignition to the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the system. In
addition, if the light begins to flash after the bulb check,
it indicates that someone tried to use an invalid Key Fob
to start the engine. Either of these conditions will result in
the engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10
seconds), it indicates that there is a fault in the system.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
•Do not make modifications or alterations to the
immobilizer system. Modifications or alterations to
(Continued)
CAUTION! (Continued)
the immobilization system may result in a loss of
security protection.
• The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

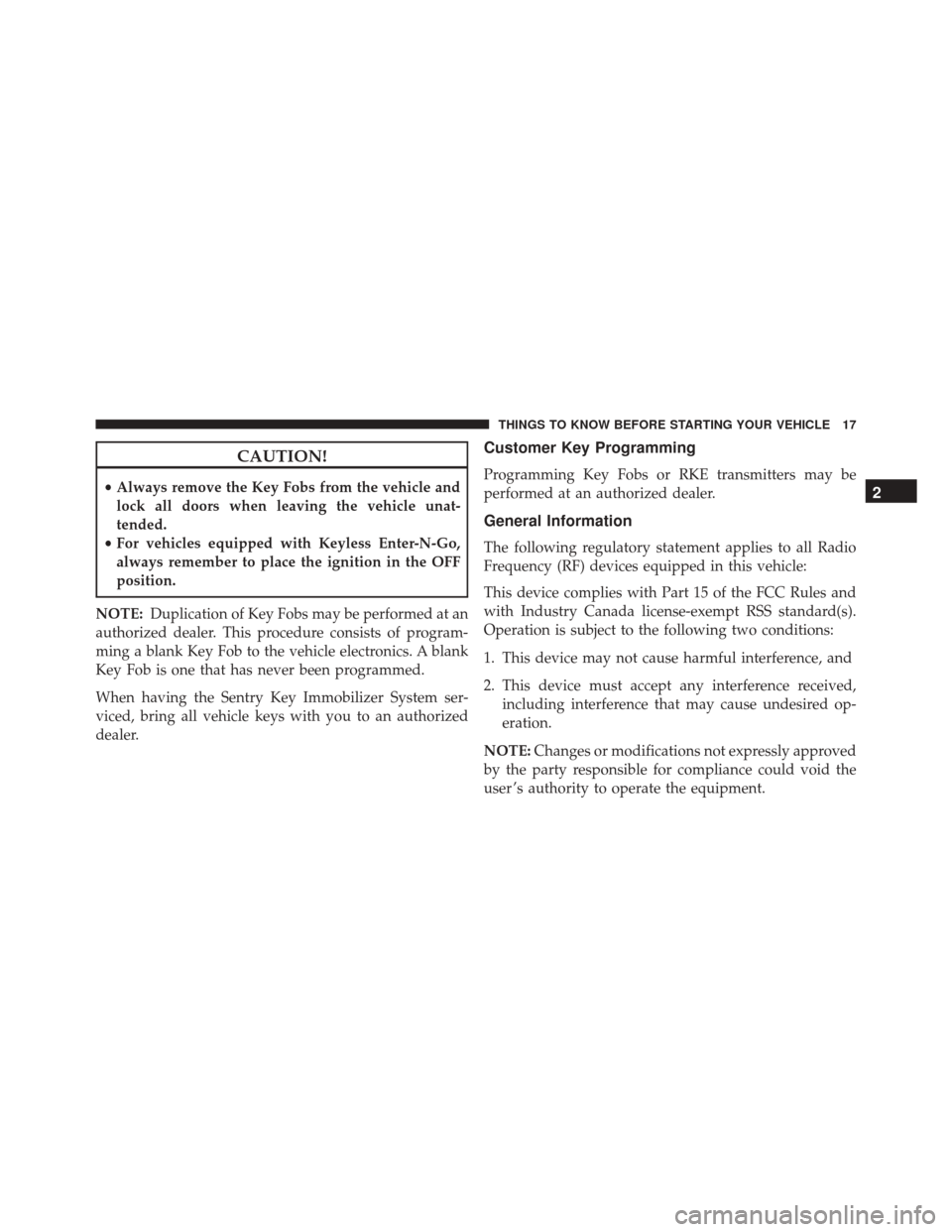

Page 19 of 427
CAUTION!
•Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unat-
tended.
• For vehicles equipped with Keyless Enter-N-Go,
always remember to place the ignition in the OFF
position.
NOTE: Duplication of Key Fobs may be performed at an
authorized dealer. This procedure consists of program-
ming a blank Key Fob to the vehicle electronics. A blank
Key Fob is one that has never been programmed.
When having the Sentry Key Immobilizer System ser-
viced, bring all vehicle keys with you to an authorized
dealer.
Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
General Information
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

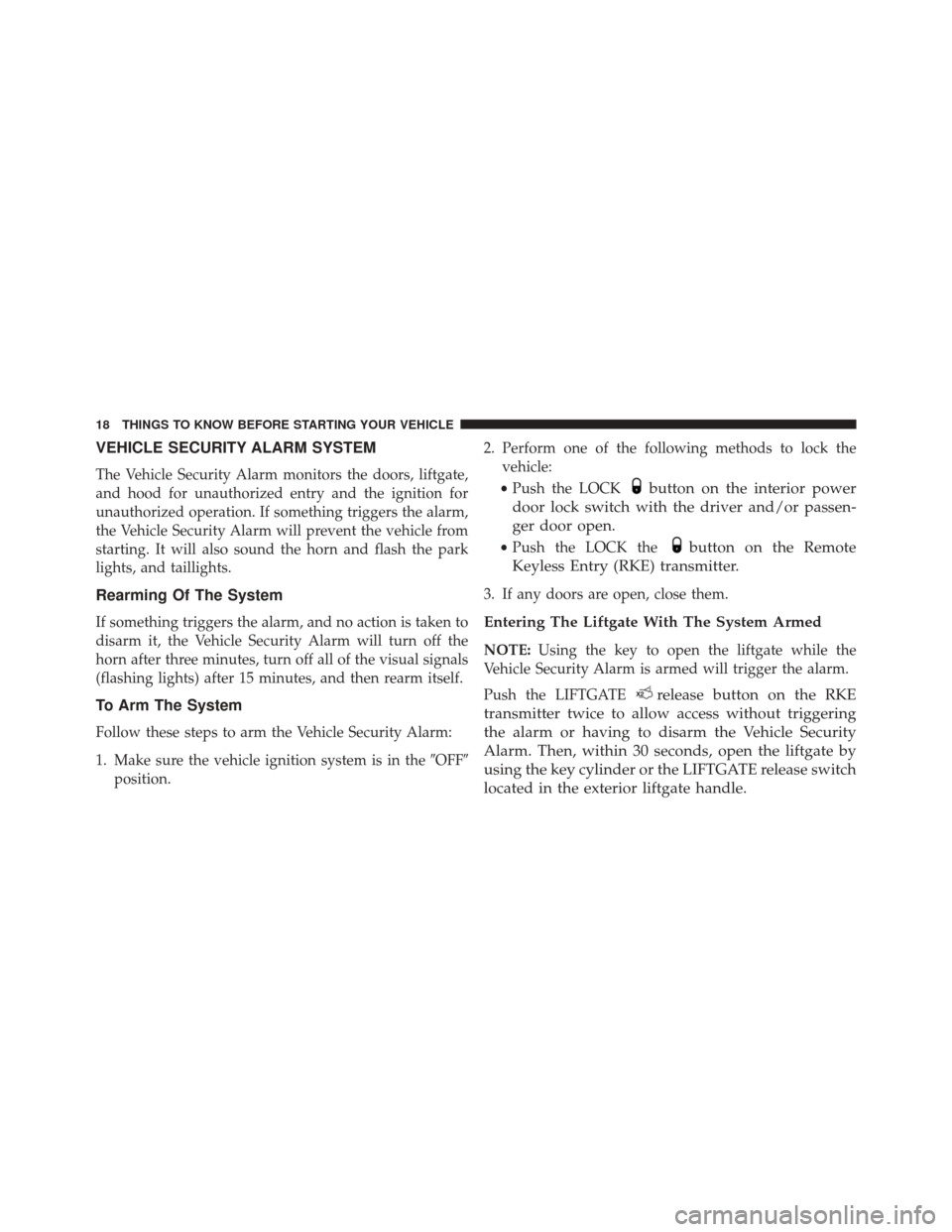

Page 20 of 427
VEHICLE SECURITY ALARM SYSTEM
The Vehicle Security Alarm monitors the doors, liftgate,
and hood for unauthorized entry and the ignition for
unauthorized operation. If something triggers the alarm,
the Vehicle Security Alarm will prevent the vehicle from
starting. It will also sound the horn and flash the park
lights, and taillights.
Rearming Of The System
If something triggers the alarm, and no action is taken to
disarm it, the Vehicle Security Alarm will turn off the
horn after three minutes, turn off all of the visual signals
(flashing lights) after 15 minutes, and then rearm itself.
To Arm The System
Follow these steps to arm the Vehicle Security Alarm:
1. Make sure the vehicle ignition system is in theOFF
position. 2. Perform one of the following methods to lock the
vehicle:
• Push the LOCK
button on the interior power
door lock switch with the driver and/or passen-
ger door open.
• Push the LOCK thebutton on the Remote
Keyless Entry (RKE) transmitter.
3. If any doors are open, close them.
Entering The Liftgate With The System Armed
NOTE: Using the key to open the liftgate while the
Vehicle Security Alarm is armed will trigger the alarm.
Push the LIFTGATE
release button on the RKE
transmitter twice to allow access without triggering
the alarm or having to disarm the Vehicle Security
Alarm. Then, within 30 seconds, open the liftgate by
using the key cylinder or the LIFTGATE release switch
located in the exterior liftgate handle.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
