CAUTION!(Continued)
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.

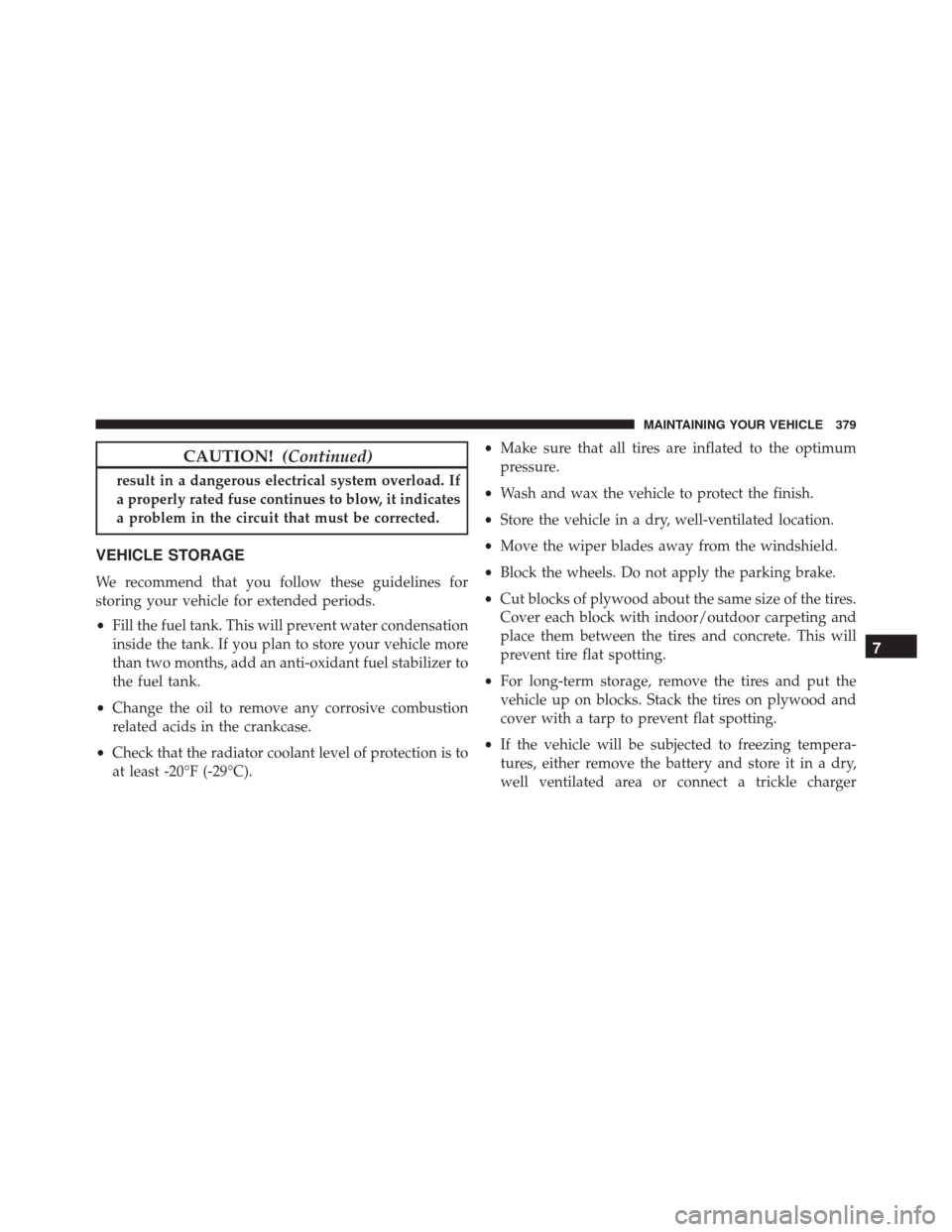

VEHICLE STORAGE
We recommend that you follow these guidelines for
storing your vehicle for extended periods.
•Fill the fuel tank. This will prevent water condensation
inside the tank. If you plan to store your vehicle more
than two months, add an anti-oxidant fuel stabilizer to
the fuel tank.
• Change the oil to remove any corrosive combustion
related acids in the crankcase.
• Check that the radiator coolant level of protection is to
at least -20°F (-29°C). •
Make sure that all tires are inflated to the optimum
pressure.
• Wash and wax the vehicle to protect the finish.
• Store the vehicle in a dry, well-ventilated location.
• Move the wiper blades away from the windshield.
• Block the wheels. Do not apply the parking brake.
• Cut blocks of plywood about the same size of the tires.
Cover each block with indoor/outdoor carpeting and
place them between the tires and concrete. This will
prevent tire flat spotting.
• For long-term storage, remove the tires and put the
vehicle up on blocks. Stack the tires on plywood and
cover with a tarp to prevent flat spotting.
• If the vehicle will be subjected to freezing tempera-
tures, either remove the battery and store it in a dry,
well ventilated area or connect a trickle charger
7
MAINTAINING YOUR VEHICLE 379

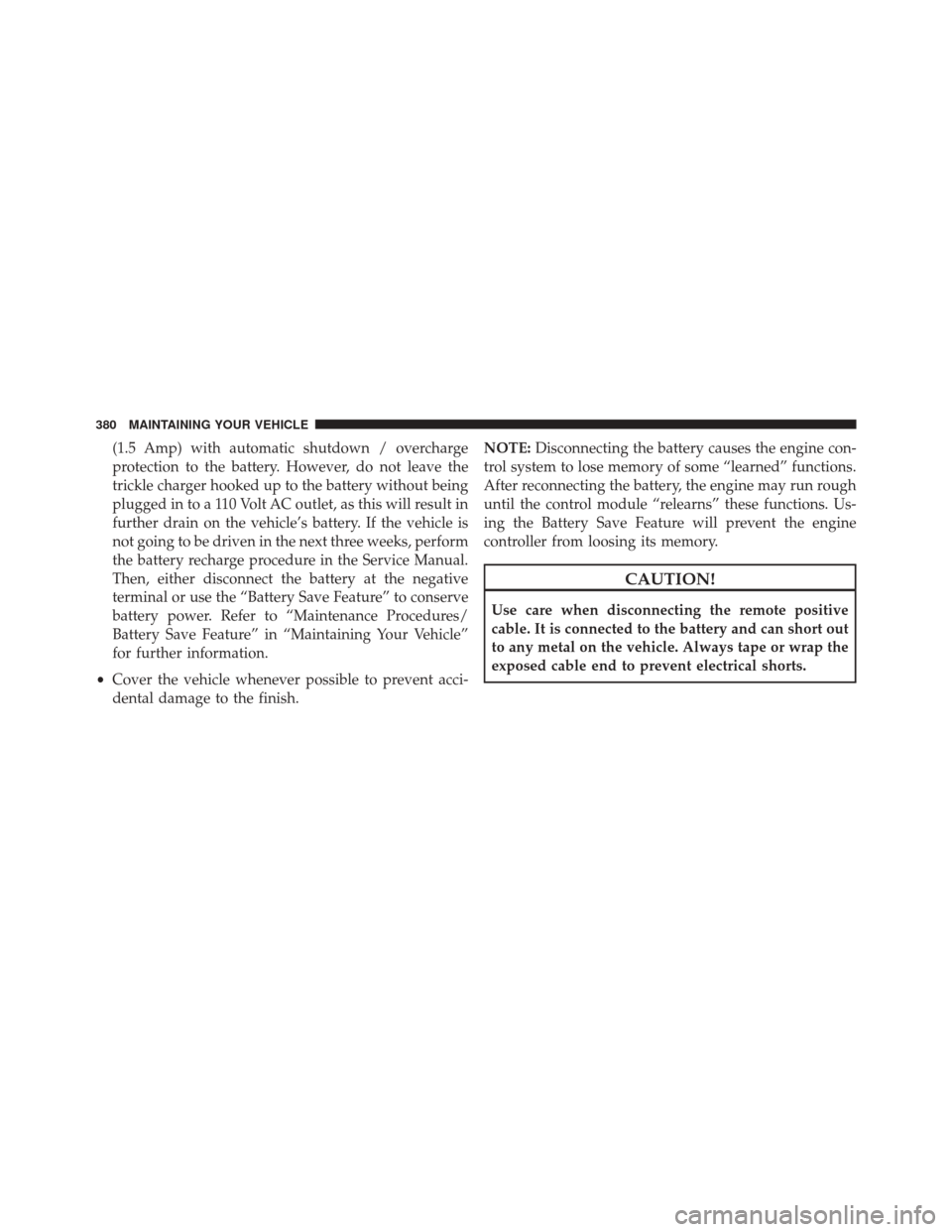

(1.5 Amp) with automatic shutdown / overcharge
protection to the battery. However, do not leave the
trickle charger hooked up to the battery without being
plugged in to a 110 Volt AC outlet, as this will result in
further drain on the vehicle’s battery. If the vehicle is
not going to be driven in the next three weeks, perform
the battery recharge procedure in the Service Manual.
Then, either disconnect the battery at the negative
terminal or use the “Battery Save Feature” to conserve
battery power. Refer to “Maintenance Procedures/
Battery Save Feature” in “Maintaining Your Vehicle”
for further information.
• Cover the vehicle whenever possible to prevent acci-
dental damage to the finish. NOTE:
Disconnecting the battery causes the engine con-
trol system to lose memory of some “learned” functions.
After reconnecting the battery, the engine may run rough
until the control module “relearns” these functions. Us-
ing the Battery Save Feature will prevent the engine
controller from loosing its memory.
CAUTION!
Use care when disconnecting the remote positive
cable. It is connected to the battery and can short out
to any metal on the vehicle. Always tape or wrap the
exposed cable end to prevent electrical shorts.
380 MAINTAINING YOUR VEHICLE

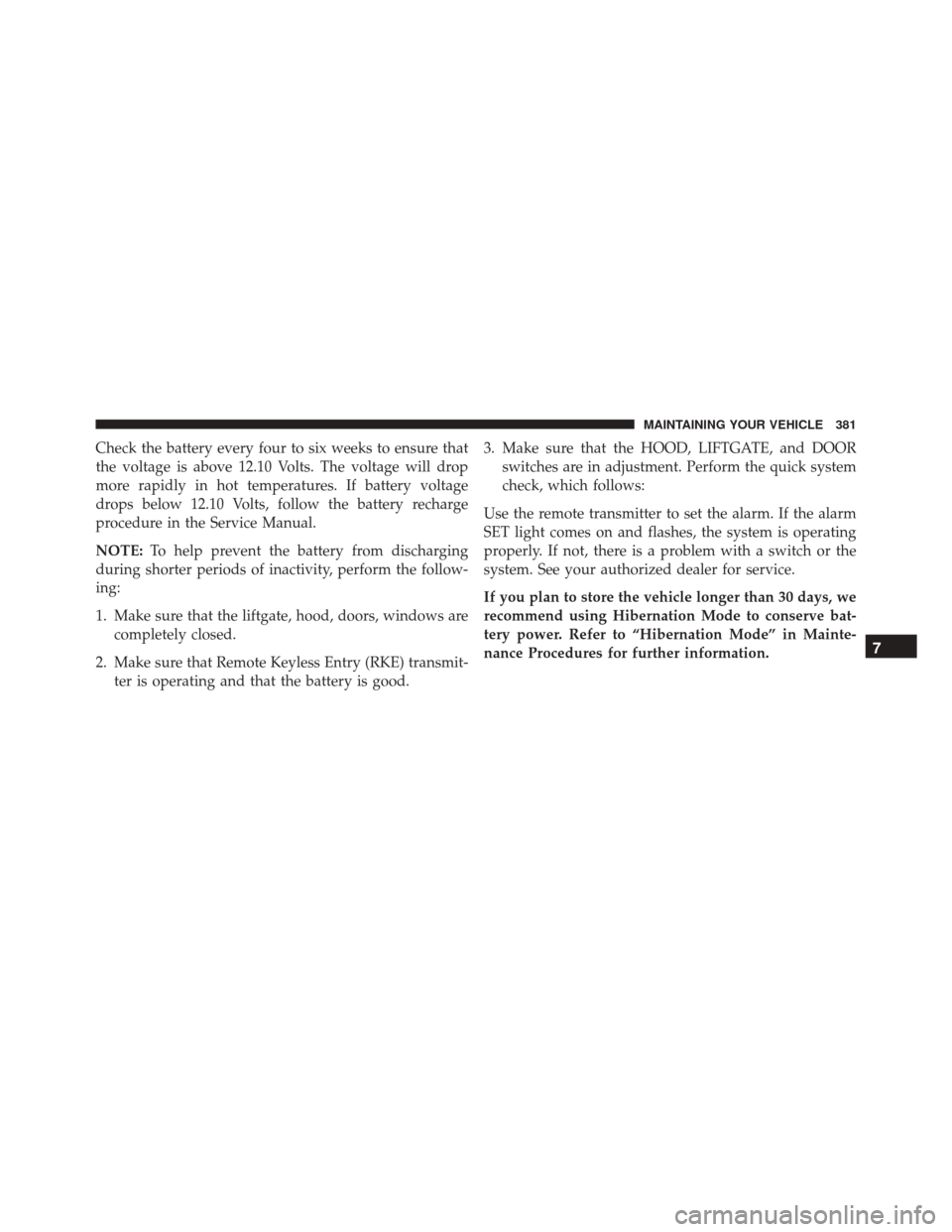

Check the battery every four to six weeks to ensure that
the voltage is above 12.10 Volts. The voltage will drop
more rapidly in hot temperatures. If battery voltage
drops below 12.10 Volts, follow the battery recharge
procedure in the Service Manual.
NOTE:To help prevent the battery from discharging
during shorter periods of inactivity, perform the follow-
ing:
1. Make sure that the liftgate, hood, doors, windows are completely closed.
2. Make sure that Remote Keyless Entry (RKE) transmit- ter is operating and that the battery is good. 3. Make sure that the HOOD, LIFTGATE, and DOOR
switches are in adjustment. Perform the quick system
check, which follows:
Use the remote transmitter to set the alarm. If the alarm
SET light comes on and flashes, the system is operating
properly. If not, there is a problem with a switch or the
system. See your authorized dealer for service.
If you plan to store the vehicle longer than 30 days, we
recommend using Hibernation Mode to conserve bat-
tery power. Refer to “Hibernation Mode” in Mainte-
nance Procedures for further information.
7
MAINTAINING YOUR VEHICLE 381

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Message Center Indicators Serviced at Authorized Dealer
Cluster LED (Serviced at Authorized Dealer)
Gauge Pack Serviced at Authorized Dealer
Heater Control Serviced at Authorized Dealer
Interior Lamp LED (Serviced at Authorized Dealer)
Courtesy Foot Well Lights W3W
Cargo Lamp (Coupe Liftgate) LED (Serviced at Authorized Dealer)
Exterior Bulbs
Bulb Number
Low/High Beam Headlamp HID (Serviced at Authorized Dealer)
Front Park/Turn Signal Lamp LED (Serviced at Authorized Dealer)
Daytime Running Lamp (DRL) LED (Serviced at Authorized Dealer)
382 MAINTAINING YOUR VEHICLE

Bulb Number
Front Side Marker Lamp 2821M
Center High Mounted Stop Lamp (CHMSL) LED (Serviced at Authorized Dealer)
Tail/Stop/Turn Signal Lamp LED (Serviced at Authorized Dealer)
Rear Marker Lamp 2821M
Backup Lamp LED (Serviced at Authorized Dealer)
License Lamp LED (Serviced at Authorized Dealer)
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Front Headlamp, Front Park/Turn Signal Lamp
For bulb replacement, see your authorized dealer.
Front/Rear Side Marker Lamp
For bulb replacement, see your authorized dealer.
Taillamp, Tail/Stop Lamp
For bulb replacement, see your authorized dealer.
Rear Turn Signal Lamp
For bulb replacement, see your authorized dealer.
Backup Lamps
For bulb replacement, see your authorized dealer.
7
MAINTAINING YOUR VEHICLE 383

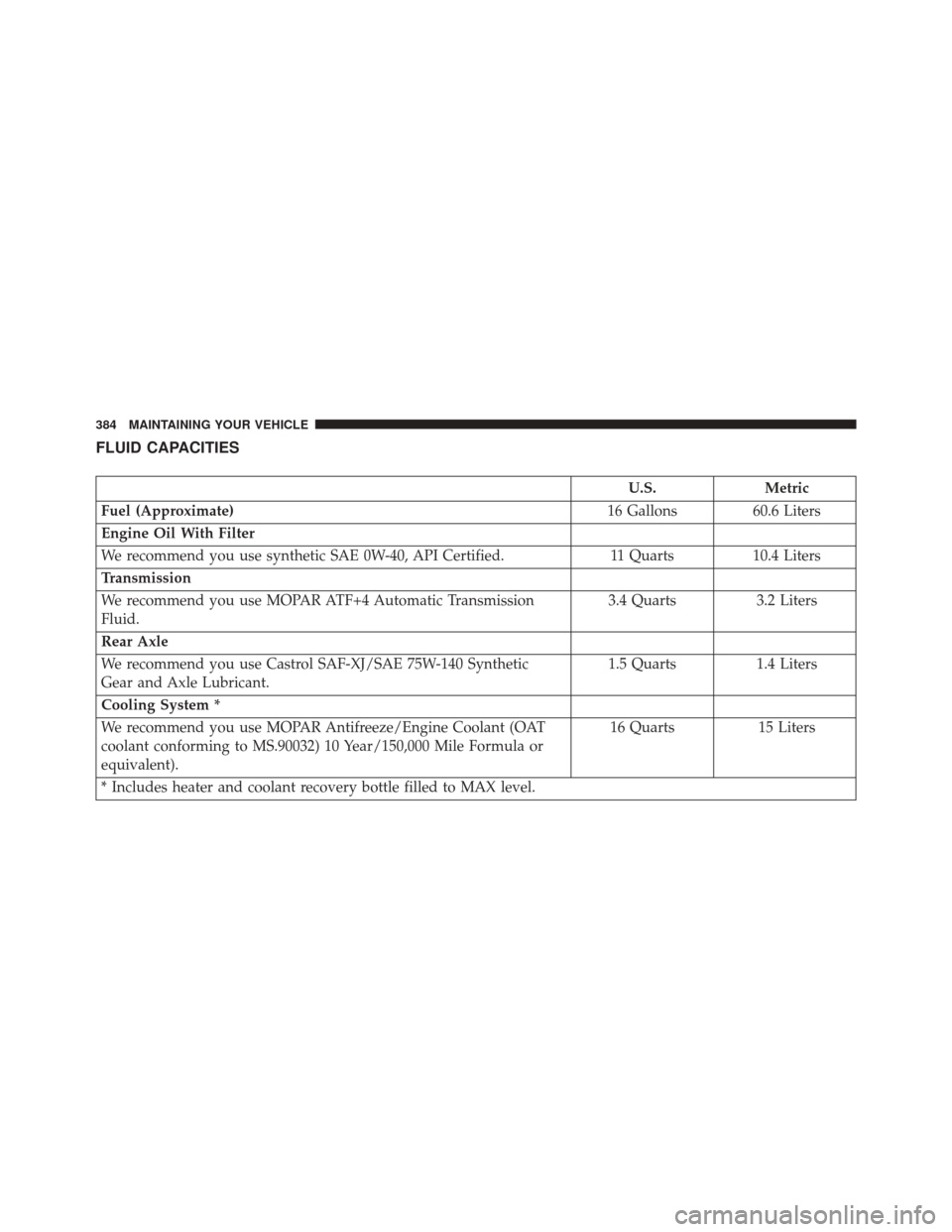

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate) 16 Gallons60.6 Liters
Engine Oil With Filter
We recommend you use synthetic SAE 0W-40, API Certified. 11 Quarts10.4 Liters
Transmission
We recommend you use MOPAR ATF+4 Automatic Transmission
Fluid. 3.4 Quarts
3.2 Liters
Rear Axle
We recommend you use Castrol SAF-XJ/SAE 75W-140 Synthetic
Gear and Axle Lubricant. 1.5 Quarts
1.4 Liters
Cooling System *
We recommend you use MOPAR Antifreeze/Engine Coolant (OAT
coolant conforming to MS.90032) 10 Year/150,000 Mile Formula or
equivalent). 16 Quarts
15 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
384 MAINTAINING YOUR VEHICLE

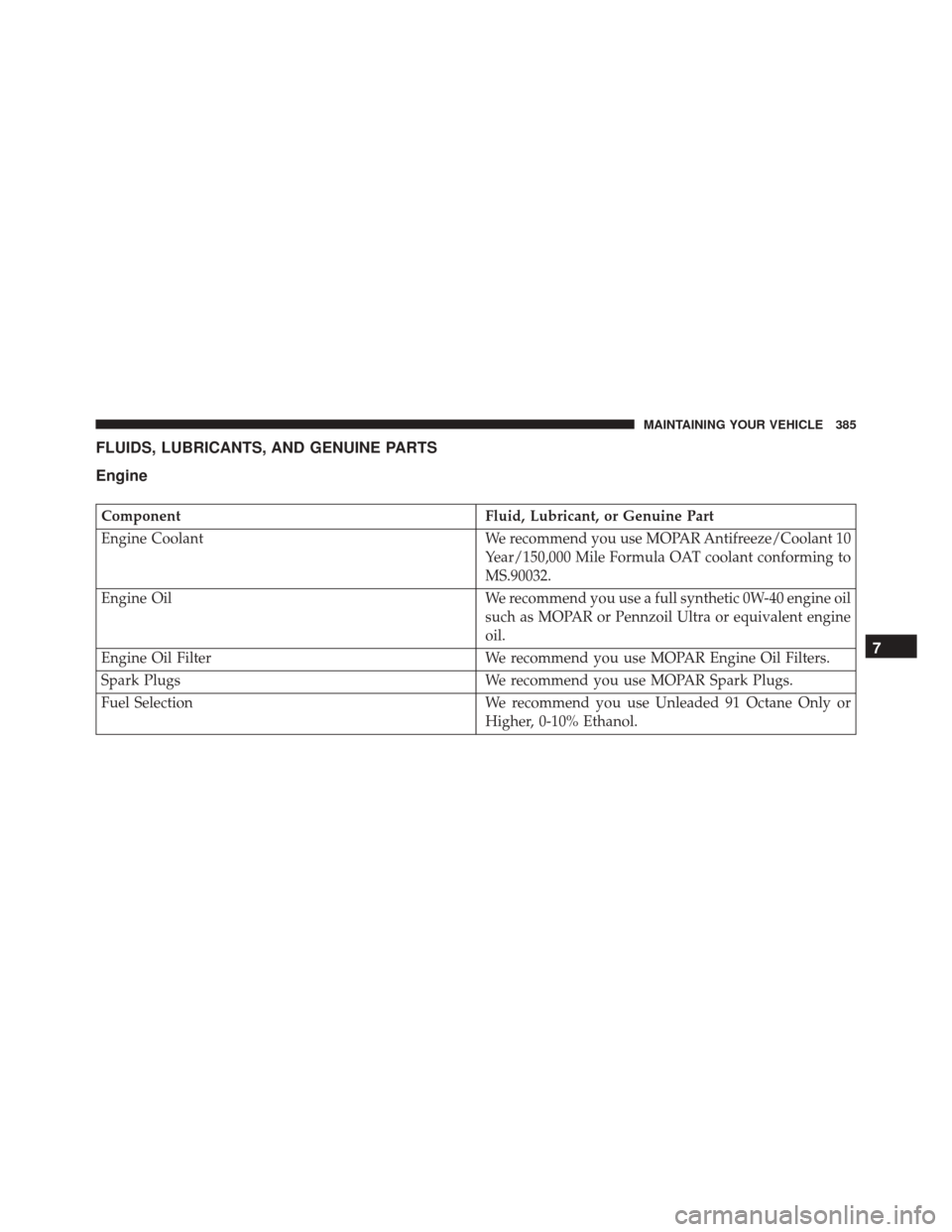

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT coolant conforming to
MS.90032.
Engine Oil We recommend you use a full synthetic 0W-40 engine oil
such as MOPAR or Pennzoil Ultra or equivalent engine
oil.
Engine Oil Filter We recommend you use MOPAR Engine Oil Filters.
Spark Plugs We recommend you use MOPAR Spark Plugs.
Fuel Selection We recommend you use Unleaded 91 Octane Only or
Higher, 0-10% Ethanol.
7
MAINTAINING YOUR VEHICLE 385

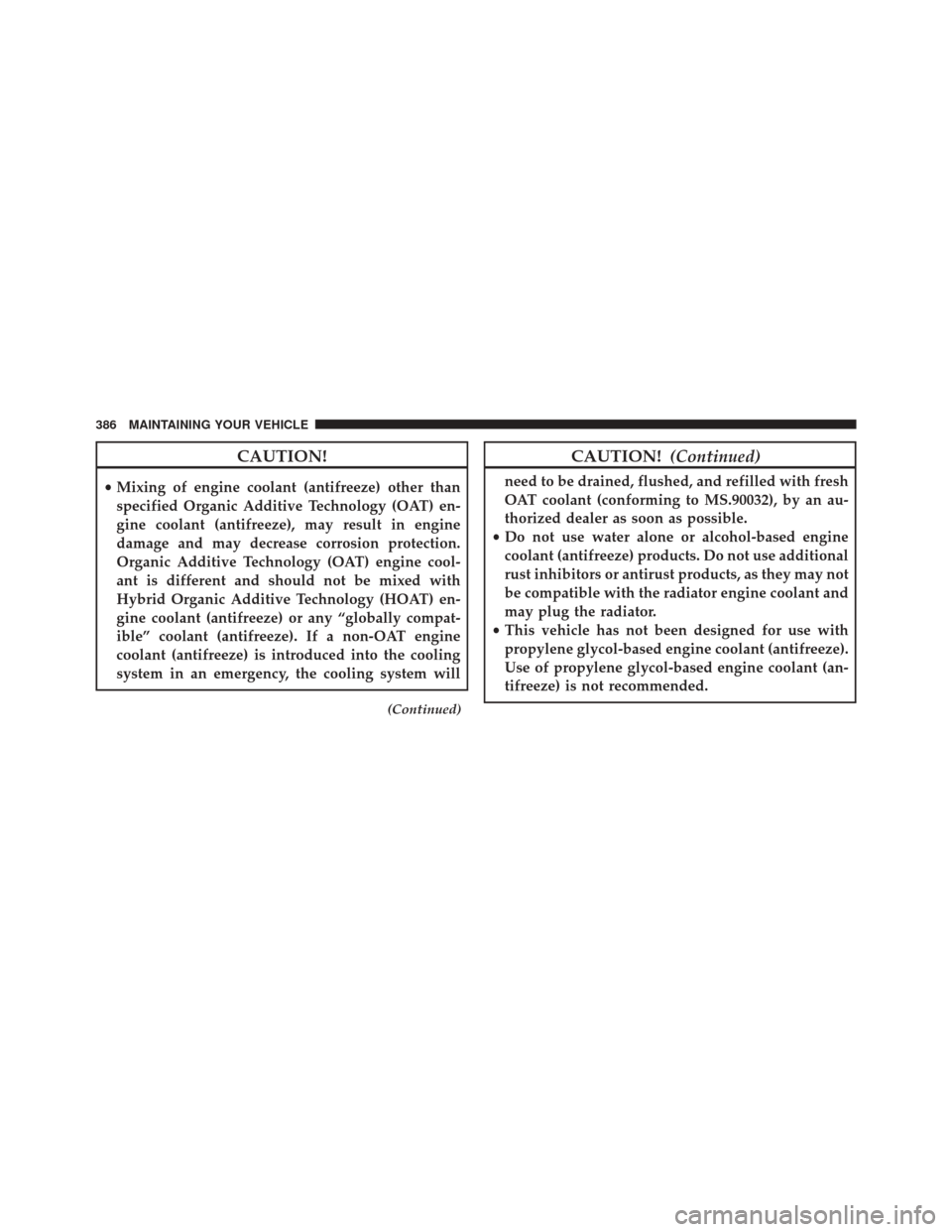

CAUTION!
•Mixing of engine coolant (antifreeze) other than
specified Organic Additive Technology (OAT) en-
gine coolant (antifreeze), may result in engine
damage and may decrease corrosion protection.
Organic Additive Technology (OAT) engine cool-
ant is different and should not be mixed with
Hybrid Organic Additive Technology (HOAT) en-
gine coolant (antifreeze) or any “globally compat-
ible” coolant (antifreeze). If a non-OAT engine
coolant (antifreeze) is introduced into the cooling
system in an emergency, the cooling system will
(Continued)
CAUTION! (Continued)
need to be drained, flushed, and refilled with fresh
OAT coolant (conforming to MS.90032), by an au-
thorized dealer as soon as possible.
• Do not use water alone or alcohol-based engine
coolant (antifreeze) products. Do not use additional
rust inhibitors or antirust products, as they may not
be compatible with the radiator engine coolant and
may plug the radiator.
• This vehicle has not been designed for use with
propylene glycol-based engine coolant (antifreeze).
Use of propylene glycol-based engine coolant (an-
tifreeze) is not recommended.
386 MAINTAINING YOUR VEHICLE

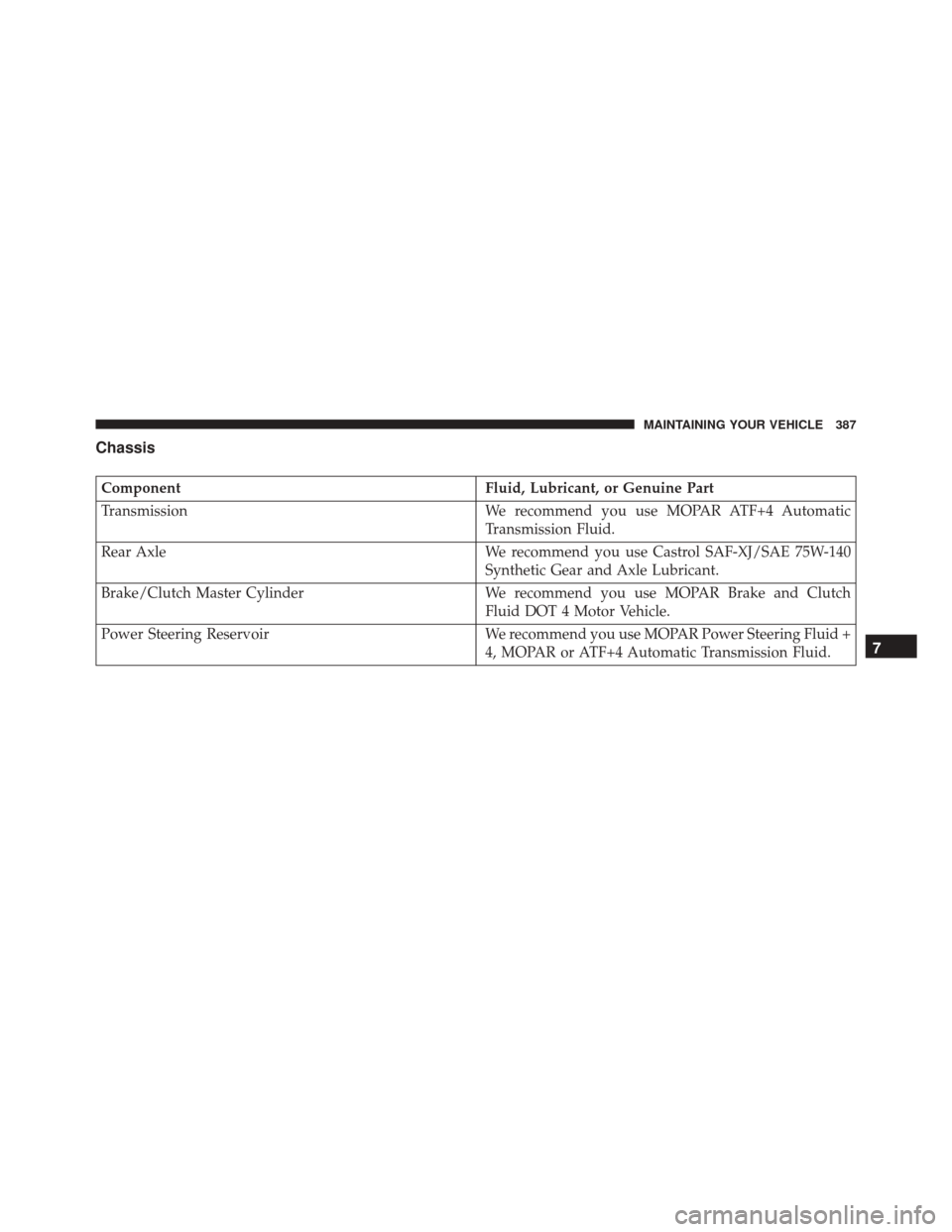

Chassis
ComponentFluid, Lubricant, or Genuine Part
Transmission We recommend you use MOPAR ATF+4 Automatic
Transmission Fluid.
Rear Axle We recommend you use Castrol SAF-XJ/SAE 75W-140
Synthetic Gear and Axle Lubricant.
Brake/Clutch Master Cylinder We recommend you use MOPAR Brake and Clutch
Fluid DOT 4 Motor Vehicle.
Power Steering Reservoir We recommend you use MOPAR Power Steering Fluid +
4, MOPAR or ATF+4 Automatic Transmission Fluid.
7
