FIAT 124 SPIDER 2019 Owner handbook (in English)

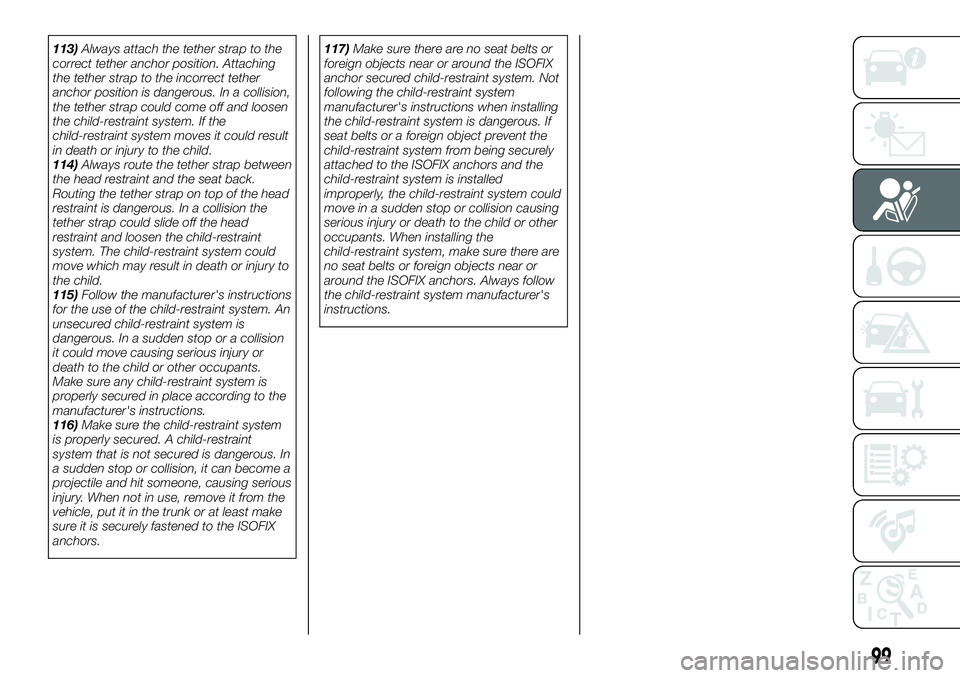

113)Always attach the tether strap to the
correct tether anchor position. Attaching
the tether strap to the incorrect tether
anchor position is dangerous. In a collision,
the tether strap could come off and loosen
the child-restraint system. If the
child-restraint system moves it could result
in death or injury to the child.
114)Always route the tether strap between
the head restraint and the seat back.
Routing the tether strap on top of the head
restraint is dangerous. In a collision the
tether strap could slide off the head
restraint and loosen the child-restraint
system. The child-restraint system could
move which may result in death or injury to
the child.
115)Follow the manufacturer's instructions
for the use of the child-restraint system. An
unsecured child-restraint system is
dangerous. In a sudden stop or a collision
it could move causing serious injury or
death to the child or other occupants.
Make sure any child-restraint system is
properly secured in place according to the
manufacturer's instructions.
116)Make sure the child-restraint system
is properly secured. A child-restraint
system that is not secured is dangerous. In
a sudden stop or collision, it can become a
projectile and hit someone, causing serious
injury. When not in use, remove it from the
vehicle, put it in the trunk or at least make
sure it is securely fastened to the ISOFIX
anchors.117)Make sure there are no seat belts or
foreign objects near or around the ISOFIX
anchor secured child-restraint system. Not
following the child-restraint system
manufacturer's instructions when installing
the child-restraint system is dangerous. If
seat belts or a foreign object prevent the
child-restraint system from being securely
attached to the ISOFIX anchors and the
child-restraint system is installed
improperly, the child-restraint system could
move in a sudden stop or collision causing
serious injury or death to the child or other
occupants. When installing the
child-restraint system, make sure there are
no seat belts or foreign objects near or
around the ISOFIX anchors. Always follow
the child-restraint system manufacturer's
instructions.
99

SUPPLEMENTARY
RESTRAINT SYSTEM
SRS - AIR BAG
SUPPLEMENTAL
RESTRAINT SYSTEM
(SRS) PRECAUTIONS
118) 119) 120)
The front and side supplementary
restraint systems (SRS) include different
types of air bags.
IMPORTANT Please verify which kinds
of air bags are equipped on your
vehicle by locating the “SRS AIR BAG”
location indicators.
These indicators are visible in the area
where the air bags are installed.
The air bags are installed in the
following locations:
the steering wheel hub (driver air
bag);
the passenger dashboard (passenger
air bag);
the outer sides of the seat backs
(side air bags).The air bag supplementary restraint
systems are designed to provide
supplementary protection in certain
situations so seat belts are always
important in the following ways.
Without seat belt usage, the air bags
cannot provide adequate protection
during an accident. Seat belt usage is
necessary to:
keep the occupant from being
thrown into an inflating air bag;
reduce the possibility of injuries
during an accident that is not designed
for air bag inflation, such as roll-over or
rear impact;
reduce the possibility of injuries in
frontal, near frontal or side collisions
that are not severe enough to activate
the air bags;
reduce the possibility of being thrown
from your vehicle;
reduce the possibility of injuries to
lower body and legs during an accident
because the air bags provide no
protection to these parts of the body;
hold the driver in a position which
allows better control of the vehicle.A child who is too small to use a seat
belt must be properly secured using a
child restraint system.
Carefully consider which child restraint
system is necessary for your child and
follow the installation directions in this
Owner Handbook as well as the child
restraint system manufacturer's
instructions.
100
SAFETY

SUPPLEMENTARY RESTRAINT SYSTEM COMPONENTS
1Driver/Passenger inflators and air bags
2Crash sensors and diagnostic module (SAS unit)
3Seat belt pretensioners
4Front air bag sensors
5Side crash sensors
6Air bag/seat belt pretensioner system warning light
7Side inflators and air bags
8Passenger air bag deactivation indicator light
9Passenger occupant classification sensor
10Passenger occupant classification module
7503040300-121-002
101

HOW THE SRS AIR BAGS
WORK
121) 122) 123) 124) 125) 126) 127) 128) 129) 130) 131) 134)
139)
Your vehicle is equipped with the
following types of SRS air bags. SRS air
bags are designed to work together
with the seat belts to help to reduce
injuries during an accident. The SRS air
bags are designed to provide further
protection for passengers in addition to
the seat belt functions. Be sure to wear
seat belts properly.
Seat Belt Pretensioners
The seat belt pretensioners are
designed to deploy in moderate or
severe frontal, near frontal collisions. In
addition, during a side collision, the
pretensioner operates on the side in
which the collision occurs. The
pretensioners operate differently
depending on what types of air bags
are equipped. For more details about
seat belt pretensioner operation, refer
to the SRS Air Bag Deployment Criteria.
Driver Air Bag
The driver's air bag is mounted in the
steering wheel fig. 76.When air bag crash sensors detect a
frontal impact of greater than moderate
force, the driver's air bag inflates quickly
helping to reduce injury mainly to the
driver's head or chest caused by
directly hitting the steering wheel. For
more details about air bag deployment,
refer to “SRS Air Bag deployment
criteria” in this chapter.
Passenger Air Bag
(Single stage)
The passenger air bag is mounted in
the passenger dashboard fig. 77.The inflation mechanism for the
passenger air bag is the same as the
driver's air bag. For more details about
air bag deployment, refer to "SRS Air
Bag deployment criteria" in this chapter.
In addition, the passenger air bag is
designed to only deploy when the
passenger occupant classification
sensor detects a passenger sitting on
the passenger's seat. For more details
about air bag deployment, refer to
"SRS Air Bag deployment criteria" in
this chapter.
7606010203-126-1237706010204-126-123
102
SAFETY

Side Air Bags
The side air bags are mounted in the
outer sides of the seat backs fig. 78.
When the air bag crash sensors detect
a side impact of greater than moderate
force, the system inflates the side air
bag only on the side in which the
vehicle was hit.
The side air bag inflates quickly to
reduce injury to the driver or
passenger's head and chest caused by
directly hitting interior parts such as adoor or window. For more details about
air bag deployment, refer to "SRS Air
Bag deployment criteria" in this chapter.
In addition, the passenger side bag is
designed to only deploy when the
passenger occupant classification
sensor detects a passenger sitting on
the passenger's seat.
Warning Light/Beep
A system malfunction or operation
conditions are indicated by a warning.
Refer to “Warning lights and messages”
paragraph in “Knowing your instrument
panel” chapter. Refer to “Warning
sound is activated” paragraph in
“Knowing your instrument panel”
chapter.Passenger side front air bag and
child-restraint systems
Rearward-facing child restraint systems
mustNEVERbe fitted on the front seat
with an active passenger side air bag
since in the event of an impact the air
bag activation may cause fatal injuries
to the transported child.
ALWAYScomply with the instructions
on the label stuck on the passenger
side sun visor fig. 79.
7806010205-126-123
7903030100-133-555
103

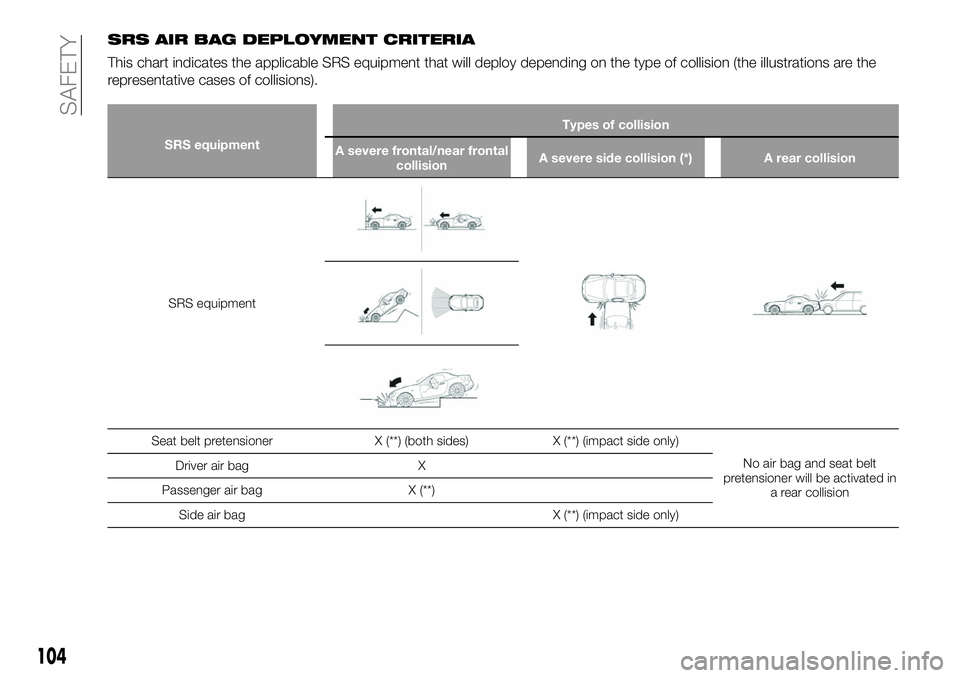

SRS AIR BAG DEPLOYMENT CRITERIA
This chart indicates the applicable SRS equipment that will deploy depending on the type of collision (the illustrations are the
representative cases of collisions).
SRS equipmentTypes of collision
A severe frontal/near frontal
collisionA severe side collision (*) A rear collision
SRS equipment
Seat belt pretensioner X (**) (both sides) X (**) (impact side only)
No air bag and seat belt
pretensioner will be activated in
a rear collision Driver air bag X
Passenger air bag X (**)
Side air bag X (**) (impact side only)
104
SAFETY

X: the SRS air bag equipment is designed to deploy in a collision.
(*) In a side collision, the seat belt pretensioners and the side air bags deploy (only on the side in which the collision occurs).
(**) The passenger front and side air bags and the seat belt pretensioner are designed to deploy when the passenger occupant
classification sensor detects a passenger sitting on the passenger's seat.
IMPORTANT In a frontal offset collision, the equipped air bags and pretensioners may all deploy depending on the direction,
angle, and rate of impact.
105

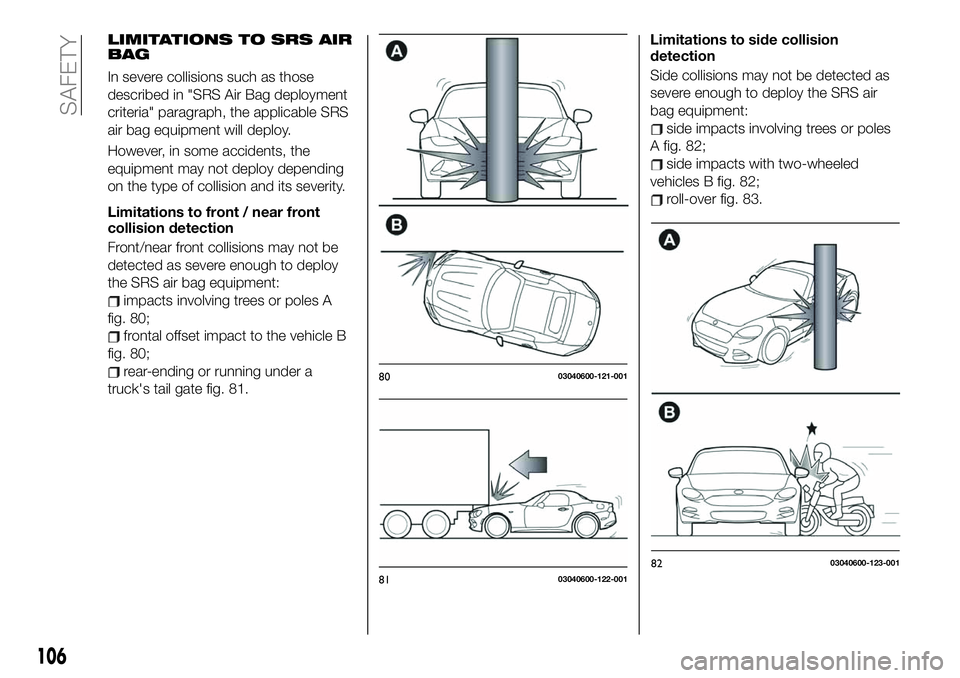

LIMITATIONS TO SRS AIR
BAG
In severe collisions such as those
described in "SRS Air Bag deployment
criteria" paragraph, the applicable SRS
air bag equipment will deploy.
However, in some accidents, the
equipment may not deploy depending
on the type of collision and its severity.
Limitations to front / near front
collision detection
Front/near front collisions may not be
detected as severe enough to deploy
the SRS air bag equipment:
impacts involving trees or poles A
fig. 80;
frontal offset impact to the vehicle B
fig. 80;
rear-ending or running under a
truck's tail gate fig. 81.Limitations to side collision
detection
Side collisions may not be detected as
severe enough to deploy the SRS air
bag equipment:
side impacts involving trees or poles
A fig. 82;
side impacts with two-wheeled
vehicles B fig. 82;
roll-over fig. 83.
8003040600-121-001
8103040600-122-001
106
SAFETY
8203040600-123-001

PASSENGER OCCUPANT
CLASSIFICATION
SYSTEM
134) 139)
First, please read "Supplemental
Restraint System (SRS) Precautions"
carefully.
Passenger occupant classification
sensor
Your vehicle is equipped with a
passenger occupant classification
sensor as a part of the supplementary
restraint system. This sensor is
equipped in the passenger's seat
cushion. This sensor measures the
electrostatic capacity of the
passenger's seat.The SAS unit is designed to prevent the
passenger front and side air bags and
seat belt pretensioner system from
deploying if the passenger air bag
deactivation indicator light turns on.
To reduce the chance of injuries caused
by deployment of the passenger air
bag, the system deactivates the
passenger front and side air bags and
also the seat belt pretensioner system
when the passenger air bag
deactivation indicator light turns on.
This system shuts off the passenger
front and side air bags and seat belt
pretensioner system, so make sure the
passenger air bag deactivation indicator
light turns on.
The air bag/seat belt pretensioner
system warning light flashes and the
passenger air bag deactivation indicator
light illuminates if the sensors have a
possible malfunction. If this happens,
the passenger front and side air bags
and seat belt pretensioner system will
not deploy.
IMPORTANT Under the following
conditions fig. 84, the passenger
occupant classification sensor cannot
detect a passenger sitting on the
passenger's seat correctly and the
deployment/non-deployment of the air
bags cannot be controlled as indicated
in the passenger air bag deactivation
indicator light on/off condition chart.
light on/off condition chart.
8403040702-12A-001
107
8303040600-124-002

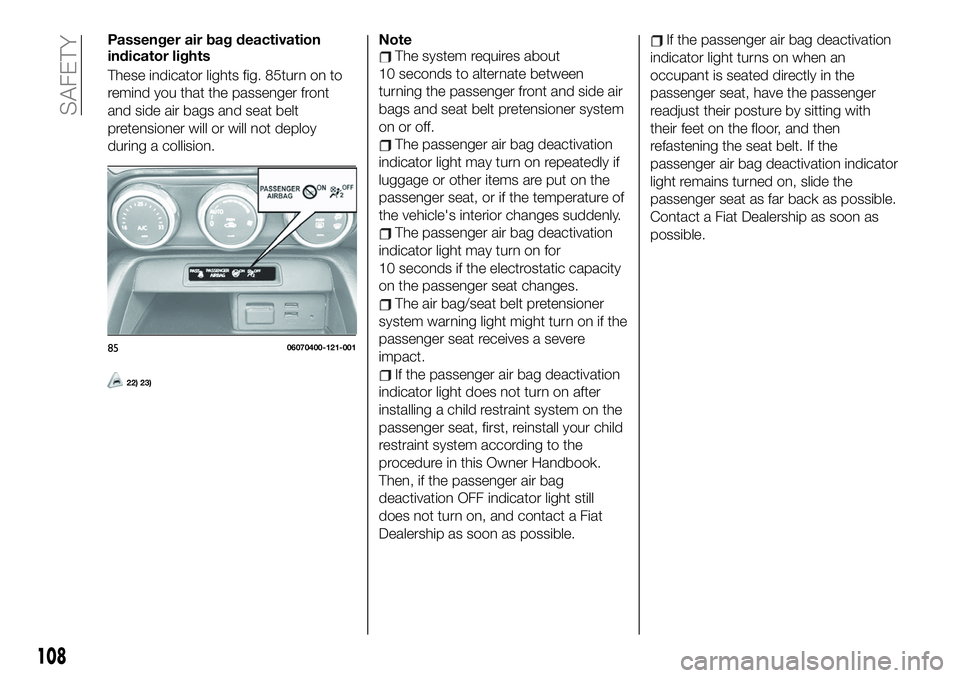

Passenger air bag deactivation
indicator lights
These indicator lights fig. 85turn on to
remind you that the passenger front
and side air bags and seat belt
pretensioner will or will not deploy
during a collision.
22) 23)
NoteThe system requires about
10 seconds to alternate between
turning the passenger front and side air
bags and seat belt pretensioner system
on or off.
The passenger air bag deactivation
indicator light may turn on repeatedly if
luggage or other items are put on the
passenger seat, or if the temperature of
the vehicle's interior changes suddenly.
The passenger air bag deactivation
indicator light may turn on for
10 seconds if the electrostatic capacity
on the passenger seat changes.
The air bag/seat belt pretensioner
system warning light might turn on if the
passenger seat receives a severe
impact.
If the passenger air bag deactivation
indicator light does not turn on after
installing a child restraint system on the
passenger seat, first, reinstall your child
restraint system according to the
procedure in this Owner Handbook.
Then, if the passenger air bag
deactivation OFF indicator light still
does not turn on, and contact a Fiat
Dealership as soon as possible.
If the passenger air bag deactivation
indicator light turns on when an
occupant is seated directly in the
passenger seat, have the passenger
readjust their posture by sitting with
their feet on the floor, and then
refastening the seat belt. If the
passenger air bag deactivation indicator
light remains turned on, slide the
passenger seat as far back as possible.
Contact a Fiat Dealership as soon as
possible.
8506070400-121-001
108
SAFETY
