passenger window can be fully opened
automatically using the master control
switches.
If the automatic power window
operation does not operate normally
while the doors or convertible top are
opened/closed, reset it using the
previous procedures.

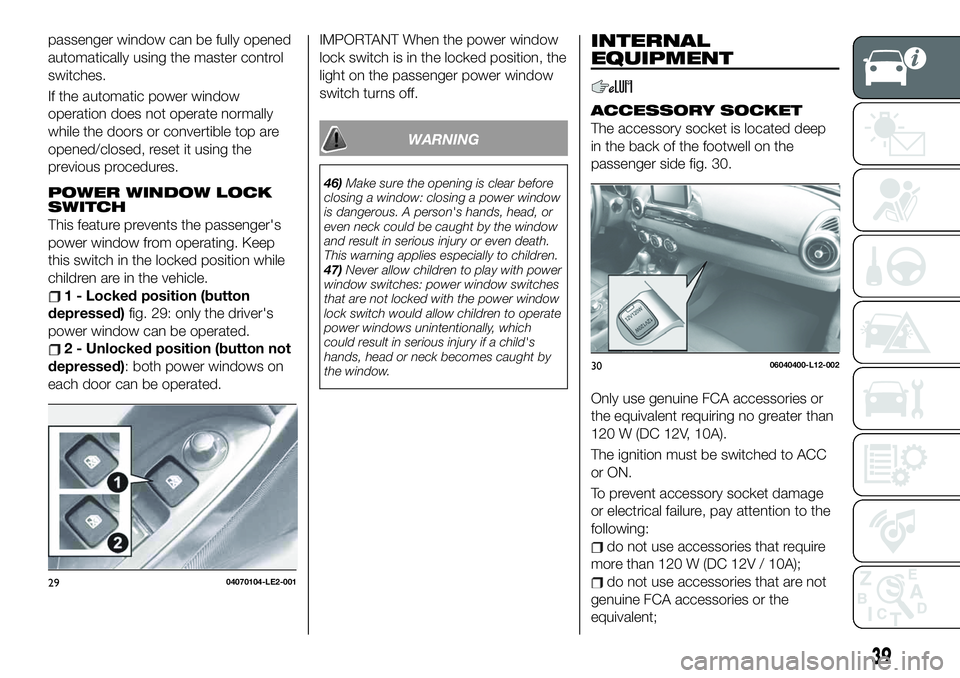

POWER WINDOW LOCK
SWITCH
This feature prevents the passenger's
power window from operating. Keep
this switch in the locked position while
children are in the vehicle.
1 - Locked position (button
depressed)fig. 29: only the driver's
power window can be operated.
2 - Unlocked position (button not
depressed): both power windows on
each door can be operated.
IMPORTANT When the power window
lock switch is in the locked position, the
light on the passenger power window
switch turns off.
WARNING
46)Make sure the opening is clear before
closing a window: closing a power window
is dangerous. A person's hands, head, or
even neck could be caught by the window
and result in serious injury or even death.
This warning applies especially to children.
47)Never allow children to play with power
window switches: power window switches
that are not locked with the power window
lock switch would allow children to operate
power windows unintentionally, which
could result in serious injury if a child's
hands, head or neck becomes caught by
the window.
INTERNAL
EQUIPMENT
ACCESSORY SOCKET
The accessory socket is located deep
in the back of the footwell on the
passenger side fig. 30.
Only use genuine FCA accessories or
the equivalent requiring no greater than
120 W (DC 12V, 10A).
The ignition must be switched to ACC
or ON.
To prevent accessory socket damage
or electrical failure, pay attention to the
following:
do not use accessories that require
more than 120 W (DC 12V / 10A);
do not use accessories that are not
genuine FCA accessories or the
equivalent;2904070104-LE2-001
3006040400-L12-002
39

close the cover when the accessory
socket is not in use to prevent foreign
objects and liquids from getting into the
accessory socket;
correctly insert the plug into the
accessory socket;
do not insert the cigarette lighter into
the accessory socket;
noise may occur on the audio
playback depending on the device
connected to the accessory socket;
depending on the device connected
to the accessory socket, the vehicle's
electrical system may be affected,
which could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem
is resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off. If the
problem is not resolved, contact a Fiat
Dealership.
IMPORTANT To prevent discharging of
the battery, do not use the socket for
long periods with the engine off or
idling.

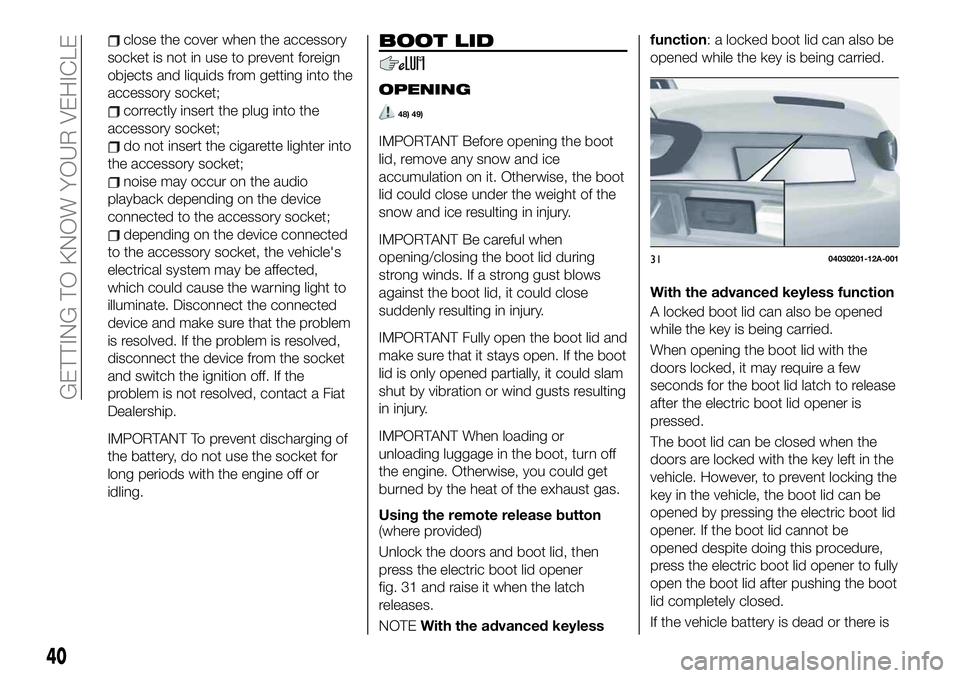

BOOT LID
OPENING
48) 49)
IMPORTANT Before opening the boot
lid, remove any snow and ice
accumulation on it. Otherwise, the boot
lid could close under the weight of the
snow and ice resulting in injury.
IMPORTANT Be careful when
opening/closing the boot lid during
strong winds. If a strong gust blows
against the boot lid, it could close
suddenly resulting in injury.
IMPORTANT Fully open the boot lid and
make sure that it stays open. If the boot
lid is only opened partially, it could slam
shut by vibration or wind gusts resulting
in injury.
IMPORTANT When loading or
unloading luggage in the boot, turn off
the engine. Otherwise, you could get
burned by the heat of the exhaust gas.
Using the remote release button
(where provided)
Unlock the doors and boot lid, then
press the electric boot lid opener
fig. 31 and raise it when the latch
releases.
NOTEWith the advanced keylessfunction: a locked boot lid can also be
opened while the key is being carried.
With the advanced keyless function
A locked boot lid can also be opened
while the key is being carried.
When opening the boot lid with the
doors locked, it may require a few
seconds for the boot lid latch to release
after the electric boot lid opener is
pressed.
The boot lid can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the boot lid can be
opened by pressing the electric boot lid
opener. If the boot lid cannot be
opened despite doing this procedure,
press the electric boot lid opener to fully
open the boot lid after pushing the boot
lid completely closed.
If the vehicle battery is dead or there is
3104030201-12A-001
40
GETTING TO KNOW YOUR VEHICLE

a malfunction in the electrical system
and the boot lid cannot be unlocked,
the boot lid can be opened by
performing the emergency procedure
(refer to “When the boot lid cannot be
opened” paragraph in this chapter).

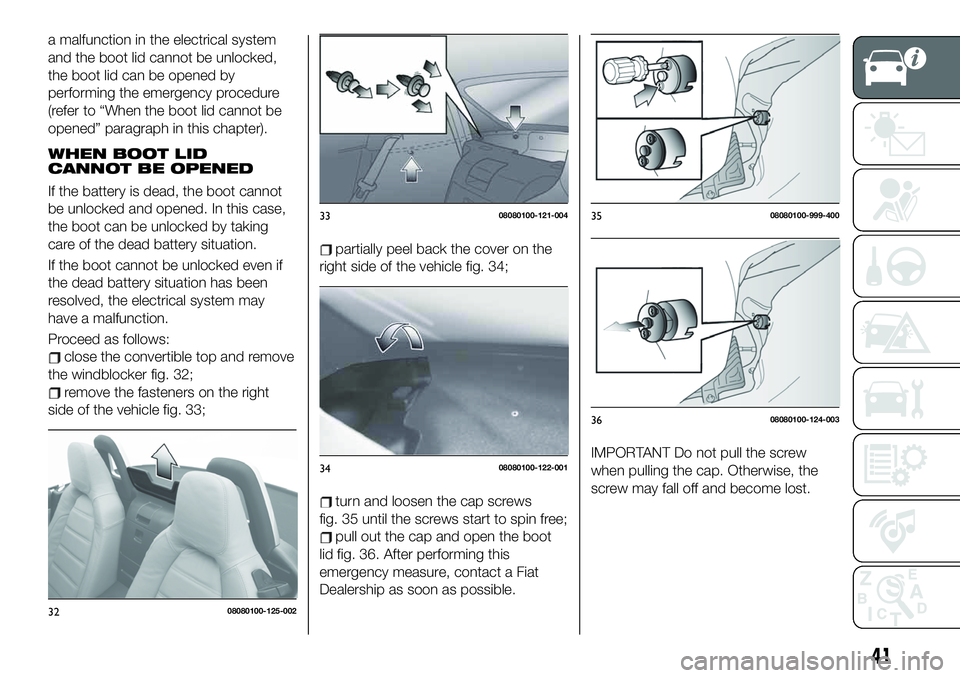

WHEN BOOT LID
CANNOT BE OPENED
If the battery is dead, the boot cannot
be unlocked and opened. In this case,
the boot can be unlocked by taking
care of the dead battery situation.
If the boot cannot be unlocked even if
the dead battery situation has been
resolved, the electrical system may
have a malfunction.
Proceed as follows:
close the convertible top and remove
the windblocker fig. 32;
remove the fasteners on the right
side of the vehicle fig. 33;
partially peel back the cover on the
right side of the vehicle fig. 34;
turn and loosen the cap screws
fig. 35 until the screws start to spin free;
pull out the cap and open the boot
lid fig. 36. After performing this
emergency measure, contact a Fiat
Dealership as soon as possible.
IMPORTANT Do not pull the screw
when pulling the cap. Otherwise, the
screw may fall off and become lost.
3208080100-125-002
3308080100-121-004
3408080100-122-001
3508080100-999-400
3608080100-124-003
41

CLOSING
50) 51)
Use both hands to push the boot lid
down until the lock snaps shut. Do not
slam it.
Pull up on the boot lid to make sure it is
secure.
WARNING
48)Never allow a person to ride in the
boot: allowing a person to ride in the boot
is dangerous. The person in the boot could
be seriously injured or killed during sudden
braking or a collision.
49)Do not drive with the boot lid open:
exhaust gas in the cabin of a vehicle is
dangerous. An open boot lid in a moving
vehicle will cause exhaust gas to be drawn
into the cabin. This gas contains CO
(carbon monoxide), which is colourless,
odourless, and highly poisonous, and it
can cause loss of consciousness and
death. Moreover, an open boot lid could
cause occupants to fall out in an accident.
50)Close the boot lid, do not allow
children to play inside the boot lid. Leaving
the trunk lid open or leaving children in the
vehicle with the keys is dangerous.
Children could open the boot lid and climb
inside resulting in possible injury or death
from heat exposure.51)Always keep the car from being a
tempting place to play by latching the
doors and the boot lid, and keeping the
keys where children can not play with
them. Leaving children or animals
unattended in a parked vehicle is
dangerous. Babies left sleeping and
children who lock themselves in cars or
trunks can die very quickly from heat
prostration. Do not leave your children or
pets alone in a car at any time. Do not
leave the car, the boot lid unlocked.

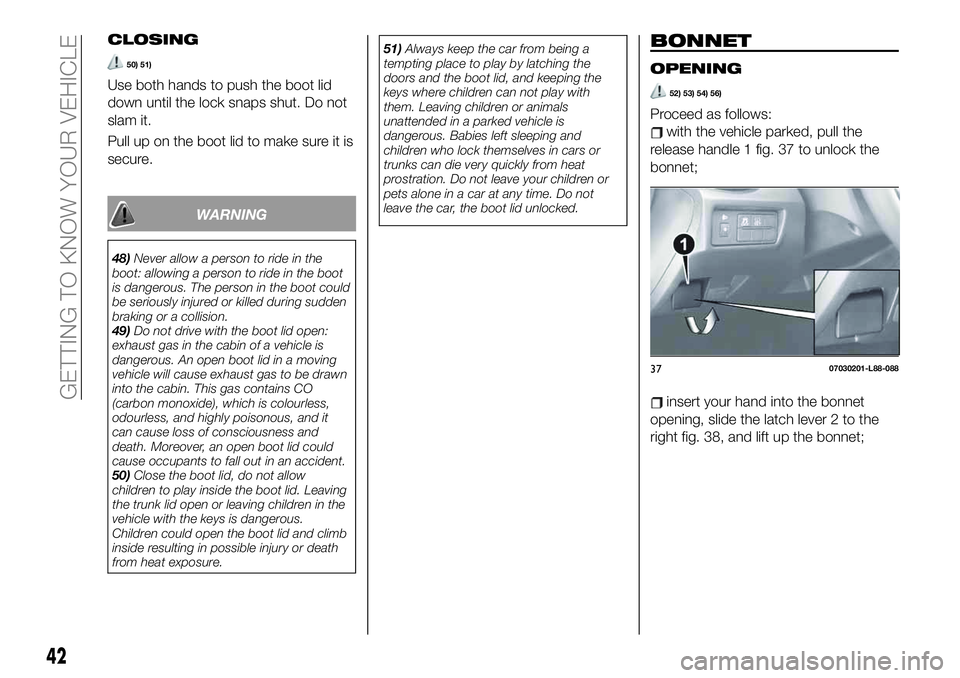

BONNET
OPENING
52) 53) 54) 56)
Proceed as follows:
with the vehicle parked, pull the
release handle 1 fig. 37 to unlock the
bonnet;
insert your hand into the bonnet
opening, slide the latch lever 2 to the
right fig. 38, and lift up the bonnet;
3707030201-L88-088
42
GETTING TO KNOW YOUR VEHICLE

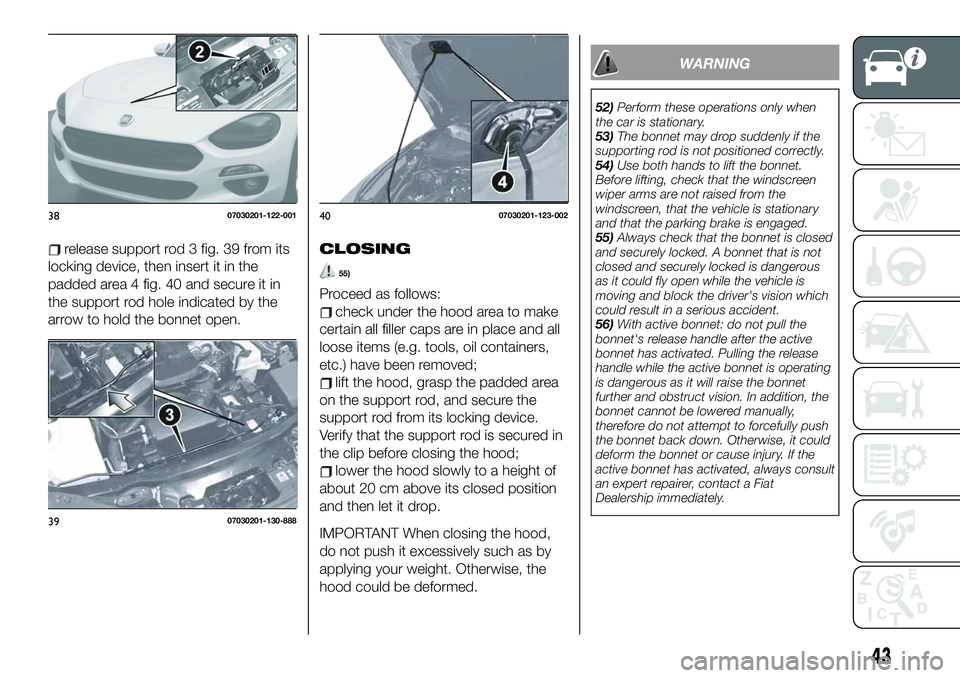

release support rod 3 fig. 39 from its
locking device, then insert it in the
padded area 4 fig. 40 and secure it in
the support rod hole indicated by the
arrow to hold the bonnet open.CLOSING
55)
Proceed as follows:
check under the hood area to make
certain all filler caps are in place and all
loose items (e.g. tools, oil containers,
etc.) have been removed;
lift the hood, grasp the padded area
on the support rod, and secure the
support rod from its locking device.
Verify that the support rod is secured in
the clip before closing the hood;
lower the hood slowly to a height of
about 20 cm above its closed position
and then let it drop.
IMPORTANT When closing the hood,
do not push it excessively such as by
applying your weight. Otherwise, the
hood could be deformed.
WARNING
52)Perform these operations only when
the car is stationary.
53)The bonnet may drop suddenly if the
supporting rod is not positioned correctly.
54)Use both hands to lift the bonnet.
Before lifting, check that the windscreen
wiper arms are not raised from the
windscreen, that the vehicle is stationary
and that the parking brake is engaged.
55)Always check that the bonnet is closed
and securely locked. A bonnet that is not
closed and securely locked is dangerous
as it could fly open while the vehicle is
moving and block the driver's vision which
could result in a serious accident.
56)With active bonnet: do not pull the
bonnet's release handle after the active
bonnet has activated. Pulling the release
handle while the active bonnet is operating
is dangerous as it will raise the bonnet
further and obstruct vision. In addition, the
bonnet cannot be lowered manually,
therefore do not attempt to forcefully push
the bonnet back down. Otherwise, it could
deform the bonnet or cause injury. If the
active bonnet has activated, always consult
an expert repairer, contact a Fiat
Dealership immediately.
3807030201-122-001
3907030201-130-888
4007030201-123-002
43

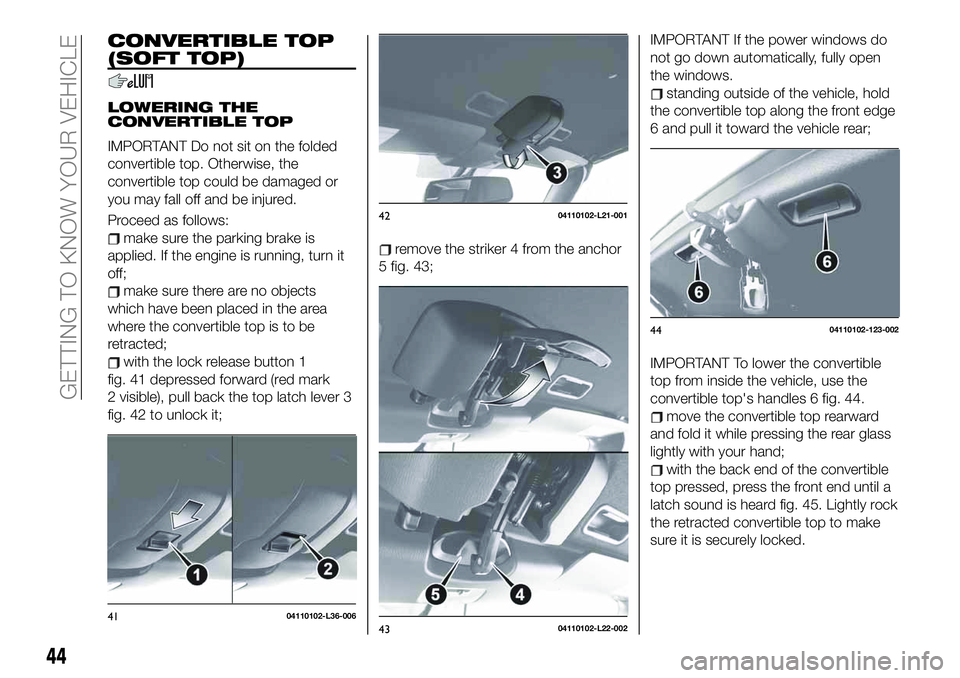

CONVERTIBLE TOP
(SOFT TOP)
LOWERING THE
CONVERTIBLE TOP
IMPORTANT Do not sit on the folded
convertible top. Otherwise, the
convertible top could be damaged or
you may fall off and be injured.
Proceed as follows:
make sure the parking brake is
applied. If the engine is running, turn it
off;
make sure there are no objects
which have been placed in the area
where the convertible top is to be
retracted;
with the lock release button 1
fig. 41 depressed forward (red mark
2 visible), pull back the top latch lever 3
fig. 42 to unlock it;
remove the striker 4 from the anchor
5 fig. 43;
IMPORTANT If the power windows do
not go down automatically, fully open
the windows.
standing outside of the vehicle, hold
the convertible top along the front edge
6 and pull it toward the vehicle rear;
IMPORTANT To lower the convertible
top from inside the vehicle, use the
convertible top's handles 6 fig. 44.
move the convertible top rearward
and fold it while pressing the rear glass
lightly with your hand;
with the back end of the convertible
top pressed, press the front end until a
latch sound is heard fig. 45. Lightly rock
the retracted convertible top to make
sure it is securely locked.
4104110102-L36-006
4204110102-L21-001
4304110102-L22-002
4404110102-123-002
44
GETTING TO KNOW YOUR VEHICLE

RAISING THE
CONVERTIBLE TOP
Proceed as follows:
make sure the parking brake is
applied. If the engine is running, turn it
off;
pull up the unlock lever 1 to

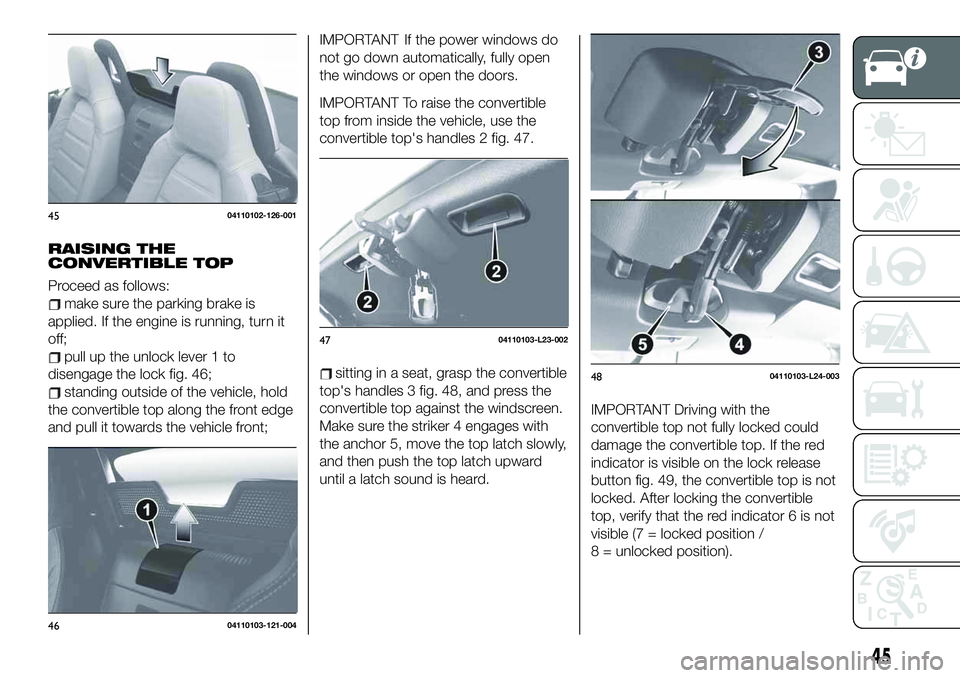

disengage the lock fig. 46;
standing outside of the vehicle, hold
the convertible top along the front edge
and pull it towards the vehicle front;
IMPORTANTIf the power windows do
not go down automatically, fully open
the windows or open the doors.
IMPORTANT To raise the convertible
top from inside the vehicle, use the
convertible top's handles 2 fig. 47.
sitting in a seat, grasp the convertible
top's handles 3 fig. 48, and press the
convertible top against the windscreen.
Make sure the striker 4 engages with
the anchor 5, move the top latch slowly,
and then push the top latch upward
until a latch sound is heard.
IMPORTANT Driving with the
convertible top not fully locked could
damage the convertible top. If the red
indicator is visible on the lock release
button fig. 49, the convertible top is not
locked. After locking the convertible
top, verify that the red indicator 6 is not
visible (7 = locked position /
8 = unlocked position).
4504110102-126-001
4604110103-121-004
4704110103-L23-002
4804110103-L24-003
45

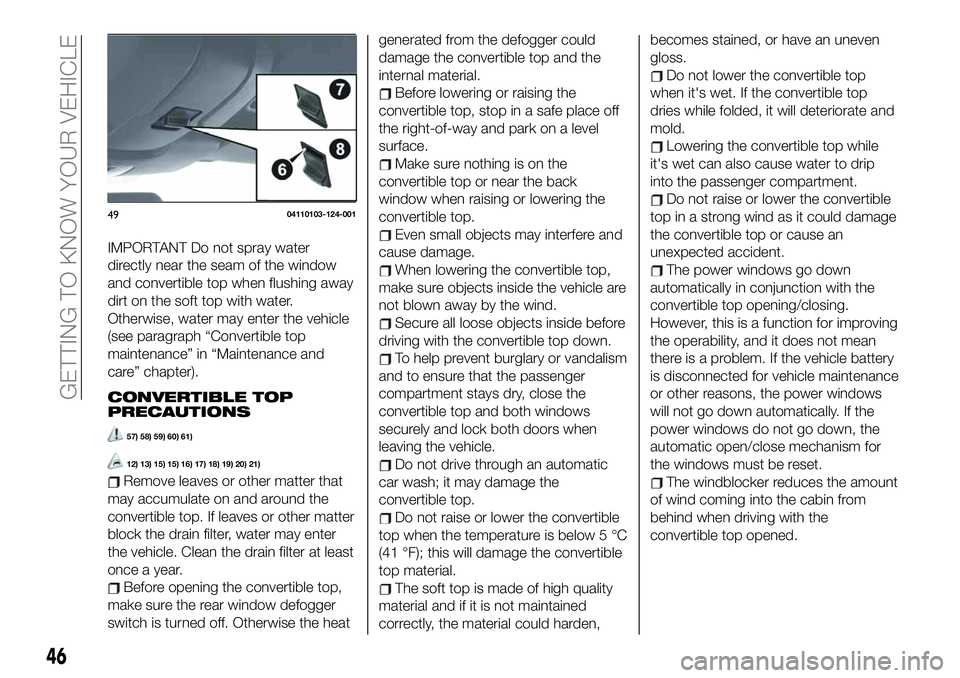

IMPORTANT Do not spray water
directly near the seam of the window
and convertible top when flushing away
dirt on the soft top with water.
Otherwise, water may enter the vehicle
(see paragraph “Convertible top
maintenance” in “Maintenance and
care” chapter).
CONVERTIBLE TOP
PRECAUTIONS
57) 58) 59) 60) 61)
12) 13) 15) 15) 16) 17) 18) 19) 20) 21)
Remove leaves or other matter that
may accumulate on and around the
convertible top. If leaves or other matter
block the drain filter, water may enter
the vehicle. Clean the drain filter at least
once a year.
Before opening the convertible top,
make sure the rear window defogger
switch is turned off. Otherwise the heatgenerated from the defogger could
damage the convertible top and the
internal material.
Before lowering or raising the
convertible top, stop in a safe place off
the right-of-way and park on a level
surface.
Make sure nothing is on the
convertible top or near the back
window when raising or lowering the
convertible top.
Even small objects may interfere and
cause damage.
When lowering the convertible top,
make sure objects inside the vehicle are
not blown away by the wind.
Secure all loose objects inside before
driving with the convertible top down.
To help prevent burglary or vandalism
and to ensure that the passenger
compartment stays dry, close the
convertible top and both windows
securely and lock both doors when
leaving the vehicle.
Do not drive through an automatic
car wash; it may damage the
convertible top.
Do not raise or lower the convertible
top when the temperature is below 5 °C
(41 °F); this will damage the convertible
top material.
The soft top is made of high quality
material and if it is not maintained
correctly, the material could harden,becomes stained, or have an uneven
gloss.
Do not lower the convertible top
when it's wet. If the convertible top
dries while folded, it will deteriorate and
mold.
Lowering the convertible top while
it's wet can also cause water to drip
into the passenger compartment.
Do not raise or lower the convertible
top in a strong wind as it could damage
the convertible top or cause an
unexpected accident.
The power windows go down
automatically in conjunction with the
convertible top opening/closing.
However, this is a function for improving
the operability, and it does not mean
there is a problem. If the vehicle battery
is disconnected for vehicle maintenance
or other reasons, the power windows
will not go down automatically. If the
power windows do not go down, the
automatic open/close mechanism for
the windows must be reset.
The windblocker reduces the amount
of wind coming into the cabin from
behind when driving with the
convertible top opened.
4904110103-124-001
46
GETTING TO KNOW YOUR VEHICLE

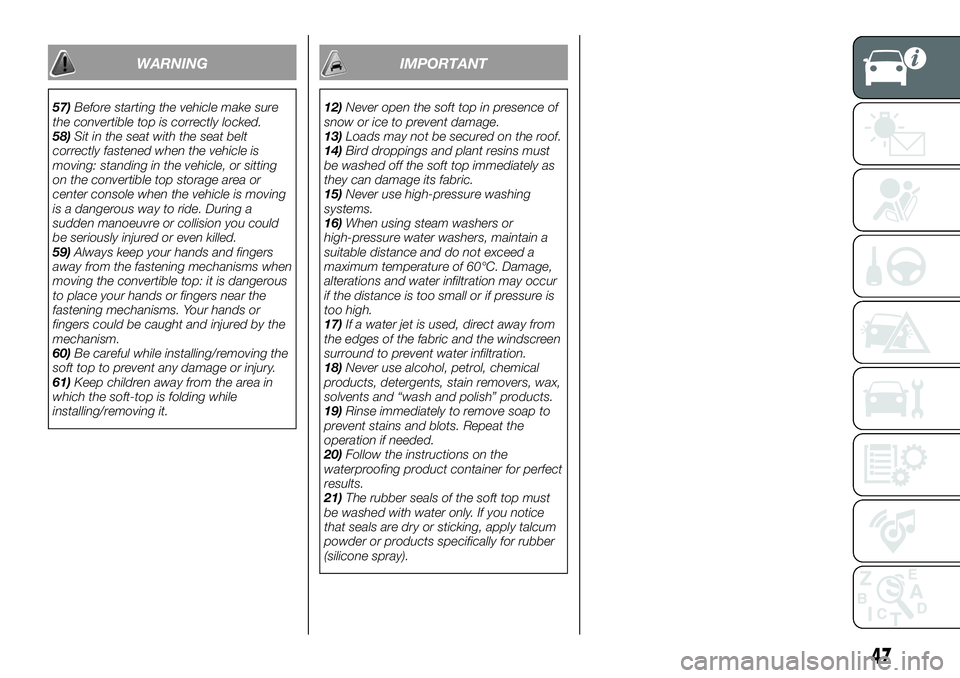

WARNING
57)Before starting the vehicle make sure
the convertible top is correctly locked.
58)Sit in the seat with the seat belt
correctly fastened when the vehicle is
moving: standing in the vehicle, or sitting
on the convertible top storage area or
center console when the vehicle is moving
is a dangerous way to ride. During a
sudden manoeuvre or collision you could
be seriously injured or even killed.
59)Always keep your hands and fingers
away from the fastening mechanisms when
moving the convertible top: it is dangerous
to place your hands or fingers near the
fastening mechanisms. Your hands or
fingers could be caught and injured by the
mechanism.
60)Be careful while installing/removing the
soft top to prevent any damage or injury.
61)Keep children away from the area in
which the soft-top is folding while
installing/removing it.
IMPORTANT
12)Never open the soft top in presence of
snow or ice to prevent damage.
13)Loads may not be secured on the roof.
14)Bird droppings and plant resins must
be washed off the soft top immediately as
they can damage its fabric.
15)Never use high-pressure washing
systems.
16)When using steam washers or
high-pressure water washers, maintain a
suitable distance and do not exceed a
maximum temperature of 60°C. Damage,
alterations and water infiltration may occur
if the distance is too small or if pressure is
too high.
17)If a water jet is used, direct away from
the edges of the fabric and the windscreen
surround to prevent water infiltration.
18)Never use alcohol, petrol, chemical
products, detergents, stain removers, wax,
solvents and “wash and polish” products.
19)Rinse immediately to remove soap to
prevent stains and blots. Repeat the
operation if needed.
20)Follow the instructions on the
waterproofing product container for perfect
results.
21)The rubber seals of the soft top must
be washed with water only. If you notice
that seals are dry or sticking, apply talcum
powder or products specifically for rubber
(silicone spray).
47

KNOWING THE INSTRUMENT PANEL
This section of the owner handbook
gives you all the information you need
to understand, interpret and use the
instrument panel correctly.CONTROL PANEL AND
INSTRUMENTS..............49
MAINTENANCE MONITOR.......54
WARNING LIGHTS AND
MESSAGES................54
48
KNOWING THE INSTRUMENT PANEL
